TAttFill

class TAttFill

    public:

             TAttFill TAttFill()
             TAttFill TAttFill(Color_t fcolor, Style_t fstyle)
             TAttFill TAttFill(TAttFill&)
         virtual void ~TAttFill()
       static TClass* Class()
                 void Copy(TAttFill& attfill)
              Color_t GetFillColor() const
              Style_t GetFillStyle() const
      virtual TClass* IsA() const
               Bool_t IsTransparent() const
         virtual void Modify()
         virtual void ResetAttFill(Option_t* option)
         virtual void SaveFillAttributes(ofstream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1001)
         virtual void SetFillAttributes()
         virtual void SetFillColor(Color_t fcolor)
         virtual void SetFillStyle(Style_t fstyle)
         virtual void ShowMembers(TMemberInspector& insp, char* parent)
         virtual void Streamer(TBuffer& b)
                 void StreamerNVirtual(TBuffer& b)

  Data Members
    private:


    protected:

      Color_t fFillColor  fill area color
      Style_t fFillStyle  fill area style

See also

TArrow, TBox, TEllipse, TF1, TGraph, TH1, TLegendEntry, TLego, TMarker3DBox, TMaterial, TNode, TPolyLine, TShape, TSpline, TStyle, TTree, TVirtualPS, TVirtualPad, TVirtualX, TVolume

Class Description

*-*-*-*-*-*-*-*-*-*-*-*-*Fill Area Attributes class*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ==========================
*-*  Fill Area attributes are:
*-*    Fill COLOR_
*-*    Fill Style
*-*
*-*  This class is used (in general by secondary inheritance)
*-*  by many other classes (graphics, histograms).
*-*

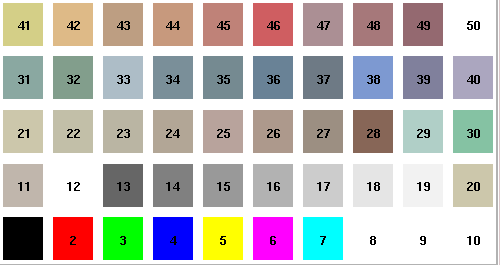

*-*  The following table shows the list of default colors.

/*

*/


  Conventions for fill styles:
    0    : hollow
    1001 : Solid
    2001 : hatch style
    3000+pattern_number (see below)
    4000 :the window is transparent.
    4000 to 4100 the window is 100% transparent to 100% opaque

*-*  The following table shows the list of pattern styles.

/*

*/

*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill default constructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ===========================
*-*  Default fill attributes are taking from the current style
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill normal constructor*-*-*-*-*-*-*-*-*-*-*-*
*-*                      ===========================
*-*    color Fill COLOR_
*-*    style Fill Style
*-*
*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*

*-*-*-*-*-*-*-*-*-*-*-*-*AttFill destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      =================

*-*-*-*-*-*-*-*-*Copy this fill attributes to a new attfill*-*-*-*-*-*-*-*-*
*-*              ==========================================

*-*-*-*-*-*-*-*Change current fill area attributes if necessary*-*-*-*-*-*-*
*-*            ================================================

*-*-*-*-*-*-*-*-*Reset this fill attributes to default values*-*-*-*-*-*-*
*-*              ============================================

 Save fill attributes as C++ statement(s) on output stream out

*-*-*-*-*-*-*-*-*Invoke the DialogCanvas Fill attributes*-*-*-*-*-*-*
*-*              =======================================

Inline Functions

            Color_t GetFillColor() const
            Style_t GetFillStyle() const
             Bool_t IsTransparent() const
               void SetFillColor(Color_t fcolor)
               void SetFillStyle(Style_t fstyle)
            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)
               void StreamerNVirtual(TBuffer& b)
           TAttFill TAttFill(TAttFill&)
