library: libGed
#include "TAttFillEditor.h"

TAttFillEditor

class description - source file - inheritance tree (.pdf)

class TAttFillEditor : public TGedFrame

Inheritance Chart:
TObject
<-
TGObject
<-
TGWindow
TQObject
<-
TGFrame
<-
TGCompositeFrame
TGWidget
<-
TGedFrame
<-
TAttFillEditor


    protected:

      virtual void ConnectSignals2Slots()

    public:

                      TAttFillEditor(const TGWindow* p, Int_t id, Int_t width = 140, Int_t height = 30, UInt_t options = kChildFrame, Pixel_t back = GetDefaultFrameBackground())
                      TAttFillEditor(const TAttFillEditor&)
              virtual ~TAttFillEditor()
       static TClass* Class()
         virtual void DoFillColor(Pixel_t color)
         virtual void DoFillPattern(Style_t color)
      virtual TClass* IsA() const
         virtual void SetModel(TVirtualPad* pad, TObject* obj, Int_t event)
         virtual void ShowMembers(TMemberInspector& insp, char* parent)
         virtual void Streamer(TBuffer& b)
                 void StreamerNVirtual(TBuffer& b)

Data Members


    protected:

               TAttFill* fAttFill        fill attribute object
          TGColorSelect* fColorSelect    fill color widget
      TGedPatternSelect* fPatternSelect  fill pattern widget

Class Description


  TAttFillEditor

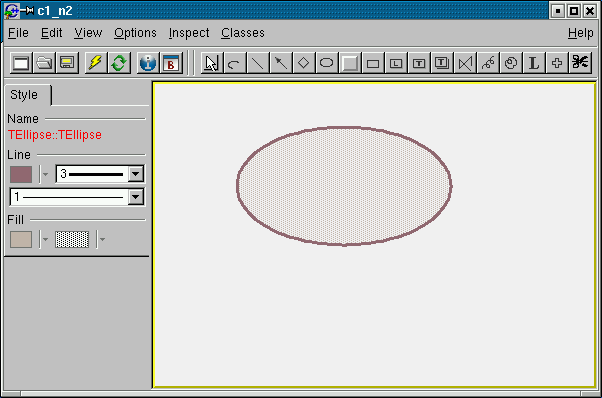

  Implements GUI for editing fill attributes.                         //
             color and fill style
/* */

 TAttFillEditor(const TGWindow *p, Int_t id, Int_t width,
                               Int_t height, UInt_t options, Pixel_t back)
   : TGedFrame(p, id, width, height, options | kVerticalFrame, back)



 Constructor of fill attributes GUI.


 ~TAttFillEditor()



 Destructor of fill editor.


void ConnectSignals2Slots()



 Connect signals to slots.


void SetModel(TVirtualPad* pad, TObject* obj, Int_t)



 Pick up the used fill attributes.


void DoFillColor(Pixel_t color)



 Slot connected to the fill area color.


void DoFillPattern(Style_t pattern)



 Slot connected to the fill area pattern.






Inline Functions




               TClass* Class()
               TClass* IsA() const
                  void ShowMembers(TMemberInspector& insp, char* parent)
                  void Streamer(TBuffer& b)
                  void StreamerNVirtual(TBuffer& b)
        TAttFillEditor TAttFillEditor(const TAttFillEditor&)







Author: Ilka Antcheva 10/05/04

Last update: root/ged:$Name:  $:$Id: TAttFillEditor.cxx,v 1.7 2004/12/16 09:04:49 brun Exp $

Copyright  (C) 1995-2002, Rene Brun and Fons Rademakers.               *
