library: libGeom
#include "TGeoMaterial.h"

TGeoMaterial


class description - source file - inheritance tree (.pdf)

class TGeoMaterial : public TNamed, public TAttFill

Inheritance Chart:
TObject
<-
TNamed
TAttFill
<-
TGeoMaterial
<-
TGeoMixture

    public:
TGeoMaterial() TGeoMaterial(const char* name) TGeoMaterial(const char* name, Double_t a, Double_t z, Double_t rho, Double_t radlen = 0, Double_t intlen = 0) TGeoMaterial(const char* name, TGeoElement* elem, Double_t rho) TGeoMaterial(const TGeoMaterial&) virtual ~TGeoMaterial() static TClass* Class() static Double_t Coulomb(Double_t z) virtual Double_t GetA() const virtual Int_t GetByteCount() const virtual TObject* GetCerenkovProperties() const virtual Int_t GetDefaultColor() const virtual Double_t GetDensity() const virtual TGeoElement* GetElement(Int_t i = 0) const Int_t GetIndex() virtual Double_t GetIntLen() const virtual Double_t GetRadLen() const Char_t GetTransparency() const virtual Double_t GetZ() const virtual TClass* IsA() const virtual Bool_t IsEq(const TGeoMaterial* other) const virtual Bool_t IsMixture() const Bool_t IsUsed() const TGeoMaterial& operator=(const TGeoMaterial&) virtual void Print(Option_t* option) const static Double_t ScreenFactor(Double_t z) virtual void SetCerenkovProperties(TObject* cerenkov) void SetIndex(Int_t index) void SetRadLen(Double_t radlen, Double_t intlen = 0.) void SetTransparency(Char_t transparency = 0) void SetUsed(Bool_t flag = kTRUE) virtual void ShowMembers(TMemberInspector& insp, char* parent) virtual void Streamer(TBuffer& b) void StreamerNVirtual(TBuffer& b)

Data Members


    protected:
Int_t fIndex material index Double_t fA A of material Double_t fZ Z of material Double_t fDensity density of material Double_t fRadLen radiation length Double_t fIntLen interaction length TObject* fShader shader with optical properties TObject* fCerenkov pointer to class with Cerenkov properties public:
static const TGeoMaterial::EGeoMaterial kMatUsed

Class Description

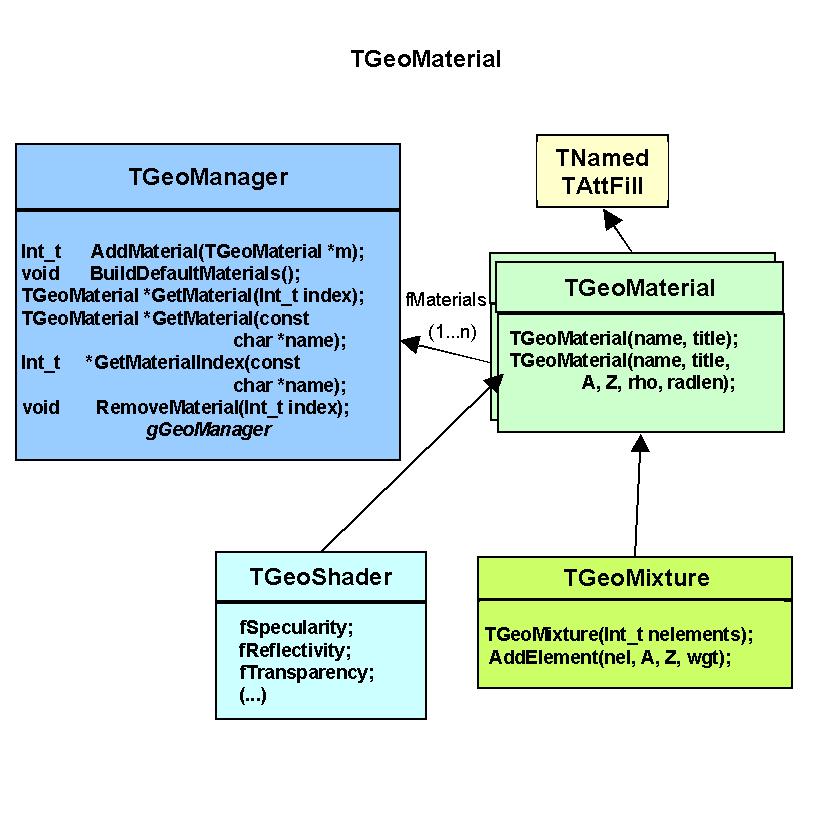

 Full description with examples and pictures




/* */

TGeoMaterial()
 Default constructor

TGeoMaterial(const char *name) :TNamed(name, "")
 constructor

TGeoMaterial(const char *name, Double_t a, Double_t z, Double_t rho, Double_t radlen, Double_t intlen) :TNamed(name, "")
 constructor

TGeoMaterial(const char *name, TGeoElement *elem, Double_t rho) :TNamed(name, "")
 constructor

~TGeoMaterial()
 Destructor

void SetRadLen(Double_t radlen, Double_t intlen)
 Set radiation/absorbtion lengths

Double_t Coulomb(Double_t z)
 static function
  Compute Coulomb correction for pair production and Brem
  REFERENCE : EGS MANUAL SLAC 210 - UC32 - JUNE 78
                        FORMULA 2.7.17

Bool_t IsEq(const TGeoMaterial *other) const
 return true if the other material has the same physical properties

void Print(const Option_t * /*option*/) const
 print characteristics of this material

Int_t GetDefaultColor() const

TGeoElement* GetElement(Int_t) const

Int_t GetIndex()
 Retreive material index in the list of materials

Double_t ScreenFactor(Double_t z)
 static function
  Compute screening factor for pair production and Bremstrahlung
  REFERENCE : EGS MANUAL SLAC 210 - UC32 - JUNE 78
                        FORMULA 2.7.22



Inline Functions


                Int_t GetByteCount() const
             Double_t GetA() const
             Double_t GetZ() const
             Double_t GetDensity() const
             Double_t GetRadLen() const
             Double_t GetIntLen() const
             TObject* GetCerenkovProperties() const
               Char_t GetTransparency() const
               Bool_t IsUsed() const
               Bool_t IsMixture() const
                 void SetIndex(Int_t index)
                 void SetCerenkovProperties(TObject* cerenkov)
                 void SetUsed(Bool_t flag = kTRUE)
                 void SetTransparency(Char_t transparency = 0)
              TClass* Class()
              TClass* IsA() const
                 void ShowMembers(TMemberInspector& insp, char* parent)
                 void Streamer(TBuffer& b)
                 void StreamerNVirtual(TBuffer& b)
         TGeoMaterial TGeoMaterial(const TGeoMaterial&)
        TGeoMaterial& operator=(const TGeoMaterial&)


Author: Andrei Gheata 25/10/01
Last update: root/geom:$Name: $:$Id: TGeoMaterial.cxx,v 1.17 2004/11/04 10:38:21 brun Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
