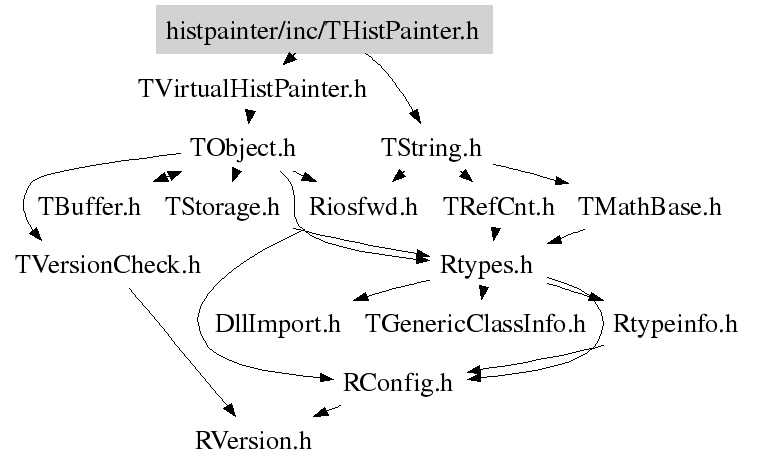

The histogram painter class Histograms are drawn via the THistPainter class. Each histogram has a pointer to its own painter (to be usable in a multithreaded program). When the canvas has to be redrawn, the Paint function of the objects in the pad is called. In case of histograms, TH1::Paint invokes directly THistPainter::Paint. See THistPainter::Paint for the list of drawing options and examples.
THistPainter() | |
THistPainter(const THistPainter&) | |
virtual | ~THistPainter() |
void | TObject::AbstractMethod(const char* method) const |
virtual void | TObject::AppendPad(Option_t* option = "") |
virtual void | TObject::Browse(TBrowser* b) |
static TClass* | Class() |
virtual const char* | TObject::ClassName() const |
virtual void | TObject::Clear(Option_t* = "") |
virtual TObject* | TObject::Clone(const char* newname = "") const |
virtual Int_t | TObject::Compare(const TObject* obj) const |
virtual void | TObject::Copy(TObject& object) const |
virtual void | DefineColorLevels(Int_t ndivz) |
virtual void | TObject::Delete(Option_t* option = "") |
virtual Int_t | DistancetoPrimitive(Int_t px, Int_t py) |
virtual void | TObject::Draw(Option_t* option = "") |
virtual void | TObject::DrawClass() const |
virtual TObject* | TObject::DrawClone(Option_t* option = "") const |
virtual void | DrawPanel() |
virtual void | TObject::Dump() const |
virtual void | TObject::Error(const char* method, const char* msgfmt) const |
virtual void | TObject::Execute(const char* method, const char* params, Int_t* error = 0) |
virtual void | TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0) |
virtual void | ExecuteEvent(Int_t event, Int_t px, Int_t py) |
virtual void | TObject::Fatal(const char* method, const char* msgfmt) const |
virtual TObject* | TObject::FindObject(const char* name) const |
virtual TObject* | TObject::FindObject(const TObject* obj) const |
virtual void | FitPanel() |
static const char* | GetBestFormat(Double_t v, Double_t e, const char* f) |
virtual TList* | GetContourList(Double_t contour) const |
virtual Option_t* | TObject::GetDrawOption() const |
static Long_t | TObject::GetDtorOnly() |
virtual const char* | TObject::GetIconName() const |
virtual const char* | TObject::GetName() const |
virtual char* | GetObjectInfo(Int_t px, Int_t py) const |
static Bool_t | TObject::GetObjectStat() |
virtual Option_t* | TObject::GetOption() const |
virtual TList* | GetStack() const |
virtual const char* | TObject::GetTitle() const |
virtual UInt_t | TObject::GetUniqueID() const |
virtual Bool_t | TObject::HandleTimer(TTimer* timer) |
virtual ULong_t | TObject::Hash() const |
static TVirtualHistPainter* | TVirtualHistPainter::HistPainter(TH1* obj) |
virtual void | TObject::Info(const char* method, const char* msgfmt) const |
virtual Bool_t | TObject::InheritsFrom(const char* classname) const |
virtual Bool_t | TObject::InheritsFrom(const TClass* cl) const |
virtual void | TObject::Inspect() const |
void | TObject::InvertBit(UInt_t f) |
virtual TClass* | IsA() const |
virtual Bool_t | TObject::IsEqual(const TObject* obj) const |
virtual Bool_t | TObject::IsFolder() const |
virtual Bool_t | IsInside(Int_t x, Int_t y) |
virtual Bool_t | IsInside(Double_t x, Double_t y) |
Bool_t | TObject::IsOnHeap() const |
virtual Bool_t | TObject::IsSortable() const |
Bool_t | TObject::IsZombie() const |
virtual void | TObject::ls(Option_t* option = "") const |
virtual Int_t | MakeChopt(Option_t* option) |
virtual Int_t | MakeCuts(char* cutsopt) |
void | TObject::MayNotUse(const char* method) const |
virtual Bool_t | TObject::Notify() |
static void | TObject::operator delete(void* ptr) |
static void | TObject::operator delete(void* ptr, void* vp) |
static void | TObject::operator delete[](void* ptr) |
static void | TObject::operator delete[](void* ptr, void* vp) |
void* | TObject::operator new(size_t sz) |
void* | TObject::operator new(size_t sz, void* vp) |
void* | TObject::operator new[](size_t sz) |
void* | TObject::operator new[](size_t sz, void* vp) |
THistPainter& | operator=(const THistPainter&) |
virtual void | Paint(Option_t* option = "") |
virtual void | Paint2DErrors(Option_t* option) |
virtual void | PaintArrows(Option_t* option) |
virtual void | PaintAxis(Bool_t drawGridOnly = kFALSE) |
virtual void | PaintBar(Option_t* option) |
virtual void | PaintBarH(Option_t* option) |
virtual void | PaintBoxes(Option_t* option) |
virtual void | PaintColorLevels(Option_t* option) |
virtual void | PaintContour(Option_t* option) |
virtual Int_t | PaintContourLine(Double_t elev1, Int_t icont1, Double_t x1, Double_t y1, Double_t elev2, Int_t icont2, Double_t x2, Double_t y2, Double_t* xarr, Double_t* yarr, Int_t* itarr, Double_t* levels) |
virtual void | PaintErrors(Option_t* option) |
virtual void | PaintFrame() |
virtual void | PaintFunction(Option_t* option) |
virtual void | PaintH3(Option_t* option = "") |
virtual void | PaintH3Iso() |
virtual void | PaintHist(Option_t* option) |
virtual Int_t | PaintInit() |
virtual Int_t | PaintInitH() |
virtual void | PaintLego(Option_t* option) |
virtual void | PaintLegoAxis(TGaxis* axis, Double_t ang) |
virtual void | PaintPalette() |
virtual void | PaintScatterPlot(Option_t* option) |
static void | PaintSpecialObjects(const TObject* obj, Option_t* option) |
virtual void | PaintStat(Int_t dostat, TF1* fit) |
virtual void | PaintStat2(Int_t dostat, TF1* fit) |
virtual void | PaintStat3(Int_t dostat, TF1* fit) |
virtual void | PaintSurface(Option_t* option) |
virtual void | PaintTable(Option_t* option) |
virtual void | PaintText(Option_t* option) |
virtual void | PaintTF3() |
virtual void | PaintTitle() |
virtual void | PaintTriangles(Option_t* option) |
virtual void | TObject::Pop() |
virtual void | TObject::Print(Option_t* option = "") const |
virtual void | ProcessMessage(const char* mess, const TObject* obj) |
static Int_t | ProjectAitoff2xy(Double_t l, Double_t b, Double_t& Al, Double_t& Ab) |
static Int_t | ProjectMercator2xy(Double_t l, Double_t b, Double_t& Al, Double_t& Ab) |
static Int_t | ProjectParabolic2xy(Double_t l, Double_t b, Double_t& Al, Double_t& Ab) |
static Int_t | ProjectSinusoidal2xy(Double_t l, Double_t b, Double_t& Al, Double_t& Ab) |
virtual Int_t | TObject::Read(const char* name) |
virtual void | RecalculateRange() |
virtual void | RecursiveRemove(TObject*) |
void | TObject::ResetBit(UInt_t f) |
virtual void | TObject::SaveAs(const char* filename = "", Option_t* option = "") const |
virtual void | TObject::SavePrimitive(ostream& out, Option_t* option = "") |
void | TObject::SetBit(UInt_t f) |
void | TObject::SetBit(UInt_t f, Bool_t set) |
virtual void | TObject::SetDrawOption(Option_t* option = "") |
static void | TObject::SetDtorOnly(void* obj) |
virtual void | SetHistogram(TH1* h) |
static void | TObject::SetObjectStat(Bool_t stat) |
static void | TVirtualHistPainter::SetPainter(const char* painter) |
virtual void | SetShowProjection(const char* option, Int_t nbins) |
virtual void | SetStack(TList* stack) |
virtual void | TObject::SetUniqueID(UInt_t uid) |
virtual void | ShowMembers(TMemberInspector& insp, char* parent) |
virtual void | ShowProjection3(Int_t px, Int_t py) |
virtual void | ShowProjectionX(Int_t px, Int_t py) |
virtual void | ShowProjectionY(Int_t px, Int_t py) |
virtual void | Streamer(TBuffer& b) |
void | StreamerNVirtual(TBuffer& b) |
virtual void | TObject::SysError(const char* method, const char* msgfmt) const |
virtual Int_t | TableInit() |
Bool_t | TObject::TestBit(UInt_t f) const |
Int_t | TObject::TestBits(UInt_t f) const |
virtual void | TObject::UseCurrentStyle() |
virtual void | TObject::Warning(const char* method, const char* msgfmt) const |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const |
virtual void | TObject::DoError(int level, const char* location, const char* fmt, va_list va) const |
void | TObject::MakeZombie() |
enum TObject::EStatusBits { | kCanDelete | |
kMustCleanup | ||
kObjInCanvas | ||
kIsReferenced | ||
kHasUUID | ||
kCannotPick | ||
kNoContextMenu | ||
kInvalidObject | ||
}; | ||
enum TObject::[unnamed] { | kIsOnHeap | |
kNotDeleted | ||
kZombie | ||
kBitMask | ||
kSingleKey | ||
kOverwrite | ||
kWriteDelete | ||
}; |
TCutG* | fCuts[16] | Pointers to graphical cuts |
Int_t | fCutsOpt[16] | sign of each cut |
TList* | fFunctions | pointer to histogram list of functions |
TGraphPainter* | fGraphPainter | pointer to a fGraphPainter object |
TH1* | fH | pointer to histogram to paint |
TPainter3dAlgorithms* | fLego | pointer to a TPainter3dAlgorithms object |
Int_t | fNcuts | Number of graphical cuts |
TPie* | fPie | pointer to a TPie in case of option PIE |
TString | fShowOption | Option to draw the projection |
Int_t | fShowProjection | True if a projection must be drawn |
TList* | fStack | Pointer to stack of histograms (if any) |
TAxis* | fXaxis | pointer to X axis |
Double_t* | fXbuf | X buffer coordinates |
TAxis* | fYaxis | pointer to Y axis |
Double_t* | fYbuf | Y buffer coordinates |
TAxis* | fZaxis | pointer to Z axis |
Compute distance from point px,py to a line. Compute the closest distance of approach from point px,py to elements of an histogram. The distance is computed in pixels units. Algorithm: Currently, this simple model computes the distance from the mouse to the histogram contour only.
Display a panel with all histogram drawing options. See class TDrawPanelHist for example
Execute action corresponding to one event. This member function is called when a histogram is clicked with the locator If Left button clicked on the bin top value, then the content of this bin is modified according to the new position of the mouse when it is released.
Get a contour (as a list of TGraphs) using the Delaunay triangulation
Redefines TObject::GetObjectInfo. Displays the histogram info (bin number, contents, integral up to bin corresponding to cursor position px,py
return kTRUE if the cell ix, iy is inside one of the graphical cuts
return kTRUE if the point x,y is inside one of the graphical cuts
Control routine to paint any kind of histograms. When you call the Draw method of a histogram for the first time (TH1::Draw), it creates a THistPainter object and saves a pointer to painter as a data member of the histogram. The THistPainter class specializes in the drawing of histograms. It is separate from the histogram so that one can have histograms without the graphics overhead, for example in a batch program. The choice to give each histogram have its own painter rather than a central singleton painter, allows two histograms to be drawn in two threads without overwriting the painter's values. When a displayed histogram is filled again you do not have to call the Draw method again. The image is refreshed the next time the pad is updated. A pad is updated after one of these three actions:::Paint - a carriage control on the ROOT command line - a click inside the pad - a call to TPad::Update By default a call to TH1::Draw clears the pad of all objects before drawing the new image of the histogram. You can use the "SAME" option to leave the previous display intact and superimpose the new histogram. The same histogram can be drawn with different graphics options in different pads. When a displayed histogram is deleted, its image is automatically removed from the pad. To create a copy of the histogram when drawing it, you can use TH1::DrawClone. This will clone the histogram and allow you to change and delete the original one without affecting the clone. Setting the Style Histograms use the current style (gStyle). When you change the current style and would like to propagate the change to the histogram you can call TH1::UseCurrentStyle. You will need to call UseCurrentStyle on each histogram. When reading many histograms from a file and you wish to update them to the current style you can use gROOT::ForceStyle and all histograms read after this call will be updated to use the current style. The following options are supported on all types: "AXIS" : Draw only axis "AXIG" : Draw only grid (if the grid is requested) "HIST" : When an histogram has errors it is visualized by default with error bars. To visualize it without errors use the option HIST together with the required option (eg "hist same c"). The "HIST" option can also be used to plot only the histogram and not the associated function(s). "SAME" : Superimpose on previous picture in the same pad "CYL" : Use Cylindrical coordinates. The X coordinate is mapped on the angle and the Y coordinate on the cylinder length. "POL" : Use Polar coordinates. The X coordinate is mapped on the angle and the Y coordinate on the radius. "SPH" : Use Spherical coordinates. The X coordinate is mapped on the latitude and the Y coordinate on the longitude. "PSR" : Use PseudoRapidity/Phi coordinates. The X coordinate is mapped on Phi. "LEGO" : Draw a lego plot with hidden line removal "LEGO1" : Draw a lego plot with hidden surface removal "LEGO2" : Draw a lego plot using colors to show the cell contents "SURF" : Draw a surface plot with hidden line removal "SURF1" : Draw a surface plot with hidden surface removal "SURF2" : Draw a surface plot using colors to show the cell contents "SURF3" : same as SURF with in addition a contour view drawn on the top "SURF4" : Draw a surface using Gouraud shading "SURF5" : Same as SURF3 but only the colored contour is drawn. Used with option CYL, SPH or PSR it allows to draw colored contours on a sphere, a cylinder or a in pseudo rapidy space. In cartesian or polar coordinates, option SURF3 is used. "X+" : The X-axis is drawn on the top side of the plot. "Y+" : The Y-axis is drawn on the right side of the plot. The following options are supported for 1-D types: "AH" : Draw histogram without axis. "A" can be combined with any drawing option. : For instance, "AC" draws the histogram as a smooth Curve without axis. "][" : When this option is selected the first and last vertical lines : of the histogram are not drawn. "B" : Bar chart option "C" : Draw a smooth Curve througth the histogram bins "E" : Draw error bars "E0" : Draw error bars including bins with o contents "E1" : Draw error bars with perpendicular lines at the edges "E2" : Draw error bars with rectangles "E3" : Draw a fill area througth the end points of the vertical error bars "E4" : Draw a smoothed filled area through the end points of the error bars "X0" : When used with one of the "E" option, it suppress the error bar along X as gStyle->SetErrorX(0) would do. "L" : Draw a line througth the bin contents "P" : Draw current marker at each bin except empty bins "P0" : Draw current marker at each bin including empty bins "PIE" : Draw a Pie Chart. "*H" : Draw histogram with a * at each bin "LF2" : Draw histogram like with option "L" but with a fill area. : Note that "L" draws also a fill area if the hist fillcolor is set : but the fill area corresponds to the histogram contour. "9" : Force histogram to be drawn in high resolution mode. : By default, the histogram is drawn in low resolution : in case the number of bins is greater than the number of pixels : in the current pad. The following options are supported for 2-D types: "ARR" : arrow mode. Shows gradient between adjacent cells "BOX" : a box is drawn for each cell with surface proportional to the content's absolute value. A negative content is marked with a X. "BOX1" : a button is drawn for each cell with surface proportional to content's absolute value. A sunken button is drawn for negative values a raised one for positive. "COL" : a box is drawn for each cell with a color scale varying with contents "COLZ" : same as "COL". In addition the color palette is also drawn "CONT" : Draw a contour plot (same as CONT0) "CONT0" : Draw a contour plot using surface colors to distinguish contours "CONT1" : Draw a contour plot using line styles to distinguish contours "CONT2" : Draw a contour plot using the same line style for all contours "CONT3" : Draw a contour plot using fill area colors "CONT4" : Draw a contour plot using surface colors (SURF option at theta = 0) "CONT5" : (TGraph2D only) Draw a contour plot using Delaunay triangles "LIST" : Generate a list of TGraph objects for each contour "FB" : With LEGO or SURFACE, suppress the Front-Box "BB" : With LEGO or SURFACE, suppress the Back-Box "A" : With LEGO or SURFACE, suppress the axis "SCAT" : Draw a scatter-plot (default) "TEXT" : Draw bin contents as text (format set via gStyle->SetPaintTextFormat) "TEXTnn" : Draw bin contents as text at angle nn (0 < nn < 90) "[cutg]" : Draw only the sub-range selected by the TCutG named "cutg" Most options can be concatenated without spaces or commas, for example: h->Draw("E1 SAME"); The options are not case sensitive: h->Draw("e1 same"); The options "BOX", "COL" or "COLZ", use the color palette defined in the current style (see TStyle::SeTPaletteAxis) The options "CONT" or "SURF" or "LEGO" have by default 20 equidistant contour levels, you can change the number of levels with TH1::SetContour or TStyle::SetNumberContours. You can also set the default drawing option with TH1::SetOption. To see the current option use TH1::GetOption. Setting line, fill, marker, and text attributes The histogram classes inherit from the attribute classes: TAttLine, TAttFill, TAttMarker and TAttText. See the description of these classes for the list of options. Setting Tick marks on the histogram axis The TPad::SetTicks method specifies the type of tick marks on the axis. Assume tx = gPad->GetTickx() and ty = gPad->GetTicky(). tx = 1 ; tick marks on top side are drawn (inside) tx = 2; tick marks and labels on top side are drawn ty = 1; tick marks on right side are drawn (inside) ty = 2; tick marks and labels on right side are drawn By default only the left Y axis and X bottom axis are drawn (tx = ty = 0) Use TPad::SetTicks(tx,ty) to set these options See also The TAxis functions to set specific axis attributes. In case multiple collor filled histograms are drawn on the same pad, the fill area may hide the axis tick marks. One can force a redraw of the axis over all the histograms by calling: gPad->RedrawAxis(); Giving titles to the X, Y and Z axis h->GetXaxis()->SetTitle("X axis title"); h->GetYaxis()->SetTitle("Y axis title"); The histogram title and the axis titles can be any TLatex string. The titles are part of the persistent histogram. Superimposing two histograms with different scales in the same pad The following script creates two histograms, the second histogram is the bins integral of the first one. It shows a procedure to draw the two histograms in the same pad and it draws the scale of the second histogram using a new vertical axis on the right side. (see also tutorial transpad.C for a variant of this example) void twoscales() { TCanvas *c1 = new TCanvas("c1","hists with different scales",600,400); //create/fill draw h1 gStyle->SetOptStat(kFALSE); TH1F *h1 = new TH1F("h1","my histogram",100,-3,3); Int_t i; for (i=0;i<10000;i++) h1->Fill(gRandom->Gaus(0,1)); h1->Draw(); c1->Update(); //create hint1 filled with the bins integral of h1 TH1F *hint1 = new TH1F("hint1","h1 bins integral",100,-3,3); Float_t sum = 0; for (i=1;i<=100;i++) { sum += h1->GetBinContent(i); hint1->SetBinContent(i,sum); } //scale hint1 to the pad coordinates Float_t rightmax = 1.1*hint1->GetMaximum(); Float_t scale = gPad->GetUymax()/rightmax; hint1->SetLineColor(kRed); hint1->Scale(scale); hint1->Draw("same"); //draw an axis on the right side TGaxis *axis = new TGaxis(gPad->GetUxmax(),gPad->GetUymin(), gPad->GetUxmax(), gPad->GetUymax(),0,rightmax,510,"+L"); axis->SetLineColor(kRed); axis->SetTextColor(kRed); axis->Draw(); }/* */
Statistics Display The type of information shown in the histogram statistics box can be selected with gStyle->SetOptStat(mode). The mode has up to seven digits that can be set to on(1) or off(0). mode = iourmen (default = 0001111) n = 1; name of histogram is printed e = 1; number of entries printed m = 1; mean value printed r = 1; rms printed u = 1; number of underflows printed o = 1; number of overflows printed i = 1; integral of bins printed For example: gStyle->SetOptStat(11); displays only the name of histogram and the number of entries. For example: gStyle->SetOptStat(1101); displays the name of histogram, mean value and RMS. WARNING: never call SetOptStat(000111); but SetOptStat(1111), 0001111 will be taken as an octal number !! SetOptStat can also take any combination of letters IOURMEN as its argument. For example gStyle->SetOptStat("NE"), gStyle->SetOptStat("NMR") and gStyle->SetOptStat("RMEN") are equivalent to the examples above. When the histogram is drawn, a TPaveStats object is created and added to the list of functions of the histogram. If a TPaveStats object already exists in the histogram list of functions, the existing object is just updated with the current histogram parameters. With the option "same", the statistic box is not redrawn. With the option "sames", the statistic box is drawn. If it hiddes the previous statistics box, you can change its position with these lines (if h is the pointer to the histogram): Root > TPaveStats *st = (TPaveStats*)h->FindObject("stats") Root > st->SetX1NDC(newx1); //new x start position Root > st->SetX2NDC(newx2); //new x end position To change the type of information for an histogram with an existing TPaveStats you should do: st->SetOptStat(mode) where mode has the same meaning than when calling gStyle->SetOptStat(mode) (see above). You can delete the stats box for a histogram TH1* h with h->SetStats(0) and activate it again with h->SetStats(1). Fit Statistics You can change the statistics box to display the fit parameters with the TStyle::SetOptFit(mode) method. This mode has four digits. mode = pcev (default = 0111) v = 1; print name/values of parameters e = 1; print errors (if e=1, v must be 1) c = 1; print Chisquare/Number of degress of freedom p = 1; print Probability For example: gStyle->SetOptFit(1011); prints the fit probability, parameter names/values, and errors. The ERROR bars options 'E' default. Shows only the error bars, not a marker 'E1' Small lines are drawn at the end of the error bars. 'E2' Error rectangles are drawn. 'E3' A filled area is drawn through the end points of the vertical error bars. '4' A smoothed filled area is drawn through the end points of the vertical error bars. 'E0' Draw also bins with null contents./* */
The BAR options When the option "bar" or "hbar" is specified, a bar chart is drawn. ----Vertical BAR chart: Options "bar","bar0","bar1","bar2","bar3","bar4" The bar is filled with the histogram fill color The left side of the bar is drawn with a light fill color The right side of the bar is drawn with a dark fill color The percentage of the bar drawn with either the light or dark color is 0 per cent for option "bar" or "bar0" is 10 per cent for option "bar1" is 20 per cent for option "bar2" is 30 per cent for option "bar3" is 40 per cent for option "bar4" Use TH1::SetBarWidth to control the bar width (default is the bin width) Use TH1::SetBarOffset to control the bar offset (default is 0) See example in $ROOTSYS/tutorials/hist/hbars.C/* */
----Horizontal BAR chart: Options "hbar","hbar0","hbar1","hbar2","hbar3","hbar4" An horizontal bar is drawn for each bin. The bar is filled with the histogram fill color The bottom side of the bar is drawn with a light fill color The top side of the bar is drawn with a dark fill color The percentage of the bar drawn with either the light or dark color is 0 per cent for option "hbar" or "hbar0" is 10 per cent for option "hbar1" is 20 per cent for option "hbar2" is 30 per cent for option "hbar3" is 40 per cent for option "hbar4" Use TH1::SetBarWidth to control the bar width (default is the bin width) Use TH1::SetBarOffset to control the bar offset (default is 0) See example in $ROOTSYS/tutorials/hist/hbars.C/* */

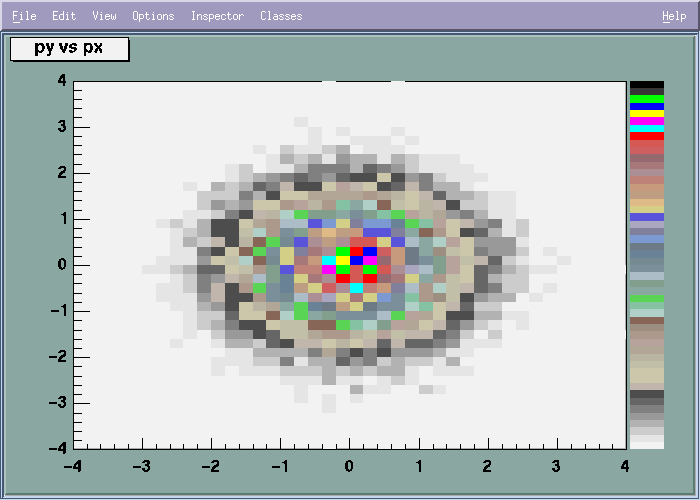

The SCATter plot option (default for 2-D histograms) For each cell (i,j) a number of points proportional to the cell content is drawn. A maximum of 500 points per cell are drawn. If the maximum is above 500 contents are normalized to 500. The ARRow option. Shows gradient between adjacent cells. For each cell (i,j) an arrow is drawn The orientation of the arrow follows the cell gradient The BOX option For each cell (i,j) a box is drawn with surface proportional to contents The COLor option For each cell (i,j) a box is drawn with a color proportional to the cell content. The color table used is defined in the current style (gStyle). The color palette in TStyle can be modified via TStyle::SeTPaletteAxis./* */

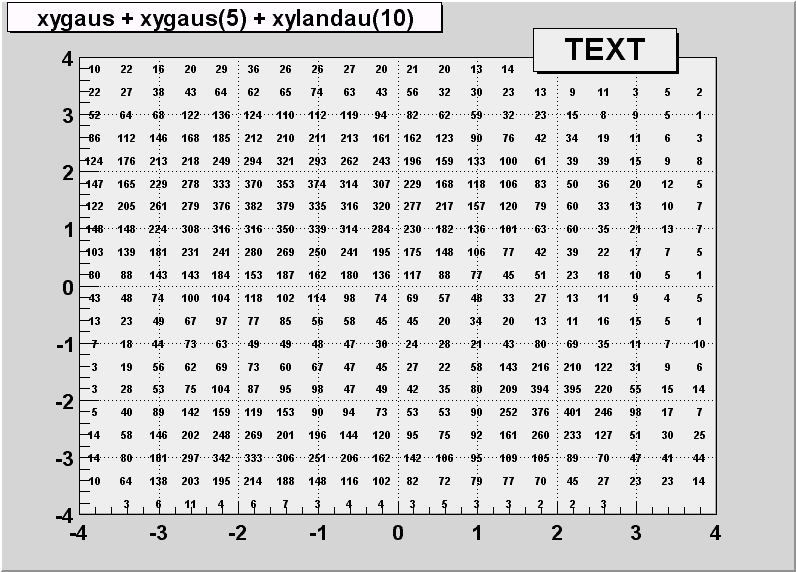

The TEXT and TEXTnn Option For each bin the content is printed. The text attributes are: - text font = current TStyle font - text size = 0.02*padheight*markersize - text color= marker color "nn" is the angle used to draw the text (0 < nn < 90)/* */
The CONTour options The following contour options are supported: "CONT" : Draw a contour plot (same as CONT0) "CONT0" : Draw a contour plot using surface colors to distinguish contours "CONT1" : Draw a contour plot using line styles to distinguish contours "CONT2" : Draw a contour plot using the same line style for all contours "CONT3" : Draw a contour plot using fill area colors "CONT4" : Draw a contour plot using surface colors (SURF option at theta = 0) "CONT5" : Draw a contour plot using Delaunay triangles The following options select the "CONT4" option and are usefull for skymaps or exposure maps. (see example in tutorial earth.C) "AITOFF" : Draw a contour via an AITOFF projection "MERCATOR" : Draw a contour via an Mercator projection "SINUSOIDAL" : Draw a contour via an Sinusoidal projection "PARABOLIC" : Draw a contour via an Parabolic projection The default number of contour levels is 20 equidistant levels and can be changed with TH1::SetContour or TStyle::SetNumberContours. When option "LIST" is specified together with option "CONT", the points used to draw the contours are saved in the TGraph object and are accessible in the following way: TObjArray *contours = gROOT->GetListOfSpecials()->FindObject("contours") Int_t ncontours = contours->GetSize(); TList *list = (TList*)contours->At(i); Where i is a contour number, and list contains a list of TGraph objects. For one given contour, more than one disjoint polyline may be generated. The number of TGraphs per countour is given by list->GetSize(). Here we show only the case to access the first graph in the list. TGraph *gr1 = (TGraph*)list->First();/* */
The LEGO options In a lego plot the cell contents are drawn as 3-d boxes, with the height of the box proportional to the cell content. A lego plot can be represented in several coordinate systems, the default system is Cartesian coordinates. Other possible coordinate systems are CYL,POL,SPH,PSR. "LEGO" : Draw a lego plot with hidden line removal "LEGO1" : Draw a lego plot with hidden surface removal "LEGO2" : Draw a lego plot using colors to show the cell contents See TStyle::SeTPaletteAxis to change the color palette. We suggest you use palette 1 with the call gStyle->SetColorPalette(1)/* */
The "SURFace" options In a surface plot, cell contents are represented as a mesh. The height of the mesh is proportional to the cell content. A surface plot can be represented in several coordinate systems. The default is cartesian coordinates, and the other possible systems are CYL,POL,SPH,PSR. "SURF" : Draw a surface plot with hidden line removal "SURF1" : Draw a surface plot with hidden surface removal "SURF2" : Draw a surface plot using colors to show the cell contents "SURF3" : same as SURF with in addition a contour view drawn on the top "SURF4" : Draw a surface using Gouraud shading The following picture uses SURF1. See TStyle::SeTPaletteAxis to change the color palette. We suggest you use palette 1 with the call gStyle->SetColorPalette(1)/* */
The SPEC option This option allows to use the TSpectrum2Painter tools. See full documentation in TSpectrum2Painter::PaintSpectrum. Option "Z" : Adding the color palette on the right side of the pad When this option is specified, a color palette with an axis indicating the value of the corresponding color is drawn on the right side of the picture. In case, not enough space is left, you can increase the size of the right margin by calling TPad::SetRightMargin. The attributes used to display the palette axis values are taken from the Z axis of the object. For example, you can set the labels size on the palette axis via hist->GetZaxis()->SetLabelSize(). Setting the color palette You can set the color palette with TStyle::SeTPaletteAxis, eg gStyle->SeTPaletteAxis(ncolors,colors); For example the option "COL" draws a 2-D histogram with cells represented by a box filled with a color index which is a function of the cell content. If the cell content is N, the color index used will be the color number in colors[N],etc. If the maximum cell content is > ncolors, all cell contents are scaled to ncolors. if ncolors <= 0, a default palette (see below) of 50 colors is defined. This palette is recommended for pads, labels if ncolors == 1 && colors == 0, a pretty palette with a violet to red spectrum is created. We recommend you use this palette when drawing legos, surfaces or contours. if ncolors > 0 and colors == 0, the default palette is used with a maximum of ncolors. The default palette defines: index 0 to 9 : shades of grey index 10 to 19 : shades of brown index 20 to 29 : shades of blue index 30 to 39 : shades of red index 40 to 49 : basic colors The color numbers specified in the palette can be viewed by selecting the item "colors" in the "VIEW" menu of the canvas toolbar. The color'a red, green, and blue values can be changed via TColor::SetRGB. Drawing a sub-range of a 2-D histogram; the [cutg] option Using a TCutG object, it is possible to draw a sub-range of a 2-D histogram. One must create a graphical cut (mouse or C++) and specify the name of the cut between [] in the Draw option. For example, with a TCutG named "cutg", one can call: myhist->Draw("surf1 [cutg]"); To invert the cut, it is enough to put a "-" in front of its name: myhist->Draw("surf1 [-cutg]"); It is possible to apply several cuts ("," means logical AND): myhist->Draw("surf1 [cutg1,cutg2]"); See a complete example in the tutorial fit2a.C. This example produces the following picture:/* */
Drawing options for 3-D histograms
By default a 3-d scatter plot is drawn
If option "BOX" is specified, a 3-D box with a volume proportional
to the cell content is drawn.
Control function to draw a table as an arrow plot. For each cell (i,j) an arrow is drawn The orientation of the arrow follows the cell gradient/* */
Draw axis (2D case) of an histogram Assume tx = gPad->GetTickx() and ty = gPad->GetTicky() by default only the left Y axis and X bottom axis are drawn (tx = ty = 0) tx = 1; tick marks on top side are drawn (inside) tx = 2; tick marks and labels on top side are drawn ty = 1; tick marks on right side are drawn (inside) ty = 2; tick marks and labels on right side are drawn Use TPad::SetTicks(tx,ty) to set these options If drawGridOnly is TRUE, only the grid is painted (if needed). This allows to draw the grid and the axis separately. In THistPainter::Paint this feature is used to make sure that the grid is drawn in the background and the axis tick marks in the foreground of the pad.
Draw a bar chart in a normal pad. (see PaintBarH to draw a bar chart in a rotated pad) This function is called by THistPainter::Paint when the option "bar" has been specified. A vertical bar is drawn for each bin. The bar is filled with the histogram fill color The left side of the bar is drawn with a light fill color The right side of the bar is drawn with a dark fill color The percentage of the bar drawn with either the light or dark color is 0 per cent for option "bar" or "bar0" is 10 per cent for option "bar1" is 20 per cent for option "bar2" is 30 per cent for option "bar3" is 40 per cent for option "bar4" Use TH1::SetBarWidth to control the bar width (default is the bin width) Use TH1::SetBarOffset to control the bar offset (default is 0) See example in $ROOTSYS/tutorials/hist/hbars.C/* */

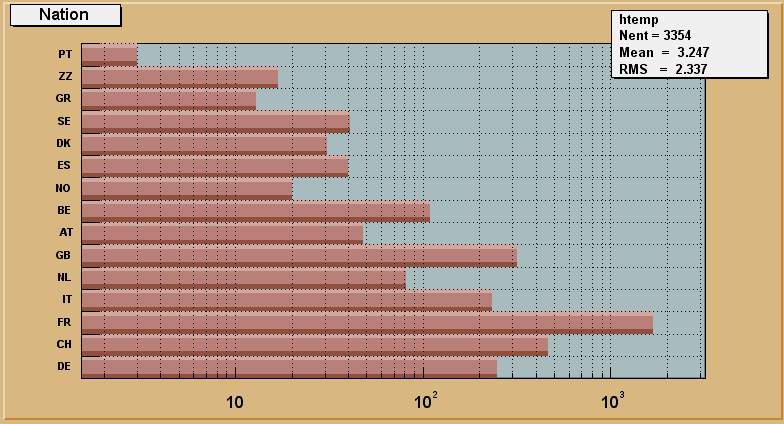

Draw a bar char in a rotated pad (X vertical, Y horizontal) (see PaintBar to draw a bar chart in a normal pad) This function is called by THistPainter::Paint when the option "hbar" has been specified. An horizontal bar is drawn for each bin. The bar is filled with the histogram fill color The bottom side of the bar is drawn with a light fill color The top side of the bar is drawn with a dark fill color The percentage of the bar drawn with either the light or dark color is 0 per cent for option "hbar" or "hbar0" is 10 per cent for option "hbar1" is 20 per cent for option "hbar2" is 30 per cent for option "hbar3" is 40 per cent for option "hbar4" Use TH1::SetBarWidth to control the bar width (default is the bin width) Use TH1::SetBarOffset to control the bar offset (default is 0) See example in $ROOTSYS/tutorials/hist/hbars.C/* */

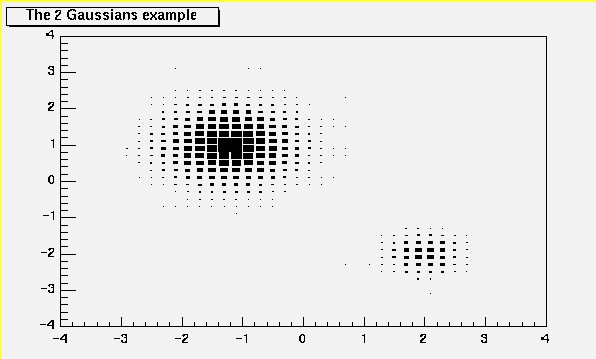

Control function to draw a table as a box plot. For each cell (i,j) a box is drawn. The size of the box is proportional to the absolute value of the cell content. The cells with a negative content draw with a X on top of the boxes./* */
With option BOX1 a button is drawn for each cell with surface proportional to content's absolute value. A sunken button is drawn for negative values a raised one for positive./* */
Control function to draw a table as a contour plot. Hoption.Contour may have the following values: 1 The contour is drawn with filled colour levels. ("cont") 11 Use colour to distinguish contours. ("cont1") 12 Use line style to distinguish contours. ("cont2") 13 Line style and colour are the same for all contours. ("cont3") 14 Same as 1 but uses the "SURF" algorithm ("cont4") see also options "AITOFF","MERCATOR",etc below 15 Use Delaunay triangles to compute the contours When option "List" is specified together with option "cont", the points used to draw the contours are saved in the TGraph format and are accessible in the following way: TObjArray *contours = (TObjArray*)gROOT->GetListOfSpecials()->FindObject("contours") Int_t ncontours = contours->GetSize(); TList *list = (TList*)contours->At(i); //where i is a contour number list contains a list of TGraph objects. For one given contour, more than one disjoint polyline may be generated. The number of TGraphs per countour is given by list->GetSize(). Here we show only the case to access the first graph in the list. TGraph *gr1 = (TGraph*)list->First();/* */
This function is also called when one of the options below is called; skymaps or exposure maps. (see example in tutorial earth.C) "AITOFF" : Draw a contour via an AITOFF projection "MERCATOR" : Draw a contour via an Mercator projection "SINUSOIDAL" : Draw a contour via an Sinusoidal projection "PARABOLIC" : Draw a contour via an Parabolic projection The tutorial earth.C uses these 4 options and produce the following picture:/* */
Fill the matrix XARR YARR for Contour Plot.
Draw histogram error bars. Draws error bars for the current histogram. The current polymarker is drawn at the centre of the errors according to CHOPT: ' ' Coordinates are expressed in histogram coordinates (of the last drawn histogram). Error bars are drawn. '1' Small lines are drawn at the end of the error bars. '2' Error rectangles are drawn. '3' A filled area is drawn through the end points of the vertical error bars. '4' A smoothed filled area is drawn through the end points of the vertical error bars. '0' Turn off the symbols clipping. 'X0' When used with one of the "E" option, it suppress the error bar along X as gStyle->SetErrorX(0) would do. Note that for all options, the line and fill attributes of the histogram are used for the errors or errors contours. Use gStyle->SetErrorX(dx) to control the size of the error along x. set dx = 0 to suppress the error along x. Use gStyle->SetEndErrorSize(np) to control the size of the lines at the end of the error bars (when option 1 is used). By default np=1. (np reprersents the number of pixels)./* */
Paint functions associated to an histogram. An associated function is created by THistPainter::Fit. Note that more than on fitted function can be associated with one histogram (see THistPainter::Fit). A TF1 object can be added to the list of associated functions directly by a user without calling THistPainter::Fit. To add a new function to the list of associated functions, do h->GetListOfFunctions()->Add(f1); or h->GetListOfFunctions()->Add(f1,someoption); To retrieve a function by name from this list, do: TF1 *f1 = (TF1*)h->GetListOfFunctions()->FindObject(name); or TF1 *f1 = h->GetFunction(name);
Control function to draw a 3-D histogram. The following options are supported: " " : Draw a 3D scatter plot. "BOX" : A box is drawn for each cell with volume proportional to the content's absolute value. "LEGO" : Same as "BOX". "ISO" : Draw an iso surface. (See: THistPainter::PaintH3Iso()). "FB" : Suppress the Front-Box. "BB" : Suppress the Back-Box. "A" : Suppress the axis.
Control function to draw a 3d histogram with Iso Surfaces. Thanks to the function IsoSurface of the TPainter3dAlgorithms class, this function paints a Gouraud shaded 3d iso surface though a 3d histogram. This first implementation paint one surface at the value computed as follow: SumOfWeights/(NbinsX*NbinsY*NbinsZ) Example: #include "TH3.h" #include "TRandom.h" void hist3d() { TH3F *h3 = new TH3F("h3","h3",20,-2,2,20,-2,2,20,0,4); Double_t x, y, z; for (Int_t i=0;i<10000;i++) { gRandom->Rannor(x, y); z = x*x + y*y; h3->Fill(x,y,z); } h3->Draw("iso"); }/* */
Control function to draw a table as a lego plot. In a lego plot, cell contents are represented as 3-d boxes. The height of the box is proportional to the cell content. A lego plot can be represented in several coordinate systems. Default system is Cartesian coordinates. Possible systems are CYL,POL,SPH,PSR. See THistPainter::Draw for the list of Lego options. See TPainter3dAlgorithms for more examples of lego options. See TStyle::SeTPaletteAxis to change the color palette. It is suggested to use palette 1 via the call gStyle->SetColorPalette(1)/* */
Control function to draw a table as a scatter plot. For each cell (i,j) a number of points proportional to the cell content is drawn. A maximum of kNMAX points per cell is drawn. If the maximum is above kNMAX contents are normalized to kNMAX. (kNMAX=2000) if option is of the form "scat=ff", (eg scat=1.8, scat=1e-3), then ff is used as a scale factor to compute the number of dots. "scat=1" is the default./* */
Static function to paint special objects like vectors and matrices This function is called via gROOT->ProcessLine to paint these objects without having a direct dependency of the graphics or histogramming system
Draw the statistics box for 1D and profile histograms The type of information printed in the histogram statistics box can be selected via gStyle->SetOptStat(mode). The parameter mode can be = iourmen (default = 0001111) n = 1; name of histogram is printed e = 1; number of entries printed m = 1; mean value printed m = 2; mean and mean error values printed r = 1; rms printed r = 2; rms and rms error printed u = 1; number of underflows printed o = 1; number of overflows printed i = 1; integral of bins printed s = 1; skewness printed s = 2; skewness and skewness error printed k = 1; kurtosis printed k = 2; kurtosis and kurtosis error printed Example: gStyle->SetOptStat(11); print only name of histogram and number of entries. The type of information about fit parameters printed in the histogram statistics box can be selected via gStyle->SetOptFit(mode). The parameter mode can be = pcev (default = 0111) v = 1; print name/values of parameters e = 1; print errors (if e=1, v must be 1) c = 1; print Chisquare/Number of degrees of freedom p = 1; print Probability When "v"=1 is specified, only the non-fixed parameters are shown. When "v"=2 all parameters are shown. Example: gStyle->SetOptFit(1011); print fit probability, parameter names/values and errors. Note: gStyle->SetOptFit(1) means "default value", so it is equivalent to gStyle->SetOptFit(111) When option "same" is specified, the statistic box is not drawn. Specify option "sames" to force painting statistics with option "same" When option "sames" is given, one can use the following technique to move a previous "stats" box to a new position Root > TPaveStats *st = (TPaveStats*)gPad->GetPrimitive("stats") Root > st->SetX1NDC(newx1); //new x start position Root > st->SetX2NDC(newx2); //new x end position Root > newhist->Draw("sames")
Draw the statistics box for 2D histogram. The type of information printed in the histogram statistics box can be selected via gStyle->SetOptStat(mode). The parameter mode can be = ourmen (default = 001111) n = 1; name of histogram is printed e = 1; number of entries printed m = 1; mean value printed m = 2; mean and mean error values printed r = 1; rms printed r = 2; rms and rms error printed u = 1; number of underflows printed o = 1; number of overflows printed i = 1; integral of bins printed s = 1; skewness printed s = 2; skewness and skewness error printed k = 1; kurtosis printed k = 2; kurtosis and kurtosis error printed Example: gStyle->SetOptStat(11); print only name of histogram and number of entries.
Draw the statistics box for 3D histogram. The type of information printed in the histogram statistics box can be selected via gStyle->SetOptStat(mode). The parameter mode can be = ourmen (default = 001111) n = 1; name of histogram is printed e = 1; number of entries printed m = 1; mean value printed m = 2; mean and mean error values printed r = 1; rms printed r = 2; rms and rms error printed u = 1; number of underflows printed o = 1; number of overflows printed i = 1; integral of bins printed s = 1; skewness printed s = 2; skewness and skewness error printed k = 1; kurtosis printed k = 2; kurtosis and kurtosis error printed Example: gStyle->SetOptStat(11); print only name of histogram and number of entries.
Control function to draw a table as a surface plot. In a surface plot, cell contents are represented as a mesh. The height of the mesh is proportional to the cell content. A surface plot can be represented in several coordinate systems. Default system is Cartesian coordinates. Possible systems are CYL,POL,SPH,PSR. See THistPainter::Draw for a list of Surface options The following picture is generated with option SURF1. See TStyle::SeTPaletteAxis to change the color palette. It is suggested to use palette 1 via the call gStyle->SetColorPalette(1)/* */

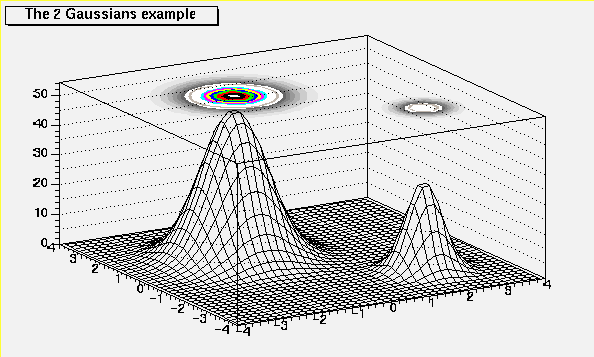

The following picture is generated with option SURF3./* */
Control function to draw a histogram with the bin values For each bin the content is printed. The text attributes are: - text font = current TStyle font - text size = 0.02*padheight*markersize - text color = marker color By default the format "g" is used. This format can be redefined by calling gStyle->SetPaintTextFormat This method is called when Paint() is invoked with the option "TEXT". It is also possible to use "TEXTnn" in order to draw the text with the angle nn (0 < nn < 90)./* */
Control function to draw a 3d implicit functions. Thanks to the function ImplicitFunction of the TPainter3dAlgorithms class, this function paints 3d representation of an implicit function. Example: TF3 *fun3 = new TF3("fun3","sin(x*x+y*y+z*z-36)",-2,2,-2,2,-2,2); fun3->Draw();/* */
Draw the histogram title The title is drawn according to the title alignment returned by GetTitleAlign. It is a 2 digits integer): hv where "h" is the horizontal alignment and "v" is the vertical alignment. "h" can get the values 1 2 3 for left, center, and right "v" can get the values 1 2 3 for bottom, middle and top for instance the default alignment is: 13 (left top)
Static function Convert Right Ascension, Declination to X,Y using an AITOFF projection. This procedure can be used to create an all-sky map in Galactic coordinates with an equal-area Aitoff projection. Output map coordinates are zero longitude centered. Also called Hammer-Aitoff projection (first presented by Ernst von Hammer in 1892) source: GMT code from Ernst-Jan Buis
Static function Probably the most famous of the various map projections, the Mercator projection takes its name from Mercator who presented it in 1569. It is a cylindrical, conformal projection with no distortion along the equator. The Mercator projection has been used extensively for world maps in which the distortion towards the polar regions grows rather large, thus incorrectly giving the impression that, for example, Greenland is larger than South America. In reality, the latter is about eight times the size of Greenland. Also, the Former Soviet Union looks much bigger than Africa or South America. One may wonder whether this illusion has had any influence on U.S. foreign policy.' (Source: GMT) code from Ernst-Jan Buis
Static function code from Ernst-Jan Buis
Static function code from Ernst-Jan Buis
This function returns the best format to print the error value (e) knowing the parameter value (v) and the format (f) used to print it.
Show projection (specified by fShowProjection) of a TH3 The drawing option for the projection is in fShowOption. First implementation; R.Brun Full implementation: Tim Tran (timtran@jlab.org) April 2006
