class TGeoTorus: public TGeoBBox

 TGeoTorus - Torus segment class. A torus has 5 parameters :
            R    - axial radius
            Rmin - inner radius
            Rmax - outer radius
            Phi1 - starting phi
            Dphi - phi extent


Function Members (Methods)

public:
TGeoTorus()
TGeoTorus(Double_t* params)
TGeoTorus(const TGeoTorus&)
TGeoTorus(Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
TGeoTorus(const char* name, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
virtual~TGeoTorus()
voidTObject::AbstractMethod(const char* method) const
virtual voidTGeoShape::AfterStreamer()
virtual voidTObject::AppendPad(Option_t* option = "")
static Bool_tTGeoBBox::AreOverlapping(const TGeoBBox* box1, const TGeoMatrix* mat1, const TGeoBBox* box2, const TGeoMatrix* mat2)
static Double_tTGeoShape::Big()
virtual voidTObject::Browse(TBrowser* b)
virtual Double_tCapacity() const
voidTGeoShape::CheckShape(Int_t testNo, Int_t nsamples = 10000, Option_t* option = "")
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual voidTGeoShape::ClearThreadData() const
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidComputeBBox()
static Double_tTGeoShape::ComputeEpsMch()
virtual voidComputeNormal(const Double_t* point, const Double_t* dir, Double_t* norm)
virtual voidComputeNormal_v(const Double_t* points, const Double_t* dirs, Double_t* norms, Int_t vecsize)
virtual Bool_tContains(const Double_t* point) const
virtual voidContains_v(const Double_t* points, Bool_t* inside, Int_t vecsize) const
virtual voidTNamed::Copy(TObject& named) const
virtual Bool_tTGeoBBox::CouldBeCrossed(const Double_t* point, const Double_t* dir) const
virtual voidTGeoShape::CreateThreadData(Int_t)
Double_tDaxis(const Double_t* pt, const Double_t* dir, Double_t t) const
Double_tDDaxis(const Double_t* pt, const Double_t* dir, Double_t t) const
Double_tDDDaxis(const Double_t* pt, const Double_t* dir, Double_t t) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tDistancetoPrimitive(Int_t px, Int_t py)
virtual Double_tDistFromInside(const Double_t* point, const Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
virtual voidDistFromInside_v(const Double_t* points, const Double_t* dirs, Double_t* dists, Int_t vecsize, Double_t* step) const
virtual Double_tDistFromOutside(const Double_t* point, const Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
virtual voidDistFromOutside_v(const Double_t* points, const Double_t* dirs, Double_t* dists, Int_t vecsize, Double_t* step) const
static Double_tTGeoShape::DistToPhiMin(const Double_t* point, const Double_t* dir, Double_t s1, Double_t c1, Double_t s2, Double_t c2, Double_t sm, Double_t cm, Bool_t in = kTRUE)
virtual TGeoVolume*Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
virtual voidTGeoShape::Draw(Option_t* option = "")MENU
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
static Double_tTGeoShape::EpsMch()
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTGeoShape::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual const char*GetAxisName(Int_t iaxis) const
virtual Double_tGetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const
virtual voidGetBoundingCylinder(Double_t* param) const
virtual const TBuffer3D&GetBuffer3D(Int_t reqSections, Bool_t localFrame) const
virtual Int_tGetByteCount() const
Double_tGetDphi() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual Double_tTGeoBBox::GetDX() const
virtual Double_tTGeoBBox::GetDY() const
virtual Double_tTGeoBBox::GetDZ() const
virtual Double_tTGeoBBox::GetFacetArea(Int_t index = 0) const
virtual Int_tTGeoBBox::GetFittingBox(const TGeoBBox* parambox, TGeoMatrix* mat, Double_t& dx, Double_t& dy, Double_t& dz) const
virtual const char*TObject::GetIconName() const
Int_tTGeoShape::GetId() const
virtual TGeoShape*GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const
virtual voidGetMeshNumbers(Int_t& nvert, Int_t& nsegs, Int_t& npols) const
virtual const char*TGeoShape::GetName() const
virtual Int_tGetNmeshVertices() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const Double_t*TGeoBBox::GetOrigin() const
Double_tGetPhi1() const
const char*TGeoShape::GetPointerName() const
virtual Bool_tTGeoBBox::GetPointsOnFacet(Int_t index, Int_t npoints, Double_t* array) const
virtual Bool_tGetPointsOnSegments(Int_t, Double_t*) const
Double_tGetR() const
Double_tGetRmax() const
Double_tGetRmin() const
virtual const char*TNamed::GetTitle() const
static TGeoMatrix*TGeoShape::GetTransform()
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
virtual voidInspectShape() const
voidTObject::InvertBit(UInt_t f)
voidTGeoShape::InvertShapeBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTGeoShape::IsAssembly() const
static Bool_tTGeoShape::IsCloseToPhi(Double_t epsil, const Double_t* point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
virtual Bool_tTGeoShape::IsComposite() const
static Bool_tTGeoShape::IsCrossingSemiplane(const Double_t* point, const Double_t* dir, Double_t cphi, Double_t sphi, Double_t& snext, Double_t& rxy)
virtual Bool_tIsCylType() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
static Bool_tTGeoShape::IsInPhiRange(const Double_t* point, Double_t phi1, Double_t phi2)
virtual Bool_tTGeoBBox::IsNullBox() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTGeoShape::IsReflected() const
Bool_tTGeoShape::IsRunTimeShape() const
static Bool_tTGeoShape::IsSameWithinTolerance(Double_t a, Double_t b)
static Bool_tTGeoShape::IsSegCrossing(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Double_t x3, Double_t y3, Double_t x4, Double_t y4)
virtual Bool_tTNamed::IsSortable() const
Bool_tTGeoShape::IsValid() const
virtual Bool_tTGeoBBox::IsValidBox() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
virtual TBuffer3D*MakeBuffer3D() const
voidTObject::MayNotUse(const char* method) const
static voidTGeoShape::NormalPhi(const Double_t* point, const Double_t* dir, Double_t* norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TGeoTorus&operator=(const TGeoTorus&)
virtual voidTGeoShape::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidTGeoShape::ResetShapeBit(UInt_t f)
virtual Double_tSafety(const Double_t* point, Bool_t in = kTRUE) const
virtual voidSafety_v(const Double_t* points, const Bool_t* inside, Double_t* safe, Int_t vecsize) const
static Double_tTGeoShape::SafetyPhi(const Double_t* point, Bool_t in, Double_t phi1, Double_t phi2)
static Double_tTGeoShape::SafetySeg(Double_t r, Double_t z, Double_t r1, Double_t z1, Double_t r2, Double_t z2, Bool_t outer)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidSavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidTGeoBBox::SetBoxDimensions(Double_t dx, Double_t dy, Double_t dz, Double_t* origin = 0)
voidTGeoBBox::SetBoxPoints(Double_t* points) const
virtual voidSetDimensions(Double_t* param)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidTGeoShape::SetId(Int_t id)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidSetPoints(Double_t* points) const
virtual voidSetPoints(Float_t* points) const
voidTGeoShape::SetRuntime(Bool_t flag = kTRUE)
virtual voidSetSegsAndPols(TBuffer3D& buff) const
voidTGeoShape::SetShapeBit(UInt_t f)
voidTGeoShape::SetShapeBit(UInt_t f, Bool_t set)
virtual voidTNamed::SetTitle(const char* title = "")MENU
voidSetTorusDimensions(Double_t r, Double_t rmin, Double_t rmax, Double_t phi1, Double_t dphi)
static voidTGeoShape::SetTransform(TGeoMatrix* matrix)
virtual voidTObject::SetUniqueID(UInt_t uid)
Int_tTGeoShape::ShapeDistancetoPrimitive(Int_t numpoints, Int_t px, Int_t py) const
virtual voidShowMembers(TMemberInspector&)
virtual Int_tTNamed::Sizeof() const
virtual voidSizeof3D() const
Int_tSolveCubic(Double_t a, Double_t b, Double_t c, Double_t* x) const
Int_tSolveQuartic(Double_t a, Double_t b, Double_t c, Double_t d, Double_t* x) const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
Bool_tTGeoShape::TestShapeBit(UInt_t f) const
Int_tTGeoShape::TestShapeBits(UInt_t f) const
Double_tToBoundary(const Double_t* pt, const Double_t* dir, Double_t r, Bool_t in) const
static Double_tTGeoShape::Tolerance()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
virtual voidTGeoBBox::FillBuffer3D(TBuffer3D& buffer, Int_t reqSections, Bool_t localFrame) const
Int_tTGeoShape::GetBasicColor() const
voidTObject::MakeZombie()
voidTGeoShape::SetOnBoundary(Bool_t)
voidTGeoShape::TransformPoints(Double_t* points, UInt_t NbPoints) const

Data Members

protected:
Double_tTGeoBBox::fDXX half-length
Double_tTGeoBBox::fDYY half-length
Double_tTGeoBBox::fDZZ half-length
Double_tfDphiphi extent
TStringTNamed::fNameobject identifier
Double_tTGeoBBox::fOrigin[3]box origin
Double_tfPhi1starting phi
Double_tfRaxial radius
Double_tfRmaxouter radius
Double_tfRmininner radius
UInt_tTGeoShape::fShapeBitsshape bits
Int_tTGeoShape::fShapeIdshape id
TStringTNamed::fTitleobject title

Class Charts

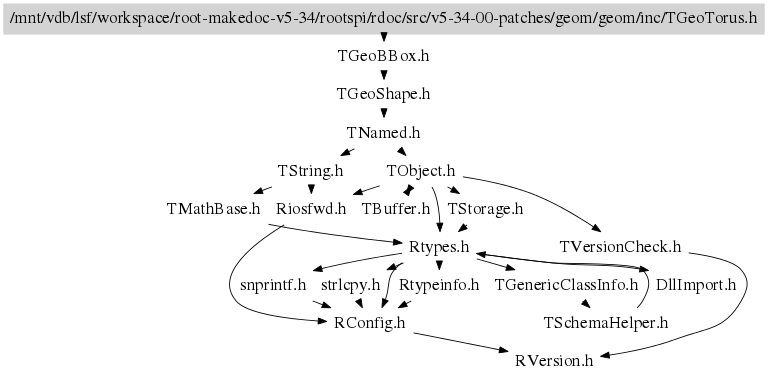

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoTorus()
 Default constructor
TGeoTorus(Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
 Constructor without name.
TGeoTorus(const char* name, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
 Constructor with name.
TGeoTorus(Double_t* params)
 Constructor based on an array of parameters.
 param[0] = R
 param[1] = Rmin
 param[2] = Rmax
 param[3] = Phi1
 param[4] = Dphi
Double_t Capacity() const
 Computes capacity of the shape in [length^3]
void ComputeBBox()
 Compute bounding box of the torus.
void ComputeNormal(const Double_t* point, const Double_t* dir, Double_t* norm)
 Compute normal to closest surface from POINT.
Bool_t Contains(const Double_t* point) const
 Test if point is inside the torus.
 check phi range
Int_t DistancetoPrimitive(Int_t px, Int_t py)
 Compute closest distance from point px,py to each vertex.
Double_t Daxis(const Double_t* pt, const Double_t* dir, Double_t t) const
 Computes distance to axis of the torus from point pt + t*dir;
Double_t DDaxis(const Double_t* pt, const Double_t* dir, Double_t t) const
 Computes derivative w.r.t. t of the distance to axis of the torus from point pt + t*dir;
Double_t DDDaxis(const Double_t* pt, const Double_t* dir, Double_t t) const
 Second derivative of distance to torus axis w.r.t t.
Double_t DistFromInside(const Double_t* point, const Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
 Compute distance from inside point to surface of the torus.
Double_t DistFromOutside(const Double_t* point, const Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
 Compute distance from outside point to surface of the torus.
TGeoVolume * Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
--- Divide this torus shape belonging to volume "voldiv" into ndiv volumes
 called divname, from start position with the given step.
const char * GetAxisName(Int_t iaxis) const
 Returns name of axis IAXIS.
Double_t GetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const
 Get range of shape for a given axis.
void GetBoundingCylinder(Double_t* param) const
--- Fill vector param[4] with the bounding cylinder parameters. The order
 is the following : Rmin, Rmax, Phi1, Phi2, dZ
TGeoShape * GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const
 Create a shape fitting the mother.
void InspectShape() const
 print shape parameters
TBuffer3D * MakeBuffer3D() const
 Creates a TBuffer3D describing *this* shape.
 Coordinates are in local reference frame.
void SetSegsAndPols(TBuffer3D& buff) const
 Fill TBuffer3D structure for segments and polygons.
Double_t Safety(const Double_t* point, Bool_t in = kTRUE) const
 computes the closest distance from given point to this shape, according
 to option. The matching point on the shape is stored in spoint.
void SavePrimitive(ostream& out, Option_t* option = "")
 Save a primitive as a C++ statement(s) on output stream "out".
void SetTorusDimensions(Double_t r, Double_t rmin, Double_t rmax, Double_t phi1, Double_t dphi)
 Set torus dimensions.
void SetDimensions(Double_t* param)
 Set torus dimensions starting from a list.
void SetPoints(Double_t* points) const
 Create torus mesh points
void SetPoints(Float_t* points) const
 Create torus mesh points
Int_t GetNmeshVertices() const
 Return number of vertices of the mesh representation
void Sizeof3D() const
 fill size of this 3-D object
   TVirtualGeoPainter *painter = gGeoManager->GetGeomPainter();
   if (!painter) return;
   Int_t n = gGeoManager->GetNsegments()+1;
   Int_t numPoints = n*(n-1);
   Int_t numSegs   = (2*n-1)*(n-1);
   Int_t numPolys  = (n-1)*(n-1);

   Bool_t hasrmin = (fRmin>0)?kTRUE:kFALSE;
   Bool_t hasphi  = (fDphi<360)?kTRUE:kFALSE;
   if (hasrmin) numPoints *= 2;
   else if (hasphi) numPoints += 2;
   if (hasrmin) {
      numSegs   += (2*n-1)*(n-1);
      numPolys  += (n-1)*(n-1);
   }
   if (hasphi) {
      numSegs   += 2*(n-1);
      numPolys  += 2*(n-1);
   }

   painter->AddSize3D(numPoints, numSegs, numPolys);
Int_t SolveCubic(Double_t a, Double_t b, Double_t c, Double_t* x) const
 Find real solutions of the cubic equation : x^3 + a*x^2 + b*x + c = 0
 Input: a,b,c
 Output: x[3] real solutions
 Returns number of real solutions (1 or 3)
Int_t SolveQuartic(Double_t a, Double_t b, Double_t c, Double_t d, Double_t* x) const
 Find real solutions of the quartic equation : x^4 + a*x^3 + b*x^2 + c*x + d = 0
 Input: a,b,c,d
 Output: x[4] - real solutions
 Returns number of real solutions (0 to 3)
Double_t ToBoundary(const Double_t* pt, const Double_t* dir, Double_t r, Bool_t in) const
 Returns distance to the surface or the torus (fR,r) from a point, along
 a direction. Point is close enough to the boundary so that the distance
 to the torus is decreasing while moving along the given direction.
void GetMeshNumbers(Int_t& nvert, Int_t& nsegs, Int_t& npols) const
 Returns numbers of vertices, segments and polygons composing the shape mesh.
const TBuffer3D & GetBuffer3D(Int_t reqSections, Bool_t localFrame) const
 Fills a static 3D buffer and returns a reference.
void Contains_v(const Double_t* points, Bool_t* inside, Int_t vecsize) const
 Check the inside status for each of the points in the array.
 Input: Array of point coordinates + vector size
 Output: Array of Booleans for the inside of each point
void ComputeNormal_v(const Double_t* points, const Double_t* dirs, Double_t* norms, Int_t vecsize)
 Compute the normal for an array o points so that norm.dot.dir is positive
 Input: Arrays of point coordinates and directions + vector size
 Output: Array of normal directions
void DistFromInside_v(const Double_t* points, const Double_t* dirs, Double_t* dists, Int_t vecsize, Double_t* step) const
 Compute distance from array of input points having directions specisied by dirs. Store output in dists
void DistFromOutside_v(const Double_t* points, const Double_t* dirs, Double_t* dists, Int_t vecsize, Double_t* step) const
 Compute distance from array of input points having directions specisied by dirs. Store output in dists
void Safety_v(const Double_t* points, const Bool_t* inside, Double_t* safe, Int_t vecsize) const
 Compute safe distance from each of the points in the input array.
 Input: Array of point coordinates, array of statuses for these points, size of the arrays
 Output: Safety values
TGeoTorus()
 constructors
virtual ~TGeoTorus()
 destructor
{}
Int_t GetByteCount() const
{return 56;}
Bool_t GetPointsOnSegments(Int_t , Double_t* ) const
{return kFALSE;}
Double_t GetR() const
{return fR;}
Double_t GetRmin() const
{return fRmin;}
Double_t GetRmax() const
{return fRmax;}
Double_t GetPhi1() const
{return fPhi1;}
Double_t GetDphi() const
{return fDphi;}
Bool_t IsCylType() const
{return kTRUE;}
