Re: [ROOT] I want to save the dynamic motion..

From: Fons Rademakers (Fons.Rademakers@cern.ch)
Date: Fri Mar 09 2001 - 17:44:20 MET


Hi Seung-Ho,

   do for example in your script in the draw loop (example from hsimple.C):

     if (i && (i%kUPDATE) == 0) {
        if (i == kUPDATE) hpx->Draw();
        c1->Modified();
        c1->Update();
        sprintf(gif, "/tmp/gifs/pict_%.3d.gif", gifcnt++); // add
        c1->SaveAs(gif);                                   // add
        if (gSystem->ProcessEvents())
           break;
     }
  }

this will create a set of gif files. Now use a tool like

http://www.lcdf.org/~eddietwo/gifsicle/

to make a single animated gif from these sequential gifs using:

gifsicle --delay=10 --loop *.gif > ../anim.gif

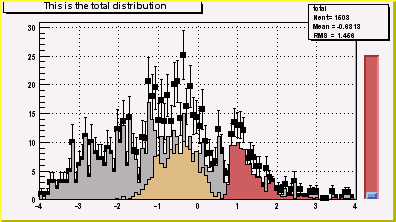

The result can be seen at:

http://root.cern.ch/root/images/anim.gif



Cheers, Fons.



Seung-Ho Han wrote:
>
> Hi rooters,
>
> I want to send my dynamic motion picture to my friends, which is the
> result of ROOT.
>
> What should I do for that work?
>
> That is, I want to make a mpeg file or a gif-format file with many
> frames.
>
> Thank you.
>
> Seung-Ho

--
Org:    CERN, European Laboratory for Particle Physics.
Mail:   1211 Geneve 23, Switzerland
E-Mail: Fons.Rademakers@cern.ch              Phone: +41 22 7679248
WWW:    http://root.cern.ch/~rdm/            Fax:   +41 22 7677910
