annotation3d.C File Reference

Detailed Description

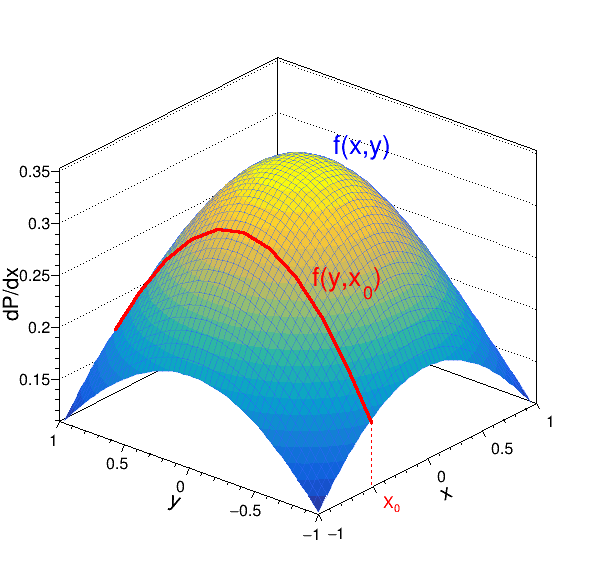

View in nbviewer Open in SWAN This example show how to put some annotation on a 3D plot using 3D polylines.

It also demonstrates how the axis labels can be modified. It was created for the book: Statistical Methods for Data Analysis in Particle Physics

void annotation3d()
{
TCanvas *c = new TCanvas("c", "c", 600, 600);
c->SetTheta(30);
c->SetPhi(50);
// Define and draw a surface
TF2 *f = new TF2("f", "[0]*cos(x)*cos(y)", -1, 1, -1, 1);
f->SetParameter(0, 1);
double s = 1./f->Integral(-1, 1, -1, 1);
f->SetParameter(0, s);
f->SetNpx(50);
f->SetNpy(50);
f->GetXaxis()->SetTitle("x");
f->GetXaxis()->SetTitleSize(0.04);
f->GetXaxis()->SetNdivisions(505);
f->GetXaxis()->SetLabelSize(0.03);
f->GetXaxis()->ChangeLabel(2,-1,-1,-1,kRed,-1,"X_{0}");
f->GetYaxis()->SetTitle("y");
f->GetYaxis()->SetTitleSize(0.04);
f->GetYaxis()->SetNdivisions(505);
f->GetYaxis()->SetLabelSize(0.03);
f->GetZaxis()->SetTitle("dP/dx");
f->GetZaxis()->SetNdivisions(505);
f->GetZaxis()->SetTitleSize(0.04);
f->GetZaxis()->SetLabelSize(0.03);
f->SetLineWidth(1);
f->Draw("surf1 fb");
// Lines for 3D annotation
double x[11] = {-0.500, -0.5, -0.5, -0.5, -0.5, -0.5, -0.5, -0.5, -0.5, -0.5, -0.500};
double y[11] = {-0.985, -0.8, -0.6, -0.4, -0.2, 0.0, 0.2, 0.4, 0.6, 0.8, 0.985};
double z[11];
for (int i = 0; i < 11; ++i) z[i] = s*cos(x[i])*cos(y[i]);
TPolyLine3D *g2 = new TPolyLine3D(11, x, y, z);
double xx[2] = {-0.5, -0.5};
double yy[2] = {-0.985, -0.985};
double zz[2] = {0.11, s*cos(-0.5)*cos(-0.985)};
TPolyLine3D *l2 = new TPolyLine3D(2, xx, yy, zz);
g2->SetLineColor(kRed);
g2->SetLineWidth(3);
g2->Draw();
l2->SetLineColor(kRed);
l2->SetLineStyle(2);
l2->SetLineWidth(1);
l2->Draw();
// Draw text Annotations
TLatex *txt = new TLatex(0.05, 0, "f(y,x_{0})");
txt->SetTextFont(42);
txt->SetTextColor(kRed);
txt->Draw();
TLatex *txt1 = new TLatex(0.12, 0.52, "f(x,y)");
txt1->SetTextColor(kBlue);
txt1->SetTextFont(42);
txt1->Draw();
}
Author
Luca Lista

Definition in file annotation3d.C.
