rf315_projectpdf.C File Reference

Detailed Description

;;;; 'MULTIDIMENSIONAL MODELS' RooFit tutorial macro #315

Marginizalization of multi-dimensional p.d.f.s through integration

Processing /mnt/build/workspace/root-makedoc-v612/rootspi/rdoc/src/v6-12-00-patches/tutorials/roofit/rf315_projectpdf.C...

RooFit v3.60 -- Developed by Wouter Verkerke and David Kirkby
                Copyright (C) 2000-2013 NIKHEF, University of California & Stanford University
                All rights reserved, please read http://roofit.sourceforge.net/license.txt

[#1] INFO:NumericIntegration -- RooRealIntegral::init([gaussy_NORM[y]_X_gaussx_NORM[x]]_Int[y]) using numeric integrator RooIntegrator1D to calculate Int(y)
[#1] INFO:NumericIntegration -- RooRealIntegral::init([gaussy_NORM[y]_X_gaussx_NORM[x]]_Int[y]) using numeric integrator RooIntegrator1D to calculate Int(y)
[#1] INFO:Minization -- RooMinimizer::optimizeConst: activating const optimization
[#1] INFO:Minization --  The following expressions will be evaluated in cache-and-track mode: (gaussx)
[#0] WARNING:Minization -- RooMinimizerFcn::synchronize: WARNING: no initial error estimate available for a1: using 0.4
 **********
 **    1 **SET PRINT           1
 **********
 **********
 **    2 **SET NOGRAD
 **********
 PARAMETER DEFINITIONS:
    NO.   NAME         VALUE      STEP SIZE      LIMITS
     1 a1          -1.50000e+00  4.00000e-01   -3.00000e+00  1.00000e+00
 **********
 **    3 **SET ERR         0.5
 **********
 **********
 **    4 **SET PRINT           1
 **********
 **********
 **    5 **SET STR           1
 **********
 NOW USING STRATEGY  1: TRY TO BALANCE SPEED AGAINST RELIABILITY
 **********
 **    6 **MIGRAD         500           1
 **********
 FIRST CALL TO USER FUNCTION AT NEW START POINT, WITH IFLAG=4.

prevFCN = 1900.156536   START MIGRAD MINIMIZATION.  STRATEGY  1.  CONVERGENCE WHEN EDM .LT. 1.00e-03
a1=-1.491,
prevFCN = 1900.000822  a1=-1.509,
prevFCN = 1900.423606  a1=-1.499,
prevFCN = 1900.135899  a1=-1.501,
prevFCN = 1900.178287   FCN=1900.16 FROM MIGRAD    STATUS=INITIATE        4 CALLS           5 TOTAL
                     EDM= unknown      STRATEGY= 1      NO ERROR MATRIX
  EXT PARAMETER               CURRENT GUESS       STEP         FIRST
  NO.   NAME      VALUE            ERROR          SIZE      DERIVATIVE
   1  a1          -1.50000e+00   4.00000e-01   2.08372e-01  -4.77802e+01
                               ERR DEF= 0.5
a1=-1.484,
prevFCN = 1899.958651  a1=-1.483,
prevFCN = 1899.959675  a1=-1.484,
prevFCN = 1899.958586  a1=-1.484,
prevFCN = 1899.958497  a1=-1.483,
prevFCN = 1899.958935  a1=-1.485,
prevFCN = 1899.958964   MIGRAD MINIMIZATION HAS CONVERGED.
 MIGRAD WILL VERIFY CONVERGENCE AND ERROR MATRIX.
a1=-1.484,
prevFCN = 1899.958497  a1=-1.483,
prevFCN = 1899.958935  a1=-1.485,
prevFCN = 1899.958964  a1=-1.484,
prevFCN = 1899.958512  a1=-1.484,
prevFCN = 1899.958518   COVARIANCE MATRIX CALCULATED SUCCESSFULLY
 FCN=1899.96 FROM MIGRAD    STATUS=CONVERGED      15 CALLS          16 TOTAL
                     EDM=2.41873e-07    STRATEGY= 1      ERROR MATRIX ACCURATE
  EXT PARAMETER                                   STEP         FIRST
  NO.   NAME      VALUE            ERROR          SIZE      DERIVATIVE
   1  a1          -1.48409e+00   2.51054e-02   3.89173e-04  -3.80132e-02
                               ERR DEF= 0.5
 EXTERNAL ERROR MATRIX.    NDIM=  25    NPAR=  1    ERR DEF=0.5
  6.303e-04
a1=-1.484,  **********
 **    7 **SET ERR         0.5
 **********
 **********
 **    8 **SET PRINT           1
 **********
 **********
 **    9 **HESSE         500
 **********

prevFCN = 1899.958497  a1=-1.484,
prevFCN = 1899.958512  a1=-1.484,
prevFCN = 1899.958518  a1=-1.484,
prevFCN = 1899.958497  a1=-1.484,
prevFCN = 1899.958498   COVARIANCE MATRIX CALCULATED SUCCESSFULLY
 FCN=1899.96 FROM HESSE     STATUS=OK              5 CALLS          21 TOTAL
                     EDM=2.42353e-07    STRATEGY= 1      ERROR MATRIX ACCURATE
  EXT PARAMETER                                INTERNAL      INTERNAL
  NO.   NAME      VALUE            ERROR       STEP SIZE       VALUE
   1  a1          -1.48409e+00   2.51054e-02   7.78346e-05  -2.44471e-01
                               ERR DEF= 0.5
 EXTERNAL ERROR MATRIX.    NDIM=  25    NPAR=  1    ERR DEF=0.5
  6.303e-04
a1=-1.484, [#1] INFO:Minization -- RooMinimizer::optimizeConst: deactivating const optimization
[#1] INFO:NumericIntegration -- RooRealIntegral::init([gaussy_NORM[y]_X_gaussx_NORM[x]]_Int[y]) using numeric integrator RooIntegrator1D to calculate Int(y)

#include "RooRealVar.h"
#include "RooDataHist.h"
#include "RooGaussian.h"
#include "RooProdPdf.h"
#include "RooPolyVar.h"
#include "TH1.h"
#include "TCanvas.h"
#include "TAxis.h"
#include "RooPlot.h"
#include "RooNumIntConfig.h"
#include "RooConstVar.h"
using namespace RooFit ;


void rf315_projectpdf()
{
   // C r e a t e   p d f   m ( x , y )  =  g x ( x | y ) * g ( y )
   // --------------------------------------------------------------

   // Increase default precision of numeric integration
   // as this exercise has high sensitivity to numeric integration precision
   RooAbsPdf::defaultIntegratorConfig()->setEpsRel(1e-8) ;
   RooAbsPdf::defaultIntegratorConfig()->setEpsAbs(1e-8) ;

   // Create observables
   RooRealVar x("x","x",-5,5) ;
   RooRealVar y("y","y",-2,2) ;

   // Create function f(y) = a0 + a1*y
   RooRealVar a0("a0","a0",0) ;
   RooRealVar a1("a1","a1",-1.5,-3,1) ;
   RooPolyVar fy("fy","fy",y,RooArgSet(a0,a1)) ;

   // Create gaussx(x,f(y),sx)
   RooRealVar sigmax("sigmax","width of gaussian",0.5) ;
   RooGaussian gaussx("gaussx","Gaussian in x with shifting mean in y",x,fy,sigmax) ;

   // Create gaussy(y,0,2)
   RooGaussian gaussy("gaussy","Gaussian in y",y,RooConst(0),RooConst(2)) ;

   // Create gaussx(x,sx|y) * gaussy(y)
   RooProdPdf model("model","gaussx(x|y)*gaussy(y)",gaussy,Conditional(gaussx,x)) ;



   // M a r g i n a l i z e   m ( x , y )   t o   m ( x )
   // ----------------------------------------------------

   // modelx(x) = Int model(x,y) dy
   RooAbsPdf* modelx = model.createProjection(y) ;



   // U s e   m a r g i n a l i z e d   p . d . f .   a s   r e g u l a r   1 - D   p . d . f .
   // ------------------------------------------------------------------------------------------

   // Sample 1000 events from modelx
   RooAbsData* data = modelx->generateBinned(x,1000) ;

   // Fit modelx to toy data
   modelx->fitTo(*data,Verbose()) ;

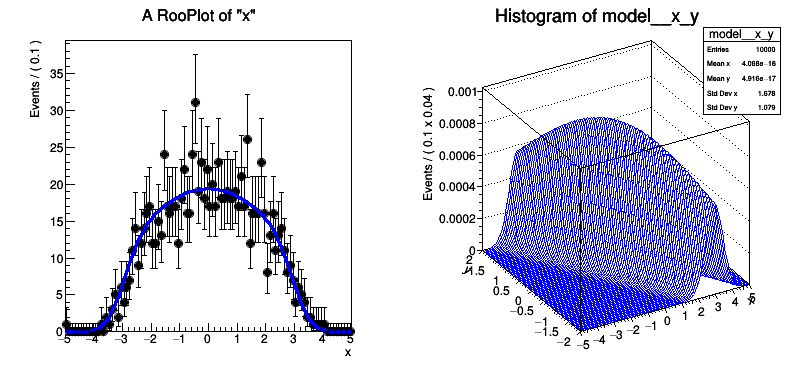

   // Plot modelx over data
   RooPlot* frame = x.frame(40) ;
   data->plotOn(frame) ;
   modelx->plotOn(frame) ;

   // Make 2D histogram of model(x,y)
   TH1* hh = model.createHistogram("x,y") ;
   hh->SetLineColor(kBlue) ;


   TCanvas* c = new TCanvas("rf315_projectpdf","rf315_projectpdf",800,400) ;
   c->Divide(2) ;
   c->cd(1) ; gPad->SetLeftMargin(0.15) ; frame->GetYaxis()->SetTitleOffset(1.4) ; frame->Draw() ;
   c->cd(2) ; gPad->SetLeftMargin(0.20) ; hh->GetZaxis()->SetTitleOffset(2.5) ; hh->Draw("surf") ;

}

Author

07/2008 - Wouter Verkerke

Definition in file rf315_projectpdf.C.
