// @(#)root/hist:$Name: $:$Id: TFormula.cxx,v 1.81 2004/09/01 10:20:11 brun Exp $
// Author: Nicolas Brun 19/08/95
/*************************************************************************
* Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
* All rights reserved. *
* *
* For the licensing terms see $ROOTSYS/LICENSE. *
* For the list of contributors see $ROOTSYS/README/CREDITS. *
*************************************************************************/
#include <math.h>
#include "Riostream.h"
#include "TROOT.h"
#include "TClass.h"
#include "TFormula.h"
#include "TMath.h"
#include "TRandom.h"
#include "TFunction.h"
#include "TMethodCall.h"
#include "TObjString.h"
#include "TError.h"
#ifdef WIN32
#pragma optimize("",off)
#endif
static Int_t MAXOP,MAXPAR,MAXCONST;
const Int_t kMAXSTRINGFOUND = 10;
ClassImp(TFormula)
//______________________________________________________________________________
//*-*-*-*-*-*-*-*-*-*-*The F O R M U L A class*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* =========================
//*-*
//*-* This class has been implemented by
Nicolas Brun
(age 18).
//*-* ========================================================
//
/*
*/
//
//*-*
//*-* Example of valid expressions:
//*-* - sin(x)/x
//*-* - [0]*sin(x) + [1]*exp(-[2]*x)
//*-* - x + y**2
//*-* - x^2 + y^2
//*-* - [0]*pow([1],4)
//*-* - 2*pi*sqrt(x/y)
//*-* - gaus(0)*expo(3) + ypol3(5)*x
//*-* - gausn(0)*expo(3) + ypol3(5)*x
//*-*
//*-* In the last example above:
//*-* gaus(0) is a substitute for [0]*exp(-0.5*((x-[1])/[2])**2)
//*-* and (0) means start numbering parameters at 0
//*-* gausn(0) is a substitute for [0]*exp(-0.5*((x-[1])/[2])**2)/(sqrt(2*pi)*[2]))
//*-* and (0) means start numbering parameters at 0
//*-* expo(3) is a substitute for exp([3]+[4])*x)
//*-* pol3(5) is a substitute for par[5]+par[6]*x+par[7]*x**2+par[8]*x**3
//*-* (here Pol3 stands for Polynomial of degree 3)
//*-*
//*-* TMath functions can be part of the expression, eg:
//*-* - TMath::Landau(x)*sin(x)
//*-* - TMath::Erf(x)
//*-*
//*-* Comparisons operators are also supported (&&, ||, ==, <=, >=, !)
//*-* Examples:
//*-* sin(x*(x<0.5 || x>1))
//*-* If the result of a comparison is TRUE, the result is 1, otherwise 0.
//*-*
//*-* Already predefined names can be given. For example, if the formula
//*-* TFormula old(sin(x*(x<0.5 || x>1))) one can assign a name to the formula. By default
//*-* the name of the object = title = formula itself.
//*-* old.SetName("old").
//*-* then, old can be reused in a new expression.
//*-* TFormula new("x*old") is equivalent to:
//*-* TFormula new("x*sin(x*(x<0.5 || x>1))")
//*-*
//*-* Up to 4 dimensions are supported (indicated by x, y, z, t)
//*-* An expression may have 0 parameters or a list of parameters
//*-* indicated by the sequence [par_number]
//*-*
//*-* A graph showing the logic to compile and analyze a formula
//*-* is shown in TFormula::Compile and TFormula::Analyze.
//*-* Once a formula has been compiled, it can be evaluated for a given
//*-* set of parameters. see graph in TFormula::EvalPar.
//*-*

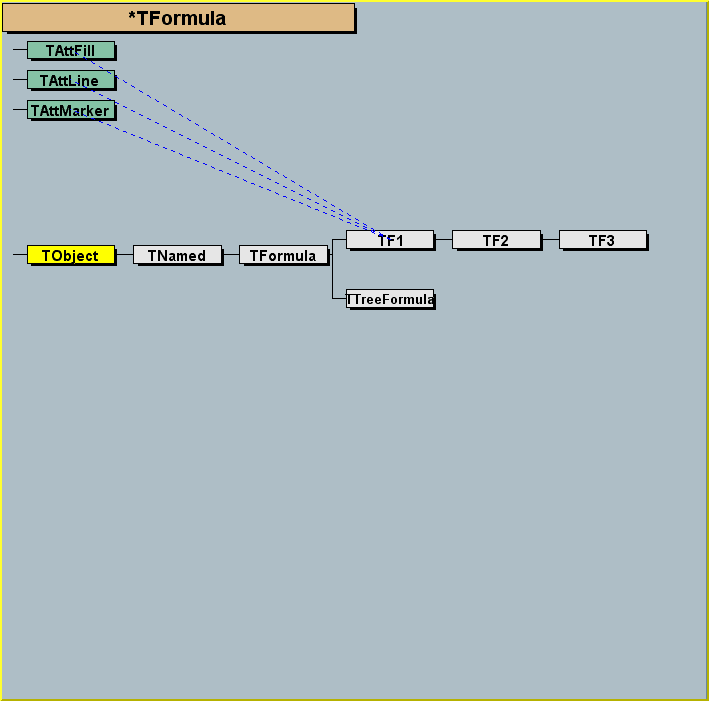

//*-* This class is the base class for the function classes TF1,TF2 and TF3.
//*-* It is also used by the ntuple selection mechanism TNtupleFormula.
//*-*
//*-* In version 7 of TFormula, the usage of fOper has been changed
//*-* to improve the performance of TFormula::EvalPar.
//*-* Conceptually, fOper was changed from a simple array of Int_t
//*-* to an array of composite values.
//*-* For example a 'ylandau(5)' operation used to be encoded as 4105;
//*-* it is now encoded as (klandau >> kTFOperShit) + 5
//*-* Any class inheriting from TFormula and using directly fOper (which
//*-* is now a private data member), needs to be updated to take this
//*-* in consideration. The member functions recommended to set and
//*-* access fOper are: SetAction, GetAction, GetActionParam
//*-* For more performant access to the information, see the implementation
//*-* TFormula::EvalPar
//*-*
//*-* WHY TFormula CANNOT ACCEPT A CLASS MEMBER FUNCTION ?
//*-* ====================================================
//*-* This is a frequently asked question.
//*-* C++ is a strongly typed language. There is no way for TFormula (without
//*-* recompiling this class) to know about all possible user defined data types.
//*-* This also apply to the case of a static class function.
//*-* Because TMath is a special and frequent case, TFormula is aware
//*-* of all TMath functions.
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//______________________________________________________________________________
TFormula::TFormula(): TNamed()
{
//*-*-*-*-*-*-*-*-*-*-*Formula default constructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ============================
fNdim = 0;
fNpar = 0;
fNoper = 0;
fNconst = 0;
fNumber = 0;
fExpr = 0;
fOper = 0;
fConst = 0;
fParams = 0;
fNstring= 0;
fNames = 0;
fNval = 0;
}
//______________________________________________________________________________
TFormula::TFormula(const char *name,const char *expression) :
TNamed(name,expression)
{
//*-*-*-*-*-*-*-*-*-*-*Normal Formula constructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ==========================
fNdim = 0;
fNpar = 0;
fNoper = 0;
fNconst = 0;
fNumber = 0;
fExpr = 0;
fOper = 0;
fConst = 0;
fParams = 0;
fNstring= 0;
fNames = 0;
fNval = 0;
if (!expression || !*expression) {
Error("TFormula", "expression may not be 0 or have 0 length");
return;
}
//eliminate blanks in expression
Int_t i,j,nch;
nch = strlen(expression);
char *expr = new char[nch+1];
j = 0;
for (i=0;i<nch;i++) {
if (expression[i] == ' ') continue;
if (i > 0 && (expression[i] == '*') && (expression[i-1] == '*')) {
expr[j-1] = '^';
continue;
}
expr[j] = expression[i]; j++;
}
expr[j] = 0;
Bool_t gausNorm = kFALSE;
Bool_t landauNorm = kFALSE;
if (j) {
TString chaine = expr;
// special case for normalized gaus
if (chaine.Contains("gausn")) {
gausNorm = kTRUE;
chaine.ReplaceAll("gausn","gaus");
}
// special case for normalized landau
if (chaine.Contains("landaun")) {
landauNorm = kTRUE;
chaine.ReplaceAll("landaun","landau");
}
SetTitle(chaine.Data());
}
delete [] expr;
if (Compile()) return;
if (gausNorm) SetBit(kNormalized);
if (landauNorm) SetBit(kNormalized);
//*-*- Store formula in linked list of formula in ROOT
TFormula *old = (TFormula*)gROOT->GetListOfFunctions()->FindObject(name);
if (old) {
gROOT->GetListOfFunctions()->Remove(old);
}
gROOT->GetListOfFunctions()->Add(this);
}
//______________________________________________________________________________
TFormula::TFormula(const TFormula &formula) : TNamed()
{
fNdim = 0;
fNpar = 0;
fNoper = 0;
fNconst = 0;
fNumber = 0;
fExpr = 0;
fOper = 0;
fConst = 0;
fParams = 0;
fNstring= 0;
fNames = 0;
fNval = 0;
((TFormula&)formula).TFormula::Copy(*this);
}
//______________________________________________________________________________
TFormula& TFormula::operator=(const TFormula &rhs)
{
if (this != &rhs) {
rhs.Copy(*this);
}
return *this;
}
//______________________________________________________________________________
TFormula::~TFormula()
{
//*-*-*-*-*-*-*-*-*-*-*Formula default destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ===========================
gROOT->GetListOfFunctions()->Remove(this);
ClearFormula();
}
//______________________________________________________________________________
Bool_t TFormula::AnalyzeFunction(TString &chaine, Int_t &err, Int_t offset)
{
//*-*-*-*-*-*-*-*-*Check if the chain as function call *-*-*-*-*-*-*-*-*-*-*
//*-* =======================================
//*-*
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
int i,j;
// We have to decompose the chain is 3 potential components:
// namespace::functionName( args )
Ssiz_t argStart = chaine.First('(');
if (argStart<0) return false;
TString functionName = chaine(0,argStart);
// This does not support template yet (where the scope operator might be in
// one of the template arguments
Ssiz_t scopeEnd = functionName.Last(':');
TString spaceName;
if (scopeEnd>0 && functionName[scopeEnd-1]==':') {
spaceName = functionName(0,scopeEnd-1);
functionName.Remove(0,scopeEnd+1);
}
// Now we need to count and decompose the actual arguments, we could also check the type
// of the arguments
if (chaine[chaine.Length()-1] != ')') {
Error("AnalyzeFunction","We thought we had a function but we dont (in %s)\n",chaine.Data());
}
TString args = chaine(argStart+1,chaine.Length()-2-argStart);
TObjArray argArr;
//fprintf(stderr,"args are '%s'\n",args.Data());
bool inString = false;
int paran = 0;
int brack = 0;
int prevComma = 0;
int nargs = 0;
for(i=0; i<args.Length(); i++) {
if (args[i]=='"') inString = !inString;
if (inString) continue;
bool foundArg = false;
switch(args[i]) {
case '(': paran++; break;
case ')': paran--; break;
case '[': brack++; break;
case ']': brack--; break;
case ',': if (paran==0 && brack==0) { foundArg = true; } break;
}
if ((i+1)==args.Length()) {
foundArg = true; i++;
}
if (foundArg) {
TString arg = args(prevComma,i-prevComma);
// Here we could
// a) check the type
//fprintf(stderr,"found #%d arg %s\n",nargs,arg.Data());
// We register the arg for later usage
argArr.Add(new TObjString(arg));
nargs++;
prevComma = i+1;
};
}
if (nargs>999) {
err = 7;
return false;
}
// Now we need to lookup the function and check its arguments.
// We have 2 choice ... parse more and replace x, y, z and [?] by 0.0 or
// or do the following silly thing:
TString proto;
for(j=0; j<nargs; j++) {
proto += "0.0,";
}
if (nargs) proto.Remove(proto.Length()-1);
TClass *ns = (spaceName.Length()) ? gROOT->GetClass(spaceName) : 0;
TMethodCall *method = new TMethodCall();
if (ns) {
method->Init(ns,functionName,proto);
} else {
method->Init(functionName,proto);
}
if (method->IsValid()) {
if (method->ReturnType() == TMethodCall::kOther) {
/*
Error("Compile",
"TFormula can only call interpreted and compiled function that returns a numerical type %s returns a %s\n",
method->GetMethodName(), method->GetMethod()->GetReturnTypeName());
*/
err=29;
} else {
// Analyze the arguments
TIter next(&argArr);
TObjString *objstr;
while ( (objstr=(TObjString*)next()) ) {
Analyze(objstr->String(),err,offset);
}
fFunctions.Add(method);
fExpr[fNoper] = method->GetMethod()->GetPrototype();
SetAction(fNoper, kFunctionCall, fFunctions.GetLast()*1000 + nargs);
fNoper++;
return true;
}
}
delete method;
return false;
}
//______________________________________________________________________________
void TFormula::Analyze(const char *schain, Int_t &err, Int_t offset)
{
//*-*-*-*-*-*-*-*-*Analyze a sub-expression in one formula*-*-*-*-*-*-*-*-*-*-*
//*-* =======================================
//*-*
//*-* Expressions in one formula are recursively analyzed.
//*-* Result of analysis is stored in the object tables.
//*-*
//*-* Table of function codes and errors
//*-* ==================================
//*-*
//*-* * functions :
//*-*
//*-* + 1 pow 20
//*-* - 2 sq 21
//*-* * 3 sqrt 22
//*-* / 4 strstr 23
//*-* % 5 min 24
//*-* max 25
//*-* log 30
//*-* cos 10 exp 31
//*-* sin 11 log10 32
//*-* tan 12
//*-* acos 13 abs 41
//*-* asin 14 sign 42
//*-* atan 15 int 43
//*-* atan2 16
//*-* fmod 17 rndm 50
//*-*
//*-* cosh 70 acosh 73
//*-* sinh 71 asinh 74
//*-* tanh 72 atanh 75
//*-*
//*-* expo 100 gaus 110 gausn (see note below)
//*-* expo(0) 100 0 gaus(0) 110 0 gausn(0)
//*-* expo(1) 100 1 gaus(1) 110 1 gausn(1)
//*-* xexpo 100 x xgaus 110 x xgausn
//*-* yexpo 101 x ygaus 111 x ygausn
//*-* zexpo 102 x zgaus 112 x zgausn
//*-* xyexpo 105 x xygaus 115 x xygausn
//*-* yexpo(5) 102 5 ygaus(5) 111 5 ygausn(5)
//*-* xyexpo(2) 105 2 xygaus(2) 115 2 xygausn(2)
//*-*
//*-* landau 120 x landaun (see note below)
//*-* landau(0) 120 0 landaun(0)
//*-* landau(1) 120 1 landaun(1)
//*-* xlandau 120 x xlandaun
//*-* ylandau 121 x ylandaun
//*-* zlandau 122 x zlandaun
//*-* xylandau 125 x xylandaun
//*-* ylandau(5) 121 5 ylandaun(5)
//*-* xylandau(2) 125 2 xylandaun(2)
//*-*
//*-* pol0 130 x pol1 130 1xx
//*-* pol0(0) 130 0 pol1(0) 130 100
//*-* pol0(1) 130 1 pol1(1) 130 101
//*-* xpol0 130 x xpol1 130 101
//*-* ypol0 131 x ypol1 131 101
//*-* zpol0 132 x zpol1 132 1xx
//*-* ypol0(5) 131 5 ypol1(5) 131 105
//*-*
//*-* pi 40
//*-*
//*-* && 60 < 64
//*-* || 61 > 65
//*-* == 62 <= 66
//*-* != 63 => 67
//*-* ! 68
//*-* ==(string) 76 & 78
//*-* !=(string) 77 | 79
//*-* <<(shift) 80 >>(shift) 81
//*-*
//*-* * constants (kConstants) :
//*-*
//*-* c0 141 1 c1 141 2 etc..
//*-*
//*-* * strings (kStringConst):
//*-*
//*-* sX 143 x
//*-*
//*-* * variables (kFormulaVar) :
//*-*
//*-* x 144 0 y 144 1 z 144 2 t 144 3
//*-*
//*-* * parameters :
//*-*
//*-* [1] 140 1
//*-* [2] 140 2
//*-* etc.
//*-*
//*-* special cases for normalized gaussian or landau distributions
//*-* =============================================================
//*-* the expression "gaus" is a substitute for
//*-* [0]*exp(-0.5*((x-[1])/[2])**2)
//*-* to obtain a standard normalized gaussian, use "gausn" instead of "gaus"
//*-* the expression "gausn" is a substitute for
//*-* [0]*exp(-0.5*((x-[1])/[2])**2)/(sqrt(2*pi)*[2]))
//*-*
//*-* In the same way the expression "landau" is a substitute for
//*-* [0]*TMath::Landau(x,[1],[2],kFALSE)
//*-* to obtain a standard normalized landau, use "landaun" instead of "landau"
//*-* the expression "landaun" is a substitute for
//*-* [0]*TMath::Landau(x,[1],[2],kTRUE)
//*-*
//*-* boolean optimization (kBoolOptmize) :
//*-* =====================================
//*-*
//*-* Those pseudo operation are used to implement lazy evaluation of
//*-* && and ||. When the left hand of the expression if false
//*-* (respectively true), the evaluation of the right is entirely skipped
//*-* (since it would not change the value of the expreession).
//*-*
//*-* && 142 11 (one operation on right) 142 21 (2 operations on right)
//*-* || 142 12 (one operation on right) 142 22 (2 operations on right)
//*-*
//*-* * functions calls (kFunctionCall) :
//*-*
//*-* f0 145 0 f1 145 1 etc..
//*-*
//*-* errors :
//*-* ========
//*-*
//*-* 1 : Division By Zero
//*-* 2 : Invalid Floating Point Operation
//*-* 4 : Empty String
//*-* 5 : invalid syntax
//*-* 6 : Too many operators
//*-* 7 : Too many parameters
//*-* 10 : z specified but not x and y
//*-* 11 : z and y specified but not x
//*-* 12 : y specified but not x
//*-* 13 : z and x specified but not y
//*-* 20 : non integer value for parameter number
//*-* 21 : atan2 requires two arguments
//*-* 22 : pow requires two arguments
//*-* 23 : degree of polynomial not specified
//*-* 24 : Degree of polynomial must be positive
//*-* 25 : Degree of polynomial must be less than 20
//*-* 26 : Unknown name
//*-* 27 : Too many constants in expression
//*-* 28 : strstr requires two arguments
//*-* 29 : interpreted or compiled function have to return a numerical type
//*-* 30 : Bad numerical expression
//*-* 31 : Variable exist but is not accessible
//*-* 40 : '(' is expected
//*-* 41 : ')' is expected
//*-* 42 : '[' is expected
//*-* 43 : ']' is expected
//
/*
*/
//
//*-*
//*-* Special functions
//*-* -----------------
//*-* By default, the formula is assigned fNumber=0. However, the following
//*-* formula built with simple functions are assigned fNumber:
//*-* "gaus" 100 (or gausn)
//*-* "expo" 200
//*-* "polN" 300+N
//*-* "landau" 400
//*-* Note that expressions like gaus(0), expo(1) will force fNumber=0
//*-*
//*-* Warning when deriving a class from TFormula
//*-* -------------------------------------------
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Int_t valeur,find,n,i,j,k,lchain,nomb,virgule,inter,nest;
Int_t compt,compt2,compt3,compt4;
Bool_t inString;
Double_t vafConst;
ULong_t vafConst2;
Bool_t parenthese;
TString s,chaine_error,chaine1ST;
TString s1,s2,s3,ctemp;
TString chaine = schain;
TFormula *oldformula;
Int_t modulo,plus,puiss10,puiss10bis,moins,multi,divi,puiss,et,ou,petit,grand,egal,diff,peteg,grdeg,etx,oux,rshift,lshift;
char t;
TString slash("/"), escapedSlash("\\/");
Int_t inter2 = 0;
SetNumber(0);
Int_t actionCode,actionParam;
//*-*- Verify correct matching of parenthesis and remove unnecessary parenthesis.
//*-* ========================================================================
lchain = chaine.Length();
//if (chaine(lchain-2,2) == "^2") chaine = "sq(" + chaine(0,lchain-2) + ")";
parenthese = kTRUE;
lchain = chaine.Length();
while (parenthese && lchain>0 && err==0){
compt = 0;
compt2 = 0;
inString = false;
lchain = chaine.Length();
if (lchain==0) err=4;
else {
for (i=1; i<=lchain; ++i) {
if (chaine(i-1,1) == "\"") inString = !inString;
if (!inString) {
if (chaine(i-1,1) == "[") compt2++;
if (chaine(i-1,1) == "]") compt2--;
if (chaine(i-1,1) == "(") compt++;
if (chaine(i-1,1) == ")") compt--;
}
if (compt < 0) err = 40; // more open parentheses than close parentheses
if (compt2< 0) err = 42; // more ] than [
if (compt==0 && (i!=lchain || lchain==1)) parenthese = kFALSE;
// if (lchain<3 && chaine(0,1)!="(" && chaine(lchain-1,1)!=")") parenthese = kFALSE;
}
if (compt > 0) err = 41; // more ( than )
if (compt2> 0) err = 43; // more [ than ]
if (parenthese) chaine = chaine(1,lchain-2);
}
} // while parantheses
if (lchain==0) err=4; // empty string
modulo=plus=moins=multi=divi=puiss=et=ou=petit=grand=egal=diff=peteg=grdeg=etx=oux=rshift=lshift=0;
//*-*- Look for simple operators
//*-* =========================
if (err==0) {
compt = compt2 = compt3 = compt4 = 0;puiss10=0;puiss10bis = 0;
inString = false;
j = lchain;
Bool_t isdecimal = 1; // indicates whether the left part is decimal.
for (i=1;i<=lchain; i++) {
puiss10=puiss10bis=0;
if (i>2) {
t = chaine[i-3];
isdecimal = isdecimal && (strchr("0123456789.",t)!=0);
if (isdecimal) {
if ( chaine[i-2] == 'e' ) puiss10 = 1;
} else if ( strchr("+-/[]()&|><=!*/%^\\",t) ) {
isdecimal = 1; // reset after delimiter
}
}
if (j>2) {
if (chaine[j-2] == 'e') {
Bool_t isrightdecimal = 1;
int k;
for(k=j-3; k>=0 && isrightdecimal; --k) {
t = chaine[k];
isrightdecimal = isrightdecimal && (strchr("0123456789.",t)!=0);
if (!isrightdecimal) {
if (strchr("+-/[]()&|><=!*/%^\\",t)!=0) {
puiss10bis = 1;
}
}
}
if (k<0 && isrightdecimal) puiss10bis = 1;
}
}
if (chaine(i-1,1) == "\"") inString = !inString;
if (inString) continue;
if (chaine(i-1,1) == "[") compt2++;
if (chaine(i-1,1) == "]") compt2--;
if (chaine(i-1,1) == "(") compt++;
if (chaine(i-1,1) == ")") compt--;
if (chaine(j-1,1) == "[") compt3++;
if (chaine(j-1,1) == "]") compt3--;
if (chaine(j-1,1) == "(") compt4++;
if (chaine(j-1,1) == ")") compt4--;
if (chaine(i-1,2)=="&&" && !inString && compt==0 && compt2==0 && et==0) {et=i;puiss=0;}
if (chaine(i-1,2)=="||" && compt==0 && compt2==0 && ou==0) {puiss10=0; ou=i;}
if (chaine(i-1,1)=="&" && compt==0 && compt2==0 && etx==0) {etx=i;puiss=0;}
if (chaine(i-1,1)=="|" && compt==0 && compt2==0 && oux==0) {puiss10=0; oux=i;}
if (chaine(i-1,2)==">>" && compt==0 && compt2==0 && rshift==0) {puiss10=0; rshift=i;}
if (chaine(i-1,1)==">" && compt==0 && compt2==0 && rshift==0 && grand==0)
{puiss10=0; grand=i;}
if (chaine(i-1,2)=="<<" && compt==0 && compt2==0 && lshift==0) {puiss10=0; lshift=i;}
if (chaine(i-1,1)=="<" && compt==0 && compt2==0 && lshift==0 && petit==0)
{puiss10=0; petit=i;}
if ((chaine(i-1,2)=="<=" || chaine(i-1,2)=="=<") && compt==0 && compt2==0
&& peteg==0) {peteg=i; puiss10=0; petit=0;}
if ((chaine(i-1,2)=="=>" || chaine(i-1,2)==">=") && compt==0 && compt2==0
&& grdeg==0) {puiss10=0; grdeg=i; grand=0;}
if (chaine(i-1,2) == "==" && compt == 0 && compt2 == 0 && egal == 0) {puiss10=0; egal=i;}
if (chaine(i-1,2) == "!=" && compt == 0 && compt2 == 0 && diff == 0) {puiss10=0; diff=i;}
if (i>1 && chaine(i-1,1) == "+" && compt == 0 && compt2 == 0 && puiss10==0) plus=i;
if (chaine(j-1,1) == "-" && chaine(j-2,1) != "*" && chaine(j-2,1) != "/"
&& chaine(j-2,1)!="^" && compt3==0 && compt4==0 && moins==0 && puiss10bis==0) moins=j;
if (chaine(i-1,1)=="%" && compt==0 && compt2==0 && modulo==0) {puiss10=0; modulo=i;}
if (chaine(i-1,1)=="*" && compt==0 && compt2==0 && multi==0) {puiss10=0; multi=i;}
if (chaine(j-1,1)=="/" && chaine(j-2,1)!="\\"
&& compt4==0 && compt3==0 && divi==0)
{
puiss10=0; divi=j;
}
if (chaine(j-1,1)=="^" && compt4==0 && compt3==0 && puiss==0) {puiss10=0; puiss=j;}
j--;
}
//*-*- If operator found, analyze left and right part of the statement
//*-* ===============================================================
actionParam = 0;
if (ou != 0) { //check for ||
if (ou==1 || ou==lchain-1) {
err=5;
chaine_error="||";
}
else {
ctemp = chaine(0,ou-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "|| checkpoint";
actionCode = kBoolOptimize;
actionParam = 2;
SetAction(fNoper,actionCode, actionParam);
Int_t optloc = fNoper++;
ctemp = chaine(ou+1,lchain-ou-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "||";
actionCode = kOr;
SetAction(fNoper,actionCode, 0);
SetAction( optloc, GetAction(optloc), GetActionParam(optloc) + (fNoper-optloc) * 10);
fNoper++;
}
} else if (et!=0) {
if (et==1 || et==lchain-1) {
err=5;
chaine_error="&&";
}
else {
ctemp = chaine(0,et-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "&& checkpoint";
actionCode = kBoolOptimize;
actionParam = 1;
SetAction(fNoper,actionCode,actionParam);
Int_t optloc = fNoper++;
ctemp = chaine(et+1,lchain-et-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "&&";
actionCode = kAnd;
SetAction(fNoper,actionCode,0);
SetAction(optloc, GetAction(optloc), GetActionParam(optloc) + (fNoper-optloc) * 10);
fNoper++;
}
} else if (oux!=0) {
if (oux==1 || oux==lchain) {
err=5;
chaine_error="|";
}
else {
ctemp = chaine(0,oux-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(oux,lchain-oux);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "|";
actionCode = kBitOr;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (etx!=0) {
if (etx==1 || etx==lchain) {
err=5;
chaine_error="&";
}
else {
ctemp = chaine(0,etx-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(etx,lchain-etx);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "&";
actionCode = kBitAnd;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (petit != 0) {
if (petit==1 || petit==lchain) {
err=5;
chaine_error="<";
}
else {
ctemp = chaine(0,petit-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(petit,lchain-petit);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "<";
actionCode = kLess;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (grand != 0) {
if (grand==1 || grand==lchain) {
err=5;
chaine_error=">";
}
else {
ctemp = chaine(0,grand-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(grand,lchain-grand);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = ">";
actionCode = kGreater;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (peteg != 0) {
if (peteg==1 || peteg==lchain-1) {
err=5;
chaine_error="<=";
}
else {
ctemp = chaine(0,peteg-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(peteg+1,lchain-peteg-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "<=";
actionCode = kLessThan;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (grdeg != 0) {
if (grdeg==1 || grdeg==lchain-1) {
err=5;
chaine_error="=>";
}
else {
ctemp = chaine(0,grdeg-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(grdeg+1,lchain-grdeg-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = ">=";
actionCode = kGreaterThan;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (egal != 0) {
if (egal==1 || egal==lchain-1) {
err=5;
chaine_error="==";
}
else {
ctemp = chaine(0,egal-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(egal+1,lchain-egal-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "==";
actionCode = kEqual;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (diff != 0) {
if (diff==1 || diff==lchain-1) {
err=5;
chaine_error = "!=";
}
else {
ctemp = chaine(0,diff-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(diff+1,lchain-diff-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "!=";
actionCode = kNotEqual;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else
if (plus != 0) {
if (plus==lchain) {
err=5;
chaine_error = "+";
}
else {
ctemp = chaine(0,plus-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(plus,lchain-plus);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "+";
actionCode = kAdd;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else {
if (moins != 0) {
if (moins == 1) {
ctemp = chaine(moins,lchain-moins);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "-";
actionCode = kSignInv;
SetAction(fNoper,actionCode,actionParam);
++fNoper;
} else {
if (moins == lchain) {
err=5;
chaine_error = "-";
} else {
ctemp = chaine(0,moins-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(moins,lchain-moins);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "-";
actionCode = kSubstract;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
}
} else if (modulo != 0) {
if (modulo == 1 || modulo == lchain) {
err=5;
chaine_error="%";
} else {
ctemp = chaine(0,modulo-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(modulo,lchain-modulo);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "%";
actionCode = kModulo;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (rshift != 0) {
if (rshift == 1 || rshift == lchain) {
err=5;
chaine_error=">>";
} else {
ctemp = chaine(0,rshift-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(rshift+1,lchain-rshift-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = ">>";
actionCode = kRightShift;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (lshift != 0) {
if (lshift == 1 || lshift == lchain) {
err=5;
chaine_error=">>";
} else {
ctemp = chaine(0,lshift-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(lshift+1,lchain-lshift-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = ">>";
actionCode = kLeftShift;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else {
if (multi != 0) {
if (multi == 1 || multi == lchain) {
err=5;
chaine_error="*";
}
else {
ctemp = chaine(0,multi-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(multi,lchain-multi);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "*";
actionCode = kMultiply;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else {
if (divi != 0) {
if (divi == 1 || divi == lchain) {
err=5;
chaine_error = "/";
}
else {
ctemp = chaine(0,divi-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(divi,lchain-divi);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "/";
actionCode = kDivide;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else {
if (puiss != 0) {
if (puiss == 1 || puiss == lchain) {
err = 5;
chaine_error = "**";
}
else {
if (chaine(lchain-2,2) == "^2") {
ctemp = "sq(" + chaine(0,lchain-2) + ")";
Analyze(ctemp.Data(),err,offset);
} else {
ctemp = chaine(0,puiss-1);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(puiss,lchain-puiss);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "^";
actionCode = kpow;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
}
} else {
find=0;
//*-*- Check for a numerical expression
{
Bool_t hasDot = kFALSE;
Bool_t isHexa = kFALSE;
Bool_t hasExpo= kFALSE;
if ((chaine(0,2)=="0x")||(chaine(0,2)=="0X")) isHexa=kTRUE;
for (Int_t j=0; j<chaine.Length() && err==0; j++) {
t=chaine[j];
if (!isHexa) {
if (j>0 && (chaine(j,1)=="e" || chaine(j,2)=="e+" || chaine(j,2)=="e-")) {
if (hasExpo) {
err=26;
chaine_error=chaine;
}
hasExpo = kTRUE;
// The previous implementation allowed a '.' in the exponent.
// That information was ignored (by sscanf), we now make it an error
// hasDot = kFALSE;
hasDot = kTRUE; // forbid any additional '.'
if (chaine(j,2)=="e+" || chaine(j,2)=="e-") j++;
}
else {
if (chaine(j,1) == "." && !hasDot) hasDot = kTRUE; // accept only one '.' in the number
else {
// The previous implementation was allowing ANYTHING after the '.' and thus
// made legal code like '2.3 and fpx' and was just silently ignoring the
// 'and fpx'.
if (!strchr("0123456789",t) && (chaine(j,1)!="+" || j!=0)) {
err = 30;
chaine_error=chaine;
}
}
}
}
else {
if (!strchr("0123456789abcdefABCDEF",t) && (j>1)) {
err = 30;
chaine_error=chaine;
}
}
}
if (fNconst >= MAXCONST) err = 27;
if (!err) {
if (!isHexa) {if (sscanf((const char*)chaine,"%lg",&vafConst) > 0) err = 0; else err =1;}
else {if (sscanf((const char*)chaine,"%lx",&vafConst2) > 0) err = 0; else err=1;
vafConst = (Double_t) vafConst2;}
fExpr[fNoper] = chaine;
k = -1;
for (Int_t j=0;j<fNconst;j++) {
if (vafConst == fConst[j] ) k= j;
}
if ( k < 0) { k = fNconst; fNconst++; fConst[k] = vafConst; }
actionCode = kConstant;
actionParam = k;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
if (err==30) err=0;
else find = kTRUE;
}
//*-*- Look for an already defined expression
if (find==0) {
oldformula = (TFormula*)gROOT->GetListOfFunctions()->FindObject((const char*)chaine);
if (oldformula && strcmp(schain,oldformula->GetTitle())) {
Int_t nprior = fNpar;
Analyze(oldformula->GetTitle(),err,fNpar); // changes fNpar
fNpar = nprior;
find=1;
if (!err) {
Int_t npold = oldformula->GetNpar();
fNpar += npold;
for (Int_t ipar=0;ipar<npold;ipar++) {
fParams[ipar+fNpar-npold] = oldformula->GetParameter(ipar);
}
}
}
}
if (find == 0) {
//*-*- Check if chaine is a defined variable.
//*-*- Note that DefinedVariable can be overloaded
ctemp = chaine;
ctemp.ReplaceAll(escapedSlash, slash);
Int_t action;
k = DefinedVariable(ctemp,action);
if (k==-2) {
err = 31;
chaine_error = ctemp;
} else if ( k >= 0 ) {
fExpr[fNoper] = ctemp;
actionCode = action;
actionParam = k;
SetAction(fNoper,actionCode,actionParam);
if (action==kDefinedString) fNstring++;
else if (k <kMAXFOUND && !fAlreadyFound.TestBitNumber(k)) {
fAlreadyFound.SetBitNumber(k);
fNval++;
}
fNoper++;
} else if (chaine(0,1) == "!") {
ctemp = chaine(1,lchain-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "!";
actionCode = kNot;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,1)=="\"" && chaine(chaine.Length()-1,1)=="\"") {
//*-* It is a string !!!
fExpr[fNoper] = chaine(1,chaine.Length()-2);
actionCode = kStringConst;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,4) == "cos(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "cos";
actionCode = kcos;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,4) == "sin(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "sin";
actionCode = ksin;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,4) == "tan(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "tan";
actionCode = ktan;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,5) == "acos(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "acos";
actionCode = kacos;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,5) == "asin(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "asin";
actionCode = kasin;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,5) == "atan(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "atan";
actionCode = katan;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,5) == "cosh(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "cosh";
actionCode = kcosh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
} else if (chaine(0,5) == "sinh(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "sinh";
actionCode = ksinh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,5) == "tanh(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "tanh";
actionCode = ktanh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,6) == "acosh(") {
ctemp = chaine(5,lchain-5);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "acosh";
actionCode = kacosh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,6) == "asinh(") {
ctemp = chaine(5,lchain-5);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "asinh";
actionCode = kasinh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,6) == "atanh(") {
ctemp = chaine(5,lchain-5);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "atanh";
actionCode = katanh;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,3) == "sq(") {
ctemp = chaine(2,lchain-2);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "sq";
actionCode = ksq;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,4) == "log(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "log";
actionCode = klog;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,6) == "log10(") {
ctemp = chaine(5,lchain-5);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "log10";
actionCode = klog10;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,4) == "exp(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "exp";
actionCode = kexp;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,4) == "abs(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "abs";
actionCode = kabs;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,5) == "sign(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "sign";
actionCode = ksign;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,4) == "int(") {
ctemp = chaine(3,lchain-3);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "int";
actionCode = kint;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,4) == "rndm") {
fExpr[fNoper] = "rndm";
actionCode = krndm;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
} else if (chaine(0,5) == "sqrt(") {
ctemp = chaine(4,lchain-4);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "sqrt";
actionCode = ksqrt;
SetAction(fNoper,actionCode,actionParam);
fNoper++;;
//*-*- Look for an exponential
//*-* =======================
} else if (chaine(0,4)=="expo" || chaine(1,4)=="expo" || chaine(2,4)=="expo") {
chaine1ST=chaine;
if (chaine(1,4) == "expo") {
ctemp=chaine(0,1);
if (ctemp=="x") {
inter2=0;
if (fNdim < 1) fNdim = 1; }
else if (ctemp=="y") {
inter2=1;
if (fNdim < 2) fNdim = 2; }
else if (ctemp=="z") {
inter2=2;
if (fNdim < 3) fNdim = 3; }
else if (ctemp=="t") {
inter2=3;
if (fNdim < 4) fNdim = 4; }
else {
err=26; // unknown name;
chaine_error=chaine1ST;
}
chaine=chaine(1,lchain-1);
lchain=chaine.Length();
// a partir d'ici indentation decalee de 4 vers la gauche
} else inter2=0;
if (chaine(2,4) == "expo") {
if (chaine(0,2) != "xy") {
err=26; // unknown name
chaine_error=chaine1ST;
}
else {
inter2=5;
if (fNdim < 2) fNdim = 2;
chaine=chaine(2,lchain-2);
lchain=chaine.Length();
}
}
if (lchain == 4) {
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fExpr[fNoper] = chaine1ST;
actionCode = kexpo + inter2;
actionParam = offset;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5+offset && fNpar < 3+offset) fNpar = 3+offset;
if (fNpar < 2+offset) fNpar = 2+offset;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fNoper++;
if (fNdim < 1) fNdim = 1;
if (fNpar == 2) SetNumber(200);
}
}
} else if (chaine(4,1) == "(") {
ctemp = chaine(5,lchain-6);
fExpr[fNoper] = chaine1ST;
for (j=0; j<ctemp.Length(); j++) {
t=ctemp[j];
if (strchr("0123456789",t)==0 && (ctemp(j,1)!="+" || j!=0)) {
err=20;
chaine_error=chaine1ST;
}
}
if (err==0) {
sscanf(ctemp.Data(),"%d",&inter);
if (inter>=0) {
inter += offset;
actionCode = kexpo + inter2;
actionParam = inter;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5) inter++;
if (inter+2>fNpar) fNpar = inter+2;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) fNoper++;
if (fNpar == 2) SetNumber(200);
} else err=20;
} else err = 20; // non integer value for parameter number
} else {
err=26; // unknown name
chaine_error=chaine;
}
//*-*- Look for gaus, xgaus,ygaus,xygaus
//*-* =================================
} else if (chaine(0,4)=="gaus" || chaine(1,4)=="gaus" || chaine(2,4)=="gaus") {
chaine1ST=chaine;
if (chaine(1,4) == "gaus") {
ctemp=chaine(0,1);
if (ctemp=="x") {
inter2=0;
if (fNdim < 1) fNdim = 1; }
else if (ctemp=="y") {
inter2=1;
if (fNdim < 2) fNdim = 2; }
else if (ctemp=="z") {
inter2=2;
if (fNdim < 3) fNdim = 3; }
else if (ctemp=="t") {
inter2=3;
if (fNdim < 4) fNdim = 4; }
else {
err=26; // unknown name
chaine_error=chaine1ST;
}
chaine=chaine(1,lchain-1);
lchain=chaine.Length();
} else inter2=0;
if (chaine(2,4) == "gaus") {
if (chaine(0,2) != "xy") {
err=26; // unknown name
chaine_error=chaine1ST;
}
else {
inter2=5;
if (fNdim < 2) fNdim = 2;
chaine=chaine(2,lchain-2);
lchain=chaine.Length();
}
}
if (lchain == 4 && err==0) {
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fExpr[fNoper] = chaine1ST;
actionCode = kgaus + inter2;
actionParam = offset;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5+offset && fNpar < 5+offset) fNpar = 5+offset;
if (3+offset>fNpar) fNpar = 3+offset;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fNoper++;
if (fNdim < 1) fNdim = 1;
if (fNpar == 3) SetNumber(100);
}
}
} else if (chaine(4,1) == "(" && err==0) {
ctemp = chaine(5,lchain-6);
fExpr[fNoper] = chaine1ST;
for (j=0; j<ctemp.Length(); j++) {
t=ctemp[j];
if (strchr("0123456789",t)==0 && (ctemp(j,1)!="+" || j!=0)) {
err=20;
chaine_error=chaine1ST;
}
}
if (err==0) {
sscanf(ctemp.Data(),"%d",&inter);
if (inter >= 0) {
inter += offset;
actionCode = kgaus + inter2;
actionParam = inter;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5) inter += 2;
if (inter+3>fNpar) fNpar = inter+3;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) fNoper++;
if(fNpar == 3) SetNumber(100);
} else err = 20; // non integer value for parameter number
}
} else if (err==0) {
err=26; // unknown name
chaine_error=chaine1ST;
}
//*-*- Look for landau, xlandau,ylandau,xylandau
//*-* =================================
} else if (chaine(0,6)=="landau" || chaine(1,6)=="landau" || chaine(2,6)=="landau") {
chaine1ST=chaine;
if (chaine(1,6) == "landau") {
ctemp=chaine(0,1);
if (ctemp=="x") {
inter2=0;
if (fNdim < 1) fNdim = 1; }
else if (ctemp=="y") {
inter2=1;
if (fNdim < 2) fNdim = 2; }
else if (ctemp=="z") {
inter2=2;
if (fNdim < 3) fNdim = 3; }
else if (ctemp=="t") {
inter2=3;
if (fNdim < 4) fNdim = 4; }
else {
err=26; // unknown name
chaine_error=chaine1ST;
}
chaine=chaine(1,lchain-1);
lchain=chaine.Length();
} else inter2=0;
if (chaine(2,6) == "landau") {
if (chaine(0,2) != "xy") {
err=26; // unknown name
chaine_error=chaine1ST;
}
else {
inter2=5;
if (fNdim < 2) fNdim = 2;
chaine=chaine(2,lchain-2);
lchain=chaine.Length();
}
}
if (lchain == 6 && err==0) {
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fExpr[fNoper] = chaine1ST;
actionCode = klandau + inter2;
actionParam = offset;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5+offset && fNpar < 5+offset) fNpar = 5+offset;
if (3+offset>fNpar) fNpar = 3+offset;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fNoper++;
if (fNdim < 1) fNdim = 1;
if (fNpar == 3) SetNumber(400);
}
}
} else if (chaine(6,1) == "(" && err==0) {
ctemp = chaine(7,lchain-8);
fExpr[fNoper] = chaine1ST;
for (j=0; j<ctemp.Length(); j++) {
t=ctemp[j];
if (strchr("0123456789",t)==0 && (ctemp(j,1)!="+" || j!=0)) {
err=20;
chaine_error=chaine1ST;
}
}
if (err==0) {
sscanf(ctemp.Data(),"%d",&inter);
if (inter >= 0) {
inter += offset;
actionCode = klandau + inter2;
actionParam = inter;
SetAction(fNoper,actionCode,actionParam);
if (inter2 == 5) inter += 2;
if (inter+3>fNpar) fNpar = inter+3;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) fNoper++;
if (fNpar == 3) SetNumber(400);
} else err = 20; // non integer value for parameter number
}
} else if (err==0) {
err=26; // unknown name
chaine_error=chaine1ST;
}
//*-*- Look for a polynomial
//*-* =====================
} else if (chaine(0,3) == "pol" || chaine(1,3) == "pol") {
chaine1ST=chaine;
if (chaine(1,3) == "pol") {
ctemp=chaine(0,1);
if (ctemp=="x") {
inter2=1;
if (fNdim < 1) fNdim = 1; }
else if (ctemp=="y") {
inter2=2;
if (fNdim < 2) fNdim = 2; }
else if (ctemp=="z") {
inter2=3;
if (fNdim < 3) fNdim = 3; }
else if (ctemp=="t") {
inter2=4;
if (fNdim < 4) fNdim = 4; }
else {
err=26; // unknown name;
chaine_error=chaine1ST;
}
chaine=chaine(1,lchain-1);
lchain=chaine.Length();
} else inter2=1;
if (chaine(lchain-1,1) == ")") {
nomb = 0;
for (j=3;j<lchain;j++) if (chaine(j,1)=="(" && nomb == 0) nomb = j;
if (nomb == 3) err = 23; // degree of polynomial not specified
if (nomb == 0) err = 40; // '(' is expected
ctemp = chaine(nomb+1,lchain-nomb-2);
for (j=0; j<ctemp.Length(); j++) {
t=ctemp[j];
if (strchr("0123456789",t)==0 && (ctemp(j,1)!="+" || j!=0)) {
err=20;
chaine_error=chaine1ST;
}
}
if (!err) {
sscanf(ctemp.Data(),"%d",&inter);
if (inter < 0) err = 20;
}
}
else {
nomb = lchain;
inter = 0;
}
if (!err) {
inter--;
ctemp = chaine(3,nomb-3);
if (sscanf(ctemp.Data(),"%d",&n) > 0) {
if (n < 0 ) err = 24; //Degree of polynomial must be positive
if (n >= 20) err = 25; //Degree of polynomial must be less than 20
} else err = 20;
}
if (!err) {
fExpr[fNoper] = chaine1ST;
actionCode = kpol+(inter2-1);
actionParam = n*100+inter+2;
SetAction(fNoper,actionCode,actionParam);
if (inter+n+1>=fNpar) fNpar = inter + n + 2;
if (fNpar>=MAXPAR) err=7; // too many parameters
if (!err) {
fNoper++;
if (fNdim < 1) fNdim = 1;
SetNumber(300+n);
}
}
//*-*- Look for pow,atan2,etc
//*-* ======================
} else if (chaine(0,4) == "pow(") {
compt = 4; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 22; // There are plus or minus than 2 arguments for pow
else {
ctemp = chaine(4,virgule-5);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "^";
actionCode = kpow;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (chaine(0,7) == "strstr(") {
compt = 7; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 28; // There are plus or minus than 2 arguments for strstr
else {
ctemp = chaine(7,virgule-8);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "strstr";
actionCode = kstrstr;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (chaine(0,4) == "min(") {
compt = 4; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 22; // There are plus or minus than 2 arguments for pow
else {
ctemp = chaine(4,virgule-5);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "min";
actionCode = kmin;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (chaine(0,4) == "max(") {
compt = 4; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 22; // There are plus or minus than 2 arguments for pow
else {
ctemp = chaine(4,virgule-5);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "max";
actionCode = kmax;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (chaine(0,6) == "atan2(") {
compt = 6; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 21; //{ There are plus or minus than 2 arguments for atan2
else {
ctemp = chaine(6,virgule-7);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "atan2";
actionCode = katan2;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (chaine(0,5) == "fmod(") {
compt = 5; nomb = 0; virgule = 0; nest=0;
while(compt != lchain) {
compt++;
if (chaine(compt-1,1) == "(") nest++;
else if (chaine(compt-1,1) == ")") nest--;
else if (chaine(compt-1,1) == "," && nest==0) {
nomb++;
if (nomb == 1 && virgule == 0) virgule = compt;
}
}
if (nomb != 1) err = 21; //{ There are plus or minus than 2 arguments for fmod
else {
ctemp = chaine(5,virgule-6);
Analyze(ctemp.Data(),err,offset);
ctemp = chaine(virgule,lchain-virgule-1);
Analyze(ctemp.Data(),err,offset);
fExpr[fNoper] = "fmod";
actionCode = kfmod;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
} else if (AnalyzeFunction(chaine,err,offset) || err) { // The '||err' is to grab an error coming from AnalyzeFunction
if (err) {
chaine_error = chaine;
} else {
// We have a function call. Note that all the work was already,
// eventually done in AnalyzeFuntion
//fprintf(stderr,"We found a foreign function in %s\n",chaine.Data());
}
} else if (chaine(0,1) == "[" && chaine(lchain-1,1) == "]") {
fExpr[fNoper] = chaine;
fNoper++;
ctemp = chaine(1,lchain-2);
for (j=0; j<ctemp.Length(); j++) {
t=ctemp[j];
if (strchr("0123456789",t)==0 && (ctemp(j,1)!="+" || j!=0)) {
err=20;
chaine_error=chaine1ST; // le numero ? de par[?] n'est pas un entier }
}
}
if (!err) {
sscanf(ctemp.Data(),"%d",&valeur);
actionCode = kParameter;
actionParam = offset + valeur;
SetAction(fNoper-1, actionCode, actionParam);
fExpr[fNoper-1] = "[";
fExpr[fNoper-1] = (fExpr[fNoper-1] + (long int)(valeur+offset)) + "]";
}
} else if (chaine == "pi") {
fExpr[fNoper] = "pi";
actionCode = kpi;
SetAction(fNoper,actionCode,actionParam);
fNoper++;
}
else {
//*-*- None of the above.
//*-* ==================
err = 30;
}
} // because of the indentation skips above this is slightly off
}
}
}
}
}
// Test * si y existe : que x existe
// * si z existe : que x et y existent
// nomb = 1;
// for (i=1; i<=fNoper; i++) {
// if (fOper[i-1] == 97 && nomb > 0) nomb *= -1;
// if (fOper[i-1] == 98 && TMath::Abs(nomb) != 2) nomb *= 2;
// if (fOper[i-1] == 99 && TMath::Abs(nomb) != 20 && TMath::Abs(nomb) != 10) nomb *= 10;
// }
// if (nomb == 10) err = 10; //{variable z sans x et y }
// if (nomb == 20) err = 11; //{variables z et y sans x }
// if (nomb == 2) err = 12; //{variable y sans x }
// if (nomb == -10) err = 13; //{variables z et x sans y }
//*-*- Overflows
if (fNoper>=MAXOP) err=6; // too many operators
}
//*-*- errors!
if (err>1) {
cout<<endl<<"*ERROR "<<err<<" : "<<endl;
switch(err) {
case 2 : cout<<" Invalid Floating Point Operation"<<endl; break;
case 4 : cout<<" Empty String"<<endl; break;
case 5 : cout<<" Invalid Syntax \""<<(const char*)chaine_error<<"\""<<endl; break;
case 6 : cout<<" Too many operators !"<<endl; break;
case 7 : cout<<" Too many parameters !"<<endl; break;
case 10 : cout<<" z specified but not x and y"<<endl; break;
case 11 : cout<<" z and y specified but not x"<<endl; break;
case 12 : cout<<" y specified but not x"<<endl; break;
case 13 : cout<<" z and x specified but not y"<<endl; break;
case 20 : cout<<" Non integer value for parameter number : "<<(const char*)chaine_error<<endl; break;
case 21 : cout<<" ATAN2 requires two arguments"<<endl; break;
case 22 : cout<<" POW requires two arguments"<<endl; break;
case 23 : cout<<" Degree of polynomial not specified"<<endl; break;
case 24 : cout<<" Degree of polynomial must be positive"<<endl; break;
case 25 : cout<<" Degree of polynomial must be less than 20"<<endl; break;
case 26 : cout<<" Unknown name : \""<<(const char*)chaine_error<<"\""<<endl; break;
case 27 : cout<<" Too many constants in expression"<<endl; break;
case 28 : cout<<" strstr requires tow arguments"<<endl; break;
case 29 : cout<<" TFormula can only call interpreted and compiled functions that return a numerical type: \n"
<<chaine_error<<endl; break;
case 30 : cout<<" Bad numerical expression : \""<<(const char*)chaine_error<<"\""<<endl; break;
case 31 : cout<<" The Variable : \""<<(const char*)chaine_error<<"\" exists but is not accessible"<<endl; break;
case 40 : cout<<" '(' is expected"<<endl; break;
case 41 : cout<<" ')' is expected"<<endl; break;
case 42 : cout<<" '[' is expected"<<endl; break;
case 43 : cout<<" ']' is expected"<<endl; break;
}
err=1;
}
}
//______________________________________________________________________________
void TFormula::Clear(Option_t * /*option*/ )
{
//*-*-*-*-*-*-*-*-*Resets the objects*-*-*-*-*-*-*-*-*-*-*
//*-* ==================
//*-*
//*-* Resets the object to its state before compilation.
//*-*
ClearFormula();
}
//______________________________________________________________________________
void TFormula::ClearFormula(Option_t * /*option*/ )
{
//*-*-*-*-*-*-*-*-*Resets the objects*-*-*-*-*-*-*-*-*-*-*
//*-* ==================
//*-*
//*-* Resets the object to its state before compilation.
//*-*
fNdim = 0;
fNpar = 0;
fNoper = 0;
fNconst = 0;
fNumber = 0;
fNstring= 0;
fNval = 0;
if (fExpr) { delete [] fExpr; fExpr = 0;}
if (fOper) { delete [] fOper; fOper = 0;}
if (fConst) { delete [] fConst; fConst = 0;}
if (fParams) { delete [] fParams; fParams = 0;}
if (fNames) { delete [] fNames; fNames = 0;}
fFunctions.Delete();
// should we also remove the object from the list?
// gROOT->GetListOfFunctions()->Remove(this);
// if we don't, what happens if it fails the new compilation?
}
//______________________________________________________________________________
Int_t TFormula::Compile(const char *expression)
{
//*-*-*-*-*-*-*-*-*-*-*Compile expression already stored in fTitle*-*-*-*-*-*
//*-* ===========================================
//*-*
//*-* Loop on all subexpressions of formula stored in fTitle
//*-*
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
//
/*
*/
//
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Int_t i,j,lc,valeur,err;
TString ctemp;
ClearFormula();
//*-*- If expression is not empty, take it, otherwise take the title
if (strlen(expression)) SetTitle(expression);
TString chaine = GetTitle();
// chaine.ToLower();
MAXOP = 1000;
MAXPAR = 100;
MAXCONST= 100;
fExpr = new TString[MAXOP];
fConst = new Double_t[MAXCONST];
fParams = new Double_t[MAXPAR];
fNames = new TString[MAXPAR];
fOper = new Int_t[MAXOP];
for (i=0; i<MAXPAR; i++) {
fParams[i] = 0;
fNames[i] = "";
}
for (i=0; i<MAXOP; i++) {
fExpr[i] = "";
fOper[i] = 0;
}
for (i=0; i<MAXCONST; i++)
fConst[i] = 0;
//*-*- Substitution of some operators to C++ style
//*-* ===========================================
for (i=1; i<=chaine.Length(); i++) {
lc =chaine.Length();
if (chaine(i-1,2) == "**") {
chaine = chaine(0,i-1) + "^" + chaine(i+1,lc-i-1);
i=0;
} else
if (chaine(i-1,2) == "++") {
chaine = chaine(0,i) + chaine(i+1,lc-i-1);
i=0;
} else
if (chaine(i-1,2) == "+-" || chaine(i-1,2) == "-+") {
chaine = chaine(0,i-1) + "-" + chaine(i+1,lc-i-1);
i=0;
} else
if (chaine(i-1,2) == "--") {
chaine = chaine(0,i-1) + "+" + chaine(i+1,lc-i-1);
i=0;
} else
if (chaine(i-1,2) == "->") {
chaine = chaine(0,i-1) + "." + chaine(i+1,lc-i-1);
i=0;
} else
if (chaine(i-1,1) == "[") {
for (j=1;j<=chaine.Length()-i;j++) {
if (chaine(j+i-1,1) == "]" || j+i > chaine.Length()) break;
}
ctemp = chaine(i,j-1);
valeur=0;
sscanf(ctemp.Data(),"%d",&valeur);
if (valeur >= fNpar) fNpar = valeur+1;
} else
if (chaine(i-1,1) == " ") {
chaine = chaine(0,i-1)+chaine(i,lc-i);
i=0;
}
}
err = 0;
Analyze((const char*)chaine,err);
// if no parameters delete arrays fParams and fNames
if (!fNpar) {
delete [] fParams; fParams = 0;
delete [] fNames; fNames = 0;
}
//*-*- if no errors, copy local parameters to formula objects
if (!err) {
if (fNdim <= 0) fNdim = 1;
if (chaine.Length() > 4 && GetNumber() != 400) SetNumber(0);
//*-*- if formula is a gaussian, set parameter names
if (GetNumber() == 100) {
SetParName(0,"Constant");
SetParName(1,"Mean");
SetParName(2,"Sigma");
}
//*-*- if formula is an exponential, set parameter names
if (GetNumber() == 200) {
SetParName(0,"Constant");
SetParName(1,"Slope");
}
//*-*- if formula is a polynome, set parameter names
if (GetNumber() == 300+fNpar) {
for (i=0;i<fNpar;i++) SetParName(i,Form("p%d",i));
}
//*-*- if formula is a landau, set parameter names
if (GetNumber() == 400) {
SetParName(0,"Constant");
SetParName(1,"MPV");
SetParName(2,"Sigma");
}
}
//*-* replace 'normal' == or != by ==(string) or !=(string) if needed.
Int_t is_it_string,last_string=0,before_last_string=0;
if (!fOper) fNoper = 0;
enum { kIsCharacter = BIT(12) };
for (i=0; i<fNoper; i++,
before_last_string = last_string,
last_string = is_it_string) {
is_it_string = IsString(i);
if (is_it_string) continue;
if (GetAction(i) == kstrstr) {
if (! (before_last_string && last_string) ) {
Error("Compile", "strstr requires 2 string arguments");
return -1;
}
SetBit(kIsCharacter);
} else if (last_string) {
if (GetAction(i) == kEqual) {
if (!before_last_string) {
Error("Compile", "Both operands of the operator == have to be either numbers or strings");
return -1;
}
SetAction(i, kStringEqual, GetActionParam(i) );
SetBit(kIsCharacter);
} else if (GetAction(i) == kNotEqual) {
if (!before_last_string) {
Error("Compile", "Both operands of the operator != have to be either numbers or strings");
return -1;
}
SetAction(i, kStringNotEqual, GetActionParam(i) );
SetBit(kIsCharacter);
} else if (before_last_string) {
// the i-2 element is a string not used in a string operation, let's down grade it
// to a char array:
if (GetAction(i-2) == kDefinedString) {
SetAction( i-2, kDefinedVariable, GetActionParam(i-2) );
fNval++;
fNstring--;
}
}
} else if (before_last_string) {
// the i-2 element is a string not used in a string operation, let's down grade it
// to a char array:
if (GetAction(i-2) == kDefinedString) {
SetAction( i-2, kDefinedVariable, GetActionParam(i-2) );
fNval++;
fNstring--;
}
}
}
if (err) { fNdim = 0; return 1; }
// Convert(5);
return 0;
}
//______________________________________________________________________________
void TFormula::Copy(TObject &obj) const
{
//*-*-*-*-*-*-*-*-*-*-*Copy this formula*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* =================
Int_t i;
obj.Clear(); // delete existing arrays in the copy.
TNamed::Copy(obj);
((TFormula&)obj).fNdim = fNdim;
((TFormula&)obj).fNpar = fNpar;
((TFormula&)obj).fNoper = fNoper;
((TFormula&)obj).fNconst = fNconst;
((TFormula&)obj).fNumber = fNumber;
((TFormula&)obj).fNval = fNval;
((TFormula&)obj).fExpr = 0;
((TFormula&)obj).fConst = 0;
((TFormula&)obj).fParams = 0;
((TFormula&)obj).fNames = 0;
if (fExpr && fNoper) {
((TFormula&)obj).fExpr = new TString[fNoper];
for (i=0; i<fNoper; i++)
((TFormula&)obj).fExpr[i] = "";
}
if (fOper && fNoper) {
((TFormula&)obj).fOper = new Int_t[fNoper];
}
if (fConst && fNconst) {
((TFormula&)obj).fConst = new Double_t[fNconst];
for (i=0; i<fNconst; i++)
((TFormula&)obj).fConst[i] = 0;
}
if (fParams && fNpar) {
((TFormula&)obj).fParams = new Double_t[fNpar];
for (i=0; i<fNpar; i++)
((TFormula&)obj).fParams[i] = 0;
}
if (fNames && fNpar) {
((TFormula&)obj).fNames = new TString[fNpar];
for (i=0; i<fNpar; i++)
((TFormula&)obj).fNames[i] = "";
}
for (i=0;i<fNoper;i++) ((TFormula&)obj).fExpr[i] = fExpr[i];
for (i=0;i<fNoper;i++) ((TFormula&)obj).fOper[i] = fOper[i];
for (i=0;i<fNconst;i++) ((TFormula&)obj).fConst[i] = fConst[i];
for (i=0;i<fNpar;i++) ((TFormula&)obj).fParams[i] = fParams[i];
for (i=0;i<fNpar;i++) ((TFormula&)obj).fNames[i] = fNames[i];
TIter next(&fFunctions);
TObject *fobj;
while ( (fobj = next()) ) {
((TFormula&)obj).fFunctions.Add( fobj->Clone() );
}
}
//______________________________________________________________________________
char *TFormula::DefinedString(Int_t)
{
//*-*-*-*-*-*Return address of string corresponding to special code*-*-*-*-*-*
//*-* ======================================================
//*-*
//*-* This member function is inactive in the TFormula class.
//*-* It may be redefined in derived classes.
//*-*
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
///*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
return 0;
}
//______________________________________________________________________________
Double_t TFormula::DefinedValue(Int_t)
{
//*-*-*-*-*-*Return value corresponding to special code*-*-*-*-*-*-*-*-*
//*-* ==========================================
//*-*
//*-* This member function is inactive in the TFormula class.
//*-* It may be redefined in derived classes.
//*-*
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
///*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
return 0;
}
//______________________________________________________________________________
Int_t TFormula::DefinedVariable(TString &chaine,Int_t &action)
{
//*-*-*-*-*-*Check if expression is in the list of defined variables*-*-*-*-*
//*-* =======================================================
//*-*
//*-* This member function can be overloaded in derived classes
//*-*
//*-* If you overload this member function, you also HAVE TO
//*-* never call the constructor:
//*-*
//*-* TFormula::TFormula(const char *name,const char *expression)
//*-*
//*-* and write your own constructor
//*-*
//*-* MyClass::MyClass(const char *name,const char *expression) : TFormula()
//*-*
//*-* which has to call the TFormula default constructor and whose implementation
//*-* should be similar to the implementation of the normal TFormula constructor
//*-*
//*-* This is necessary because the normal TFormula constructor call indirectly
//*-* the virtual member functions Analyze, DefaultString, DefaultValue
//*-* and DefaultVariable.
//*-*
//*-* The expected returns values are
//*-* -2 : the name has been recognized but won't be usable
//*-* -1 : the name has not been recognized
//*-* >=0 : the name has been recognized, return the action parameter.
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
action = kVariable;
if (chaine == "x") {
if (fNdim < 1) fNdim = 1;
return 0;
} else if (chaine == "y") {
if (fNdim < 2) fNdim = 2;
return 1;
} else if (chaine == "z") {
if (fNdim < 3) fNdim = 3;
return 2;
} else if (chaine == "t") {
if (fNdim < 4) fNdim = 4;
return 3;
}
return -1;
}
//______________________________________________________________________________
Double_t TFormula::Eval(Double_t x, Double_t y, Double_t z, Double_t t)
{
//*-*-*-*-*-*-*-*-*-*-*Evaluate this formula*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* =====================
//*-*
//*-* The current value of variables x,y,z,t is passed through x, y, z and t.
//*-* The parameters used will be the ones in the array params if params is given
//*-* otherwise parameters will be taken from the stored data members fParams
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Double_t xx[4];
xx[0] = x;
xx[1] = y;
xx[2] = z;
xx[3] = t;
return EvalPar(xx);
}
//______________________________________________________________________________
Double_t TFormula::EvalPar(const Double_t *x, const Double_t *params)
{
//*-*-*-*-*-*-*-*-*-*-*Evaluate this formula*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* =====================
//*-*
//*-* The current value of variables x,y,z,t is passed through the pointer x.
//*-* The parameters used will be the ones in the array params if params is given
//*-* otherwise parameters will be taken from the stored data members fParams
//
/*
*/
//
//*-*
//*-*
//*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Int_t i,j,pos,pos2; // ,inter,inter2,int1,int2;
// Float_t aresult;
Double_t tab[kMAXFOUND];
char *tab2[kMAXSTRINGFOUND];
Double_t param_calc[kMAXFOUND];
// Double_t dexp,intermede,intermede1,intermede2;
char *string_calc[kMAXSTRINGFOUND];
Int_t precalculated = 0;
Int_t precalculated_str = 0;
if (params) {
for (j=0;j<fNpar;j++) fParams[j] = params[j];
}
pos = 0;
pos2 = 0;
for (i=0; i<fNoper; ++i) {
const int oper = fOper[i];
switch((oper >> kTFOperShift)) {
case kParameter : { pos++; tab[pos-1] = fParams[ oper & kTFOperMask ]; continue; }
case kConstant : { pos++; tab[pos-1] = fConst[ oper & kTFOperMask ]; continue; }
case kVariable : { pos++; tab[pos-1] = x[ oper & kTFOperMask ]; continue; }
case kStringConst: { pos2++;tab2[pos2-1] = (char*)fExpr[i].Data(); pos++; tab[pos-1] = 0; continue; }
case kAdd : pos--; tab[pos-1] += tab[pos]; continue;
case kSubstract : pos--; tab[pos-1] -= tab[pos]; continue;
case kMultiply : pos--; tab[pos-1] *= tab[pos]; continue;
case kDivide : pos--; if (tab[pos] == 0) tab[pos-1] = 0; // division by 0
else tab[pos-1] /= tab[pos];
continue;
case kModulo : {pos--; Int_t int1=Int_t(tab[pos-1]); Int_t int2=Int_t(tab[pos]); tab[pos-1] = Double_t(int1%int2); continue;}
case kcos : tab[pos-1] = TMath::Cos(tab[pos-1]); continue;
case ksin : tab[pos-1] = TMath::Sin(tab[pos-1]); continue;
case ktan : if (TMath::Cos(tab[pos-1]) == 0) {tab[pos-1] = 0;} // { tangente indeterminee }
else tab[pos-1] = TMath::Tan(tab[pos-1]);
continue;
case kacos : if (TMath::Abs(tab[pos-1]) > 1) {tab[pos-1] = 0;} // indetermination
else tab[pos-1] = TMath::ACos(tab[pos-1]);
continue;
case kasin : if (TMath::Abs(tab[pos-1]) > 1) {tab[pos-1] = 0;} // indetermination
else tab[pos-1] = TMath::ASin(tab[pos-1]);
continue;
case katan : tab[pos-1] = TMath::ATan(tab[pos-1]); continue;
case kcosh : tab[pos-1] = TMath::CosH(tab[pos-1]); continue;
case ksinh : tab[pos-1] = TMath::SinH(tab[pos-1]); continue;
case ktanh : if (TMath::CosH(tab[pos-1]) == 0) {tab[pos-1] = 0;} // { tangente indeterminee }
else tab[pos-1] = TMath::TanH(tab[pos-1]);
continue;
case kacosh: if (tab[pos-1] < 1) {tab[pos-1] = 0;} // indetermination
else tab[pos-1] = TMath::ACosH(tab[pos-1]);
continue;
case kasinh: tab[pos-1] = TMath::ASinH(tab[pos-1]); continue;
case katanh: if (TMath::Abs(tab[pos-1]) > 1) {tab[pos-1] = 0;} // indetermination
else tab[pos-1] = TMath::ATanH(tab[pos-1]); continue;
case katan2: pos--; tab[pos-1] = TMath::ATan2(tab[pos-1],tab[pos]); continue;
case kfmod : pos--; tab[pos-1] = fmod(tab[pos-1],tab[pos]); continue;
case kpow : pos--; tab[pos-1] = TMath::Power(tab[pos-1],tab[pos]); continue;
case ksq : tab[pos-1] = tab[pos-1]*tab[pos-1]; continue;
case ksqrt : tab[pos-1] = TMath::Sqrt(TMath::Abs(tab[pos-1])); continue;
case kstrstr : pos2 -= 2; pos-=2; pos++;
if (strstr(tab2[pos2],tab2[pos2+1])) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kmin : pos--; tab[pos-1] = TMath::Min(tab[pos-1],tab[pos]); continue;
case kmax : pos--; tab[pos-1] = TMath::Max(tab[pos-1],tab[pos]); continue;
case klog : if (tab[pos-1] > 0) tab[pos-1] = TMath::Log(tab[pos-1]);
else {tab[pos-1] = 0;} //{indetermination }
continue;
case kexp : { Double_t dexp = tab[pos-1];
if (dexp < -700) {tab[pos-1] = 0; continue;}
if (dexp > 700) {tab[pos-1] = TMath::Exp(700); continue;}
tab[pos-1] = TMath::Exp(dexp); continue; }
case klog10: if (tab[pos-1] > 0) tab[pos-1] = TMath::Log10(tab[pos-1]);
else {tab[pos-1] = 0;} //{indetermination }
continue;
case kpi : pos++; tab[pos-1] = TMath::ACos(-1); continue;
case kabs : tab[pos-1] = TMath::Abs(tab[pos-1]); continue;
case ksign : if (tab[pos-1] < 0) tab[pos-1] = -1; else tab[pos-1] = 1; continue;
case kint : tab[pos-1] = Double_t(Int_t(tab[pos-1])); continue;
case kSignInv: tab[pos-1] = -1 * tab[pos-1]; continue;
case krndm : pos++; tab[pos-1] = gRandom->Rndm(1); continue;
case kAnd : pos--; if (tab[pos-1]!=0 && tab[pos]!=0) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kOr : pos--; if (tab[pos-1]!=0 || tab[pos]!=0) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kEqual: pos--; if (tab[pos-1] == tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kNotEqual : pos--; if (tab[pos-1] != tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kLess : pos--; if (tab[pos-1] < tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kGreater : pos--; if (tab[pos-1] > tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kLessThan: pos--; if (tab[pos-1]<=tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kGreaterThan: pos--; if (tab[pos-1]>=tab[pos]) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kNot : if (tab[pos-1]!=0) tab[pos-1] = 0; else tab[pos-1] = 1; continue;
case kStringEqual : pos2 -= 2; pos -=2 ; pos++;
if (!strcmp(tab2[pos2+1],tab2[pos2])) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kStringNotEqual: pos2 -= 2; pos -= 2; pos++;
if (strcmp(tab2[pos2+1],tab2[pos2])) tab[pos-1]=1;
else tab[pos-1]=0; continue;
case kBitAnd : pos--; tab[pos-1]= ((Int_t) tab[pos-1]) & ((Int_t) tab[pos]); continue;
case kBitOr : pos--; tab[pos-1]= ((Int_t) tab[pos-1]) | ((Int_t) tab[pos]); continue;
case kLeftShift : pos--; tab[pos-1]= ((Int_t) tab[pos-1]) <<((Int_t) tab[pos]); continue;
case kRightShift: pos--; tab[pos-1]= ((Int_t) tab[pos-1]) >>((Int_t) tab[pos]); continue;
case kBoolOptimize: {
// boolean operation optimizer
int param = (oper & kTFOperMask);
Bool_t skip = kFALSE;
int op = param % 10; // 1 is && , 2 is ||
if (op == 1 && (!tab[pos-1]) ) {
// &&: skip the right part if the left part is already false
skip = kTRUE;
// Preserve the existing behavior (i.e. the result of a&&b is
// either 0 or 1)
tab[pos-1] = 0;
} else if (op == 2 && tab[pos-1] ) {
// ||: skip the right part if the left part is already true
skip = kTRUE;
// Preserve the existing behavior (i.e. the result of a||b is
// either 0 or 1)
tab[pos-1] = 1;
}
if (skip) {
int toskip = param / 10;
i += toskip;
}
continue;
}
}
switch((oper >> kTFOperShift)) {
#define R__EXPO(var) \
{ \
pos++; int param = (oper & kTFOperMask); \
tab[pos-1] = TMath::Exp(fParams[param]+fParams[param+1]*x[var]); \
continue; \
}
// case kexpo:
case kxexpo: R__EXPO(0);
case kyexpo: R__EXPO(1);
case kzexpo: R__EXPO(2);
case kxyexpo:{ pos++; int param = (oper & kTFOperMask);
tab[pos-1] = TMath::Exp(fParams[param]+fParams[param+1]*x[0]+fParams[param+2]*x[1]);
continue; }
#define R__GAUS(var) \
{ \
pos++; int param = (oper & kTFOperMask); \
tab[pos-1] = fParams[param]*TMath::Gaus(x[var],fParams[param+1],fParams[param+2],IsNormalized()); \
continue; \
}
// case kgaus:
case kxgaus: R__GAUS(0);
case kygaus: R__GAUS(1);
case kzgaus: R__GAUS(2);
case kxygaus: { pos++; int param = (oper & kTFOperMask);
Double_t intermede1;
if (fParams[param+2] == 0) {
intermede1=1e10;
} else {
intermede1=Double_t((x[0]-fParams[param+1])/fParams[param+2]);
}
Double_t intermede2;
if (fParams[param+4] == 0) {
intermede2=1e10;
} else {
intermede2=Double_t((x[1]-fParams[param+3])/fParams[param+4]);
}
tab[pos-1] = fParams[param]*TMath::Exp(-0.5*(intermede1*intermede1+intermede2*intermede2));
continue; }
#define R__LANDAU(var) \
{ \
pos++; const int param = (oper & kTFOperMask); \
tab[pos-1] = fParams[param]*TMath::Landau(x[var],fParams[param+1],fParams[param+2],IsNormalized()); \
continue; \
}
// case klandau:
case kxlandau: R__LANDAU(0);
case kylandau: R__LANDAU(1);
case kzlandau: R__LANDAU(2);
case kxylandau: { pos++; int param = oper&0x7fffff /* ActionParams[i] */ ;
Double_t intermede1=TMath::Landau(x[0], fParams[param+1], fParams[param+2],IsNormalized());
Double_t intermede2=TMath::Landau(x[1], fParams[param+2], fParams[param+3],IsNormalized());
tab[pos-1] = fParams[param]*intermede1*intermede2;
continue;
}
#define R__POLY(var) \
{ \
pos++; int param = (oper & kTFOperMask); \
tab[pos-1] = 0; Double_t intermede = 1; \
Int_t inter = param/100; /* arrondit */ \
Int_t int1= param-inter*100-1; /* aucune simplification ! (sic) */ \
for (j=0 ;j<inter+1;j++) { \
tab[pos-1] += intermede*fParams[j+int1]; \
intermede *= x[var]; \
} \
continue; \
}
// case kpol:
case kxpol: R__POLY(0);
case kypol: R__POLY(1);
case kzpol: R__POLY(2);
case kDefinedVariable : {
if (!precalculated) {
precalculated = 1;
for(j=0;j<fNval;j++) param_calc[j]=DefinedValue(j);
}
pos++; tab[pos-1] = param_calc[(oper & kTFOperMask)];
continue;
}
case kDefinedString : {
int param = (oper & kTFOperMask);
if (!precalculated_str) {
precalculated_str=1;
for (j=0;j<fNstring;j++) string_calc[j]=DefinedString(j);
}
pos2++; tab2[pos2-1] = string_calc[param];
pos++; tab[pos-1] = 0;
continue;
}
case kFunctionCall: {
// an external function call
int param = (oper & kTFOperMask);
int fno = param / 1000;
int nargs = param % 1000;
// Retrieve the function
TMethodCall *method = (TMethodCall*)fFunctions.At(fno);
// Set the arguments
TString args;
if (nargs) {
UInt_t argloc = pos-nargs;
for(j=0;j<nargs;j++,argloc++,pos--) {
if (TMath::IsNaN(tab[argloc])) {
// TString would add 'nan' this is not what we want
// so let's do somethign else
args += "(double)(0x8000000000000)";
} else {
args += tab[argloc];
}
args += ',';
}
args.Remove(args.Length()-1);
}
pos++;
Double_t ret;
method->Execute(args,ret);
tab[pos-1] = ret; // check for the correct conversion!
continue;
};
}
Assert(0);
}
Double_t result0 = tab[0];
return result0;
}
//------------------------------------------------------------------------------
TString TFormula::GetExpFormula() const
{
//*-*-*-*-*-*-*-*-*Reconstruct the formula expression from*-*-*-*-*-*-*-*-*-*-*
//*-* the internal TFormula member variables
//*-* =======================================
//*-*
//*-* This function uses the internal member variables of TFormula to
//*-* construct the mathematical expression associated with the TFormula
//*-* instance. This function can be used to get an expanded version of the
//*-* expression originally assigned to the TFormula instance, i.e. that
//*-* the string returned by GetExpFormula() doesn't depend on other
//*-* TFormula object names
if (fNoper>0) {
TString* tab=new TString[fNoper];
Bool_t* ismulti=new Bool_t[fNoper];
Int_t spos=0;
ismulti[0]=kFALSE;
Int_t optype;
Int_t j;
for(Int_t i=0;i<fNoper;i++){
optype= GetAction(i);
// Boolean optimization breakpoint
if (optype==kBoolOptimize) { // -3) {
continue;
}
//Sign inversion
if (optype==kSignInv) { // -1) {
tab[spos-1]="-"+tab[spos-1];
// i++;
continue;
}
//Simple name (parameter,pol0,landau, etc)
if (kexpo<=optype && optype<=kzpol) { // >=0) {
tab[spos]=fExpr[i];
ismulti[spos]=kFALSE;
spos++;
continue;
}
//constants, variables x,y,z,t, pi
if ((optype<=149 && optype>=140) || (optype == 40)) {
tab[spos]=fExpr[i];
ismulti[spos]=kFALSE;
spos++;
continue;
}
//Basic operators (+,-,*,/,==,^,etc)
if(((optype>0 && optype<6) || optype==20 ||
(optype>59 && optype<82)) && spos>=2) {
// if(optype==-20 && spos>=2){
if(ismulti[spos-2]){
tab[spos-2]="("+tab[spos-2]+")";
}
if(ismulti[spos-1]){
tab[spos-2]+=fExpr[i]+("("+tab[spos-1]+")");
}else{
tab[spos-2]+=fExpr[i]+tab[spos-1];
}
ismulti[spos-2]=kTRUE;
spos--;
continue;
}
//Functions
int offset = 0;
if((optype>9 && optype<16) ||
(optype>20 && optype<23) ||
(optype>29 && optype<34) ||
(optype>40 && optype<44) ||
(optype>69 && optype<76)) {
//Functions with the format func(x)
offset = -1;
}
if(optype>15 && optype<20 ||
optype>22 && optype<26) {
//Functions with the format func(x,y)
offset = -2;
}
if (offset<0 && (spos+offset>=0)) {
tab[spos+offset]=fExpr[i]+("("+tab[spos+offset]);
for (j=optype+1; j<0; j++){
tab[spos+offset]+=","+tab[spos+j];
}
tab[spos+offset]+=")";
ismulti[spos+offset]=kFALSE;
spos+=offset+1;
continue;
}
}
TString ret = "";
if (spos > 0) ret = tab[spos-1];
delete[] tab;
delete[] ismulti;
return ret;
} else{
TString ret="";
return ret;
}
}
//______________________________________________________________________________
Double_t TFormula::GetParameter(Int_t ipar) const
{
//return value of parameter number ipar
if (ipar <0 && ipar >= fNpar) return 0;
return fParams[ipar];
}
//______________________________________________________________________________
Double_t TFormula::GetParameter(const char *parName) const
{
//return value of parameter named parName
const Double_t kNaN = 1e-300;
Int_t index = GetParNumber(parName);
if (index==-1) {
Error("TFormula", "Parameter %s not found", parName);
return kNaN;
}
return GetParameter(index);
}
//______________________________________________________________________________
const char *TFormula::GetParName(Int_t ipar) const
{
//*-*-*-*-*-*-*-*Return name of one parameter*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ============================
if (ipar <0 || ipar >= fNpar) return "";
if (fNames[ipar].Length() > 0) return (const char*)fNames[ipar];
return Form("p%d",ipar);
}
//______________________________________________________________________________
Int_t TFormula::GetParNumber(const char *parName) const
{
// return parameter number by name
if (!parName)
return -1;
for (Int_t i=0; i<fNpar; i++) {
if (fNames[i] == parName) return i;
}
return -1;
}
//______________________________________________________________________________
Bool_t TFormula::IsString(Int_t oper) const
{
// return true if the expression at the index 'oper' is to be treated as
// as string
return GetAction(oper) == kStringConst;
}
//______________________________________________________________________________
void TFormula::Print(Option_t *) const
{
//*-*-*-*-*-*-*-*-*-*-*Dump this formula with its attributes*-*-*-*-*-*-*-*-*-*
//*-* =====================================
Int_t i;
Printf(" %20s : %s Ndim= %d, Npar= %d, Noper= %d",GetName(),GetTitle(), fNdim,fNpar,fNoper);
for (i=0;i<fNoper;i++) {
Printf(" fExpr[%d] = %s action = %d action param = %d ",
i,(const char*)fExpr[i],GetAction(i),GetActionParam(i));
}
if (!fNames) return;
if (!fParams) return;
for (i=0;i<fNpar;i++) {
Printf(" Par%3d %20s = %g",i,GetParName(i),fParams[i]);
}
}
//______________________________________________________________________________
void TFormula::SetParameter(const char *name, Double_t value)
{
//*-*-*-*-*-*-*-*Initialize parameter number ipar*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ================================
Int_t ipar = GetParNumber(name);
if (ipar <0 || ipar >= fNpar) return;
fParams[ipar] = value;
Update();
}
//______________________________________________________________________________
void TFormula::SetParameter(Int_t ipar, Double_t value)
{
//*-*-*-*-*-*-*-*Initialize parameter number ipar*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ================================
if (ipar <0 || ipar >= fNpar) return;
fParams[ipar] = value;
Update();
}
//______________________________________________________________________________
void TFormula::SetParameters(const Double_t *params)
{
// Initialize array of all parameters
// see also next function with same name
for (Int_t i=0; i<fNpar;i++) {
fParams[i] = params[i];
}
Update();
}
//______________________________________________________________________________
void TFormula::SetParameters(Double_t p0,Double_t p1,Double_t p2,Double_t p3,Double_t p4
,Double_t p5,Double_t p6,Double_t p7,Double_t p8,Double_t p9,Double_t p10)
{
// Initialize up to 10 parameters
// All arguments except THE FIRST TWO are optional
// In case of a function with only one parameter, call this function with p1=0.
// Minimum two arguments are required to differentiate this function
// from the SetParameters(cont Double_t *params)
if (fNpar > 0) fParams[0] = p0;
if (fNpar > 1) fParams[1] = p1;
if (fNpar > 2) fParams[2] = p2;
if (fNpar > 3) fParams[3] = p3;
if (fNpar > 4) fParams[4] = p4;
if (fNpar > 5) fParams[5] = p5;
if (fNpar > 6) fParams[6] = p6;
if (fNpar > 7) fParams[7] = p7;
if (fNpar > 8) fParams[8] = p8;
if (fNpar > 9) fParams[9] = p9;
if (fNpar >10) fParams[10]= p10;
Update();
}
//______________________________________________________________________________
void TFormula::SetParName(Int_t ipar, const char *name)
{
// Set name of parameter number ipar
if (ipar <0 || ipar >= fNpar) return;
fNames[ipar] = name;
}
//______________________________________________________________________________
void TFormula::SetParNames(const char*name0,const char*name1,const char*name2,const char*name3,const char*name4,
const char*name5,const char*name6,const char*name7,const char*name8,const char*name9,const char*name10)
{
//*-*-*-*-*-*-*-*-*-*Set up to 10 parameter names*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* ============================
if (fNpar > 0) fNames[0] = name0;
if (fNpar > 1) fNames[1] = name1;
if (fNpar > 2) fNames[2] = name2;
if (fNpar > 3) fNames[3] = name3;
if (fNpar > 4) fNames[4] = name4;
if (fNpar > 5) fNames[5] = name5;
if (fNpar > 6) fNames[6] = name6;
if (fNpar > 7) fNames[7] = name7;
if (fNpar > 8) fNames[8] = name8;
if (fNpar > 9) fNames[9] = name9;
if (fNpar >10) fNames[10]= name10;
}
//_______________________________________________________________________
void TFormula::Streamer(TBuffer &b)
{
//*-*-*-*-*-*-*-*-*Stream a class object*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
//*-* =========================================
if (b.IsReading()) {
UInt_t R__s, R__c;
Version_t v = b.ReadVersion(&R__s, &R__c);
if (v > 3) {
if (v==6) {
Error("Streamer","version 6 is not supported");
return;
}
TFormula::Class()->ReadBuffer(b, this, v, R__s, R__c);
if (!TestBit(kNotGlobal)) gROOT->GetListOfFunctions()->Add(this);
// We need to reinstate (if possible) the TMethodCall.
if (fFunctions.GetLast()>=0) {
Compile();
} else if (v<6) {
Convert(v);
}
return;
}
//====process old versions before automatic schema evolution
TNamed::Streamer(b);
b >> fNdim;
b >> fNumber;
if (v > 1) b >> fNval;
if (v > 2) b >> fNstring;
fNpar = b.ReadArray(fParams);
fOper = new Int_t[MAXOP];
fNoper = b.ReadArray(fOper);
fNconst = b.ReadArray(fConst);
if (fNoper) {
fExpr = new TString[fNoper];
}
if (fNpar) {
fNames = new TString[fNpar];
}
Int_t i;
for (i=0;i<fNoper;i++) fExpr[i].Streamer(b);
for (i=0;i<fNpar;i++) fNames[i].Streamer(b);
if (gROOT->GetListOfFunctions()->FindObject(GetName())) return;
gROOT->GetListOfFunctions()->Add(this);
b.CheckByteCount(R__s, R__c, TFormula::IsA());
Convert(v);
//====end of old versions
} else {
TFormula::Class()->WriteBuffer(b,this);
}
}
void TFormula::Convert(UInt_t /* fromVersion */)
{
// Convert the fOper of a TFormula version fromVersion to the current in memory version
enum {
kOldexpo = 1000,
kOldgaus = 2000,
kOldlandau = 4000,
kOldxylandau = 4500,
kOldConstants = 50000,
kOldStrings = 80000,
kOldVariable = 100000,
kOldTreeString = 105000,
kOldFormulaVar = 110000,
kOldBoolOptimize = 120000,
kOldFunctionCall = 200000
};
int i,j;
for (i=0,j=0; i<fNoper; ++i,++j) {
Int_t action = fOper[i];
Int_t newActionCode = 0;
Int_t newActionParam = 0;
if ( action == 0) {
// Sign Inversion
newActionCode = kSignInv;
Float_t aresult = 99.99;
sscanf((const char*)fExpr[i],"%g",&aresult);
Assert((aresult+1)<0.001);
++i; // skip the implied multiplication.
} else if ( action < 100 ) {
// basic operators and mathematical library
newActionCode = action;
} else if (action >= kOldFunctionCall) {
// Funtion call
newActionCode = kFunctionCall;
newActionParam = action-kOldFunctionCall;
} else if (action >= kOldBoolOptimize) {
// boolean operation optimizer
newActionCode = kBoolOptimize;
newActionParam = action-kOldBoolOptimize;
} else if (action >= kOldFormulaVar) {
// a variable
newActionCode = kVariable;
newActionParam = action-kOldFormulaVar;
} else if (action >= kOldTreeString) {
// a tree string
newActionCode = kDefinedString;
newActionParam = action-kOldTreeString;
} else if (action >= kOldVariable) {
// a tree variable
newActionCode = kDefinedVariable;
newActionParam = action-kOldVariable;
} else if (action == kOldStrings) {
// String
newActionCode = kStringConst;
} else if (action >= kOldConstants) {
// numerical value
newActionCode = kConstant;
newActionParam = action-kOldConstants;
} else if (action > 10000 && action < kOldConstants) {
// Polynomial
int var = action/10000; //arrondit
newActionCode = kpol + (var-1);
newActionParam = action - var*10000;
} else if (action >= 4600) {
Error("Convert","Unsupported value %d",action);
} else if (action > kOldxylandau) {
// xylandau
newActionCode = kxylandau;
newActionParam = action - (kOldxylandau+1);
} else if (action > kOldlandau) {
// landau, xlandau, ylandau or zlandau
newActionCode = klandau;
int var = action/100-40;
if (var) newActionCode += var;
newActionParam = action - var*100 - (kOldlandau+1);
} else if (action > 2500 && action < 2600) {
// xygaus
newActionCode = kxygaus;
newActionParam = action-2501;
} else if (action > 2000 && action < 2500) {
// gaus, xgaus, ygaus or zgaus
newActionCode = kgaus;
int var = action/100-20;
if (var) newActionCode += var;
newActionParam = action - var*100 - (kOldgaus+1);
} else if (action > 1500 && action < 1600) {
// xyexpo
newActionCode = kxyexpo;
newActionParam = action-1501;
} else if (action > 1000 && action < 1500) {
// expo or xexpo or yexpo or zexpo
newActionCode = kexpo;
int var = action/100-10;
if (var) newActionCode += var;
newActionParam = action - var*100 - (kOldexpo+1);
} if (action > 100 && action < 200) {
// Parameter substitution
newActionCode = kParameter;
newActionParam = action - 101;
}
SetAction( j, newActionCode, newActionParam );
}
if (i!=j) {
fNoper -= (i-j);
}
}
ROOT page - Class index - Class Hierarchy - Top of the page
This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
