// @(#)root/geom:$Name: $:$Id: TGeoScaledShape.cxx,v 1.3 2005/11/18 16:07:58 brun Exp $
// Author: Andrei Gheata 26/09/05
/*************************************************************************
* Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
* All rights reserved. *
* *
* For the licensing terms see $ROOTSYS/LICENSE. *
* For the list of contributors see $ROOTSYS/README/CREDITS. *
*************************************************************************/
#include "Riostream.h"
#include "TROOT.h"
#include "TGeoManager.h"
#include "TGeoVolume.h"
#include "TGeoNode.h"
#include "TGeoScaledShape.h"
#include "TBuffer3D.h"
#include "TBuffer3DTypes.h"
//_____________________________________________________________________________

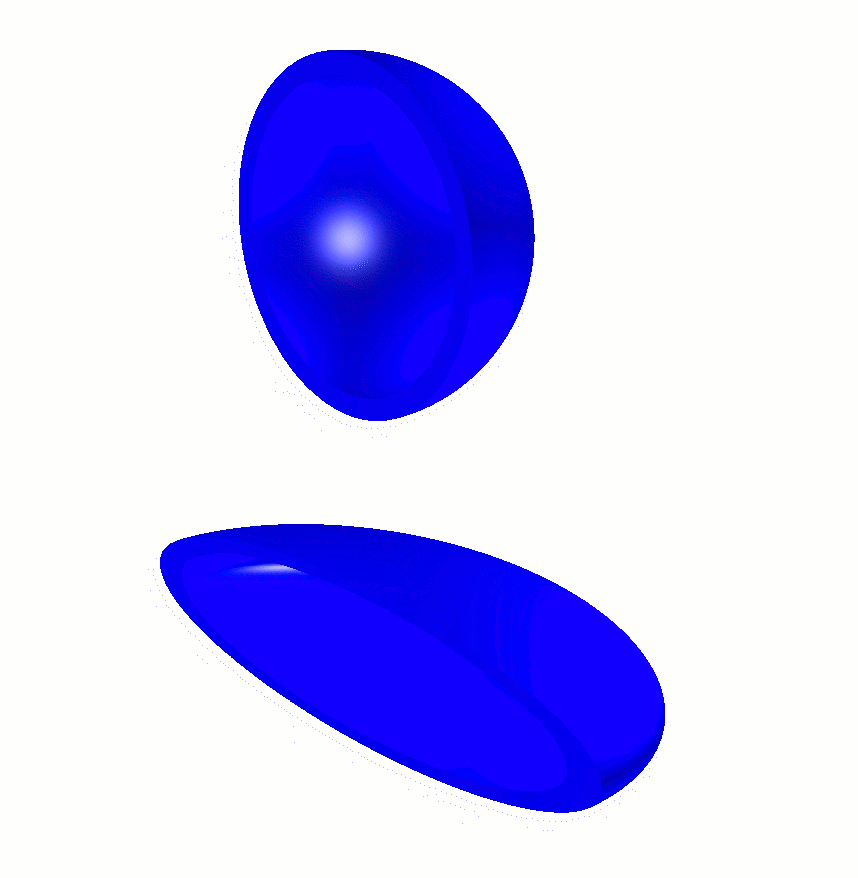

// TGeoScaledShape - A shape scaled by a TGeoScale transformation
//
//
/*
*/
//
//_____________________________________________________________________________
ClassImp(TGeoScaledShape)
//_____________________________________________________________________________
TGeoScaledShape::TGeoScaledShape()
{
// Default constructor
fShape = 0;
fScale = 0;
}
//_____________________________________________________________________________
TGeoScaledShape::TGeoScaledShape(const char *name, TGeoShape *shape, TGeoScale *scale)
:TGeoBBox(name,0,0,0)
{
// Constructor
fShape = shape;
fScale = scale;
ComputeBBox();
}
//_____________________________________________________________________________
TGeoScaledShape::TGeoScaledShape(TGeoShape *shape, TGeoScale *scale)
{
// Constructor
fShape = shape;
fScale = scale;
ComputeBBox();
}
//_____________________________________________________________________________
TGeoScaledShape::~TGeoScaledShape()
{
// destructor
}
//_____________________________________________________________________________
Double_t TGeoScaledShape::Capacity() const
{
// Computes capacity of this shape [length^3]
Double_t capacity = fShape->Capacity();
const Double_t *scale = fScale->GetScale();
capacity *= scale[0]*scale[1]*scale[2];
return capacity;
}
//_____________________________________________________________________________
void TGeoScaledShape::ComputeBBox()
{
// Compute bounding box of the scaled shape
if (!fShape) {
Error("ComputeBBox", "Scaled shape %s without shape", GetName());
return;
}
TGeoBBox *box = (TGeoBBox*)fShape;
const Double_t *orig = box->GetOrigin();
Double_t point[3], master[3];
point[0] = box->GetDX();
point[1] = box->GetDY();
point[2] = box->GetDZ();
fScale->LocalToMaster(orig, fOrigin);
fScale->LocalToMaster(point, master);
fDX = master[0];
fDY = master[1];
fDZ = master[2];
}
//_____________________________________________________________________________
void TGeoScaledShape::ComputeNormal(Double_t *point, Double_t *dir, Double_t *norm)
{
// Compute normal to closest surface from POINT.
Double_t local[3], ldir[3], lnorm[3];
fScale->MasterToLocal(point,local);
fScale->MasterToLocalVect(dir,ldir);
TGeoMatrix::Normalize(ldir);
fShape->ComputeNormal(local,ldir,lnorm);
fScale->LocalToMasterVect(lnorm, norm);
TGeoMatrix::Normalize(norm);
}
//_____________________________________________________________________________
Bool_t TGeoScaledShape::Contains(Double_t *point) const
{
// Test if point is inside the scaled shape
Double_t local[3];
fScale->MasterToLocal(point,local);
return fShape->Contains(local);
}
//_____________________________________________________________________________
Int_t TGeoScaledShape::DistancetoPrimitive(Int_t px, Int_t py)
{
// compute closest distance from point px,py to each vertex. Should not be called.
Int_t n = fShape->GetNmeshVertices();
return ShapeDistancetoPrimitive(n, px, py);
}
//_____________________________________________________________________________
Double_t TGeoScaledShape::DistFromInside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// Compute distance from inside point to surface of the scaled shape.
Double_t local[3], ldir[3];
Double_t lstep;
fScale->MasterToLocal(point,local);
lstep = fScale->MasterToLocal(step, dir);
fScale->MasterToLocalVect(dir,ldir);
TGeoMatrix::Normalize(ldir);
Double_t dist = fShape->DistFromInside(local,ldir, iact, lstep, safe);
if (safe) *safe = fScale->LocalToMaster(*safe);
dist = fScale->LocalToMaster(dist, ldir);
return dist;
}
//_____________________________________________________________________________
Double_t TGeoScaledShape::DistFromOutside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// Compute distance from outside point to surface of the scaled shape.
Double_t local[3], ldir[3];
Double_t lstep;
// printf("DistFromOutside(%f,%f,%f, %f,%f,%f)\n", point[0], point[1], point[2], dir[0], dir[1],dir[2]);
fScale->MasterToLocal(point,local);
// printf("local: %f,%f,%f\n", local[0],local[1], local[2]);
lstep = fScale->MasterToLocal(step, dir);
fScale->MasterToLocalVect(dir,ldir);
TGeoMatrix::Normalize(ldir);
// printf("localdir: %f,%f,%f\n",ldir[0],ldir[1],ldir[2]);
Double_t dist = fShape->DistFromOutside(local,ldir, iact, lstep, safe);
// printf("local distance: %f\n", dist);
if (safe) *safe = fScale->LocalToMaster(*safe);
dist = fScale->LocalToMaster(dist, ldir);
// printf("converted distance: %f\n",dist);
return dist;
}
//_____________________________________________________________________________
TGeoVolume *TGeoScaledShape::Divide(TGeoVolume * /*voldiv*/, const char *divname, Int_t /*iaxis*/, Int_t /*ndiv*/,
Double_t /*start*/, Double_t /*step*/)
{
// Cannot divide assemblies.
Error("Divide", "Scaled shapes cannot be divided. Division volume %s not created", divname);
return 0;
}
//_____________________________________________________________________________
const TBuffer3D & TGeoScaledShape::GetBuffer3D(Int_t reqSections, Bool_t localFrame) const
{
// Fills a static 3D buffer and returns a reference.
TBuffer3D &buffer = (TBuffer3D &)fShape->GetBuffer3D(reqSections, localFrame);
// TGeoBBox::FillBuffer3D(buffer, reqSections, localFrame);
Double_t halfLengths[3] = { fDX, fDY, fDZ };
buffer.SetAABoundingBox(fOrigin, halfLengths);
if (!buffer.fLocalFrame) {
TransformPoints(buffer.fBBVertex[0], 8);
}
if ((reqSections & TBuffer3D::kRaw) && buffer.SectionsValid(TBuffer3D::kRawSizes)) {
SetPoints(buffer.fPnts);
if (!buffer.fLocalFrame) {
TransformPoints(buffer.fPnts, buffer.NbPnts());
}
}
return buffer;
}
//_____________________________________________________________________________
TGeoShape *TGeoScaledShape::GetMakeRuntimeShape(TGeoShape * /*mother*/, TGeoMatrix * /*mat*/) const
{
// in case shape has some negative parameters, these has to be computed
// in order to fit the mother
Error("GetMakeRuntimeShape", "Scaled shapes cannot be parametrized.");
return NULL;
}
//_____________________________________________________________________________
void TGeoScaledShape::InspectShape() const
{
// print shape parameters
printf("*** Shape %s: TGeoScaledShape ***\n", GetName());
fScale->Print();
fShape->InspectShape();
TGeoBBox::InspectShape();
}
//_____________________________________________________________________________
TBuffer3D *TGeoScaledShape::MakeBuffer3D() const
{
// Creates a TBuffer3D describing *this* shape.
// Coordinates are in local reference frame.
TBuffer3D *buff = fShape->MakeBuffer3D();
if (buff) SetPoints(buff->fPnts);
return buff;
}
//_____________________________________________________________________________
void TGeoScaledShape::SetSegsAndPols(TBuffer3D &buff) const
{
// Fill TBuffer3D structure for segments and polygons.
fShape->SetSegsAndPols(buff);
}
//_____________________________________________________________________________
Double_t TGeoScaledShape::Safety(Double_t *point, Bool_t in) const
{
// computes the closest distance from given point to this shape, according
// to option. The matching point on the shape is stored in spoint.
Double_t local[3];
fScale->MasterToLocal(point,local);
Double_t safe = fShape->Safety(local,in);
safe = fScale->LocalToMaster(safe);
return safe;
}
//_____________________________________________________________________________
void TGeoScaledShape::SavePrimitive(ofstream & /*out*/, Option_t * /*option*/)
{
// Save a primitive as a C++ statement(s) on output stream "out".
}
//_____________________________________________________________________________
void TGeoScaledShape::SetPoints(Double_t *points) const
{
// Mesh points for scaled shapes.
Int_t npts = fShape->GetNmeshVertices();
fShape->SetPoints(points);
Double_t master[3];
for (Int_t i=0; i<npts; i++) {
fScale->LocalToMaster(&points[3*i], master);
memcpy(&points[3*i], master, 3*sizeof(Double_t));
}
}
//_____________________________________________________________________________
void TGeoScaledShape::SetPoints(Float_t *points) const
{
// Mesh points for scaled shapes.
Int_t npts = fShape->GetNmeshVertices();
fShape->SetPoints(points);
Double_t master[3];
Double_t local[3];
Int_t index;
for (Int_t i=0; i<npts; i++) {
index = 3*i;
local[0] = points[index];
local[1] = points[index+1];
local[2] = points[index+2];
fScale->LocalToMaster(local, master);
points[index] = master[0];
points[index+1] = master[1];
points[index+2] = master[2];
}
}
