// @(#)root/graf:$Name: $:$Id: TGraphQQ.cxx,v 1.2 2005/11/21 09:27:11 brun Exp $
// Author: Anna Kreshuk 18/11/2005
/*************************************************************************
* Copyright (C) 1995-2005, Rene Brun and Fons Rademakers. *
* All rights reserved. *
* *
* For the licensing terms see $ROOTSYS/LICENSE. *
* For the list of contributors see $ROOTSYS/README/CREDITS. *
*************************************************************************/
#include "TGraphQQ.h"
#include "TF1.h"
#include "TMath.h"
#include "TVirtualPad.h"
#include "TLine.h"
ClassImp(TGraphQQ)
//______________________________________________________________________________
//
// This class allows to draw quantile-quantile plots
//
// Plots can be drawn for 2 datasets or for a dataset and a theoretical
// distribution function
//
// 2 datasets:
// Quantile-quantile plots are used to determine whether 2 samples come from
// the same distribution.
// A qq-plot draws the quantiles of one dataset against the quantile of the
// the other. The quantiles of the dataset with fewer entries are on Y axis,
// with more entries - on X axis.
// A straight line, going through 0.25 and 0.75 quantiles is also plotted
// for reference. It represents a robust linear fit, not sensitive to the
// extremes of the datasets.
// If the datasets come from the same distribution, points of the plot should
// fall approximately on the 45 degrees line. If they have the same
// distribution function, but location or scale different parameters,
// they should still fall on the straight line, but not the 45 degrees one.
// The greater their departure from the straight line, the more evidence there
// is, that the datasets come from different distributions.
// The advantage of qq-plot is that it not only shows that the underlying
// distributions are different, but, unlike the analytical methods, it also
// gives information on the nature of this difference: heavier tails,
// different location/scale, different shape, etc.
//

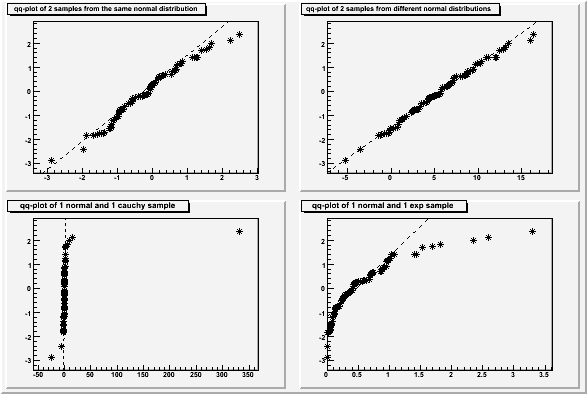

// Some examples of qqplots of 2 datasets:
//
/*
*/
//
//
// 1 dataset:
// Quantile-quantile plots are used to determine if the dataset comes from the
// specified theoretical distribution, such as normal.
// A qq-plot draws quantiles of the dataset against quantiles of the specified
// theoretical distribution.
// (NOTE, that density, not CDF should be specified)
// A straight line, going through 0.25 and 0.75 quantiles can also be plotted
// for reference. It represents a robust linear fit, not sensitive to the
// extremes of the dataset.
// As in the 2 datasets case, departures from straight line indicate departures
// from the specified distribution.
//
// " The correlation coefficient associated with the linear fit to the data
// in the probability plot (qq plot in our case) is a measure of the
// goodness of the fit.
// Estimates of the location and scale parameters of the distribution
// are given by the intercept and slope. Probability plots can be generated
// for several competing distributions to see which provides the best fit,
// and the probability plot generating the highest correlation coefficient
// is the best choice since it generates the straightest probability plot."
// From "Engineering statistic handbook",
// http://www.itl.nist.gov/div898/handbook/eda/section3/probplot.htm
//

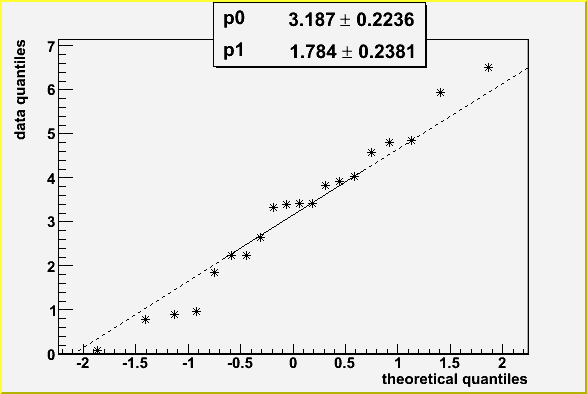

// Example of a qq-plot of a dataset from N(3, 2) distribution and
// TMath::Gaus(0, 1) theoretical function. Fitting parameters
// are estimates of the distribution mean and sigma.
//
//
/*
*/
//
//
//
//
// References:
// http://www.itl.nist.gov/div898/handbook/eda/section3/qqplot.htm
// http://www.itl.nist.gov/div898/handbook/eda/section3/probplot.htm
//
//______________________________________________________________________________
TGraphQQ::TGraphQQ(Int_t n, Double_t *x)
: TGraph(n)
{
//Creates a quantile-quantile plot of dataset x.
//Theoretical distribution function can be defined later by SetFunction method
Int_t *index = new Int_t[n];
TMath::Sort(n, x, index, kFALSE);
for (Int_t i=0; i<fNpoints; i++)
fY[i] = x[index[i]];
fF=0;
fY0=0;
delete [] index;
}
//______________________________________________________________________________
TGraphQQ::TGraphQQ(Int_t n, Double_t *x, TF1 *f)
: TGraph(n)
{
//Creates a quantile-quantile plot of dataset x against function f
Int_t *index = new Int_t[n];
TMath::Sort(n, x, index, kFALSE);
for (Int_t i=0; i<fNpoints; i++)
fY[i] = x[index[i]];
delete [] index;
fF = f;
fY0=0;
MakeFunctionQuantiles();
}
//______________________________________________________________________________
TGraphQQ::TGraphQQ(Int_t nx, Double_t *x, Int_t ny, Double_t *y)
{
//Creates a quantile-quantile plot of dataset x against dataset y
//Parameters nx and ny are respective array sizes
nx<=ny ? fNpoints=nx : fNpoints=ny;
if (!CtorAllocate()) return;
fF=0;
Int_t *index = new Int_t[TMath::Max(nx, ny)];
TMath::Sort(nx, x, index, kFALSE);
if (nx <=ny){
for (Int_t i=0; i<fNpoints; i++)
fY[i] = x[index[i]];
TMath::Sort(ny, y, index, kFALSE);
if (nx==ny){
for (Int_t i=0; i<fNpoints; i++)
fX[i] = y[index[i]];
Quartiles();
} else {
fNy0 = ny;
fY0 = new Double_t[ny];
for (Int_t i=0; i<ny; i++)
fY0[i] = y[i];
MakeQuantiles();
}
} else {
fNy0 = nx;
fY0 = new Double_t[nx];
for (Int_t i=0; i<nx; i++)
fY0[i] = x[index[i]];
TMath::Sort(ny, y, index, kFALSE);
for (Int_t i=0; i<ny; i++)
fY[i] = y[index[i]];
MakeQuantiles();
}
delete [] index;
}
//______________________________________________________________________________
TGraphQQ::~TGraphQQ()
{
//Destroys a TGraphQQ
delete [] fX;
delete [] fY;
if (fY0)
delete [] fY0;
if (fF)
fF = 0;
if (fFunctions) {
fFunctions->SetBit(kInvalidObject);
//special logic to support the case where the same object is
//added multiple times in fFunctions.
//This case happens when the same object is added with different
//drawing modes
TObject *obj;
while ((obj = fFunctions->First())) {
while(fFunctions->Remove(obj));
delete obj;
}
delete fFunctions;
}
delete fHistogram;
}
//______________________________________________________________________________
void TGraphQQ::MakeFunctionQuantiles()
{
//Computes quantiles of theoretical distribution function
if (!fF) return;
TString s = fF->GetTitle();
Double_t pk;
if (s.Contains("TMath::Gaus") || s.Contains("gaus")){
//use plotting positions optimal for normal distribution
for (Int_t k=1; k<=fNpoints; k++){
pk = (k-0.375)/(fNpoints+0.25);
fX[k-1]=TMath::NormQuantile(pk);
}
} else {
Double_t *prob = new Double_t[fNpoints];
if (fNpoints > 10){
for (Int_t k=1; k<=fNpoints; k++)
prob[k-1] = (k-0.5)/fNpoints;
} else {
for (Int_t k=1; k<=fNpoints; k++)
prob[k-1] = (k-0.375)/(fNpoints+0.25);
}
//fF->GetQuantiles(fNpoints, prob, fX);
fF->GetQuantiles(fNpoints, fX, prob);
delete [] prob;
}
Quartiles();
}
//______________________________________________________________________________
void TGraphQQ::MakeQuantiles()
{
//When sample sizes are not equal, computes quantiles of the bigger sample
//by linear interpolation
if (!fY0) return;
Double_t pi, pfrac;
Int_t pint;
for (Int_t i=0; i<fNpoints-1; i++){
pi = (fNy0-1)*Double_t(i)/Double_t(fNpoints-1);
pint = TMath::FloorNint(pi);
pfrac = pi - pint;
fX[i] = (1-pfrac)*fY0[pint]+pfrac*fY0[pint+1];
}
fX[fNpoints-1]=fY0[fNy0-1];
Quartiles();
}
//______________________________________________________________________________
void TGraphQQ::Quartiles()
{
// compute quartiles
// a quartile is a 25 per cent or 75 per cent quantile
Double_t prob[]={0.25, 0.75};
Double_t x[2];
Double_t y[2];
TMath::Quantiles(fNpoints, 2, fY, y, prob, kTRUE);
if (fY0)
TMath::Quantiles(fNy0, 2, fY0, x, prob, kTRUE);
else if (fF) {
TString s = fF->GetTitle();
if (s.Contains("TMath::Gaus") || s.Contains("gaus")){
x[0] = TMath::NormQuantile(0.25);
x[1] = TMath::NormQuantile(0.75);
} else
fF->GetQuantiles(2, x, prob);
}
else
TMath::Quantiles(fNpoints, 2, fX, x, prob, kTRUE);
fXq1=x[0]; fXq2=x[1]; fYq1=y[0]; fYq2=y[1];
}
//______________________________________________________________________________
void TGraphQQ::Paint(Option_t *opt)
{
// paint this graphQQ. No options for the time being
if (!fX){
Error("TGraphQQ::Paint", "2nd dataset or theoretical function not specified");
return;
}
if (fF){
GetXaxis()->SetTitle("theoretical quantiles");
GetYaxis()->SetTitle("data quantiles");
}
TGraph::Paint(opt);
Double_t xmin = gPad->GetUxmin();
Double_t xmax = gPad->GetUxmax();
Double_t ymin = gPad->GetUymin();
Double_t ymax = gPad->GetUymax();
Double_t yxmin, xymin, yxmax, xymax;
Double_t xqmin = TMath::Max(xmin, fXq1);
Double_t xqmax = TMath::Min(xmax, fXq2);
Double_t yqmin = TMath::Max(ymin, fYq1);
Double_t yqmax = TMath::Min(ymax, fYq2);
TLine line1, line2, line3;
line1.SetLineStyle(2);
line3.SetLineStyle(2);
yxmin = (fYq2-fYq1)*(xmin-fXq1)/(fXq2-fXq1) + fYq1;
if (yxmin < ymin){
xymin = (fXq2-fXq1)*(ymin-fYq1)/(fYq2-fYq1) + fXq1;
line1.PaintLine(xymin, ymin, xqmin, yqmin);
}
else
line1.PaintLine(xmin, yxmin, xqmin, yqmin);
line2.PaintLine(xqmin, yqmin, xqmax, yqmax);
yxmax = (fYq2-fYq1)*(xmax-fXq1)/(fXq2-fXq1) + fYq1;
if (yxmax > ymax){
xymax = (fXq2-fXq1)*(ymax-fYq1)/(fYq2-fYq1) + fXq1;
line3.PaintLine(xqmax, yqmax, xymax, ymax);
}
else
line3.PaintLine(xqmax, yqmax, xmax, yxmax);
}
//______________________________________________________________________________
void TGraphQQ::SetFunction(TF1 *f)
{
//Sets the theoretical distribution function (density!)
//and computes its quantiles
fF = f;
MakeFunctionQuantiles();
}
