TSlider


class description - source file - inheritance tree

class TSlider : public TPad

    private:
TSlider TSlider(const TSlider& org) TSlider& operator=(const TSlider& rhs) public:
TSlider TSlider() TSlider TSlider(const char* name, const char* title, Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color = 16, Short_t bordersize = 2, Short_t bordermode = -1) virtual void ~TSlider() static TClass* Class() Double_t GetMaximum() virtual const char* GetMethod() const Double_t GetMinimum() TObject* GetObject() virtual TClass* IsA() const virtual void Paint(Option_t* option) virtual void SavePrimitive(ofstream& out, Option_t* option) virtual void SetMaximum(Double_t max = 1) virtual void SetMethod(const char* method) virtual void SetMinimum(Double_t min = 0) void SetObject(TObject* obj = 0) virtual void SetRange(Double_t xmin = 0, Double_t xmax = 1) virtual void ShowMembers(TMemberInspector& insp, char* parent) virtual void Streamer(TBuffer& b)

Data Members

protected:
Double_t fMinimum Slider minimum value in [0,1] Double_t fMaximum Slider maximum value in [0,1] TObject* fObject Pointer to associated object TString fMethod command to be executed when slider is changed

Class Description


 TSlider

  A TSlider object is a specialized TPad including a TSliderBox object
  The TSliderBox can be moved in the pad.
  Slider drawing options include the possibility to change the slider
  starting and ending positions or only one of them.

  The current slider position can be retrieved via the functions
     TSlider::GetMinimum and TSlider::GetMaximum
  These two functions return numbers in the range [0,1].

  if a method has been set (via SetMethod), the expression  is
  executed via the interpreter when the button 1 is released.

  if no method has been set, and an object is referenced (SetObject
  has been called), while the slider is being moved/resized,
  the object ExecuteEvent function is called.                         //

  Example 1 using SetMethod    macro xyslider.C
  =========================
{
   //Example of macro featuring two sliders
   TFile *f = new TFile("hsimple.root");
   TH2F *hpxpy = (TH2F*)f->Get("hpxpy");
   TCanvas *c1 = new TCanvas("c1");
   TPad *pad = new TPad("pad","lego pad",0.1,0.1,0.98,0.98);
   pad->SetFillColor(33);
   pad->Draw();
   pad->cd();
   gStyle->SetFrameFillColor(42);
   hpxpy->SetFillColor(46);
   hpxpy->Draw("lego1");
   c1->cd();

   //Create two sliders in main canvas. When button1
   //of the mouse will be released, action.C will be called
   TSlider *xslider = new TSlider("xslider","x",0.1,0.02,0.98,0.08);
   xslider->SetMethod(".x action.C");
   TSlider *yslider = new TSlider("yslider","y",0.02,0.1,0.06,0.98);
   yslider->SetMethod(".x action.C");
}

            macro action.C
{
   Int_t nx = hpxpy->GetXaxis()->GetNbins();
   Int_t ny = hpxpy->GetYaxis()->GetNbins();
   Int_t binxmin = nx*xslider->GetMinimum();
   Int_t binxmax = nx*xslider->GetMaximum();
   hpxpy->GetXaxis()->SetRange(binxmin,binxmax);
   Int_t binymin = ny*yslider->GetMinimum();
   Int_t binymax = ny*yslider->GetMaximum();
   hpxpy->GetYaxis()->SetRange(binymin,binymax);
   pad->cd();
   hpxpy->Draw("lego1");
   c1->Update();
}

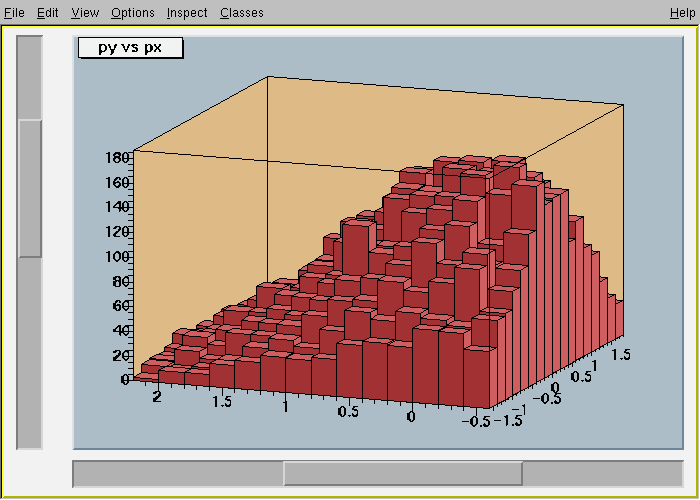

    The canvas and the sliders created in the above macro are shown
    in the picture below.

/*

*/


  Example 2 using SetObject    macro xyslider.C
  =========================

  Same example as above. Instead of SetMethod:
    Myclass *obj = new Myclass(); // Myclass derived from TObject
    xslider->SetObject(obj);
    yslider->SetObject(obj);

    When the slider will be changed, MyClass::ExecuteEvent will be
    called with px=0 and py = 0


TSlider(): TPad()
*-*-*-*-*-*-*-*-*-*-*slider default constructor*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  ==========================

TSlider(const char *name, const char *title, Double_t x1, Double_t y1,Double_t x2, Double_t y2, Color_t color, Short_t bordersize, Short_t bordermode) :TPad(name,title,0.1,0.1,0.9,0.9,color,bordersize,bordermode)
*-*-*-*-*-*-*-*-*-*-*Slider normal constructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  =========================

   x1,y1,x2,y2 are in pad user coordinates

~TSlider()
*-*-*-*-*-*-*-*-*-*-*slider default destructor*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                  =========================

void Paint(Option_t *option)
*-*-*-*-*-*-*-*-*-*-*Paint this slider with its current attributes*-*-*-*
*-*                  =============================================

void SavePrimitive(ofstream &out, Option_t *)
 Save primitive as a C++ statement(s) on output stream out

void SetRange(Double_t xmin, Double_t xmax)
*-*-*-*-*-*-*-*-*-*-*Set Slider range in [0,1]*-*-*-*-*
*-*                  =========================



Inline Functions


           TSlider& operator=(const TSlider& rhs)
            TSlider TSlider(const char* name, const char* title, Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color = 16, Short_t bordersize = 2, Short_t bordermode = -1)
           TObject* GetObject()
           Double_t GetMinimum()
           Double_t GetMaximum()
        const char* GetMethod() const
               void SetMethod(const char* method)
               void SetObject(TObject* obj = 0)
               void SetMinimum(Double_t min = 0)
               void SetMaximum(Double_t max = 1)
            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)


Author: Rene Brun 23/11/96
Last update: root/gpad:$Name: $:$Id: TSlider.cxx,v 1.2 2000/06/13 12:13:48 brun Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
