library: libGraf
#include "TWbox.h"

TWbox


class description - source file - inheritance tree (.pdf)

class TWbox : public TBox

Inheritance Chart:
TObject
TAttLine
TAttFill
<-
TBox
<-
TWbox
<-
TFrame
TSliderBox

    public:
TWbox() TWbox(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color = 18, Short_t bordersize = 5, Short_t bordermode = 1) TWbox(const TWbox& wbox) virtual ~TWbox() static TClass* Class() virtual void Copy(TObject& wbox) const virtual void Draw(Option_t* option = "") virtual void DrawWbox(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color = 33, Short_t bordersize = 5, Short_t bordermode = -1) virtual void ExecuteEvent(Int_t event, Int_t px, Int_t py) Short_t GetBorderMode() const Short_t GetBorderSize() const Int_t GetDarkColor() const Int_t GetLightColor() const virtual TClass* IsA() const TWbox& operator=(const TWbox&) virtual void Paint(Option_t* option = "") virtual void PaintFrame(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color, Short_t bordersize, Short_t bordermode, Bool_t tops) virtual void PaintWbox(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color = 33, Short_t bordersize = 5, Short_t bordermode = -1) virtual void SavePrimitive(ofstream& out, Option_t* option) virtual void SetBorderMode(Short_t bordermode) virtual void SetBorderSize(Short_t bordersize) virtual void ShowMembers(TMemberInspector& insp, char* parent) virtual void Streamer(TBuffer& b) void StreamerNVirtual(TBuffer& b)

Data Members


    protected:
Short_t fBorderSize window box bordersize in pixels Short_t fBorderMode Bordermode (-1=down, 0 = no border, 1=up)

Class Description

 a TWbox is a TBox with a bordersize and a bordermode.

/* */

TWbox(): TBox()
 wbox default constructor.

TWbox(Double_t x1, Double_t y1,Double_t x2, Double_t y2, Color_t color ,Short_t bordersize ,Short_t bordermode) :TBox(x1,y1,x2,y2)
 wbox normal constructor.

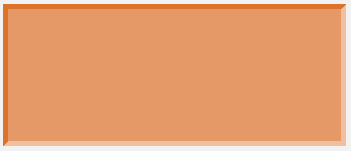

 a WBOX is a box with a bordersize and a bordermode
 the bordersize is in pixels
 bordermode = -1 box looks as it is behind the screen
 bordermode = 0  no special effects
 bordermode = 1  box looks as it is in front of the screen

~TWbox()
 wbox default destructor.

TWbox(const TWbox &wbox) : TBox(wbox)
 wbox copy constructor.

void Copy(TObject &obj) const
 Copy this wbox to wbox.

void Draw(Option_t *option)
 Draw this wbox with its current attributes.

void DrawWbox(Double_t x1, Double_t y1,Double_t x2, Double_t y2, Color_t color ,Short_t bordersize ,Short_t bordermode)
 Draw this wbox with new coordinates.

void ExecuteEvent(Int_t event, Int_t px, Int_t py)
 Execute action corresponding to one event.

  This member function is called when a WBOX object is clicked.

void Paint(Option_t *)
 Paint this wbox with its current attributes.

void PaintWbox(Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color, Short_t bordersize, Short_t bordermode)
 Draw this wbox with new coordinates.

void PaintFrame(Double_t x1, Double_t y1,Double_t x2, Double_t y2, Color_t color, Short_t bordersize, Short_t bordermode, Bool_t tops)
 Paint a 3D frame around a box.

void SavePrimitive(ofstream &out, Option_t *)
 Save primitive as a C++ statement(s) on output stream out



Inline Functions


            Short_t GetBorderMode() const
            Short_t GetBorderSize() const
              Int_t GetDarkColor() const
              Int_t GetLightColor() const
               void SetBorderMode(Short_t bordermode)
               void SetBorderSize(Short_t bordersize)
            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)
               void StreamerNVirtual(TBuffer& b)
             TWbox& operator=(const TWbox&)


Author: Rene Brun 12/12/94
Last update: root/graf:$Name: $:$Id: TWbox.cxx,v 1.8 2005/11/21 13:57:42 couet Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
