class ROOT::Reflex::Scope
-
library: libReflexDict
#include "Scope.h"
Display options:
Show inherited
Show non-public

class ROOT::Reflex::Scope








Function Members (Methods)


public:



~Scope()


static ROOT::Reflex::Scope&__NIRVANA__()


voidAddDataMember(const ROOT::Reflex::Member& dm) const


voidAddDataMember(const char* name, const ROOT::Reflex::Type& type, size_t offset, unsigned int modifiers = 0) const


voidAddFunctionMember(const ROOT::Reflex::Member& fm) const


voidAddFunctionMember(const char* name, const ROOT::Reflex::Type& type, ROOT::Reflex::StubFunction stubFP, void* stubCtx = 0, const char* params = 0, unsigned int modifiers = 0) const


voidAddMemberTemplate(const ROOT::Reflex::MemberTemplate& mt) const


voidAddSubScope(const ROOT::Reflex::Scope& sc) const


voidAddSubScope(const char* scope, ROOT::Reflex::TYPE scopeType = NAMESPACE) const


voidAddSubType(const ROOT::Reflex::Type& ty) const


voidAddSubType(const char* type, size_t size, ROOT::Reflex::TYPE typeType, const type_info& typeInfo, unsigned int modifiers = 0) const


voidAddSubTypeTemplate(const ROOT::Reflex::TypeTemplate& mt) const


voidAddUsingDirective(const ROOT::Reflex::Scope& ud) const


ROOT::Reflex::Base_IteratorBase_Begin() const


ROOT::Reflex::Base_IteratorBase_End() const


ROOT::Reflex::Reverse_Base_IteratorBase_RBegin() const


ROOT::Reflex::Reverse_Base_IteratorBase_REnd() const


ROOT::Reflex::BaseBaseAt(size_t nth) const


size_tBaseSize() const


static ROOT::Reflex::ScopeByName(const string& name)


ROOT::Reflex::Member_IteratorDataMember_Begin() const


ROOT::Reflex::Member_IteratorDataMember_End() const


ROOT::Reflex::Reverse_Member_IteratorDataMember_RBegin() const


ROOT::Reflex::Reverse_Member_IteratorDataMember_REnd() const


ROOT::Reflex::MemberDataMemberAt(size_t nth) const


ROOT::Reflex::MemberDataMemberByName(const string& name) const


size_tDataMemberSize() const


ROOT::Reflex::ScopeDeclaringScope() const


ROOT::Reflex::Member_IteratorFunctionMember_Begin() const


ROOT::Reflex::Member_IteratorFunctionMember_End() const


ROOT::Reflex::Reverse_Member_IteratorFunctionMember_RBegin() const


ROOT::Reflex::Reverse_Member_IteratorFunctionMember_REnd() const


ROOT::Reflex::MemberFunctionMemberAt(size_t nth) const


ROOT::Reflex::MemberFunctionMemberByName(const string& name) const


ROOT::Reflex::MemberFunctionMemberByName(const string& name, const ROOT::Reflex::Type& signature) const


size_tFunctionMemberSize() const


voidGenerateDict(ROOT::Reflex::DictionaryGenerator& generator) const


static ROOT::Reflex::ScopeGlobalScope()


void*Id() const


boolIsClass() const


boolIsEnum() const


boolIsNamespace() const


boolIsPrivate() const


boolIsProtected() const


boolIsPublic() const


boolIsTemplateInstance() const


boolIsTopScope() const


boolIsUnion() const


ROOT::Reflex::MemberLookupMember(const string& nam) const


ROOT::Reflex::ScopeLookupScope(const string& nam) const


ROOT::Reflex::TypeLookupType(const string& nam) const


ROOT::Reflex::Member_IteratorMember_Begin() const


ROOT::Reflex::Member_IteratorMember_End() const


ROOT::Reflex::Reverse_Member_IteratorMember_RBegin() const


ROOT::Reflex::Reverse_Member_IteratorMember_REnd() const


ROOT::Reflex::MemberMemberAt(size_t nth) const


ROOT::Reflex::MemberMemberByName(const string& name) const


ROOT::Reflex::MemberMemberByName(const string& name, const ROOT::Reflex::Type& signature) const


size_tMemberSize() const


ROOT::Reflex::MemberTemplate_IteratorMemberTemplate_Begin() const


ROOT::Reflex::MemberTemplate_IteratorMemberTemplate_End() const


ROOT::Reflex::Reverse_MemberTemplate_IteratorMemberTemplate_RBegin() const


ROOT::Reflex::Reverse_MemberTemplate_IteratorMemberTemplate_REnd() const


ROOT::Reflex::MemberTemplateMemberTemplateAt(size_t nth) const


ROOT::Reflex::MemberTemplateMemberTemplateByName(const string& nam) const


size_tMemberTemplateSize() const


stringName(unsigned int mod = 0) const


const char*Name_c_str() const


booloperator bool() const


ROOT::Reflex::Typeoperator ROOT::Reflex::Type() const


booloperator!=(const ROOT::Reflex::Scope& rh) const


ROOT::Reflex::PropertyListProperties() const


voidRemoveDataMember(const ROOT::Reflex::Member& dm) const


voidRemoveFunctionMember(const ROOT::Reflex::Member& fm) const


voidRemoveMemberTemplate(const ROOT::Reflex::MemberTemplate& mt) const


voidRemoveSubScope(const ROOT::Reflex::Scope& sc) const


voidRemoveSubType(const ROOT::Reflex::Type& ty) const


voidRemoveSubTypeTemplate(const ROOT::Reflex::TypeTemplate& tt) const


voidRemoveUsingDirective(const ROOT::Reflex::Scope& ud) const


ROOT::Reflex::ScopeScope(const ROOT::Reflex::ScopeName* scopeName = 0)


ROOT::Reflex::ScopeScope(const ROOT::Reflex::Scope& rh)


static ROOT::Reflex::Scope_IteratorScope_Begin()


static ROOT::Reflex::Scope_IteratorScope_End()


static ROOT::Reflex::Reverse_Scope_IteratorScope_RBegin()


static ROOT::Reflex::Reverse_Scope_IteratorScope_REnd()


static ROOT::Reflex::ScopeScopeAt(size_t nth)


static size_tScopeSize()


ROOT::Reflex::TYPEScopeType() const


stringScopeTypeAsString() const


ROOT::Reflex::Scope_IteratorSubScope_Begin() const


ROOT::Reflex::Scope_IteratorSubScope_End() const


ROOT::Reflex::Reverse_Scope_IteratorSubScope_RBegin() const


ROOT::Reflex::Reverse_Scope_IteratorSubScope_REnd() const


ROOT::Reflex::ScopeSubScopeAt(size_t nth) const


ROOT::Reflex::ScopeSubScopeByName(const string& nam) const


size_tSubScopeLevel() const


size_tSubScopeSize() const


ROOT::Reflex::Type_IteratorSubType_Begin() const


ROOT::Reflex::Type_IteratorSubType_End() const


ROOT::Reflex::Reverse_Type_IteratorSubType_RBegin() const


ROOT::Reflex::Reverse_Type_IteratorSubType_REnd() const


ROOT::Reflex::TypeSubTypeAt(size_t nth) const


ROOT::Reflex::TypeSubTypeByName(const string& nam) const


size_tSubTypeSize() const


ROOT::Reflex::TypeTemplate_IteratorSubTypeTemplate_Begin() const


ROOT::Reflex::TypeTemplate_IteratorSubTypeTemplate_End() const


ROOT::Reflex::Reverse_TypeTemplate_IteratorSubTypeTemplate_RBegin() const


ROOT::Reflex::Reverse_TypeTemplate_IteratorSubTypeTemplate_REnd() const


ROOT::Reflex::TypeTemplateSubTypeTemplateAt(size_t nth) const


ROOT::Reflex::TypeTemplateSubTypeTemplateByName(const string& nam) const


size_tSubTypeTemplateSize() const


ROOT::Reflex::Type_IteratorTemplateArgument_Begin() const


ROOT::Reflex::Type_IteratorTemplateArgument_End() const


ROOT::Reflex::Reverse_Type_IteratorTemplateArgument_RBegin() const


ROOT::Reflex::Reverse_Type_IteratorTemplateArgument_REnd() const


ROOT::Reflex::TypeTemplateArgumentAt(size_t nth) const


size_tTemplateArgumentSize() const


ROOT::Reflex::TypeTemplateTemplateFamily() const


const ROOT::Reflex::ScopeBase*ToScopeBase() const


voidUnload() const


ROOT::Reflex::Scope_IteratorUsingDirective_Begin() const


ROOT::Reflex::Scope_IteratorUsingDirective_End() const


ROOT::Reflex::Reverse_Scope_IteratorUsingDirective_RBegin() const


ROOT::Reflex::Reverse_Scope_IteratorUsingDirective_REnd() const


ROOT::Reflex::ScopeUsingDirectiveAt(size_t nth) const


size_tUsingDirectiveSize() const










Data Members


private:



const ROOT::Reflex::ScopeName*fScopeName







Class Charts

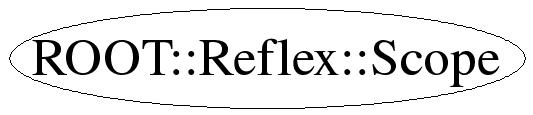

Inheritance

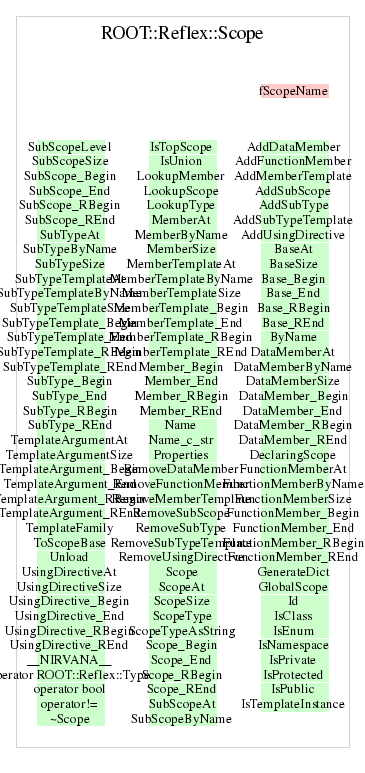

Inherited Members

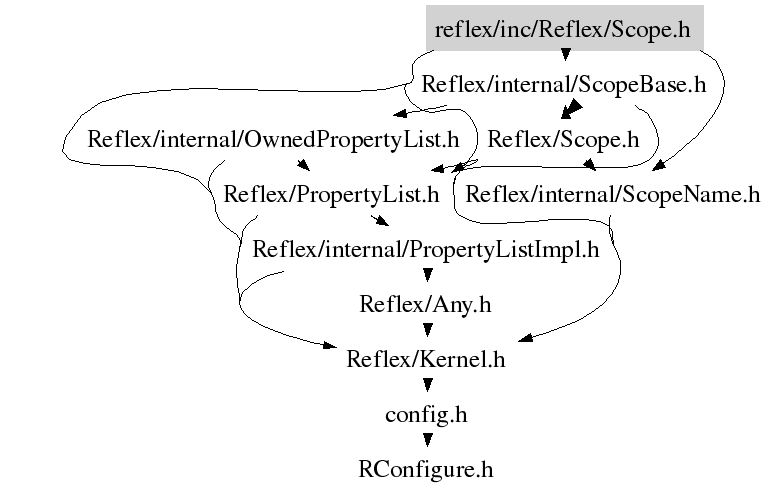

Includes

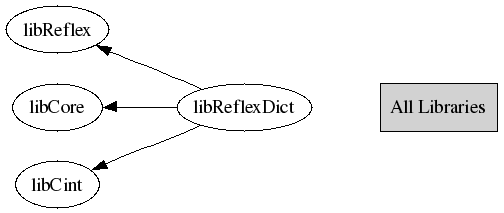

Libraries



Class Charts


Function documentation


ROOT::Reflex::Scope &  __NIRVANA__()


 static wraper around NIRVANA, the base of the top scope.





 operator ROOT::Reflex::Type()


 Conversion operator to Type. If this scope is not a Type, returns the empty type.





ROOT::Reflex::Base  BaseAt(size_t nth) const


 Return nth base class info.





size_t  BaseSize()


 Return number of base classes.





ROOT::Reflex::Scope  ByName(const string& name)


 Lookup a Scope by it's fully qualified name.





ROOT::Reflex::Member  DataMemberAt(size_t nth) const


 Return the nth data member of this scope.





ROOT::Reflex::Member  DataMemberByName(const string& name) const


 Return a data member by it's name.





size_t  DataMemberSize()


 Return number of data mebers of this scope.





ROOT::Reflex::Member  FunctionMemberAt(size_t nth) const


 Return nth function member of this socpe.





ROOT::Reflex::Member  FunctionMemberByName(const string& name) const


 Return a function member by it's name.





ROOT::Reflex::Member  FunctionMemberByName(const string& name, const ROOT::Reflex::Type& signature) const


 Return a function member by it's name, qualified by it's signature type.





size_t  FunctionMemberSize()


 Return number of function members of this scope.





 LookupMember(const string& nam) const


 Lookup a member from this scope.





 LookupType(const string& nam) const


 Lookup a type from this scope.





 LookupScope(const string& nam) const


 Lookup a scope from this scope.





 MemberByName(const string& name) const


 Return a member from this scope, by name.





 MemberByName(const string& name, const ROOT::Reflex::Type& signature) const


 Return a member in this scope, looked up by name and signature (for functions)





ROOT::Reflex::Member_Iterator  Member_Begin()


 Return the begin iterator of member container.





ROOT::Reflex::Member_Iterator  Member_End()


 Return the end iterator of member container.





ROOT::Reflex::Reverse_Member_Iterator  Member_RBegin()


 Return the rbegin iterator of member container.





ROOT::Reflex::Reverse_Member_Iterator  Member_REnd()


 Return the rend iterator of member container.





ROOT::Reflex::Member  MemberAt(size_t nth) const


 Return the nth member of this scope.





ROOT::Reflex::MemberTemplate  MemberTemplateAt(size_t nth) const


 Return the nth memer template in this scope.





size_t  MemberTemplateSize()


 Return the number of member templates in this scope.





ROOT::Reflex::MemberTemplate  MemberTemplateByName(const string& nam) const


 Look up a member template in this scope by name and return it.





std::string  Name(unsigned int mod = 0) const


 Return the name of this scope, scoped if requested.





ROOT::Reflex::Scope  ScopeAt(size_t nth)


 Return the nth scope in the Reflex database.





size_t  ScopeSize()


 Return the number of scopes defined.





ROOT::Reflex::Type  SubTypeAt(size_t nth) const


 Return the nth sub type of this scope.





size_t  SubTypeSize()


 Return the number of sub types.





ROOT::Reflex::Type  SubTypeByName(const string& nam) const


 Look up a sub type by name and return it.





ROOT::Reflex::Type  TemplateArgumentAt(size_t nth) const


 Return the nth template argument of this scope (ie. class).





ROOT::Reflex::TypeTemplate  TemplateFamily()


 Return the template family related to this scope.





ROOT::Reflex::TypeTemplate  SubTypeTemplateAt(size_t nth) const


 Return the nth sub type template.





size_t  SubTypeTemplateSize()


 Return the number of type templates in this scope.





ROOT::Reflex::TypeTemplate  SubTypeTemplateByName(const string& nam) const


 Lookup a sub type template by string and return it.





void  AddDataMember(const ROOT::Reflex::Member& dm) const


 Add data member dm to this scope.





void  AddDataMember(const char* name, const ROOT::Reflex::Type& type, size_t offset, unsigned int modifiers = 0) const


 Add data member to this scope.





void  RemoveDataMember(const ROOT::Reflex::Member& dm) const


 Remove data member dm from this scope.





void  AddFunctionMember(const ROOT::Reflex::Member& fm) const


 Add function member fm to this scope.





void  AddFunctionMember(const char* name, const ROOT::Reflex::Type& type, ROOT::Reflex::StubFunction stubFP, void* stubCtx = 0, const char* params = 0, unsigned int modifiers = 0) const


 Add function member to this scope.





void  RemoveFunctionMember(const ROOT::Reflex::Member& fm) const


 Remove function member fm from this scope.





void  AddSubType(const ROOT::Reflex::Type& ty) const


 Add sub type ty to this scope.





void  AddSubType(const char* type, size_t size, ROOT::Reflex::TYPE typeType, const type_info& typeInfo, unsigned int modifiers = 0) const


 Add sub type to this scope.





void  RemoveSubType(const ROOT::Reflex::Type& ty) const


 Remove sub type ty from this scope.





void  AddMemberTemplate(const ROOT::Reflex::MemberTemplate& mt) const


 Add member template mt to this scope.





void  RemoveMemberTemplate(const ROOT::Reflex::MemberTemplate& mt) const


 Remove member template mt from this scope.





void  AddSubTypeTemplate(const ROOT::Reflex::TypeTemplate& mt) const


 Add type template tt to this scope.





void  RemoveSubTypeTemplate(const ROOT::Reflex::TypeTemplate& tt) const


 Remove type template tt from this scope.





void  GenerateDict(ROOT::Reflex::DictionaryGenerator& generator) const


 Generate Dictionary information about itself.





 Scope( const ScopeName * scopeName )







{}






 Scope( const Scope & rh )







{}






 ~Scope()








 operator bool()








ROOT::Reflex::Base_Iterator  Base_Begin()








ROOT::Reflex::Base_Iterator  Base_End()








ROOT::Reflex::Reverse_Base_Iterator  Base_RBegin()








ROOT::Reflex::Reverse_Base_Iterator  Base_REnd()








ROOT::Reflex::Member_Iterator  DataMember_Begin()








ROOT::Reflex::Member_Iterator  DataMember_End()








ROOT::Reflex::Reverse_Member_Iterator  DataMember_RBegin()








ROOT::Reflex::Reverse_Member_Iterator  DataMember_REnd()








ROOT::Reflex::Scope  DeclaringScope()








ROOT::Reflex::Member_Iterator  FunctionMember_Begin()








ROOT::Reflex::Member_Iterator  FunctionMember_End()








ROOT::Reflex::Reverse_Member_Iterator  FunctionMember_RBegin()








ROOT::Reflex::Reverse_Member_Iterator  FunctionMember_REnd()








ROOT::Reflex::Scope  GlobalScope()








void *  Id()








bool  IsClass()








bool  IsEnum()








bool  IsNamespace()








bool  IsPrivate()








bool  IsProtected()








bool  IsPublic()








bool  IsTemplateInstance()








bool  IsTopScope()








bool  IsUnion()








size_t  MemberSize()








ROOT::Reflex::MemberTemplate_Iterator  MemberTemplate_Begin()








ROOT::Reflex::MemberTemplate_Iterator  MemberTemplate_End()








ROOT::Reflex::Reverse_MemberTemplate_Iterator  MemberTemplate_RBegin()








ROOT::Reflex::Reverse_MemberTemplate_Iterator  MemberTemplate_REnd()








const char *  Name_c_str()








ROOT::Reflex::PropertyList  Properties()








ROOT::Reflex::TYPE  ScopeType()








std::string  ScopeTypeAsString()








ROOT::Reflex::Scope_Iterator  Scope_Begin()








ROOT::Reflex::Scope_Iterator  Scope_End()








ROOT::Reflex::Reverse_Scope_Iterator  Scope_RBegin()








ROOT::Reflex::Reverse_Scope_Iterator  Scope_REnd()








ROOT::Reflex::Scope  SubScopeAt(size_t nth) const








size_t  SubScopeLevel()








size_t  SubScopeSize()








ROOT::Reflex::Scope  SubScopeByName(const string& nam) const








ROOT::Reflex::Scope_Iterator  SubScope_Begin()








ROOT::Reflex::Scope_Iterator  SubScope_End()








ROOT::Reflex::Reverse_Scope_Iterator  SubScope_RBegin()








ROOT::Reflex::Reverse_Scope_Iterator  SubScope_REnd()








ROOT::Reflex::Type_Iterator  SubType_Begin()








ROOT::Reflex::Type_Iterator  SubType_End()








ROOT::Reflex::Reverse_Type_Iterator  SubType_RBegin()








ROOT::Reflex::Reverse_Type_Iterator  SubType_REnd()








const ROOT::Reflex::ScopeBase *  ToScopeBase()








size_t  TemplateArgumentSize()








ROOT::Reflex::Type_Iterator  TemplateArgument_Begin()








ROOT::Reflex::Type_Iterator  TemplateArgument_End()








ROOT::Reflex::Reverse_Type_Iterator  TemplateArgument_RBegin()








ROOT::Reflex::Reverse_Type_Iterator  TemplateArgument_REnd()








ROOT::Reflex::TypeTemplate_Iterator  SubTypeTemplate_Begin()








ROOT::Reflex::TypeTemplate_Iterator  SubTypeTemplate_End()








ROOT::Reflex::Reverse_TypeTemplate_Iterator  SubTypeTemplate_RBegin()








ROOT::Reflex::Reverse_TypeTemplate_Iterator  SubTypeTemplate_REnd()








void  Unload()








ROOT::Reflex::Scope  UsingDirectiveAt(size_t nth) const








size_t  UsingDirectiveSize()








ROOT::Reflex::Scope_Iterator  UsingDirective_Begin()








ROOT::Reflex::Scope_Iterator  UsingDirective_End()








ROOT::Reflex::Reverse_Scope_Iterator  UsingDirective_RBegin()








ROOT::Reflex::Reverse_Scope_Iterator  UsingDirective_REnd()








void  AddSubScope(const ROOT::Reflex::Scope& sc) const








void  AddSubScope(const char* scope, ROOT::Reflex::TYPE scopeType = NAMESPACE) const








void  RemoveSubScope(const ROOT::Reflex::Scope& sc) const








void  AddUsingDirective(const ROOT::Reflex::Scope& ud) const








void  RemoveUsingDirective(const ROOT::Reflex::Scope& ud) const











Author:  Stefan Roiser 2004

Last update: root/reflex:$Name:  $:$Id: Scope.cxx,v 1.23 2006/10/30 13:58:07 roiser Exp $





This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
