class TGeoTabManager: public TObject

TGeoTabManager  - manager for all editor tabs.

  TGeoTreeDialog  - Base class for dialog frames for selecting objects
 with a tree hierarchy. Specific implementations are:
     TGeoVolumeDialog -  Special tree dialog class for selecting volumes.
     TGeoShapeDialog  -  Special tree dialog class for selecting shapes.
     TGeoMediumDialog -  Special tree dialog class for selecting media.
     TGeoMaterialDialog - Special tree dialog class for selecting materials.
     TGeoMatrixDialog -  Special tree dialog class for selecting matrices.
  TGeoTransientPanel - Special transient tab holding TGeo editors.

Function Members (Methods)

public:
TGeoTabManager(TGedEditor* ged)
virtual~TGeoTabManager()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
static voidCleanup(TGCompositeFrame* frame)
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
static TGeoTabManager*GetMakeTabManager(TGedEditor* ged)
voidGetMaterialEditor(TGeoMaterial* material)
voidGetMatrixEditor(TGeoMatrix* matrix)
voidGetMediumEditor(TGeoMedium* medium)
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
TVirtualPad*GetPad() const
voidGetShapeEditor(TGeoShape* shape)
TGTab*GetTab() const
Int_tGetTabIndex() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
TGeoVolume*GetVolume() const
voidGetVolumeEditor(TGeoVolume* vol)
TGCompositeFrame*GetVolumeTab() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
static voidMoveFrame(TGCompositeFrame* fr, TGCompositeFrame* p)
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TObject&TObject::operator=(const TObject& rhs)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidSetModel(TObject* model)
static voidTObject::SetObjectStat(Bool_t stat)
voidSetTab()
virtual voidTObject::SetUniqueID(UInt_t uid)
voidSetVolTabEnabled(Bool_t flag = kTRUE)
virtual voidShowMembers(TMemberInspector&)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
voidGetEditors(TClass* cl)

Data Members

private:
TGedEditor*fGedEditorParent editor
TGeoTransientPanel*fMaterialPanelPanel for editing materials
TGeoTransientPanel*fMatrixPanelPanel for editing matrices
TGeoTransientPanel*fMediumPanelPanel for editing media
TVirtualPad*fPadPad to which this applies
TGeoTransientPanel*fShapePanelPanel for editing shapes
TGTab*fTabParent tab
TGeoVolume*fVolumeEdited volume
TGCompositeFrame*fVolumeTabVolume tab
static TMapfgEditorToMgrMapMap from ged-editor to associated tab-manager

Class Charts

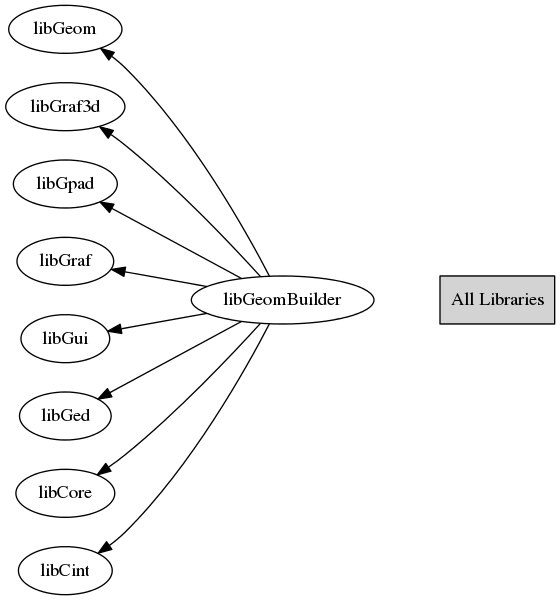

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoTabManager(TGedEditor* ged)
 Ctor.
~TGeoTabManager()
 Dtor.
void Cleanup(TGCompositeFrame* frame)
 Static method to cleanup hirarchically all daughters of a composite frame.
 Does not remove the frame itself.
void GetShapeEditor(TGeoShape* shape)
 Get editor for a shape.
void GetVolumeEditor(TGeoVolume* vol)
 Get editor for a volume.
void GetMatrixEditor(TGeoMatrix* matrix)
 Get editor for a matrix.
void GetMediumEditor(TGeoMedium* medium)
 Get editor for a medium.
void GetMaterialEditor(TGeoMaterial* material)
 Get editor for a material.
void GetEditors(TClass* cl)
 Get editor for a class.
 Look in fVolumeTab for any object deriving from TGedFrame,
TGeoTabManager * GetMakeTabManager(TGedEditor* ged)
 Static method to return the tab manager currently appended to the pad or create one
 if not existing.
Int_t GetTabIndex() const
 Get index for a given tab element.
void MoveFrame(TGCompositeFrame* fr, TGCompositeFrame* p)
 Move frame fr at the end of the list of parent p.
void SetVolTabEnabled(Bool_t flag = kTRUE)
 Enable/disable tabs
void SetModel(TObject* model)
 Send the SetModel signal to all editors in the tab TYPE.
void SetTab()
 Set a given tab element as active one.
TVirtualPad * GetPad() const
{return fPad;}
TGTab * GetTab() const
{return fTab;}
TGCompositeFrame * GetVolumeTab() const
{return fVolumeTab;}
TGeoVolume * GetVolume() const
{return fVolume;}
