rf712_lagrangianmorphfit.C File Reference

Detailed Description

Performing a simple fit with RooLagrangianMorphFunc.

a morphing function is setup as a function of three variables and a fit is performed on a pseudo-dataset.


#include <RooDataHist.h>
#include <RooFitResult.h>
#include <RooLagrangianMorphFunc.h>
#include <RooPlot.h>
#include <RooRealVar.h>

#include <TAxis.h>
#include <TCanvas.h>
#include <TH2.h>
#include <TStyle.h>

using namespace RooFit;

void rf712_lagrangianmorphfit()
{
   // C r e a t e  v a r i a b l e s  f o r
   // m o r p h i n g  f u n c t i o n
   // ---------------------------------------------

   std::string observablename = "pTV";
   RooRealVar obsvar(observablename.c_str(), "observable of pTV", 10, 600);
   RooRealVar kSM("kSM", "sm modifier", 1.0);
   RooRealVar cHq3("cHq3", "EFT modifier", -10.0, 10.0);
   cHq3.setAttribute("NewPhysics", true);
   RooRealVar cHl3("cHl3", "EFT modifier", -10.0, 10.0);
   cHl3.setAttribute("NewPhysics", true);
   RooRealVar cHDD("cHDD", "EFT modifier", -10.0, 10.0);
   cHDD.setAttribute("NewPhysics", true);

   // I n p u t s  n e e d e d  f o r  c o n f i g
   // ---------------------------------------------
   std::string infilename = std::string(gROOT->GetTutorialDir()) + "/roofit/roofit/input_histos_rf_lagrangianmorph.root";
   std::vector<std::string> samplelist = {"SM_NPsq0",        "cHq3_NPsq1",     "cHq3_NPsq2", "cHl3_NPsq1",
                                          "cHl3_NPsq2",      "cHDD_NPsq1",     "cHDD_NPsq2", "cHl3_cHDD_NPsq2",
                                          "cHq3_cHDD_NPsq2", "cHl3_cHq3_NPsq2"};

   // S e t u p  C o n f i g
   // ---------------------------------------------
   RooLagrangianMorphFunc::Config config;
   config.fileName = infilename;
   config.observableName = observablename;
   config.folderNames = samplelist;
   config.couplings.add(cHq3);
   config.couplings.add(cHl3);
   config.couplings.add(cHDD);
   config.couplings.add(kSM);

   // C r e a t e  m o r p h i n g  f u n c t i o n
   // ---------------------------------------------
   RooLagrangianMorphFunc morphfunc("morphfunc", "morphed dist. of pTV", config);

   // C r e a t e  p s e u d o  d a t a  h i s t o g r a m
   // f o r  f i t
   // ---------------------------------------------
   morphfunc.setParameter("cHq3", 0.01);
   morphfunc.setParameter("cHl3", 1.0);
   morphfunc.setParameter("cHDD", 0.2);

   auto pseudo_hist = morphfunc.createTH1("pseudo_hist");
   auto pseudo_dh = new RooDataHist("pseudo_dh", "pseudo_dh", RooArgList(obsvar), pseudo_hist);

   // reset parameters to zeros before fit
   morphfunc.setParameter("cHq3", 0.0);
   morphfunc.setParameter("cHl3", 0.0);
   morphfunc.setParameter("cHDD", 0.0);

   // error set used as initial step size
   cHq3.setError(0.1);
   cHl3.setError(0.1);
   cHDD.setError(0.1);

   // W r a p  p d f  o n  m o r p h f u n c  a n d
   // f i t  t o  d a t a  h i s t o g r a m
   // ---------------------------------------------
   // wrapper pdf to normalise morphing function to a morphing pdf
   RooWrapperPdf model("wrap_pdf", "wrap_pdf", morphfunc);
   auto fitres = model.fitTo(*pseudo_dh, SumW2Error(true), Save(), PrintLevel(-1));
   auto hcorr = fitres->correlationHist();

   // E x t r a c t  p o s t f i t  d i s t r i b u t i o n
   // a n d  p l o t  w i t h  i n i t i a l
   // h i s t o g r a m
   // ---------------------------------------------
   auto postfit_hist = morphfunc.createTH1("morphing_postfit_hist");
   RooDataHist postfit_dh("morphing_postfit_dh", "morphing_postfit_dh", RooArgList(obsvar), postfit_hist);

   auto frame0 = obsvar.frame(Title("Fitted histogram of p_{T}^{V}"));
   postfit_dh.plotOn(frame0, Name("postfit_dist"), DrawOption("C"), LineColor(kBlue), DataError(RooAbsData::None),
                     XErrorSize(0));
   pseudo_dh->plotOn(frame0, Name("input"));

   // D r a w  p l o t s  o n  c a n v a s
   // ---------------------------------------------
   TCanvas *c1 = new TCanvas("fig3", "fig3", 800, 400);
   c1->Divide(2, 1);

   c1->cd(1);
   gPad->SetLeftMargin(0.15);
   gPad->SetRightMargin(0.05);

   model.paramOn(frame0, Layout(0.50, 0.75, 0.9), Parameters(config.couplings));
   frame0->GetXaxis()->SetTitle("p_{T}^{V}");
   frame0->Draw();

   c1->cd(2);
   gPad->SetLeftMargin(0.15);
   gPad->SetRightMargin(0.15);
   gStyle->SetPaintTextFormat("4.1f");
   gStyle->SetOptStat(0);
   hcorr->SetMarkerSize(3.);
   hcorr->SetTitle("correlation matrix");
   hcorr->GetYaxis()->SetTitleOffset(1.4);
   hcorr->GetYaxis()->SetLabelSize(0.1);
   hcorr->GetXaxis()->SetLabelSize(0.1);
   hcorr->GetYaxis()->SetBinLabel(1, "c_{HDD}");
   hcorr->GetYaxis()->SetBinLabel(2, "c_{Hl^{(3)}}");
   hcorr->GetYaxis()->SetBinLabel(3, "c_{Hq^{(3)}}");
   hcorr->GetXaxis()->SetBinLabel(3, "c_{HDD}");
   hcorr->GetXaxis()->SetBinLabel(2, "c_{Hl^{(3)}}");
   hcorr->GetXaxis()->SetBinLabel(1, "c_{Hq^{(3)}}");
   hcorr->Draw("colz text");

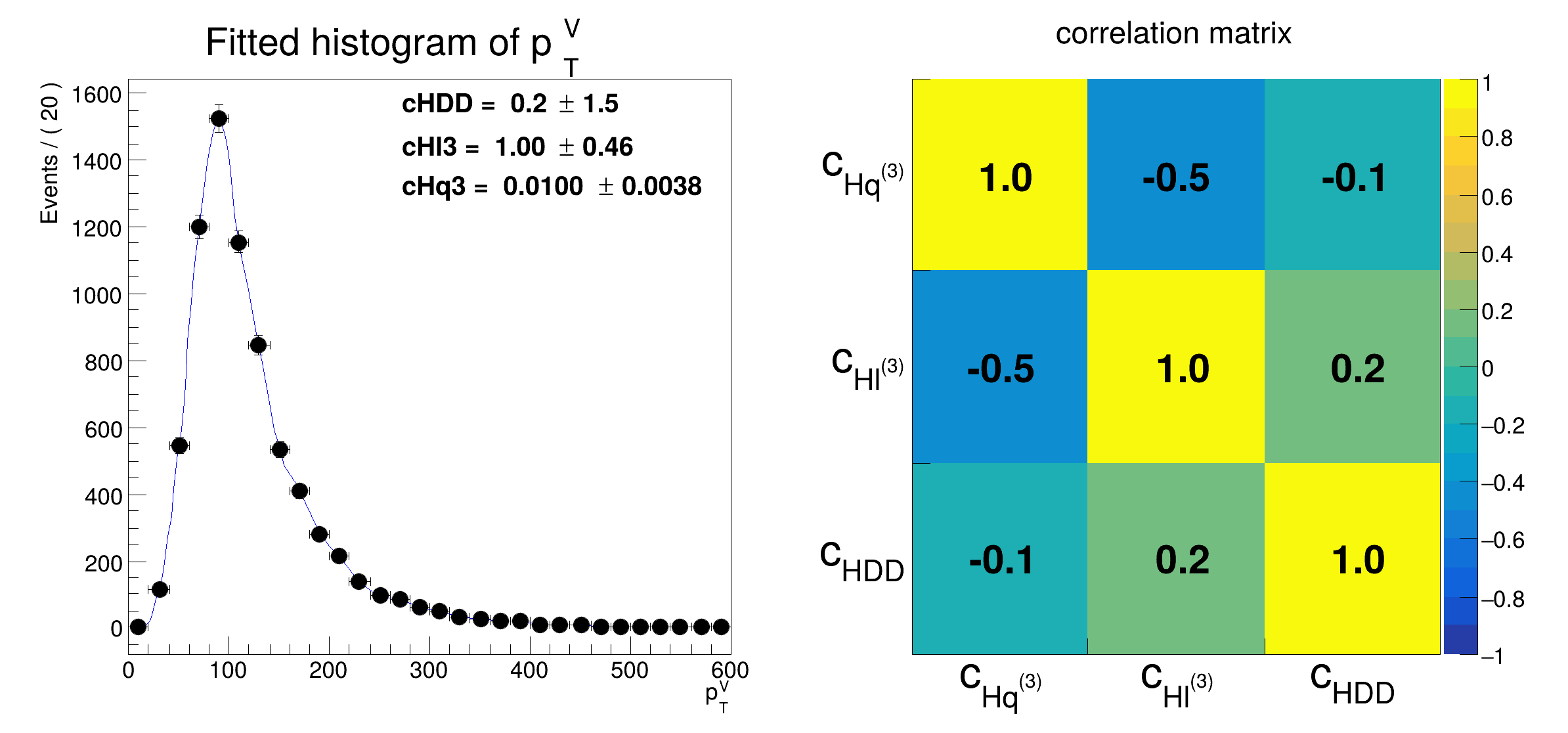

   c1->SaveAs("rf712_lagrangianmorphfit.png");
}

[#0] PROGRESS:InputArguments -- initializing physics inputs from file /home/stephan/code/root-opt/tutorials/roofit/roofit/input_histos_rf_lagrangianmorph.root with object name(s) 'pTV'
[#0] PROGRESS:Caching -- creating cache from getCache function for 0x7ffd1a429da0
[#0] PROGRESS:Caching -- current storage has size 10
[#0] PROGRESS:ObjectHandling -- observable: pTV
[#0] PROGRESS:ObjectHandling -- binWidth: binWidth_pTV
[#1] INFO:DataHandling -- RooDataHist::adjustBinning(pseudo_dh): fit range of variable pTV expanded to nearest bin boundaries: [10,600] --> [0,600]
[#0] PROGRESS:Caching -- creating cache from getCache function for 0x55dba4526a60
[#0] PROGRESS:Caching -- current storage has size 10
[#0] PROGRESS:ObjectHandling -- observable: pTV
[#0] PROGRESS:ObjectHandling -- binWidth: binWidth_pTV

[#1] INFO:Fitting -- RooAbsPdf::fitTo(wrap_pdf_over_wrap_pdf_Int[pTV]) fixing normalization set for coefficient determination to observables in data
[#1] INFO:Fitting -- using generic CPU library compiled with no vectorizations
[#1] INFO:Fitting -- Creation of NLL object took 25.8428 ms
[#1] INFO:Fitting -- RooAddition::defaultErrorLevel(nll_wrap_pdf_over_wrap_pdf_Int[pTV]_pseudo_dh) Summation contains a RooNLLVar, using its error level
[#1] INFO:Minimization -- [fitFCN] No discrete parameters, performing continuous minimization only
RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.22238   cHl3=2.00088   cHq3=0.00780325
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.0889525, denominator=wrap_pdf_Int[pTV]=4479.59
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.0889525, denominator=wrap_pdf_Int[pTV]=4479.59
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0889525, denominator=wrap_pdf_Int[pTV]=4479.59
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0889525, denominator=wrap_pdf_Int[pTV]=4479.59

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=1.16153   cHl3=8.6965 cHq3=0.0408466
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.894368, denominator=wrap_pdf_Int[pTV]=3980.01
    ... (remaining 4 messages suppressed)

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.607791  cHl3=5.23432   cHq3=0.0213386
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.315769, denominator=wrap_pdf_Int[pTV]=237.773
    ... (remaining 16 messages suppressed)

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.330108  cHl3=2.94627   cHq3=0.0115846
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.131032, denominator=wrap_pdf_Int[pTV]=2465.37

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.191157  cHl3=1.72296   cHq3=0.00670752
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.0801556, denominator=wrap_pdf_Int[pTV]=5193.38
     p.d.f value is less than zero, trying to recover @ numerator=wrap_pdf=0.0801556, denominator=wrap_pdf_Int[pTV]=5193.38
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0801556, denominator=wrap_pdf_Int[pTV]=5193.38
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0801556, denominator=wrap_pdf_Int[pTV]=5193.38

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.138238  cHl3=1.24892   cHq3=0.00485049
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0688277, denominator=wrap_pdf_Int[pTV]=6538.46

RooAbsMinimizerFcn: Minimized function has error status.
Returning maximum FCN so far (39620.3) to force MIGRAD to back out of this region. Error log follows.
Parameter values:    cHDD=0.121667  cHl3=1.24299   cHq3=0.004269
RooFit::Detail::RooNormalizedPdf::wrap_pdf_over_wrap_pdf_Int[pTV][ numerator=wrap_pdf denominator=wrap_pdf_Int[pTV] ]
     getLogVal() top-level p.d.f evaluates to NaN @ numerator=wrap_pdf=0.0667251, denominator=wrap_pdf_Int[pTV]=6553.34

[#1] INFO:Fitting -- RooAbsPdf::fitTo(wrap_pdf) Calculating sum-of-weights-squared correction matrix for covariance matrix
[#1] INFO:InputArguments -- RooAbsData::plotOn(pseudo_dh) INFO: dataset has non-integer weights, auto-selecting SumW2 errors instead of Poisson errors
[#1] INFO:Plotting -- RooPlot::updateFitRangeNorm: New event count of 7389.24 will supersede previous event count of 7388.38 for normalization of PDF projections

Date

January 2022

Author

Rahul Balasubramanian

Definition in file rf712_lagrangianmorphfit.C.
