FitAwmi.C File Reference
Tutorials » Legacy tutorials » Spectrum tutorials

Detailed Description

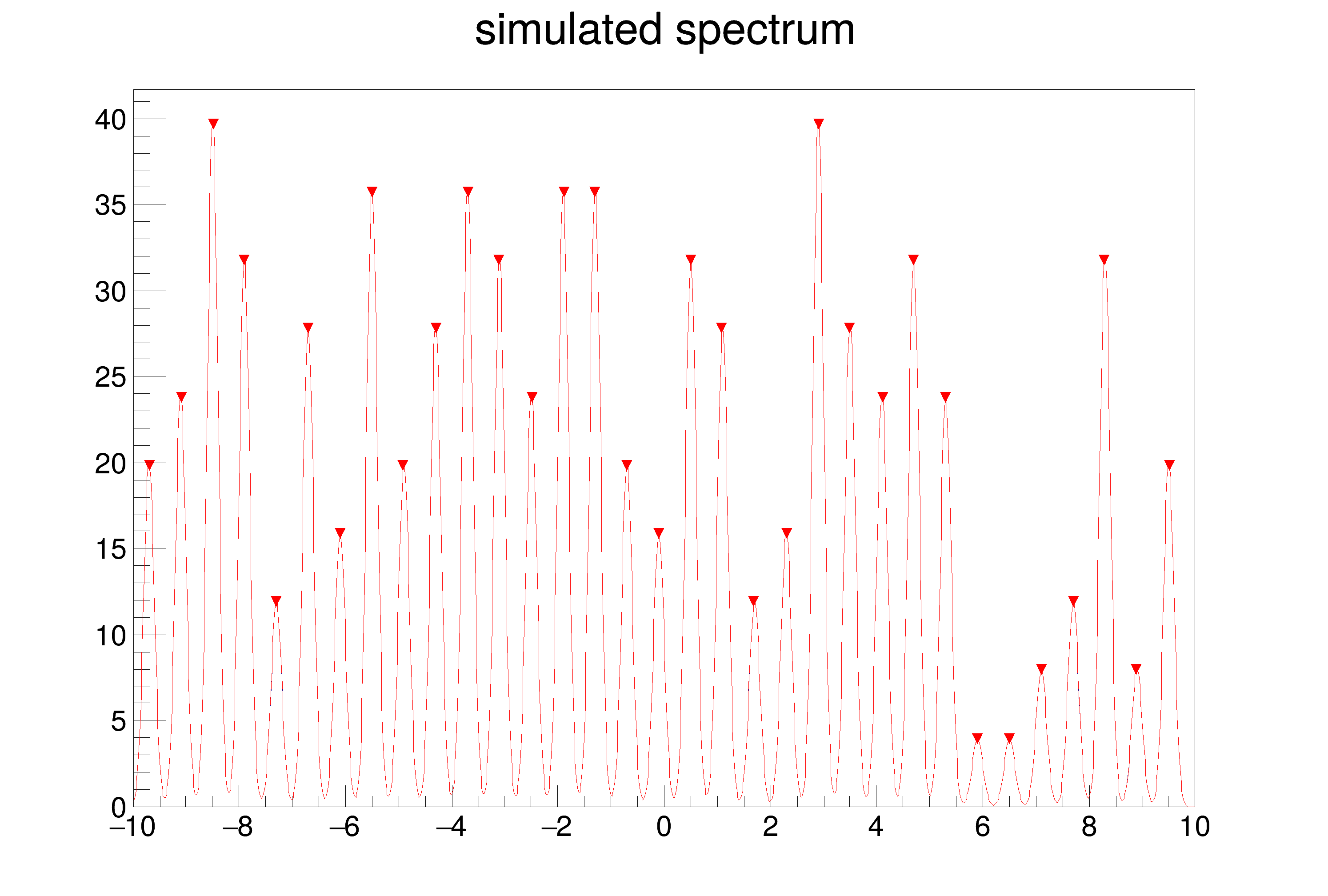

This macro fits the source spectrum using the AWMI algorithm from the "TSpectrumFit" class ("TSpectrum" class is used to find peaks).

To try this macro, in a ROOT (5 or 6) prompt, do:

root > .x FitAwmi.C

or:

root > .x FitAwmi.C++
root > FitAwmi(); // re-run with another random set of peaks
created -9.7 7.97885 2
created -9.1 35.9048 9
created -8.5 11.9683 3
created -7.9 11.9683 3
created -7.3 11.9683 3
created -6.7 3.98942 1
created -6.1 27.926 7
created -5.5 23.9365 6
created -4.9 3.98942 1
created -4.3 3.98942 1
created -3.7 35.9048 9
created -3.1 27.926 7
created -2.5 19.9471 5
created -1.9 27.926 7
created -1.3 19.9471 5
created -0.7 3.98942 1
created -0.1 11.9683 3
created 0.5 3.98942 1
created 1.1 11.9683 3
created 1.7 27.926 7
created 2.3 39.8942 10
created 2.9 19.9471 5
created 3.5 3.98942 1
created 4.1 3.98942 1
created 4.7 31.9154 8
created 5.3 19.9471 5
created 5.9 31.9154 8
created 6.5 35.9048 9
created 7.1 23.9365 6
created 7.7 39.8942 10
created 8.3 11.9683 3
created 8.9 39.8942 10
created 9.5 3.98942 1
the total number of created peaks = 33 with sigma = 0.1
the total number of found peaks = 33 with sigma = 0.100002 (+-1.7803e-05)
fit chi^2 = 8.0465e-07
found 2.3 (+-0.000124458) 39.8941 (+-0.0489616) 10.0002 (+-0.000401803)
found 7.7 (+-0.00012421) 39.8939 (+-0.04895) 10.0001 (+-0.000401708)
found 8.9 (+-0.000123671) 39.8936 (+-0.0489259) 10 (+-0.00040151)
found -9.1 (+-0.000130601) 35.9043 (+-0.0464244) 9.00006 (+-0.000380982)
found -3.7 (+-0.000130769) 35.9045 (+-0.0464325) 9.0001 (+-0.000381048)
found 6.5 (+-0.000131432) 35.9048 (+-0.0464597) 9.00018 (+-0.000381271)
found 4.7 (+-0.000138624) 31.9151 (+-0.0437738) 8.00008 (+-0.000359229)
found 5.9 (+-0.000139507) 31.9155 (+-0.0438068) 8.00018 (+-0.0003595)
found -3.1 (+-0.000149296) 27.9261 (+-0.0409829) 7.00018 (+-0.000336326)
found -6.1 (+-0.000148401) 27.9258 (+-0.0409535) 7.00009 (+-0.000336085)
found -1.9 (+-0.000148945) 27.9259 (+-0.0409706) 7.00013 (+-0.000336225)
found 1.7 (+-0.000149116) 27.9261 (+-0.0409772) 7.00017 (+-0.000336279)
found 7.1 (+-0.000161949) 23.9371 (+-0.0379639) 6.00025 (+-0.000311551)
found -5.5 (+-0.000160539) 23.9365 (+-0.0379229) 6.0001 (+-0.000311214)
found 2.9 (+-0.000176374) 19.9473 (+-0.034632) 5.00014 (+-0.000284207)
found -2.5 (+-0.000177203) 19.9474 (+-0.0346509) 5.00018 (+-0.000284362)
found -1.3 (+-0.000176071) 19.9471 (+-0.0346239) 5.0001 (+-0.000284141)
found 5.3 (+-0.000177426) 19.9476 (+-0.0346566) 5.00021 (+-0.00028441)
found -8.5 (+-0.000229345) 11.9687 (+-0.0268501) 3.00016 (+-0.000220345)
found 8.3 (+-0.000230901) 11.9691 (+-0.0268749) 3.00026 (+-0.000220549)
found -7.9 (+-0.000228104) 11.9683 (+-0.0268303) 3.00008 (+-0.000220182)
found -7.3 (+-0.000227266) 11.9682 (+-0.0268182) 3.00005 (+-0.000220084)
found -0.1 (+-0.000226436) 11.9681 (+-0.0268062) 3.00003 (+-0.000219985)
found 1.1 (+-0.00022817) 11.9685 (+-0.0268326) 3.0001 (+-0.000220202)
found -9.69999 (+-0.000280931) 7.97916 (+-0.021923) 2.00012 (+-0.000179911)
found 9.49998 (+-0.000396644) 3.98992 (+-0.0155063) 1.00014 (+-0.000127253)
found -4.90001 (+-0.000399053) 3.98971 (+-0.0155125) 1.00009 (+-0.000127303)
found -6.69999 (+-0.000401735) 3.98987 (+-0.0155268) 1.00013 (+-0.000127421)
found -0.700004 (+-0.000400742) 3.98976 (+-0.0155209) 1.0001 (+-0.000127372)
found 3.49999 (+-0.000398536) 3.98966 (+-0.0155094) 1.00008 (+-0.000127278)
found -4.29998 (+-0.000400312) 3.98987 (+-0.0155203) 1.00013 (+-0.000127367)
found 0.5 (+-0.000399421) 3.98966 (+-0.0155134) 1.00008 (+-0.000127311)
found 4.10002 (+-0.00039993) 3.98982 (+-0.0155179) 1.00012 (+-0.000127348)
#include "TROOT.h"
#include "TMath.h"
#include "TRandom.h"
#include "TH1.h"
#include "TF1.h"
#include "TCanvas.h"
#include "TSpectrum.h"
#include "TSpectrumFit.h"
#include "TPolyMarker.h"
#include "TList.h"
#include <iostream>
TH1F *FitAwmi_Create_Spectrum(void)
{
Int_t nbins = 1000;
Double_t xmin = -10., xmax = 10.;
delete gROOT->FindObject("h"); // prevent "memory leak"
TH1F *h = new TH1F("h", "simulated spectrum", nbins, xmin, xmax);
h->SetStats(kFALSE);
TF1 f("f", "TMath::Gaus(x, [0], [1], 1)", xmin, xmax);
// f.SetParNames("mean", "sigma");
gRandom->SetSeed(0); // make it really random
// create well separated peaks with exactly known means and areas
// note: TSpectrumFit assumes that all peaks have the same sigma
Double_t sigma = (xmax - xmin) / Double_t(nbins) * Int_t(gRandom->Uniform(2., 6.));
Int_t npeaks = 0;
while (xmax > (xmin + 6. * sigma)) {
npeaks++;
xmin += 3. * sigma; // "mean"
f.SetParameters(xmin, sigma);
Double_t area = 1. * Int_t(gRandom->Uniform(1., 11.));
h->Add(&f, area, ""); // "" ... or ... "I"
std::cout << "created " << xmin << " " << (area / sigma / TMath::Sqrt(TMath::TwoPi())) << " " << area
<< std::endl;
xmin += 3. * sigma;
}
std::cout << "the total number of created peaks = " << npeaks << " with sigma = " << sigma << std::endl;
return h;
}
void FitAwmi(void)
{
TH1F *h = FitAwmi_Create_Spectrum();
TCanvas *cFit = ((TCanvas *)(gROOT->GetListOfCanvases()->FindObject("cFit")));
if (!cFit)
cFit = new TCanvas("cFit", "cFit", 10, 10, 1000, 700);
else
cFit->Clear();
h->Draw("L");
Int_t i, nfound, bin;
Int_t nbins = h->GetNbinsX();
Double_t *source = new Double_t[nbins];
Double_t *dest = new Double_t[nbins];
for (i = 0; i < nbins; i++)
source[i] = h->GetBinContent(i + 1);
TSpectrum *s = new TSpectrum(); // note: default maxpositions = 100
// searching for candidate peaks positions
nfound = s->SearchHighRes(source, dest, nbins, 2., 2., kFALSE, 10000, kFALSE, 0);
// filling in the initial estimates of the input parameters
Bool_t *FixPos = new Bool_t[nfound];
Bool_t *FixAmp = new Bool_t[nfound];
for (i = 0; i < nfound; i++)
FixAmp[i] = FixPos[i] = kFALSE;
Double_t *Pos, *Amp = new Double_t[nfound]; // ROOT 6
Pos = s->GetPositionX(); // 0 ... (nbins - 1)
for (i = 0; i < nfound; i++) {
bin = 1 + Int_t(Pos[i] + 0.5); // the "nearest" bin
Amp[i] = h->GetBinContent(bin);
}
TSpectrumFit *pfit = new TSpectrumFit(nfound);
pfit->SetFitParameters(0, (nbins - 1), 1000, 0.1, pfit->kFitOptimChiCounts, pfit->kFitAlphaHalving, pfit->kFitPower2,
pfit->kFitTaylorOrderFirst);
pfit->SetPeakParameters(2., kFALSE, Pos, FixPos, Amp, FixAmp);
// pfit->SetBackgroundParameters(source[0], kFALSE, 0., kFALSE, 0., kFALSE);
pfit->FitAwmi(source);
Double_t *Positions = pfit->GetPositions();
Double_t *PositionsErrors = pfit->GetPositionsErrors();
Double_t *Amplitudes = pfit->GetAmplitudes();
Double_t *AmplitudesErrors = pfit->GetAmplitudesErrors();
Double_t *Areas = pfit->GetAreas();
Double_t *AreasErrors = pfit->GetAreasErrors();
delete gROOT->FindObject("d"); // prevent "memory leak"
TH1F *d = new TH1F(*h);
d->SetNameTitle("d", "");
d->Reset("M");
for (i = 0; i < nbins; i++)
d->SetBinContent(i + 1, source[i]);
Double_t x1 = d->GetBinCenter(1), dx = d->GetBinWidth(1);
Double_t sigma, sigmaErr;
pfit->GetSigma(sigma, sigmaErr);
// current TSpectrumFit needs a sqrt(2) correction factor for sigma
sigma /= TMath::Sqrt2();
sigmaErr /= TMath::Sqrt2();
// convert "bin numbers" into "x-axis values"
sigma *= dx;
sigmaErr *= dx;
std::cout << "the total number of found peaks = " << nfound << " with sigma = " << sigma << " (+-" << sigmaErr << ")"
<< std::endl;
std::cout << "fit chi^2 = " << pfit->GetChi() << std::endl;
for (i = 0; i < nfound; i++) {
bin = 1 + Int_t(Positions[i] + 0.5); // the "nearest" bin
Pos[i] = d->GetBinCenter(bin);
Amp[i] = d->GetBinContent(bin);
// convert "bin numbers" into "x-axis values"
Positions[i] = x1 + Positions[i] * dx;
PositionsErrors[i] *= dx;
Areas[i] *= dx;
AreasErrors[i] *= dx;
std::cout << "found " << Positions[i] << " (+-" << PositionsErrors[i] << ") " << Amplitudes[i] << " (+-"
<< AmplitudesErrors[i] << ") " << Areas[i] << " (+-" << AreasErrors[i] << ")" << std::endl;
}
d->SetLineColor(kRed);
d->SetLineWidth(1);
d->Draw("SAME L");
TPolyMarker *pm = ((TPolyMarker *)(h->GetListOfFunctions()->FindObject("TPolyMarker")));
if (pm) {
h->GetListOfFunctions()->Remove(pm);
delete pm;
}
pm = new TPolyMarker(nfound, Pos, Amp);
h->GetListOfFunctions()->Add(pm);
pm->SetMarkerStyle(23);
pm->SetMarkerColor(kRed);
pm->SetMarkerSize(1);
// cleanup
delete pfit;
delete[] Amp;
delete[] FixAmp;
delete[] FixPos;
delete s;
delete[] dest;
delete[] source;
return;
}
