doc/v624/Background__compton_8C.html

void Background_compton() {

   Int_t i;

   const Int_t nbins = 256;

   Double_t xmin     = 0;

   Double_t xmax     = nbins;

   Double_t source[nbins];

   gROOT->ForceStyle();


   TH1F *d1 = new TH1F("d1","",nbins,xmin,xmax);


   TString dir  = gROOT->GetTutorialDir();

   TString file = dir+"/spectrum/TSpectrum.root";

   TFile *f     = new TFile(file.Data());

   TH1F *back = (TH1F*) f->Get("back3");

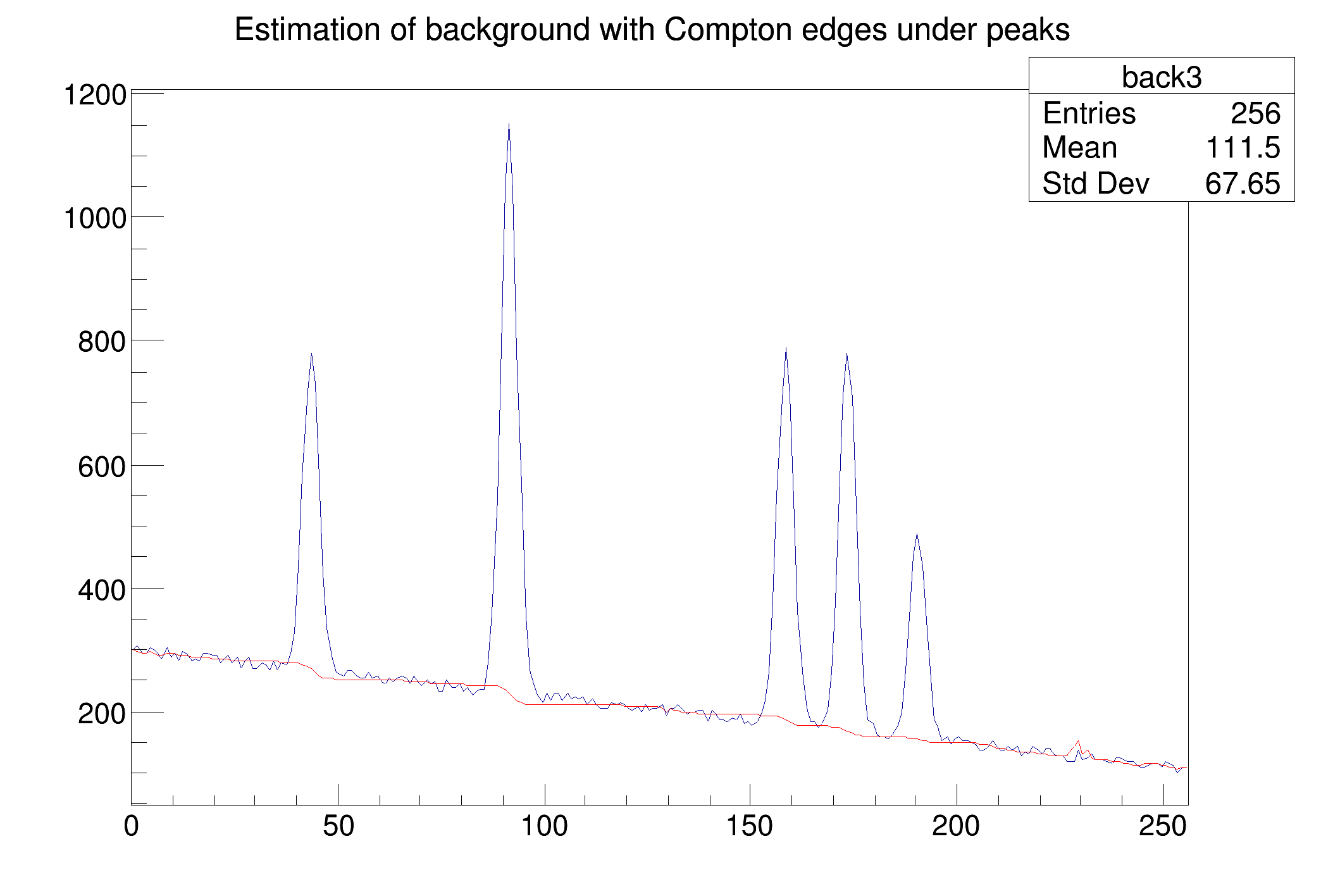

   back->SetTitle("Estimation of background with Compton edges under peaks");

   back->GetXaxis()->SetRange(1,nbins);

   back->Draw("L");


   TSpectrum *s = new TSpectrum();


   for (i = 0; i < nbins; i++) source[i]=back->GetBinContent(i + 1);

   s->Background(source,nbins,10,TSpectrum::kBackDecreasingWindow,

                 TSpectrum::kBackOrder8,kTRUE,

                 TSpectrum::kBackSmoothing5,kTRUE);

   for (i = 0; i < nbins; i++) d1->SetBinContent(i + 1,source[i]);

   d1->SetLineColor(kRed);

   d1->Draw("SAME L");

}
