seism.C File Reference

Detailed Description

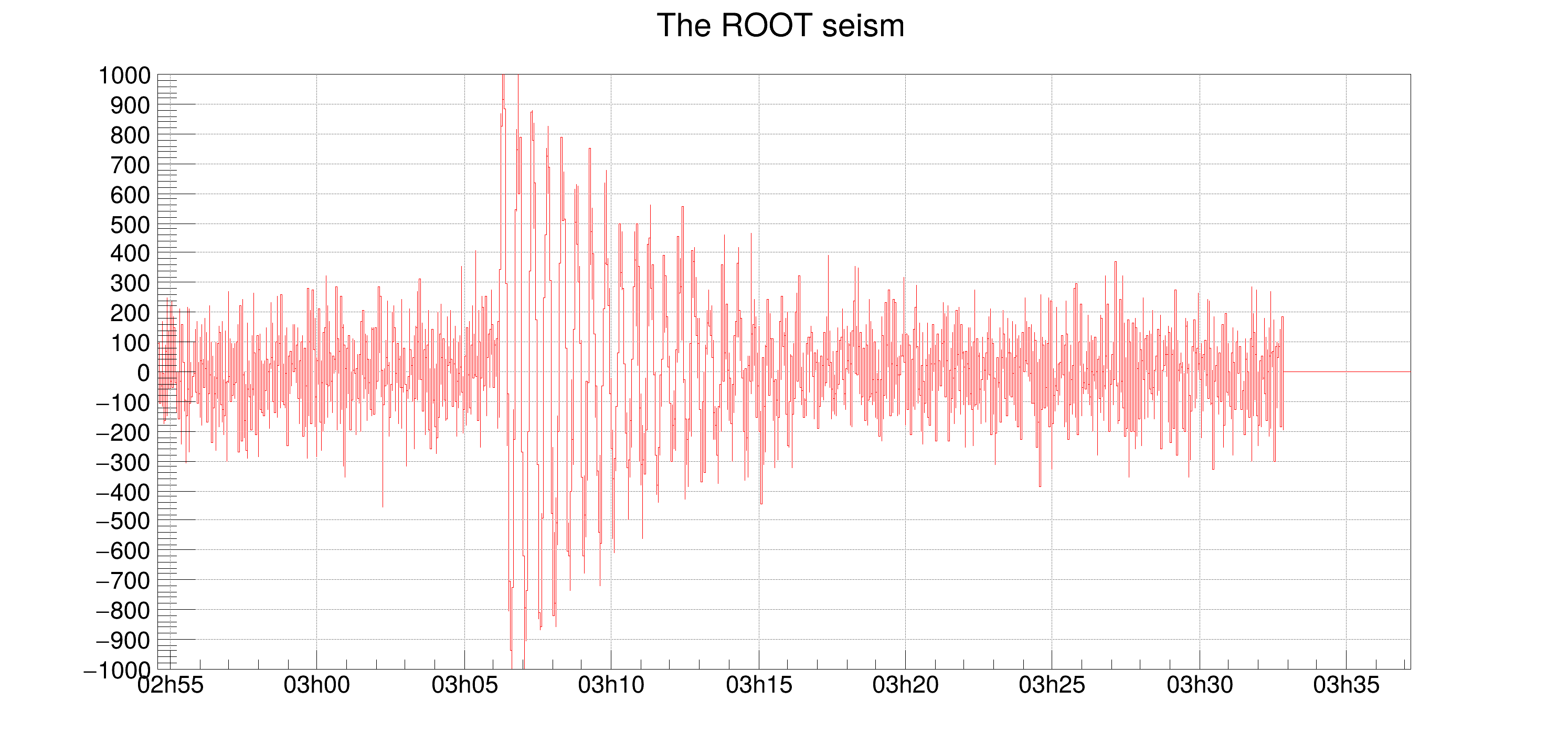

Strip chart example.


#include "TStopwatch.h"
#include "TDatime.h"
#include "TStyle.h"
#include "TH1F.h"
#include "TCanvas.h"
#include "TSystem.h"
#include "TRandom.h"
#include <cstdio>

void seism() {

   TStopwatch sw; sw.Start();
   //set time offset
   TDatime dtime;
   gStyle->SetTimeOffset(dtime.Convert());

   TCanvas *c1 = new TCanvas("c1","Time on axis",10,10,1000,500);
   c1->SetGrid();

   Float_t bintime = 1; //one bin = 1 second. change it to set the time scale
   TH1F *ht = new TH1F("ht","The ROOT seism",10,0,10*bintime);
   Float_t signalval = 1000;
   ht->SetMaximum( signalval);
   ht->SetMinimum(-signalval);
   ht->SetStats(false);
   ht->SetLineColor(2);
   ht->GetXaxis()->SetTimeDisplay(1);
   ht->GetYaxis()->SetNdivisions(520);
   ht->Draw();

   for (Int_t i=1;i<2300;i++) {
      //======= Build a signal : noisy damped sine ======
      Float_t noise  = gRandom->Gaus(0,120);
      if (i > 700) noise += signalval*sin((i-700.)*6.28/30)*exp((700.-i)/300.);
      ht->SetBinContent(i,noise);
      c1->Modified();
      c1->Update();
      gSystem->ProcessEvents(); //canvas can be edited during the loop
   }
   printf("Real Time = %8.3fs, Cpu Time = %8.3fs\n",sw.RealTime(),sw.CpuTime());
}

Author

Rene Brun

Definition in file seism.C.
