To draw polar axis.

TGraphPolargram draw the polar axis of the TGraphPolar.

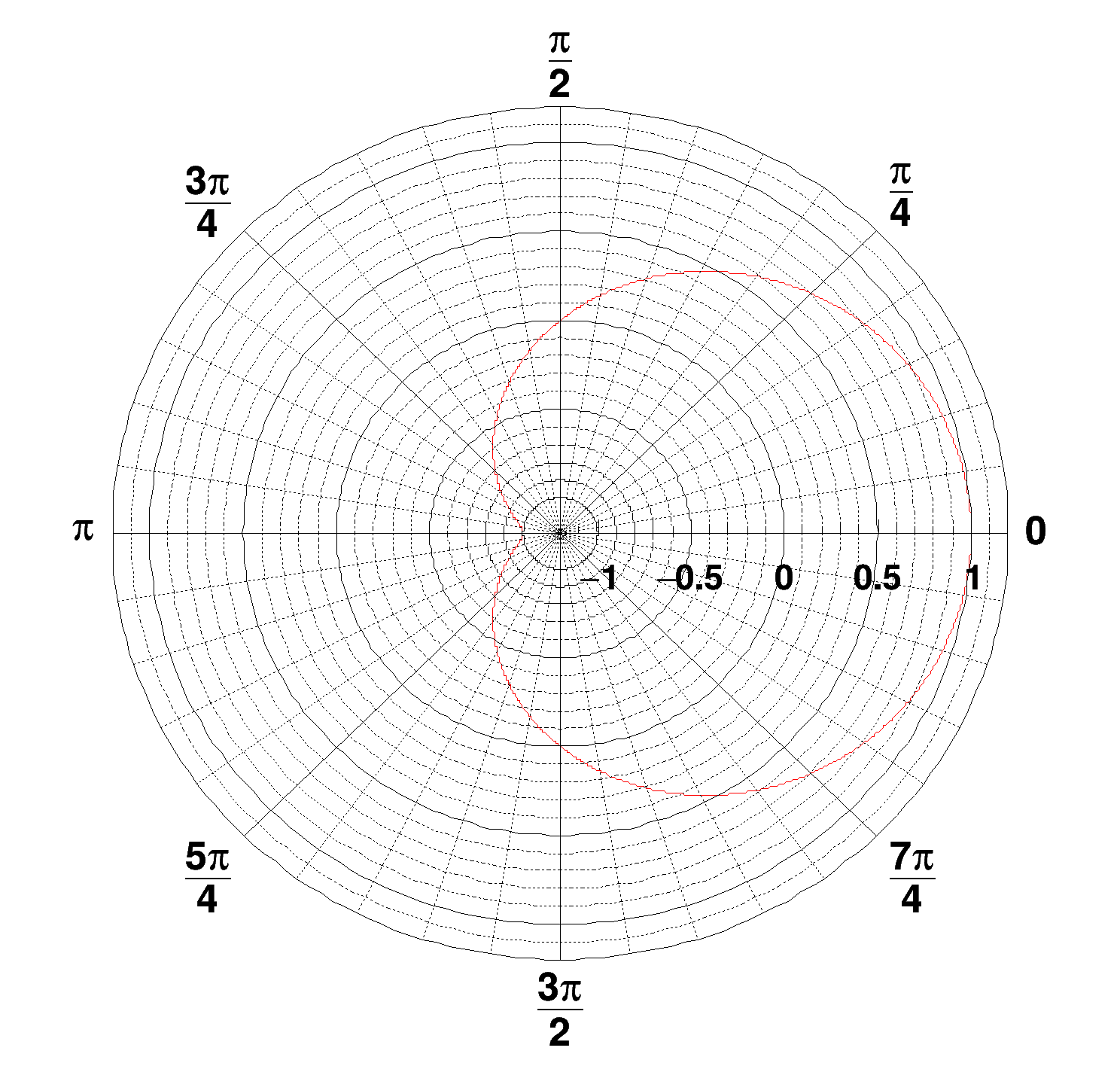

Example:

{
   TCanvas * CPol = new TCanvas("CPol","TGraphPolar Examples",500,500);

   Double_t rmin=0;
   Double_t rmax=TMath::Pi()*2;
   Double_t r[1000];
   Double_t theta[1000];

   TF1 * fp1 = new TF1("fplot","cos(x)",rmin,rmax);
   for (Int_t ipt = 0; ipt < 1000; ipt++) {
      r[ipt] = ipt*(rmax-rmin)/1000+rmin;
      theta[ipt] = fp1->Eval(r[ipt]);
   }
   TGraphPolar * grP1 = new TGraphPolar(1000,r,theta);
   grP1->SetTitle("");
   grP1->SetLineColor(2);
   grP1->Draw("AOL");
}

Definition at line 20 of file TGraphPolargram.h.

Public Types
enum	{ kLabelOrtho = (1ULL << ( 14 )) }

Public Types inherited from TObject
enum	{ kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 , kBitMask = 0x00ffffff }

enum	{ kSingleKey = (1ULL << ( 0 )) , kOverwrite = (1ULL << ( 1 )) , kWriteDelete = (1ULL << ( 2 )) }

enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << ( 3 )) }

enum	EStatusBits { kCanDelete = (1ULL << ( 0 )) , kMustCleanup = (1ULL << ( 3 )) , kIsReferenced = (1ULL << ( 4 )) , kHasUUID = (1ULL << ( 5 )) , kCannotPick = (1ULL << ( 6 )) , kNoContextMenu = (1ULL << ( 8 )) , kInvalidObject = (1ULL << ( 13 )) }

Public Member Functions
	TGraphPolargram (const char *name, Double_t rmin, Double_t rmax, Double_t tmin, Double_t tmax)
	TGraphPolargram Constructor.

	TGraphPolargram (const char *name="")
	Short constructor used in the case of a spider plot.

	~TGraphPolargram () override
	TGraphPolargram destructor.

void	ChangeRangePolar (Double_t tmin, Double_t tmax)
	Set the Polar range.

Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Everything within the circle belongs to the TGraphPolargram.

void	Draw (Option_t *options="") override
	Draw Polargram.

void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Indicate that there is something to click here.

Double_t	GetAngle ()

Int_t	GetNdivPolar ()

Int_t	GetNdivRadial ()

Color_t	GetPolarColorLabel ()

Font_t	GetPolarLabelFont ()

Double_t	GetPolarLabelSize ()

Double_t	GetPolarOffset ()

Color_t	GetRadialColorLabel ()

Font_t	GetRadialLabelFont ()

Double_t	GetRadialLabelSize ()

Double_t	GetRadialOffset ()

Double_t	GetRMax ()

Double_t	GetRMin ()

Double_t	GetTickpolarSize ()

Double_t	GetTMax ()

Double_t	GetTMin ()

TClass *	IsA () const override

Bool_t	IsDegree ()

Bool_t	IsGrad ()

Bool_t	IsRadian ()

void	PaintCircle (Double_t x, Double_t y, Double_t r, Double_t phimin, Double_t phimax, Double_t theta)
	This is simplified from TEllipse::PaintEllipse.

void	SetAxisAngle (Double_t angle=0)
	Set axis angle.

void	SetNdivPolar (Int_t Ndiv=508)
	Set the number of Polar divisions: enter a number ij with 0<i<99 and 0<j<99.

void	SetNdivRadial (Int_t Ndiv=508)
	Set the number of radial divisions: enter a number ij with 0<i<99 and 0<j<99.

void	SetPolarLabel (Int_t div, const TString &label)
	Set some specified polar labels, used in the case of a spider plot.

void	SetPolarLabelColor (Color_t tcolorangular=1)
	Set Polar labels color.

void	SetPolarLabelFont (Font_t tfontangular=62)

void	SetPolarLabelSize (Double_t angularsize=0.04)
	Set angular labels size.

void	SetPolarOffset (Double_t PolarOffset=0.04)
	Set the labels offset.

void	SetRadialLabelColor (Color_t tcolorradial=1)
	Set radial labels color.

void	SetRadialLabelFont (Font_t tfontradial=62)
	Set radial label font.

void	SetRadialLabelSize (Double_t radialsize=0.035)
	Set radial labels size.

void	SetRadialOffset (Double_t RadialOffset=0.025)
	Set the labels offset.

void	SetRangePolar (Double_t tmin, Double_t tmax)
	Allows to change range Polar.

void	SetRangeRadial (Double_t rmin, Double_t rmax)
	Set the radial range.

void	SetTickpolarSize (Double_t tickpolarsize=0.02)
	Set polar ticks size.

void	SetToDegree ()
	The Polar circle is labelled using degree.

void	SetToGrad ()
	The Polar circle is labelled using gradian.

void	SetToRadian ()
	The Polar circle is labelled using radian.

void	SetTwoPi ()
	Set range from 0 to 2*pi.

void	Streamer (TBuffer &) override
	Stream an object of class TObject.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TNamed
	TNamed ()

	TNamed (const char name, const char title)

	TNamed (const TNamed &named)
	TNamed copy ctor.

	TNamed (const TString &name, const TString &title)

virtual	~TNamed ()
	TNamed destructor.

void	Clear (Option_t *option="") override
	Set name and title to empty strings ("").

TObject *	Clone (const char *newname="") const override
	Make a clone of an object using the Streamer facility.

Int_t	Compare (const TObject *obj) const override
	Compare two TNamed objects.

void	Copy (TObject &named) const override
	Copy this to obj.

virtual void	FillBuffer (char *&buffer)
	Encode TNamed into output buffer.

const char *	GetName () const override
	Returns name of object.

const char *	GetTitle () const override
	Returns title of object.

ULong_t	Hash () const override
	Return hash value for this object.

TClass *	IsA () const override

Bool_t	IsSortable () const override

void	ls (Option_t *option="") const override
	List TNamed name and title.

TNamed &	operator= (const TNamed &rhs)
	TNamed assignment operator.

void	Print (Option_t *option="") const override
	Print TNamed name and title.

virtual void	SetName (const char *name)
	Set the name of the TNamed.

virtual void	SetNameTitle (const char name, const char title)
	Set all the TNamed parameters (name and title).

virtual void	SetTitle (const char *title="")
	Set the title of the TNamed.

virtual Int_t	Sizeof () const
	Return size of the TNamed part of the TObject.

void	Streamer (TBuffer &) override
	Stream an object of class TObject.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TObject
	TObject ()
	TObject constructor.

	TObject (const TObject &object)
	TObject copy ctor.

virtual	~TObject ()
	TObject destructor.

void	AbstractMethod (const char *method) const
	Use this method to implement an "abstract" method that you don't want to leave purely abstract.

virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.

virtual void	Browse (TBrowser *b)
	Browse object. May be overridden for another default action.

ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

virtual const char *	ClassName () const
	Returns name of class to which the object belongs.

virtual void	Delete (Option_t *option="")
	Delete this object.

virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.

virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: `gROOT->SetSelectedPad(c1)`.

virtual void	Dump () const
	Dump contents of object on stdout.

virtual void	Error (const char method, const char msgfmt,...) const
	Issue error message.

virtual void	Execute (const char method, const char params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.

virtual void	Execute (TMethod method, TObjArray params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.

virtual void	Fatal (const char method, const char msgfmt,...) const
	Issue fatal error message.

virtual TObject *	FindObject (const char *name) const
	Must be redefined in derived classes.

virtual TObject *	FindObject (const TObject *obj) const
	Must be redefined in derived classes.

virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.

virtual const char *	GetIconName () const
	Returns mime type name of object.

virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).

virtual Option_t *	GetOption () const

virtual UInt_t	GetUniqueID () const
	Return the unique object id.

virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.

Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

virtual void	Info (const char method, const char msgfmt,...) const
	Issue info message.

virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".

virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.

virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.

void	InvertBit (UInt_t f)

Bool_t	IsDestructed () const
	IsDestructed.

virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).

virtual Bool_t	IsFolder () const
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

R__ALWAYS_INLINE Bool_t	IsOnHeap () const

R__ALWAYS_INLINE Bool_t	IsZombie () const

void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).

void	Obsolete (const char method, const char asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.

void	operator delete (void *ptr)
	Operator delete.

void	operator delete (void ptr, void vp)
	Only called by placement new when throwing an exception.

void	operator delete[] (void *ptr)
	Operator delete [].

void	operator delete[] (void ptr, void vp)
	Only called by placement new[] when throwing an exception.

void *	operator new (size_t sz)

void *	operator new (size_t sz, void *vp)

void *	operator new[] (size_t sz)

void *	operator new[] (size_t sz, void *vp)

TObject &	operator= (const TObject &rhs)
	TObject assignment operator.

virtual void	Pop ()
	Pop on object drawn in a pad to the top of the display list.

virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.

virtual void	RecursiveRemove (TObject *obj)
	Recursively remove this object from a list.

void	ResetBit (UInt_t f)

virtual void	SaveAs (const char filename="", Option_t option="") const
	Save this object in the file specified by filename.

virtual void	SavePrimitive (std::ostream &out, Option_t *option="")
	Save a primitive as a C++ statement(s) on output stream "out".

void	SetBit (UInt_t f)

void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.

virtual void	SetDrawOption (Option_t *option="")
	Set drawing option for object.

virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

virtual void	SysError (const char method, const char msgfmt,...) const
	Issue system error message.

R__ALWAYS_INLINE Bool_t	TestBit (UInt_t f) const

Int_t	TestBits (UInt_t f) const

virtual void	UseCurrentStyle ()
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

virtual void	Warning (const char method, const char msgfmt,...) const
	Issue warning message.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.

virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.

Public Member Functions inherited from TAttText
	TAttText ()
	AttText default constructor.

	TAttText (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize)
	AttText normal constructor.

virtual	~TAttText ()
	AttText destructor.

void	Copy (TAttText &atttext) const
	Copy this text attributes to a new TAttText.

virtual Short_t	GetTextAlign () const
	Return the text alignment.

virtual Float_t	GetTextAngle () const
	Return the text angle.

virtual Color_t	GetTextColor () const
	Return the text color.

virtual Font_t	GetTextFont () const
	Return the text font.

virtual Float_t	GetTextSize () const
	Return the text size.

virtual Float_t	GetTextSizePercent (Float_t size)
	Return the text in percent of the pad size.

virtual void	Modify ()
	Change current text attributes if necessary.

virtual void	ResetAttText (Option_t *toption="")
	Reset this text attributes to default values.

virtual void	SaveTextAttributes (std::ostream &out, const char *name, Int_t alidef=12, Float_t angdef=0, Int_t coldef=1, Int_t fondef=61, Float_t sizdef=1)
	Save text attributes as C++ statement(s) on output stream out.

virtual void	SetTextAlign (Short_t align=11)
	Set the text alignment.

virtual void	SetTextAngle (Float_t tangle=0)
	Set the text angle.

virtual void	SetTextAttributes ()
	Invoke the DialogCanvas Text attributes.

virtual void	SetTextColor (Color_t tcolor=1)
	Set the text color.

virtual void	SetTextColorAlpha (Color_t tcolor, Float_t talpha)
	Set a transparent text color.

virtual void	SetTextFont (Font_t tfont=62)
	Set the text font.

virtual void	SetTextSize (Float_t tsize=1)
	Set the text size.

virtual void	SetTextSizePixels (Int_t npixels)
	Set the text size in pixel.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Public Member Functions inherited from TAttLine
	TAttLine ()
	AttLine default constructor.

	TAttLine (Color_t lcolor, Style_t lstyle, Width_t lwidth)
	AttLine normal constructor.

virtual	~TAttLine ()
	AttLine destructor.

void	Copy (TAttLine &attline) const
	Copy this line attributes to a new TAttLine.

Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
	Compute distance from point px,py to a line.

virtual Color_t	GetLineColor () const
	Return the line color.

virtual Style_t	GetLineStyle () const
	Return the line style.

virtual Width_t	GetLineWidth () const
	Return the line width.

virtual void	Modify ()
	Change current line attributes if necessary.

virtual void	ResetAttLine (Option_t *option="")
	Reset this line attributes to default values.

virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
	Save line attributes as C++ statement(s) on output stream out.

virtual void	SetLineAttributes ()
	Invoke the DialogCanvas Line attributes.

virtual void	SetLineColor (Color_t lcolor)
	Set the line color.

virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
	Set a transparent line color.

virtual void	SetLineStyle (Style_t lstyle)
	Set the line style.

virtual void	SetLineWidth (Width_t lwidth)
	Set the line width.

void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)

Static Public Member Functions
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TNamed
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TObject
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

static Longptr_t	GetDtorOnly ()
	Return destructor only flag.

static Bool_t	GetObjectStat ()
	Get status of object stat flag.

static void	SetDtorOnly (void *obj)
	Set destructor only flag.

static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Static Public Member Functions inherited from TAttText
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Static Public Member Functions inherited from TAttLine
static TClass *	Class ()

static const char *	Class_Name ()

static constexpr Version_t	Class_Version ()

static const char *	DeclFileName ()

Private Member Functions
Int_t	FindAlign (Double_t angle)
	Find the alignement rule to apply for TText::SetTextAlign(Short_t).

Double_t	FindTextAngle (Double_t theta)
	Determine the orientation of the polar labels according to their angle.

void	Init ()
	Initialize some of the fields of TGraphPolargram.

void	Paint (Option_t *options="") override
	Paint TGraphPolargram.

void	PaintPolarDivisions (Bool_t noLabels)
	Draw Polar divisions.

void	PaintRadialDivisions (Bool_t drawaxis)
	Paint radial divisions.

void	ReduceFraction (Int_t Num, Int_t Denom, Int_t &rnum, Int_t &rden)
	Reduce fractions.

Private Attributes
Double_t	fAxisAngle
	Set angle of the radial axis.

Int_t	fCutRadial
	if fCutRadial = 0, circles are cut by radial axis if fCutRadial = 1, circles are not cut

Bool_t	fDegree

Bool_t	fGrad

Int_t	fNdivPol
	Number of polar divisions.

Int_t	fNdivRad
	Number of radial divisions.

Color_t	fPolarLabelColor
	Set color of the angular labels.

Font_t	fPolarLabelFont
	Set font of angular labels.

TString *	fPolarLabels
	! [fNdivPol] Specified polar labels

Double_t	fPolarOffset
	Offset for Polar labels.

Double_t	fPolarTextSize
	Set Polar text size.

Color_t	fRadialLabelColor
	Set color of the radial labels.

Font_t	fRadialLabelFont
	Set font of radial labels.

Double_t	fRadialOffset
	Offset for radial labels.

Double_t	fRadialTextSize

Bool_t	fRadian

Double_t	fRwrmax
	Maximal radial value (real world)

Double_t	fRwrmin
	Minimal radial value (real world)

Double_t	fRwtmax
	Minimal angular value (real world)

Double_t	fRwtmin
	Minimal angular value (real world)

Double_t	fTickpolarSize
	Set size of Tickmarks.

Additional Inherited Members
Protected Types inherited from TObject
enum	{ kOnlyPrepStep = (1ULL << ( 3 )) }

Protected Member Functions inherited from TObject
virtual void	DoError (int level, const char location, const char fmt, va_list va) const
	Interface to ErrorHandler (protected).

void	MakeZombie ()

Protected Attributes inherited from TNamed
TString	fName

TString	fTitle

Protected Attributes inherited from TAttText
Short_t	fTextAlign
	Text alignment.

Float_t	fTextAngle
	Text angle.

Color_t	fTextColor
	Text color.

Font_t	fTextFont
	Text font.

Float_t	fTextSize
	Text size.

Protected Attributes inherited from TAttLine
Color_t	fLineColor
	Line color.

Style_t	fLineStyle
	Line style.

Width_t	fLineWidth
	Line width.

#include <TGraphPolargram.h>

Inheritance diagram for TGraphPolargram:

[legend]

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
kLabelOrtho

Definition at line 61 of file TGraphPolargram.h.

Constructor & Destructor Documentation

◆ TGraphPolargram() [1/2]

TGraphPolargram::TGraphPolargram	(	const char *	name,
		Double_t	rmin,
		Double_t	rmax,
		Double_t	tmin,
		Double_t	tmax )

TGraphPolargram Constructor.

Definition at line 57 of file TGraphPolargram.cxx.

◆ TGraphPolargram() [2/2]

TGraphPolargram::TGraphPolargram ( const char * name = "" )

Short constructor used in the case of a spider plot.

Definition at line 74 of file TGraphPolargram.cxx.

◆ ~TGraphPolargram()

TGraphPolargram::~TGraphPolargram ( )

override

TGraphPolargram destructor.

Definition at line 90 of file TGraphPolargram.cxx.

Member Function Documentation

◆ ChangeRangePolar()

void TGraphPolargram::ChangeRangePolar	(	Double_t	tmin,
		Double_t	tmax )

Set the Polar range.

Parameters

[in]	tmin	the start number.
[in]	tmax	the end number.

Definition at line 100 of file TGraphPolargram.cxx.

◆ Class()

static TClass * TGraphPolargram::Class ( )

static

Returns: TClass describing this class

◆ Class_Name()

static const char * TGraphPolargram::Class_Name ( )

static

Returns: Name of this class

◆ Class_Version()

static constexpr Version_t TGraphPolargram::Class_Version ( )

inlinestaticconstexpr

Returns: Version of this class

Definition at line 119 of file TGraphPolargram.h.

◆ DeclFileName()

static const char * TGraphPolargram::DeclFileName ( )

inlinestatic

Returns: Name of the file containing the class declaration

Definition at line 119 of file TGraphPolargram.h.

◆ DistancetoPrimitive()

Int_t TGraphPolargram::DistancetoPrimitive	(	Int_t	px,
		Int_t	py )

overridevirtual

Everything within the circle belongs to the TGraphPolargram.

Reimplemented from TObject.

Definition at line 112 of file TGraphPolargram.cxx.

◆ Draw()

void TGraphPolargram::Draw ( Option_t * options = "" )

overridevirtual

Draw Polargram.

Reimplemented from TObject.

Definition at line 182 of file TGraphPolargram.cxx.

◆ ExecuteEvent()

void TGraphPolargram::ExecuteEvent	(	Int_t	event,
		Int_t	px,
		Int_t	py )

overridevirtual

Indicate that there is something to click here.

Reimplemented from TObject.

Definition at line 191 of file TGraphPolargram.cxx.

◆ FindAlign()

Int_t TGraphPolargram::FindAlign ( Double_t angle )

private

Find the alignement rule to apply for TText::SetTextAlign(Short_t).

Definition at line 277 of file TGraphPolargram.cxx.

◆ FindTextAngle()

Double_t TGraphPolargram::FindTextAngle ( Double_t theta )

private

Determine the orientation of the polar labels according to their angle.

Definition at line 307 of file TGraphPolargram.cxx.

◆ GetAngle()

Double_t TGraphPolargram::GetAngle ( )

inline

Definition at line 72 of file TGraphPolargram.h.

◆ GetNdivPolar()

Int_t TGraphPolargram::GetNdivPolar ( )

inline

Definition at line 87 of file TGraphPolargram.h.

◆ GetNdivRadial()

Int_t TGraphPolargram::GetNdivRadial ( )

inline

Definition at line 88 of file TGraphPolargram.h.

◆ GetPolarColorLabel()

Color_t TGraphPolargram::GetPolarColorLabel ( )

inline

Definition at line 69 of file TGraphPolargram.h.

◆ GetPolarLabelFont()

Font_t TGraphPolargram::GetPolarLabelFont ( )

inline

Definition at line 83 of file TGraphPolargram.h.

◆ GetPolarLabelSize()

Double_t TGraphPolargram::GetPolarLabelSize ( )

inline

Definition at line 73 of file TGraphPolargram.h.

◆ GetPolarOffset()

Double_t TGraphPolargram::GetPolarOffset ( )

inline

Definition at line 74 of file TGraphPolargram.h.

◆ GetRadialColorLabel()

Color_t TGraphPolargram::GetRadialColorLabel ( )

inline

Definition at line 70 of file TGraphPolargram.h.

◆ GetRadialLabelFont()

Font_t TGraphPolargram::GetRadialLabelFont ( )

inline

Definition at line 84 of file TGraphPolargram.h.

◆ GetRadialLabelSize()

Double_t TGraphPolargram::GetRadialLabelSize ( )

inline

Definition at line 75 of file TGraphPolargram.h.

◆ GetRadialOffset()

Double_t TGraphPolargram::GetRadialOffset ( )

inline

Definition at line 76 of file TGraphPolargram.h.

◆ GetRMax()

Double_t TGraphPolargram::GetRMax ( )

inline

Definition at line 78 of file TGraphPolargram.h.

◆ GetRMin()

Double_t TGraphPolargram::GetRMin ( )

inline

Definition at line 77 of file TGraphPolargram.h.

◆ GetTickpolarSize()

Double_t TGraphPolargram::GetTickpolarSize ( )

inline

Definition at line 79 of file TGraphPolargram.h.

◆ GetTMax()

Double_t TGraphPolargram::GetTMax ( )

inline

Definition at line 81 of file TGraphPolargram.h.

◆ GetTMin()

Double_t TGraphPolargram::GetTMin ( )

inline

Definition at line 80 of file TGraphPolargram.h.

◆ Init()

void TGraphPolargram::Init ( )

private

Initialize some of the fields of TGraphPolargram.

Definition at line 327 of file TGraphPolargram.cxx.

◆ IsA()

TClass * TGraphPolargram::IsA ( ) const

inlineoverridevirtual

Returns: TClass describing current object

Reimplemented from TObject.

Definition at line 119 of file TGraphPolargram.h.

◆ IsDegree()

Bool_t TGraphPolargram::IsDegree ( )

inline

Definition at line 90 of file TGraphPolargram.h.

◆ IsGrad()

Bool_t TGraphPolargram::IsGrad ( )

inline

Definition at line 92 of file TGraphPolargram.h.

◆ IsRadian()

Bool_t TGraphPolargram::IsRadian ( )

inline

Definition at line 91 of file TGraphPolargram.h.

◆ Paint()

void TGraphPolargram::Paint ( Option_t * options = "" )

overrideprivatevirtual

Paint TGraphPolargram.

Reimplemented from TObject.

Definition at line 349 of file TGraphPolargram.cxx.

◆ PaintCircle()

void TGraphPolargram::PaintCircle	(	Double_t	x1,
		Double_t	y1,
		Double_t	r,
		Double_t	phimin,
		Double_t	phimax,
		Double_t	theta )

This is simplified from TEllipse::PaintEllipse.

Draw this ellipse with new coordinates.

Definition at line 373 of file TGraphPolargram.cxx.

◆ PaintPolarDivisions()

void TGraphPolargram::PaintPolarDivisions ( Bool_t optionLabels )

private

Draw Polar divisions.

Check for editable pad or create default.

Definition at line 408 of file TGraphPolargram.cxx.

◆ PaintRadialDivisions()

void TGraphPolargram::PaintRadialDivisions ( Bool_t drawaxis )

private

Paint radial divisions.

Check for editable pad or create default.

Definition at line 625 of file TGraphPolargram.cxx.

◆ ReduceFraction()

void TGraphPolargram::ReduceFraction	(	Int_t	Num,
		Int_t	Denom,
		Int_t &	rnum,
		Int_t &	rden )

private

Reduce fractions.

Definition at line 739 of file TGraphPolargram.cxx.

◆ SetAxisAngle()

void TGraphPolargram::SetAxisAngle ( Double_t angle = 0 )

Set axis angle.

Definition at line 765 of file TGraphPolargram.cxx.

◆ SetNdivPolar()

void TGraphPolargram::SetNdivPolar ( Int_t ndiv = 508 )

Set the number of Polar divisions: enter a number ij with 0<i<99 and 0<j<99.

i sets the major Polar divisions.
j sets the minor Polar divisions.

Definition at line 775 of file TGraphPolargram.cxx.

◆ SetNdivRadial()

void TGraphPolargram::SetNdivRadial ( Int_t ndiv = 508 )

Set the number of radial divisions: enter a number ij with 0<i<99 and 0<j<99.

i sets the major radial divisions.
j sets the minor radial divisions.

Definition at line 787 of file TGraphPolargram.cxx.

◆ SetPolarLabel()

void TGraphPolargram::SetPolarLabel	(	Int_t	div,
		const TString &	label )

Set some specified polar labels, used in the case of a spider plot.

Definition at line 796 of file TGraphPolargram.cxx.

◆ SetPolarLabelColor()

void TGraphPolargram::SetPolarLabelColor ( Color_t tcolorangular = 1 )

Set Polar labels color.

Definition at line 807 of file TGraphPolargram.cxx.

◆ SetPolarLabelFont()

void TGraphPolargram::SetPolarLabelFont ( Font_t tfontangular = 62 )

Definition at line 814 of file TGraphPolargram.cxx.

◆ SetPolarLabelSize()

void TGraphPolargram::SetPolarLabelSize ( Double_t angularsize = 0.04 )

Set angular labels size.

Definition at line 824 of file TGraphPolargram.cxx.

◆ SetPolarOffset()

void TGraphPolargram::SetPolarOffset ( Double_t PolarOffset = 0.04 )

Set the labels offset.

Definition at line 832 of file TGraphPolargram.cxx.

◆ SetRadialLabelColor()

void TGraphPolargram::SetRadialLabelColor ( Color_t tcolorradial = 1 )

Set radial labels color.

Definition at line 841 of file TGraphPolargram.cxx.

◆ SetRadialLabelFont()

void TGraphPolargram::SetRadialLabelFont ( Font_t tfontradial = 62 )

Set radial label font.

Definition at line 849 of file TGraphPolargram.cxx.

◆ SetRadialLabelSize()

void TGraphPolargram::SetRadialLabelSize ( Double_t radialsize = 0.035 )

Set radial labels size.

Definition at line 857 of file TGraphPolargram.cxx.

◆ SetRadialOffset()

void TGraphPolargram::SetRadialOffset ( Double_t RadialOffset = 0.025 )

Set the labels offset.

Definition at line 865 of file TGraphPolargram.cxx.

◆ SetRangePolar()

void TGraphPolargram::SetRangePolar	(	Double_t	tmin,
		Double_t	tmax )

Allows to change range Polar.

Parameters

[in]	tmin	the start number.
[in]	tmax	the end number.

Definition at line 876 of file TGraphPolargram.cxx.

◆ SetRangeRadial()

void TGraphPolargram::SetRangeRadial	(	Double_t	rmin,
		Double_t	rmax )

Set the radial range.

Parameters

[in]	rmin	radius at center of the circle.
[in]	rmax	radius at the intersection of the right X axis part and the circle.

Definition at line 894 of file TGraphPolargram.cxx.

◆ SetTickpolarSize()

void TGraphPolargram::SetTickpolarSize ( Double_t tickpolarsize = 0.02 )

Set polar ticks size.

Definition at line 906 of file TGraphPolargram.cxx.

◆ SetToDegree()

void TGraphPolargram::SetToDegree ( )

The Polar circle is labelled using degree.

Definition at line 914 of file TGraphPolargram.cxx.

◆ SetToGrad()

void TGraphPolargram::SetToGrad ( )

The Polar circle is labelled using gradian.

Definition at line 925 of file TGraphPolargram.cxx.

◆ SetToRadian()

void TGraphPolargram::SetToRadian ( )

The Polar circle is labelled using radian.

Definition at line 936 of file TGraphPolargram.cxx.

◆ SetTwoPi()

void TGraphPolargram::SetTwoPi ( )

Set range from 0 to 2*pi.

Definition at line 947 of file TGraphPolargram.cxx.

◆ Streamer()

void TGraphPolargram::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TObject.

Reimplemented from TObject.

◆ StreamerNVirtual()

void TGraphPolargram::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 119 of file TGraphPolargram.h.

Member Data Documentation

◆ fAxisAngle

Double_t TGraphPolargram::fAxisAngle

private

Set angle of the radial axis.

Definition at line 30 of file TGraphPolargram.h.

◆ fCutRadial

Int_t TGraphPolargram::fCutRadial

private

if fCutRadial = 0, circles are cut by radial axis if fCutRadial = 1, circles are not cut

Definition at line 44 of file TGraphPolargram.h.

◆ fDegree

Bool_t TGraphPolargram::fDegree

private

Definition at line 24 of file TGraphPolargram.h.

◆ fGrad

Bool_t TGraphPolargram::fGrad

private

Definition at line 25 of file TGraphPolargram.h.

◆ fNdivPol

Int_t TGraphPolargram::fNdivPol

private

Number of polar divisions.

Definition at line 47 of file TGraphPolargram.h.

◆ fNdivRad

Int_t TGraphPolargram::fNdivRad

private

Number of radial divisions.

Definition at line 46 of file TGraphPolargram.h.

◆ fPolarLabelColor

Color_t TGraphPolargram::fPolarLabelColor

private

Set color of the angular labels.

Definition at line 27 of file TGraphPolargram.h.

◆ fPolarLabelFont

Font_t TGraphPolargram::fPolarLabelFont

private

Set font of angular labels.

Definition at line 41 of file TGraphPolargram.h.

◆ fPolarLabels

TString* TGraphPolargram::fPolarLabels

private

! [fNdivPol] Specified polar labels

Definition at line 49 of file TGraphPolargram.h.

◆ fPolarOffset

Double_t TGraphPolargram::fPolarOffset

private

Offset for Polar labels.

Definition at line 31 of file TGraphPolargram.h.

◆ fPolarTextSize

Double_t TGraphPolargram::fPolarTextSize

private

Set Polar text size.

Definition at line 32 of file TGraphPolargram.h.

◆ fRadialLabelColor

Color_t TGraphPolargram::fRadialLabelColor

private

Set color of the radial labels.

Definition at line 28 of file TGraphPolargram.h.

◆ fRadialLabelFont

Font_t TGraphPolargram::fRadialLabelFont

private

Set font of radial labels.

Definition at line 42 of file TGraphPolargram.h.

◆ fRadialOffset

Double_t TGraphPolargram::fRadialOffset

private

Offset for radial labels.

Definition at line 33 of file TGraphPolargram.h.

◆ fRadialTextSize

Double_t TGraphPolargram::fRadialTextSize

private

Definition at line 34 of file TGraphPolargram.h.

◆ fRadian

Bool_t TGraphPolargram::fRadian

private

Definition at line 23 of file TGraphPolargram.h.

◆ fRwrmax

Double_t TGraphPolargram::fRwrmax

private

Maximal radial value (real world)

Definition at line 36 of file TGraphPolargram.h.

◆ fRwrmin

Double_t TGraphPolargram::fRwrmin

private

Minimal radial value (real world)

Definition at line 35 of file TGraphPolargram.h.

◆ fRwtmax

Double_t TGraphPolargram::fRwtmax

private

Minimal angular value (real world)

Definition at line 38 of file TGraphPolargram.h.

◆ fRwtmin

Double_t TGraphPolargram::fRwtmin

private

Minimal angular value (real world)

Definition at line 37 of file TGraphPolargram.h.

◆ fTickpolarSize

Double_t TGraphPolargram::fTickpolarSize

private

Set size of Tickmarks.

Definition at line 39 of file TGraphPolargram.h.

Libraries for TGraphPolargram:

[legend]

The documentation for this class was generated from the following files:

graf2d/graf/inc/TGraphPolargram.h
graf2d/graf/src/TGraphPolargram.cxx
