TMVA_CNN_Classification.py File Reference

Detailed Description

TMVA Classification Example Using a Convolutional Neural Network

This is an example of using a CNN in TMVA. We do classification using a toy image data set that is generated when running the example macro

Running with nthreads  = 4
DataSetInfo              : [dataset] : Added class "Signal"
                         : Add Tree sig_tree of type Signal with 1000 events
DataSetInfo              : [dataset] : Added class "Background"
                         : Add Tree bkg_tree of type Background with 1000 events
Factory                  : Booking method: ␛[1mBDT␛[0m
                         :
                         : Rebuilding Dataset dataset
                         : Building event vectors for type 2 Signal
                         : Dataset[dataset] :  create input formulas for tree sig_tree
                         : Using variable vars[0] from array expression vars of size 256
                         : Building event vectors for type 2 Background
                         : Dataset[dataset] :  create input formulas for tree bkg_tree
                         : Using variable vars[0] from array expression vars of size 256
DataSetFactory           : [dataset] : Number of events in input trees
                         :
                         :
                         : Number of training and testing events
                         : ---------------------------------------------------------------------------
                         : Signal     -- training events            : 800
                         : Signal     -- testing events             : 200
                         : Signal     -- training and testing events: 1000
                         : Background -- training events            : 800
                         : Background -- testing events             : 200
                         : Background -- training and testing events: 1000
                         :
Factory                  : Booking method: ␛[1mTMVA_DNN_CPU␛[0m
                         :
                         : Parsing option string:
                         : ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:Layout=DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,DENSE|1|LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.,MaxEpochs=10:Architecture=CPU"
                         : The following options are set:
                         : - By User:
                         :     <none>
                         : - Default:
                         :     Boost_num: "0" [Number of times the classifier will be boosted]
                         : Parsing option string:
                         : ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:Layout=DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,DENSE|1|LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.,MaxEpochs=10:Architecture=CPU"
                         : The following options are set:
                         : - By User:
                         :     V: "True" [Verbose output (short form of "VerbosityLevel" below - overrides the latter one)]
                         :     VarTransform: "None" [List of variable transformations performed before training, e.g., "D_Background,P_Signal,G,N_AllClasses" for: "Decorrelation, PCA-transformation, Gaussianisation, Normalisation, each for the given class of events ('AllClasses' denotes all events of all classes, if no class indication is given, 'All' is assumed)"]
                         :     H: "False" [Print method-specific help message]
                         :     Layout: "DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,DENSE|1|LINEAR" [Layout of the network.]
                         :     ErrorStrategy: "CROSSENTROPY" [Loss function: Mean squared error (regression) or cross entropy (binary classification).]
                         :     WeightInitialization: "XAVIER" [Weight initialization strategy]
                         :     Architecture: "CPU" [Which architecture to perform the training on.]
                         :     TrainingStrategy: "LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.,MaxEpochs=10" [Defines the training strategies.]
                         : - Default:
                         :     VerbosityLevel: "Default" [Verbosity level]
                         :     CreateMVAPdfs: "False" [Create PDFs for classifier outputs (signal and background)]
                         :     IgnoreNegWeightsInTraining: "False" [Events with negative weights are ignored in the training (but are included for testing and performance evaluation)]
                         :     InputLayout: "0|0|0" [The Layout of the input]
                         :     BatchLayout: "0|0|0" [The Layout of the batch]
                         :     RandomSeed: "0" [Random seed used for weight initialization and batch shuffling]
                         :     ValidationSize: "20%" [Part of the training data to use for validation. Specify as 0.2 or 20% to use a fifth of the data set as validation set. Specify as 100 to use exactly 100 events. (Default: 20%)]
                         : Will now use the CPU architecture with BLAS and IMT support !
Factory                  : Booking method: ␛[1mTMVA_CNN_CPU␛[0m
                         :
                         : Parsing option string:
                         : ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:InputLayout=1|16|16:Layout=CONV|10|3|3|1|1|1|1|RELU,BNORM,CONV|10|3|3|1|1|1|1|RELU,MAXPOOL|2|2|1|1,RESHAPE|FLAT,DENSE|100|RELU,DENSE|1|LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.0,MaxEpochs=10:Architecture=CPU"
                         : The following options are set:
                         : - By User:
                         :     <none>
                         : - Default:
                         :     Boost_num: "0" [Number of times the classifier will be boosted]
                         : Parsing option string:
                         : ... "!H:V:ErrorStrategy=CROSSENTROPY:VarTransform=None:WeightInitialization=XAVIER:InputLayout=1|16|16:Layout=CONV|10|3|3|1|1|1|1|RELU,BNORM,CONV|10|3|3|1|1|1|1|RELU,MAXPOOL|2|2|1|1,RESHAPE|FLAT,DENSE|100|RELU,DENSE|1|LINEAR:TrainingStrategy=LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.0,MaxEpochs=10:Architecture=CPU"
                         : The following options are set:
                         : - By User:
                         :     V: "True" [Verbose output (short form of "VerbosityLevel" below - overrides the latter one)]
                         :     VarTransform: "None" [List of variable transformations performed before training, e.g., "D_Background,P_Signal,G,N_AllClasses" for: "Decorrelation, PCA-transformation, Gaussianisation, Normalisation, each for the given class of events ('AllClasses' denotes all events of all classes, if no class indication is given, 'All' is assumed)"]
                         :     H: "False" [Print method-specific help message]
                         :     InputLayout: "1|16|16" [The Layout of the input]
                         :     Layout: "CONV|10|3|3|1|1|1|1|RELU,BNORM,CONV|10|3|3|1|1|1|1|RELU,MAXPOOL|2|2|1|1,RESHAPE|FLAT,DENSE|100|RELU,DENSE|1|LINEAR" [Layout of the network.]
                         :     ErrorStrategy: "CROSSENTROPY" [Loss function: Mean squared error (regression) or cross entropy (binary classification).]
                         :     WeightInitialization: "XAVIER" [Weight initialization strategy]
                         :     Architecture: "CPU" [Which architecture to perform the training on.]
                         :     TrainingStrategy: "LearningRate=1e-3,Momentum=0.9,Repetitions=1,ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,WeightDecay=1e-4,Regularization=None,Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.0,MaxEpochs=10" [Defines the training strategies.]
                         : - Default:
                         :     VerbosityLevel: "Default" [Verbosity level]
                         :     CreateMVAPdfs: "False" [Create PDFs for classifier outputs (signal and background)]
                         :     IgnoreNegWeightsInTraining: "False" [Events with negative weights are ignored in the training (but are included for testing and performance evaluation)]
                         :     BatchLayout: "0|0|0" [The Layout of the batch]
                         :     RandomSeed: "0" [Random seed used for weight initialization and batch shuffling]
                         :     ValidationSize: "20%" [Part of the training data to use for validation. Specify as 0.2 or 20% to use a fifth of the data set as validation set. Specify as 100 to use exactly 100 events. (Default: 20%)]
                         : Will now use the CPU architecture with BLAS and IMT support !
Factory                  : ␛[1mTrain all methods␛[0m
Factory                  : Train method: BDT for Classification
                         :
BDT                      : #events: (reweighted) sig: 800 bkg: 800
                         : #events: (unweighted) sig: 800 bkg: 800
                         : Training 400 Decision Trees ... patience please
                         : Elapsed time for training with 1600 events: 1.27 sec
BDT                      : [dataset] : Evaluation of BDT on training sample (1600 events)
BDT                      : [dataset] : Evaluation of BDT on training sample (1600 events)
                         : Elapsed time for evaluation of 1600 events: 0.0142 sec
                         : Elapsed time for evaluation of 1600 events: 0.0144 sec
                         : Creating xml weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_BDT.weights.xml␛[0m
                         : Creating standalone class: ␛[0;36mdataset/weights/TMVA_CNN_Classification_BDT.class.C␛[0m
                         : TMVA_CNN_ClassificationOutput.root:/dataset/Method_BDT/BDT
Factory                  : Training finished
                         :
Factory                  : Train method: TMVA_DNN_CPU for Classification
                         :
                         : Start of deep neural network training on CPU using MT,  nthreads = 4
                         :
                         : *****   Deep Learning Network *****
DEEP NEURAL NETWORK:   Depth = 8  Input = ( 1, 1, 256 )  Batch size = 100  Loss function = C
   Layer 0   DENSE Layer:   ( Input =   256 , Width =   100 )  Output = (  1 ,   100 ,   100 )   Activation Function = Relu
   Layer 1   BATCH NORM Layer:    Input/Output = ( 100 , 100 , 1 )    Norm dim =   100  axis = -1

   Layer 2   DENSE Layer:   ( Input =   100 , Width =   100 )  Output = (  1 ,   100 ,   100 )   Activation Function = Relu
   Layer 3   BATCH NORM Layer:    Input/Output = ( 100 , 100 , 1 )    Norm dim =   100  axis = -1

   Layer 4   DENSE Layer:   ( Input =   100 , Width =   100 )  Output = (  1 ,   100 ,   100 )   Activation Function = Relu
   Layer 5   BATCH NORM Layer:    Input/Output = ( 100 , 100 , 1 )    Norm dim =   100  axis = -1

   Layer 6   DENSE Layer:   ( Input =   100 , Width =   100 )  Output = (  1 ,   100 ,   100 )   Activation Function = Relu
   Layer 7   DENSE Layer:   ( Input =   100 , Width =     1 )  Output = (  1 ,   100 ,     1 )   Activation Function = Identity
                         : Using 1280 events for training and 320 for testing
                         : Compute initial loss  on the validation data
                         : Training phase 1 of 1:  Optimizer ADAM (beta1=0.9,beta2=0.999,eps=1e-07) Learning rate = 0.001 regularization 0 minimum error = 124.779
                         : --------------------------------------------------------------
                         :      Epoch |   Train Err.   Val. Err.  t(s)/epoch   t(s)/Loss   nEvents/s Conv. Steps
                         : --------------------------------------------------------------
                         :    Start epoch iteration ...
                         :          1 Minimum Test error found - save the configuration
                         :          1 |      1.18705     1.01073    0.103689   0.0103483     12856.1           0
                         :          2 Minimum Test error found - save the configuration
                         :          2 |     0.706924    0.810344    0.103585   0.0101335     12840.9           0
                         :          3 Minimum Test error found - save the configuration
                         :          3 |     0.590502    0.800422    0.103301   0.0100455     12867.8           0
                         :          4 Minimum Test error found - save the configuration
                         :          4 |     0.534101     0.76303    0.103522   0.0101336     12849.6           0
                         :          5 Minimum Test error found - save the configuration
                         :          5 |     0.457714    0.720338    0.103139   0.0100488     12890.7           0
                         :          6 Minimum Test error found - save the configuration
                         :          6 |     0.393957    0.701055    0.103215   0.0101217     12890.3           0
                         :          7 Minimum Test error found - save the configuration
                         :          7 |     0.358384    0.674956    0.103185   0.0100955     12890.9           0
                         :          8 |     0.315659    0.764322    0.103127  0.00974072     12849.9           1
                         :          9 |     0.282583    0.697096    0.103195   0.0097795     12845.9           2
                         :         10 |     0.242841    0.676073    0.103161  0.00972283     12842.8           3
                         :
                         : Elapsed time for training with 1600 events: 1.05 sec
TMVA_DNN_CPU             : [dataset] : Evaluation of TMVA_DNN_CPU on training sample (1600 events)
                         : Evaluate deep neural network on CPU using batches with size = 100
                         :
TMVA_DNN_CPU             : [dataset] : Evaluation of TMVA_DNN_CPU on training sample (1600 events)
                         : Elapsed time for evaluation of 1600 events: 0.0511 sec
                         : Elapsed time for evaluation of 1600 events: 0.0531 sec
                         : Creating xml weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_DNN_CPU.weights.xml␛[0m
                         : Creating standalone class: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_DNN_CPU.class.C␛[0m
Factory                  : Training finished
                         :
Factory                  : Train method: TMVA_CNN_CPU for Classification
                         :
                         : Start of deep neural network training on CPU using MT,  nthreads = 4
                         :
                         : *****   Deep Learning Network *****
DEEP NEURAL NETWORK:   Depth = 7  Input = ( 1, 16, 16 )  Batch size = 100  Loss function = C
   Layer 0   CONV LAYER:   ( W = 16 ,  H = 16 ,  D = 10 )    Filter ( W = 3 ,  H = 3 )    Output = ( 100 , 10 , 10 , 256 )     Activation Function = Relu
   Layer 1   BATCH NORM Layer:    Input/Output = ( 10 , 256 , 100 )   Norm dim =    10  axis = 1

   Layer 2   CONV LAYER:   ( W = 16 ,  H = 16 ,  D = 10 )    Filter ( W = 3 ,  H = 3 )    Output = ( 100 , 10 , 10 , 256 )     Activation Function = Relu
   Layer 3   POOL Layer:   ( W = 15 ,  H = 15 ,  D = 10 )    Filter ( W = 2 ,  H = 2 )    Output = ( 100 , 10 , 10 , 225 )
   Layer 4   RESHAPE Layer     Input = ( 10 , 15 , 15 )  Output = ( 1 , 100 , 2250 )
   Layer 5   DENSE Layer:   ( Input =  2250 , Width =   100 )  Output = (  1 ,   100 ,   100 )   Activation Function = Relu
   Layer 6   DENSE Layer:   ( Input =   100 , Width =     1 )  Output = (  1 ,   100 ,     1 )   Activation Function = Identity
                         : Using 1280 events for training and 320 for testing
                         : Compute initial loss  on the validation data
                         : Training phase 1 of 1:  Optimizer ADAM (beta1=0.9,beta2=0.999,eps=1e-07) Learning rate = 0.001 regularization 0 minimum error = 135.372
                         : --------------------------------------------------------------
                         :      Epoch |   Train Err.   Val. Err.  t(s)/epoch   t(s)/Loss   nEvents/s Conv. Steps
                         : --------------------------------------------------------------
                         :    Start epoch iteration ...
                         :          1 Minimum Test error found - save the configuration
                         :          1 |      3.24427     1.73879    0.818225   0.0687682     1601.16           0
                         :          2 Minimum Test error found - save the configuration
                         :          2 |      1.06894    0.770265    0.808926   0.0672168     1617.88           0
                         :          3 Minimum Test error found - save the configuration
                         :          3 |     0.755639    0.705329    0.786114   0.0654704     1665.18           0
                         :          4 Minimum Test error found - save the configuration
                         :          4 |     0.694507    0.673153    0.784722   0.0655595     1668.61           0
                         :          5 Minimum Test error found - save the configuration
                         :          5 |     0.674366    0.667803    0.783669   0.0651838     1670.18           0
                         :          6 Minimum Test error found - save the configuration
                         :          6 |     0.664557    0.664299    0.778563    0.065268     1682.33           0
                         :          7 Minimum Test error found - save the configuration
                         :          7 |     0.657662    0.658737    0.802166   0.0677461     1633.94           0
                         :          8 Minimum Test error found - save the configuration
                         :          8 |     0.646735    0.653034    0.798099   0.0671361     1641.67           0
                         :          9 Minimum Test error found - save the configuration
                         :          9 |     0.629779      0.6453    0.795984   0.0659677      1643.8           0
                         :         10 Minimum Test error found - save the configuration
                         :         10 |     0.618745     0.64441    0.788476   0.0652251     1659.17           0
                         :
                         : Elapsed time for training with 1600 events: 8.02 sec
TMVA_CNN_CPU             : [dataset] : Evaluation of TMVA_CNN_CPU on training sample (1600 events)
                         : Evaluate deep neural network on CPU using batches with size = 100
                         :
TMVA_CNN_CPU             : [dataset] : Evaluation of TMVA_CNN_CPU on training sample (1600 events)
                         : Elapsed time for evaluation of 1600 events: 0.348 sec
                         : Elapsed time for evaluation of 1600 events: 0.356 sec
                         : Creating xml weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_CNN_CPU.weights.xml␛[0m
                         : Creating standalone class: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_CNN_CPU.class.C␛[0m
Factory                  : Training finished
                         :
                         : Ranking input variables (method specific)...
BDT                      : Ranking result (top variable is best ranked)
                         : --------------------------------------
                         : Rank : Variable  : Variable Importance
                         : --------------------------------------
                         :    1 : vars      : 9.685e-03
                         :    2 : vars      : 8.640e-03
                         :    3 : vars      : 8.349e-03
                         :    4 : vars      : 7.839e-03
                         :    5 : vars      : 7.737e-03
                         :    6 : vars      : 7.547e-03
                         :    7 : vars      : 7.513e-03
                         :    8 : vars      : 7.468e-03
                         :    9 : vars      : 7.409e-03
                         :   10 : vars      : 7.238e-03
                         :   11 : vars      : 6.788e-03
                         :   12 : vars      : 6.651e-03
                         :   13 : vars      : 6.614e-03
                         :   14 : vars      : 6.444e-03
                         :   15 : vars      : 6.430e-03
                         :   16 : vars      : 6.361e-03
                         :   17 : vars      : 6.344e-03
                         :   18 : vars      : 6.248e-03
                         :   19 : vars      : 6.220e-03
                         :   20 : vars      : 6.204e-03
                         :   21 : vars      : 6.198e-03
                         :   22 : vars      : 6.194e-03
                         :   23 : vars      : 6.189e-03
                         :   24 : vars      : 6.174e-03
                         :   25 : vars      : 6.076e-03
                         :   26 : vars      : 6.068e-03
                         :   27 : vars      : 6.053e-03
                         :   28 : vars      : 6.009e-03
                         :   29 : vars      : 5.956e-03
                         :   30 : vars      : 5.915e-03
                         :   31 : vars      : 5.896e-03
                         :   32 : vars      : 5.890e-03
                         :   33 : vars      : 5.879e-03
                         :   34 : vars      : 5.879e-03
                         :   35 : vars      : 5.862e-03
                         :   36 : vars      : 5.853e-03
                         :   37 : vars      : 5.804e-03
                         :   38 : vars      : 5.801e-03
                         :   39 : vars      : 5.795e-03
                         :   40 : vars      : 5.786e-03
                         :   41 : vars      : 5.772e-03
                         :   42 : vars      : 5.770e-03
                         :   43 : vars      : 5.694e-03
                         :   44 : vars      : 5.678e-03
                         :   45 : vars      : 5.673e-03
                         :   46 : vars      : 5.660e-03
                         :   47 : vars      : 5.616e-03
                         :   48 : vars      : 5.566e-03
                         :   49 : vars      : 5.566e-03
                         :   50 : vars      : 5.557e-03
                         :   51 : vars      : 5.531e-03
                         :   52 : vars      : 5.528e-03
                         :   53 : vars      : 5.516e-03
                         :   54 : vars      : 5.510e-03
                         :   55 : vars      : 5.484e-03
                         :   56 : vars      : 5.444e-03
                         :   57 : vars      : 5.422e-03
                         :   58 : vars      : 5.414e-03
                         :   59 : vars      : 5.412e-03
                         :   60 : vars      : 5.411e-03
                         :   61 : vars      : 5.393e-03
                         :   62 : vars      : 5.357e-03
                         :   63 : vars      : 5.317e-03
                         :   64 : vars      : 5.305e-03
                         :   65 : vars      : 5.266e-03
                         :   66 : vars      : 5.235e-03
                         :   67 : vars      : 5.234e-03
                         :   68 : vars      : 5.234e-03
                         :   69 : vars      : 5.218e-03
                         :   70 : vars      : 5.199e-03
                         :   71 : vars      : 5.193e-03
                         :   72 : vars      : 5.149e-03
                         :   73 : vars      : 5.136e-03
                         :   74 : vars      : 5.093e-03
                         :   75 : vars      : 5.081e-03
                         :   76 : vars      : 5.072e-03
                         :   77 : vars      : 5.046e-03
                         :   78 : vars      : 4.976e-03
                         :   79 : vars      : 4.973e-03
                         :   80 : vars      : 4.966e-03
                         :   81 : vars      : 4.927e-03
                         :   82 : vars      : 4.868e-03
                         :   83 : vars      : 4.833e-03
                         :   84 : vars      : 4.804e-03
                         :   85 : vars      : 4.762e-03
                         :   86 : vars      : 4.759e-03
                         :   87 : vars      : 4.757e-03
                         :   88 : vars      : 4.703e-03
                         :   89 : vars      : 4.645e-03
                         :   90 : vars      : 4.632e-03
                         :   91 : vars      : 4.630e-03
                         :   92 : vars      : 4.616e-03
                         :   93 : vars      : 4.614e-03
                         :   94 : vars      : 4.608e-03
                         :   95 : vars      : 4.600e-03
                         :   96 : vars      : 4.547e-03
                         :   97 : vars      : 4.489e-03
                         :   98 : vars      : 4.472e-03
                         :   99 : vars      : 4.472e-03
                         :  100 : vars      : 4.472e-03
                         :  101 : vars      : 4.467e-03
                         :  102 : vars      : 4.463e-03
                         :  103 : vars      : 4.443e-03
                         :  104 : vars      : 4.433e-03
                         :  105 : vars      : 4.429e-03
                         :  106 : vars      : 4.429e-03
                         :  107 : vars      : 4.380e-03
                         :  108 : vars      : 4.333e-03
                         :  109 : vars      : 4.322e-03
                         :  110 : vars      : 4.319e-03
                         :  111 : vars      : 4.295e-03
                         :  112 : vars      : 4.290e-03
                         :  113 : vars      : 4.279e-03
                         :  114 : vars      : 4.251e-03
                         :  115 : vars      : 4.206e-03
                         :  116 : vars      : 4.150e-03
                         :  117 : vars      : 4.131e-03
                         :  118 : vars      : 4.118e-03
                         :  119 : vars      : 4.057e-03
                         :  120 : vars      : 4.040e-03
                         :  121 : vars      : 4.021e-03
                         :  122 : vars      : 4.007e-03
                         :  123 : vars      : 4.002e-03
                         :  124 : vars      : 3.993e-03
                         :  125 : vars      : 3.992e-03
                         :  126 : vars      : 3.969e-03
                         :  127 : vars      : 3.959e-03
                         :  128 : vars      : 3.955e-03
                         :  129 : vars      : 3.938e-03
                         :  130 : vars      : 3.933e-03
                         :  131 : vars      : 3.920e-03
                         :  132 : vars      : 3.893e-03
                         :  133 : vars      : 3.889e-03
                         :  134 : vars      : 3.884e-03
                         :  135 : vars      : 3.879e-03
                         :  136 : vars      : 3.867e-03
                         :  137 : vars      : 3.864e-03
                         :  138 : vars      : 3.842e-03
                         :  139 : vars      : 3.834e-03
                         :  140 : vars      : 3.821e-03
                         :  141 : vars      : 3.810e-03
                         :  142 : vars      : 3.748e-03
                         :  143 : vars      : 3.722e-03
                         :  144 : vars      : 3.719e-03
                         :  145 : vars      : 3.712e-03
                         :  146 : vars      : 3.707e-03
                         :  147 : vars      : 3.702e-03
                         :  148 : vars      : 3.701e-03
                         :  149 : vars      : 3.665e-03
                         :  150 : vars      : 3.644e-03
                         :  151 : vars      : 3.613e-03
                         :  152 : vars      : 3.531e-03
                         :  153 : vars      : 3.526e-03
                         :  154 : vars      : 3.507e-03
                         :  155 : vars      : 3.501e-03
                         :  156 : vars      : 3.493e-03
                         :  157 : vars      : 3.448e-03
                         :  158 : vars      : 3.440e-03
                         :  159 : vars      : 3.392e-03
                         :  160 : vars      : 3.389e-03
                         :  161 : vars      : 3.382e-03
                         :  162 : vars      : 3.379e-03
                         :  163 : vars      : 3.366e-03
                         :  164 : vars      : 3.348e-03
                         :  165 : vars      : 3.342e-03
                         :  166 : vars      : 3.324e-03
                         :  167 : vars      : 3.285e-03
                         :  168 : vars      : 3.283e-03
                         :  169 : vars      : 3.274e-03
                         :  170 : vars      : 3.244e-03
                         :  171 : vars      : 3.208e-03
                         :  172 : vars      : 3.201e-03
                         :  173 : vars      : 3.192e-03
                         :  174 : vars      : 3.154e-03
                         :  175 : vars      : 3.138e-03
                         :  176 : vars      : 3.121e-03
                         :  177 : vars      : 3.109e-03
                         :  178 : vars      : 3.106e-03
                         :  179 : vars      : 3.057e-03
                         :  180 : vars      : 3.045e-03
                         :  181 : vars      : 3.041e-03
                         :  182 : vars      : 3.012e-03
                         :  183 : vars      : 3.002e-03
                         :  184 : vars      : 2.989e-03
                         :  185 : vars      : 2.986e-03
                         :  186 : vars      : 2.976e-03
                         :  187 : vars      : 2.945e-03
                         :  188 : vars      : 2.911e-03
                         :  189 : vars      : 2.892e-03
                         :  190 : vars      : 2.890e-03
                         :  191 : vars      : 2.883e-03
                         :  192 : vars      : 2.865e-03
                         :  193 : vars      : 2.832e-03
                         :  194 : vars      : 2.799e-03
                         :  195 : vars      : 2.788e-03
                         :  196 : vars      : 2.734e-03
                         :  197 : vars      : 2.659e-03
                         :  198 : vars      : 2.645e-03
                         :  199 : vars      : 2.637e-03
                         :  200 : vars      : 2.550e-03
                         :  201 : vars      : 2.537e-03
                         :  202 : vars      : 2.529e-03
                         :  203 : vars      : 2.479e-03
                         :  204 : vars      : 2.478e-03
                         :  205 : vars      : 2.448e-03
                         :  206 : vars      : 2.428e-03
                         :  207 : vars      : 2.316e-03
                         :  208 : vars      : 2.282e-03
                         :  209 : vars      : 2.269e-03
                         :  210 : vars      : 2.252e-03
                         :  211 : vars      : 2.242e-03
                         :  212 : vars      : 2.212e-03
                         :  213 : vars      : 2.141e-03
                         :  214 : vars      : 2.129e-03
                         :  215 : vars      : 2.097e-03
                         :  216 : vars      : 2.074e-03
                         :  217 : vars      : 2.054e-03
                         :  218 : vars      : 2.036e-03
                         :  219 : vars      : 2.026e-03
                         :  220 : vars      : 2.000e-03
                         :  221 : vars      : 1.995e-03
                         :  222 : vars      : 1.942e-03
                         :  223 : vars      : 1.935e-03
                         :  224 : vars      : 1.923e-03
                         :  225 : vars      : 1.914e-03
                         :  226 : vars      : 1.840e-03
                         :  227 : vars      : 1.725e-03
                         :  228 : vars      : 1.722e-03
                         :  229 : vars      : 1.704e-03
                         :  230 : vars      : 1.697e-03
                         :  231 : vars      : 1.658e-03
                         :  232 : vars      : 1.475e-03
                         :  233 : vars      : 1.432e-03
                         :  234 : vars      : 1.305e-03
                         :  235 : vars      : 1.118e-03
                         :  236 : vars      : 8.379e-04
                         :  237 : vars      : 0.000e+00
                         :  238 : vars      : 0.000e+00
                         :  239 : vars      : 0.000e+00
                         :  240 : vars      : 0.000e+00
                         :  241 : vars      : 0.000e+00
                         :  242 : vars      : 0.000e+00
                         :  243 : vars      : 0.000e+00
                         :  244 : vars      : 0.000e+00
                         :  245 : vars      : 0.000e+00
                         :  246 : vars      : 0.000e+00
                         :  247 : vars      : 0.000e+00
                         :  248 : vars      : 0.000e+00
                         :  249 : vars      : 0.000e+00
                         :  250 : vars      : 0.000e+00
                         :  251 : vars      : 0.000e+00
                         :  252 : vars      : 0.000e+00
                         :  253 : vars      : 0.000e+00
                         :  254 : vars      : 0.000e+00
                         :  255 : vars      : 0.000e+00
                         :  256 : vars      : 0.000e+00
                         : --------------------------------------
                         : No variable ranking supplied by classifier: TMVA_DNN_CPU
                         : No variable ranking supplied by classifier: TMVA_CNN_CPU
TH1.Print Name  = TrainingHistory_TMVA_DNN_CPU_trainingError, Entries= 0, Total sum= 5.06972
TH1.Print Name  = TrainingHistory_TMVA_DNN_CPU_valError, Entries= 0, Total sum= 7.61837
TH1.Print Name  = TrainingHistory_TMVA_CNN_CPU_trainingError, Entries= 0, Total sum= 9.6552
TH1.Print Name  = TrainingHistory_TMVA_CNN_CPU_valError, Entries= 0, Total sum= 7.82112
Factory                  : === Destroy and recreate all methods via weight files for testing ===
                         :
                         : Reading weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_BDT.weights.xml␛[0m
                         : Reading weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_DNN_CPU.weights.xml␛[0m
                         : Reading weight file: ␛[0;36mdataset/weights/TMVA_CNN_Classification_TMVA_CNN_CPU.weights.xml␛[0m
Factory                  : ␛[1mTest all methods␛[0m
Factory                  : Test method: BDT for Classification performance
                         :
BDT                      : [dataset] : Evaluation of BDT on testing sample (400 events)
BDT                      : [dataset] : Evaluation of BDT on testing sample (400 events)
                         : Elapsed time for evaluation of 400 events: 0.004 sec
                         : Elapsed time for evaluation of 400 events: 0.00412 sec
Factory                  : Test method: TMVA_DNN_CPU for Classification performance
                         :
TMVA_DNN_CPU             : [dataset] : Evaluation of TMVA_DNN_CPU on testing sample (400 events)
                         : Evaluate deep neural network on CPU using batches with size = 400
                         :
TMVA_DNN_CPU             : [dataset] : Evaluation of TMVA_DNN_CPU on testing sample (400 events)
                         : Elapsed time for evaluation of 400 events: 0.0125 sec
                         : Elapsed time for evaluation of 400 events: 0.0146 sec
Factory                  : Test method: TMVA_CNN_CPU for Classification performance
                         :
TMVA_CNN_CPU             : [dataset] : Evaluation of TMVA_CNN_CPU on testing sample (400 events)
                         : Evaluate deep neural network on CPU using batches with size = 400
                         :
TMVA_CNN_CPU             : [dataset] : Evaluation of TMVA_CNN_CPU on testing sample (400 events)
                         : Elapsed time for evaluation of 400 events: 0.0882 sec
                         : Elapsed time for evaluation of 400 events: 0.0989 sec
Factory                  : ␛[1mEvaluate all methods␛[0m
Factory                  : Evaluate classifier: BDT
                         :
BDT                      : [dataset] : Loop over test events and fill histograms with classifier response...
                         :
                         : Dataset[dataset] :  variable plots are not produces ! The number of variables is 256 , it is larger than 200
Factory                  : Evaluate classifier: TMVA_DNN_CPU
                         :
TMVA_DNN_CPU             : [dataset] : Loop over test events and fill histograms with classifier response...
                         :
                         : Evaluate deep neural network on CPU using batches with size = 1000
                         :
                         : Dataset[dataset] :  variable plots are not produces ! The number of variables is 256 , it is larger than 200
Factory                  : Evaluate classifier: TMVA_CNN_CPU
                         :
TMVA_CNN_CPU             : [dataset] : Loop over test events and fill histograms with classifier response...
                         :
                         : Evaluate deep neural network on CPU using batches with size = 1000
                         :
                         : Dataset[dataset] :  variable plots are not produces ! The number of variables is 256 , it is larger than 200
                         :

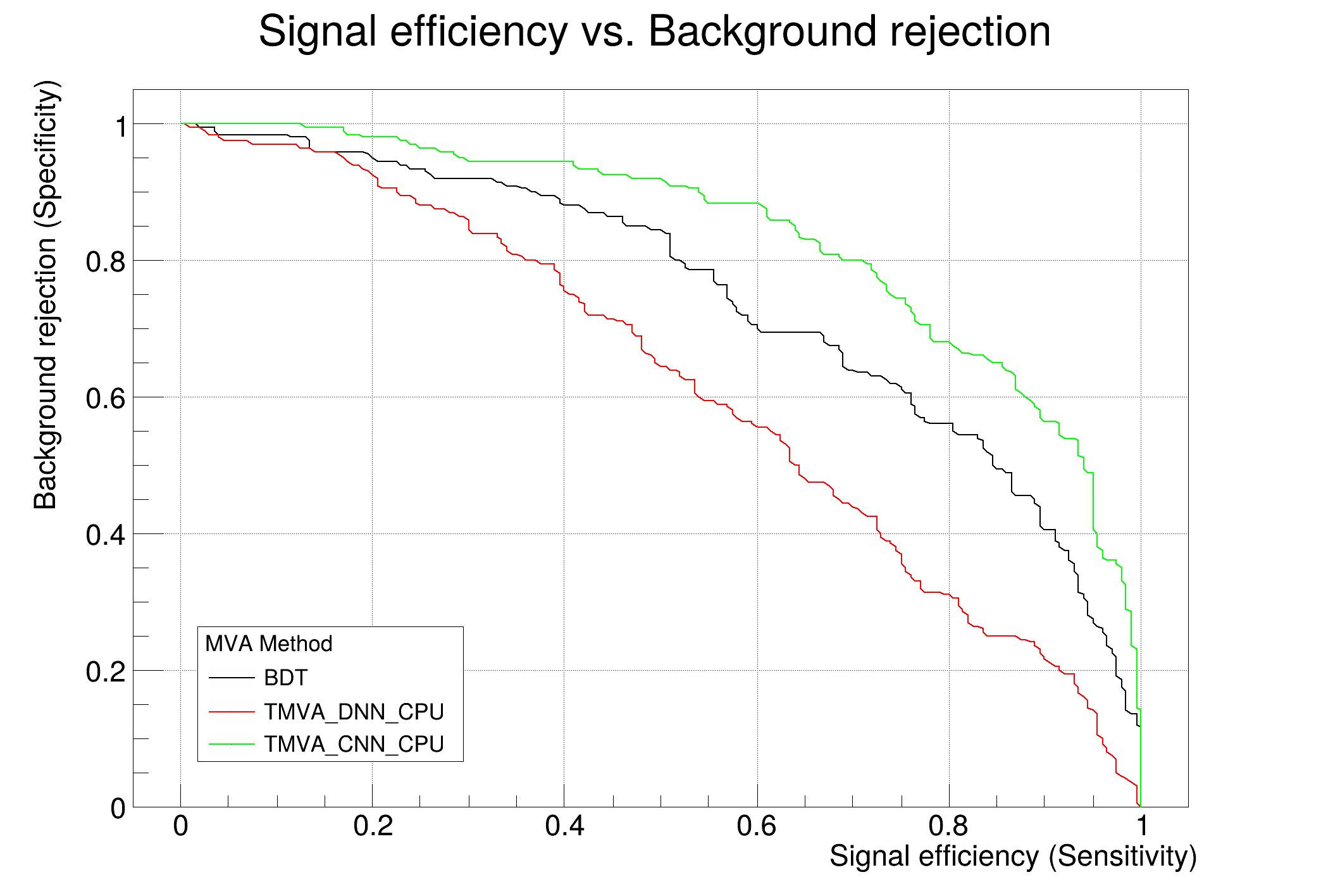

                         : Evaluation results ranked by best signal efficiency and purity (area)
                         : -------------------------------------------------------------------------------------------------------------------
                         : DataSet       MVA
                         : Name:         Method:          ROC-integ
                         : dataset       TMVA_CNN_CPU   : 0.737
                         : dataset       BDT            : 0.718
                         : dataset       TMVA_DNN_CPU   : 0.708
                         : -------------------------------------------------------------------------------------------------------------------
                         :
                         : Testing efficiency compared to training efficiency (overtraining check)
                         : -------------------------------------------------------------------------------------------------------------------
                         : DataSet              MVA              Signal efficiency: from test sample (from training sample)
                         : Name:                Method:          @B=0.01             @B=0.10            @B=0.30
                         : -------------------------------------------------------------------------------------------------------------------
                         : dataset              TMVA_CNN_CPU   : 0.135 (0.115)       0.390 (0.355)      0.646 (0.649)
                         : dataset              BDT            : 0.145 (0.338)       0.345 (0.705)      0.572 (0.866)
                         : dataset              TMVA_DNN_CPU   : 0.065 (0.205)       0.300 (0.548)      0.545 (0.798)
                         : -------------------------------------------------------------------------------------------------------------------
                         :
Dataset:dataset          : Created tree 'TestTree' with 400 events
                         :
Dataset:dataset          : Created tree 'TrainTree' with 1600 events
                         :
Factory                  : ␛[1mThank you for using TMVA!␛[0m
                         : ␛[1mFor citation information, please visit: http://tmva.sf.net/citeTMVA.html␛[0m



# TMVA Classification Example Using a Convolutional Neural Network


## Helper function to create input images data
## we create a signal and background 2D histograms from 2d gaussians
## with a location (means in X and Y)  different for each event
## The difference between signal and background is in the gaussian width.
## The width for the background gaussian is slightly larger than the signal width by few % values

import importlib.util
import os

import ROOT

opt = [1, 1, 1, 1, 1]
useTMVACNN = opt[0] if len(opt) > 0  else False
useKerasCNN = opt[1] if len(opt) > 1 else False
useTMVADNN = opt[2] if len(opt) > 2 else False
useTMVABDT = opt[3] if len(opt) > 3 else False
usePyTorchCNN = opt[4] if len(opt) > 4 else False

TMVA = ROOT.TMVA
TFile = ROOT.TFile

TMVA.Tools.Instance()

def MakeImagesTree(n, nh, nw):
    # image size (nh x nw)
    ntot = nh * nw
    fileOutName = "images_data_16x16.root"
    nRndmEvts = 10000  # number of events we use to fill each image
    delta_sigma = 0.1  # 5% difference in the sigma
    pixelNoise = 5

    sX1 = 3
    sY1 = 3
    sX2 = sX1 + delta_sigma
    sY2 = sY1 - delta_sigma
    h1 = ROOT.TH2D("h1", "h1", nh, 0, 10, nw, 0, 10)
    h2 = ROOT.TH2D("h2", "h2", nh, 0, 10, nw, 0, 10)
    f1 = ROOT.TF2("f1", "xygaus")
    f2 = ROOT.TF2("f2", "xygaus")
    sgn = ROOT.TTree("sig_tree", "signal_tree")
    bkg = ROOT.TTree("bkg_tree", "background_tree")

    f = TFile(fileOutName, "RECREATE")
    x1 = ROOT.std.vector["float"](ntot)
    x2 = ROOT.std.vector["float"](ntot)

    # create signal and background trees with a single branch
    # an std::vector<float> of size nh x nw containing the image data
    bkg.Branch("vars", "std::vector<float>", x1)
    sgn.Branch("vars", "std::vector<float>", x2)

    sgn.SetDirectory(f)
    bkg.SetDirectory(f)

    f1.SetParameters(1, 5, sX1, 5, sY1)
    f2.SetParameters(1, 5, sX2, 5, sY2)
    ROOT.gRandom.SetSeed(0)
    ROOT.Info("TMVA_CNN_Classification", "Filling ROOT tree \n")
    for i in range(n):
        if i % 1000 == 0:
            print("Generating image event ...", i)

        h1.Reset()
        h2.Reset()
        # generate random means in range [3,7] to be not too much on the border
        f1.SetParameter(1, ROOT.gRandom.Uniform(3, 7))
        f1.SetParameter(3, ROOT.gRandom.Uniform(3, 7))
        f2.SetParameter(1, ROOT.gRandom.Uniform(3, 7))
        f2.SetParameter(3, ROOT.gRandom.Uniform(3, 7))

        h1.FillRandom(f1, nRndmEvts)
        h2.FillRandom(f2, nRndmEvts)

        for k in range(nh):
            for l in range(nw):
                m = k * nw + l
                # add some noise in each bin
                x1[m] = h1.GetBinContent(k + 1, l + 1) + ROOT.gRandom.Gaus(0, pixelNoise)
                x2[m] = h2.GetBinContent(k + 1, l + 1) + ROOT.gRandom.Gaus(0, pixelNoise)

        sgn.Fill()
        bkg.Fill()

    sgn.Write()
    bkg.Write()

    print("Signal and background tree with images data written to the file %s", f.GetName())
    sgn.Print()
    bkg.Print()
    f.Close()

hasGPU = "tmva-gpu" in ROOT.gROOT.GetConfigFeatures()
hasCPU = "tmva-cpu" in ROOT.gROOT.GetConfigFeatures()

nevt = 1000    # use a larger value to get better results

if (not hasCPU and not hasGPU) :
    ROOT.Warning("TMVA_CNN_Classificaton","ROOT is not supporting tmva-cpu and tmva-gpu skip using TMVA-DNN and TMVA-CNN")
    useTMVACNN = False
    useTMVADNN = False

if "tmva-pymva" not in ROOT.gROOT.GetConfigFeatures():
    useKerasCNN = False
    usePyTorchCNN = False
else:
    TMVA.PyMethodBase.PyInitialize()

if not useTMVACNN:
    ROOT.Warning(
        "TMVA_CNN_Classificaton",
        "TMVA is not build with GPU or CPU multi-thread support. Cannot use TMVA Deep Learning for CNN",
    )

writeOutputFile = True

num_threads = 4  # use max 4 threads
max_epochs = 10  # maximum number of epochs used for training


# do enable MT running
if "imt" in ROOT.gROOT.GetConfigFeatures():
    ROOT.EnableImplicitMT(num_threads)
    ROOT.gSystem.Setenv("OMP_NUM_THREADS", "1")  # switch OFF MT in OpenBLAS
    print("Running with nthreads  = {}".format(ROOT.GetThreadPoolSize()))
else:
    print("Running in serial mode since ROOT does not support MT")




outputFile = None
if writeOutputFile:
    outputFile = TFile.Open("TMVA_CNN_ClassificationOutput.root", "RECREATE")


## Create TMVA Factory

# Create the Factory class. Later you can choose the methods
# whose performance you'd like to investigate.

# The factory is the major TMVA object you have to interact with. Here is the list of parameters you need to pass

# - The first argument is the base of the name of all the output
#   weight files in the directory weight/ that will be created with the
#    method parameters

# - The second argument is the output file for the training results

# - The third argument is a string option defining some general configuration for the TMVA session.
# For example all TMVA output can be suppressed by removing the "!" (not) in front of the "Silent" argument in the
# option string

# - note that we disable any pre-transformation of the input variables and we avoid computing correlations between
# input variables


factory = TMVA.Factory(
    "TMVA_CNN_Classification",
    outputFile,
    V=False,
    ROC=True,
    Silent=False,
    Color=True,
    AnalysisType="Classification",
    Transformations=None,
    Correlations=False,
)


## Declare DataLoader(s)

# The next step is to declare the DataLoader class that deals with input variables

# Define the input variables that shall be used for the MVA training
# note that you may also use variable expressions, which can be parsed by TTree::Draw( "expression" )]

# In this case the input data consists of an image of 16x16 pixels. Each single pixel is a branch in a ROOT TTree

loader = TMVA.DataLoader("dataset")


## Setup Dataset(s)

# Define input data file and signal and background trees


imgSize = 16 * 16
inputFileName = "images_data_16x16.root"

# if the input file does not exist create it
if ROOT.gSystem.AccessPathName(inputFileName):
    MakeImagesTree(nevt, 16, 16)

inputFile = TFile.Open(inputFileName)
if inputFile is None:
    ROOT.Warning("TMVA_CNN_Classification", "Error opening input file %s - exit", inputFileName.Data())


# inputFileName = "tmva_class_example.root"


# --- Register the training and test trees

signalTree = inputFile.Get("sig_tree")
backgroundTree = inputFile.Get("bkg_tree")

nEventsSig = signalTree.GetEntries()
nEventsBkg = backgroundTree.GetEntries()

# global event weights per tree (see below for setting event-wise weights)
signalWeight = 1.0
backgroundWeight = 1.0

# You can add an arbitrary number of signal or background trees
loader.AddSignalTree(signalTree, signalWeight)
loader.AddBackgroundTree(backgroundTree, backgroundWeight)

## add event variables (image)
## use new method (from ROOT 6.20 to add a variable array for all image data)
loader.AddVariablesArray("vars", imgSize)

# Set individual event weights (the variables must exist in the original TTree)
#    for signal    : factory->SetSignalWeightExpression    ("weight1*weight2");
#    for background: factory->SetBackgroundWeightExpression("weight1*weight2");
# loader->SetBackgroundWeightExpression( "weight" );

# Apply additional cuts on the signal and background samples (can be different)
mycuts = ""  # for example: TCut mycuts = "abs(var1)<0.5 && abs(var2-0.5)<1";
mycutb = ""  # for example: TCut mycutb = "abs(var1)<0.5";

# Tell the factory how to use the training and testing events
# If no numbers of events are given, half of the events in the tree are used
# for training, and the other half for testing:
#    loader.PrepareTrainingAndTestTree( mycut, "SplitMode=random:!V" );
# It is possible also to specify the number of training and testing events,
# note we disable the computation of the correlation matrix of the input variables

nTrainSig = 0.8 * nEventsSig
nTrainBkg = 0.8 * nEventsBkg

# build the string options for DataLoader::PrepareTrainingAndTestTree

loader.PrepareTrainingAndTestTree(
    mycuts,
    mycutb,
    nTrain_Signal=nTrainSig,
    nTrain_Background=nTrainBkg,
    SplitMode="Random",
    SplitSeed=100,
    NormMode="NumEvents",
    V=False,
    CalcCorrelations=False,
)


# DataSetInfo              : [dataset] : Added class "Signal"
#    : Add Tree sig_tree of type Signal with 10000 events
#    DataSetInfo              : [dataset] : Added class "Background"
#        : Add Tree bkg_tree of type Background with 10000 events

# signalTree.Print();

# Booking Methods

# Here we book the TMVA methods. We book a Boosted Decision Tree method (BDT)


# Boosted Decision Trees
if useTMVABDT:
    factory.BookMethod(
        loader,
        TMVA.Types.kBDT,
        "BDT",
        V=False,
        NTrees=400,
        MinNodeSize="2.5%",
        MaxDepth=2,
        BoostType="AdaBoost",
        AdaBoostBeta=0.5,
        UseBaggedBoost=True,
        BaggedSampleFraction=0.5,
        SeparationType="GiniIndex",
        nCuts=20,
    )


#### Booking Deep Neural Network

# Here we book the DNN of TMVA. See the example TMVA_Higgs_Classification.C for a detailed description of the
# options

if useTMVADNN:
    layoutString = ROOT.TString(
        "DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,BNORM,DENSE|100|RELU,DENSE|1|LINEAR"
    )

    # Training strategies
    # one can catenate several training strings with different parameters (e.g. learning rates or regularizations
    # parameters) The training string must be concatenated with the `|` delimiter
    trainingString1 = ROOT.TString(
        "LearningRate=1e-3,Momentum=0.9,Repetitions=1,"
        "ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,"
        "WeightDecay=1e-4,Regularization=None,"
        "Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0."
    )  # + "|" + trainingString2 + ...
    trainingString1 += ",MaxEpochs=" + str(max_epochs)

    # Build now the full DNN Option string
    dnnMethodName = "TMVA_DNN_CPU"

    # use GPU if available
    dnnOptions = "CPU"
    if hasGPU :
        dnnOptions = "GPU"
        dnnMethodName = "TMVA_DNN_GPU"

    factory.BookMethod(
        loader,
        TMVA.Types.kDL,
        dnnMethodName,
        H=False,
        V=True,
        ErrorStrategy="CROSSENTROPY",
        VarTransform=None,
        WeightInitialization="XAVIER",
        Layout=layoutString,
        TrainingStrategy=trainingString1,
        Architecture=dnnOptions
    )


### Book Convolutional Neural Network in TMVA

# For building a CNN one needs to define

# -  Input Layout :  number of channels (in this case = 1)  | image height | image width
# -  Batch Layout :  batch size | number of channels | image size = (height*width)

# Then one add Convolutional layers and MaxPool layers.

# -  For Convolutional layer the option string has to be:
# - CONV | number of units | filter height | filter width | stride height | stride width | padding height | paddig
# width | activation function

# - note in this case we are using a filer 3x3 and padding=1 and stride=1 so we get the output dimension of the
# conv layer equal to the input

# - note we use after the first convolutional layer a batch normalization layer. This seems to help significantly the
# convergence

# - For the MaxPool layer:
# - MAXPOOL  | pool height | pool width | stride height | stride width

# The RESHAPE layer is needed to flatten the output before the Dense layer

# Note that to run the CNN is required to have CPU  or GPU support


if useTMVACNN:
    # Training strategies.
    trainingString1 = ROOT.TString(
        "LearningRate=1e-3,Momentum=0.9,Repetitions=1,"
        "ConvergenceSteps=5,BatchSize=100,TestRepetitions=1,"
        "WeightDecay=1e-4,Regularization=None,"
        "Optimizer=ADAM,DropConfig=0.0+0.0+0.0+0.0"
    )
    trainingString1 += ",MaxEpochs=" + str(max_epochs)

    ## New DL (CNN)
    cnnMethodName = "TMVA_CNN_CPU"
    cnnOptions = "CPU"
    # use GPU if available
    if hasGPU:
        cnnOptions = "GPU"
        cnnMethodName = "TMVA_CNN_GPU"

    factory.BookMethod(
        loader,
        TMVA.Types.kDL,
        cnnMethodName,
        H=False,
        V=True,
        ErrorStrategy="CROSSENTROPY",
        VarTransform=None,
        WeightInitialization="XAVIER",
        InputLayout="1|16|16",
        Layout="CONV|10|3|3|1|1|1|1|RELU,BNORM,CONV|10|3|3|1|1|1|1|RELU,MAXPOOL|2|2|1|1,RESHAPE|FLAT,DENSE|100|RELU,DENSE|1|LINEAR",
        TrainingStrategy=trainingString1,
        Architecture=cnnOptions,
    )


### Book Convolutional Neural Network in Keras using a generated model


if usePyTorchCNN:
    ROOT.Info("TMVA_CNN_Classification", "Using Convolutional PyTorch Model")
    pyTorchFileName = str(ROOT.gROOT.GetTutorialDir())
    pyTorchFileName += "/machine_learning/PyTorch_Generate_CNN_Model.py"
    # check that pytorch can be imported and file defining the model exists
    torch_spec = importlib.util.find_spec("torch")
    if torch_spec is not None and os.path.exists(pyTorchFileName):
        #cmd = str(ROOT.TMVA.Python_Executable()) + "  " + pyTorchFileName
        #os.system(cmd)
        #import PyTorch_Generate_CNN_Model
        ROOT.Info("TMVA_CNN_Classification", "Booking PyTorch CNN model")
        factory.BookMethod(
            loader,
            TMVA.Types.kPyTorch,
            "PyTorch",
            H=True,
            V=False,
            VarTransform=None,
            FilenameModel="PyTorchModelCNN.pt",
            FilenameTrainedModel="PyTorchTrainedModelCNN.pt",
            NumEpochs=max_epochs,
            BatchSize=100,
            UserCode=str(pyTorchFileName)
        )
    else:
        ROOT.Warning(
            "TMVA_CNN_Classification",
            "PyTorch is not installed or model building file is not existing - skip using PyTorch",
        )

if useKerasCNN:
    ROOT.Info("TMVA_CNN_Classification", "Building convolutional keras model")
    # create python script which can be executed
    # create 2 conv2d layer + maxpool + dense
    # from keras.initializers import TruncatedNormal
    # from keras import initializations
    from tensorflow.keras.layers import Conv2D, Dense, Flatten, MaxPooling2D, Reshape
    from tensorflow.keras.models import Sequential
    from tensorflow.keras.optimizers import Adam

    # from keras.callbacks import ReduceLROnPlateau
    model = Sequential()
    model.add(Reshape((16, 16, 1), input_shape=(256,)))
    model.add(Conv2D(10, kernel_size=(3, 3), kernel_initializer="TruncatedNormal", activation="relu", padding="same"))
    model.add(Conv2D(10, kernel_size=(3, 3), kernel_initializer="TruncatedNormal", activation="relu", padding="same"))
    # stride for maxpool is equal to pool size
    model.add(MaxPooling2D(pool_size=(2, 2)))
    model.add(Flatten())
    model.add(Dense(64, activation="tanh"))
    # model.add(Dropout(0.2))
    model.add(Dense(2, activation="sigmoid"))
    model.compile(loss="binary_crossentropy", optimizer=Adam(learning_rate=0.001), weighted_metrics=["accuracy"])
    model.save("model_cnn.keras")
    model.summary()

    if not os.path.exists("model_cnn.keras"):
        raise FileNotFoundError("Error creating Keras model file - skip using Keras")
    else:
        # book PyKeras method only if Keras model could be created
        ROOT.Info("TMVA_CNN_Classification", "Booking convolutional keras model")
        factory.BookMethod(
            loader,
            TMVA.Types.kPyKeras,
            "PyKeras",
            H=True,
            V=False,
            VarTransform=None,
            FilenameModel="model_cnn.keras",
            FilenameTrainedModel="trained_model_cnn.keras",
            NumEpochs=max_epochs,
            BatchSize=100,
            GpuOptions="allow_growth=True",
        )  # needed for RTX NVidia card and to avoid TF allocates all GPU memory



## Train Methods

factory.TrainAllMethods()

## Test and Evaluate Methods

factory.TestAllMethods()

factory.EvaluateAllMethods()

## Plot ROC Curve

c1 = factory.GetROCCurve(loader)
c1.Draw()

# close outputfile to save output file
outputFile.Close()

Author

Harshal Shende

Definition in file TMVA_CNN_Classification.py.
