TCTUB

class TCTUB : public TTUBS

    public:

                TCTUB TCTUB()
                TCTUB TCTUB(const char* name, const char* title, const char* material, Float_t rmin, Float_t rmax, Float_t dz, Float_t phi1, Float_t phi2, Float_t coslx, Float_t cosly, Float_t coslz, Float_t coshx, Float_t coshy, Float_t coshz)
                TCTUB TCTUB(const char* name, const char* title, const char* material, Float_t rmin, Float_t rmax, Float_t dz, Float_t phi1, Float_t phi2, Float_t* lowNormal, Float_t* highNormal)
                TCTUB TCTUB(TCTUB&)
         virtual void ~TCTUB()
       static TClass* Class()
      virtual TClass* IsA() const
         virtual void SetPoints(Float_t* buff)
         virtual void ShowMembers(TMemberInspector& insp, char* parent)
         virtual void Streamer(TBuffer& b)
                 void StreamerNVirtual(TBuffer& b)

  Data Members
    private:


    protected:

      Float_t fCosLow[3]   dir cosinus of surface cutting tube at low z
      Float_t fCosHigh[3]  dir cosinus of surface cutting tube at high z

Class Description

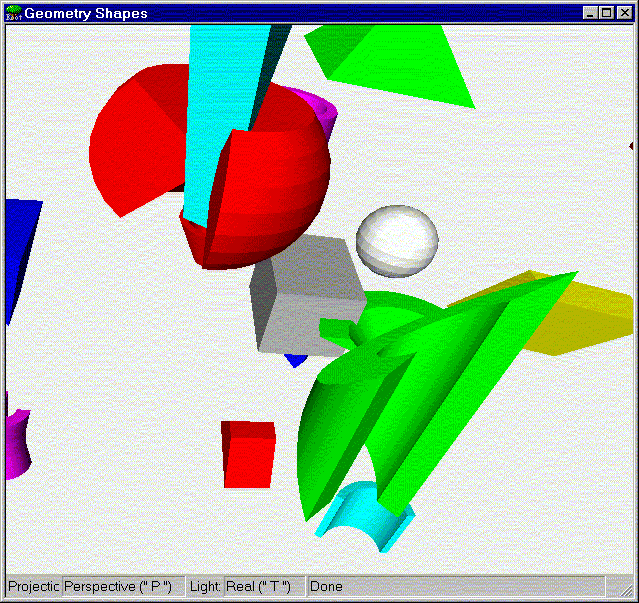

 'CTUB' is a cut  tube with 11 parameters.  The  first 5 parameters
        are the same  as for the TUBS.  The  remaining 6 parameters
        are the director  cosines of the surfaces  cutting the tube
        respectively at the low and high Z values.

     - name       name of the shape
     - title      shape's title
     - material  (see TMaterial)
     - rmin       inside radius
     - rmax       outside radius
     - dz         half length in z
     - phi1       starting angle of the SEGMENT
     - phi2       ending angle of the SEGMENT
     - coslx      x dir cosinus at low z face
     - cosly      y dir cosinus at low z face
     - coslz      z dir cosinus at low z face
     - coshx      x dir cosinus at high z face
     - coshy      y dir cosinus at high z face
     - coshz      z dir cosinus at high z face

*-*-*-*-*-*-*-*-*-*-*-*CTUB shape default constructor*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                    ==============================

*-*-*-*-*-*-*-*-*-*-*-*-*CTUB shape normal constructor*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      =============================

*-*-*-*-*-*-*-*-*-*-*-*-*CTUB shape normal constructor*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      =============================

*-*-*-*-*-*-*-*-*-*-*-*-*CTUB shape default destructor*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                      =============================

*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*Create TUBS points*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
*-*                            ==================

 Stream an object of class TCTUB.

Inline Functions

            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void StreamerNVirtual(TBuffer& b)
              TCTUB TCTUB(TCTUB&)
