// @(#)root/geom:$Name:  $:$Id: TGeoBBox.cxx,v 1.36 2004/12/07 14:24:57 brun Exp $// Author: Andrei Gheata   24/10/01

// Contains() and DistFromOutside/Out() implemented by Mihaela Gheata

/*************************************************************************
 * Copyright (C) 1995-2000, Rene Brun and Fons Rademakers.               *
 * All rights reserved.                                                  *
 *                                                                       *
 * For the licensing terms see $ROOTSYS/LICENSE.                         *
 * For the list of contributors see $ROOTSYS/README/CREDITS.             *
 *************************************************************************/

//--------------------------------------------------------------------------
// TGeoBBox - box class. All shape primitives inherit from this, their
//   constructor filling automatically the parameters of the box that bounds
//   the given shape. Defined by 6 parameters :
//      fDX, fDY, fDZ - half lengths on X, Y and Z axis
//      fOrigin[3]    - position of box origin
//
//--------------------------------------------------------------------------
//
//
//--- Building boxes
//  ==================
//  Normally a box has to be build only with 3 parameters : dx, dy, dz
// representing the half lengths on X, Y and Z axis. In this case, the origin
// of the box will match the one of its reference frame. The translation of the
// origin is used only by the constructors of all other shapes in order to
// define their own bounding boxes. Users should be aware that building a
// translated box that will represent a physical shape by itself will affect any
// further positioning of other shapes inside. Therefore in order to build a
// positioned box one should follow the recipe described in class TGeoNode.
//

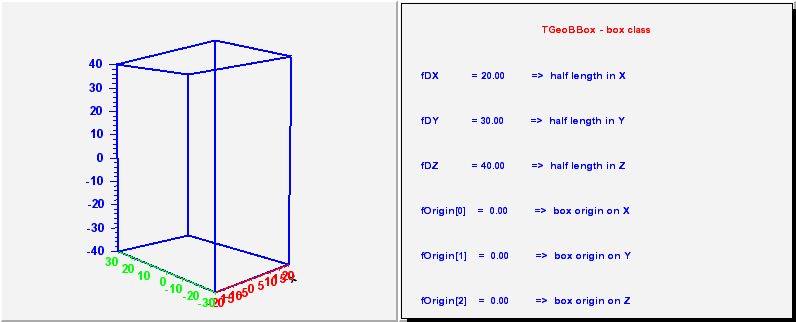

// Creation of boxes
// 1.   TGeoBBox *box = new TGeoBBox("BOX", 20, 30, 40);
//

//
// 2. A volume having a box shape can be built in one step:
//      TGeoVolume *vbox = gGeoManager->MakeBox("vbox", ptrMed, 20,30,40);
//
// Divisions of boxes.
//
//   Volumes having box shape can be divided with equal-length slices on
// X, Y or Z axis. The following options are supported:

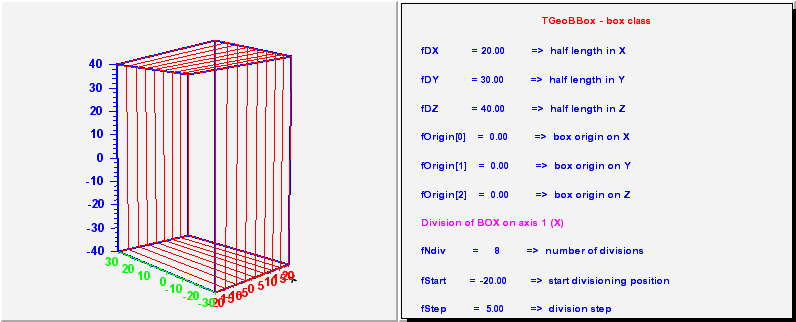

// a) Dividing the full range of one axis in N slices
//      TGeoVolume *divx = vbox->Divide("SLICEX", 1, N);
//   - here 1 stands for the division axis (1-X, 2-Y, 3-Z)
//

//

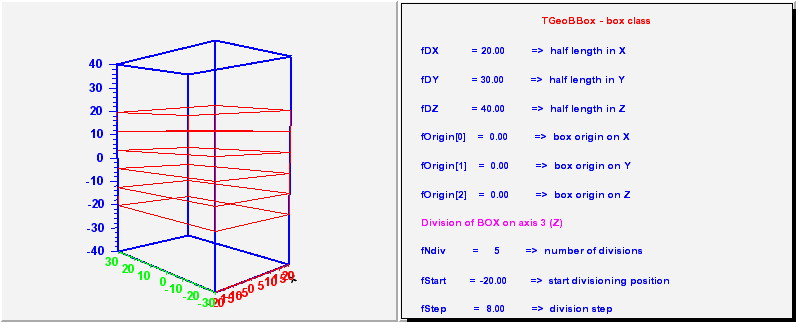

// b) Dividing in a limited range - general case.
//      TGeoVolume *divy = vbox->Divide("SLICEY",2,N,start,step);
//   - start = starting offset within (-fDY, fDY)
//   - step  = slicing step
//
//

//
// Both cases are supported by all shapes.
//   See also class TGeoShape for utility methods provided by any particular
// shape.
//_____________________________________________________________________________

#include "TROOT.h"

#include "TGeoManager.h"
#include "TGeoVolume.h"
#include "TVirtualGeoPainter.h"
#include "TGeoBBox.h"
#include "TVirtualPad.h"
#include "TBuffer3D.h"

ClassImp(TGeoBBox)

//_____________________________________________________________________________
 TGeoBBox::TGeoBBox()
{
// Default constructor
   SetShapeBit(TGeoShape::kGeoBox);
   fDX = fDY = fDZ = 0;
   for (Int_t i=0; i<3; i++)
      fOrigin[i] = 0;
}

//_____________________________________________________________________________
 TGeoBBox::TGeoBBox(Double_t dx, Double_t dy, Double_t dz, Double_t *origin)
         :TGeoShape("")
{
// Constructor
   SetShapeBit(TGeoShape::kGeoBox);
   SetBoxDimensions(dx, dy, dz, origin);
}

//_____________________________________________________________________________
 TGeoBBox::TGeoBBox(const char *name, Double_t dx, Double_t dy, Double_t dz, Double_t *origin)
         :TGeoShape(name)
{
// Constructor
   SetShapeBit(TGeoShape::kGeoBox);
   SetBoxDimensions(dx, dy, dz, origin);
}

//_____________________________________________________________________________
 TGeoBBox::TGeoBBox(Double_t *param)
         :TGeoShape("")
{
// constructor based on the array of parameters
// param[0] - half-length in x
// param[1] - half-length in y
// param[2] - half-length in z
   SetShapeBit(TGeoShape::kGeoBox);
   SetDimensions(param);
}

//_____________________________________________________________________________
 TGeoBBox::~TGeoBBox()
{
// Destructor
}

//_____________________________________________________________________________
 void TGeoBBox::ComputeNormal(Double_t *point, Double_t *dir, Double_t *norm)
{
// Compute normal to closest surface from POINT.
   memset(norm,0,3*sizeof(Double_t));
   Double_t saf[3];
   Int_t i;
   saf[0]=TMath::Abs(TMath::Abs(point[0]-fOrigin[0])-fDX);
   saf[1]=TMath::Abs(TMath::Abs(point[1]-fOrigin[1])-fDY);
   saf[2]=TMath::Abs(TMath::Abs(point[2]-fOrigin[2])-fDZ);
   i = TMath::LocMin(3,saf);
   norm[i] = (dir[i]>0)?1:(-1);
}

//_____________________________________________________________________________
 Bool_t TGeoBBox::CouldBeCrossed(Double_t *point, Double_t *dir) const
{
// decide fast if the bounding box could be crossed by a vector
   Double_t mind = fDX;
   if (fDY<mind) mind=fDY;
   if (fDZ<mind) mind=fDZ;
   Double_t dx = fOrigin[0]-point[0];
   Double_t dy = fOrigin[1]-point[1];
   Double_t dz = fOrigin[2]-point[2];
   Double_t do2 = dx*dx+dy*dy+dz*dz;
   if (do2<=(mind*mind)) return kTRUE;
   Double_t rmax2 = fDX*fDX+fDY*fDY+fDZ*fDZ;
   if (do2<=rmax2) return kTRUE;
   // inside bounding sphere
   Double_t doct = dx*dir[0]+dy*dir[1]+dz*dir[2];
   // leaving ray
   if (doct<=0) return kFALSE;
   Double_t dirnorm=dir[0]*dir[0]+dir[1]*dir[1]+dir[2]*dir[2];
   if ((doct*doct)>=(do2-rmax2)*dirnorm) return kTRUE;
   return kFALSE;
}

//_____________________________________________________________________________
 Int_t TGeoBBox::DistancetoPrimitive(Int_t px, Int_t py)
{
// compute closest distance from point px,py to each corner
   const Int_t numPoints = 8;
   return ShapeDistancetoPrimitive(numPoints, px, py);
}

//_____________________________________________________________________________
 TGeoVolume *TGeoBBox::Divide(TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv,
                             Double_t start, Double_t step)
{
//--- Divide this box shape belonging to volume "voldiv" into ndiv equal volumes
// called divname, from start position with the given step. Returns pointer
// to created division cell volume. In case a wrong division axis is supplied,
// returns pointer to volume to be divided.
   TGeoShape *shape;           //--- shape to be created
   TGeoVolume *vol;            //--- division volume to be created
   TGeoVolumeMulti *vmulti;    //--- generic divided volume
   TGeoPatternFinder *finder;  //--- finder to be attached
   TString opt = "";           //--- option to be attached
   Double_t end = start+ndiv*step;
   switch (iaxis) {
      case 1:                  //--- divide on X
         shape = new TGeoBBox(step/2., fDY, fDZ);
         finder = new TGeoPatternX(voldiv, ndiv, start, end);
         opt = "X";
         break;
      case 2:                  //--- divide on Y
         shape = new TGeoBBox(fDX, step/2., fDZ);
         finder = new TGeoPatternY(voldiv, ndiv, start, end);
         opt = "Y";
         break;
      case 3:                  //--- divide on Z
         shape = new TGeoBBox(fDX, fDY, step/2.);
         finder = new TGeoPatternZ(voldiv, ndiv, start, end);
         opt = "Z";
         break;
      default:
         Error("Divide", "Wrong axis type for division");
         return 0;
   }
   vol = new TGeoVolume(divname, shape, voldiv->GetMedium());
   vmulti = gGeoManager->MakeVolumeMulti(divname, voldiv->GetMedium());
   vmulti->AddVolume(vol);
   voldiv->SetFinder(finder);
   finder->SetDivIndex(voldiv->GetNdaughters());
   for (Int_t ic=0; ic<ndiv; ic++) {
      voldiv->AddNodeOffset(vol, ic, start+step/2.+ic*step, opt.Data());
      ((TGeoNodeOffset*)voldiv->GetNodes()->At(voldiv->GetNdaughters()-1))->SetFinder(finder);
   }
   return vmulti;
}

//_____________________________________________________________________________
 void TGeoBBox::ComputeBBox()
{
// compute bounding box - already computed in this case
}

//_____________________________________________________________________________
 Bool_t TGeoBBox::Contains(Double_t *point) const
{
// test if point is inside this shape
   if (TMath::Abs(point[2]-fOrigin[2]) > fDZ) return kFALSE;
   if (TMath::Abs(point[0]-fOrigin[0]) > fDX) return kFALSE;
   if (TMath::Abs(point[1]-fOrigin[1]) > fDY) return kFALSE;
   return kTRUE;
}

//_____________________________________________________________________________
 Double_t TGeoBBox::DistFromInside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// compute distance from inside point to surface of the box
   Double_t s,smin,saf[6];
   Double_t newpt[3];
   Int_t i;
   for (i=0; i<3; i++) newpt[i] = point[i] - fOrigin[i];
   saf[0] = fDX+newpt[0];
   saf[1] = fDX-newpt[0];
   saf[2] = fDY+newpt[1];
   saf[3] = fDY-newpt[1];
   saf[4] = fDZ+newpt[2];
   saf[5] = fDZ-newpt[2];
   if (iact<3 && safe) {
      smin = saf[0];
      // compute safe distance
      for (i=1;i<6;i++) if (saf[i] < smin) smin = saf[i];
      *safe = smin;
      if (iact==0) return TGeoShape::Big();
      if (iact==1 && step<*safe) return TGeoShape::Big();
   }
   // compute distance to surface
   smin=TGeoShape::Big();
   for (i=0; i<3; i++) {
      if (dir[i]!=0) {
         s = (dir[i]>0)?(saf[(i<<1)+1]/dir[i]):(-saf[i<<1]/dir[i]);
         if (s < smin) smin = s;
      }
   }
   return smin;
}

//_____________________________________________________________________________
 Double_t TGeoBBox::DistFromOutside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// compute distance from outside point to surface of the box
   Double_t saf[3];
   Double_t par[3];
   Double_t newpt[3];
   Int_t i;
   for (i=0; i<3; i++) newpt[i] = point[i] - fOrigin[i];
   par[0] = fDX;
   par[1] = fDY;
   par[2] = fDZ;
   for (i=0; i<3; i++) saf[i] = TMath::Abs(newpt[i])-par[i];
   if (iact<3 && safe) {
      // compute safe distance
      *safe = saf[0];
      if (saf[1] < *safe) *safe = saf[1];
      if (saf[2] < *safe) *safe = saf[2];
      if (iact==0) return TGeoShape::Big();
      if (iact==1 && step<*safe) return TGeoShape::Big();
   }
   // compute distance from point to box
   Double_t coord, snxt=TGeoShape::Big();
   Int_t ibreak=0;
   for (i=0; i<3; i++) {
      if (saf[i]<0) continue;
      if (newpt[i]*dir[i] >= 0) continue;
      snxt = saf[i]/TMath::Abs(dir[i]);
      ibreak = 0;
      for (Int_t j=0; j<3; j++) {
         if (j==i) continue;
         coord=newpt[j]+snxt*dir[j];
         if (TMath::Abs(coord)>par[j]) {
            ibreak=1;
            break;
         }
      }
      if (!ibreak) return snxt;
   }
   return TGeoShape::Big();
}

//_____________________________________________________________________________
 const char *TGeoBBox::GetAxisName(Int_t iaxis) const
{
// Returns name of axis IAXIS.
   switch (iaxis) {
      case 1:
         return "X";
      case 2:
         return "Y";
      case 3:
         return "Z";
      default:
         return "UNDEFINED";
   }
}

//_____________________________________________________________________________
 Double_t TGeoBBox::GetAxisRange(Int_t iaxis, Double_t &xlo, Double_t &xhi) const
{
// Get range of shape for a given axis.
   xlo = 0;
   xhi = 0;
   Double_t dx = 0;
   switch (iaxis) {
      case 1:
         xlo = fOrigin[0]-fDX;
         xhi = fOrigin[0]+fDX;
         dx = 2*fDX;
         return dx;
      case 2:
         xlo = fOrigin[1]-fDY;
         xhi = fOrigin[1]+fDY;
         dx = 2*fDY;
         return dx;
      case 3:
         xlo = fOrigin[2]-fDZ;
         xhi = fOrigin[2]+fDZ;
         dx = 2*fDZ;
         return dx;
   }
   return dx;
}

//_____________________________________________________________________________
 void TGeoBBox::GetBoundingCylinder(Double_t *param) const
{
//--- Fill vector param[4] with the bounding cylinder parameters. The order
// is the following : Rmin, Rmax, Phi1, Phi2
   param[0] = 0.;                  // Rmin
   param[1] = fDX*fDX+fDY*fDY;     // Rmax
   param[2] = 0.;                  // Phi1
   param[3] = 360.;                // Phi2
}

//_____________________________________________________________________________
 Int_t TGeoBBox::GetFittingBox(const TGeoBBox *parambox, TGeoMatrix *mat, Double_t &dx, Double_t &dy, Double_t &dz) const
{
// Fills real parameters of a positioned box inside this one. Returns 0 if successfull.
   dx=dy=dz=0;
   if (mat->IsRotation()) {
      Error("GetFittingBox", "cannot handle parametrized rotated volumes");
      return 1; // ### rotation not accepted ###
   }
   //--> translate the origin of the parametrized box to the frame of this box.
   Double_t origin[3];
   mat->LocalToMaster(parambox->GetOrigin(), origin);
   if (!Contains(origin)) {
      Error("GetFittingBox", "wrong matrix - parametrized box is outside this");
      return 1; // ### wrong matrix ###
   }
   //--> now we have to get the valid range for all parametrized axis
   Double_t xlo=0, xhi=0;
   Double_t dd[3];
   dd[0] = parambox->GetDX();
   dd[1] = parambox->GetDY();
   dd[2] = parambox->GetDZ();
   for (Int_t iaxis=0; iaxis<3; iaxis++) {
      if (dd[iaxis]>=0) continue;
      TGeoBBox::GetAxisRange(iaxis+1, xlo, xhi);
      //-> compute best fitting parameter
      dd[iaxis] = TMath::Min(origin[iaxis]-xlo, xhi-origin[iaxis]);
      if (dd[iaxis]<0) {
         Error("GetFittingBox", "wrong matrix");
         return 1;
      }
   }
   dx = dd[0];
   dy = dd[1];
   dz = dd[2];
   return 0;
}

//_____________________________________________________________________________
 TGeoShape *TGeoBBox::GetMakeRuntimeShape(TGeoShape *mother, TGeoMatrix *mat) const
{
// in case shape has some negative parameters, these has to be computed
// in order to fit the mother
   if (!TestShapeBit(kGeoRunTimeShape)) return 0;
   Double_t dx, dy, dz;
   Int_t ierr = mother->GetFittingBox(this, mat, dx, dy, dz);
   if (ierr) {
      Error("GetMakeRuntimeShape", "cannot fit this to mother");
      return 0;
   }
   return (new TGeoBBox(dx, dy, dz));
}

//_____________________________________________________________________________
 void TGeoBBox::InspectShape() const
{
// print shape parameters
   printf("*** Shape %s: TGeoBBox ***\n", GetName());
   printf("    dX = %11.5f\n", fDX);
   printf("    dY = %11.5f\n", fDY);
   printf("    dZ = %11.5f\n", fDZ);
   printf("    origin: x=%11.5f y=%11.5f z=%11.5f\n", fOrigin[0], fOrigin[1], fOrigin[2]);
}

//_____________________________________________________________________________
 TBuffer3D *TGeoBBox::MakeBuffer3D() const
{
   // Creates a TBuffer3D describing *this* shape.
   // Coordinates are in local reference frame.

   Int_t NbPnts = 8;
   Int_t NbSegs = 12;
   Int_t NbPols = 6;

   TBuffer3D* buff = new TBuffer3D(3*NbPnts, 3*NbSegs, 6*NbPols);
   buff->fType = TBuffer3D::kBRIK;

   buff->fNbPnts = NbPnts;
   buff->fNbSegs = NbSegs;
   buff->fNbPols = NbPols;

   SetPoints(buff->fPnts);
   SetSegsAndPols(buff);

   return buff;
}

//_____________________________________________________________________________
 void TGeoBBox::Paint(Option_t *option)
{
   // Paint this shape according to option

   // Allocate the necessary spage in gPad->fBuffer3D to store this shape
   Int_t NbPnts = 8;
   Int_t NbSegs = 12;
   Int_t NbPols = 6;
   TBuffer3D *buff = gPad->AllocateBuffer3D(3*NbPnts, 3*NbSegs, 6*NbPols);
   if (!buff) return;

   buff->fType = TBuffer3D::kBRIK;
   TGeoVolume *vol = gGeoManager->GetPaintVolume();
   buff->fId   = vol;

   // Fill gPad->fBuffer3D. Points coordinates are in Master space
   buff->fNbPnts = NbPnts;
   buff->fNbSegs = NbSegs;
   buff->fNbPols = NbPols;
   // In case of option "size" it is not necessary to fill the buffer
   if (strstr(option,"size")) {
      buff->Paint(option);
      return;
   }

   SetPoints(buff->fPnts);

   TransformPoints(buff);

   // Basic colors: 0, 1, ... 7
   buff->fColor = vol->GetLineColor();
   SetSegsAndPols(buff);
   // Paint gPad->fBuffer3D
   buff->Paint(option);
}

//_____________________________________________________________________________
 void TGeoBBox::SetSegsAndPols(TBuffer3D *buff) const
{
// Fill TBuffer3D structure for segments and polygons.
   Int_t c = (((buff->fColor) %8) -1) * 4;
   if (c < 0) c = 0;

   buff->fSegs[ 0] = c   ; buff->fSegs[ 1] = 0   ; buff->fSegs[ 2] = 1   ;
   buff->fSegs[ 3] = c+1 ; buff->fSegs[ 4] = 1   ; buff->fSegs[ 5] = 2   ;
   buff->fSegs[ 6] = c+1 ; buff->fSegs[ 7] = 2   ; buff->fSegs[ 8] = 3   ;
   buff->fSegs[ 9] = c   ; buff->fSegs[10] = 3   ; buff->fSegs[11] = 0   ;
   buff->fSegs[12] = c+2 ; buff->fSegs[13] = 4   ; buff->fSegs[14] = 5   ;
   buff->fSegs[15] = c+2 ; buff->fSegs[16] = 5   ; buff->fSegs[17] = 6   ;
   buff->fSegs[18] = c+3 ; buff->fSegs[19] = 6   ; buff->fSegs[20] = 7   ;
   buff->fSegs[21] = c+3 ; buff->fSegs[22] = 7   ; buff->fSegs[23] = 4   ;
   buff->fSegs[24] = c   ; buff->fSegs[25] = 0   ; buff->fSegs[26] = 4   ;
   buff->fSegs[27] = c+2 ; buff->fSegs[28] = 1   ; buff->fSegs[29] = 5   ;
   buff->fSegs[30] = c+1 ; buff->fSegs[31] = 2   ; buff->fSegs[32] = 6   ;
   buff->fSegs[33] = c+3 ; buff->fSegs[34] = 3   ; buff->fSegs[35] = 7   ;

   buff->fPols[ 0] = c   ; buff->fPols[ 1] = 4   ;  buff->fPols[ 2] = 0  ;
   buff->fPols[ 3] = 9   ; buff->fPols[ 4] = 4   ;  buff->fPols[ 5] = 8  ;
   buff->fPols[ 6] = c+1 ; buff->fPols[ 7] = 4   ;  buff->fPols[ 8] = 1  ;
   buff->fPols[ 9] = 10  ; buff->fPols[10] = 5   ;  buff->fPols[11] = 9  ;
   buff->fPols[12] = c   ; buff->fPols[13] = 4   ;  buff->fPols[14] = 2  ;
   buff->fPols[15] = 11  ; buff->fPols[16] = 6   ;  buff->fPols[17] = 10 ;
   buff->fPols[18] = c+1 ; buff->fPols[19] = 4   ;  buff->fPols[20] = 3  ;
   buff->fPols[21] = 8   ; buff->fPols[22] = 7   ;  buff->fPols[23] = 11 ;
   buff->fPols[24] = c+2 ; buff->fPols[25] = 4   ;  buff->fPols[26] = 0  ;
   buff->fPols[27] = 3   ; buff->fPols[28] = 2   ;  buff->fPols[29] = 1  ;
   buff->fPols[30] = c+3 ; buff->fPols[31] = 4   ;  buff->fPols[32] = 4  ;
   buff->fPols[33] = 5   ; buff->fPols[34] = 6   ;  buff->fPols[35] = 7  ;
}

//_____________________________________________________________________________
 Double_t TGeoBBox::Safety(Double_t *point, Bool_t in) const
{
// computes the closest distance from given point to this shape, according
// to option. The matching point on the shape is stored in spoint.

   Double_t safe, safy, safz;
   if (in) {
	   safe = fDX - TMath::Abs(point[0]-fOrigin[0]);
	   safy = fDY - TMath::Abs(point[1]-fOrigin[1]);
	   safz = fDZ - TMath::Abs(point[2]-fOrigin[2]);
	   if (safy < safe) safe = safy;
	   if (safz < safe) safe = safz;
   } else {
	   safe = -fDX + TMath::Abs(point[0]-fOrigin[0]);
	   safy = -fDY + TMath::Abs(point[1]-fOrigin[1]);
	   safz = -fDZ + TMath::Abs(point[2]-fOrigin[2]);
	   if (safy > safe) safe = safy;
	   if (safz > safe) safe = safz;
   }
   return safe;
}

//_____________________________________________________________________________
 void TGeoBBox::SetBoxDimensions(Double_t dx, Double_t dy, Double_t dz, Double_t *origin)
{
// set parameters of box
   fDX = dx;
   fDY = dy;
   fDZ = dz;
   for (Int_t i=0; i<3; i++) {
      if (!origin) {
         fOrigin[i] = 0.0;
      } else {
         fOrigin[i] = origin[i];
      }
   }
   if ((fDX==0) && (fDY==0) && (fDZ==0)) return;
   if ((fDX<0) || (fDY<0) || (fDZ<0)) {
      SetShapeBit(kGeoRunTimeShape);
//      printf("box : %f %f %f\n", fDX, fDY, fDZ);
   }
}

//_____________________________________________________________________________
 void TGeoBBox::SetDimensions(Double_t *param)
{
// constructor based on the array of parameters
// param[0] - half-length in x
// param[1] - half-length in y
// param[2] - half-length in z
   if (!param) {
      Error("ctor", "null parameters");
      return;
   }
   fDX = param[0];
   fDY = param[1];
   fDZ = param[2];
   if ((fDX==0) && (fDY==0) && (fDZ==0)) return;
   if ((fDX<0) || (fDY<0) || (fDZ<0)) {
      SetShapeBit(kGeoRunTimeShape);
//      printf("box : %f %f %f\n", fDX, fDY, fDZ);
   }
}

//_____________________________________________________________________________
 void TGeoBBox::SetBoxPoints(Double_t *buff) const
{
   TGeoBBox::SetPoints(buff);
}

//_____________________________________________________________________________
 void TGeoBBox::SetPoints(Double_t *buff) const
{
// create box points
   if (!buff) return;
   buff[ 0] = -fDX+fOrigin[0]; buff[ 1] = -fDY+fOrigin[1]; buff[ 2] = -fDZ+fOrigin[2];
   buff[ 3] = -fDX+fOrigin[0]; buff[ 4] =  fDY+fOrigin[1]; buff[ 5] = -fDZ+fOrigin[2];
   buff[ 6] =  fDX+fOrigin[0]; buff[ 7] =  fDY+fOrigin[1]; buff[ 8] = -fDZ+fOrigin[2];
   buff[ 9] =  fDX+fOrigin[0]; buff[10] = -fDY+fOrigin[1]; buff[11] = -fDZ+fOrigin[2];
   buff[12] = -fDX+fOrigin[0]; buff[13] = -fDY+fOrigin[1]; buff[14] =  fDZ+fOrigin[2];
   buff[15] = -fDX+fOrigin[0]; buff[16] =  fDY+fOrigin[1]; buff[17] =  fDZ+fOrigin[2];
   buff[18] =  fDX+fOrigin[0]; buff[19] =  fDY+fOrigin[1]; buff[20] =  fDZ+fOrigin[2];
   buff[21] =  fDX+fOrigin[0]; buff[22] = -fDY+fOrigin[1]; buff[23] =  fDZ+fOrigin[2];
}

//_____________________________________________________________________________
 void TGeoBBox::SetPoints(Float_t *buff) const
{
// create box points
   if (!buff) return;
   buff[ 0] = -fDX+fOrigin[0]; buff[ 1] = -fDY+fOrigin[1]; buff[ 2] = -fDZ+fOrigin[2];
   buff[ 3] = -fDX+fOrigin[0]; buff[ 4] =  fDY+fOrigin[1]; buff[ 5] = -fDZ+fOrigin[2];
   buff[ 6] =  fDX+fOrigin[0]; buff[ 7] =  fDY+fOrigin[1]; buff[ 8] = -fDZ+fOrigin[2];
   buff[ 9] =  fDX+fOrigin[0]; buff[10] = -fDY+fOrigin[1]; buff[11] = -fDZ+fOrigin[2];
   buff[12] = -fDX+fOrigin[0]; buff[13] = -fDY+fOrigin[1]; buff[14] =  fDZ+fOrigin[2];
   buff[15] = -fDX+fOrigin[0]; buff[16] =  fDY+fOrigin[1]; buff[17] =  fDZ+fOrigin[2];
   buff[18] =  fDX+fOrigin[0]; buff[19] =  fDY+fOrigin[1]; buff[20] =  fDZ+fOrigin[2];
   buff[21] =  fDX+fOrigin[0]; buff[22] = -fDY+fOrigin[1]; buff[23] =  fDZ+fOrigin[2];
}

//_____________________________________________________________________________
 void TGeoBBox::Sizeof3D() const
{
///// fill size of this 3-D object
///    TVirtualGeoPainter *painter = gGeoManager->GetGeomPainter();
///    if (painter) painter->AddSize3D(8, 12, 6);
}
