library: libGeom #include "TGeoShape.h" |
TGeoShape
class description - source file - inheritance tree (.pdf)
This is an abstract class, constructors will not be documented.
Look at the header to check for available constructors.
public:
virtual ~TGeoShape()
static Double_t Big()
static TClass* Class()
virtual void ComputeBBox()
virtual void ComputeNormal(Double_t* point, Double_t* dir, Double_t* norm)
virtual Bool_t Contains(Double_t* point) const
virtual Bool_t CouldBeCrossed(Double_t* point, Double_t* dir) const
virtual Int_t DistancetoPrimitive(Int_t px, Int_t py)
virtual Double_t DistFromInside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
virtual Double_t DistFromOutside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
virtual TGeoVolume* Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
virtual const char* GetAxisName(Int_t iaxis) const
virtual Double_t GetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const
virtual void GetBoundingCylinder(Double_t* param) const
virtual Int_t GetByteCount() const
virtual Int_t GetFittingBox(const TGeoBBox* parambox, TGeoMatrix* mat, Double_t& dx, Double_t& dy, Double_t& dz) const
Int_t GetId() const
virtual TGeoShape* GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const
virtual const char* GetName() const
virtual Int_t GetNmeshVertices() const
virtual void InspectShape() const
void InvertShapeBit(UInt_t f)
virtual TClass* IsA() const
static Bool_t IsCloseToPhi(Double_t epsil, Double_t* point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
virtual Bool_t IsComposite() const
static Bool_t IsCrossingSemiplane(Double_t* point, Double_t* dir, Double_t cphi, Double_t sphi, Double_t& snext, Double_t& rxy)
virtual Bool_t IsCylType() const
static Bool_t IsInPhiRange(Double_t* point, Double_t phi1, Double_t phi2)
Bool_t IsRunTimeShape() const
Bool_t IsValid() const
virtual Bool_t IsValidBox() const
static void NormalPhi(Double_t* point, Double_t* dir, Double_t* norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
TGeoShape& operator=(const TGeoShape&)
virtual void Paint(Option_t* option)
void ResetShapeBit(UInt_t f)
virtual Double_t Safety(Double_t* point, Bool_t in = kTRUE) const
static Double_t SafetyPhi(Double_t* point, Bool_t in, Double_t phi1, Double_t phi2)
virtual void SetDimensions(Double_t* param)
void SetId(Int_t id)
virtual void SetPoints(Double_t* buff) const
virtual void SetPoints(Float_t* buff) const
void SetRuntime(Bool_t flag = kTRUE)
void SetShapeBit(UInt_t f, Bool_t set)
void SetShapeBit(UInt_t f)
Int_t ShapeDistancetoPrimitive(Int_t numpoints, Int_t px, Int_t py) const
virtual void ShowMembers(TMemberInspector& insp, char* parent)
virtual void Sizeof3D() const
virtual void Streamer(TBuffer& b)
void StreamerNVirtual(TBuffer& b)
Bool_t TestShapeBit(UInt_t f) const
Int_t TestShapeBits(UInt_t f) const
void TransformPoints(TBuffer3D* buff) const
protected:
Int_t fShapeId shape id
UInt_t fShapeBits shape bits
public:
static const TGeoShape::EShapeType kBitMask32
static const TGeoShape::EShapeType kGeoNoShape
static const TGeoShape::EShapeType kGeoBad
static const TGeoShape::EShapeType kGeoRSeg
static const TGeoShape::EShapeType kGeoPhiSeg
static const TGeoShape::EShapeType kGeoThetaSeg
static const TGeoShape::EShapeType kGeoVisX
static const TGeoShape::EShapeType kGeoVisY
static const TGeoShape::EShapeType kGeoVisZ
static const TGeoShape::EShapeType kGeoRunTimeShape
static const TGeoShape::EShapeType kGeoInvalidShape
static const TGeoShape::EShapeType kGeoTorus
static const TGeoShape::EShapeType kGeoBox
static const TGeoShape::EShapeType kGeoPara
static const TGeoShape::EShapeType kGeoSph
static const TGeoShape::EShapeType kGeoTube
static const TGeoShape::EShapeType kGeoTubeSeg
static const TGeoShape::EShapeType kGeoCone
static const TGeoShape::EShapeType kGeoConeSeg
static const TGeoShape::EShapeType kGeoPcon
static const TGeoShape::EShapeType kGeoPgon
static const TGeoShape::EShapeType kGeoArb8
static const TGeoShape::EShapeType kGeoEltu
static const TGeoShape::EShapeType kGeoTrap
static const TGeoShape::EShapeType kGeoCtub
static const TGeoShape::EShapeType kGeoTrd1
static const TGeoShape::EShapeType kGeoTrd2
static const TGeoShape::EShapeType kGeoComb
static const TGeoShape::EShapeType kGeoClosedShape
static const TGeoShape::EShapeType kGeoXtru
static const TGeoShape::EShapeType kGeoParaboloid
static const TGeoShape::EShapeType kGeoHalfSpace
static const TGeoShape::EShapeType kGeoHype

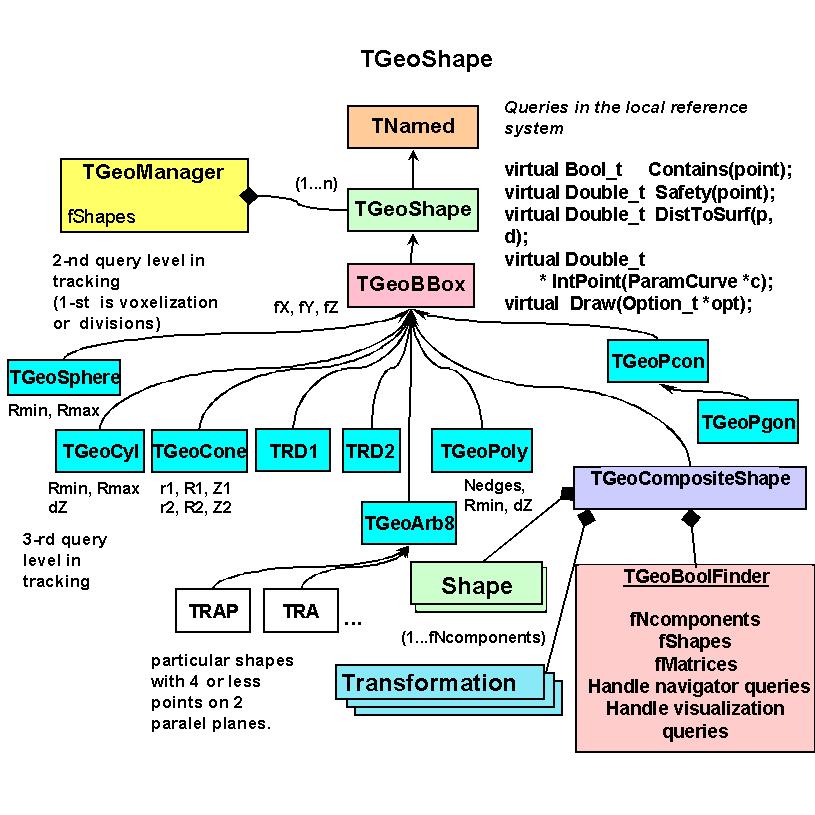

TGeoShape - Base abstract class for all shapes.
____________________________________________________________________________
Shapes are geometrical objects that provide the basic modelling
functionality. They provide the definition of the LOCAL frame of coordinates,
with respect to which they are defined. Any implementation of a shape deriving
from the base TGeoShape class has to provide methods for :
- finding out if a point defined in their local frame is or not contained
inside;
- computing the distance from a local point to getting outside/entering the
shape, given a known direction;
- computing the maximum distance in any direction from a local point that
does NOT result in a boundary crossing of the shape (safe distance);
- computing the cosines of the normal vector to the crossed shape surface,
given a starting local point and an ongoing direction.
All the features above are globally managed by the modeller in order to
provide navigation functionality. In addition to those, shapes have also to
implement additional specific abstract methods :
- computation of the minimal box bounding the shape, given that this box have
to be aligned with the local coordinates;
- algorithms for dividing the shape along a given axis and producing resulting
divisions volumes.
The modeler currently provides a set of 16 basic shapes, which we will call
primitives. It also provides a special class allowing the creation of shapes
made as a result of boolean operations between primitives. These are called
composite shapes and the composition operation can be recursive (composition
of composites). This allows the creation of a quite large number of different
shape topologies and combinations.
Shapes are named objects and register themselves to the manager class at
creation time. This is responsible for their final deletion. Shapes
can be created without name if their retreival by name is no needed. Generally
shapes are objects that are usefull only at geometry creation stage. The pointer
to a shape is in fact needed only when referring to a given volume and it is
always accessible at that level. A shape may be referenced by several volumes,
therefore its deletion is not possible once volumes were defined based on it.
Creating shapes
================
Shape objects embeed only the minimum set of parameters that are fully
describing a valid physical shape. For instance, a tube is represented by
its half length, the minimum radius and the maximum radius. Shapes are used
togeather with media in order to create volumes, which in their turn
are the main components of the geometrical tree. A specific shape can be created
stand-alone :
TGeoBBox *box = new TGeoBBox("s_box", halfX, halfY, halfZ); // named
TGeoTube *tub = new TGeoTube(rmin, rmax, halfZ); // no name
... (see each specific shape constructors)
Sometimes it is much easier to create a volume having a given shape in one
step, since shapes are not direcly linked in the geometrical tree but volumes
are :
TGeoVolume *vol_box = gGeoManager->MakeBox("BOX_VOL", "mat1", halfX, halfY, halfZ);
TGeoVolume *vol_tub = gGeoManager->MakeTube("TUB_VOL", "mat2", rmin, rmax, halfZ);
... (see MakeXXX() utilities in TGeoManager class)
Shape queries
===============
Note that global queries related to a geometry are handled by the manager class.
However, shape-related queries might be sometimes usefull.
A) Bool_t TGeoShape::Contains(Double_t *point[3])
- this method returns true if POINT is actually inside the shape. The point
has to be defined in the local shape reference. For instance, for a box having
DX, DY and DZ half-lengths a point will be considered inside if :
| -DX <= point[0] <= DX
| -DY <= point[1] <= DY
| -DZ <= point[2] <= DZ
B) Double_t TGeoShape::DistFromInside(Double_t *point[3], Double_t *dir[3],
Int_t iact, Double_t step, Double_t *safe)
- computes the distance to exiting a shape from a given point INSIDE, along
a given direction. The direction is given by its director cosines with respect
to the local shape coordinate system. This method provides additional
information according the value of IACT input parameter :
IACT = 0 => compute only safe distance and fill it at the location
given by SAFE
IACT = 1 => a proposed STEP is supplied. The safe distance is computed
first. If this is bigger than STEP than the proposed step
is approved and returned by the method since it does not
cross the shape boundaries. Otherwise, the distance to
exiting the shape is computed and returned.
IACT = 2 => compute both safe distance and distance to exiting, ignoring
the proposed step.
IACT > 2 => compute only the distance to exiting, ignoring anything else.
C) Double_t TGeoShape::DistFromOutside(Double_t *point[3], Double_t *dir[3],
Int_t iact, Double_t step, Double_t *safe)
- computes the distance to entering a shape from a given point OUTSIDE. Acts
in the same way as B).
D) Double_t Safety(Double_t *point[3], Bool_t inside)
- compute maximum shift of a point in any direction that does not change its
INSIDE/OUTSIDE state (does not cross shape boundaries). The state of the point
have to be properly supplied.
E) Double_t *Normal(Double_t *point[3], Double_t *dir[3], Bool_t inside)
- returns director cosines of normal to the crossed shape surface from a
given point towards a direction. One has to specify if the point is inside
or outside shape. According to this, the normal will be outwards or inwards
shape respectively. Normal components are statically stored by shape class,
so it has to be copied after retreival in a different array.
Dividing shapes
=================
Shapes can generally be divided along a given axis. Supported axis are
X, Y, Z, Rxy, Phi, Rxyz. A given shape cannot be divided however on any axis.
The general rule is that that divisions are possible on whatever axis that
produces still known shapes as slices. The division of shapes should not be
performed by TGeoShape::Divide() calls, but rather by TGeoVolume::Divide().
The algorithm for dividing a specific shape is known by the shape object, but
is always invoked in a generic way from the volume level. Details on how to
do that can be found in TGeoVolume class. One can see how all division options
are interpreted and which is their result inside specific shape classes.
_____________________________________________________________________________
/*
*/
~TGeoShape()
Destructor
const char* GetName() const
Int_t ShapeDistancetoPrimitive(Int_t numpoints, Int_t px, Int_t py) const
Bool_t IsCloseToPhi(Double_t epsil, Double_t *point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
True if point is closer than epsil to one of the phi planes defined by c1,s1 or c2,s2
Bool_t IsInPhiRange(Double_t *point, Double_t phi1, Double_t phi2)
Static method to check if a point is in the phi range (phi1, phi2) [degrees]
Bool_t IsCrossingSemiplane(Double_t *point, Double_t *dir, Double_t cphi, Double_t sphi, Double_t &snext, Double_t &rxy)
Compute distance from POINT to semiplane defined by PHI angle along DIR. Computes
also radius at crossing point. This might be negative in case the crossing is
on the other side of the semiplane.
void NormalPhi(Double_t *point, Double_t *dir, Double_t *norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
Static method to compute normal to phi planes.
Double_t SafetyPhi(Double_t *point, Bool_t in, Double_t phi1, Double_t phi2)
Static method to compute safety w.r.t a phi corner defined by cosines/sines
of the angles phi1, phi2.
void SetShapeBit(UInt_t f, Bool_t set)
void TransformPoints(TBuffer3D *buff) const
Tranform a buffer (LocalToMaster)
Set reflection flag and transparency
Inline Functions
Double_t Big()
void ComputeBBox()
void ComputeNormal(Double_t* point, Double_t* dir, Double_t* norm)
Bool_t Contains(Double_t* point) const
Bool_t CouldBeCrossed(Double_t* point, Double_t* dir) const
Int_t DistancetoPrimitive(Int_t px, Int_t py)
Double_t DistFromInside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
Double_t DistFromOutside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
TGeoVolume* Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
const char* GetAxisName(Int_t iaxis) const
Double_t GetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const
void GetBoundingCylinder(Double_t* param) const
Int_t GetByteCount() const
Int_t GetFittingBox(const TGeoBBox* parambox, TGeoMatrix* mat, Double_t& dx, Double_t& dy, Double_t& dz) const
Int_t GetId() const
TGeoShape* GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const
Int_t GetNmeshVertices() const
Bool_t IsComposite() const
Bool_t IsCylType() const
Bool_t IsRunTimeShape() const
Bool_t IsValid() const
Bool_t IsValidBox() const
void InspectShape() const
void Paint(Option_t* option)
Double_t Safety(Double_t* point, Bool_t in = kTRUE) const
void SetDimensions(Double_t* param)
void SetId(Int_t id)
void SetPoints(Double_t* buff) const
void SetPoints(Float_t* buff) const
void SetRuntime(Bool_t flag = kTRUE)
void Sizeof3D() const
void SetShapeBit(UInt_t f)
void ResetShapeBit(UInt_t f)
Bool_t TestShapeBit(UInt_t f) const
Int_t TestShapeBits(UInt_t f) const
void InvertShapeBit(UInt_t f)
TClass* Class()
TClass* IsA() const
void ShowMembers(TMemberInspector& insp, char* parent)
void Streamer(TBuffer& b)
void StreamerNVirtual(TBuffer& b)
TGeoShape& operator=(const TGeoShape&)
Author: Andrei Gheata 31/01/02
Last update: root/geom:$Name: $:$Id: TGeoShape.cxx,v 1.26 2004/11/25 12:10:01 brun Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
ROOT page - Class index - Class Hierarchy - Top of the page
This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
