library: libGeom
#include "TGeoPara.h"

TGeoPara


class description - source file - inheritance tree (.pdf)

class TGeoPara : public TGeoBBox

Inheritance Chart:
TObject
<-
TNamed
<-
TGeoShape
<-
TGeoBBox
<-
TGeoPara

    public:
TGeoPara() TGeoPara(Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi) TGeoPara(const char* name, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi) TGeoPara(Double_t* param) TGeoPara(const TGeoPara&) virtual ~TGeoPara() static TClass* Class() virtual void ComputeBBox() virtual void ComputeNormal(Double_t* point, Double_t* dir, Double_t* norm) virtual Bool_t Contains(Double_t* point) const virtual Double_t DistFromInside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const virtual Double_t DistFromOutside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const virtual TGeoVolume* Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step) Double_t GetAlpha() const virtual Double_t GetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const virtual void GetBoundingCylinder(Double_t* param) const virtual Int_t GetByteCount() const virtual Int_t GetFittingBox(const TGeoBBox* parambox, TGeoMatrix* mat, Double_t& dx, Double_t& dy, Double_t& dz) const virtual TGeoShape* GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const virtual Int_t GetNmeshVertices() const Double_t GetPhi() const Double_t GetTheta() const Double_t GetTxy() const Double_t GetTxz() const Double_t GetTyz() const Double_t GetX() const Double_t GetY() const Double_t GetZ() const virtual void InspectShape() const virtual TClass* IsA() const virtual Bool_t IsCylType() const TGeoPara& operator=(const TGeoPara&) virtual Double_t Safety(Double_t* point, Bool_t in = kTRUE) const virtual void SetDimensions(Double_t* param) virtual void SetPoints(Double_t* buff) const virtual void SetPoints(Float_t* buff) const virtual void ShowMembers(TMemberInspector& insp, char* parent) virtual void Sizeof3D() const virtual void Streamer(TBuffer& b) void StreamerNVirtual(TBuffer& b)

Data Members


    protected:
Double_t fX X half-length Double_t fY Y half-length Double_t fZ Z half-length Double_t fAlpha angle w.r.t Y from the center of low Y to the hihg Y Double_t fTheta polar angle of segment between low and hi Z surfaces Double_t fPhi azimuthal angle of segment between low and hi Z surfaces Double_t fTxy tangent of XY section angle Double_t fTxz tangent of XZ section angle Double_t fTyz tangent of XZ section angle

Class Description

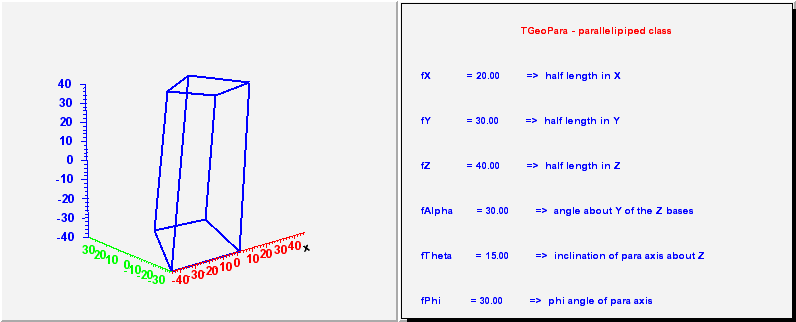

 TGeoPara - parallelipeped class. It has 6 parameters :
         dx, dy, dz - half lengths in X, Y, Z
         alpha - angle w.r.t the Y axis from center of low Y edge to
                 center of high Y edge [deg]
         theta, phi - polar and azimuthal angles of the segment between
                 low and high Z surfaces [deg]

_____________________________________________________________________________

/* */


/*

*/



/*

*/



/*

*/


TGeoPara()
 Default constructor

TGeoPara(Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi) :TGeoBBox(0, 0, 0)
 Default constructor specifying minimum and maximum radius

TGeoPara(const char *name, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi) :TGeoBBox(name, 0, 0, 0)
 Default constructor specifying minimum and maximum radius

TGeoPara(Double_t *param) :TGeoBBox(0, 0, 0)
 Default constructor
 param[0] = dx
 param[1] = dy
 param[2] = dz
 param[3] = alpha
 param[4] = theta
 param[5] = phi

~TGeoPara()
 destructor

void ComputeBBox()
 compute bounding box

void ComputeNormal(Double_t *point, Double_t *dir, Double_t *norm)
 Compute normal to closest surface from POINT.

Bool_t Contains(Double_t *point) const
 test if point is inside this sphere
 test Z range

Double_t DistFromInside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
 compute distance from inside point to surface of the para

Double_t DistFromOutside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
 compute distance from inside point to surface of the para
   Warning("DistFromOutside", "PARA TOIN");
   Double_t snxt=TGeoShape::Big();

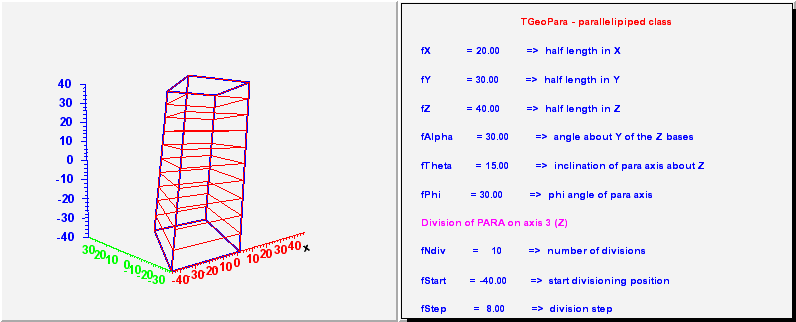

TGeoVolume* Divide(TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
--- Divide this paralelipiped shape belonging to volume "voldiv" into ndiv equal volumes
 called divname, from start position with the given step. Returns pointer
 to created division cell volume. In case a wrong division axis is supplied,
 returns pointer to volume to be divided.

Double_t GetAxisRange(Int_t iaxis, Double_t &xlo, Double_t &xhi) const
 Get range of shape for a given axis.

void GetBoundingCylinder(Double_t *param) const
--- Fill vector param[4] with the bounding cylinder parameters. The order
 is the following : Rmin, Rmax, Phi1, Phi2

Int_t GetFittingBox(const TGeoBBox *parambox, TGeoMatrix *mat, Double_t &dx, Double_t &dy, Double_t &dz) const
 Fills real parameters of a positioned box inside this. Returns 0 if successfull.

TGeoShape* GetMakeRuntimeShape(TGeoShape *mother, TGeoMatrix * /*mat*/) const
 in case shape has some negative parameters, these has to be computed
 in order to fit the mother

void InspectShape() const
 print shape parameters

Double_t Safety(Double_t *point, Bool_t in) const
 computes the closest distance from given point to this shape, according
 to option. The matching point on the shape is stored in spoint.

void SetDimensions(Double_t *param)

void SetPoints(Double_t *buff) const
 create sphere mesh points

void SetPoints(Float_t *buff) const
 create sphere mesh points

void Sizeof3D() const
 fill size of this 3-D object



Inline Functions


              Int_t GetByteCount() const
              Int_t GetNmeshVertices() const
           Double_t GetX() const
           Double_t GetY() const
           Double_t GetZ() const
           Double_t GetAlpha() const
           Double_t GetTheta() const
           Double_t GetPhi() const
           Double_t GetTxy() const
           Double_t GetTxz() const
           Double_t GetTyz() const
             Bool_t IsCylType() const
            TClass* Class()
            TClass* IsA() const
               void ShowMembers(TMemberInspector& insp, char* parent)
               void Streamer(TBuffer& b)
               void StreamerNVirtual(TBuffer& b)
           TGeoPara TGeoPara(const TGeoPara&)
          TGeoPara& operator=(const TGeoPara&)


Author: Andrei Gheata 31/01/02
Last update: root/geom:$Name: $:$Id: TGeoPara.cxx,v 1.21 2004/11/08 09:56:24 brun Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
