// @(#)root/geom:$Name:  $:$Id: TGeoSphere.cxx,v 1.35 2004/12/07 14:24:57 brun Exp $
// Author: Andrei Gheata   31/01/02
// TGeoSphere::Contains() DistFromOutside/Out() implemented by Mihaela Gheata

/*************************************************************************
 * Copyright (C) 1995-2000, Rene Brun and Fons Rademakers.               *
 * All rights reserved.                                                  *
 *                                                                       *
 * For the licensing terms see $ROOTSYS/LICENSE.                         *
 * For the list of contributors see $ROOTSYS/README/CREDITS.             *
 *************************************************************************/

//_____________________________________________________________________________

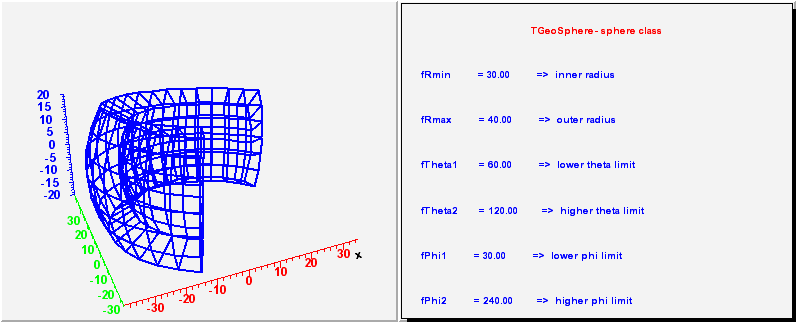

// TGeoSphere - spherical shell class. It takes 6 parameters :
//           - inner and outer radius Rmin, Rmax
//           - the theta limits Tmin, Tmax
//           - the phi limits Pmin, Pmax (the sector in phi is considered
//             starting from Pmin to Pmax counter-clockwise
//
//_____________________________________________________________________________
//
/* */ //


#include "TROOT.h"

#include "TGeoCone.h"
#include "TGeoManager.h"
#include "TGeoVolume.h"
#include "TVirtualGeoPainter.h"
#include "TGeoSphere.h"
#include "TVirtualPad.h"
#include "TBuffer3D.h"


ClassImp(TGeoSphere)

//_____________________________________________________________________________
 TGeoSphere::TGeoSphere()
{
// Default constructor
   SetShapeBit(TGeoShape::kGeoSph);
   fNz = 0;
   fNseg = 0;
   fRmin = 0.0;
   fRmax = 0.0;
   fTheta1 = 0.0;
   fTheta2 = 180.0;
   fPhi1 = 0.0;
   fPhi2 = 360.0;
}

//_____________________________________________________________________________
 TGeoSphere::TGeoSphere(Double_t rmin, Double_t rmax, Double_t theta1,
                       Double_t theta2, Double_t phi1, Double_t phi2)
           :TGeoBBox(0, 0, 0)
{
// Default constructor specifying minimum and maximum radius
   SetShapeBit(TGeoShape::kGeoSph);
   SetSphDimensions(rmin, rmax, theta1, theta2, phi1, phi2);
   ComputeBBox();
   SetNumberOfDivisions(20);
}

//_____________________________________________________________________________
 TGeoSphere::TGeoSphere(const char *name, Double_t rmin, Double_t rmax, Double_t theta1,
                       Double_t theta2, Double_t phi1, Double_t phi2)
           :TGeoBBox(name, 0, 0, 0)
{
// Default constructor specifying minimum and maximum radius
   SetShapeBit(TGeoShape::kGeoSph);
   SetSphDimensions(rmin, rmax, theta1, theta2, phi1, phi2);
   ComputeBBox();
   SetNumberOfDivisions(20);
}

//_____________________________________________________________________________
 TGeoSphere::TGeoSphere(Double_t *param, Int_t /*nparam*/)
           :TGeoBBox(0, 0, 0)
{
// Default constructor specifying minimum and maximum radius
// param[0] = Rmin
// param[1] = Rmax
   SetShapeBit(TGeoShape::kGeoSph);
   SetDimensions(param);
   ComputeBBox();
   SetNumberOfDivisions(20);
}

//_____________________________________________________________________________
 TGeoSphere::~TGeoSphere()
{
// destructor
}

//_____________________________________________________________________________
 void TGeoSphere::ComputeBBox()
{
// compute bounding box of the sphere
//   Double_t xmin, xmax, ymin, ymax, zmin, zmax;
   if (TMath::Abs(fTheta2-fTheta1) == 180) {
      if (TMath::Abs(fPhi2-fPhi1) == 360) {
         TGeoBBox::SetBoxDimensions(fRmax, fRmax, fRmax);
         memset(fOrigin, 0, 3*sizeof(Double_t));
         return;
      }
   }
   Double_t st1 = TMath::Sin(fTheta1*TMath::DegToRad());
   Double_t st2 = TMath::Sin(fTheta2*TMath::DegToRad());
   Double_t r1min, r1max, r2min, r2max, rmin, rmax;
   r1min = TMath::Min(fRmax*st1, fRmax*st2);
   r1max = TMath::Max(fRmax*st1, fRmax*st2);
   r2min = TMath::Min(fRmin*st1, fRmin*st2);
   r2max = TMath::Max(fRmin*st1, fRmin*st2);
   if (((fTheta1<=90) && (fTheta2>=90)) || ((fTheta2<=90) && (fTheta1>=90))) {
      r1max = fRmax;
      r2max = fRmin;
   }
   rmin = TMath::Min(r1min, r2min);
   rmax = TMath::Max(r1max, r2max);

   Double_t xc[4];
   Double_t yc[4];
   xc[0] = rmax*TMath::Cos(fPhi1*TMath::DegToRad());
   yc[0] = rmax*TMath::Sin(fPhi1*TMath::DegToRad());
   xc[1] = rmax*TMath::Cos(fPhi2*TMath::DegToRad());
   yc[1] = rmax*TMath::Sin(fPhi2*TMath::DegToRad());
   xc[2] = rmin*TMath::Cos(fPhi1*TMath::DegToRad());
   yc[2] = rmin*TMath::Sin(fPhi1*TMath::DegToRad());
   xc[3] = rmin*TMath::Cos(fPhi2*TMath::DegToRad());
   yc[3] = rmin*TMath::Sin(fPhi2*TMath::DegToRad());

   Double_t xmin = xc[TMath::LocMin(4, &xc[0])];
   Double_t xmax = xc[TMath::LocMax(4, &xc[0])];
   Double_t ymin = yc[TMath::LocMin(4, &yc[0])];
   Double_t ymax = yc[TMath::LocMax(4, &yc[0])];
   Double_t dp = fPhi2-fPhi1;
   if (dp<0) dp+=360;
   Double_t ddp = -fPhi1;
   if (ddp<0) ddp+= 360;
   if (ddp>360) ddp-=360;
   if (ddp<=dp) xmax = rmax;
   ddp = 90-fPhi1;
   if (ddp<0) ddp+= 360;
   if (ddp>360) ddp-=360;
   if (ddp<=dp) ymax = rmax;
   ddp = 180-fPhi1;
   if (ddp<0) ddp+= 360;
   if (ddp>360) ddp-=360;
   if (ddp<=dp) xmin = -rmax;
   ddp = 270-fPhi1;
   if (ddp<0) ddp+= 360;
   if (ddp>360) ddp-=360;
   if (ddp<=dp) ymin = -rmax;
   xc[0] = fRmax*TMath::Cos(fTheta1*TMath::DegToRad());
   xc[1] = fRmax*TMath::Cos(fTheta2*TMath::DegToRad());
   xc[2] = fRmin*TMath::Cos(fTheta1*TMath::DegToRad());
   xc[3] = fRmin*TMath::Cos(fTheta2*TMath::DegToRad());
   Double_t zmin = xc[TMath::LocMin(4, &xc[0])];
   Double_t zmax = xc[TMath::LocMax(4, &xc[0])];


   fOrigin[0] = (xmax+xmin)/2;
   fOrigin[1] = (ymax+ymin)/2;
   fOrigin[2] = (zmax+zmin)/2;;
   fDX = (xmax-xmin)/2;
   fDY = (ymax-ymin)/2;
   fDZ = (zmax-zmin)/2;
}

//_____________________________________________________________________________
 void TGeoSphere::ComputeNormal(Double_t *point, Double_t *dir, Double_t *norm)
{
// Compute normal to closest surface from POINT.
   Double_t rxy2 = point[0]*point[0]+point[1]*point[1];
   Double_t r2 = rxy2+point[2]*point[2];
   Double_t r=TMath::Sqrt(r2);
   Bool_t rzero=kFALSE;
   if (r<=1E-20) rzero=kTRUE;
   //localize theta
   Double_t phi=0;
   Double_t th=0.;
   if (!rzero) th = TMath::ACos(point[2]/r);

   //localize phi
   phi=TMath::ATan2(point[1], point[0]);

   Double_t saf[4];
   saf[0]=(fRmin==0 && !TestShapeBit(kGeoThetaSeg) && !TestShapeBit(kGeoPhiSeg))?TGeoShape::Big():TMath::Abs(r-fRmin);
   saf[1]=TMath::Abs(fRmax-r);
   saf[2]=saf[3]= TGeoShape::Big();
   if (TestShapeBit(kGeoThetaSeg)) {
      if (fTheta1>0) {
         saf[2] = r*TMath::Abs(TMath::Sin(th-fTheta1*TMath::DegToRad()));
      }
	    if (fTheta2<180) {
         saf[3] = r*TMath::Abs(TMath::Sin(fTheta2*TMath::DegToRad()-th));
	    }
   }
   Int_t i = TMath::LocMin(4,saf);
   if (TestShapeBit(kGeoPhiSeg)) {
      Double_t c1 = TMath::Cos(fPhi1*TMath::DegToRad());
      Double_t s1 = TMath::Sin(fPhi1*TMath::DegToRad());
      Double_t c2 = TMath::Cos(fPhi2*TMath::DegToRad());
      Double_t s2 = TMath::Sin(fPhi2*TMath::DegToRad());
      if (TGeoShape::IsCloseToPhi(saf[i], point,c1,s1,c2,s2)) {
         TGeoShape::NormalPhi(point,dir,norm,c1,s1,c2,s2);
         return;
      }
   }
   if (i>1) {
      if (i==2) th=(fTheta1<90)?(fTheta1+90):(fTheta1-90);
      else      th=(fTheta2<90)?(fTheta2+90):(fTheta2-90);
      th *= TMath::DegToRad();
   }

   norm[0] = TMath::Sin(th)*TMath::Cos(phi);
   norm[1] = TMath::Sin(th)*TMath::Sin(phi);
   norm[2] = TMath::Cos(th);
   if (norm[0]*dir[0]+norm[1]*dir[1]+norm[2]*dir[2]<0) {
      norm[0] = -norm[0];
      norm[1] = -norm[1];
      norm[2] = -norm[2];
   }
}

//_____________________________________________________________________________
 Bool_t TGeoSphere::IsPointInside(Double_t *point, Bool_t checkR, Bool_t checkTh, Bool_t checkPh) const
{
   Double_t r2 = point[0]*point[0]+point[1]*point[1]+point[2]*point[2];
   if (checkR) {
      if (TestShapeBit(kGeoRSeg) && (r2<fRmin*fRmin)) return kFALSE;
      if (r2>fRmax*fRmax) return kFALSE;
   }
   if (r2<1E-20) return kTRUE;
   if (checkPh && TestShapeBit(kGeoPhiSeg)) {
      Double_t phi = TMath::ATan2(point[1], point[0]) * TMath::RadToDeg();
      while (phi < fPhi1) phi+=360.;
      Double_t dphi = fPhi2 -fPhi1;
      Double_t ddp = phi - fPhi1;
      if (ddp > dphi) return kFALSE;
   }
   if (checkTh && TestShapeBit(kGeoThetaSeg)) {
      r2=TMath::Sqrt(r2);
      // check theta range
      Double_t theta = TMath::ACos(point[2]/r2)*TMath::RadToDeg();
      if ((theta<fTheta1) || (theta>fTheta2)) return kFALSE;
   }
   return kTRUE;
}

//_____________________________________________________________________________
 Bool_t TGeoSphere::Contains(Double_t *point) const
{
// test if point is inside this sphere
   // check Rmin<=R<=Rmax
   Double_t r2=point[0]*point[0]+point[1]*point[1]+point[2]*point[2];
   if (TestShapeBit(kGeoRSeg) && (r2<fRmin*fRmin)) return kFALSE;
   if (r2>fRmax*fRmax) return kFALSE;
   if (r2<1E-20) return kTRUE;
   // check phi range
   if (TestShapeBit(kGeoPhiSeg)) {
      Double_t phi = TMath::ATan2(point[1], point[0]) * TMath::RadToDeg();
      if (phi < 0 ) phi+=360.;
      Double_t dphi = fPhi2 -fPhi1;
      if (dphi < 0) dphi+=360.;
      Double_t ddp = phi - fPhi1;
      if (ddp < 0) ddp += 360.;
      if (ddp > dphi) return kFALSE;
   }
   if (TestShapeBit(kGeoThetaSeg)) {
      r2=TMath::Sqrt(r2);
      // check theta range
      Double_t theta = TMath::ACos(point[2]/r2)*TMath::RadToDeg();
      if ((theta<fTheta1) || (theta>fTheta2)) return kFALSE;
   }
   return kTRUE;
}

//_____________________________________________________________________________
 Int_t TGeoSphere::DistancetoPrimitive(Int_t px, Int_t py)
{
// compute closest distance from point px,py to each corner
   Int_t n = fNseg+1;
   Int_t nz = fNz+1;
   const Int_t numPoints = 2*n*nz;
   return ShapeDistancetoPrimitive(numPoints, px, py);
}

//_____________________________________________________________________________
 Double_t TGeoSphere::DistFromOutside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// compute distance from outside point to surface of the sphere
   Double_t saf[6];
   Double_t rxy2 = point[0]*point[0]+point[1]*point[1];
   Double_t rxy = TMath::Sqrt(rxy2);
   Double_t r2 = rxy2+point[2]*point[2];
   Double_t r=TMath::Sqrt(r2);
   Bool_t rzero=kFALSE;
   Double_t phi=0;;
   if (r<1E-20) rzero=kTRUE;
   //localize theta
   Double_t th=0.;
   if (TestShapeBit(kGeoThetaSeg) && (!rzero)) {
      th = TMath::ACos(point[2]/r)*TMath::RadToDeg();
   }
   //localize phi
   if (TestShapeBit(kGeoPhiSeg)) {
      phi=TMath::ATan2(point[1], point[0])*TMath::RadToDeg();
      if (phi<0) phi+=360.;
   }
   if (iact<3 && safe) {
      saf[0]=(r<fRmin)?fRmin-r:TGeoShape::Big();
      saf[1]=(r>fRmax)?(r-fRmax):TGeoShape::Big();
      saf[2]=saf[3]=saf[4]=saf[5]= TGeoShape::Big();
      if (TestShapeBit(kGeoThetaSeg)) {
         if (th < fTheta1) {
            saf[2] = r*TMath::Sin((fTheta1-th)*TMath::DegToRad());
          }
         if (th > fTheta2) {
            saf[3] = r*TMath::Sin((th-fTheta2)*TMath::DegToRad());
         }
      }
      if (TestShapeBit(kGeoPhiSeg)) {
         Double_t dph1=phi-fPhi1;
         if (dph1<0) dph1+=360.;
         if (dph1<=90.) saf[4]=rxy*TMath::Sin(dph1*TMath::DegToRad());
         Double_t dph2=fPhi2-phi;
	 if (dph2<0) dph2+=360.;
         if (dph2>90.) saf[5]=rxy*TMath::Sin(dph2*TMath::DegToRad());
      }
      *safe = saf[TMath::LocMin(6, &saf[0])];
      if (iact==0) return TGeoShape::Big();
      if (iact==1 && step<*safe) return TGeoShape::Big();
   }
   // compute distance to shape
   Double_t snxt = TGeoShape::Big();
   // first check if any crossing at all
   if (r>fRmax) {
      Double_t b = point[0]*dir[0]+point[1]*dir[1]+point[2]*dir[2];
      Double_t c = r2-fRmax*fRmax;
      Double_t d=b*b-c;
      if (d<0) return TGeoShape::Big();
   }
   // do rmin, rmax,  checking phi and theta ranges
   if (r<fRmin) {
      // check first cross of rmin
      snxt = DistToSphere(point, dir, fRmin, kTRUE);
      if (snxt<1E20) return snxt;
   } else {
      if (r>fRmax) {
         // point outside rmax, check first cross of rmax
         snxt = DistToSphere(point, dir, fRmax, kTRUE);
         if (snxt<1E20) return snxt;
         // now check first crossing of rmin
         if (fRmin>0) {
            snxt = DistToSphere(point, dir, fRmin, kTRUE);
            // if this is outside range, check second crossing of rmin
            if (snxt>1E20) {
               snxt = DistToSphere(point, dir, fRmin, kTRUE, kFALSE);
               if (snxt<1E20) return snxt;
            }
         }
      } else {
         // point between rmin and rmax, check first cross of rmin
         snxt = DistToSphere(point, dir, fRmin, kTRUE);
	       // if this is outside range, check second crossing of rmin
         if (snxt>1E20) {
	          snxt = DistToSphere(point, dir, fRmin, kTRUE, kFALSE);
	          if (snxt<1E20) return snxt;
	       }
      }
   }
   // check theta conical surfaces
   Double_t ptnew[3];
   Double_t b,delta, znew;
   Double_t st1=TGeoShape::Big(), st2=TGeoShape::Big();
   if (TestShapeBit(kGeoThetaSeg)) {
      if (fTheta1>0) {
         if (fTheta1==90) {
         // surface is a plane
            if (point[2]*dir[2]<0) {
	             snxt = -point[2]/dir[2];
	             ptnew[0] = point[0]+snxt*dir[0];
	             ptnew[1] = point[1]+snxt*dir[1];
	             ptnew[2] = 0;
	             // check range
	             if (IsPointInside(&ptnew[0], kTRUE, kFALSE, kTRUE)) return snxt;
	          }
	       } else {
	          Double_t r1,r2,z1,z2;
	          Double_t si = TMath::Sin(fTheta1*TMath::DegToRad());
	          Double_t ci = TMath::Cos(fTheta1*TMath::DegToRad());
	          if (ci>0) {
	             r1 = fRmin*si;
	             z1 = fRmin*ci;
	             r2 = fRmax*si;
	             z2 = fRmax*ci;
	          } else {
	             r1 = fRmax*si;
	             z1 = fRmax*ci;
	             r2 = fRmin*si;
	             z2 = fRmin*ci;
	          }
	          if (TestShapeBit(kGeoPhiSeg)) {
               st1 = TGeoConeSeg::DistToCons(point, dir, r1, z1, r2, z2, fPhi1, fPhi2);
	          } else {
               TGeoCone::DistToCone(point, dir, r1, z1, r2, z2, b, delta);
               if (delta>0) {
                  st1 = -b-delta;
                  znew = point[2]+st1*dir[2];
                  if (st1<0 || (z1-znew)*(z2-znew)>=0) {
                     st1 = -b+delta;
                     znew = point[2]+st1*dir[2];
                     if (st1<0 || (z1-znew)*(z2-znew)>=0) st1=TGeoShape::Big();
                  }
               }
	          }
	       }
      }

      if (fTheta2<180) {
         if (fTheta2==90) {
            // surface is a plane
            if (point[2]*dir[2]<0) {
               snxt = -point[2]/dir[2];
               ptnew[0] = point[0]+snxt*dir[0];
               ptnew[1] = point[1]+snxt*dir[1];
               ptnew[2] = 0;
               // check range
               if (IsPointInside(&ptnew[0], kTRUE, kFALSE, kTRUE)) return snxt;
            }
         } else {
            Double_t r1,r2,z1,z2;
            Double_t si = TMath::Sin(fTheta2*TMath::DegToRad());
            Double_t ci = TMath::Cos(fTheta2*TMath::DegToRad());
            if (ci>0) {
               r1 = fRmin*si;
               z1 = fRmin*ci;
               r2 = fRmax*si;
               z2 = fRmax*ci;
            } else {
               r1 = fRmax*si;
               z1 = fRmax*ci;
               r2 = fRmin*si;
               z2 = fRmin*ci;
            }
            if (TestShapeBit(kGeoPhiSeg)) {
               st2 = TGeoConeSeg::DistToCons(point, dir, r1, z1, r2, z2, fPhi1, fPhi2);
            } else {
               TGeoCone::DistToCone(point, dir, r1, z1, r2, z2, b, delta);
               if (delta>0) {
                  st2 = -b-delta;
                  znew = point[2]+st2*dir[2];
                  if (st2<0 || (z1-znew)*(z2-znew)>=0) {
                     st2 = -b+delta;
                     znew = point[2]+st2*dir[2];
                     if (st2<0 || (z1-znew)*(z2-znew)>=0) st2=TGeoShape::Big();
                  }
               }
            }
	       }
	    }
   }
   snxt = TMath::Min(st1, st2);
//   if (snxt<1E20) return snxt;
   if (TestShapeBit(kGeoPhiSeg)) {
      Double_t s1 = TMath::Sin(fPhi1*TMath::DegToRad());
      Double_t c1 = TMath::Cos(fPhi1*TMath::DegToRad());
      Double_t s2 = TMath::Sin(fPhi2*TMath::DegToRad());
      Double_t c2 = TMath::Cos(fPhi2*TMath::DegToRad());
      Double_t phim = 0.5*(fPhi1+fPhi2);
      Double_t sm = TMath::Sin(phim*TMath::DegToRad());
      Double_t cm = TMath::Cos(phim*TMath::DegToRad());
      Double_t sfi1=TGeoShape::Big();
      Double_t sfi2=TGeoShape::Big();
      Double_t s=0;
      Double_t safety, un;
      safety = point[0]*s1-point[1]*c1;
      if (safety>0) {
         un = dir[0]*s1-dir[1]*c1;
         if (un<0) {
            s=-safety/un;
            ptnew[0] = point[0]+s*dir[0];
            ptnew[1] = point[1]+s*dir[1];
            ptnew[2] = point[2]+s*dir[2];
            if ((ptnew[1]*cm-ptnew[0]*sm)<=0) {
	             sfi1=s;
               if (IsPointInside(&ptnew[0], kTRUE, kTRUE, kFALSE) && sfi1<snxt) return sfi1;
	          }
	       }
      }
      safety = -point[0]*s2+point[1]*c2;
      if (safety>0) {
         un = -dir[0]*s2+dir[1]*c2;
         if (un<0) {
            s=-safety/un;
            ptnew[0] = point[0]+s*dir[0];
            ptnew[1] = point[1]+s*dir[1];
            ptnew[2] = point[2]+s*dir[2];
            if ((ptnew[1]*cm-ptnew[0]*sm)>=0) {
	             sfi2=s;
               if (IsPointInside(&ptnew[0], kTRUE, kTRUE, kFALSE) && sfi2<snxt) return sfi2;
	          }
         }
      }
   }
   return snxt;
}

//_____________________________________________________________________________
 Double_t TGeoSphere::DistFromInside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe) const
{
// compute distance from inside point to surface of the sphere
   Double_t saf[6];
   Double_t rxy2 = point[0]*point[0]+point[1]*point[1];
   Double_t rxy = TMath::Sqrt(rxy2);
   Double_t r2 = rxy2+point[2]*point[2];
   Double_t r=TMath::Sqrt(r2);
   Bool_t rzero=kFALSE;
   if (r<=1E-20) rzero=kTRUE;
   //localize theta
   Double_t phi=0;;
   Double_t th=0.;
   if (TestShapeBit(kGeoThetaSeg) && (!rzero)) {
      th = TMath::ACos(point[2]/r)*TMath::RadToDeg();
   }
   //localize phi
   if (TestShapeBit(kGeoPhiSeg)) {
      phi=TMath::ATan2(point[1], point[0])*TMath::RadToDeg();
      if (phi<0) phi+=360.;
   }
   if (iact<3 && safe) {
      saf[0]=(fRmin==0)?TGeoShape::Big():r-fRmin;
      saf[1]=fRmax-r;
      saf[2]=saf[3]=saf[4]=saf[5]= TGeoShape::Big();
      if (TestShapeBit(kGeoThetaSeg)) {
         if (fTheta1>0) {
            saf[2] = r*TMath::Sin((th-fTheta1)*TMath::DegToRad());
         }
	 if (fTheta2<180) {
            saf[3] = r*TMath::Sin((fTheta2-th)*TMath::DegToRad());
	 }
      }
      if (TestShapeBit(kGeoPhiSeg)) {
         Double_t dph1=phi-fPhi1;
	 if (dph1<0) dph1+=360.;
         if (dph1<=90.) saf[4]=rxy*TMath::Sin(dph1*TMath::DegToRad());
         Double_t dph2=fPhi2-phi;
	 if (dph2<0) dph2+=360.;
         if (dph2<=90.) saf[5]=rxy*TMath::Sin(dph2*TMath::DegToRad());
      }
      *safe = saf[TMath::LocMin(6, &saf[0])];
      if (iact==0) return TGeoShape::Big();
      if (iact==1 && step<*safe) return TGeoShape::Big();
   }
   // compute distance to shape
   Double_t snxt = TGeoShape::Big();
   if (rzero) {
//      gGeoManager->SetNormalChecked(1.);
      return fRmax;
   }
   // first do rmin, rmax
   Double_t b,delta, znew;
   Double_t sn1 = DistToSphere(point, dir, fRmin, kFALSE);
   Double_t sn2 = DistToSphere(point, dir, fRmax, kFALSE);
   Double_t sr = TMath::Min(sn1, sn2);
   // check theta conical surfaces
   sn1 = TGeoShape::Big();
   sn2 = TGeoShape::Big();
   if (TestShapeBit(kGeoThetaSeg)) {
      if (fTheta1==90) {
      // surface is a plane
         if (point[2]*dir[2]<0)  sn1 = -point[2]/dir[2];
      } else {
         if (fTheta1>0) {
	          Double_t r1,r2,z1,z2;
	          Double_t si = TMath::Sin(fTheta1*TMath::DegToRad());
	          Double_t ci = TMath::Cos(fTheta1*TMath::DegToRad());
	          if (ci>0) {
	             r1 = fRmin*si;
	             z1 = fRmin*ci;
	             r2 = fRmax*si;
	             z2 = fRmax*ci;
	          } else {
	             r1 = fRmax*si;
	             z1 = fRmax*ci;
	             r2 = fRmin*si;
	             z2 = fRmin*ci;
	          }
	          if (TestShapeBit(kGeoPhiSeg)) {
               sn1 = TGeoConeSeg::DistToCons(point, dir, r1, z1, r2, z2, fPhi1, fPhi2);
	          } else {
               TGeoCone::DistToCone(point, dir, r1, z1, r2, z2, b, delta);
               if (delta>0) {
                  sn1 = -b-delta;
                  znew = point[2]+sn1*dir[2];
                  if (sn1<0 || (z1-znew)*(z2-znew)>=0) {
                     sn1 = -b+delta;
                     znew = point[2]+sn1*dir[2];
                     if (sn1<0 || (z1-znew)*(z2-znew)>=0) sn1=TGeoShape::Big();
                  }
               }
	          }
	       }
      }
      if (fTheta2==90) {
      // surface is a plane
         if (point[2]*dir[2]<0)  sn1 = -point[2]/dir[2];
      } else {
         if (fTheta2<180) {
	          Double_t r1,r2,z1,z2;
	          Double_t si = TMath::Sin(fTheta2*TMath::DegToRad());
	          Double_t ci = TMath::Cos(fTheta2*TMath::DegToRad());
	          if (ci>0) {
	             r1 = fRmin*si;
	             z1 = fRmin*ci;
	             r2 = fRmax*si;
	             z2 = fRmax*ci;
	          } else {
	             r1 = fRmax*si;
	             z1 = fRmax*ci;
	             r2 = fRmin*si;
	             z2 = fRmin*ci;
	          }
	          if (TestShapeBit(kGeoPhiSeg)) {
               sn2 = TGeoConeSeg::DistToCons(point, dir, r1, z1, r2, z2, fPhi1, fPhi2);
	          } else {
               TGeoCone::DistToCone(point, dir, r1, z1, r2, z2, b, delta);
               if (delta>0) {
                  sn2 = -b-delta;
                  znew = point[2]+sn2*dir[2];
                  if (sn2<0 || (z1-znew)*(z2-znew)>=0) {
                     sn2 = -b+delta;
                     znew = point[2]+sn2*dir[2];
                     if (sn2<0 || (z1-znew)*(z2-znew)>=0) sn2=TGeoShape::Big();
                  }
               }
	          }
	       }
      }
   }
   Double_t st = TMath::Min(sn1,sn2);
   Double_t sp = TGeoShape::Big();
   if (TestShapeBit(kGeoPhiSeg)) {
      Double_t s1 = TMath::Sin(fPhi1*TMath::DegToRad());
      Double_t c1 = TMath::Cos(fPhi1*TMath::DegToRad());
      Double_t s2 = TMath::Sin(fPhi2*TMath::DegToRad());
      Double_t c2 = TMath::Cos(fPhi2*TMath::DegToRad());
      Double_t phim = 0.5*(fPhi1+fPhi2);
      Double_t sm = TMath::Sin(phim*TMath::DegToRad());
      Double_t cm = TMath::Cos(phim*TMath::DegToRad());
      sp = TGeoConeSeg::DistToPhiMin(point, dir, s1, c1, s2, c2, sm, cm);
   }
   snxt = TMath::Min(sr, st);
   snxt = TMath::Min(snxt, sp);
   return snxt;
}

//_____________________________________________________________________________
 Double_t TGeoSphere::DistToSphere(Double_t *point, Double_t *dir, Double_t rsph, Bool_t check, Bool_t firstcross) const
{
// compute distance to sphere of radius rsph. Direction has to be a unit vector
   if (rsph<=0) return TGeoShape::Big();
   Double_t s=TGeoShape::Big();
   Double_t r2 = point[0]*point[0]+point[1]*point[1]+point[2]*point[2];
   Double_t b = point[0]*dir[0]+point[1]*dir[1]+point[2]*dir[2];
   Double_t c = r2-rsph*rsph;
   Bool_t in = (c<=0)?kTRUE:kFALSE;
   Double_t d;

   d=b*b-c;
   if (d<0) return TGeoShape::Big();
   Double_t pt[3];
   Int_t i;
   d = TMath::Sqrt(d);
   if (in) {
      s=-b+d;
   } else {
      s = (firstcross)?(-b-d):(-b+d);
   }
   if (s<0) return TGeoShape::Big();
   if (!check) return s;
   for (i=0; i<3; i++) pt[i]=point[i]+s*dir[i];
   // check theta and phi ranges
   if (IsPointInside(&pt[0], kFALSE)) return s;
   return TGeoShape::Big();
}

//_____________________________________________________________________________
 TGeoVolume *TGeoSphere::Divide(TGeoVolume * /*voldiv*/, const char * /*divname*/, Int_t /*iaxis*/, Int_t /*ndiv*/,
                               Double_t /*start*/, Double_t /*step*/)
{
// Divide all range of iaxis in range/step cells
   Error("Divide", "Division of a sphere not implemented");
   return 0;
}

//_____________________________________________________________________________
 const char *TGeoSphere::GetAxisName(Int_t iaxis) const
{
// Returns name of axis IAXIS.
   switch (iaxis) {
      case 1:
         return "R";
      case 2:
         return "THETA";
      case 3:
         return "PHI";
      default:
         return "UNDEFINED";
   }
}

//_____________________________________________________________________________
 Double_t TGeoSphere::GetAxisRange(Int_t iaxis, Double_t &xlo, Double_t &xhi) const
{
// Get range of shape for a given axis.
   xlo = 0;
   xhi = 0;
   Double_t dx = 0;
   switch (iaxis) {
      case 1:
         xlo = fRmin;
         xhi = fRmax;
         dx = xhi-xlo;
         return dx;
      case 2:
         xlo = fPhi1;
         xhi = fPhi2;
         dx = xhi-xlo;
         return dx;
      case 3:
         xlo = fTheta1;
         xhi = fTheta2;
         dx = xhi-xlo;
         return dx;
   }
   return dx;
}

//_____________________________________________________________________________
 void TGeoSphere::GetBoundingCylinder(Double_t *param) const
{
//--- Fill vector param[4] with the bounding cylinder parameters. The order
// is the following : Rmin, Rmax, Phi1, Phi2
   Double_t smin = TMath::Sin(fTheta1*TMath::DegToRad());
   Double_t smax = TMath::Sin(fTheta2*TMath::DegToRad());
   if (smin>smax) {
      Double_t a = smin;
      smin = smax;
      smax = a;
   }
   param[0] = fRmin*smin; // Rmin
   param[0] *= param[0];
   if (((90.-fTheta1)*(fTheta2-90.))>=0) smax = 1.;
   param[1] = fRmax*smax; // Rmax
   param[1] *= param[1];
   param[2] = (fPhi1<0)?(fPhi1+360.):fPhi1; // Phi1
   param[3] = fPhi2;
   if ((param[3]-param[2])==360.) {         // Phi2
      param[2] = 0.;
      param[3] = 360.;
   }
   while (param[3]<param[2]) param[3]+=360.;
}

//_____________________________________________________________________________
 void TGeoSphere::InspectShape() const
{
// print shape parameters
   printf("*** Shape %s: TGeoSphere ***\n", GetName());
   printf("    Rmin = %11.5f\n", fRmin);
   printf("    Rmax = %11.5f\n", fRmax);
   printf("    Th1  = %11.5f\n", fTheta1);
   printf("    Th2  = %11.5f\n", fTheta2);
   printf("    Ph1  = %11.5f\n", fPhi1);
   printf("    Ph2  = %11.5f\n", fPhi2);
   printf(" Bounding box:\n");
   TGeoBBox::InspectShape();
}

 //_____________________________________________________________________________
 TBuffer3D *TGeoSphere::MakeBuffer3D() const
{
   // Creates a TBuffer3D describing *this* shape.
   // Coordinates are in local reference frame.

   Int_t  n = gGeoManager->GetNsegments()+1;
   Double_t ph1 = GetPhi1();
   Double_t ph2 = GetPhi2();
   Int_t nz     = GetNz()+1;
   if (nz < 2) return 0;
   Int_t NbPnts = 2*n*nz;
   if (NbPnts <= 0) return 0;

   Bool_t specialCase = kFALSE;
   if (TMath::Abs(TMath::Sin(2*(ph2 - ph1))) <= 0.01) specialCase = kTRUE;

   Int_t NbSegs = 4*(nz*n-1+(specialCase == kTRUE));
   Int_t NbPols = 2*(nz*n-1+(specialCase == kTRUE));
   TBuffer3D* buff = new TBuffer3D(3*NbPnts, 3*NbSegs, 6*NbPols);

   buff->fType = TBuffer3D::kANY;
   buff->fNbPnts = NbPnts;
   buff->fNbSegs = NbSegs;
   buff->fNbPols = NbPols;

   SetPoints(buff->fPnts);
   SetSegsAndPols(buff);

   return buff;
}

//_____________________________________________________________________________
 void TGeoSphere::Paint(Option_t *option)
{
   // Paint this shape according to option

   // Allocate the necessary spage in gPad->fBuffer3D to store this shape
   SetNumberOfDivisions(gGeoManager->GetNsegments());
   Int_t n = GetNumberOfDivisions()+1;

   // In case of OpenGL a simple sphere can be drawn with a specialized function
   TBuffer3D *buff = gPad->AllocateBuffer3D(11, 0, 0);
   TGeoVolume *vol = gGeoManager->GetPaintVolume();
   if (buff->fOption == TBuffer3D::kOGL &&
       fRmin == 0 && fTheta1 == 0 && fTheta2 == 180 && fPhi1 == 0 && fPhi2 == 360) {
      buff->fNbPnts  = 3;
      buff->fNbSegs  = 0;
      buff->fNbPols  = 0;
      buff->fColor   = vol->GetLineColor();
      buff->fPnts[0] =      0; buff->fPnts[1] =      0; buff->fPnts[2] =      0;
      buff->fPnts[3] =  fRmax; buff->fPnts[4] =  fRmax; buff->fPnts[5] =  fRmax;
      buff->fPnts[6] = -fRmax; buff->fPnts[7] = -fRmax; buff->fPnts[8] = -fRmax;
      buff->fPnts[9] = (Float_t)n;
      buff->fPnts[10] = fRmax;
      TransformPoints(buff);
      buff->fId   = vol;
      buff->fType = TBuffer3D::kSPHE;
      buff->Paint(option);
      return;
   }

   Double_t ph1 = GetPhi1();
   Double_t ph2 = GetPhi2();
   Int_t nz     = GetNz()+1;
   if (nz < 2) return;
   Int_t NbPnts = 2*n*nz;
   if (NbPnts <= 0) return;

   Bool_t specialCase = kFALSE;
   if (TMath::Abs(TMath::Sin(2*(ph2 - ph1))) <= 0.01) specialCase = kTRUE;

   Int_t NbSegs = 4*(nz*n-1+(specialCase == kTRUE));
   Int_t NbPols = 2*(nz*n-1+(specialCase == kTRUE));
   buff = gPad->AllocateBuffer3D(3*NbPnts, 3*NbSegs, 6*NbPols);

   buff->fType = TBuffer3D::kANY;
   buff->fId   = vol;

   // Fill gPad->fBuffer3D. Points coordinates are in Master space
   buff->fNbPnts = NbPnts;
   buff->fNbSegs = NbSegs;
   buff->fNbPols = NbPols;
   // In case of option "size" it is not necessary to fill the buffer
   if (strstr(option,"size")) {
      buff->Paint(option);
      return;
   }

   SetPoints(buff->fPnts);

   TransformPoints(buff);

   // Basic colors: 0, 1, ... 7
   buff->fColor = vol->GetLineColor();
   SetSegsAndPols(buff);

   // Paint gPad->fBuffer3D
   buff->Paint(option);
}

//_____________________________________________________________________________
 void TGeoSphere::SetSegsAndPols(TBuffer3D *buff) const
{
// Fill TBuffer3D structure for segments and polygons.
   Int_t i, j;
   Int_t n = gGeoManager->GetNsegments()+1;
   Double_t ph1 = GetPhi1();
   Double_t ph2 = GetPhi2();
   Int_t nz     = GetNz()+1;
   if (nz < 2) return;
   Bool_t specialCase = kFALSE;
   if (TMath::Abs(TMath::Sin(2*(ph2 - ph1))) <= 0.01) specialCase = kTRUE;
   Int_t c = (((buff->fColor) %8) -1) * 4;
   if (c < 0) c = 0;

   Int_t indx, indx2, k;
   indx = indx2 = 0;

   //inside & outside spheres, number of segments: 2*nz*(n-1)
   //             special case number of segments: 2*nz*n
   for (i = 0; i < nz*2; i++) {
      indx2 = i*n;
      for (j = 1; j < n; j++) {
         buff->fSegs[indx++] = c;
         buff->fSegs[indx++] = indx2+j-1;
         buff->fSegs[indx++] = indx2+j;
      }
      if (specialCase) {
         buff->fSegs[indx++] = c;
         buff->fSegs[indx++] = indx2+j-1;
         buff->fSegs[indx++] = indx2;
      }
   }

   //bottom & top lines, number of segments: 2*n
   for (i = 0; i < 2; i++) {
      indx2 = i*(nz-1)*2*n;
      for (j = 0; j < n; j++) {
         buff->fSegs[indx++] = c;
         buff->fSegs[indx++] = indx2+j;
         buff->fSegs[indx++] = indx2+n+j;
      }
   }

   //inside & outside spheres, number of segments: 2*(nz-1)*n
   for (i = 0; i < (nz-1); i++) {
      //inside sphere
      indx2 = i*n*2;
      for (j = 0; j < n; j++) {
         buff->fSegs[indx++] = c+2;
         buff->fSegs[indx++] = indx2+j;
         buff->fSegs[indx++] = indx2+n*2+j;
      }
      //outside sphere
      indx2 = i*n*2+n;
      for (j = 0; j < n; j++) {
         buff->fSegs[indx++] = c+3;
         buff->fSegs[indx++] = indx2+j;
         buff->fSegs[indx++] = indx2+n*2+j;
      }
   }

   //left & right sections, number of segments: 2*(nz-2)
   //          special case number of segments: 0
   if (!specialCase) {
      for (i = 1; i < (nz-1); i++) {
         for (j = 0; j < 2; j++) {
            buff->fSegs[indx++] = c;
            buff->fSegs[indx++] =  2*i    * n + j*(n-1);
            buff->fSegs[indx++] = (2*i+1) * n + j*(n-1);
         }
      }
   }

   Int_t m = n - 1 + (specialCase == kTRUE);
   indx = 0;

   //bottom & top, number of polygons: 2*(n-1)
   // special case number of polygons: 2*n
   i = 0;
   for (j = 0; j < n-1; j++) {
      buff->fPols[indx++] = c+3;
      buff->fPols[indx++] = 4;
      buff->fPols[indx++] = i*(nz*2-2)*m+j;
      buff->fPols[indx++] = 2*nz*m+i*n+j+1;
      buff->fPols[indx++] = i*(nz*2-2)*m+m+j;
      buff->fPols[indx++] = 2*nz*m+i*n+j;
   }
   if (specialCase) {
      buff->fPols[indx++] = c+3;
      buff->fPols[indx++] = 4;
      buff->fPols[indx++] = i*(nz*2-2)*m+j;
      buff->fPols[indx++] = 2*nz*m+i*n;
      buff->fPols[indx++] = i*(nz*2-2)*m+m+j;
      buff->fPols[indx++] = 2*nz*m+i*n+j;
   }
   i = 1;
   for (j = 0; j < n-1; j++) {
      buff->fPols[indx++] = c+3;
      buff->fPols[indx++] = 4;
      buff->fPols[indx++] = 2*nz*m+i*n+j;
      buff->fPols[indx++] = i*(nz*2-2)*m+m+j;
      buff->fPols[indx++] = 2*nz*m+i*n+j+1;
      buff->fPols[indx++] = i*(nz*2-2)*m+j;
   }
   if (specialCase) {
      buff->fPols[indx++] = c+3;
      buff->fPols[indx++] = 4;
      buff->fPols[indx++] = 2*nz*m+i*n+j;
      buff->fPols[indx++] = i*(nz*2-2)*m+m+j;
      buff->fPols[indx++] = 2*nz*m+i*n;
      buff->fPols[indx++] = i*(nz*2-2)*m+j;
   }

   //inside & outside, number of polygons: (nz-1)*2*(n-1)
   for (k = 0; k < (nz-1); k++) {
      i = 0;
      for (j = 0; j < n-1; j++) {
         buff->fPols[indx++] = c+i;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = (2*k+i*1)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j;
         buff->fPols[indx++] = (2*k+i*1+2)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j+1;
      }
      if (specialCase) {
         buff->fPols[indx++] = c+i;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = (2*k+i*1)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j;
         buff->fPols[indx++] = (2*k+i*1+2)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n;
      }
      i = 1;
      for (j = 0; j < n-1; j++) {
         buff->fPols[indx++] = c+i;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j+1;
         buff->fPols[indx++] = (2*k+i*1+2)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j;
         buff->fPols[indx++] = (2*k+i*1)*m+j;
      }
      if (specialCase) {
         buff->fPols[indx++] = c+i;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n;
         buff->fPols[indx++] = (2*k+i*1+2)*m+j;
         buff->fPols[indx++] = nz*2*m+(2*k+i*1+2)*n+j;
         buff->fPols[indx++] = (2*k+i*1)*m+j;
      }
   }

   //left & right sections, number of polygons: 2*(nz-1)
   //          special case number of polygons: 0
   if (!specialCase) {
      indx2 = nz*2*(n-1);
      for (k = 0; k < (nz-1); k++) {
         i = 0;
         buff->fPols[indx++] = c+2;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = k==0 ? indx2+i*(n-1) : indx2+2*nz*n+2*(k-1)+i;
         buff->fPols[indx++] = indx2+(2*k+3)*n+i*(n-1);
         buff->fPols[indx++] = indx2+2*nz*n+2*k+i;
         buff->fPols[indx++] = indx2+2*(k+1)*n+i*(n-1);
         i = 1;
         buff->fPols[indx++] = c+2;
         buff->fPols[indx++] = 4;
         buff->fPols[indx++] = k==0 ? indx2+i*(n-1) : indx2+2*nz*n+2*(k-1)+i;
         buff->fPols[indx++] = indx2+2*(k+1)*n+i*(n-1);
         buff->fPols[indx++] = indx2+2*nz*n+2*k+i;
         buff->fPols[indx++] = indx2+(2*k+3)*n+i*(n-1);
      }
      buff->fPols[indx-8] = indx2+n;
      buff->fPols[indx-2] = indx2+2*n-1;
   }
}

//_____________________________________________________________________________
 Double_t TGeoSphere::Safety(Double_t *point, Bool_t in) const
{
// computes the closest distance from given point to this shape, according
// to option. The matching point on the shape is stored in spoint.
   Double_t r2 = point[0]*point[0]+point[1]*point[1]+point[2]*point[2];
   Double_t r=TMath::Sqrt(r2);
   Bool_t rzero=kFALSE;
   if (r<=1E-20) rzero=kTRUE;
   //localize theta
   Double_t th=0.;
   if (TestShapeBit(kGeoThetaSeg) && (!rzero)) {
      th = TMath::ACos(point[2]/r)*TMath::RadToDeg();
   }
   Double_t saf[4];
   saf[0]=(fRmin==0 && !TestShapeBit(kGeoThetaSeg) && !TestShapeBit(kGeoPhiSeg))?TGeoShape::Big():r-fRmin;
   saf[1]=fRmax-r;
   saf[2]=saf[3]= TGeoShape::Big();
   if (TestShapeBit(kGeoThetaSeg)) {
      if (fTheta1>0)    saf[2] = r*TMath::Sin((th-fTheta1)*TMath::DegToRad());
	   if (fTheta2<180)  saf[3] = r*TMath::Sin((fTheta2-th)*TMath::DegToRad());
   }
   Double_t safphi = TGeoShape::Big();
   Double_t safe = TGeoShape::Big();
   if (TestShapeBit(kGeoPhiSeg)) safphi = TGeoShape::SafetyPhi(point,in,fPhi1,fPhi2);
   if (in) {
      safe = saf[TMath::LocMin(4,saf)];
      return TMath::Min(safe,safphi);
   }
   for (Int_t i=0; i<4; i++) saf[i]=-saf[i];
   safe = saf[TMath::LocMax(4, saf)];
   if (TestShapeBit(kGeoPhiSeg)) return TMath::Max(safe, safphi);
   return safe;
}

//_____________________________________________________________________________
 void TGeoSphere::SetSphDimensions(Double_t rmin, Double_t rmax, Double_t theta1,
                               Double_t theta2, Double_t phi1, Double_t phi2)
{
   if (rmin >= rmax) {
      Error("SetDimensions", "invalid parameters rmin/rmax");
      return;
   }
   fRmin = rmin;
   fRmax = rmax;
   if (rmin>0) SetShapeBit(kGeoRSeg);
   if (theta1 >= theta2 || theta1<0 || theta1>180 || theta2>180) {
      Error("SetDimensions", "invalid parameters theta1/theta2");
      return;
   }
   fTheta1 = theta1;
   fTheta2 = theta2;
   if ((theta2-theta1)<180.) SetShapeBit(kGeoThetaSeg);
   fPhi1 = phi1;
   if (phi1<0) fPhi1+=360.;
   fPhi2 = phi2;
   while (fPhi2<fPhi1) fPhi2+=360.;
   if (TMath::Abs(phi2-phi1)!=360.) SetShapeBit(kGeoPhiSeg);
}

//_____________________________________________________________________________
 void TGeoSphere::SetDimensions(Double_t *param)
{
   Double_t rmin = param[0];
   Double_t rmax = param[1];
   Double_t theta1 = 0;
   Double_t theta2 = 180.;
   Double_t phi1 = 0;
   Double_t phi2 = 360.;
//   if (nparam > 2) theta1 = param[2];
//   if (nparam > 3) theta2 = param[3];
//   if (nparam > 4) phi1   = param[4];
//   if (nparam > 5) phi2   = param[5];
   SetSphDimensions(rmin, rmax, theta1, theta2, phi1, phi2);
}

//_____________________________________________________________________________
 void TGeoSphere::SetNumberOfDivisions(Int_t p)
{
   fNseg = p;
   Double_t dphi = fPhi2 - fPhi1;
   if (dphi<0) dphi+=360;
   Double_t dtheta = TMath::Abs(fTheta2-fTheta1);
   fNz = Int_t(fNseg*dtheta/dphi) +1;
}

//_____________________________________________________________________________
 void TGeoSphere::SetPoints(Double_t *buff) const
{
// create sphere mesh points
   Int_t i,j ;
    if (buff) {
        Double_t dphi = fPhi2-fPhi1;
        if (dphi<0) dphi+=360;
        Double_t dtheta = fTheta2-fTheta1;

        Int_t n            = fNseg + 1;
        dphi = dphi/fNseg;
        dtheta = dtheta/fNz;
        Double_t z, theta, phi, cphi, sphi;
        Int_t indx=0;
        for (i = 0; i < fNz+1; i++)
        {
            theta = (fTheta1+i*dtheta)*TMath::DegToRad();
            z = fRmin * TMath::Cos(theta); // fSinPhiTab[i];
            Double_t zi = fRmin*TMath::Sin(theta);
//            printf("plane %i nseg=%i z=%f:\n", i,n,z);
            for (j = 0; j < n; j++) {
                phi = (fPhi1+j*dphi)*TMath::DegToRad();
                cphi = TMath::Cos(phi);
                sphi = TMath::Sin(phi);
                buff[indx++] = zi * cphi;
                buff[indx++] = zi * sphi;
                buff[indx++] = z;
//                printf("%i %f %f %f\n", j, buff[3*j], buff[3*j+1], buff[3*j+2]);
            }
            z = fRmax * TMath::Cos(theta);
            zi = fRmax* TMath::Sin(theta);
//            printf("outer points for plane %i:\n", i);
            for (j = 0; j < n; j++) {
                phi = (fPhi1+j*dphi)*TMath::DegToRad();
                cphi = TMath::Cos(phi);
                sphi = TMath::Sin(phi);
                buff[indx++] = zi * cphi;
                buff[indx++] = zi * sphi;
                buff[indx++] = z;
//                printf("%i %f %f %f\n", j, buff[n+3*j], buff[n+3*j+1], buff[n+3*j+2]);
            }
        }
    }
}

//_____________________________________________________________________________
 void TGeoSphere::SetPoints(Float_t *buff) const
{
// create sphere mesh points
   Int_t i,j ;
    if (buff) {
        Double_t dphi = fPhi2-fPhi1;
        if (dphi<0) dphi+=360;
        Double_t dtheta = fTheta2-fTheta1;

        Int_t n            = fNseg + 1;
        dphi = dphi/fNseg;
        dtheta = dtheta/fNz;
        Double_t z, theta, phi, cphi, sphi;
        Int_t indx=0;
        for (i = 0; i < fNz+1; i++)
        {
            theta = (fTheta1+i*dtheta)*TMath::DegToRad();
            z = fRmin * TMath::Cos(theta); // fSinPhiTab[i];
            Double_t zi = fRmin*TMath::Sin(theta);
//            printf("plane %i nseg=%i z=%f:\n", i,n,z);
            for (j = 0; j < n; j++)
            {
                phi = (fPhi1+j*dphi)*TMath::DegToRad();
                cphi = TMath::Cos(phi);
                sphi = TMath::Sin(phi);
                buff[indx++] = zi * cphi;
                buff[indx++] = zi * sphi;
                buff[indx++] = z;
//                printf("%i %f %f %f\n", j, buff[3*j], buff[3*j+1], buff[3*j+2]);
            }
            z = fRmax * TMath::Cos(theta);
            zi = fRmax* TMath::Sin(theta);
//            printf("outer points for plane %i:\n", i);
            for (j = 0; j < n; j++)
            {
                phi = (fPhi1+j*dphi)*TMath::DegToRad();
                cphi = TMath::Cos(phi);
                sphi = TMath::Sin(phi);
                buff[indx++] = zi * cphi;
                buff[indx++] = zi * sphi;
                buff[indx++] = z;
//                printf("%i %f %f %f\n", j, buff[n+3*j], buff[n+3*j+1], buff[n+3*j+2]);
            }
        }
    }
}

//_____________________________________________________________________________
 Int_t TGeoSphere::GetNmeshVertices() const
{
// Return number of vertices of the mesh representation
   Int_t n;
   n = fNseg+1;
   Int_t nz = fNz+1;
   Int_t numPoints = 2*n*nz;
   return numPoints;
}

//_____________________________________________________________________________
 void TGeoSphere::Sizeof3D() const
{
///// fill size of this 3-D object
///    TVirtualGeoPainter *painter = gGeoManager->GetGeomPainter();
///    if (!painter) return;
///
///    Int_t n;
///    n = fNseg+1;
///    Int_t nz = fNz+1;
///    Bool_t specialCase = kFALSE;
///
///    if (TMath::Abs(TMath::Sin(2*(fPhi2 - fPhi1))) <= 0.01)  //mark this as a very special case, when
///          specialCase = kTRUE;                                  //we have to draw this PCON like a TUBE
///
///    Int_t numPoints = 2*n*nz;
///    Int_t numSegs   = 4*(nz*n-1+(specialCase == kTRUE));
///    Int_t numPolys  = 2*(nz*n-1+(specialCase == kTRUE));
///    painter->AddSize3D(numPoints, numSegs, numPolys);
}


ROOT page - Class index - Class Hierarchy - Top of the page

This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
