library: libGeom
#include "TGeoPara.h"


class description - header file - source file
viewCVS header - viewCVS source

class TGeoPara: public TGeoBBox

Inheritance Inherited Members Includes Libraries
Class Charts

Function Members (Methods)

Display options:
Show inherited
Show non-public
TGeoPara(Double_t* param)
TGeoPara(const TGeoPara&)
TGeoPara(Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
TGeoPara(const char* name, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
static Bool_tTGeoBBox::AreOverlapping(const TGeoBBox* box1, const TGeoMatrix* mat1, const TGeoBBox* box2, const TGeoMatrix* mat2)
static Double_tTGeoShape::Big()
virtual voidTObject::Browse(TBrowser* b)
virtual Double_tCapacity() const
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidComputeBBox()
virtual voidComputeNormal(Double_t* point, Double_t* dir, Double_t* norm)
virtual Bool_tContains(Double_t* point) const
virtual voidTNamed::Copy(TObject& named) const
virtual Bool_tTGeoBBox::CouldBeCrossed(Double_t* point, Double_t* dir) const
virtual voidTObject::Delete(Option_t* option = "")
virtual Int_tTGeoBBox::DistancetoPrimitive(Int_t px, Int_t py)
virtual Double_tDistFromInside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
virtual Double_tDistFromOutside(Double_t* point, Double_t* dir, Int_t iact = 1, Double_t step = TGeoShape::Big(), Double_t* safe = 0) const
static Double_tTGeoShape::DistToPhiMin(Double_t* point, Double_t* dir, Double_t s1, Double_t c1, Double_t s2, Double_t c2, Double_t sm, Double_t cm, Bool_t in = kTRUE)
virtual TGeoVolume*Divide(TGeoVolume* voldiv, const char* divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
virtual voidTGeoShape::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() const
virtual TObject*TObject::DrawClone(Option_t* option = "") const
virtual voidTObject::Dump() const
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTGeoShape::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Double_tGetAlpha() const
virtual const char*TGeoBBox::GetAxisName(Int_t iaxis) const
virtual Double_tGetAxisRange(Int_t iaxis, Double_t& xlo, Double_t& xhi) const
virtual voidGetBoundingCylinder(Double_t* param) const
virtual const TBuffer3D&TGeoBBox::GetBuffer3D(Int_t reqSections, Bool_t localFrame) const
virtual Int_tGetByteCount() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual Double_tTGeoBBox::GetDX() const
virtual Double_tTGeoBBox::GetDY() const
virtual Double_tTGeoBBox::GetDZ() const
virtual Int_tGetFittingBox(const TGeoBBox* parambox, TGeoMatrix* mat, Double_t& dx, Double_t& dy, Double_t& dz) const
virtual const char*TObject::GetIconName() const
Int_tTGeoShape::GetId() const
virtual TGeoShape*GetMakeRuntimeShape(TGeoShape* mother, TGeoMatrix* mat) const
virtual const char*TGeoShape::GetName() const
virtual Int_tGetNmeshVertices() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const Double_t*TGeoBBox::GetOrigin() const
Double_tGetPhi() const
char*TGeoShape::GetPointerName() const
Double_tGetTheta() const
virtual const char*TNamed::GetTitle() const
static TGeoMatrix*TGeoShape::GetTransform()
Double_tGetTxy() const
Double_tGetTxz() const
Double_tGetTyz() const
virtual UInt_tTObject::GetUniqueID() const
Double_tGetX() const
Double_tGetY() const
Double_tGetZ() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() const
virtual voidInspectShape() const
voidTObject::InvertBit(UInt_t f)
voidTGeoShape::InvertShapeBit(UInt_t f)
virtual TClass*IsA() const
static Bool_tTGeoShape::IsCloseToPhi(Double_t epsil, Double_t* point, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
virtual Bool_tTGeoShape::IsComposite() const
static Bool_tTGeoShape::IsCrossingSemiplane(Double_t* point, Double_t* dir, Double_t cphi, Double_t sphi, Double_t& snext, Double_t& rxy)
virtual Bool_tIsCylType() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
static Bool_tTGeoShape::IsInPhiRange(Double_t* point, Double_t phi1, Double_t phi2)
virtual Bool_tTGeoBBox::IsNullBox() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTGeoShape::IsReflected() const
Bool_tTGeoShape::IsRunTimeShape() const
virtual Bool_tTNamed::IsSortable() const
Bool_tTGeoShape::IsValid() const
virtual Bool_tTGeoBBox::IsValidBox() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
virtual TBuffer3D*TGeoBBox::MakeBuffer3D() const
voidTObject::MayNotUse(const char* method) const
static voidTGeoShape::NormalPhi(Double_t* point, Double_t* dir, Double_t* norm, Double_t c1, Double_t s1, Double_t c2, Double_t s2)
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TGeoPara&operator=(const TGeoPara&)
virtual voidTGeoShape::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
voidTGeoShape::ResetShapeBit(UInt_t f)
virtual Double_tSafety(Double_t* point, Bool_t in = kTRUE) const
static Double_tTGeoShape::SafetyPhi(Double_t* point, Bool_t in, Double_t phi1, Double_t phi2)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") const
virtual voidSavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidTGeoBBox::SetBoxDimensions(Double_t dx, Double_t dy, Double_t dz, Double_t* origin = 0)
voidTGeoBBox::SetBoxPoints(Double_t* points) const
virtual voidSetDimensions(Double_t* param)
virtual voidTObject::SetDrawOption(Option_t* option = "")
static voidTObject::SetDtorOnly(void* obj)
voidTGeoShape::SetId(Int_t id)
virtual voidTNamed::SetName(const char* name)
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidSetPoints(Double_t* points) const
virtual voidSetPoints(Float_t* points) const
voidTGeoShape::SetRuntime(Bool_t flag = kTRUE)
virtual voidTGeoBBox::SetSegsAndPols(TBuffer3D& buffer) const
voidTGeoShape::SetShapeBit(UInt_t f)
voidTGeoShape::SetShapeBit(UInt_t f, Bool_t set)
virtual voidTNamed::SetTitle(const char* title = "")
static voidTGeoShape::SetTransform(TGeoMatrix* matrix)
virtual voidTObject::SetUniqueID(UInt_t uid)
Int_tTGeoShape::ShapeDistancetoPrimitive(Int_t numpoints, Int_t px, Int_t py) const
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidSizeof3D() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
Bool_tTGeoShape::TestShapeBit(UInt_t f) const
Int_tTGeoShape::TestShapeBits(UInt_t f) const
static Double_tTGeoShape::Tolerance()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = "0", Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = "0", Int_t option = 0, Int_t bufsize = 0) const
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
virtual voidTGeoBBox::FillBuffer3D(TBuffer3D& buffer, Int_t reqSections, Bool_t localFrame) const
Int_tTGeoShape::GetBasicColor() const
voidTGeoShape::TransformPoints(Double_t* points, UInt_t NbPoints) const

Data Members

enum TGeoShape::EShapeType { kBitMask32
enum TObject::EStatusBits { kCanDelete
enum TObject::[unnamed] { kIsOnHeap
Double_tfXX half-length
Double_tfYY half-length
Double_tfZZ half-length
Double_tfAlphaangle w.r.t Y from the center of low Y to the hihg Y
Double_tfThetapolar angle of segment between low and hi Z surfaces
Double_tfPhiazimuthal angle of segment between low and hi Z surfaces
Double_tfTxytangent of XY section angle
Double_tfTxztangent of XZ section angle
Double_tfTyztangent of XZ section angle
Double_tTGeoBBox::fDXX half-length
Double_tTGeoBBox::fDYY half-length
Double_tTGeoBBox::fDZZ half-length
Double_tTGeoBBox::fOrigin[3]box origin
Int_tTGeoShape::fShapeIdshape id
UInt_tTGeoShape::fShapeBitsshape bits
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title

Class Description

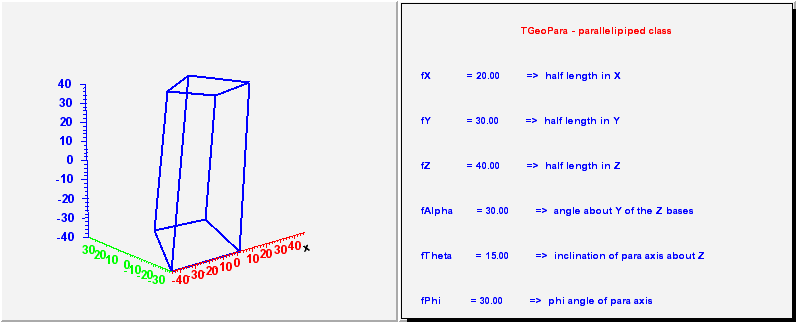

 TGeoPara - parallelipeped class. It has 6 parameters :
         dx, dy, dz - half lengths in X, Y, Z
         alpha - angle w.r.t the Y axis from center of low Y edge to
                 center of high Y edge [deg]
         theta, phi - polar and azimuthal angles of the segment between
                 low and high Z surfaces [deg]


/* */






 Default constructor
TGeoPara(Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
 Default constructor specifying minimum and maximum radius
TGeoPara(const char *name, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
 Default constructor specifying minimum and maximum radius
TGeoPara(Double_t *param)
 Default constructor
 param[0] = dx
 param[1] = dy
 param[2] = dz
 param[3] = alpha
 param[4] = theta
 param[5] = phi
Double_t Capacity()
 Computes capacity of the shape in [length^3]
void ComputeBBox()
 compute bounding box
void ComputeNormal(Double_t *point, Double_t *dir, Double_t *norm)
 Compute normal to closest surface from POINT.
Bool_t Contains(Double_t *point)
 test if point is inside this sphere
 test Z range
Double_t DistFromInside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe)
 compute distance from inside point to surface of the para
 Boundary safe algorithm.
Double_t DistFromOutside(Double_t *point, Double_t *dir, Int_t iact, Double_t step, Double_t *safe)
 compute distance from inside point to surface of the para

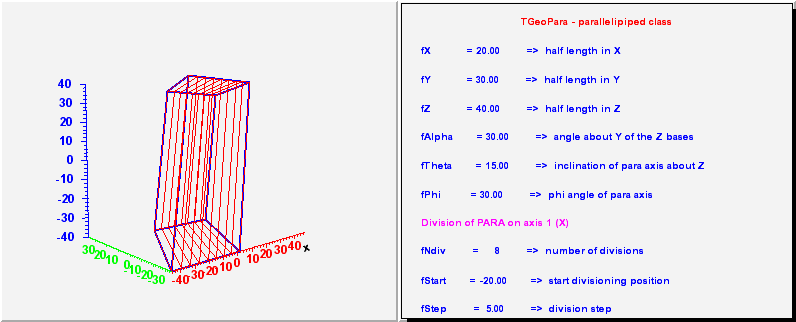

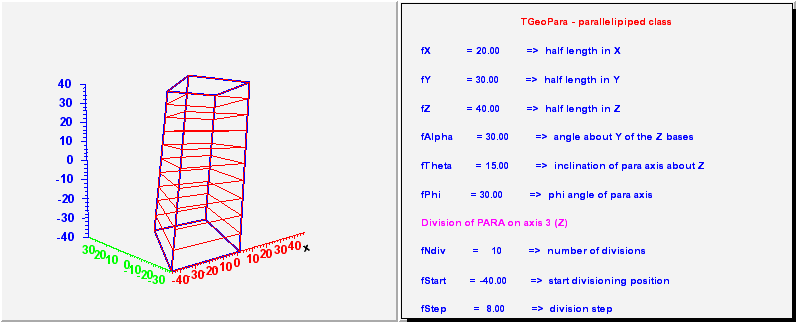

TGeoVolume * Divide(TGeoVolume *voldiv, const char *divname, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step)
--- Divide this paralelipiped shape belonging to volume "voldiv" into ndiv equal volumes
 called divname, from start position with the given step. Returns pointer
 to created division cell volume. In case a wrong division axis is supplied,
 returns pointer to volume to be divided.
Double_t GetAxisRange(Int_t iaxis, Double_t &xlo, Double_t &xhi)
 Get range of shape for a given axis.
void GetBoundingCylinder(Double_t *param)
--- Fill vector param[4] with the bounding cylinder parameters. The order
 is the following : Rmin, Rmax, Phi1, Phi2
Int_t GetFittingBox(const TGeoBBox *parambox, TGeoMatrix *mat, Double_t &dx, Double_t &dy, Double_t &dz)
 Fills real parameters of a positioned box inside this. Returns 0 if successfull.
TGeoShape * GetMakeRuntimeShape(TGeoShape *mother, TGeoMatrix * /*mat*/)
 in case shape has some negative parameters, these has to be computed
 in order to fit the mother
void InspectShape()
 print shape parameters
Double_t Safety(Double_t *point, Bool_t in)
 computes the closest distance from given point to this shape, according
 to option. The matching point on the shape is stored in spoint.
void SavePrimitive(ostream &out, Option_t * /*option*/ /*= ""*/)
 Save a primitive as a C++ statement(s) on output stream "out".
void SetDimensions(Double_t *param)
 Set dimensions starting from an array.
void SetPoints(Double_t *points)
 Create PARA mesh points
void SetPoints(Float_t *points)
 create sphere mesh points
void Sizeof3D()
 fill size of this 3-D object
Int_t GetByteCount()
{return 48;}
Int_t GetNmeshVertices()
{return 8;}
Double_t GetX()
{return fX;}
Double_t GetY()
{return fY;}
Double_t GetZ()
{return fZ;}
Double_t GetAlpha()
{return fAlpha;}
Double_t GetTheta()
{return fTheta;}
Double_t GetPhi()
{return fPhi;}
Double_t GetTxy()
{return fTxy;}
Double_t GetTxz()
{return fTxz;}
Double_t GetTyz()
{return fTyz;}
Bool_t IsCylType()
{return kFALSE;}

Author: Andrei Gheata 31/01/02
Last update: root/geom:$Name: $:$Id: TGeoPara.cxx,v 1.30 2006/07/03 16:10:44 brun Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *

ROOT page - Class index - Class Hierarchy - Top of the page

This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
