class TAttCanvas

-

library: libGpad
#include "TAttCanvas.h"

Display options:

[ ↑ Top ] | [ ? Help ]

Location: ROOT » GPAD » TAttCanvas

Quick Links: ROOT Class Index Class Hierarchy

Source: header file source file viewCVS header viewCVS source

Sections: class description function members data members class charts

class TAttCanvas


     Manages canvas attributes. Referenced by TStyle.

Function Members (Methods)

public:

	TAttCanvas()
	TAttCanvas(const TAttCanvas&)
virtual	~TAttCanvas()
static TClass*	Class()
virtual void	Copy(TAttCanvas& attcanvas) const
Float_t	GetAdate() const
Float_t	GetTitleFromTop() const
Float_t	GetXBetween() const
Float_t	GetXdate() const
Float_t	GetYBetween() const
Float_t	GetYdate() const
virtual TClass*	IsA() const
TAttCanvas&	operator=(const TAttCanvas&)
virtual void	Print(Option_t* option = "") const
virtual void	ResetAttCanvas(Option_t* option = "")
virtual void	SetAdate(Float_t adate)
virtual void	SetTitleFromTop(Float_t titlefromtop)
virtual void	SetXBetween(Float_t xbetween)
virtual void	SetXdate(Float_t xdate)
virtual void	SetYBetween(Float_t ybetween)
virtual void	SetYdate(Float_t ydate)
virtual void	ShowMembers(TMemberInspector& insp, char* parent)
virtual void	Streamer(TBuffer& b)
void	StreamerNVirtual(TBuffer& b)

Data Members

private:

Float_t	fAdate	Alignment for the date
Float_t	fTitleFromTop	Y distance of Global Title from top
Float_t	fXBetween	X distance between pads
Float_t	fXdate	X position where to draw the date
Float_t	fYBetween	Y distance between pads
Float_t	fYdate	X position where to draw the date

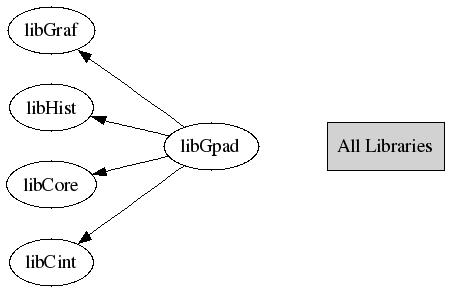

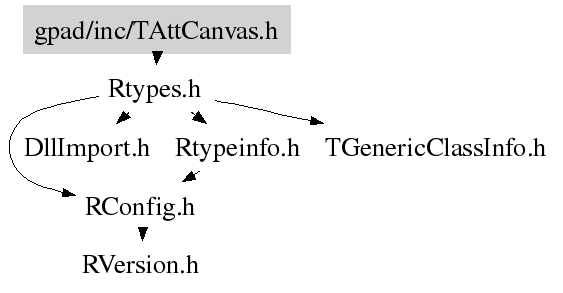

Class Charts

Inheritance Inherited Members Includes Libraries

Class Charts

Function documentation

TAttCanvas(const TAttCanvas& )

 Default constructor.

 Destructor.

void Copy(TAttCanvas& attcanvas) const

 Copy constructor.

void Print(Option_t* option = "") const

 Print canvas attributes.

void ResetAttCanvas(Option_t* option = "")

 Print canvas attributes.

TAttCanvas(const TAttCanvas& )

Float_t GetAdate()

{ return fAdate;}

Float_t GetTitleFromTop()

{ return fTitleFromTop;}

Float_t GetXBetween()

{ return fXBetween;}

Float_t GetXdate()

{ return fXdate;}

Float_t GetYBetween()

{ return fYBetween;}

Float_t GetYdate()

{ return fYdate;}

void SetAdate(Float_t adate)

{ fAdate=adate;}

void SetTitleFromTop(Float_t titlefromtop)

{ fTitleFromTop=titlefromtop;}

void SetXBetween(Float_t xbetween)

{ fXBetween=xbetween;}

void SetXdate(Float_t xdate)

{ fXdate=xdate;}

void SetYBetween(Float_t ybetween)

{ fYBetween=ybetween;}

void SetYdate(Float_t ydate)

{ fYdate=ydate;}

Author: Rene Brun 12/12/94
Last update: root/gpad:$Name: $:$Id: TAttCanvas.cxx,v 1.4 2005/11/21 17:26:31 couet Exp $
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
