The F O R M U L A class*-*-*-*- *-* ========================= - *-* This class has been implemented byNicolas Brun
(age 18). *-* ========================================================/* */
- *-* Example of valid expressions: *-* - sin(x)/x *-* - [0]*sin(x) + [1]*exp(-[2]*x) *-* - x + y**2 *-* - x^2 + y^2 *-* - [0]*pow([1],4) *-* - 2*pi*sqrt(x/y) *-* - gaus(0)*expo(3) + ypol3(5)*x *-* - gausn(0)*expo(3) + ypol3(5)*x - *-* In the last example above: *-* gaus(0) is a substitute for [0]*exp(-0.5*((x-[1])/[2])**2) *-* and (0) means start numbering parameters at 0 *-* gausn(0) is a substitute for [0]*exp(-0.5*((x-[1])/[2])**2)/(sqrt(2*pi)*[2])) *-* and (0) means start numbering parameters at 0 *-* expo(3) is a substitute for exp([3]+[4]*x) *-* pol3(5) is a substitute for par[5]+par[6]*x+par[7]*x**2+par[8]*x**3 *-* (here Pol3 stands for Polynomial of degree 3) - *-* TMath functions can be part of the expression, eg: *-* - TMath::Landau(x)*sin(x) *-* - TMath::Erf(x) - *-* Comparisons operators are also supported (&&, ||, ==, <=, >=, !) *-* Examples: *-* sin(x*(x<0.5 || x>1)) *-* If the result of a comparison is TRUE, the result is 1, otherwise 0. - *-* Already predefined names can be given. For example, if the formula *-* TFormula old(sin(x*(x<0.5 || x>1))) one can assign a name to the formula. By default *-* the name of the object = title = formula itself. *-* old.SetName("old"). *-* then, old can be reused in a new expression. *-* TFormula new("x*old") is equivalent to: *-* TFormula new("x*sin(x*(x<0.5 || x>1))") - *-* Up to 4 dimensions are supported (indicated by x, y, z, t) *-* An expression may have 0 parameters or a list of parameters *-* indicated by the sequence [par_number] - *-* A graph showing the logic to compile and analyze a formula *-* is shown in TFormula::Compile and TFormula::Analyze. *-* Once a formula has been compiled, it can be evaluated for a given *-* set of parameters. see graph in TFormula::EvalPar. - *-* This class is the base class for the function classes TF1,TF2 and TF3. *-* It is also used by the ntuple selection mechanism TNtupleFormula. - *-* In version 7 of TFormula, the usage of fOper has been changed *-* to improve the performance of TFormula::EvalPar. *-* Conceptually, fOper was changed from a simple array of Int_t *-* to an array of composite values. *-* For example a 'ylandau(5)' operation used to be encoded as 4105; *-* it is now encoded as (klandau >> kTFOperShit) + 5 *-* Any class inheriting from TFormula and using directly fOper (which *-* is now a private data member), needs to be updated to take this *-* in consideration. The member functions recommended to set and *-* access fOper are: SetAction, GetAction, GetActionParam *-* For more performant access to the information, see the implementation *-* TFormula::EvalPar - *-* WHY TFormula CANNOT ACCEPT A CLASS MEMBER FUNCTION ? *-* ==================================================== *-* This is a frequently asked question. *-* C++ is a strongly typed language. There is no way for TFormula (without *-* recompiling this class) to know about all possible user defined data types. *-* This also apply to the case of a static class function. *-* Because TMath is a special and frequent case, TFormula is aware *-* of all TMath functions. - -
TFormula() | |
TFormula(const TFormula& formula) | |
TFormula(const char* name, const char* formula) | |
virtual | ~TFormula() |
void | TObject::AbstractMethod(const char* method) const |
virtual void | Analyze(const char* schain, Int_t& err, Int_t offset = 0) |
virtual Bool_t | AnalyzeFunction(TString& chaine, Int_t& err, Int_t offset = 0) |
virtual void | TObject::AppendPad(Option_t* option = "") |
virtual void | TObject::Browse(TBrowser* b) |
static TClass* | Class() |
virtual const char* | TObject::ClassName() const |
virtual void | Clear(Option_t* option = "") |
virtual TObject* | TNamed::Clone(const char* newname = "") const |
virtual Int_t | TNamed::Compare(const TObject* obj) const |
virtual Int_t | Compile(const char* expression = "") |
virtual void | Copy(TObject& formula) const |
virtual char* | DefinedString(Int_t code) |
virtual Double_t | DefinedValue(Int_t code) |
virtual Int_t | DefinedVariable(TString& variable, Int_t& action) |
virtual void | TObject::Delete(Option_t* option = "") |
virtual Int_t | TObject::DistancetoPrimitive(Int_t px, Int_t py) |
virtual void | TObject::Draw(Option_t* option = "") |
virtual void | TObject::DrawClass() const |
virtual TObject* | TObject::DrawClone(Option_t* option = "") const |
virtual void | TObject::Dump() const |
virtual void | TObject::Error(const char* method, const char* msgfmt) const |
virtual Double_t | Eval(Double_t x, Double_t y = 0, Double_t z = 0, Double_t t = 0) const |
virtual Double_t | EvalPar(const Double_t* x, const Double_t* params = 0) |
virtual Double_t | EvalParOld(const Double_t* x, const Double_t* params = 0) |
virtual void | TObject::Execute(const char* method, const char* params, Int_t* error = 0) |
virtual void | TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0) |
virtual void | TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py) |
virtual void | TObject::Fatal(const char* method, const char* msgfmt) const |
virtual void | TNamed::FillBuffer(char*& buffer) |
virtual TObject* | TObject::FindObject(const char* name) const |
virtual TObject* | TObject::FindObject(const TObject* obj) const |
virtual Option_t* | TObject::GetDrawOption() const |
static Long_t | TObject::GetDtorOnly() |
virtual TString | GetExpFormula(Option_t* option = "") const |
virtual const char* | TObject::GetIconName() const |
virtual const TObject* | GetLinearPart(Int_t i) |
virtual const char* | TNamed::GetName() const |
virtual Int_t | GetNdim() const |
virtual Int_t | GetNpar() const |
virtual Int_t | GetNumber() const |
virtual char* | TObject::GetObjectInfo(Int_t px, Int_t py) const |
static Bool_t | TObject::GetObjectStat() |
virtual Option_t* | TObject::GetOption() const |
Double_t | GetParameter(Int_t ipar) const |
Double_t | GetParameter(const char* name) const |
virtual Double_t* | GetParameters() const |
virtual void | GetParameters(Double_t* params) |
virtual const char* | GetParName(Int_t ipar) const |
virtual Int_t | GetParNumber(const char* name) const |
virtual const char* | TNamed::GetTitle() const |
virtual UInt_t | TObject::GetUniqueID() const |
virtual Bool_t | TObject::HandleTimer(TTimer* timer) |
virtual ULong_t | TNamed::Hash() const |
virtual void | TObject::Info(const char* method, const char* msgfmt) const |
virtual Bool_t | TObject::InheritsFrom(const char* classname) const |
virtual Bool_t | TObject::InheritsFrom(const TClass* cl) const |
virtual void | TObject::Inspect() const |
void | TObject::InvertBit(UInt_t f) |
virtual TClass* | IsA() const |
virtual Bool_t | TObject::IsEqual(const TObject* obj) const |
virtual Bool_t | TObject::IsFolder() const |
virtual Bool_t | IsLinear() |
virtual Bool_t | IsNormalized() |
Bool_t | TObject::IsOnHeap() const |
virtual Bool_t | TNamed::IsSortable() const |
Bool_t | TObject::IsZombie() const |
virtual void | TNamed::ls(Option_t* option = "") const |
void | TObject::MayNotUse(const char* method) const |
virtual Bool_t | TObject::Notify() |
static void | TObject::operator delete(void* ptr) |
static void | TObject::operator delete(void* ptr, void* vp) |
static void | TObject::operator delete[](void* ptr) |
static void | TObject::operator delete[](void* ptr, void* vp) |
void* | TObject::operator new(size_t sz) |
void* | TObject::operator new(size_t sz, void* vp) |
void* | TObject::operator new[](size_t sz) |
void* | TObject::operator new[](size_t sz, void* vp) |
TFormula& | operator=(const TFormula& rhs) |
void | Optimize() |
virtual void | TObject::Paint(Option_t* option = "") |
virtual void | TObject::Pop() |
virtual void | Print(Option_t* option = "") const |
virtual void | ProcessLinear(TString& replaceformula) |
virtual Int_t | TObject::Read(const char* name) |
virtual void | TObject::RecursiveRemove(TObject* obj) |
void | TObject::ResetBit(UInt_t f) |
virtual void | TObject::SaveAs(const char* filename = "", Option_t* option = "") const |
virtual void | TObject::SavePrimitive(ostream& out, Option_t* option = "") |
void | TObject::SetBit(UInt_t f) |
void | TObject::SetBit(UInt_t f, Bool_t set) |
virtual void | TObject::SetDrawOption(Option_t* option = "") |
static void | TObject::SetDtorOnly(void* obj) |
virtual void | TNamed::SetName(const char* name) |
virtual void | TNamed::SetNameTitle(const char* name, const char* title) |
virtual void | SetNumber(Int_t number) |
static void | TObject::SetObjectStat(Bool_t stat) |
virtual void | SetParameter(const char* name, Double_t parvalue) |
virtual void | SetParameter(Int_t ipar, Double_t parvalue) |
virtual void | SetParameters(const Double_t* params) |
virtual void | SetParameters(Double_t p0, Double_t p1, Double_t p2 = 0, Double_t p3 = 0, Double_t p4 = 0, Double_t p5 = 0, Double_t p6 = 0, Double_t p7 = 0, Double_t p8 = 0, Double_t p9 = 0, Double_t p10 = 0) |
virtual void | SetParName(Int_t ipar, const char* name) |
virtual void | SetParNames(const char* name0 = "p0", const char* name1 = "p1", const char* name2 = "p2", const char* name3 = "p3", const char* name4 = "p4", const char* name5 = "p5", const char* name6 = "p6", const char* name7 = "p7", const char* name8 = "p8", const char* name9 = "p9", const char* name10 = "p10") |
virtual void | TNamed::SetTitle(const char* title = "") |
virtual void | TObject::SetUniqueID(UInt_t uid) |
virtual void | ShowMembers(TMemberInspector& insp, char* parent) |
virtual Int_t | TNamed::Sizeof() const |
virtual void | Streamer(TBuffer& b) |
void | StreamerNVirtual(TBuffer& b) |
virtual void | TObject::SysError(const char* method, const char* msgfmt) const |
Bool_t | TObject::TestBit(UInt_t f) const |
Int_t | TObject::TestBits(UInt_t f) const |
virtual void | Update() |
virtual void | TObject::UseCurrentStyle() |
virtual void | TObject::Warning(const char* method, const char* msgfmt) const |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) |
virtual Int_t | TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const |
enum { | kEnd | |
kAdd | ||
kSubstract | ||
kMultiply | ||
kDivide | ||
kModulo | ||
kcos | ||
ksin | ||
ktan | ||
kacos | ||
kasin | ||
katan | ||
katan2 | ||
kfmod | ||
kpow | ||
ksq | ||
ksqrt | ||
kstrstr | ||
kmin | ||
kmax | ||
klog | ||
kexp | ||
klog10 | ||
kpi | ||
kabs | ||
ksign | ||
kint | ||
kSignInv | ||
krndm | ||
kAnd | ||
kOr | ||
kEqual | ||
kNotEqual | ||
kLess | ||
kGreater | ||
kLessThan | ||
kGreaterThan | ||
kNot | ||
kcosh | ||
ksinh | ||
ktanh | ||
kacosh | ||
kasinh | ||
katanh | ||
kStringEqual | ||
kStringNotEqual | ||
kBitAnd | ||
kBitOr | ||
kLeftShift | ||
kRightShift | ||
kexpo | ||
kxexpo | ||
kyexpo | ||
kzexpo | ||
kxyexpo | ||
kgaus | ||
kxgaus | ||
kygaus | ||
kzgaus | ||
kxygaus | ||
klandau | ||
kxlandau | ||
kylandau | ||
kzlandau | ||
kxylandau | ||
kpol | ||
kxpol | ||
kypol | ||
kzpol | ||
kParameter | ||
kConstant | ||
kBoolOptimize | ||
kStringConst | ||
kVariable | ||
kFunctionCall | ||
kData | ||
kUnary | ||
kBinary | ||
kThree | ||
kDefinedVariable | ||
kDefinedString | ||
kPlusD | ||
kPlusDD | ||
kMultD | ||
kMultDD | ||
kBoolOptimizeOr | ||
kBoolOptimizeAnd | ||
kBoolSet | ||
kFDM | ||
kFD0 | ||
kFD1 | ||
kFD2 | ||
kFD3 | ||
kNotGlobal | ||
kNormalized | ||
kLinear | ||
}; | ||
enum TObject::EStatusBits { | kCanDelete | |
kMustCleanup | ||
kObjInCanvas | ||
kIsReferenced | ||
kHasUUID | ||
kCannotPick | ||
kNoContextMenu | ||
kInvalidObject | ||
}; | ||
enum TObject::[unnamed] { | kIsOnHeap | |
kNotDeleted | ||
kZombie | ||
kBitMask | ||
kSingleKey | ||
kOverwrite | ||
kWriteDelete | ||
}; |
TBits | fAlreadyFound | ! cache for information |
Double_t* | fConst | [fNconst] Array of fNconst formula constants |
TString* | fExpr | [fNoper] List of expressions |
TString* | fExprOptimized | ![fNOperOptimized] List of expressions |
TObjArray | fFunctions | Array of function calls to make |
TObjArray | fLinearParts | ! Linear parts if the formula is linear (contains '|') |
Int_t | fNOperOptimized | !Number of operators after optimization |
TString | TNamed::fName | object identifier |
TString* | fNames | [fNpar] Array of parameter names |
Int_t | fNconst | Number of constants |
Int_t | fNdim | Dimension of function (1=1-Dim, 2=2-Dim,etc) |
Int_t | fNoper | Number of operators |
Int_t | fNpar | Number of parameters |
Int_t | fNstring | Number of different constants character strings |
Int_t | fNumber | formula number identifier |
Int_t | fNval | Number of different variables in expression |
TOperOffset* | fOperOffset | ![fNOperOptimized] Offsets of operrands |
Int_t* | fOperOptimized | ![fNOperOptimized] List of operators. (See documentation for changes made at version 7) |
Double_t* | fParams | [fNpar] Array of fNpar parameters |
TFormulaPrimitive** | fPredefined | ![fNPar] predefined function |
TString | TNamed::fTitle | object title |
Int_t* | fOper | [fNoper] List of operators. (See documentation for changes made at version 7) |
Formula default constructor*-*-*- *-* ============================
Normal Formula constructor*-*-*- *-* ==========================
Check if the chain as function call *-*- *-* ======================================= - *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. -
Analyze a sub-expression in one formula*-*- *-* ======================================= - *-* Expressions in one formula are recursively analyzed. *-* Result of analysis is stored in the object tables. - *-* Table of function codes and errors *-* ================================== - *-* * functions : - *-* + 1 pow 20 *-* - 2 sq 21 *-* * 3 sqrt 22 *-* / 4 strstr 23 *-* % 5 min 24 *-* max 25 *-* log 30 *-* cos 10 exp 31 *-* sin 11 log10 32 *-* tan 12 *-* acos 13 abs 41 *-* asin 14 sign 42 *-* atan 15 int 43 *-* atan2 16 *-* fmod 17 rndm 50 - *-* cosh 70 acosh 73 *-* sinh 71 asinh 74 *-* tanh 72 atanh 75 - *-* expo 100 gaus 110 gausn (see note below) *-* expo(0) 100 0 gaus(0) 110 0 gausn(0) *-* expo(1) 100 1 gaus(1) 110 1 gausn(1) *-* xexpo 100 x xgaus 110 x xgausn *-* yexpo 101 x ygaus 111 x ygausn *-* zexpo 102 x zgaus 112 x zgausn *-* xyexpo 105 x xygaus 115 x xygausn *-* yexpo(5) 102 5 ygaus(5) 111 5 ygausn(5) *-* xyexpo(2) 105 2 xygaus(2) 115 2 xygausn(2) - *-* landau 120 x landaun (see note below) *-* landau(0) 120 0 landaun(0) *-* landau(1) 120 1 landaun(1) *-* xlandau 120 x xlandaun *-* ylandau 121 x ylandaun *-* zlandau 122 x zlandaun *-* xylandau 125 x xylandaun *-* ylandau(5) 121 5 ylandaun(5) *-* xylandau(2) 125 2 xylandaun(2) - *-* pol0 130 x pol1 130 1xx *-* pol0(0) 130 0 pol1(0) 130 100 *-* pol0(1) 130 1 pol1(1) 130 101 *-* xpol0 130 x xpol1 130 101 *-* ypol0 131 x ypol1 131 101 *-* zpol0 132 x zpol1 132 1xx *-* ypol0(5) 131 5 ypol1(5) 131 105 - *-* pi 40 - *-* && 60 < 64 *-* || 61 > 65 *-* == 62 <= 66 *-* != 63 => 67 *-* ! 68 *-* ==(string) 76 & 78 *-* !=(string) 77 | 79 *-* <<(shift) 80 >>(shift) 81 - *-* * constants (kConstants) : - *-* c0 141 1 c1 141 2 etc.. - *-* * strings (kStringConst): - *-* sX 143 x - *-* * variables (kFormulaVar) : - *-* x 144 0 y 144 1 z 144 2 t 144 3 - *-* * parameters : - *-* [1] 140 1 *-* [2] 140 2 *-* etc. - *-* special cases for normalized gaussian or landau distributions *-* ============================================================= *-* the expression "gaus" is a substitute for *-* [0]*exp(-0.5*((x-[1])/[2])**2) *-* to obtain a standard normalized gaussian, use "gausn" instead of "gaus" *-* the expression "gausn" is a substitute for *-* [0]*exp(-0.5*((x-[1])/[2])**2)/(sqrt(2*pi)*[2])) - *-* In the same way the expression "landau" is a substitute for *-* [0]*TMath::Landau(x,[1],[2],kFALSE) *-* to obtain a standard normalized landau, use "landaun" instead of "landau" *-* the expression "landaun" is a substitute for *-* [0]*TMath::Landau(x,[1],[2],kTRUE) - *-* boolean optimization (kBoolOptmize) : *-* ===================================== - *-* Those pseudo operation are used to implement lazy evaluation of *-* && and ||. When the left hand of the expression if false *-* (respectively true), the evaluation of the right is entirely skipped *-* (since it would not change the value of the expreession). - *-* && 142 11 (one operation on right) 142 21 (2 operations on right) *-* || 142 12 (one operation on right) 142 22 (2 operations on right) - *-* * functions calls (kFunctionCall) : - *-* f0 145 0 f1 145 1 etc.. - *-* errors : *-* ======== - *-* 1 : Division By Zero *-* 2 : Invalid Floating Point Operation *-* 4 : Empty String *-* 5 : invalid syntax *-* 6 : Too many operators *-* 7 : Too many parameters *-* 10 : z specified but not x and y *-* 11 : z and y specified but not x *-* 12 : y specified but not x *-* 13 : z and x specified but not y *-* 20 : non integer value for parameter number *-* 21 : atan2 requires two arguments *-* 22 : pow requires two arguments *-* 23 : degree of polynomial not specified *-* 24 : Degree of polynomial must be positive *-* 25 : Degree of polynomial must be less than 20 *-* 26 : Unknown name *-* 27 : Too many constants in expression *-* 28 : strstr requires two arguments *-* 29 : interpreted or compiled function have to return a numerical type *-* 30 : Bad numerical expression *-* 31 : Part of the variable exist but some of it is not accessible or useable *-* 40 : '(' is expected *-* 41 : ')' is expected *-* 42 : '[' is expected *-* 43 : ']' is expected/* */
- *-* Special functions *-* ----------------- *-* By default, the formula is assigned fNumber=0. However, the following *-* formula built with simple functions are assigned fNumber: *-* "gaus" 100 (or gausn) *-* "expo" 200 *-* "polN" 300+N *-* "landau" 400 *-* Note that expressions like gaus(0), expo(1) will force fNumber=0 - *-* Warning when deriving a class from TFormula *-* ------------------------------------------- *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. - -
Resets the objects*-*- *-* ================== - *-* Resets the object to its state before compilation. -
Resets the objects*-*- *-* ================== - *-* Resets the object to its state before compilation. -
-*-*-*-*-*Compile expression already stored in fTitle *-* =========================================== - *-* Loop on all subexpressions of formula stored in fTitle - *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. -/* */
- -
Return address of string corresponding to special code *-* ====================================================== - *-* This member function is inactive in the TFormula class. *-* It may be redefined in derived classes. - *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. - *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
Return value corresponding to special code*-*-*- *-* ========================================== - *-* This member function is inactive in the TFormula class. *-* It may be redefined in derived classes. - *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. - *-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*-*
-*Check if expression is in the list of defined variables *-* ======================================================= - *-* This member function can be overloaded in derived classes - *-* If you overload this member function, you also HAVE TO *-* never call the constructor: - *-* TFormula::TFormula(const char *name,const char *expression) - *-* and write your own constructor - *-* MyClass::MyClass(const char *name,const char *expression) : TFormula() - *-* which has to call the TFormula default constructor and whose implementation *-* should be similar to the implementation of the normal TFormula constructor - *-* This is necessary because the normal TFormula constructor call indirectly *-* the virtual member functions Analyze, DefaultString, DefaultValue *-* and DefaultVariable. - *-* The expected returns values are *-* -2 : the name has been recognized but won't be usable *-* -1 : the name has not been recognized *-* >=0 : the name has been recognized, return the action parameter. - -

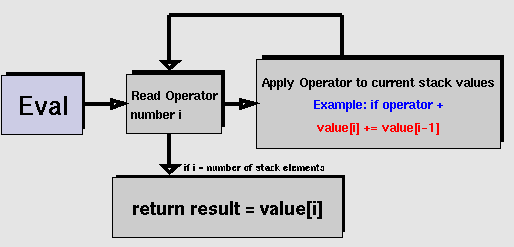

Evaluate this formula*-*-*-*-*-*- *-* ===================== - *-* The current value of variables x,y,z,t is passed through x, y, z and t. *-* The parameters used will be the ones in the array params if params is given *-* otherwise parameters will be taken from the stored data members fParams - -
Evaluate this formula*-*-*-*-*-*- *-* ===================== - *-* The current value of variables x,y,z,t is passed through the pointer x. *-* The parameters used will be the ones in the array params if params is given *-* otherwise parameters will be taken from the stored data members fParams/* */
- - -
Reconstruct the formula expression from*-*- *-* the internal TFormula member variables *-* ======================================= - *-* This function uses the internal member variables of TFormula to *-* construct the mathematical expression associated with the TFormula *-* instance. This function can be used to get an expanded version of the *-* expression originally assigned to the TFormula instance, i.e. that *-* the string returned by GetExpFormula() doesn't depend on other *-* TFormula object names. - *-* if option contains "p" the returned string will contain the formula *-* expression with symbolic parameters, eg [0] replaced by the actual value *-* of the parameter. Example: *-* if expression in formula is: "[0]*(x>-[1])+[2]*exp(-[3]*x)" *-* and parameters are 3.25,-4.01,4.44,-0.04, GetExpFormula("p") will return: *-* "(3.25*(x>+4.01))+(4.44*exp(+0.04*x))"
Return name of one parameter*-*-*-*-*-*-*-*- *-* ============================
return true if the expression at the index 'oper' is to be treated as as string
-*Dump this formula with its attributes *-* =====================================
if the formula is for linear fitting, change the title to normal and fill the LinearParts array
Initialize parameter number ipar*-*-*-*-*- *-* ================================
Initialize parameter number ipar*-*-*-*-*- *-* ================================
Initialize array of all parameters see also next function with same name
Initialize up to 10 parameters All arguments except THE FIRST TWO are optional In case of a function with only one parameter, call this function with p1=0. Minimum two arguments are required to differentiate this function from the SetParameters(cont Double_t *params)
Set up to 10 parameter names*-*-*-*-*- *-* ============================
Stream a class object*-*-*-*-*-*-*- *-* =========================================
MakePrimitive find TFormulaPrimitive replacement for some operands
MI include Optimize formula 1.) Minimize the number of operands a.) several operanands are glued togther b.) some primitive functions glued together - exemp. (x+y) => PlusXY(x,y) c.) maximize number of standard calls minimizing number of jumps in Eval cases d.) variables, parameters and constants are mapped - using fOperOfssets0 Eval procedure use direct acces to data (only one corresponding case statement in eval procedure) pdata[operand={Var,Par,Const}][offset] pdata[fOperOffsets0[i]][fOperOffset1[i+1]] 2.) The fastest evaluation function is choosen at the end a.) fOptimal := pointer to the fastest function for given evaluation string switch(GetActionOptimized(0)){ case kData : {fOptimal= (TFormulaPrimitive::TFuncG)&TFormula::EvalPrimitive0; break;} case kUnary : {fOptimal= (TFormulaPrimitive::TFuncG)&TFormula::EvalPrimitive1; break;} case kBinary : {fOptimal= (TFormulaPrimitive::TFuncG)&TFormula::EvalPrimitive2; break;} case kThree : {fOptimal= (TFormulaPrimitive::TFuncG)&TFormula::EvalPrimitive3; break;} case kFDM : {fOptimal= (TFormulaPrimitive::TFuncG)&TFormula::EvalPrimitive4; break;} } b.) ex. fOptimal = ::EvalPrimitive0 - if it return only variable, constant or parameter = ::EvalParameter1 - if only one unary operation = ::EvalPrimitive2 - if only one binary operation
Evaluate this formula*-*-*-*-*-*- *-* ===================== - *-* The current value of variables x,y,z,t is passed through the pointer x. *-* The parameters used will be the ones in the array params if params is given *-* otherwise parameters will be taken from the stored data members fParams/* */
- - -
{return ((*this).*fOptimal)(x,params);}
