class TGLBoxCut
-
library: libRGL
#include "TGLPlotPainter.h"
Display options:
Show inherited
Show non-public

class TGLBoxCut








Function Members (Methods)


public:



TGLBoxCut(const TGLPlotBox* plotBox)


TGLBoxCut(const TGLBoxCut&)


 virtual~TGLBoxCut()


static TClass*Class()


voidDrawBox(Bool_t selectionPass, Int_t selected) const


virtual TClass*IsA() const


Bool_tIsActive() const


Bool_tIsInCut(Double_t xMin, Double_t xMax, Double_t yMin, Double_t yMax, Double_t zMin, Double_t zMax) const


voidMoveBox(Int_t px, Int_t py, Int_t axisID)


voidSetFactor(Double_t f)


virtual voidShowMembers(TMemberInspector& insp, char* parent)


voidStartMovement(Int_t px, Int_t py)


virtual voidStreamer(TBuffer& b)


voidStreamerNVirtual(TBuffer& b)


voidTurnOnOff()





private:



voidAdjustBox()










Data Members


private:



Bool_tfActive


TGLVertex3fCenter


Double_tfFactor


TPointfMousePos


const TGLPlotBox *constfPlotBox


Double_tfXLength


pair<double,double>fXRange


Double_tfYLength


pair<double,double>fYRange


Double_tfZLength


pair<double,double>fZRange

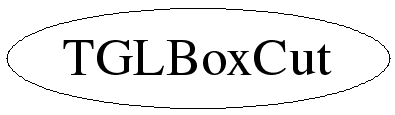

Class Charts






Inheritance
Inherited Members
Includes
Libraries



Class Charts


Function documentation


 TGLBoxCut(const TGLPlotBox *box)


Constructor.





 ~TGLBoxCut()


Destructor.





void  TurnOnOff()


Turn the box cut on/off.
If it's on, it will be placed in front point of a plot.





void  DrawBox(Bool_t selectionPass, Int_t selected) const


Draw cut as a semi-transparent box.





void  StartMovement(Int_t px, Int_t py)


Start cut's movement





void  MoveBox(Int_t px, Int_t py, Int_t axisID)


Move box cut along selected direction.





void  AdjustBox()


Box cut is limited by plot's sizes.





Bool_t  IsInCut(Double_t xMin, Double_t xMax, Double_t yMin, Double_t yMax, Double_t zMin, Double_t zMax) const


Check, if box defined by xmin/xmax etc. is in cut.





 TGLBoxCut(const TGLPlotBox *plotBox)


Class has ClassDef macro == virtual functions, so we need
explicitly declared/defined dtor to supress warnings from g++





Bool_t IsActive()



{return fActive;}






void SetFactor(Double_t f)



{fFactor = f;}









Author:   Timur Pocheptsov  14/06/2006

Last update: root/gl:$Name:  $:$Id: TGLPlotPainter.cxx,v 1.17 2007/06/23 21:23:22 brun Exp $
