class TGeoTrack
-
library: libGeomPainter
#include "TGeoTrack.h"
Display options:
Show inherited
Show non-public

class TGeoTrack: public TVirtualGeoTrack








Function Members (Methods)


public:



TGeoTrack()


TGeoTrack(Int_t id, Int_t pdgcode, TVirtualGeoTrack* parent = 0, TObject* particle = 0)


 virtual~TGeoTrack()


voidTObject::AbstractMethod(const char* method) const


virtual Int_tAddDaughter(TVirtualGeoTrack* other)


virtual TVirtualGeoTrack*AddDaughter(Int_t id, Int_t pdgcode, TObject* particle = 0)


virtual voidAddPoint(Double_t x, Double_t y, Double_t z, Double_t t)


virtual voidAnimateTrack(Double_t tmin = 0, Double_t tmax = 5E-8, Double_t nframes = 200, Option_t* option = "/*")


virtual voidTObject::AppendPad(Option_t* option = "")


virtual voidBrowse(TBrowser* b)


static TClass*Class()


virtual const char*TObject::ClassName() const


virtual voidTObject::Clear(Option_t* = "")


virtual TObject*TObject::Clone(const char* newname = "") const


virtual Int_tTObject::Compare(const TObject* obj) const


virtual voidTObject::Copy(TObject& object) const


virtual voidTObject::Delete(Option_t* option = "")


Int_tTAttLine::DistancetoLine(Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)


virtual Int_tDistancetoPrimitive(Int_t px, Int_t py)


virtual voidDraw(Option_t* option = "")


virtual voidTObject::DrawClass() const


virtual TObject*TObject::DrawClone(Option_t* option = "") const


virtual voidTObject::Dump() const


virtual voidTObject::Error(const char* method, const char* msgfmt) const


virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)


virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)


virtual voidExecuteEvent(Int_t event, Int_t px, Int_t py)


virtual voidTObject::Fatal(const char* method, const char* msgfmt) const


virtual TObject*TObject::FindObject(const char* name) const


virtual TObject*TObject::FindObject(const TObject* obj) const


TVirtualGeoTrack*TVirtualGeoTrack::GetDaughter(Int_t index) const


virtual Int_tTVirtualGeoTrack::GetDaughterId(Int_t index) const


virtual Option_t*TObject::GetDrawOption() const


static Long_tTObject::GetDtorOnly()


const Double_t*TVirtualGeoTrack::GetFirstPoint() const


virtual const char*TObject::GetIconName() const


Int_tTVirtualGeoTrack::GetId() const


const Double_t*TVirtualGeoTrack::GetLastPoint() const


Int_tTVirtualGeoTrack::GetLastPoint(Double_t& x, Double_t& y, Double_t& z, Double_t& t) const


virtual Color_tTAttLine::GetLineColor() const


virtual Style_tTAttLine::GetLineStyle() const


virtual Width_tTAttLine::GetLineWidth() const


virtual Color_tTAttMarker::GetMarkerColor() const


virtual Size_tTAttMarker::GetMarkerSize() const


virtual Style_tTAttMarker::GetMarkerStyle() const


TVirtualGeoTrack*TVirtualGeoTrack::GetMother() const


TObject*TVirtualGeoTrack::GetMotherParticle() const


virtual const char*TVirtualGeoTrack::GetName() const


Int_tTVirtualGeoTrack::GetNdaughters() const


virtual Int_tGetNpoints() const


virtual char*GetObjectInfo(Int_t px, Int_t py) const


static Bool_tTObject::GetObjectStat()


virtual Option_t*TObject::GetOption() const


Int_tTVirtualGeoTrack::GetParentId() const


TObject*TVirtualGeoTrack::GetParticle() const


Int_tTVirtualGeoTrack::GetPDG() const


virtual const Double_t*GetPoint(Int_t i) const


Int_tGetPoint(Double_t tof, Double_t* point, Int_t istart = 0) const


virtual Int_tGetPoint(Int_t i, Double_t& x, Double_t& y, Double_t& z, Double_t& t) const


virtual const char*TObject::GetTitle() const


virtual UInt_tTObject::GetUniqueID() const


virtual Bool_tTObject::HandleTimer(TTimer* timer)


virtual ULong_tTObject::Hash() const


Bool_tTVirtualGeoTrack::HasPoints() const


virtual voidTObject::Info(const char* method, const char* msgfmt) const


virtual Bool_tTObject::InheritsFrom(const char* classname) const


virtual Bool_tTObject::InheritsFrom(const TClass* cl) const


virtual voidTObject::Inspect() const


voidTObject::InvertBit(UInt_t f)


virtual TClass*IsA() const


Bool_tTGeoAtt::IsActive() const


Bool_tTGeoAtt::IsActiveDaughters() const


virtual Bool_tTObject::IsEqual(const TObject* obj) const


virtual Bool_tIsFolder() const


Bool_tTVirtualGeoTrack::IsInTimeRange() const


Bool_tTObject::IsOnHeap() const


virtual Bool_tTObject::IsSortable() const


Bool_tTGeoAtt::IsVisBranch() const


Bool_tTGeoAtt::IsVisContainers() const


Bool_tTGeoAtt::IsVisDaughters() const


Bool_tTGeoAtt::IsVisible() const


Bool_tTGeoAtt::IsVisLeaves() const


Bool_tTGeoAtt::IsVisOnly() const


Bool_tTGeoAtt::IsVisRaytrace() const


Bool_tTGeoAtt::IsVisStreamed() const


Bool_tTGeoAtt::IsVisTouched() const


Bool_tTObject::IsZombie() const


virtual voidTObject::ls(Option_t* option = "") const


voidTObject::MayNotUse(const char* method) const


virtual voidTAttLine::Modify()


virtual Bool_tTObject::Notify()


static voidTObject::operator delete(void* ptr)


static voidTObject::operator delete(void* ptr, void* vp)


static voidTObject::operator delete[](void* ptr)


static voidTObject::operator delete[](void* ptr, void* vp)


void*TObject::operator new(size_t sz)


void*TObject::operator new(size_t sz, void* vp)


void*TObject::operator new[](size_t sz)


void*TObject::operator new[](size_t sz, void* vp)


virtual voidPaint(Option_t* option = "")


virtual voidPaintCollect(Double_t time, Double_t* box)


virtual voidPaintCollectTrack(Double_t time, Double_t* box)


voidPaintMarker(Double_t* point, Option_t* option = "")


virtual voidPaintTrack(Option_t* option = "")


virtual voidTObject::Pop()


virtual voidPrint(Option_t* option = "") const


virtual Int_tTObject::Read(const char* name)


virtual voidTObject::RecursiveRemove(TObject* obj)


voidTGeoAtt::ResetAttBit(UInt_t f)


virtual voidTAttLine::ResetAttLine(Option_t* option = "")


virtual voidTAttMarker::ResetAttMarker(Option_t* toption = "")


voidTObject::ResetBit(UInt_t f)


virtual voidResetTrack()


virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") const


virtual voidTAttLine::SaveLineAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1, Int_t widdef = 1)


virtual voidTAttMarker::SaveMarkerAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1, Int_t sizdef = 1)


virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")


Int_tSearchPoint(Double_t time, Int_t istart = 0) const


voidTGeoAtt::SetActiveDaughters(Bool_t flag = kTRUE)


voidTGeoAtt::SetActivity(Bool_t flag = kTRUE)


voidTGeoAtt::SetAttBit(UInt_t f)


voidTGeoAtt::SetAttBit(UInt_t f, Bool_t set)


voidTObject::SetBit(UInt_t f)


voidTObject::SetBit(UInt_t f, Bool_t set)


voidSetBits(Bool_t is_default = kTRUE, Bool_t is_onelevel = kFALSE, Bool_t is_all = kFALSE, Bool_t is_type = kFALSE)


virtual voidTObject::SetDrawOption(Option_t* option = "")


static voidTObject::SetDtorOnly(void* obj)


voidTVirtualGeoTrack::SetId(Int_t id)


virtual voidTAttLine::SetLineAttributes()


virtual voidTAttLine::SetLineColor(Color_t lcolor)


virtual voidTAttLine::SetLineStyle(Style_t lstyle)


virtual voidTAttLine::SetLineWidth(Width_t lwidth)


virtual voidTAttMarker::SetMarkerAttributes()


virtual voidTAttMarker::SetMarkerColor(Color_t tcolor = 1)


virtual voidTAttMarker::SetMarkerSize(Size_t msize = 1)


virtual voidTAttMarker::SetMarkerStyle(Style_t mstyle = 1)


voidTVirtualGeoTrack::SetName(const char* name)


static voidTObject::SetObjectStat(Bool_t stat)


voidTGeoAtt::SetOptimization(Option_t* option)


voidTVirtualGeoTrack::SetParent(TVirtualGeoTrack* parent)


virtual voidTVirtualGeoTrack::SetParticle(TObject* particle)


virtual voidTVirtualGeoTrack::SetPDG(Int_t pdgcode)


virtual voidTObject::SetUniqueID(UInt_t uid)


voidTGeoAtt::SetVisBranch()


virtual voidTGeoAtt::SetVisContainers(Bool_t flag = kTRUE)


voidTGeoAtt::SetVisDaughters(Bool_t vis = kTRUE)


virtual voidTGeoAtt::SetVisibility(Bool_t vis = kTRUE)


virtual voidTGeoAtt::SetVisLeaves(Bool_t flag = kTRUE)


virtual voidTGeoAtt::SetVisOnly(Bool_t flag = kTRUE)


voidTGeoAtt::SetVisRaytrace(Bool_t flag = kTRUE)


voidTGeoAtt::SetVisStreamed(Bool_t vis = kTRUE)


voidTGeoAtt::SetVisTouched(Bool_t vis = kTRUE)


virtual voidShowMembers(TMemberInspector& insp, char* parent)


Int_tSize(Int_t& imin, Int_t& imax)


virtual voidSizeof3D() const


virtual voidStreamer(TBuffer& b)


voidStreamerNVirtual(TBuffer& b)


virtual voidTObject::SysError(const char* method, const char* msgfmt) const


Bool_tTGeoAtt::TestAttBit(UInt_t f) const


Bool_tTObject::TestBit(UInt_t f) const


Int_tTObject::TestBits(UInt_t f) const


virtual voidTObject::UseCurrentStyle()


virtual voidTObject::Warning(const char* method, const char* msgfmt) const


virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)


virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const





protected:



TGeoTrack(const TGeoTrack&)


virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const


voidTObject::MakeZombie()


TGeoTrack&operator=(const TGeoTrack&)










Data Members


public:



enum EGeoParticleActions { kGeoPDefault


kGeoPOnelevel


kGeoPAllDaughters


kGeoPType


kGeoPDrawn


};


enum TObject::EStatusBits { kCanDelete


kMustCleanup


kObjInCanvas


kIsReferenced


kHasUUID


kCannotPick


kNoContextMenu


kInvalidObject


};


enum TObject::[unnamed] { kIsOnHeap


kNotDeleted


kZombie


kBitMask


kSingleKey


kOverwrite


kWriteDelete


};


enum TGeoAtt::[unnamed] { kBitMask


};


enum TGeoAtt::EGeoVisibilityAtt { kVisOverride


kVisNone


kVisThis


kVisDaughters


kVisOneLevel


kVisStreamed


kVisTouched


kVisOnScreen


kVisContainers


kVisOnly


kVisBranch


kVisRaytrace


};


enum TGeoAtt::EGeoActivityAtt { kActOverride


kActNone


kActThis


kActDaughters


};


enum TGeoAtt::EGeoOptimizationAtt { kUseBoundingBox


kUseVoxels


kUseGsord


};


enum TGeoAtt::EGeoSavePrimitiveAtt { kSavePrimitiveAtt


kSaveNodesAtt


};





protected:



UInt_tTGeoAtt::fGeoAttoption flags


Int_tTVirtualGeoTrack::fIdtrack id


Color_tTAttLine::fLineColorline color


Style_tTAttLine::fLineStyleline style


Width_tTAttLine::fLineWidthline width


Color_tTAttMarker::fMarkerColorMarker color index


Size_tTAttMarker::fMarkerSizeMarker size


Style_tTAttMarker::fMarkerStyleMarker style


Int_tTVirtualGeoTrack::fPDGtrack pdg code


TVirtualGeoTrack*TVirtualGeoTrack::fParentid of parent


TObject*TVirtualGeoTrack::fParticleparticle for this track


TObjArray*TVirtualGeoTrack::fTracksdaughter tracks





private:



Int_tfNpointsnumber of stored points


Double_t*fPoints[fNpoints] array of points (x,y,z,t) belonging to this track


Int_tfPointsSizecapacity of points array







Class Charts





















































Inheritance
Inherited Members

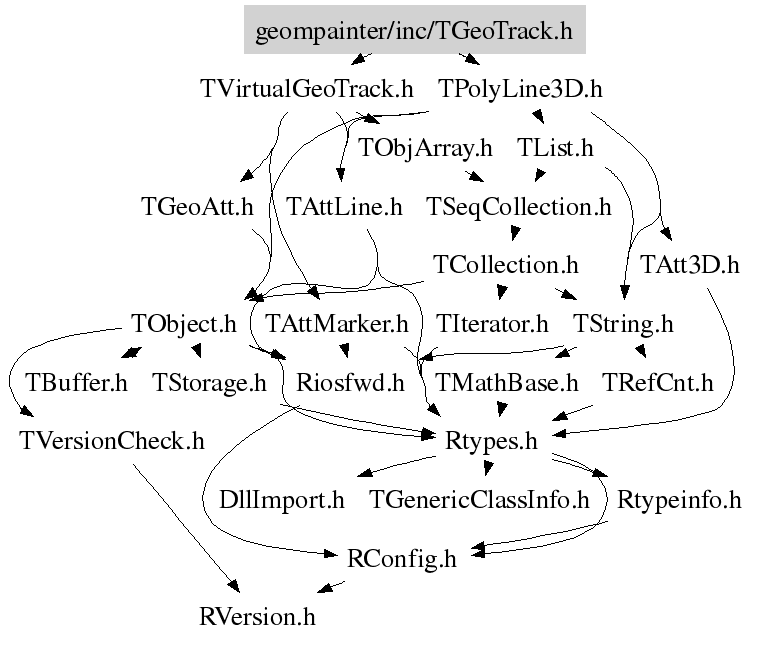

Includes
Libraries



Class Charts


Function documentation


 TGeoTrack(const TGeoTrack& )


-*-*Tracks default constructor
*-*                  ==========================





 TGeoTrack(Int_t id, Int_t pdgcode, TVirtualGeoTrack* parent = 0, TObject* particle = 0)


 Constructor.





 TGeoTrack(const TGeoTrack& )


 Copy ctor. NOT TO BE CALLED.





TGeoTrack&  operator=(const TGeoTrack& )


 Assignment operator. NOT TO BE CALLED.





 ~TGeoTrack()


 Destructor.





TVirtualGeoTrack * AddDaughter(Int_t id, Int_t pdgcode, TObject* particle = 0)


 Add a daughter track to this.





Int_t  AddDaughter(TVirtualGeoTrack* other)


 Add a daughter and return its index.





void  AnimateTrack(Double_t tmin = 0, Double_t tmax = 5E-8, Double_t nframes = 200, Option_t* option = "/*")


 Draw animation of this track





void  AddPoint(Double_t x, Double_t y, Double_t z, Double_t t)


 Add a point on the track.





void  Browse(TBrowser* b)


 How-to-browse for a track.





Int_t  DistancetoPrimitive(Int_t px, Int_t py)


 Returns distance to track primitive for picking.





void  Draw(Option_t* option = "")


 Draw this track overimposed on a geometry, according to option.
 Options (case sensitive):
  default : track without daughters
  /D      : track and first level descendents only
  /*      : track and all descendents
  /Ntype
          : descendents of this track with particle name matching input type.
 Options can appear only once but can be combined : e.g. Draw("/D /Npion-")
 Time range for visible track segments can be set via TGeoManager::SetTminTmax()





void  ExecuteEvent(Int_t event, Int_t px, Int_t py)


 Event treatment.





char * GetObjectInfo(Int_t px, Int_t py) const


 Get some info about the track.





Int_t  GetPoint(Int_t i, Double_t& x, Double_t& y, Double_t& z, Double_t& t) const


 Get coordinates for point I on the track.





const Double_t * GetPoint(Int_t i) const


 Return the pointer to the array of points starting with index I.





Int_t  GetPoint(Double_t tof, Double_t* point, Int_t istart = 0) const


 Return the index of point on track having closest TOF smaller than
 the input value. Output POINT is filled with the interpolated value.





void  Paint(Option_t* option = "")


 Paint this track (and descendents) with current attributes.





void  PaintCollect(Double_t time, Double_t* box)


 Paint track and daughters.





void  PaintCollectTrack(Double_t time, Double_t* box)


 Paint just this track.





void  PaintMarker(Double_t* point, Option_t* option = "")


 Paint current point of the track as marker.





void  PaintTrack(Option_t* option = "")


 Paint this track with its current attributes.





void  Print(Option_t* option = "") const


 Print some info about the track.





Int_t  Size(Int_t& imin, Int_t& imax)


Return the number of points within the time interval specified by
 TGeoManager class and the corresponding indices.





Int_t  SearchPoint(Double_t time, Int_t istart = 0) const


 Search index of track point having the closest time tag smaller than
 TIME. Optional start index can be provided.





void  SetBits(Bool_t is_default = kTRUE, Bool_t is_onelevel = kFALSE, Bool_t is_all = kFALSE, Bool_t is_type = kFALSE)


 Set drawing bits for this track





void  Sizeof3D()


 Returns 3D size for the track.





void  ResetTrack()


 Reset data for this track.





Int_t GetNpoints()



{return (fNpoints>>2);}






Bool_t IsFolder()



{return (GetNdaughters()>0)?kTRUE:kFALSE;}









Author:  Andrei Gheata  2003/04/10

Last update: root/geom:$Name:  $:$Id: TGeoTrack.cxx,v 1.8 2007/05/14 13:25:22 brun Exp $

Copyright   (C) 1995-2000, Rene Brun and Fons Rademakers.               *




This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
