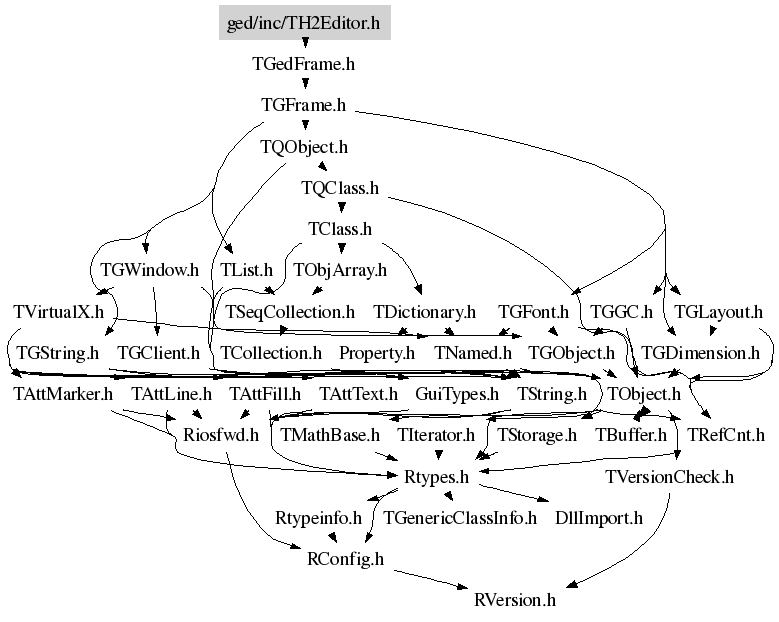

class TH2Editor: public TGedFrame


TH2Editor
Editor for changing TH2 histogram attributes, rebinning & fitting.
For all possible draw options (there are a few which are not imple-
mentable in a graphical user interface) see THistPainter::Paint in
root/histpainter/THistPainter.cxx


/* */

/* */

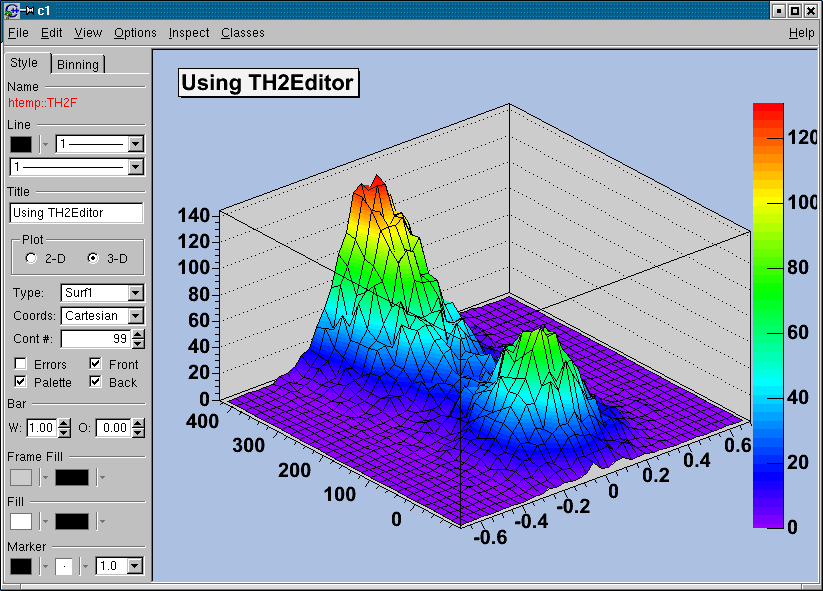

These changes can be made via the TH2Editor:
Style Tab:
'Line'     : change Line attributes (color, thickness)
see TAttLineEditor
'Fill'     : change Fill attributes (color, pattern)
see TAttFillEditor
'Title'    : TextEntry: set the title of the histogram
'Histogram': change the draw options of the histogram
'Plot'     : Radiobutton: draw a 2D or 3D plot of the histogram
according to the Plot dimension there will be
different drawing possibilities (ComboBoxes/
CheckBoxes)
2d Plot:
'Contour' : ComboBox: draw a contour plot (None, Cont0..4)
'Cont #'  : TGNumberEntry: set the number of Contours
2d Plot checkboxes:
'Arrow'   : arrow mode. Shows gradient between adjacent cells
'Col'     : a box is drawn for each cell with a color scale
varying with contents
'Text'    : Draw bin contents as text                           //
'Box'     : a box is drawn for each cell with surface
proportional to contents
'Scat'    : Draw a scatter-plot (default)
'Palette' : the color palette is drawn

3d Plot:
'Type'    : ComboBox: set histogram type Lego or Surface-Plot
draw(Lego, Lego1.2, Surf, Surf1..5)
see THistPainter::Paint
'Coords'  : ComboBox: set the coordinate system (Cartesian, ..
Spheric) see THistPainter::Paint
'Cont #'  : TGNumberEntry: set the number of Contours (for e.g.
Lego2 drawoption
3d Plot checkboxes:
'Errors'  : draw errors in a cartesian lego plot
'Palette' : the color palette is drawn
'Front'   : draw the front box of a cartesian lego plot
'Back'    : draw the back box of a cartesian lego plot
Available for a 3D lego plot:
'Bar'     : change the bar attributes
'W' : change Bar Width
'O' : change Bar Offset
Further Editor:
'Marker'   : change the Marker attributes (color, appearance,
thickness) see TAttMarkerEditor


/* */

/* */

Rebinning Tab:
      This Tab has two different layouts. One is for a histogram which
is not drawn from an ntuple. The other one is available for a
histogram which is drawn from an ntuple. In this case the rebin
      algorithm can create a rebinned histogram from the original data
i.e. the ntuple.
To see te differences do for example:
TFile f("hsimple.root");
hpxpy->Draw("Lego2");              // non ntuple histogram
ntuple->Draw("px:py","","Lego2");  // ntuple histogram
Non ntuple histogram:
'Rebin': with the Sliders (one for the x, one for the y axis)
the number of bins (shown in the field below the
Slider) can be changed to any number which divides
the number of bins of the original histogram.
Pushing 'Apply' will delete the origin histogram and
replace it by the rebinned one on the screen.
                Pushing 'Ignore' the origin histogram will be restored
Histogram drawn from an ntuple:
       'Rebin'  with the sliders the number of bins can be enlarged by
a factor of 2,3,4,5 (moving to the right) or reduced
by a factor of 1/2, 1/3, 1/4, 1/5
'BinOffset': with the BinOffset slider the origin of the
istogram can be changed within one binwidt
Using this slider the effect of binning the data into
bins can be made visible => statistical fluctuations
       'Axis Range': with the DoubleSlider it is possible to zoom into
he specified axis range. It is also possible to se
the upper and lower limit in fields below the slider
'Delayed drawing': all the Binning sliders can be set to delay
draw mode. Then the changes on the histogram are only
updated, when the Slider is released. This should be
activated if the redrawing of the histogram is too
time consuming.
