class TMatrixTDiag_const<double>
-
#include "TMatrixTUtils.h"
Display options:
Show inherited
Show non-public

class TMatrixTDiag_const<double>


Matrix utility classes.

Templates of utility classes in the Linear Algebra Package.
The following classes are defined here:

Different matrix views without copying data elements :
TMatrixTRow_const        TMatrixTRow
TMatrixTColumn_const     TMatrixTColumn
TMatrixTDiag_const       TMatrixTDiag
TMatrixTFlat_const       TMatrixTFlat
TMatrixTSub_const        TMatrixTSub
TMatrixTSparseRow_const  TMatrixTSparseRow
TMatrixTSparseDiag_const TMatrixTSparseDiag

ElementAction
ElementPosAction

Function Members (Methods)

public:
TMatrixTDiag_const<double>()
TMatrixTDiag_const<double>(const TMatrixT<double>& matrix)
TMatrixTDiag_const<double>(const TMatrixTSym<double>& matrix)
TMatrixTDiag_const<double>(const TMatrixTDiag_const<double>& trc)
virtual~TMatrixTDiag_const<double>()
static TClass*Class()
Int_tGetInc() const
const TMatrixTBase<double>*GetMatrix() const
Int_tGetNdiags() const
const double*GetPtr() const
virtual TClass*IsA() const
const double&operator()(Int_t i) const
TMatrixTDiag_const<double>&operator=(const TMatrixTDiag_const<double>& trc)
const double&operator[](Int_t i) const
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)

Data Members

protected:
Int_tfIncif ptr=@a[i,i], then ptr+inc = @a[i+1,i+1]
const TMatrixTBase<double>*fMatrixthe matrix I am the diagonal of
Int_tfNdiagnumber of diag elems, min(nrows,ncols)
const double*fPtrpointer to the a[0,0]

Class Charts

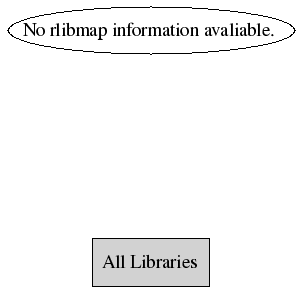

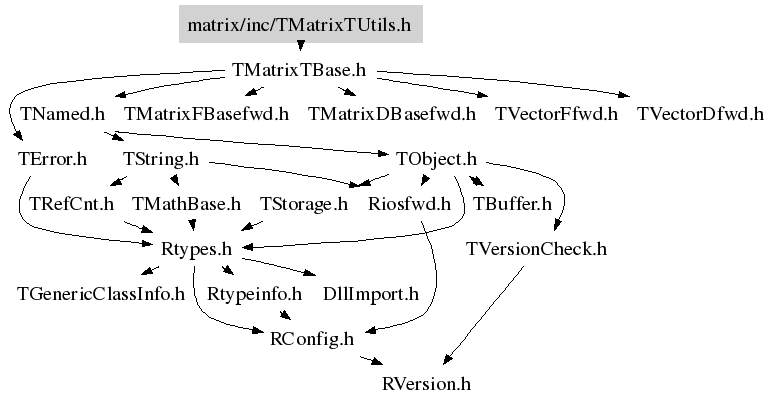

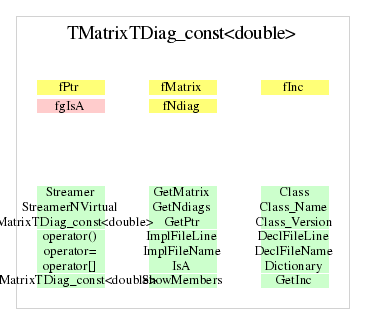

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TElementActionT& operator=(const TMatrixTDiag_const<double>& trc)
{return *this;}
const TMatrixTBase<Element> * GetMatrix()
{ return fMatrix; }
Int_t GetInc()
{ return fInc; }
const Element * GetPtr()
{ return fPtr; }
const Element & operator()(Int_t i) const
const Element & operator[](Int_t i) const
{ return (*(const TMatrixTRow<Element> *)this)(i); }
Int_t GetNdiags()
{ return fNdiag; }

Last update: Mon Jun 25 20:05:27 2007
