class TEveCaloDataHist: public TEveCaloData


 A central manager for calorimeter data of an event written in TH2F.
 X axis present eta bin, Y axis present phi bin.

Function Members (Methods)

public:

	TEveCaloDataHist()
virtual	~TEveCaloDataHist()
void	AddHistogram(TH2F* hist)
static TClass*	Class()
void	TEveRefCnt::DecRefCount()
virtual void	GetCellData(const TEveCaloData::CellId_t& id, TEveCaloData::CellData_t& data)
virtual Int_t	GetCellList(Float_t minVal, Float_t maxVal, Float_t etaMin, Float_t etaMax, Float_t phi, Float_t phiRng, TEveCaloData::vCellId_t& out)
virtual const TAxis*	GetEtaBins()
const TH2F*	GetHistogram(Int_t slice)
virtual Float_t	GetMaxVal() const
virtual Int_t	GetNSlices() const
virtual const TAxis*	GetPhiBins()
Float_t	TEveCaloData::GetThreshold()
void	TEveRefCnt::IncRefCount()
virtual TClass*	IsA() const
virtual void	TEveRefCnt::OnZeroRefCount()
void	TEveCaloData::SetThreshold(Float_t t)
virtual void	ShowMembers(TMemberInspector& insp, char* parent)
virtual void	Streamer(TBuffer& b)
void	StreamerNVirtual(TBuffer& b)
virtual Bool_t	SupportsEtaBinning()
virtual Bool_t	SupportsPhiBinning()

private:

	TEveCaloDataHist(const TEveCaloDataHist&)
TEveCaloDataHist&	operator=(const TEveCaloDataHist&)

protected:

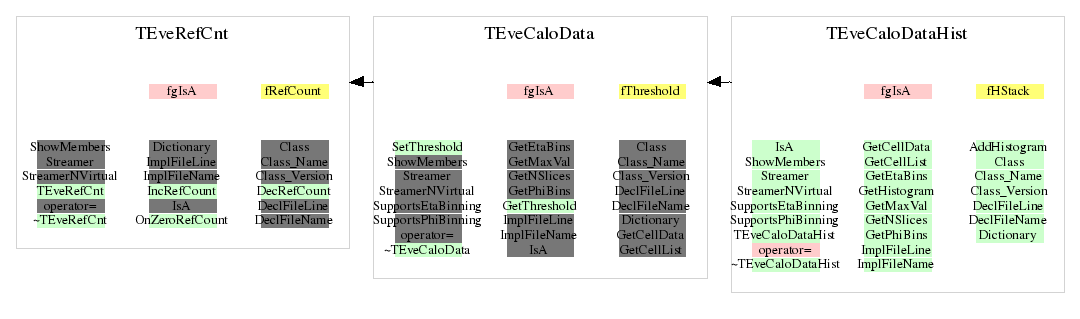

Class Charts

Function documentation

Int_t GetCellList(Float_t minVal, Float_t maxVal, Float_t etaMin, Float_t etaMax, Float_t phi, Float_t phiRng, TEveCaloData::vCellId_t& out)

 Get list of cell IDs in given eta and phi range.

void GetCellData(const TEveCaloData::CellId_t& id, TEveCaloData::CellData_t& data)

 Get cell geometry and value from cell ID.

 Add  new slice to calo tower.

 Get number of tower slices.

 Returns the maximum of all added histograms.

 Get eta axis.

 Get phi axis.

 Get histogram for given slice.
