class TEveFrameBox: public TObject, public TEveRefBackPtr

 TEveFrameBox

 Description of a 2D or 3D frame that can be used to visually group
 a set of objects.

Function Members (Methods)

public:
TEveFrameBox()
virtual~TEveFrameBox()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTEveRefBackPtr::DecRefCount(TEveElement* re)
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
Color_tGetBackColor() const
UChar_t*GetBackRGBA()
Bool_tGetDrawBack() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
Color_tGetFrameColor() const
Bool_tGetFrameFill() const
Float_t*GetFramePoints() const
UChar_t*GetFrameRGBA()
Int_tGetFrameSize() const
TEveFrameBox::EFrameType_eGetFrameType() const
Float_tGetFrameWidth() const
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTEveRefBackPtr::IncRefCount(TEveElement* re)
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
virtual voidTEveRefCnt::OnZeroRefCount()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
Color_t*PtrBackColor()
Color_t*PtrFrameColor()
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidSetAABox(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy, Float_t dz)
voidSetAABoxCenterHalfSize(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy, Float_t dz)
voidSetAAQuadXY(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy)
voidSetAAQuadXZ(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dz)
voidSetBackColor(Color_t ci)
voidSetBackColor(Pixel_t pix)
voidSetBackColor(UChar_t r, UChar_t g, UChar_t b, UChar_t a = 255)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidSetDrawBack(Bool_t f)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidSetFrameColor(Color_t ci)
voidSetFrameColor(Pixel_t pix)
voidSetFrameColor(UChar_t r, UChar_t g, UChar_t b, UChar_t a = 255)
voidSetFrameFill(Bool_t f)
voidSetFrameWidth(Float_t f)
static voidTObject::SetObjectStat(Bool_t stat)
voidSetQuadByPoints(const Float_t* pointArr, Int_t nPoints)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidTEveRefBackPtr::StampBackPtrElements(UChar_t stamps)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTEveRefBackPtr::UpdateBackPtrItems()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
TEveFrameBox(const TEveFrameBox&)
TEveFrameBox&operator=(const TEveFrameBox&)

Data Members

public:
enum EFrameType_e { kFT_None
kFT_Quad
kFT_Box
};
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Color_tfBackColor
UChar_tfBackRGBA[4]
list<TEveElement*>TEveRefBackPtr::fBackRefs
Bool_tfDrawBack
Color_tfFrameColor
Bool_tfFrameFill
Float_t*fFramePoints[fFrameSize]
UChar_tfFrameRGBA[4]
Int_tfFrameSize
TEveFrameBox::EFrameType_efFrameType
Float_tfFrameWidth
Int_tTEveRefCnt::fRefCount

Class Charts

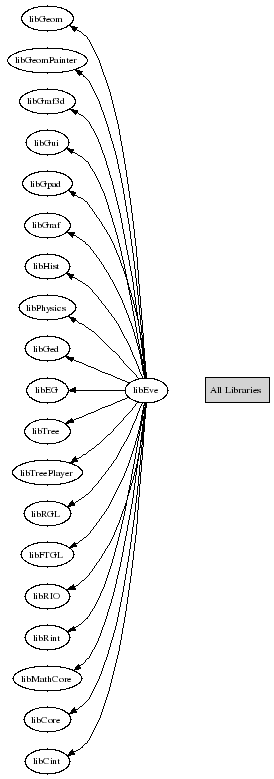

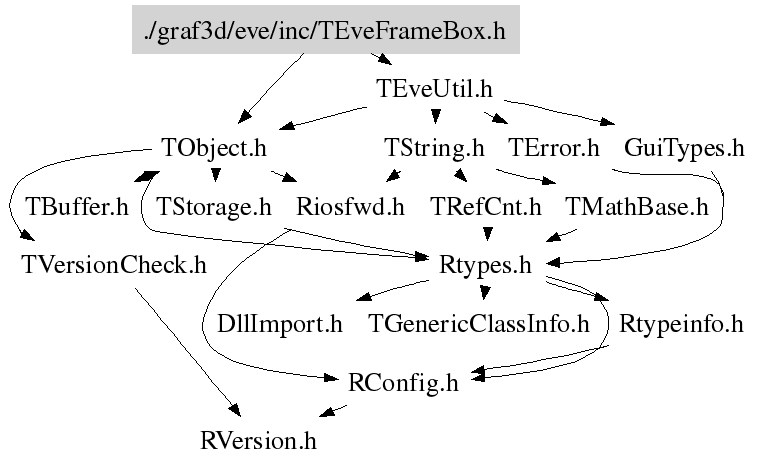

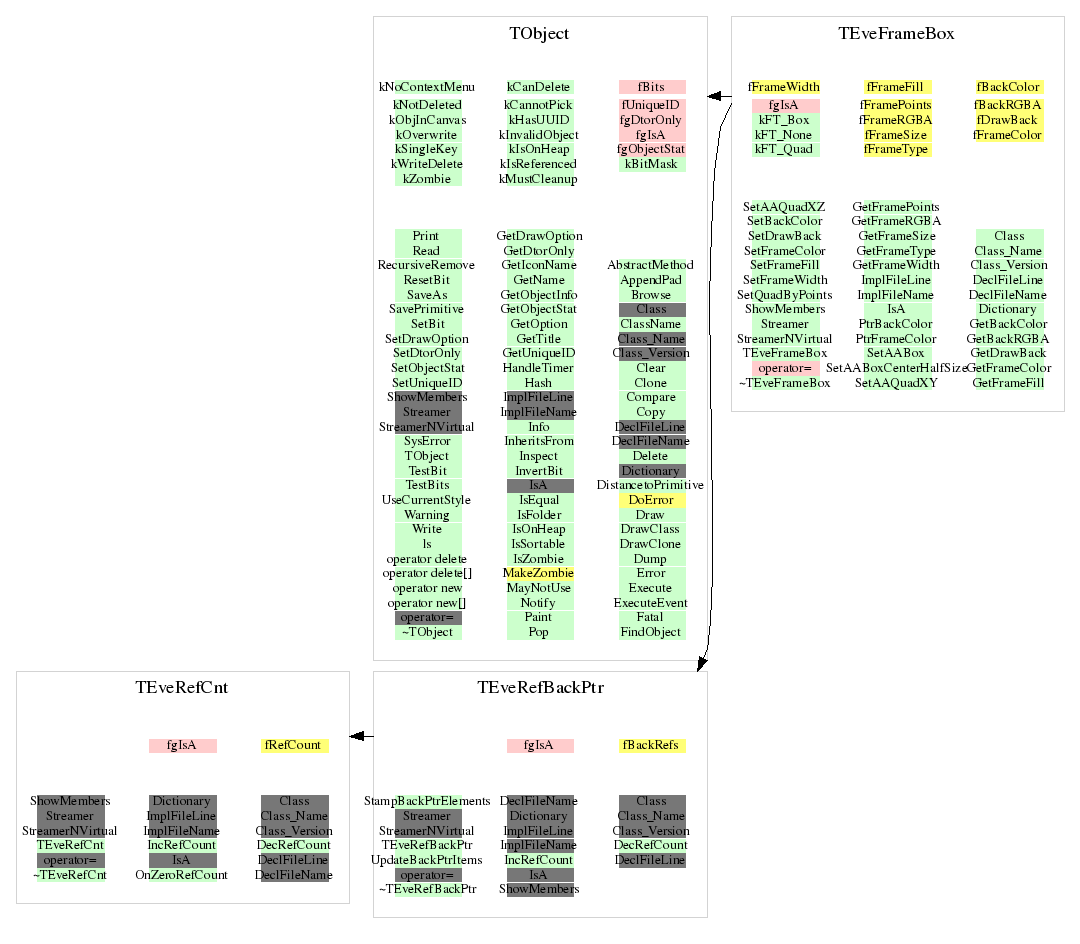

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TEveFrameBox(const TEveFrameBox& )
 Default constructor.
~TEveFrameBox()
 Destructor.
void SetAAQuadXY(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy)
 Setup for axis-aligned rectangle with one corner at x, y, z and
 given sizes in x (dx) and y (dy).
void SetAAQuadXZ(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dz)
 Setup for axis-aligned rectangle with one corner at x, y, z and
 given sizes in x (dx) and z (dz).
void SetQuadByPoints(const Float_t* pointArr, Int_t nPoints)
 Setup frame with explicitly given corner coordinates.
 Arguments:
   pointArr - array containing the 3D points
   nPoint   - number of points, size of array divided by 3
void SetAABox(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy, Float_t dz)
 Setup for axis-aligned box with one corner at x, y, z and
 given sizes in x (dx), y (dy) and z (dz).
void SetAABoxCenterHalfSize(Float_t x, Float_t y, Float_t z, Float_t dx, Float_t dy, Float_t dz)
 Setup for axis-aligned box with center at x, y, z and given
 half-sizes in x (dx), y (dy) and z (dz).
void SetFrameColor(Color_t ci)
 Set color of the frame.
void SetFrameColor(Pixel_t pix)
 Set color of the frame.
void SetFrameColor(UChar_t r, UChar_t g, UChar_t b, UChar_t a = 255)
 Set color of the frame.
void SetBackColor(Color_t ci)
 Set color of the background polygon.
void SetBackColor(Pixel_t pix)
 Set color of the background polygon.
void SetBackColor(UChar_t r, UChar_t g, UChar_t b, UChar_t a = 255)
 Set color of the background polygon.
TEveFrameBox(const TEveFrameBox& )
TEveFrameBox& operator=(const TEveFrameBox& )
EFrameType_e GetFrameType()



{ return fFrameType; }






Int_t GetFrameSize()



{ return fFrameSize; }






Float_t* GetFramePoints()



{ return fFramePoints; }






Float_t GetFrameWidth()



{ return fFrameWidth; }






void SetFrameWidth(Float_t f)



{ fFrameWidth = f;    }






Color_t GetFrameColor()



{ return fFrameColor; }






Color_t* PtrFrameColor()



{ return &fFrameColor; }






UChar_t* GetFrameRGBA()



{ return fFrameRGBA;  }






Color_t GetBackColor()



{ return fBackColor; }






Color_t* PtrBackColor()



{ return &fBackColor; }






UChar_t* GetBackRGBA()



{ return fBackRGBA;  }






Bool_t GetFrameFill()



{ return fFrameFill; }






void SetFrameFill(Bool_t f)



{ fFrameFill = f;    }






Bool_t GetDrawBack()



{ return fDrawBack; }






void SetDrawBack(Bool_t f)



{ fDrawBack = f;    }










Last change: root/eve:$Id: TEveFrameBox.h 23355 2008-04-21 11:17:06Z matevz $

Last generated: 2008-05-13 17:08
