class ROOT::Math::MatRepSym<double,4>


      MatRepStd
      Standard Matrix representation for a general D1 x D2 matrix.
      This class is itself a template on the contained type T, the number of rows and the number of columns.
      Its data member is an array T[nrows*ncols] containing the matrix data.
      The data are stored in the row-major C convention.
      For example, for a matrix, M, of size 3x3, the data \f$ \left[a_0,a_1,a_2,.......,a_7,a_8 \right] \f$d are stored in the following order:
      \f[
      M = \left( \begin{array}{ccc}
      a_0 & a_1 & a_2  \\
      a_3 & a_4  & a_5  \\
      a_6 & a_7  & a_8   \end{array} \right)
      \f]

      @ingroup MatRep

Function Members (Methods)

public:
~MatRepSym<double,4>()
doubleapply(unsigned int i) const
double*Array()
const double*Array() const
voidCreateOffsets()
ROOT::Math::MatRepSym<double,4>MatRepSym<double,4>()
ROOT::Math::MatRepSym<double,4>MatRepSym<double,4>(const ROOT::Math::MatRepSym<double,4>&)
const ROOT::Math::RowOffsets<4>&Offsets() const
const double&operator()(unsigned int i, unsigned int j) const
double&operator()(unsigned int i, unsigned int j)
ROOT::Math::MatRepSym<double,4>&operator+=(const ROOT::Math::MatRepSym<double,4>& rhs)
ROOT::Math::MatRepSym<double,4>&operator-=(const ROOT::Math::MatRepSym<double,4>& rhs)
ROOT::Math::MatRepSym<double,4>&operator=(const ROOT::Math::MatRepSym<double,4>& rhs)
double&operator[](unsigned int i)
const double&operator[](unsigned int i) const

Data Members

public:
enum { kRows
kCols
kSize
};
private:
doublefArray[10]
ROOT::Math::RowOffsets<4>*fOff! transient

Class Charts

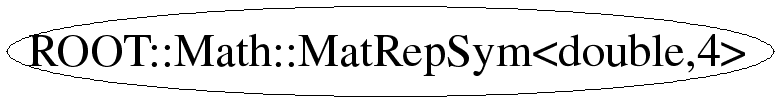

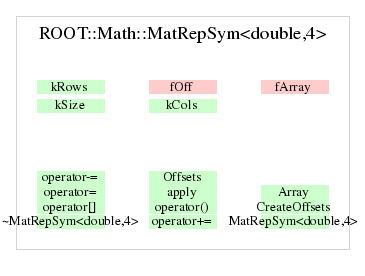

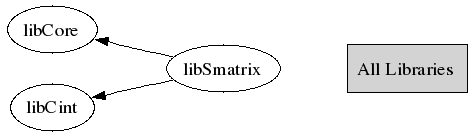

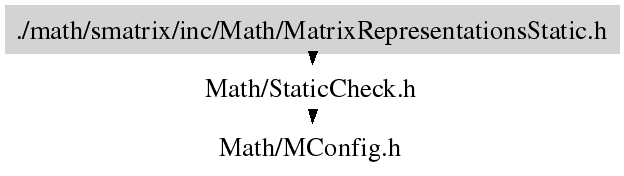

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

const T& operator()(unsigned int i, unsigned int j)
T& operator()(unsigned int i, unsigned int j)
T& operator[](unsigned int i)
{ return fArray[i]; }
const T& operator[](unsigned int i)
{ return fArray[i]; }
T apply(unsigned int i) const
{ return fArray[i]; }
T* Array()
{ return fArray; }
const T* Array()
{ return fArray; }
MatRepStd<T, D1, D2>& operator+=(const ROOT::Math::MatRepSym<double,4>& rhs)
MatRepStd<T, D1, D2>& operator-=(const ROOT::Math::MatRepSym<double,4>& rhs)
MatRepStd<T, D1, D2>& operator=(const ROOT::Math::MatRepSym<double,4>& rhs)
return fArray[ Offsets()
void CreateOffsets()

Author: L. Moneta, J. Palacios 2006
Last change: root/smatrix:$Id: MatrixRepresentationsStatic.h 21553 2007-12-21 10:55:46Z moneta $
Last generated: 2008-06-25 08:29
