class TEveQuadSetGL: public TGLObject


 GL-renderer for TEveQuadSet class.

Function Members (Methods)

public:
TEveQuadSetGL()
virtual~TEveQuadSetGL()
voidTGLLogicalShape::AddRef(TGLPhysicalShape* phys) const
const TGLBoundingBox&TGLLogicalShape::BoundingBox() const
static TClass*Class()
voidTGLLogicalShape::DestroyPhysicals()
virtual voidDirectDraw(TGLRnrCtx& rnrCtx) const
virtual voidTGLLogicalShape::DLCacheClear()
virtual voidTGLLogicalShape::DLCacheDrop()
virtual voidTGLLogicalShape::DLCachePurge()
virtual Int_tTGLLogicalShape::DLCacheSize() const
virtual UInt_tTGLLogicalShape::DLOffset(Short_t) const
virtual voidTGLLogicalShape::Draw(TGLRnrCtx& rnrCtx) const
TObject*TGLLogicalShape::GetExternal() const
const TGLPhysicalShape*TGLLogicalShape::GetFirstPhysical() const
static TClass*TGLObject::GetGLRenderer(TClass* isa)
TGLScene*TGLLogicalShape::GetScene() const
TObject*TGLLogicalShape::ID() const
virtual Bool_tIgnoreSizeForOfInterest() const
voidTGLLogicalShape::InvokeContextMenu(TContextMenu& menu, UInt_t x, UInt_t y) const
virtual TClass*IsA() const
virtual Bool_tTGLObject::KeepDuringSmartRefresh() const
virtual voidProcessSelection(TGLRnrCtx& rnrCtx, TGLSelectRecord& rec)
virtual Short_tTGLLogicalShape::QuantizeShapeLOD(Short_t shapeLOD, Short_t combiLOD) const
UInt_tTGLLogicalShape::Ref() const
virtual voidSetBBox()
Bool_tTGLLogicalShape::SetDLCache(Bool_t cached)
virtual Bool_tSetModel(TObject* obj, Option_t* opt = 0)
virtual Bool_tTGLObject::ShouldDLCache(const TGLRnrCtx& rnrCtx) const
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
voidTGLLogicalShape::StrongRef(Bool_t strong) const
voidTGLLogicalShape::SubRef(TGLPhysicalShape* phys) const
virtual TGLLogicalShape::ELODAxesTGLLogicalShape::SupportedLODAxes() const
virtual Bool_tSupportsSecondarySelect() const
UInt_tTGLLogicalShape::UnrefFirstPhysical()
virtual voidTGLObject::UpdateBoundingBox()
voidTGLLogicalShape::UpdateBoundingBoxesOfPhysicals()
protected:
voidRenderHexagons(TGLRnrCtx& rnrCtx) const
voidRenderLines(TGLRnrCtx& rnrCtx) const
voidRenderQuads(TGLRnrCtx& rnrCtx) const
voidTGLObject::SetAxisAlignedBBox(const Float_t* p)
voidTGLObject::SetAxisAlignedBBox(Float_t xmin, Float_t xmax, Float_t ymin, Float_t ymax, Float_t zmin, Float_t zmax)
Bool_tTGLObject::SetModelCheckClass(TObject* obj, TClass* cls)
Bool_tSetupColor(const TEveDigitSet::DigitBase_t& q) const
private:
TEveQuadSetGL(const TEveQuadSetGL&)
TEveQuadSetGL&operator=(const TEveQuadSetGL&)

Data Members

public:
enum TGLLogicalShape::ELODAxes { kLODAxesNone
kLODAxesX
kLODAxesY
kLODAxesZ
kLODAxesAll
};
protected:
TGLBoundingBoxTGLLogicalShape::fBoundingBox! Shape's bounding box.
UInt_tTGLLogicalShape::fDLBase! display-list id base
Bool_tTGLLogicalShape::fDLCache! use display list caching
UShort_tTGLLogicalShape::fDLValid! display-list validity bit-field
TObject*TGLLogicalShape::fExternalObj! Also plays the role of ID.
TGLPhysicalShape*TGLLogicalShape::fFirstPhysical! first replica
TEveQuadSet*fM
Bool_tTGLObject::fMultiColorAre multiple colors used for object rendering.
Bool_tTGLLogicalShape::fOwnExtObj! External object is a fake
UInt_tTGLLogicalShape::fRef! physical instance ref counting
Bool_tTGLLogicalShape::fRefStrong! Strong ref (delete on 0 ref); not in scene
TGLScene*TGLLogicalShape::fScene! scene where object is stored (can be zero!)

Class Charts

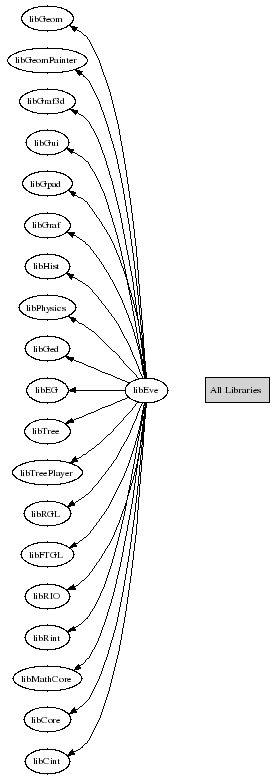

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TEveQuadSetGL(const TEveQuadSetGL& )
 Constructor.
Bool_t SetModel(TObject* obj, Option_t* opt = 0)
 Set model object.
void SetBBox()
 Setup bounding box.
Bool_t SetupColor(const TEveDigitSet::DigitBase_t& q) const
 Set color for rendering of the specified quad.
void DirectDraw(TGLRnrCtx& rnrCtx) const
 Draw quad-set with GL.
void RenderQuads(TGLRnrCtx& rnrCtx) const
 GL rendering for free-quads and rectangles.
void RenderLines(TGLRnrCtx& rnrCtx) const
 GL rendering for line-types.
void RenderHexagons(TGLRnrCtx& rnrCtx) const
 GL rendering for hexagons.
void ProcessSelection(TGLRnrCtx& rnrCtx, TGLSelectRecord& rec)
 Processes secondary selection from TGLViewer.
 Calls DigitSelected(Int_t) in the model object with index of
 selected point as the argument.
TEveQuadSetGL(const TEveQuadSetGL& )
TEveQuadSetGL& operator=(const TEveQuadSetGL& )
virtual ~TEveQuadSetGL()
{}
Bool_t IgnoreSizeForOfInterest()
{ return kTRUE; }
Bool_t SupportsSecondarySelect()
{ return kTRUE; }
