class ROOT::Math::BoostZ


      Class representing a Lorentz Boost along the Z axis, by beta.
      For efficiency, gamma is held as well.

      @ingroup GenVector

Function Members (Methods)

public:
~BoostZ()
ROOT::Math::BoostZ::ScalarBeta() const
ROOT::Math::BoostZ::XYZVectorBetaVector() const
ROOT::Math::BoostZBoostZ()
ROOT::Math::BoostZBoostZ(ROOT::Math::BoostZ::Scalar beta_z)
ROOT::Math::BoostZBoostZ(const ROOT::Math::BoostZ&)
ROOT::Math::BoostZ::ScalarGamma() const
voidGetComponents(ROOT::Math::BoostZ::Scalar& beta_z) const
voidGetLorentzRotation(ROOT::Math::BoostZ::Scalar* r) const
ROOT::Math::BoostZInverse() const
voidInvert()
booloperator!=(const ROOT::Math::BoostZ& rhs) const
ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >operator()(const ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >& v) const
ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >operator*(const ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >& v) const
ROOT::Math::BoostZ&operator=(const ROOT::Math::BoostZ&)
booloperator==(const ROOT::Math::BoostZ& rhs) const
voidRectify()
voidSetBeta(ROOT::Math::BoostZ::Scalar beta)
voidSetComponents(ROOT::Math::BoostZ::Scalar beta_z)

Data Members

public:
enum ELorentzRotationMatrixIndex { kLXX
kLXY
kLXZ
kLXT
kLYX
kLYY
kLYZ
kLYT
kLZX
kLZY
kLZZ
kLZT
kLTX
kLTY
kLTZ
kLTT
};
enum EBoostMatrixIndex { kXX
kXY
kXZ
kXT
kYY
kYZ
kYT
kZZ
kZT
kTT
};
private:
ROOT::Math::BoostZ::ScalarfBetaboost beta z
ROOT::Math::BoostZ::ScalarfGammaboost gamma

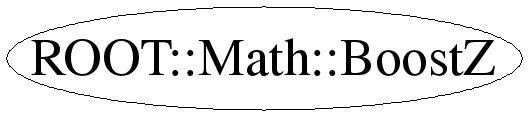

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

BoostZ()
 ========== Constructors and Assignment =====================

      Default constructor (identity transformation)

explicit BoostZ(Scalar beta_z)
      Construct given a Scalar beta_z

{ SetComponents(beta_z); }
void Rectify()
 The compiler-generated copy ctor, copy assignment, and dtor are OK.

      Re-adjust components to eliminate small deviations from a perfect
      orthosyplectic matrix.

SetComponents(ROOT::Math::BoostZ::Scalar beta_z)
 ======== Components ==============

      Set components from a Scalar beta_z

GetComponents(ROOT::Math::BoostZ::Scalar& beta_z) const
      Get components into a Scalar beta_z

Scalar Beta()
       Retrieve the beta of the Boost

{ return fBeta; }
Scalar Gamma()
       Retrieve the gamma of the Boost

{ return fGamma; }
void SetBeta(ROOT::Math::BoostZ::Scalar beta)
       Set the given beta of the Boost

{ SetComponents(beta); }
XYZVector BetaVector()
GetLorentzRotation(ROOT::Math::BoostZ::Scalar* r) const
      Get elements of internal 4x4 symmetric representation, into a data
      array suitable for direct use as the components of a LorentzRotation
      Note -- 16 Scalars will be written into the array; if the array is not
      that large, then this will lead to undefined behavior.

operator()(const ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >& v) const
 =========== operations ==============

      Lorentz transformation operation on a Minkowski ('Cartesian')
      LorentzVector

A4Vector operator*(const ROOT::Math::LorentzVector<ROOT::Math::PxPyPzE4D<double> >& v) const
      Overload operator * for boost on a vector

void Invert()
      Invert a BoostZ in place

BoostZ Inverse()
      Return inverse of  a BoostZ

return ! operator==(const ROOT::Math::BoostZ& rhs) const
