class TGLTF3Painter: public TGLPlotPainter


 Plot-painter implementing rendering of TF3 functions.

Function Members (Methods)

public:
TGLTF3Painter(TF3* fun, TH1* hist, TGLOrthoCamera* camera, TGLPlotCoordinates* coord, TGLPaintDevice* dev = 0)
~TGLTF3Painter()
virtual voidAddOption(const TString& stringOption)
static TClass*Class()
Bool_tTGLPlotPainter::CutAxisSelected() const
virtual char*GetPlotInfo(Int_t px, Int_t py)
virtual Bool_tInitGeometry()
voidTGLPlotPainter::InvalidateSelection()
virtual TClass*IsA() const
TVirtualGLPainter&TVirtualGLPainter::operator=(const TVirtualGLPainter&)
virtual voidTGLPlotPainter::Paint()
virtual voidPan(Int_t px, Int_t py)
virtual Bool_tTGLPlotPainter::PlotSelected(Int_t px, Int_t py)
virtual voidProcessEvent(Int_t event, Int_t px, Int_t py)
const TGLPlotBox&TGLPlotPainter::RefBackBox() const
virtual voidTGLPlotPainter::SetFrameColor(const TColor* frameColor)
voidTGLPlotPainter::SetGLDevice(TGLPaintDevice* dev)
voidTGLPlotPainter::SetPadColor(const TColor* color)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStartPan(Int_t px, Int_t py)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
protected:
virtual voidTGLPlotPainter::ClearBuffers() const
virtual voidTGLPlotPainter::DrawPaletteAxis() const
voidTGLPlotPainter::DrawSections() const
const TColor*TGLPlotPainter::GetPadColor() const
Bool_tTGLPlotPainter::MakeGLContextCurrent() const
voidTGLPlotPainter::MoveSection(Int_t px, Int_t py)
voidTGLPlotPainter::PrintPlot() const
private:
virtual voidDrawPlot() const
virtual voidDrawSectionXOY() const
virtual voidDrawSectionXOZ() const
virtual voidDrawSectionYOZ() const
Bool_tHasSections() const
virtual voidInitGL() const
voidSetSurfaceColor() const

Data Members

public:
enum ETF3Style { kDefault
kMaple0
kMaple1
kMaple2
};
enum TGLPlotPainter::ESelectionBase { kHighColorSelectionBase
kTrueColorSelectionBase
};
enum TGLPlotPainter::ECutAxisID { kXAxis
kYAxis
kZAxis
};
protected:
TGLPlotBoxTGLPlotPainter::fBackBox
TGLBoxCutTGLPlotPainter::fBoxCut
TGLOrthoCamera*TGLPlotPainter::fCamera
TGLPlotCoordinates*TGLPlotPainter::fCoord
Bool_tTGLPlotPainter::fDrawPalette
Bool_tTGLPlotPainter::fHighColor
TH1*TGLPlotPainter::fHist
TPointTGLPlotPainter::fMousePosition
Double_tTGLPlotPainter::fPadPhi
Double_tTGLPlotPainter::fPadTheta
Int_tTGLPlotPainter::fSelectedPart
TGLSelectionBufferTGLPlotPainter::fSelection
TGLPlotPainter::ESelectionBaseTGLPlotPainter::fSelectionBase
Bool_tTGLPlotPainter::fSelectionPass
Bool_tTGLPlotPainter::fUpdateSelection
TAxis*TGLPlotPainter::fXAxis
Double_tTGLPlotPainter::fXOYSectionPos
Double_tTGLPlotPainter::fXOZSectionPos
TAxis*TGLPlotPainter::fYAxis
Double_tTGLPlotPainter::fYOZSectionPos
TAxis*TGLPlotPainter::fZAxis
vector<Double_t>TGLPlotPainter::fZLevels
private:
TF3*fF3
vector<TriFace_t>fMesh
TGLTF3Painter::ETF3StylefStyle
TGLTH3SlicefXOYSlice
TGLTH3SlicefXOZSlice
TGLTH3SlicefYOZSlice

Class Charts

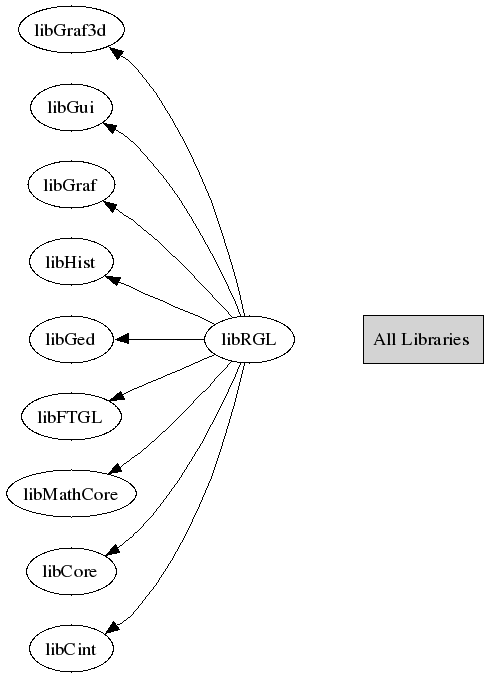

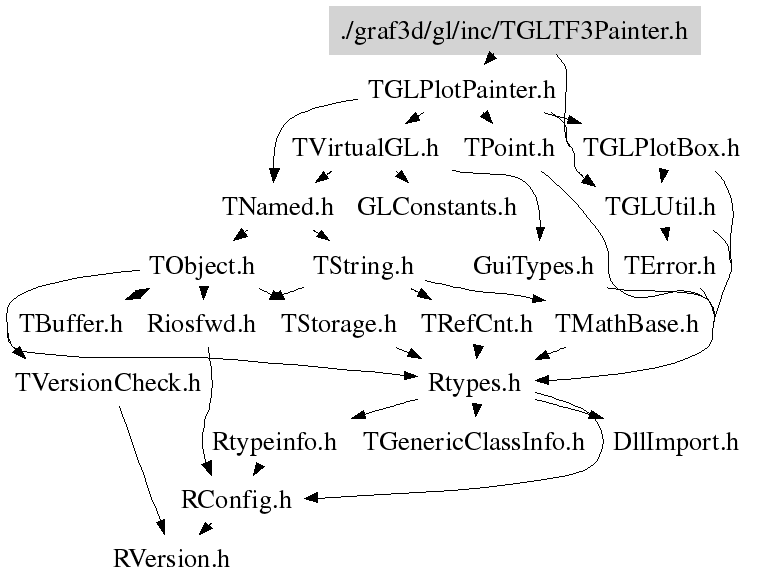

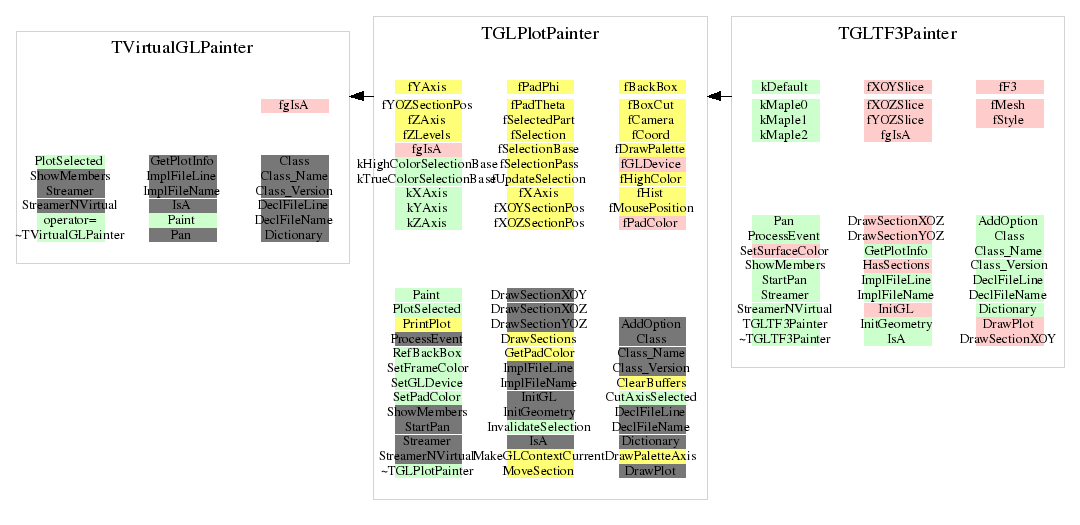

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGLTF3Painter(TF3* fun, TH1* hist, TGLOrthoCamera* camera, TGLPlotCoordinates* coord, TGLPaintDevice* dev = 0)
 Constructor.
char * GetPlotInfo(Int_t px, Int_t py)
Coords for point on surface under cursor.
Bool_t InitGeometry()
Create mesh.
void StartPan(Int_t px, Int_t py)
User clicks right mouse button (in a pad).
void Pan(Int_t px, Int_t py)
User's moving mouse cursor, with middle mouse button pressed (for pad).
Calculate 3d shift related to 2d mouse movement.
void AddOption(const TString& stringOption)
No options for tf3
void ProcessEvent(Int_t event, Int_t px, Int_t py)
Change color sheme.
void InitGL()
Initialize OpenGL state variables.
void DrawPlot()
Draw mesh.
void SetSurfaceColor()
Set color for surface.
Bool_t HasSections()
Any section exists.
void DrawSectionXOZ()
 Draw XOZ parallel section.
void DrawSectionYOZ()
 Draw YOZ parallel section.
void DrawSectionXOY()
 Draw XOY parallel section.
