class TGeoBuilder: public TObject

 TGeoBuilder


   Utility class for creating geometry objects.These will be associated
   with the current selected geometry manager object:

      TGeoBuilder::Instance()->SetGeometry(gGeoManager);

   The geometry builder is a singleton that may be used to build one or more
   geometries.


Function Members (Methods)

public:
virtual~TGeoBuilder()
voidTObject::AbstractMethod(const char* method) const
Int_tAddMaterial(TGeoMaterial* material)
Int_tAddShape(TGeoShape* shape)
Int_tAddTransformation(TGeoMatrix* matrix)
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
TGeoVolume*Division(const char* name, const char* mother, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step, Int_t numed = 0, Option_t* option = "")
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
static TGeoBuilder*Instance(TGeoManager* geom)
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
TGeoVolume*MakeArb8(const char* name, const TGeoMedium* medium, Double_t dz, Double_t* vertices = 0)
TGeoVolume*MakeBox(const char* name, const TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz)
TGeoVolume*MakeCone(const char* name, const TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2)
TGeoVolume*MakeCons(const char* name, const TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2, Double_t phi1, Double_t phi2)
TGeoVolume*MakeCtub(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2, Double_t lx, Double_t ly, Double_t lz, Double_t tx, Double_t ty, Double_t tz)
TGeoVolume*MakeEltu(const char* name, const TGeoMedium* medium, Double_t a, Double_t b, Double_t dz)
TGeoVolume*MakeGtra(const char* name, const TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t twist, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
TGeoVolume*MakeHype(const char* name, const TGeoMedium* medium, Double_t rin, Double_t stin, Double_t rout, Double_t stout, Double_t dz)
TGeoVolume*MakePara(const char* name, const TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
TGeoVolume*MakeParaboloid(const char* name, const TGeoMedium* medium, Double_t rlo, Double_t rhi, Double_t dz)
TGeoVolume*MakePcon(const char* name, const TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nz)
TGeoVolume*MakePgon(const char* name, const TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nedges, Int_t nz)
TGeoVolume*MakeSphere(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t themin = 0, Double_t themax = 180, Double_t phimin = 0, Double_t phimax = 360)
TGeoVolume*MakeTorus(const char* name, const TGeoMedium* medium, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
TGeoVolume*MakeTrap(const char* name, const TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
TGeoVolume*MakeTrd1(const char* name, const TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy, Double_t dz)
TGeoVolume*MakeTrd2(const char* name, const TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy1, Double_t dy2, Double_t dz)
TGeoVolume*MakeTube(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz)
TGeoVolume*MakeTubs(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2)
TGeoVolumeAssembly*MakeVolumeAssembly(const char* name)
TGeoVolumeMulti*MakeVolumeMulti(const char* name, const TGeoMedium* medium)
TGeoVolume*MakeXtru(const char* name, const TGeoMedium* medium, Int_t nz)
TGeoMaterial*Material(const char* name, Double_t a, Double_t z, Double_t dens, Int_t uid, Double_t radlen = 0, Double_t intlen = 0)
voidMatrix(Int_t index, Double_t theta1, Double_t phi1, Double_t theta2, Double_t phi2, Double_t theta3, Double_t phi3)
voidTObject::MayNotUse(const char* method) const
TGeoMedium*Medium(const char* name, Int_t numed, Int_t nmat, Int_t isvol, Int_t ifield, Double_t fieldm, Double_t tmaxfd, Double_t stemax, Double_t deemax, Double_t epsil, Double_t stmin)
TGeoMaterial*Mixture(const char* name, Float_t* a, Float_t* z, Double_t dens, Int_t nelem, Float_t* wmat, Int_t uid)
TGeoMaterial*Mixture(const char* name, Double_t* a, Double_t* z, Double_t dens, Int_t nelem, Double_t* wmat, Int_t uid)
voidNode(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Float_t* upar, Int_t npar = 0)
voidNode(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Double_t* upar, Int_t npar = 0)
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidRegisterMatrix(TGeoMatrix* matrix)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
TGeoVolume*Volume(const char* name, const char* shape, Int_t nmed, Float_t* upar, Int_t npar = 0)
TGeoVolume*Volume(const char* name, const char* shape, Int_t nmed, Double_t* upar, Int_t npar = 0)
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
TGeoBuilder()
TGeoBuilder(const TGeoBuilder&)
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
TGeoBuilder&operator=(const TGeoBuilder&)
private:
voidSetGeometry(TGeoManager* geom)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
static TGeoBuilder*fgInstance! static pointer to singleton
private:
TGeoManager*fGeometry! current geometry

Class Charts

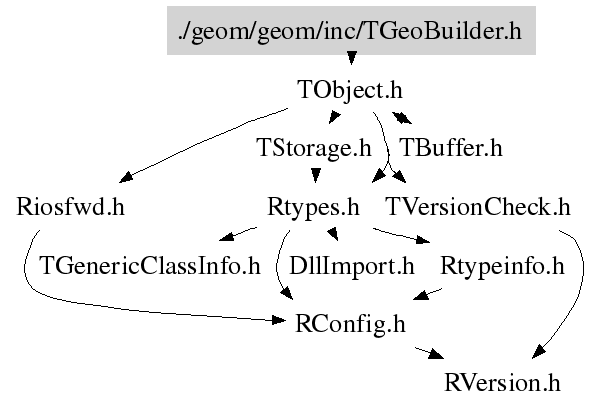

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoBuilder(const TGeoBuilder& )
 Default constructor.
TGeoBuilder(const TGeoBuilder& )
 Copy constructor.
~TGeoBuilder()
 Destructor.
TGeoBuilder & operator=(const TGeoBuilder& )
 Assignment.
TGeoBuilder * Instance(TGeoManager* geom)
 Return pointer to singleton.
Int_t AddMaterial(TGeoMaterial* material)
 Add a material to the list. Returns index of the material in list.
Int_t AddTransformation(TGeoMatrix* matrix)
 Add a matrix to the list. Returns index of the matrix in list.
Int_t AddShape(TGeoShape* shape)
 Add a shape to the list. Returns index of the shape in list.
void RegisterMatrix(TGeoMatrix* matrix)
 Register a matrix to the list of matrices. It will be cleaned-up at the
 destruction TGeoManager.
TGeoVolume * MakeArb8(const char* name, const TGeoMedium* medium, Double_t dz, Double_t* vertices = 0)
 Make an TGeoArb8 volume.
TGeoVolume * MakeBox(const char* name, const TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz)
 Make in one step a volume pointing to a box shape with given medium.
TGeoVolume * MakePara(const char* name, const TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
 Make in one step a volume pointing to a paralelipiped shape with given medium.
TGeoVolume * MakeSphere(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t themin = 0, Double_t themax = 180, Double_t phimin = 0, Double_t phimax = 360)
 Make in one step a volume pointing to a sphere shape with given medium
TGeoVolume * MakeTorus(const char* name, const TGeoMedium* medium, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
 Make in one step a volume pointing to a torus shape with given medium.
TGeoVolume * MakeTube(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium.
TGeoVolume * MakeTubs(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2)
 Make in one step a volume pointing to a tube segment shape with given medium.
TGeoVolume * MakeEltu(const char* name, const TGeoMedium* medium, Double_t a, Double_t b, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeHype(const char* name, const TGeoMedium* medium, Double_t rin, Double_t stin, Double_t rout, Double_t stout, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeParaboloid(const char* name, const TGeoMedium* medium, Double_t rlo, Double_t rhi, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeCtub(const char* name, const TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2, Double_t lx, Double_t ly, Double_t lz, Double_t tx, Double_t ty, Double_t tz)
 Make in one step a volume pointing to a tube segment shape with given medium
TGeoVolume * MakeCone(const char* name, const TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2)
 Make in one step a volume pointing to a cone shape with given medium.
TGeoVolume * MakeCons(const char* name, const TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2, Double_t phi1, Double_t phi2)
 Make in one step a volume pointing to a cone segment shape with given medium
TGeoVolume * MakePcon(const char* name, const TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nz)
 Make in one step a volume pointing to a polycone shape with given medium.
TGeoVolume * MakePgon(const char* name, const TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nedges, Int_t nz)
 Make in one step a volume pointing to a polygone shape with given medium.
TGeoVolume * MakeTrd1(const char* name, const TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy, Double_t dz)
 Make in one step a volume pointing to a TGeoTrd1 shape with given medium.
TGeoVolume * MakeTrd2(const char* name, const TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy1, Double_t dy2, Double_t dz)
 Make in one step a volume pointing to a TGeoTrd2 shape with given medium.
TGeoVolume * MakeTrap(const char* name, const TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
 Make in one step a volume pointing to a trapezoid shape with given medium.
TGeoVolume * MakeGtra(const char* name, const TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t twist, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
 Make in one step a volume pointing to a twisted trapezoid shape with given medium.
TGeoVolume * MakeXtru(const char* name, const TGeoMedium* medium, Int_t nz)
 Make a TGeoXtru-shaped volume with nz planes
TGeoVolumeAssembly * MakeVolumeAssembly(const char* name)
 Make an assembly of volumes.
TGeoVolumeMulti * MakeVolumeMulti(const char* name, const TGeoMedium* medium)
 Make a TGeoVolumeMulti handling a list of volumes.
TGeoVolume * Division(const char* name, const char* mother, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step, Int_t numed = 0, Option_t* option = "")
 Create a new volume by dividing an existing one (GEANT3 like)

 Divides MOTHER into NDIV divisions called NAME
 along axis IAXIS starting at coordinate value START
 and having size STEP. The created volumes will have tracking
 media ID=NUMED (if NUMED=0 -> same media as MOTHER)
    The behavior of the division operation can be triggered using OPTION :
 OPTION (case insensitive) :
  N  - divide all range in NDIV cells (same effect as STEP<=0) (GSDVN in G3)
  NX - divide range starting with START in NDIV cells          (GSDVN2 in G3)
  S  - divide all range with given STEP. NDIV is computed and divisions will be centered
         in full range (same effect as NDIV<=0)                (GSDVS, GSDVT in G3)
  SX - same as DVS, but from START position.                   (GSDVS2, GSDVT2 in G3)
void Matrix(Int_t index, Double_t theta1, Double_t phi1, Double_t theta2, Double_t phi2, Double_t theta3, Double_t phi3)
 Create rotation matrix named 'mat<index>'.

  index    rotation matrix number
  theta1   polar angle for axis X
  phi1     azimuthal angle for axis X
  theta2   polar angle for axis Y
  phi2     azimuthal angle for axis Y
  theta3   polar angle for axis Z
  phi3     azimuthal angle for axis Z

TGeoMaterial * Material(const char* name, Double_t a, Double_t z, Double_t dens, Int_t uid, Double_t radlen = 0, Double_t intlen = 0)
 Create material with given A, Z and density, having an unique id.
TGeoMaterial * Mixture(const char *name, Float_t *a, Float_t *z, Double_t dens, Int_t nelem, Float_t *wmat, Int_t uid)
 Create mixture OR COMPOUND IMAT as composed by THE BASIC nelem
 materials defined by arrays A,Z and WMAT, having an unique id.
TGeoMaterial * Mixture(const char *name, Double_t *a, Double_t *z, Double_t dens, Int_t nelem, Double_t *wmat, Int_t uid)
 Create mixture OR COMPOUND IMAT as composed by THE BASIC nelem
 materials defined by arrays A,Z and WMAT, having an unique id.
TGeoMedium * Medium(const char* name, Int_t numed, Int_t nmat, Int_t isvol, Int_t ifield, Double_t fieldm, Double_t tmaxfd, Double_t stemax, Double_t deemax, Double_t epsil, Double_t stmin)
 Create tracking medium

  numed      tracking medium number assigned
  name      tracking medium name
  nmat      material number
  isvol     sensitive volume flag
  ifield    magnetic field
  fieldm    max. field value (kilogauss)
  tmaxfd    max. angle due to field (deg/step)
  stemax    max. step allowed
  deemax    max. fraction of energy lost in a step
  epsil     tracking precision (cm)
  stmin     min. step due to continuous processes (cm)

  ifield = 0 if no magnetic field; ifield = -1 if user decision in guswim;
  ifield = 1 if tracking performed with g3rkuta; ifield = 2 if tracking
  performed with g3helix; ifield = 3 if tracking performed with g3helx3.

void Node(const char *name, Int_t nr, const char *mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Float_t *upar, Int_t npar)
 Create a node called <name_nr> pointing to the volume called <name>
 as daughter of the volume called <mother> (gspos). The relative matrix is
 made of : a translation (x,y,z) and a rotation matrix named <matIROT>.
 In case npar>0, create the volume to be positioned in mother, according
 its actual parameters (gsposp).
  NAME   Volume name
  NUMBER Copy number of the volume
  MOTHER Mother volume name
  X      X coord. of the volume in mother ref. sys.
  Y      Y coord. of the volume in mother ref. sys.
  Z      Z coord. of the volume in mother ref. sys.
  IROT   Rotation matrix number w.r.t. mother ref. sys.
  ISONLY ONLY/MANY flag
void Node(const char *name, Int_t nr, const char *mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Double_t *upar, Int_t npar)
 Create a node called <name_nr> pointing to the volume called <name>
 as daughter of the volume called <mother> (gspos). The relative matrix is
 made of : a translation (x,y,z) and a rotation matrix named <matIROT>.
 In case npar>0, create the volume to be positioned in mother, according
 its actual parameters (gsposp).
  NAME   Volume name
  NUMBER Copy number of the volume
  MOTHER Mother volume name
  X      X coord. of the volume in mother ref. sys.
  Y      Y coord. of the volume in mother ref. sys.
  Z      Z coord. of the volume in mother ref. sys.
  IROT   Rotation matrix number w.r.t. mother ref. sys.
  ISONLY ONLY/MANY flag
TGeoVolume * Volume(const char *name, const char *shape, Int_t nmed, Float_t *upar, Int_t npar)
 Create a volume in GEANT3 style.
  NAME   Volume name
  SHAPE  Volume type
  NMED   Tracking medium number
  NPAR   Number of shape parameters
  UPAR   Vector containing shape parameters
TGeoVolume * Volume(const char *name, const char *shape, Int_t nmed, Double_t *upar, Int_t npar)
 Create a volume in GEANT3 style.
  NAME   Volume name
  SHAPE  Volume type
  NMED   Tracking medium number
  NPAR   Number of shape parameters
  UPAR   Vector containing shape parameters
void SetGeometry(TGeoManager* geom)
{fGeometry = geom;}

Author: Mihaela Gheata 30/05/07
Last change: root/geom:$Id: TGeoBuilder.h 21567 2007-12-28 16:36:06Z brun $
Last generated: 2008-06-25 08:44
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *

This page has been automatically generated. If you have any comments or suggestions about the page layout send a mail to ROOT support, or contact the developers with any questions or problems regarding ROOT.
