class TLegendEntry: public TObject, public TAttText, public TAttLine, public TAttFill, public TAttMarker

 TLegendEntry   Matthew.Adam.Dobbs@Cern.CH, September 1999
 Storage class for one entry of a TLegend

Function Members (Methods)

public:
TLegendEntry()
TLegendEntry(const TLegendEntry& entry)
TLegendEntry(const TObject* obj, const char* label = 0, Option_t* option = "lpf")
virtual~TLegendEntry()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidCopy(TObject& obj) const
virtual voidTObject::Delete(Option_t* option = "")MENU
Int_tTAttLine::DistancetoLine(Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual Color_tTAttFill::GetFillColor() const
virtual Style_tTAttFill::GetFillStyle() const
virtual const char*TObject::GetIconName() const
virtual const char*GetLabel() const
virtual Color_tTAttLine::GetLineColor() const
virtual Style_tTAttLine::GetLineStyle() const
virtual Width_tTAttLine::GetLineWidth() const
virtual Color_tTAttMarker::GetMarkerColor() const
virtual Size_tTAttMarker::GetMarkerSize() const
virtual Style_tTAttMarker::GetMarkerStyle() const
virtual const char*TObject::GetName() const
virtual TObject*GetObject() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*GetOption() const
virtual Short_tTAttText::GetTextAlign() const
virtual Float_tTAttText::GetTextAngle() const
virtual Color_tTAttText::GetTextColor() const
virtual Font_tTAttText::GetTextFont() const
virtual Float_tTAttText::GetTextSize() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
virtual Bool_tTAttFill::IsTransparent() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual voidTAttText::Modify()
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidPrint(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual voidTAttFill::ResetAttFill(Option_t* option = "")
virtual voidTAttLine::ResetAttLine(Option_t* option = "")
virtual voidTAttMarker::ResetAttMarker(Option_t* toption = "")
virtual voidTAttText::ResetAttText(Option_t* toption = "")
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidSaveEntry(ostream& out, const char* name)
virtual voidTAttFill::SaveFillAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1001)
virtual voidTAttLine::SaveLineAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1, Int_t widdef = 1)
virtual voidTAttMarker::SaveMarkerAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1, Int_t sizdef = 1)
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
virtual voidTAttText::SaveTextAttributes(ostream& out, const char* name, Int_t alidef = 12, Float_t angdef = 0, Int_t coldef = 1, Int_t fondef = 61, Float_t sizdef = 1)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
virtual voidTAttFill::SetFillAttributes()MENU
virtual voidTAttFill::SetFillColor(Color_t fcolor)
virtual voidTAttFill::SetFillStyle(Style_t fstyle)
virtual voidSetLabel(const char* label = "")MENU
virtual voidTAttLine::SetLineAttributes()MENU
virtual voidTAttLine::SetLineColor(Color_t lcolor)
virtual voidTAttLine::SetLineStyle(Style_t lstyle)
virtual voidTAttLine::SetLineWidth(Width_t lwidth)
virtual voidTAttMarker::SetMarkerAttributes()MENU
virtual voidTAttMarker::SetMarkerColor(Color_t tcolor = 1)
virtual voidTAttMarker::SetMarkerSize(Size_t msize = 1)
virtual voidTAttMarker::SetMarkerStyle(Style_t mstyle = 1)
virtual voidSetObject(TObject* obj)
virtual voidSetObject(const char* objectName)MENU
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidSetOption(Option_t* option = "lpf")MENU
virtual voidTAttText::SetTextAlign(Short_t align = 11)
virtual voidTAttText::SetTextAngle(Float_t tangle = 0)MENU
virtual voidTAttText::SetTextAttributes()MENU
virtual voidTAttText::SetTextColor(Color_t tcolor = 1)
virtual voidTAttText::SetTextFont(Font_t tfont = 62)
virtual voidTAttText::SetTextSize(Float_t tsize = 1)
virtual voidTAttText::SetTextSizePixels(Int_t npixels)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
private:
TLegendEntry&operator=(const TLegendEntry&)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Color_tTAttFill::fFillColorfill area color
Style_tTAttFill::fFillStylefill area style
TStringfLabelText associated with the entry, will become latex
Color_tTAttLine::fLineColorline color
Style_tTAttLine::fLineStyleline style
Width_tTAttLine::fLineWidthline width
Color_tTAttMarker::fMarkerColorMarker color index
Size_tTAttMarker::fMarkerSizeMarker size
Style_tTAttMarker::fMarkerStyleMarker style
TObject*fObjectpointer to object being represented by this entry
TStringfOptionOptions associated with this entry
Short_tTAttText::fTextAlignText alignment
Float_tTAttText::fTextAngleText angle
Color_tTAttText::fTextColorText color index
Font_tTAttText::fTextFontText font number
Float_tTAttText::fTextSizeText size

Class Charts

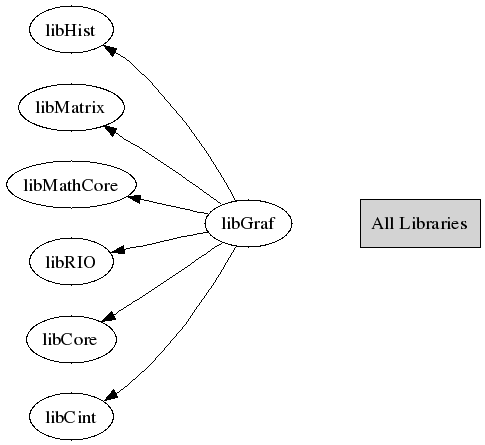

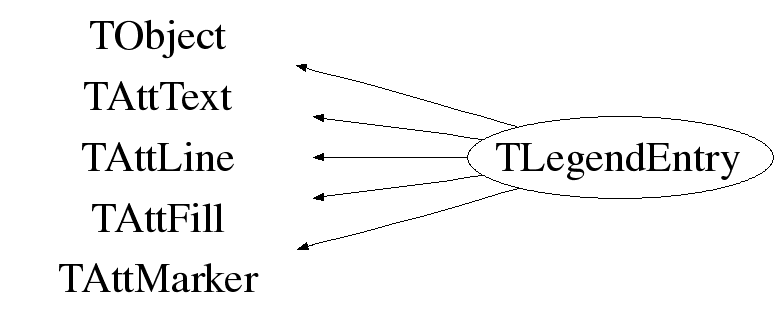

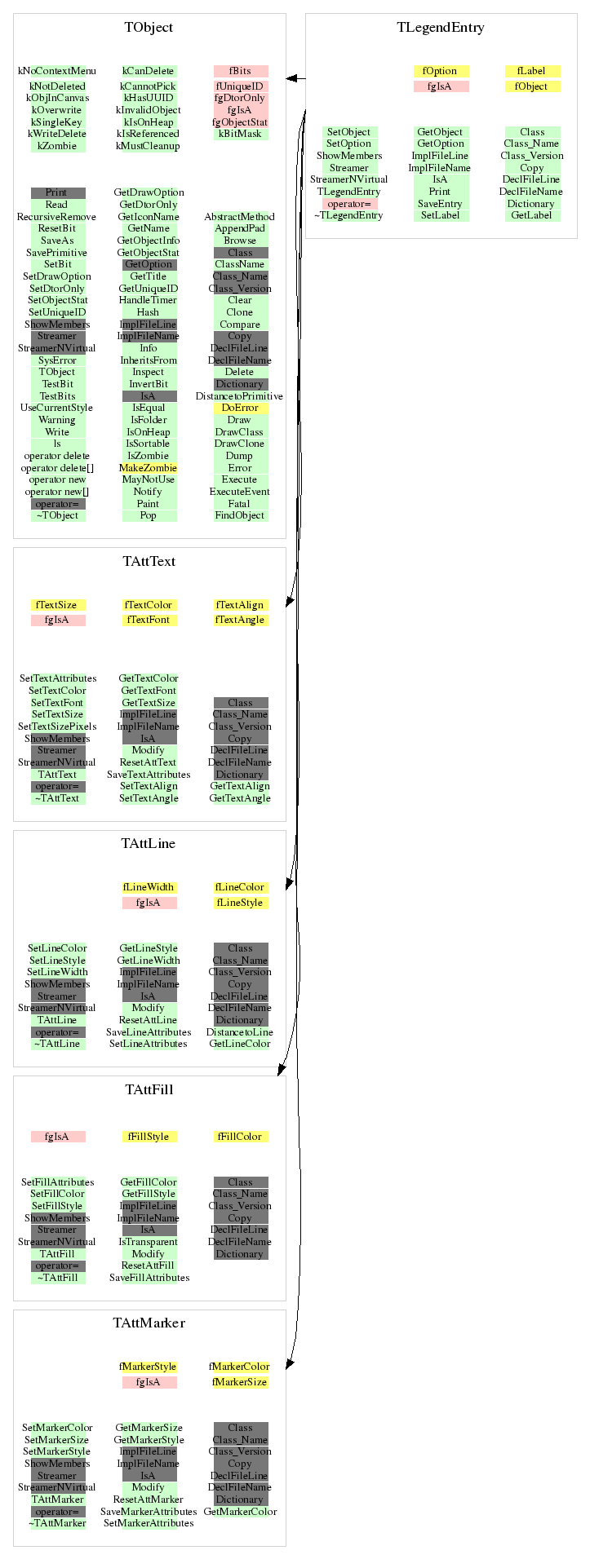

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TLegendEntry()
 TLegendEntry do-nothing default constructor
TLegendEntry(const TObject* obj, const char* label = 0, Option_t* option = "lpf")
 TLegendEntry normal constructor for one entry in a TLegend
   obj is the object this entry will represent. If obj has
   line/fill/marker attributes, then the TLegendEntry will display
   these attributes.
   label is the text that will describe the entry, it is displayed using
   TLatex, so may have a complex format.
   option may have values
    L draw line associated w/ TAttLine if obj inherits from TAttLine
    P draw polymarker assoc. w/ TAttMarker if obj inherits from TAttMarker
    F draw a box with fill associated w/ TAttFill if obj inherits TAttFill
   default is object = "LPF"
TLegendEntry(const TLegendEntry& entry)
 TLegendEntry copy constructor
~TLegendEntry()
 TLegendEntry default destructor
void Copy(TObject& obj) const
 copy this TLegendEntry into obj
void Print(Option_t* option = "") const
 dump this TLegendEntry to cout
void SaveEntry(ostream& out, const char* name)
 Save this TLegendEntry as C++ statements on output stream out
  to be used with the SaveAs .C option
void SetObject(TObject* obj )
 (re)set the obj pointed to by this entry
void SetObject( const char* objectName)
 (re)set the obj pointed to by this entry
const char * GetLabel() const
{ return fLabel.Data(); }
TObject * GetObject() const
{ return fObject; }
Option_t * GetOption() const
{ return fOption.Data(); }
void SetLabel(const char* label = "")
{ fLabel = label; }
void SetOption(Option_t* option = "lpf")
{ fOption = option; }
TLegendEntry& operator=(const TLegendEntry& )

Author: Matthew.Adam.Dobbs 06/09/99
Last change: root/graf:$Id: TLegendEntry.h 26711 2008-12-06 19:50:17Z brun $
Last generated: 2008-12-08 10:00
