class TShape: public TNamed, public TAttLine, public TAttFill, public TAtt3D


  This is the base class for all geometry shapes.
  The list of shapes currently supported correspond to the shapes
  in Geant version 3:
     TBRIK,TCONE,TCONS,TGTRA,TPARA,TPCON,TPGON
    ,TTRAP,TTRD1,TTRD2,THYPE, TTUBE and TTUBS.

  The figure below shows instances of all these shapes. This figure
  is generated by the ROOT 3-D viewer.

/* */

/* */

Function Members (Methods)

public:
TShape()
TShape(const TShape&)
TShape(const char* name, const char* title, const char* material)
virtual~TShape()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTNamed::Clear(Option_t* option = "")
virtual TObject*TNamed::Clone(const char* newname = "") const
virtual Int_tTNamed::Compare(const TObject* obj) const
virtual voidTNamed::Copy(TObject& named) const
virtual voidTObject::Delete(Option_t* option = "")MENU
Int_tTAttLine::DistancetoLine(Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual const TBuffer3D&GetBuffer3D(Int_t reqSections) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual Color_tTAttFill::GetFillColor() const
virtual Style_tTAttFill::GetFillStyle() const
virtual const char*TObject::GetIconName() const
virtual Color_tTAttLine::GetLineColor() const
virtual Style_tTAttLine::GetLineStyle() const
virtual Width_tTAttLine::GetLineWidth() const
TMaterial*GetMaterial() const
virtual const char*TNamed::GetName() const
virtual Int_tGetNumber() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual const char*TNamed::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
Int_tGetVisibility() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTNamed::IsSortable() const
virtual Bool_tTAttFill::IsTransparent() const
Bool_tTObject::IsZombie() const
virtual voidTNamed::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual voidTAttLine::Modify()
virtual Bool_tTObject::Notify()
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TShape&operator=(const TShape&)
virtual voidPaint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTNamed::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual voidTAttFill::ResetAttFill(Option_t* option = "")
virtual voidTAttLine::ResetAttLine(Option_t* option = "")
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTAttFill::SaveFillAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1001)
virtual voidTAttLine::SaveLineAttributes(ostream& out, const char* name, Int_t coldef = 1, Int_t stydef = 1, Int_t widdef = 1)
virtual voidTObject::SavePrimitive(basic_ostream<char,char_traits<char> >& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
virtual voidTAttFill::SetFillAttributes()MENU
virtual voidTAttFill::SetFillColor(Color_t fcolor)
virtual voidTAttFill::SetFillStyle(Style_t fstyle)
virtual voidTAttLine::SetLineAttributes()MENU
virtual voidTAttLine::SetLineColor(Color_t lcolor)
virtual voidTAttLine::SetLineStyle(Style_t lstyle)
virtual voidTAttLine::SetLineWidth(Width_t lwidth)
virtual voidSetName(const char* name)
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidSetPoints(Double_t* points) const
virtual voidTNamed::SetTitle(const char* title = "")MENU
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidSetVisibility(Int_t vis)MENU
virtual voidShowMembers(TMemberInspector& insp, char* parent)
virtual Int_tTNamed::Sizeof() const
virtual voidTAtt3D::Sizeof3D() const
virtual voidStreamer(TBuffer& b)
voidStreamerNVirtual(TBuffer& b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
voidTransformPoints(Double_t* points, UInt_t NbPnts) const
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
virtual voidFillBuffer3D(TBuffer3D& buffer, Int_t reqSections) const
Int_tGetBasicColor() const
voidTObject::MakeZombie()
Int_tShapeDistancetoPrimitive(Int_t numPoints, Int_t px, Int_t py)

Data Members

public:
enum TObject::EStatusBits { kCanDelete
kMustCleanup
kObjInCanvas
kIsReferenced
kHasUUID
kCannotPick
kNoContextMenu
kInvalidObject
};
enum TObject::[unnamed] { kIsOnHeap
kNotDeleted
kZombie
kBitMask
kSingleKey
kOverwrite
kWriteDelete
};
protected:
Color_tTAttFill::fFillColorfill area color
Style_tTAttFill::fFillStylefill area style
Color_tTAttLine::fLineColorline color
Style_tTAttLine::fLineStyleline style
Width_tTAttLine::fLineWidthline width
TMaterial*fMaterialPointer to material
TStringTNamed::fNameobject identifier
Int_tfNumberShape number
TStringTNamed::fTitleobject title
Int_tfVisibilityVisibility flag

Class Charts

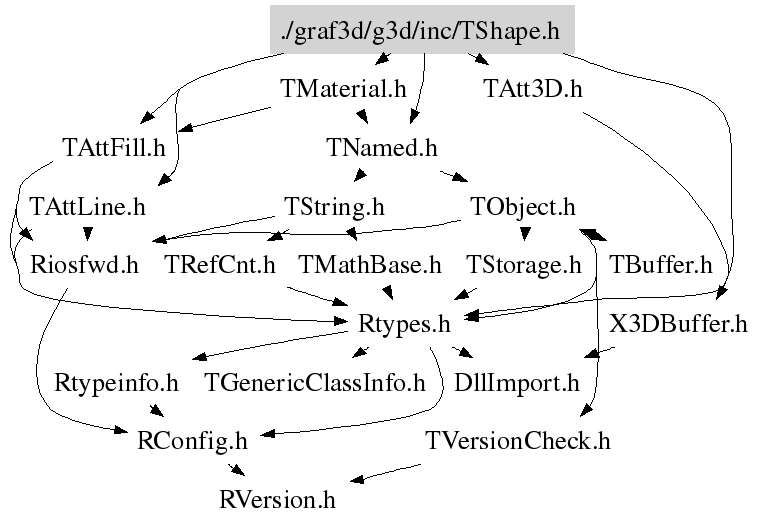

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TShape(const TShape& )
 Shape default constructor
TShape(const char* name, const char* title, const char* material)
 Shape normal constructor
TShape(const TShape& )
copy constructor
TShape& operator=(const TShape& )
assignement operator
~TShape()
 Shape default destructor
Int_t ShapeDistancetoPrimitive(Int_t numPoints, Int_t px, Int_t py)
 Distance to primitive.
void Paint(Option_t* option = "")
 This method is used only when a shape is painted outside a TNode.
void SetPoints(Double_t* points) const
 Set points.
void Streamer(TBuffer& b)
 Stream an object of class TShape.
void TransformPoints(Double_t* points, UInt_t NbPnts) const
 Tranform points (LocalToMaster)
void FillBuffer3D(TBuffer3D& buffer, Int_t reqSections) const
 We have to set kRawSize (unless already done) to allocate buffer space
 before kRaw can be filled
Int_t GetBasicColor()
 Get basic solor.
const TBuffer3D & GetBuffer3D(Int_t reqSections) const
 Stub to avoid forcing implementation at this stage
void SetName(const char* name)
{ }
TMaterial * GetMaterial()
{return fMaterial;}
Int_t GetNumber()
{return fNumber;}
Int_t GetVisibility()
{return fVisibility;}
void SetVisibility(Int_t vis)
{fVisibility = vis;}

Author: Nenad Buncic 17/09/95
Last change: root/g3d:$Id: TShape.h 20882 2007-11-19 11:31:26Z rdm $
Last generated: 2008-08-12 09:14
Copyright (C) 1995-2000, Rene Brun and Fons Rademakers. *
