 General architecture


   The new ROOT geometry package is a tool designed for building, browsing,
 tracking and visualizing a detector geometry. The code is independent from
 other external MC for simulation, therefore it does not contain any
 constraints related to physics. However, the package defines a number of
 hooks for tracking, such as media, materials, magnetic field or track state flags,
 in order to allow interfacing to tracking MC's. The final goal is to be
 able to use the same geometry for several purposes, such as tracking,
 reconstruction or visualization, taking advantage of the ROOT features
 related to bookkeeping, I/O, histograming, browsing and GUI's.

   The geometrical modeler is the most important component of the package and
 it provides answers to the basic questions like "Where am I ?" or "How far
 from the next boundary ?", but also to more complex ones like "How far from
 the closest surface ?" or "Which is the next crossing along a helix ?".

   The architecture of the modeler is a combination between a GEANT-like
 containment scheme and a normal CSG binary tree at the level of shapes. An
 important common feature of all detector geometry descriptions is the
 mother-daughter concept. This is the most natural approach when tracking
 is concerned and imposes a set of constraints to the way geometry is defined.
 Constructive solid geometry composition is used only in order to create more
 complex shapes from an existing set of primitives through boolean operations.
 This feature is not implemented yet but in future full definition of boolean
 expressions will be supported.

   Practically every geometry defined in GEANT style can be mapped by the modeler.
 The basic components used for building the logical hierarchy of the geometry
 are called "volumes" and "nodes". Volumes (sometimes called "solids") are fully
 defined geometrical objects having a given shape and medium and possibly
 containing a list of nodes. Nodes represent just positioned instances of volumes
 inside a container volume and they are not directly defined by user. They are
 automatically created as a result of adding one volume inside other or dividing
 a volume. The geometrical transformation hold by nodes is always defined with
 respect to their mother (relative positioning). Reflection matrices are allowed.
 All volumes have to be fully aware of their containees when the geometry is
 closed. They will build aditional structures (voxels) in order to fasten-up
 the search algorithms. Finally, nodes can be regarded as bidirectional links
 between containers and containees objects.

   The structure defined in this way is a graph structure since volumes are
 replicable (same volume can become daughter node of several other volumes),
 every volume becoming a branch in this graph. Any volume in the logical graph
 can become the actual top volume at run time (see TGeoManager::SetTopVolume()).
 All functionalities of the modeler will behave in this case as if only the
 corresponding branch starting from this volume is the registered geometry.


/* */

   A given volume can be positioned several times in the geometry. A volume
 can be divided according default or user-defined patterns, creating automatically
 the list of division nodes inside. The elementary volumes created during the
 dividing process follow the same scheme as usual volumes, therefore it is possible
 to position further geometrical structures inside or to divide them further more
 (see TGeoVolume::Divide()).

   The primitive shapes supported by the package are basically the GEANT3
 shapes (see class TGeoShape), arbitrary wedges with eight vertices on two parallel
 planes. All basic primitives inherits from class TGeoBBox since the bounding box
 of a solid is essential for the tracking algorithms. They also implement the
 virtual methods defined in the virtual class TGeoShape (point and segment
 classification). User-defined primitives can be direcly plugged into the modeler
 provided that they override these methods. Composite shapes will be soon supported
 by the modeler. In order to build a TGeoCompositeShape, one will have to define
 first the primitive components. The object that handle boolean
 operations among components is called TGeoBoolCombinator and it has to be
 constructed providing a string boolean expression between the components names.


 Example for building a simple geometry :



rootgeom.C //
                                                             //




/* */


 TGeoManager - the manager class for the geometry package.


   TGeoManager class is embedding all the API needed for building and tracking
 a geometry. It defines a global pointer (gGeoManager) in order to be fully
 accessible from external code. The mechanism of handling multiple geometries
 at the same time will be soon implemented.

   TGeoManager is the owner of all geometry objects defined in a session,
 therefore users must not try to control their deletion. It contains lists of
 media, materials, transformations, shapes and volumes. Logical nodes (positioned
 volumes) are created and destroyed by the TGeoVolume class. Physical
 nodes and their global transformations are subjected to a caching mechanism
 due to the sometimes very large memory requirements of logical graph expansion.
 The caching mechanism is triggered by the total number of physical instances
 of volumes and the cache manager is a client of TGeoManager. The manager class
 also controls the painter client. This is linked with ROOT graphical libraries
 loaded on demand in order to control visualization actions.

 Rules for building a valid geometry


   A given geometry can be built in various ways, but there are mandatory steps
 that have to be followed in order to be validated by the modeler. There are
 general rules : volumes needs media and shapes in order to be created,
 both container an containee volumes must be created before linking them together,
 and the relative transformation matrix must be provided. All branches must
 have an upper link point otherwise they will not be considered as part of the
 geometry. Visibility or tracking properties of volumes can be provided both
 at build time or after geometry is closed, but global visualization settings
 (see TGeoPainter class) should not be provided at build time, otherwise the
 drawing package will be loaded. There is also a list of specific rules :
 positioned daughters should not extrude their mother or intersect with sisters
 unless this is specified (see TGeoVolume::AddNodeOverlap()), the top volume
 (containing all geometry tree) must be specified before closing the geometry
 and must not be positioned - it represents the global reference frame. After
 building the full geometry tree, the geometry must be closed
 (see TGeoManager::CloseGeometry()). Voxelization can be redone per volume after
 this process.


   Below is the general scheme of the manager class.


/* */

  An interactive session


   Provided that a geometry was successfully built and closed (for instance the
 previous example $ROOTSYS/tutorials/geom/rootgeom.C ), the manager class will register
 itself to ROOT and the logical/physical structures will become immediately browsable.
 The ROOT browser will display starting from the geometry folder : the list of
 transformations and media, the top volume and the top logical node. These last
 two can be fully expanded, any intermediate volume/node in the browser being subject
 of direct access context menu operations (right mouse button click). All user
 utilities of classes TGeoManager, TGeoVolume and TGeoNode can be called via the
 context menu.


/* */

  --- Drawing the geometry

   Any logical volume can be drawn via TGeoVolume::Draw() member function.
 This can be direcly accessed from the context menu of the volume object
 directly from the browser.
   There are several drawing options that can be set with
 TGeoManager::SetVisOption(Int_t opt) method :
 opt=0 - only the content of the volume is drawn, N levels down (default N=3).
    This is the default behavior. The number of levels to be drawn can be changed
    via TGeoManager::SetVisLevel(Int_t level) method.


/* */

 opt=1 - the final leaves (e.g. daughters with no containment) of the branch
    starting from volume are drawn down to the current number of levels.
                                     WARNING : This mode is memory consuming
    depending of the size of geometry, so drawing from top level within this mode
    should be handled with care for expensive geometries. In future there will be
    a limitation on the maximum number of nodes to be visualized.


/* */

 opt=2 - only the clicked volume is visualized. This is automatically set by
    TGeoVolume::DrawOnly() method
 opt=3 - only a given path is visualized. This is automatically set by
    TGeoVolume::DrawPath(const char *path) method

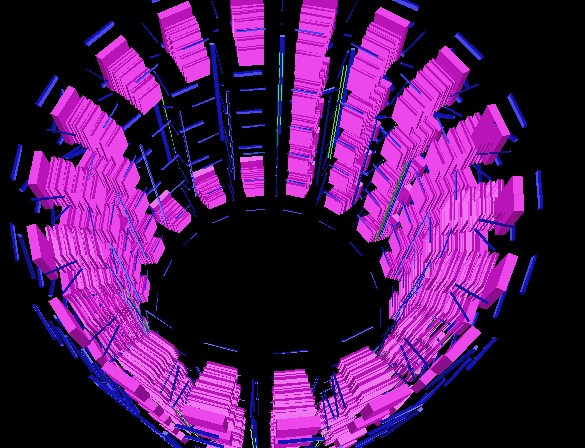

    The current view can be exploded in cartesian, cylindrical or spherical
 coordinates :
   TGeoManager::SetExplodedView(Int_t opt). Options may be :
 - 0  - default (no bombing)
 - 1  - cartesian coordinates. The bomb factor on each axis can be set with
        TGeoManager::SetBombX(Double_t bomb) and corresponding Y and Z.
 - 2  - bomb in cylindrical coordinates. Only the bomb factors on Z and R
        are considered


/* */

 - 3  - bomb in radial spherical coordinate : TGeoManager::SetBombR()

 Volumes themselves support different visualization settings :
    - TGeoVolume::SetVisibility() : set volume visibility.
    - TGeoVolume::VisibleDaughters() : set daughters visibility.
 All these actions automatically updates the current view if any.

  --- Checking the geometry

  Several checking methods are accessible from the volume context menu. They
 generally apply only to the visible parts of the drawn geometry in order to
 ease geometry checking, and their implementation is in the TGeoChecker class
 from the painting package.

 1. Checking a given point.
   Can be called from TGeoManager::CheckPoint(Double_t x, Double_t y, Double_t z).
 This method is drawing the daughters of the volume containing the point one
 level down, printing the path to the deepest physical node holding this point.
 It also computes the closest distance to any boundary. The point will be drawn
 in red.


/* */

  2. Shooting random points.

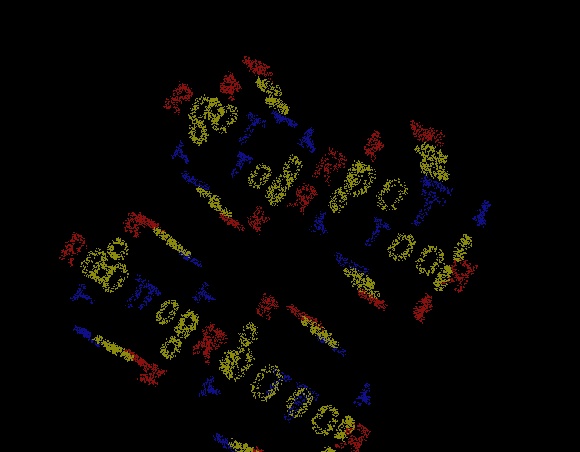

   Can be called from TGeoVolume::RandomPoints() (context menu function) and
 it will draw this volume with current visualization settings. Random points
 are generated in the bounding box of the top drawn volume. The points are
 classified and drawn with the color of their deepest container. Only points
 in visible nodes will be drawn.


/* */


  3. Raytracing.

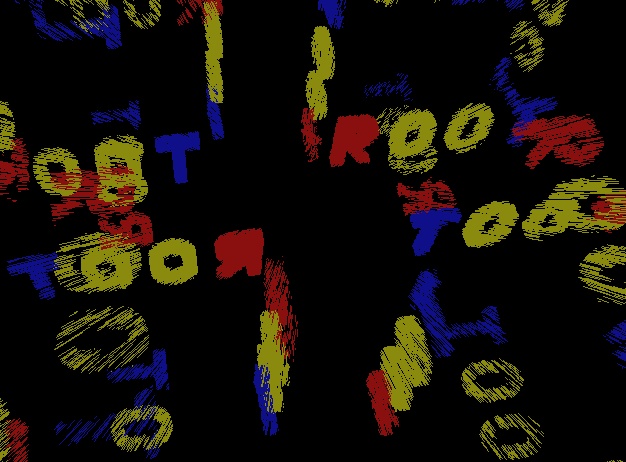

   Can be called from TGeoVolume::RandomRays() (context menu of volumes) and
 will shoot rays from a given point in the local reference frame with random
 directions. The intersections with displayed nodes will appear as segments
 having the color of the touched node. Drawn geometry will be then made invisible
 in order to enhance rays.


/* */

Function Members (Methods)

public:
TGeoManager()
TGeoManager(const char* name, const char* title)
virtual~TGeoManager()
voidTObject::AbstractMethod(const char* method) const
Int_tAddMaterial(const TGeoMaterial* material)
TGeoNavigator*AddNavigator()
Int_tAddOverlap(const TNamed* ovlp)
Int_tAddShape(const TGeoShape* shape)
Int_tAddTrack(TVirtualGeoTrack* track)
Int_tAddTrack(Int_t id, Int_t pdgcode, TObject* particle = 0)
Int_tAddTransformation(const TGeoMatrix* matrix)
Int_tAddVolume(TGeoVolume* volume)
voidAnimateTracks(Double_t tmin = 0, Double_t tmax = 5E-8, Int_t nframes = 200, Option_t* option = "/*")MENU
virtual voidTObject::AppendPad(Option_t* option = "")
voidBombTranslation(const Double_t* tr, Double_t* bombtr)
virtual voidBrowse(TBrowser* b)
voidBuildDefaultMaterials()
virtual Bool_tcd(const char* path = "")MENU
voidCdDown(Int_t index)
voidCdNext()
voidCdNode(Int_t nodeid)
voidCdTop()
voidCdUp()
voidCheckBoundaryErrors(Int_t ntracks = 1000000, Double_t radius = -1.)MENU
voidCheckBoundaryReference(Int_t icheck = -1)
voidCheckGeometry(Option_t* option = "")
voidCheckGeometryFull(Int_t ntracks = 1000000, Double_t vx = 0., Double_t vy = 0., Double_t vz = 0., Option_t* option = "ob")MENU
voidCheckOverlaps(Double_t ovlp = 0.1, Option_t* option = "")MENU
Bool_tCheckPath(const char* path) const
voidCheckPoint(Double_t x = 0, Double_t y = 0, Double_t z = 0, Option_t* option = "")MENU
voidCheckShape(TGeoShape* shape, Int_t testNo, Int_t nsamples, Option_t* option)
static TClass*Class()
virtual const char*TObject::ClassName() const
voidCleanGarbage()
virtual voidTNamed::Clear(Option_t* option = "")
voidClearAttributes()MENU
voidClearNavigators()
voidClearOverlaps()
voidClearPhysicalNodes(Bool_t mustdelete = kFALSE)
voidClearShape(const TGeoShape* shape)
voidClearThreadData() const
static voidClearThreadsMap()
voidClearTracks()
virtual TObject*TNamed::Clone(const char* newname = "") const
voidCloseGeometry(Option_t* option = "d")
virtual Int_tTNamed::Compare(const TObject* obj) const
voidConvertReflections()
virtual voidTNamed::Copy(TObject& named) const
voidCountLevels()
Int_tCountNodes(const TGeoVolume* vol = 0, Int_t nlevels = 10000, Int_t option = 0)
TGeoParallelWorld*CreateParallelWorld(const char* name)
voidCreateThreadData() const
TGeoNode*CrossBoundaryAndLocate(Bool_t downwards, TGeoNode* skipnode)
voidDefaultAngles()MENU
voidDefaultColors()MENU
virtual voidTObject::Delete(Option_t* option = "")MENU
voidDisableInactiveVolumes()
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
TGeoVolume*Division(const char* name, const char* mother, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step, Int_t numed = 0, Option_t* option = "")
voidDoBackupState()
voidDoRestoreState()
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
voidDrawCurrentPoint(Int_t color = 2)MENU
voidDrawPath(const char* path, Option_t* option = "")
voidDrawTracks(Option_t* option = "")MENU
virtual voidTObject::Dump() constMENU
virtual voidEdit(Option_t* option = "")MENU
voidEnableInactiveVolumes()
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual Int_tExport(const char* filename, const char* name = "", Option_t* option = "vg")
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual voidTNamed::FillBuffer(char*& buffer)
TGeoMaterial*FindDuplicateMaterial(const TGeoMaterial* mat) const
TGeoNode*FindNextBoundary(Double_t stepmax = TGeoShape::Big(), const char* path = "", Bool_t frombdr = kFALSE)
TGeoNode*FindNextBoundaryAndStep(Double_t stepmax = TGeoShape::Big(), Bool_t compsafe = kFALSE)
TGeoNode*FindNextDaughterBoundary(Double_t* point, Double_t* dir, Int_t& idaughter, Bool_t compmatrix = kFALSE)
TGeoNode*FindNode(Bool_t safe_start = kTRUE)
TGeoNode*FindNode(Double_t x, Double_t y, Double_t z)
Double_t*FindNormal(Bool_t forward = kTRUE)
Double_t*FindNormalFast()
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
TVirtualGeoTrack*FindTrackWithId(Int_t id) const
TGeoVolume*FindVolumeFast(const char* name, Bool_t multi = kFALSE)
TGeoPNEntry*GetAlignableEntry(const char* name) const
TGeoPNEntry*GetAlignableEntry(Int_t index) const
TGeoPNEntry*GetAlignableEntryByUID(Int_t uid) const
UChar_t*GetBits()
voidGetBombFactors(Double_t& bombx, Double_t& bomby, Double_t& bombz, Double_t& bombr) const
Int_tGetBombMode() const
voidGetBranchNames(Int_t* names) const
voidGetBranchNumbers(Int_t* copyNumbers, Int_t* volumeNumbers) const
voidGetBranchOnlys(Int_t* isonly) const
virtual Int_tGetByteCount(Option_t* option = 0)
TGeoNodeCache*GetCache() const
const Double_t*GetCldir() const
const Double_t*GetCldirChecked() const
TGeoShape*GetClippingShape() const
const Double_t*GetCurrentDirection() const
TGeoHMatrix*GetCurrentMatrix() const
TGeoNavigator*GetCurrentNavigator() const
TGeoNode*GetCurrentNode() const
Int_tGetCurrentNodeId() const
const Double_t*GetCurrentPoint() const
TVirtualGeoTrack*GetCurrentTrack()
TGeoVolume*GetCurrentVolume() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
TGeoElementTable*GetElementTable()
TVirtualGeoPainter*GetGeomPainter()
TGeoHMatrix*GetGLMatrix() const
TGeoHMatrix*GetHMatrix()
virtual const char*TObject::GetIconName() const
const Double_t*GetLastPoint() const
Double_tGetLastSafety() const
TVirtualGeoTrack*GetLastTrack()
Int_tGetLevel() const
TObjArray*GetListOfGShapes() const
TObjArray*GetListOfGVolumes() const
TList*GetListOfMaterials() const
TObjArray*GetListOfMatrices() const
TList*GetListOfMedia() const
TGeoNavigatorArray*GetListOfNavigators() const
TObjArray*GetListOfNodes()
TObjArray*GetListOfOverlaps()
TObjArray*GetListOfPhysicalNodes()
TObjArray*GetListOfShapes() const
TObjArray*GetListOfTracks() const
TObjArray*GetListOfUVolumes() const
TObjArray*GetListOfVolumes() const
TGeoVolume*GetMasterVolume() const
TGeoMaterial*GetMaterial(const char* matname) const
TGeoMaterial*GetMaterial(Int_t id) const
Int_tGetMaterialIndex(const char* matname) const
static Int_tGetMaxDaughters()
Int_tGetMaxLevel() const
static Int_tGetMaxLevels()
Int_tGetMaxThreads() const
Int_tGetMaxVisNodes() const
static Int_tGetMaxXtruVert()
TGeoMedium*GetMedium(const char* medium) const
TGeoMedium*GetMedium(Int_t numed) const
TGeoNode*GetMother(Int_t up = 1) const
TGeoHMatrix*GetMotherMatrix(Int_t up = 1) const
Int_tGetNAlignable(Bool_t with_uid = kFALSE) const
virtual const char*TNamed::GetName() const
TGeoNode*GetNextNode() const
Int_tGetNmany() const
Int_tGetNNodes()
TGeoNode*GetNode(Int_t level) const
Int_tGetNodeId() const
const Double_t*GetNormal() const
Int_tGetNsegments() const
Int_tGetNtracks() const
static Int_tGetNumThreads()
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
TVirtualGeoPainter*GetPainter() const
TGeoVolume*GetPaintVolume() const
TGeoParallelWorld*GetParallelWorld() const
TVirtualGeoTrack*GetParentTrackOfId(Int_t id) const
const char*GetParticleName() const
const char*GetPath() const
const char*GetPdgName(Int_t pdg) const
TGeoPhysicalNode*GetPhysicalNode(Int_t i) const
Double_tGetSafeDistance() const
Int_tGetSafeLevel() const
Int_tGetStackLevel() const
Double_tGetStep() const
virtual const char*TNamed::GetTitle() const
Double_tGetTmax() const
Bool_tGetTminTmax(Double_t& tmin, Double_t& tmax) const
TGeoNode*GetTopNode() const
TGeoVolume*GetTopVolume() const
TVirtualGeoTrack*GetTrack(Int_t index)
Int_tGetTrackIndex(Int_t id) const
TVirtualGeoTrack*GetTrackOfId(Int_t id) const
Int_tGetUID(const char* volname) const
virtual UInt_tTObject::GetUniqueID() const
static Int_tGetVerboseLevel()
Int_tGetVirtualLevel()
Double_tGetVisDensity() const
Int_tGetVisLevel() const
Int_tGetVisOption() const
TGeoVolume*GetVolume(const char* name) const
TGeoVolume*GetVolume(Int_t uid) const
Bool_tGotoSafeLevel()
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTNamed::Hash() const
static TGeoManager*Import(const char* filename, const char* name = "", Option_t* option = "")
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
TGeoNode*InitTrack(const Double_t* point, const Double_t* dir)
TGeoNode*InitTrack(Double_t x, Double_t y, Double_t z, Double_t nx, Double_t ny, Double_t nz)
virtual voidTObject::Inspect() constMENU
voidInspectState() const
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
Bool_tIsActivityEnabled() const
Bool_tIsAnimatingTracks() const
Bool_tIsCheckingOverlaps() const
Bool_tIsCleaning() const
Bool_tIsClosed() const
Bool_tIsCurrentOverlapping() const
Bool_tIsDrawingExtra() const
Bool_tIsEntering() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
Bool_tIsExiting() const
virtual Bool_tIsFolder() const
Bool_tIsInPhiRange() const
static Bool_tIsLocked()
Bool_tIsMatrixReflection() const
Bool_tIsMatrixTransform() const
Bool_tIsMultiThread() const
Bool_tIsNodeSelectable() const
Bool_tIsNullStep() const
Bool_tIsOnBoundary() const
Bool_tTObject::IsOnHeap() const
Bool_tIsOutside() const
Bool_tIsParallelWorldNav() const
Bool_tIsSameLocation() const
Bool_tIsSameLocation(Double_t x, Double_t y, Double_t z, Bool_t change = kFALSE)
Bool_tIsSamePoint(Double_t x, Double_t y, Double_t z) const
virtual Bool_tTNamed::IsSortable() const
Bool_tIsStartSafe() const
Bool_tIsStepEntering() const
Bool_tIsStepExiting() const
Bool_tIsStreamingVoxels() const
Bool_tIsVisLeaves() const
Bool_tTObject::IsZombie() const
voidLocalToMaster(const Double_t* local, Double_t* master) const
voidLocalToMasterBomb(const Double_t* local, Double_t* master) const
voidLocalToMasterVect(const Double_t* local, Double_t* master) const
static voidLockGeometry()
virtual voidTNamed::ls(Option_t* option = "") const
TGeoPhysicalNode*MakeAlignablePN(const char* name)
TGeoPhysicalNode*MakeAlignablePN(TGeoPNEntry* entry)
TGeoVolume*MakeArb8(const char* name, TGeoMedium* medium, Double_t dz, Double_t* vertices = 0)
TGeoVolume*MakeBox(const char* name, TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz)
TGeoVolume*MakeCone(const char* name, TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2)
TGeoVolume*MakeCons(const char* name, TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2, Double_t phi1, Double_t phi2)
TGeoVolume*MakeCtub(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2, Double_t lx, Double_t ly, Double_t lz, Double_t tx, Double_t ty, Double_t tz)
TGeoVolume*MakeEltu(const char* name, TGeoMedium* medium, Double_t a, Double_t b, Double_t dz)
TGeoVolume*MakeGtra(const char* name, TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t twist, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
TGeoVolume*MakeHype(const char* name, TGeoMedium* medium, Double_t rin, Double_t stin, Double_t rout, Double_t stout, Double_t dz)
TGeoVolume*MakePara(const char* name, TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
TGeoVolume*MakeParaboloid(const char* name, TGeoMedium* medium, Double_t rlo, Double_t rhi, Double_t dz)
TGeoVolume*MakePcon(const char* name, TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nz)
TGeoVolume*MakePgon(const char* name, TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nedges, Int_t nz)
TGeoPhysicalNode*MakePhysicalNode(const char* path = 0)
TGeoVolume*MakeSphere(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t themin = 0, Double_t themax = 180, Double_t phimin = 0, Double_t phimax = 360)
TGeoVolume*MakeTorus(const char* name, TGeoMedium* medium, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
TVirtualGeoTrack*MakeTrack(Int_t id, Int_t pdgcode, TObject* particle)
TGeoVolume*MakeTrap(const char* name, TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
TGeoVolume*MakeTrd1(const char* name, TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy, Double_t dz)
TGeoVolume*MakeTrd2(const char* name, TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy1, Double_t dy2, Double_t dz)
TGeoVolume*MakeTube(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz)
TGeoVolume*MakeTubs(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2)
TGeoVolumeAssembly*MakeVolumeAssembly(const char* name)
TGeoVolumeMulti*MakeVolumeMulti(const char* name, TGeoMedium* medium)
TGeoVolume*MakeXtru(const char* name, TGeoMedium* medium, Int_t nz)
voidMasterToLocal(const Double_t* master, Double_t* local) const
voidMasterToLocalBomb(const Double_t* master, Double_t* local) const
voidMasterToLocalVect(const Double_t* master, Double_t* local) const
voidMasterToTop(const Double_t* master, Double_t* top) const
TGeoMaterial*Material(const char* name, Double_t a, Double_t z, Double_t dens, Int_t uid, Double_t radlen = 0, Double_t intlen = 0)
voidMatrix(Int_t index, Double_t theta1, Double_t phi1, Double_t theta2, Double_t phi2, Double_t theta3, Double_t phi3)
voidTObject::MayNotUse(const char* method) const
TGeoMedium*Medium(const char* name, Int_t numed, Int_t nmat, Int_t isvol, Int_t ifield, Double_t fieldm, Double_t tmaxfd, Double_t stemax, Double_t deemax, Double_t epsil, Double_t stmin)
TGeoMaterial*Mixture(const char* name, Float_t* a, Float_t* z, Double_t dens, Int_t nelem, Float_t* wmat, Int_t uid)
TGeoMaterial*Mixture(const char* name, Double_t* a, Double_t* z, Double_t dens, Int_t nelem, Double_t* wmat, Int_t uid)
voidModifiedPad() const
voidNode(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Float_t* upar, Int_t npar = 0)
voidNode(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Double_t* upar, Int_t npar = 0)
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
static voidTObject::operator delete(void* ptr)
static voidTObject::operator delete(void* ptr, void* vp)
static voidTObject::operator delete[](void* ptr)
static voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
voidOptimizeVoxels(const char* filename = "tgeovox.C")MENU
virtual voidTObject::Paint(Option_t* option = "")
static Int_tParse(const char* expr, TString& expr1, TString& expr2, TString& expr3)
virtual voidTObject::Pop()
voidPopDummy(Int_t ipop = 9999)
Bool_tPopPath()
Bool_tPopPath(Int_t index)
Bool_tPopPoint()
Bool_tPopPoint(Int_t index)
virtual voidTNamed::Print(Option_t* option = "") const
voidPrintOverlaps() constMENU
Int_tPushPath(Int_t startlevel = 0)
Int_tPushPoint(Int_t startlevel = 0)
voidRandomPoints(const TGeoVolume* vol, Int_t npoints = 10000, Option_t* option = "")
voidRandomRays(Int_t nrays = 1000, Double_t startx = 0, Double_t starty = 0, Double_t startz = 0, const char* target_vol = 0, Bool_t check_norm = kFALSE)
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
voidRefreshPhysicalNodes(Bool_t lock = kTRUE)
voidRegisterMatrix(const TGeoMatrix* matrix)
voidRemoveMaterial(Int_t index)
voidRemoveNavigator(const TGeoNavigator* nav)
Int_tReplaceVolume(TGeoVolume* vorig, TGeoVolume* vnew)
voidTObject::ResetBit(UInt_t f)
voidResetState()
voidResetUserData()
voidRestoreMasterVolume()MENU
Double_tSafety(Bool_t inside = kFALSE)
TGeoNode*SamplePoints(Int_t npoints, Double_t& dist, Double_t epsil = 1E-5, const char* g3path = "")
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
voidSaveAttributes(const char* filename = "tgeoatt.C")MENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
TGeoNode*SearchNode(Bool_t downwards = kFALSE, const TGeoNode* skipnode = 0)
voidSelectTrackingMedia()
TGeoPNEntry*SetAlignableEntry(const char* unique_name, const char* path, Int_t uid = -1)
voidSetAllIndex()
voidSetAnimateTracks(Bool_t flag = kTRUE)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidSetBombFactors(Double_t bombx = 1.3, Double_t bomby = 1.3, Double_t bombz = 1.3, Double_t bombr = 1.3)MENU
voidSetCheckedNode(TGeoNode* node)
voidSetCheckingOverlaps(Bool_t flag = kTRUE)
voidSetCldirChecked(Double_t* dir)
voidSetClipping(Bool_t flag = kTRUE)MENU
voidSetClippingShape(TGeoShape* clip)
voidSetCurrentDirection(Double_t* dir)
voidSetCurrentDirection(Double_t nx, Double_t ny, Double_t nz)
Bool_tSetCurrentNavigator(Int_t index)
voidSetCurrentPoint(Double_t* point)
voidSetCurrentPoint(Double_t x, Double_t y, Double_t z)
voidSetCurrentTrack(Int_t i)
voidSetCurrentTrack(TVirtualGeoTrack* track)
voidSetDrawExtraPaths(Bool_t flag = kTRUE)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidSetExplodedView(Int_t iopt = 0)MENU
voidSetLastPoint(Double_t x, Double_t y, Double_t z)
voidSetMatrixReflection(Bool_t flag = kTRUE)
voidSetMatrixTransform(Bool_t on = kTRUE)
voidSetMaxThreads(Int_t nthreads)
voidSetMaxVisNodes(Int_t maxnodes = 10000)MENU
voidSetMultiThread(Bool_t flag = kTRUE)
virtual voidTNamed::SetName(const char* name)MENU
virtual voidTNamed::SetNameTitle(const char* name, const char* title)
static voidSetNavigatorsLock(Bool_t flag)
voidSetNmeshPoints(Int_t npoints = 1000)
voidSetNodeSelectable(Bool_t flag = kTRUE)
voidSetNsegments(Int_t nseg)MENU
static voidTObject::SetObjectStat(Bool_t stat)
voidSetOutside(Bool_t flag = kTRUE)
voidSetPaintVolume(TGeoVolume* vol)
voidSetParticleName(const char* pname)
voidSetPdgName(Int_t pdg, const char* name)
voidSetPhiRange(Double_t phimin = 0., Double_t phimax = 360.)
voidSetStartSafe(Bool_t flag = kTRUE)
voidSetStep(Double_t step)
virtual voidTNamed::SetTitle(const char* title = "")MENU
voidSetTminTmax(Double_t tmin = 0, Double_t tmax = 999)
voidSetTopVisible(Bool_t vis = kTRUE)
voidSetTopVolume(TGeoVolume* vol)
virtual voidTObject::SetUniqueID(UInt_t uid)
voidSetUseParallelWorldNav(Bool_t flag)
static voidSetVerboseLevel(Int_t vl)
voidSetVisDensity(Double_t dens = 0.01)MENU
voidSetVisibility(TObject* obj, Bool_t vis)
voidSetVisLevel(Int_t level = 3)MENU
voidSetVisOption(Int_t option = 0)
voidSetVolumeAttribute(const char* name, const char* att, Int_t val)
virtual voidShowMembers(TMemberInspector&)
virtual Int_tTNamed::Sizeof() const
virtual ULong_tSizeOf(const TGeoNode* node, Option_t* option)
voidSortOverlaps()
TGeoNode*Step(Bool_t is_geom = kTRUE, Bool_t cross = kTRUE)
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
voidTest(Int_t npoints = 1000000, Option_t* option = "")MENU
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
voidTestOverlaps(const char* path = "")MENU
static Int_tThreadId()
voidTopToMaster(const Double_t* top, Double_t* master) const
Int_tTransformVolumeToAssembly(const char* vname)
voidUnbombTranslation(const Double_t* tr, Double_t* bombtr)
static voidUnlockGeometry()
virtual voidTObject::UseCurrentStyle()
voidViewLeaves(Bool_t flag = kTRUE)TOGGLE GETTER
TGeoVolume*Volume(const char* name, const char* shape, Int_t nmed, Float_t* upar, Int_t npar = 0)
TGeoVolume*Volume(const char* name, const char* shape, Int_t nmed, Double_t* upar, Int_t npar = 0)
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
Double_tWeight(Double_t precision = 0.01, Option_t* option = "va")MENU
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
TGeoManager(const TGeoManager&)
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
voidTObject::MakeZombie()
TGeoManager&operator=(const TGeoManager&)
private:
voidInit()
Bool_tInitArrayPNE() const
Bool_tInsertPNEId(Int_t uid, Int_t ientry)
Bool_tIsLoopingVolumes() const
voidSetLoopVolumes(Bool_t flag = kTRUE)
voidUpdateElements()
voidVoxelize(Option_t* option = 0)

Data Members

protected:
TStringTNamed::fNameobject identifier
TStringTNamed::fTitleobject title
static Bool_tfgLock! Lock preventing a second geometry to be loaded
static Int_tfgMaxDaughters! Maximum number of daughters
static Int_tfgMaxLevel! Maximum level in geometry
static Int_tfgMaxXtruVert! Maximum number of Xtru vertices
static Int_tfgVerboseLevel! Verbosity level for Info messages (no IO).
private:
Bool_tfActivity! switch ON/OFF volume activity (default OFF - all volumes active))
TObjArray*fArrayPNE! array of phisical node entries
UChar_t*fBits! bits used for voxelization
TGeoShape*fClippingShape! clipping shape for raytracing
Bool_tfClosed! flag that geometry is closed
TGeoNavigator*fCurrentNavigator! current navigator
TVirtualGeoTrack*fCurrentTrack! current track
TGeoVolume*fCurrentVolume! current volume
Bool_tfDrawExtra! flag that the list of physical nodes has to be drawn
TGeoElementTable*fElementTable! table of elements
Int_tfExplodedViewexploded view mode
TGeoHMatrix*fGLMatrixmatrix to be used for view transformations
TObjArray*fGShapes! list of runtime shapes
TObjArray*fGVolumes! list of runtime volumes
THashList*fHashGVolumes! hash list of group volumes providing fast search
THashList*fHashPNE-> hash list of phisical node entries
THashList*fHashVolumes! hash list of volumes providing fast search
Bool_tfIsGeomCleaning! flag to notify that the manager is being destructed
Bool_tfIsGeomReading! flag set when reading geometry
Bool_tfIsNodeSelectable! flag that nodes are the selected objects in pad rather than volumes
Int_t*fKeyPNEId[fSizePNEId] array of uid values for PN entries
Bool_tfLoopVolumes! flag volume lists loop
TGeoVolume*fMasterVolumemaster volume
TList*fMaterials-> list of materials
TObjArray*fMatrices-> list of local transformations
Bool_tfMatrixReflection! flag for GL reflections
Bool_tfMatrixTransform! flag for using GL matrix
Int_tfMaxThreads! Max number of threads
Int_tfMaxVisNodesmaximum number of visible nodes
TList*fMedia-> list of tracking media
Bool_tfMultiThread! Flag for multi-threading
Int_tfNLevelmaximum accepted level in geometry
Int_tfNNodestotal number of physical nodes
Int_tfNPNEIdnumber of PN entries having a unique ID
map<long,TGeoNavigatorArray*>fNavigators! Map between thread id's and navigator arrays
Int_t*fNodeIdArray! array of node id's
TObjArray*fNodes-> current branch of nodes
Int_tfNpdgnumber of different pdg's stored
Int_tfNsegmentsnumber of segments to approximate circles
Int_tfNtracksnumber of tracks
TObjArray*fOverlaps-> list of geometrical overlaps
TGeoVolume*fPaintVolume! volume currently painted
TVirtualGeoPainter*fPainter! current painter
TGeoParallelWorld*fParallelWorldParallel world
TStringfParticleName! particles to be drawn
TStringfPath! path to current node
Int_tfPdgId[1024]pdg conversion table
TObjArray*fPdgNames-> list of pdg names for tracks
Bool_tfPhiCutflag for phi cuts
Double_tfPhimax! highest range for phi cut
Double_tfPhimin! lowest range for phi cut
TObjArray*fPhysicalNodes-> list of physical nodes
TObjArray*fShapes-> list of shapes
Int_tfSizePNEIdsize of the array of unique ID's for PN entries
Bool_tfStreamVoxelsflag to allow voxelization I/O
Bool_tfTimeCuttime cut for tracks
Double_tfTmax! upper time limit for tracks drawing
Double_tfTmin! lower time limit for tracks drawing
TGeoNode*fTopNode! top physical node
TGeoVolume*fTopVolume! top level volume in geometry
TObjArray*fTracks-> list of tracks attached to geometry
TObjArray*fUniqueVolumes-> list of unique volumes
Bool_tfUsePWNavActivate usage of parallel world in navigation
Int_t*fValuePNEId[fSizePNEId] array of pointers to PN entries with ID's
Double_tfVisDensitytransparency threshold by density
Int_tfVisLevelmaximum visualization depth
Int_tfVisOptionglobal visualization option
TObjArray*fVolumes-> list of volumes
static Bool_tfgLockNavigators! Lock existing navigators
static Int_tfgNumThreads! Number of registered threads
static map<long,int,less<long>,allocator<pair<const long,int> > >*fgThreadId! Thread id's map

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoManager()
 Default constructor.
TGeoManager(const char* name, const char* title)
 Constructor.
void Init()
 Initialize manager class.
TGeoManager(const TGeoManager& )
copy constructor
TGeoManager& operator=(const TGeoManager& )
assignment operator
~TGeoManager()
   Destructor
Int_t AddMaterial(const TGeoMaterial* material)
 Add a material to the list. Returns index of the material in list.
Int_t AddOverlap(const TNamed* ovlp)
 Add an illegal overlap/extrusion to the list.
Int_t AddTransformation(const TGeoMatrix* matrix)
 Add a matrix to the list. Returns index of the matrix in list.
Int_t AddShape(const TGeoShape* shape)
 Add a shape to the list. Returns index of the shape in list.
Int_t AddTrack(Int_t id, Int_t pdgcode, TObject* particle = 0)
 Add a track to the list of tracks. Use this for primaries only. For secondaries,
 add them to the parent track. The method create objects that are registered
 to the analysis manager but have to be cleaned-up by the user via ClearTracks().
Int_t AddTrack(TVirtualGeoTrack* track)
 Add a track to the list of tracks
TVirtualGeoTrack * MakeTrack(Int_t id, Int_t pdgcode, TObject* particle)
 Makes a primary track but do not attach it to the list of tracks. The track
 can be attached as daughter to another one with TVirtualGeoTrack::AddTrack
Int_t AddVolume(TGeoVolume* volume)
 Add a volume to the list. Returns index of the volume in list.
TGeoNavigator * AddNavigator()
 Add a navigator in the list of navigators. If it is the first one make it
 current navigator.
TGeoNavigator * GetCurrentNavigator() const
 Returns current navigator for the calling thread.
TGeoNavigatorArray * GetListOfNavigators() const
 Get list of navigators for the calling thread.
Bool_t SetCurrentNavigator(Int_t index)
 Switch to another existing navigator for the calling thread.
void SetNavigatorsLock(Bool_t flag)
 Set the lock for navigators.
void ClearNavigators()
 Clear all navigators.
void RemoveNavigator(const TGeoNavigator* nav)
 Clear a single navigator.
void SetMaxThreads(Int_t nthreads)
 Set maximum number of threads for navigation.
void ClearThreadData() const
void CreateThreadData() const
 Create thread private data for all geometry objects.
void ClearThreadsMap()
 Clear the current map of threads. This will be filled again by the calling
 threads via ThreadId calls.
Int_t ThreadId()
 Translates the current thread id to an ordinal number. This can be used to
 manage data which is pspecific for a given thread.
   static __thread Int_t tid = -1;
   if (tid > -1) return tid;
void Browse(TBrowser* b)
 Describe how to browse this object.
void Edit(Option_t* option = "")
 Append a pad for this geometry.
void SetVisibility(TObject* obj, Bool_t vis)
 Set visibility for a volume.
void BombTranslation(const Double_t* tr, Double_t* bombtr)
 Get the new 'bombed' translation vector according current exploded view mode.
void UnbombTranslation(const Double_t* tr, Double_t* bombtr)
 Get the new 'unbombed' translation vector according current exploded view mode.
void DoBackupState()
 Backup the current state without affecting the cache stack.
void DoRestoreState()
 Restore a backed-up state without affecting the cache stack.
void RegisterMatrix(const TGeoMatrix* matrix)
 Register a matrix to the list of matrices. It will be cleaned-up at the
 destruction TGeoManager.
Int_t ReplaceVolume(TGeoVolume* vorig, TGeoVolume* vnew)
 Replaces all occurences of VORIG with VNEW in the geometry tree. The volume VORIG
 is not replaced from the list of volumes, but all node referencing it will reference
 VNEW instead. Returns number of occurences changed.
Int_t TransformVolumeToAssembly(const char* vname)
 Transform all volumes named VNAME to assemblies. The volumes must be virtual.
TGeoVolume * Division(const char* name, const char* mother, Int_t iaxis, Int_t ndiv, Double_t start, Double_t step, Int_t numed = 0, Option_t* option = "")
 Create a new volume by dividing an existing one (GEANT3 like)

 Divides MOTHER into NDIV divisions called NAME
 along axis IAXIS starting at coordinate value START
 and having size STEP. The created volumes will have tracking
 media ID=NUMED (if NUMED=0 -> same media as MOTHER)
    The behavior of the division operation can be triggered using OPTION :
 OPTION (case insensitive) :
  N  - divide all range in NDIV cells (same effect as STEP<=0) (GSDVN in G3)
  NX - divide range starting with START in NDIV cells          (GSDVN2 in G3)
  S  - divide all range with given STEP. NDIV is computed and divisions will be centered
         in full range (same effect as NDIV<=0)                (GSDVS, GSDVT in G3)
  SX - same as DVS, but from START position.                   (GSDVS2, GSDVT2 in G3)
void Matrix(Int_t index, Double_t theta1, Double_t phi1, Double_t theta2, Double_t phi2, Double_t theta3, Double_t phi3)
 Create rotation matrix named 'mat<index>'.

  index    rotation matrix number
  theta1   polar angle for axis X
  phi1     azimuthal angle for axis X
  theta2   polar angle for axis Y
  phi2     azimuthal angle for axis Y
  theta3   polar angle for axis Z
  phi3     azimuthal angle for axis Z

TGeoMaterial * Material(const char* name, Double_t a, Double_t z, Double_t dens, Int_t uid, Double_t radlen = 0, Double_t intlen = 0)
 Create material with given A, Z and density, having an unique id.
TGeoMaterial * Mixture(const char* name, Float_t* a, Float_t* z, Double_t dens, Int_t nelem, Float_t* wmat, Int_t uid)
 Create mixture OR COMPOUND IMAT as composed by THE BASIC nelem
 materials defined by arrays A,Z and WMAT, having an unique id.
TGeoMaterial * Mixture(const char* name, Double_t* a, Double_t* z, Double_t dens, Int_t nelem, Double_t* wmat, Int_t uid)
 Create mixture OR COMPOUND IMAT as composed by THE BASIC nelem
 materials defined by arrays A,Z and WMAT, having an unique id.
TGeoMedium * Medium(const char* name, Int_t numed, Int_t nmat, Int_t isvol, Int_t ifield, Double_t fieldm, Double_t tmaxfd, Double_t stemax, Double_t deemax, Double_t epsil, Double_t stmin)
 Create tracking medium

  numed      tracking medium number assigned
  name      tracking medium name
  nmat      material number
  isvol     sensitive volume flag
  ifield    magnetic field
  fieldm    max. field value (kilogauss)
  tmaxfd    max. angle due to field (deg/step)
  stemax    max. step allowed
  deemax    max. fraction of energy lost in a step
  epsil     tracking precision (cm)
  stmin     min. step due to continuous processes (cm)

  ifield = 0 if no magnetic field; ifield = -1 if user decision in guswim;
  ifield = 1 if tracking performed with g3rkuta; ifield = 2 if tracking
  performed with g3helix; ifield = 3 if tracking performed with g3helx3.

void Node(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Float_t* upar, Int_t npar = 0)
 Create a node called <name_nr> pointing to the volume called <name>
 as daughter of the volume called <mother> (gspos). The relative matrix is
 made of : a translation (x,y,z) and a rotation matrix named <matIROT>.
 In case npar>0, create the volume to be positioned in mother, according
 its actual parameters (gsposp).
  NAME   Volume name
  NUMBER Copy number of the volume
  MOTHER Mother volume name
  X      X coord. of the volume in mother ref. sys.
  Y      Y coord. of the volume in mother ref. sys.
  Z      Z coord. of the volume in mother ref. sys.
  IROT   Rotation matrix number w.r.t. mother ref. sys.
  ISONLY ONLY/MANY flag
void Node(const char* name, Int_t nr, const char* mother, Double_t x, Double_t y, Double_t z, Int_t irot, Bool_t isOnly, Double_t* upar, Int_t npar = 0)
 Create a node called <name_nr> pointing to the volume called <name>
 as daughter of the volume called <mother> (gspos). The relative matrix is
 made of : a translation (x,y,z) and a rotation matrix named <matIROT>.
 In case npar>0, create the volume to be positioned in mother, according
 its actual parameters (gsposp).
  NAME   Volume name
  NUMBER Copy number of the volume
  MOTHER Mother volume name
  X      X coord. of the volume in mother ref. sys.
  Y      Y coord. of the volume in mother ref. sys.
  Z      Z coord. of the volume in mother ref. sys.
  IROT   Rotation matrix number w.r.t. mother ref. sys.
  ISONLY ONLY/MANY flag
TGeoVolume * Volume(const char* name, const char* shape, Int_t nmed, Float_t* upar, Int_t npar = 0)
 Create a volume in GEANT3 style.
  NAME   Volume name
  SHAPE  Volume type
  NMED   Tracking medium number
  NPAR   Number of shape parameters
  UPAR   Vector containing shape parameters
TGeoVolume * Volume(const char* name, const char* shape, Int_t nmed, Double_t* upar, Int_t npar = 0)
 Create a volume in GEANT3 style.
  NAME   Volume name
  SHAPE  Volume type
  NMED   Tracking medium number
  NPAR   Number of shape parameters
  UPAR   Vector containing shape parameters
void SetAllIndex()
 Assigns uid's for all materials,media and matrices.
void ClearAttributes()
 Reset all attributes to default ones. Default attributes for visualization
 are those defined before closing the geometry.
void CloseGeometry(Option_t* option = "d")
 Closing geometry implies checking the geometry validity, fixing shapes
 with negative parameters (run-time shapes)building the cache manager,
 voxelizing all volumes, counting the total number of physical nodes and
 registring the manager class to the browser.
void ClearOverlaps()
 Clear the list of overlaps.
void ClearShape(const TGeoShape* shape)
 Remove a shape from the list of shapes.
void CleanGarbage()
 Clean temporary volumes and shapes from garbage collection.
void CdNode(Int_t nodeid)
 Change current path to point to the node having this id.
 Node id has to be in range : 0 to fNNodes-1 (no check for performance reasons)
Int_t GetCurrentNodeId() const
 Get the unique ID of the current node.
void CdTop()
 Make top level node the current node. Updates the cache accordingly.
 Determine the overlapping state of current node.
void CdUp()
 Go one level up in geometry. Updates cache accordingly.
 Determine the overlapping state of current node.
void CdDown(Int_t index)
 Make a daughter of current node current. Can be called only with a valid
 daughter index (no check). Updates cache accordingly.
void CdNext()
 Do a cd to the node found next by FindNextBoundary
Bool_t cd(const char* path = "")
 Browse the tree of nodes starting from fTopNode according to pathname.
 Changes the path accordingly.
Bool_t CheckPath(const char* path) const
 Check if a geometry path is valid without changing the state of the current navigator.
void ConvertReflections()
 Convert all reflections in geometry to normal rotations + reflected shapes.
void CountLevels()
 Count maximum number of nodes per volume, maximum depth and maximum
 number of xtru vertices.
Int_t CountNodes(const TGeoVolume* vol = 0, Int_t nlevels = 10000, Int_t option = 0)
 Count the total number of nodes starting from a volume, nlevels down.
void DefaultAngles()
 Set default angles for a given view.
void DrawCurrentPoint(Int_t color = 2)
 Draw current point in the same view.
void AnimateTracks(Double_t tmin = 0, Double_t tmax = 5E-8, Int_t nframes = 200, Option_t* option = "/*")
 Draw animation of tracks
void DrawTracks(Option_t* option = "")
 Draw tracks over the geometry, according to option. By default, only
 primaries are drawn. See TGeoTrack::Draw() for additional options.
void DrawPath(const char* path, Option_t* option = "")
 Draw current path
void RandomPoints(const TGeoVolume* vol, Int_t npoints = 10000, Option_t* option = "")
 Draw random points in the bounding box of a volume.
void Test(Int_t npoints = 1000000, Option_t* option = "")
 Check time of finding "Where am I" for n points.
void TestOverlaps(const char* path = "")
 Geometry overlap checker based on sampling.
void GetBranchNames(Int_t* names) const
 Fill volume names of current branch into an array.
const char * GetPdgName(Int_t pdg) const
 Get name for given pdg code;
void SetPdgName(Int_t pdg, const char* name)
 Set a name for a particle having a given pdg.
void GetBranchNumbers(Int_t* copyNumbers, Int_t* volumeNumbers) const
 Fill node copy numbers of current branch into an array.
void GetBranchOnlys(Int_t* isonly) const
 Fill node copy numbers of current branch into an array.
void GetBombFactors(Double_t& bombx, Double_t& bomby, Double_t& bombz, Double_t& bombr) const
 Retrieve cartesian and radial bomb factors.
Int_t GetMaxDaughters()
 Return maximum number of daughters of a volume used in the geometry.
Int_t GetMaxLevels()
 Return maximum number of levels used in the geometry.
Int_t GetMaxXtruVert()
 Return maximum number of vertices for an xtru shape used.
Int_t GetNumThreads()
 Returns number of threads that were set to use geometry.
TGeoHMatrix * GetHMatrix()
 Return stored current matrix (global matrix of the next touched node).
Int_t GetVisLevel() const
 Returns current depth to which geometry is drawn.
Int_t GetVisOption() const
 Returns current depth to which geometry is drawn.
Int_t GetVirtualLevel()
 Find level of virtuality of current overlapping node (number of levels
 up having the same tracking media.
TVirtualGeoTrack * FindTrackWithId(Int_t id) const
 Search the track hierarchy to find the track with the
 given id

 if 'primsFirst' is true, then:
 first tries TGeoManager::GetTrackOfId, then does a
 recursive search if that fails. this would be faster
 if the track is somehow known to be a primary
TVirtualGeoTrack * GetTrackOfId(Int_t id) const
 Get track with a given ID.
TVirtualGeoTrack * GetParentTrackOfId(Int_t id) const
 Get parent track with a given ID.
Int_t GetTrackIndex(Int_t id) const
 Get index for track id, -1 if not found.
Bool_t GotoSafeLevel()
 Go upwards the tree until a non-overlaping node
Int_t GetSafeLevel() const
 Go upwards the tree until a non-overlaping node
void DefaultColors()
 Set default volume colors according to A of material
Double_t Safety(Bool_t inside = kFALSE)
 Compute safe distance from the current point. This represent the distance
 from POINT to the closest boundary.
void SetVolumeAttribute(const char* name, const char* att, Int_t val)
 Set volume attributes in G3 style.
void SetBombFactors(Double_t bombx = 1.3, Double_t bomby = 1.3, Double_t bombz = 1.3, Double_t bombr = 1.3)
 Set factors that will "bomb" all translations in cartesian and cylindrical coordinates.
void SetClippingShape(TGeoShape* clip)
 Set a user-defined shape as clipping for ray tracing.
void SetMaxVisNodes(Int_t maxnodes = 10000)
 set the maximum number of visible nodes.
void SetTopVisible(Bool_t vis = kTRUE)
 make top volume visible on screen
void SetCheckedNode(TGeoNode* node)
 Assign a given node to be checked for ovelaps. Any other overlaps will be ignored.
void SetNmeshPoints(Int_t npoints = 1000)
 Set the number of points to be generated on the shape outline when checking
 for overlaps.
void SetVisOption(Int_t option = 0)
 set drawing mode :
 option=0 (default) all nodes drawn down to vislevel
 option=1           leaves and nodes at vislevel drawn
 option=2           path is drawn
 option=4           visibility changed
void ViewLeaves(Bool_t flag = kTRUE)
 Set visualization option (leaves only OR all volumes)
void SetVisDensity(Double_t dens = 0.01)
 Set density threshold. Volumes with densities lower than this become
 transparent.
void SetVisLevel(Int_t level = 3)
 set default level down to which visualization is performed
void SortOverlaps()
 Sort overlaps by decreasing overlap distance. Extrusions comes first.
void OptimizeVoxels(const char* filename = "tgeovox.C")
 Optimize voxelization type for all volumes. Save best choice in a macro.
Int_t Parse(const char* expr, TString& expr1, TString& expr2, TString& expr3)
 Parse a string boolean expression and do a syntax check. Find top
 level boolean operator and returns its type. Fill the two
 substrings to which this operator applies. The returned integer is :
 -1 : parse error
  0 : no boolean operator
  1 : union - represented as '+' in expression
  2 : difference (subtraction) - represented as '-' in expression
  3 : intersection - represented as '*' in expression.
 Paranthesys should be used to avoid ambiguites. For instance :
    A+B-C will be interpreted as (A+B)-C which is not the same as A+(B-C)
 eliminate not needed paranthesys
void SaveAttributes(const char* filename = "tgeoatt.C")
 Save current attributes in a macro
TGeoNode * SearchNode(Bool_t downwards = kFALSE, const TGeoNode* skipnode = 0)
 Returns the deepest node containing fPoint, which must be set a priori.
TGeoNode * CrossBoundaryAndLocate(Bool_t downwards, TGeoNode* skipnode)
 Cross next boundary and locate within current node
 The current point must be on the boundary of fCurrentNode.
TGeoNode * FindNextBoundaryAndStep(Double_t stepmax = TGeoShape::Big(), Bool_t compsafe = kFALSE)
 Compute distance to next boundary within STEPMAX. If no boundary is found,
 propagate current point along current direction with fStep=STEPMAX. Otherwise
 propagate with fStep=SNEXT (distance to boundary) and locate/return the next
 node.
TGeoNode * FindNextBoundary(Double_t stepmax = TGeoShape::Big(), const char* path = "", Bool_t frombdr = kFALSE)
 Find distance to next boundary and store it in fStep. Returns node to which this
 boundary belongs. If PATH is specified, compute only distance to the node to which
 PATH points. If STEPMAX is specified, compute distance only in case fSafety is smaller
 than this value. STEPMAX represent the step to be made imposed by other reasons than
 geometry (usually physics processes). Therefore in this case this method provides the
 answer to the question : "Is STEPMAX a safe step ?" returning a NULL node and filling
 fStep with a big number.
 In case frombdr=kTRUE, the isotropic safety is set to zero.
 Note : safety distance for the current point is computed ONLY in case STEPMAX is
        specified, otherwise users have to call explicitly TGeoManager::Safety() if
        they want this computed for the current point.
TGeoNode * FindNextDaughterBoundary(Double_t* point, Double_t* dir, Int_t& idaughter, Bool_t compmatrix = kFALSE)
 Computes as fStep the distance to next daughter of the current volume.
 The point and direction must be converted in the coordinate system of the current volume.
 The proposed step limit is fStep.
void ResetState()
 Reset current state flags.
TGeoNode * FindNode(Bool_t safe_start = kTRUE)
 Returns deepest node containing current point.
TGeoNode * FindNode(Double_t x, Double_t y, Double_t z)
 Returns deepest node containing current point.
Double_t * FindNormalFast()
 Computes fast normal to next crossed boundary, assuming that the current point
 is close enough to the boundary. Works only after calling FindNextBoundary.
Double_t * FindNormal(Bool_t forward = kTRUE)
 Computes normal vector to the next surface that will be or was already
 crossed when propagating on a straight line from a given point/direction.
 Returns the normal vector cosines in the MASTER coordinate system. The dot
 product of the normal and the current direction is positive defined.
Bool_t IsSameLocation(Double_t x, Double_t y, Double_t z, Bool_t change = kFALSE)
 Checks if point (x,y,z) is still in the current node.
Bool_t IsSamePoint(Double_t x, Double_t y, Double_t z) const
 Check if a new point with given coordinates is the same as the last located one.
Bool_t IsInPhiRange() const
 True if current node is in phi range
TGeoNode * InitTrack(const Double_t* point, const Double_t* dir)
 Initialize current point and current direction vector (normalized)
 in MARS. Return corresponding node.
TGeoNode * InitTrack(Double_t x, Double_t y, Double_t z, Double_t nx, Double_t ny, Double_t nz)
 Initialize current point and current direction vector (normalized)
 in MARS. Return corresponding node.
void InspectState() const
 Inspects path and all flags for the current state.
const char * GetPath() const
 Get path to the current node in the form /node0/node1/...
Int_t GetByteCount(Option_t* option = 0)
 Get total size of geometry in bytes.
TVirtualGeoPainter * GetGeomPainter()
 Make a default painter if none present. Returns pointer to it.
TGeoVolume * GetVolume(const char* name) const
 Search for a named volume. All trailing blanks stripped.
TGeoVolume * FindVolumeFast(const char* name, Bool_t multi = kFALSE)
 Fast search for a named volume. All trailing blanks stripped.
Int_t GetUID(const char* volname) const
 Retreive unique id for a volume name. Return -1 if name not found.
TGeoMaterial * FindDuplicateMaterial(const TGeoMaterial* mat) const
 Find if a given material duplicates an existing one.
TGeoMaterial * GetMaterial(const char* matname) const
 Search for a named material. All trailing blanks stripped.
TGeoMedium * GetMedium(const char* medium) const
 Search for a named tracking medium. All trailing blanks stripped.
TGeoMedium * GetMedium(Int_t numed) const
 Search for a tracking medium with a given ID.
TGeoMaterial * GetMaterial(Int_t id) const
 Return material at position id.
Int_t GetMaterialIndex(const char* matname) const
 Return index of named material.
void RandomRays(Int_t nrays = 1000, Double_t startx = 0, Double_t starty = 0, Double_t startz = 0, const char* target_vol = 0, Bool_t check_norm = kFALSE)
 Randomly shoot nrays and plot intersections with surfaces for current
 top node.
void RemoveMaterial(Int_t index)
 Remove material at given index.
void ResetUserData()
 Sets all pointers TGeoVolume::fField to NULL. User data becomes decoupled
 from geometry. Deletion has to be managed by users.
void RestoreMasterVolume()
 Restore the master volume of the geometry.
void Voxelize(Option_t* option = 0)
 Voxelize all non-divided volumes.
void ModifiedPad() const
 Send "Modified" signal to painter.
TGeoVolume * MakeArb8(const char* name, TGeoMedium* medium, Double_t dz, Double_t* vertices = 0)
 Make an TGeoArb8 volume.
TGeoVolume * MakeBox(const char* name, TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz)
 Make in one step a volume pointing to a box shape with given medium.
TGeoVolume * MakePara(const char* name, TGeoMedium* medium, Double_t dx, Double_t dy, Double_t dz, Double_t alpha, Double_t theta, Double_t phi)
 Make in one step a volume pointing to a paralelipiped shape with given medium.
TGeoVolume * MakeSphere(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t themin = 0, Double_t themax = 180, Double_t phimin = 0, Double_t phimax = 360)
 Make in one step a volume pointing to a sphere shape with given medium
TGeoVolume * MakeTorus(const char* name, TGeoMedium* medium, Double_t r, Double_t rmin, Double_t rmax, Double_t phi1 = 0, Double_t dphi = 360)
 Make in one step a volume pointing to a torus shape with given medium.
TGeoVolume * MakeTube(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium.
TGeoVolume * MakeTubs(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2)
 Make in one step a volume pointing to a tube segment shape with given medium.
 The segment will be from phiStart to phiEnd, the angles are expressed in degree
TGeoVolume * MakeEltu(const char* name, TGeoMedium* medium, Double_t a, Double_t b, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeHype(const char* name, TGeoMedium* medium, Double_t rin, Double_t stin, Double_t rout, Double_t stout, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeParaboloid(const char* name, TGeoMedium* medium, Double_t rlo, Double_t rhi, Double_t dz)
 Make in one step a volume pointing to a tube shape with given medium
TGeoVolume * MakeCtub(const char* name, TGeoMedium* medium, Double_t rmin, Double_t rmax, Double_t dz, Double_t phi1, Double_t phi2, Double_t lx, Double_t ly, Double_t lz, Double_t tx, Double_t ty, Double_t tz)
 Make in one step a volume pointing to a tube segment shape with given medium
TGeoVolume * MakeCone(const char* name, TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2)
 Make in one step a volume pointing to a cone shape with given medium.
TGeoVolume * MakeCons(const char* name, TGeoMedium* medium, Double_t dz, Double_t rmin1, Double_t rmax1, Double_t rmin2, Double_t rmax2, Double_t phi1, Double_t phi2)
 Make in one step a volume pointing to a cone segment shape with given medium
TGeoVolume * MakePcon(const char* name, TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nz)
 Make in one step a volume pointing to a polycone shape with given medium.
TGeoVolume * MakePgon(const char* name, TGeoMedium* medium, Double_t phi, Double_t dphi, Int_t nedges, Int_t nz)
 Make in one step a volume pointing to a polygone shape with given medium.
TGeoVolume * MakeTrd1(const char* name, TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy, Double_t dz)
 Make in one step a volume pointing to a TGeoTrd1 shape with given medium.
TGeoVolume * MakeTrd2(const char* name, TGeoMedium* medium, Double_t dx1, Double_t dx2, Double_t dy1, Double_t dy2, Double_t dz)
 Make in one step a volume pointing to a TGeoTrd2 shape with given medium.
TGeoVolume * MakeTrap(const char* name, TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
 Make in one step a volume pointing to a trapezoid shape with given medium.
TGeoVolume * MakeGtra(const char* name, TGeoMedium* medium, Double_t dz, Double_t theta, Double_t phi, Double_t twist, Double_t h1, Double_t bl1, Double_t tl1, Double_t alpha1, Double_t h2, Double_t bl2, Double_t tl2, Double_t alpha2)
 Make in one step a volume pointing to a twisted trapezoid shape with given medium.
TGeoVolume * MakeXtru(const char* name, TGeoMedium* medium, Int_t nz)
 Make a TGeoXtru-shaped volume with nz planes
TGeoPNEntry * SetAlignableEntry(const char* unique_name, const char* path, Int_t uid = -1)
 Creates an aligneable object with unique name corresponding to a path
 and adds it to the list of alignables. An optional unique ID can be
 provided, in which case PN entries can be searched fast by uid.
TGeoPNEntry * GetAlignableEntry(const char* name) const
 Retreives an existing alignable object.
TGeoPNEntry * GetAlignableEntry(Int_t index) const
 Retreives an existing alignable object at a given index.
TGeoPNEntry * GetAlignableEntryByUID(Int_t uid) const
 Retreives an existing alignable object having a preset UID.
Int_t GetNAlignable(Bool_t with_uid = kFALSE) const
 Retreives number of PN entries with or without UID.
Bool_t InsertPNEId(Int_t uid, Int_t ientry)
 Insert a PN entry in the sorted array of indexes.
TGeoPhysicalNode * MakeAlignablePN(const char* name)
 Make a physical node from the path pointed by an alignable object with a given name.
TGeoPhysicalNode * MakeAlignablePN(TGeoPNEntry* entry)
 Make a physical node from the path pointed by a given alignable object.
TGeoPhysicalNode * MakePhysicalNode(const char* path = 0)
 Makes a physical node corresponding to a path. If PATH is not specified,
 makes physical node matching current modeller state.
void RefreshPhysicalNodes(Bool_t lock = kTRUE)
 Refresh physical nodes to reflect the actual geometry paths after alignment
 was applied. Optionally locks physical nodes (default).
void ClearPhysicalNodes(Bool_t mustdelete = kFALSE)
 Clear the current list of physical nodes, so that we can start over with a new list.
 If MUSTDELETE is true, delete previous nodes.
TGeoVolumeAssembly * MakeVolumeAssembly(const char* name)
 Make an assembly of volumes.
TGeoVolumeMulti * MakeVolumeMulti(const char* name, TGeoMedium* medium)
 Make a TGeoVolumeMulti handling a list of volumes.
void SetExplodedView(Int_t iopt = 0)
 Set type of exploding view (see TGeoPainter::SetExplodedView())
void SetPhiRange(Double_t phimin = 0., Double_t phimax = 360.)
 Set cut phi range
void SetNsegments(Int_t nseg)
 Set number of segments for approximating circles in drawing.
Int_t GetNsegments() const
 Get number of segments approximating circles
void BuildDefaultMaterials()
 Now just a shortcut for GetElementTable.
TGeoElementTable * GetElementTable()
 Returns material table. Creates it if not existing.
TGeoNode * Step(Bool_t is_geom = kTRUE, Bool_t cross = kTRUE)
 Make a rectiliniar step of length fStep from current point (fPoint) on current
 direction (fDirection). If the step is imposed by geometry, is_geom flag
 must be true (default). The cross flag specifies if the boundary should be
 crossed in case of a geometry step (default true). Returns new node after step.
 Set also on boundary condition.
TGeoNode * SamplePoints(Int_t npoints, Double_t& dist, Double_t epsil = 1E-5, const char* g3path = "")
 shoot npoints randomly in a box of 1E-5 arround current point.
 return minimum distance to points outside
void SetTopVolume(TGeoVolume* vol)
 Set the top volume and corresponding node as starting point of the geometry.
void SelectTrackingMedia()
 Define different tracking media.
   printf("List of materials :\n");

   Int_t nmat = fMaterials->GetSize();
   if (!nmat) {printf(" No materials !\n"); return;}
   Int_t *media = new Int_t[nmat];
   memset(media, 0, nmat*sizeof(Int_t));
   Int_t imedia = 1;
   TGeoMaterial *mat, *matref;
   mat = (TGeoMaterial*)fMaterials->At(0);
   if (mat->GetMedia()) {
      for (Int_t i=0; i<nmat; i++) {
         mat = (TGeoMaterial*)fMaterials->At(i);
         mat->Print();
      }
      return;
   }
   mat->SetMedia(imedia);
   media[0] = imedia++;
   mat->Print();
   for (Int_t i=0; i<nmat; i++) {
      mat = (TGeoMaterial*)fMaterials->At(i);
      for (Int_t j=0; j<i; j++) {
         matref = (TGeoMaterial*)fMaterials->At(j);
         if (mat->IsEq(matref)) {
            mat->SetMedia(media[j]);
            break;
         }
         if (j==(i-1)) {
         // different material
            mat->SetMedia(imedia);
            media[i] = imedia++;
            mat->Print();
         }
      }
   }

void CheckBoundaryErrors(Int_t ntracks = 1000000, Double_t radius = -1.)
 Check pushes and pulls needed to cross the next boundary with respect to the
 position given by FindNextBoundary. If radius is not mentioned the full bounding
 box will be sampled.
void CheckBoundaryReference(Int_t icheck = -1)
 Check the boundary errors reference file created by CheckBoundaryErrors method.
 The shape for which the crossing failed is drawn with the starting point in red
 and the extrapolated point to boundary (+/- failing push/pull) in yellow.
void CheckPoint(Double_t x = 0, Double_t y = 0, Double_t z = 0, Option_t* option = "")
 Classify a given point. See TGeoChecker::CheckPoint().
void CheckShape(TGeoShape* shape, Int_t testNo, Int_t nsamples, Option_t* option)
 Test for shape navigation methods. Summary for test numbers:
  1: DistFromInside/Outside. Sample points inside the shape. Generate
    directions randomly in cos(theta). Compute DistFromInside and move the
    point with bigger distance. Compute DistFromOutside back from new point.
    Plot d-(d1+d2)

void CheckGeometryFull(Int_t ntracks = 1000000, Double_t vx = 0., Double_t vy = 0., Double_t vz = 0., Option_t* option = "ob")
 Geometry checking.
 - if option contains 'o': Optional overlap checkings (by sampling and by mesh).
 - if option contains 'b': Optional boundary crossing check + timing per volume.

 STAGE 1: extensive overlap checking by sampling per volume. Stdout need to be
  checked by user to get report, then TGeoVolume::CheckOverlaps(0.01, "s") can
  be called for the suspicious volumes.
 STAGE2 : normal overlap checking using the shapes mesh - fills the list of
  overlaps.
 STAGE3 : shooting NRAYS rays from VERTEX and counting the total number of
  crossings per volume (rays propagated from boundary to boundary until
  geometry exit). Timing computed and results stored in a histo.
 STAGE4 : shooting 1 mil. random rays inside EACH volume and calling
  FindNextBoundary() + Safety() for each call. The timing is normalized by the
  number of crossings computed at stage 2 and presented as percentage.
  One can get a picture on which are the most "burned" volumes during
  transportation from geometry point of view. Another plot of the timing per
  volume vs. number of daughters is produced.
void CheckGeometry(Option_t* option = "")
 Perform last checks on the geometry
void CheckOverlaps(Double_t ovlp = 0.1, Option_t* option = "")
 Check all geometry for illegal overlaps within a limit OVLP.
void PrintOverlaps() const
 Prints the current list of overlaps.
Double_t Weight(Double_t precision = 0.01, Option_t* option = "va")
 Estimate weight of volume VOL with a precision SIGMA(W)/W better than PRECISION.
 Option can be "v" - verbose (default)
ULong_t SizeOf(const TGeoNode* node, Option_t* option)
 computes the total size in bytes of the branch starting with node.
 The option can specify if all the branch has to be parsed or only the node
void Streamer(TBuffer& )
 Stream an object of class TGeoManager.
void ExecuteEvent(Int_t event, Int_t px, Int_t py)
 Execute mouse actions on this manager.
Int_t Export(const char* filename, const char* name = "", Option_t* option = "vg")
 Export this geometry to a file

 -Case 1: root file or root/xml file
  if filename end with ".root". The key will be named name
  By default the geometry is saved without the voxelisation info.
  Use option 'v" to save the voxelisation info.
  if filename end with ".xml" a root/xml file is produced.

 -Case 2: C++ script
  if filename end with ".C"

 -Case 3: gdml file
  if filename end with ".gdml"
  NOTE that to use this option, the PYTHONPATH must be defined like
      export PYTHONPATH=$ROOTSYS/lib:$ROOTSYS/geom/gdml

void LockGeometry()
 Lock current geometry so that no other geometry can be imported.
void UnlockGeometry()
 Unlock current geometry.
Bool_t IsLocked()
 Check lock state.
Int_t GetVerboseLevel()
 Set verbosity level (static function).
 0 - suppress messages related to geom-painter visibility level
 1 - default value
void SetVerboseLevel(Int_t vl)
 Return current verbosity level (static function).
TGeoManager * Import(const char* filename, const char* name = "", Option_t* option = "")
static function
Import a geometry from a gdml or ROOT file

 -Case 1: gdml
  if filename ends with ".gdml" the foreign geometry described with gdml
  is imported executing some python scripts in $ROOTSYS/gdml.
  NOTE that to use this option, the PYTHONPATH must be defined like
      export PYTHONPATH=$ROOTSYS/lib:$ROOTSYS/gdml

 -Case 2: root file (.root) or root/xml file (.xml)
  Import in memory from filename the geometry with key=name.
  if name="" (default), the first TGeoManager object in the file is returned.

Note that this function deletes the current gGeoManager (if one)
before importing the new object.
void UpdateElements()
 Update element flags when geometry is loaded from a file.
Bool_t InitArrayPNE() const
 Initialize PNE array for fast access via index and unique-id.
Bool_t GetTminTmax(Double_t& tmin, Double_t& tmax) const
 Get time cut for drawing tracks.
void SetTminTmax(Double_t tmin = 0, Double_t tmax = 999)
 Set time cut interval for drawing tracks. If called with no arguments, time
 cut will be disabled.
void MasterToTop(const Double_t* master, Double_t* top) const
 Convert coordinates from master volume frame to top.
void TopToMaster(const Double_t* top, Double_t* master) const
 Convert coordinates from top volume frame to master.
TGeoParallelWorld * CreateParallelWorld(const char* name)
 Create a parallel world for prioritized navigation. This can be populated
 with physical nodes and can be navigated independently using its API.
 In case the flag SetUseParallelWorldNav is set, any navigation query in the
 main geometry is checked against the parallel geometry, which gets priority
 in case of overlaps with the main geometry volumes.
void SetUseParallelWorldNav(Bool_t flag)
 Activate/deactivate usage of parallel world navigation. Can only be done if
 there is a parallel world. Activating navigation will automatically close
 the parallel geometry.
Bool_t IsLoopingVolumes() const
--- private methods
{return fLoopVolumes;}
void SetLoopVolumes(Bool_t flag = kTRUE)
{fLoopVolumes=flag;}
Int_t GetNmany() const
Bool_t IsFolder() const
--- visualization settings
{ return kTRUE; }
TGeoShape * GetClippingShape() const
{return fClippingShape;}
TVirtualGeoPainter * GetPainter() const
{return fPainter;}
Int_t GetBombMode() const
{return fExplodedView;}
Int_t GetMaxVisNodes() const
{return fMaxVisNodes;}
Double_t GetTmax() const
{return fTmax;}
TGeoVolume * GetPaintVolume() const
{return fPaintVolume;}
Double_t GetVisDensity() const
{return fVisDensity;}
Bool_t IsDrawingExtra() const
{return fDrawExtra;}
Bool_t IsNodeSelectable() const
Bool_t IsVisLeaves() const
{return (fVisOption==1)?kTRUE:kFALSE;}
void SetClipping(Bool_t flag = kTRUE)
void SetPaintVolume(TGeoVolume* vol)
{fPaintVolume = vol;}
void SetDrawExtraPaths(Bool_t flag = kTRUE)
{fDrawExtra=flag;}
void SetNodeSelectable(Bool_t flag = kTRUE)
void SetParticleName(const char* pname)
{fParticleName=pname;}
const char * GetParticleName() const
{return fParticleName.Data();}
Bool_t IsClosed() const
{return fClosed;}
void DisableInactiveVolumes()
void EnableInactiveVolumes()
void SetCurrentTrack(Int_t i)
void SetCurrentTrack(TVirtualGeoTrack* track)
{fCurrentTrack=track;}
Int_t GetNtracks() const
{return fNtracks;}
TVirtualGeoTrack * GetCurrentTrack()
{return fCurrentTrack;}
TVirtualGeoTrack * GetLastTrack()
{return (TVirtualGeoTrack*)((fNtracks>0)?fTracks->At(fNtracks-1):NULL);}
const Double_t * GetLastPoint() const
TVirtualGeoTrack * GetTrack(Int_t index)
{return (index<fNtracks)?(TVirtualGeoTrack*)fTracks->At(index):0;}
Double_t GetSafeDistance() const
Double_t GetLastSafety() const
Double_t GetStep() const
Bool_t IsAnimatingTracks() const
{return fIsGeomReading;}
Bool_t IsCheckingOverlaps() const
Bool_t IsMatrixTransform() const
Bool_t IsMatrixReflection() const
Bool_t IsSameLocation(Double_t x, Double_t y, Double_t z, Bool_t change = kFALSE)
Bool_t IsStartSafe() const
void SetCheckingOverlaps(Bool_t flag = kTRUE)
void SetStartSafe(Bool_t flag = kTRUE)
void SetMatrixTransform(Bool_t on = kTRUE)
void SetMatrixReflection(Bool_t flag = kTRUE)
void SetStep(Double_t step)
Bool_t IsCurrentOverlapping() const
Bool_t IsEntering() const
Bool_t IsExiting() const
Bool_t IsStepEntering() const
Bool_t IsStepExiting() const
Bool_t IsOutside() const
Bool_t IsOnBoundary() const
Bool_t IsNullStep() const
Bool_t IsActivityEnabled() const
{return fActivity;}
void SetOutside(Bool_t flag = kTRUE)
void ClearTracks()
UChar_t * GetBits()
{return fBits;}
Int_t GetMaxThreads() const
{return fMaxThreads-1;}
void SetMultiThread(Bool_t flag = kTRUE)
{fMultiThread = flag;}
Bool_t IsMultiThread() const
{return fMultiThread;}
Bool_t IsStreamingVoxels() const
{return fStreamVoxels;}
Bool_t IsCleaning() const
{return fIsGeomCleaning;}
TObjArray * GetListOfNodes()
--- list getters
{return fNodes;}
TObjArray * GetListOfPhysicalNodes()
{return fPhysicalNodes;}
TObjArray * GetListOfOverlaps()
{return fOverlaps;}
TObjArray * GetListOfMatrices() const
{return fMatrices;}
TList * GetListOfMaterials() const
{return fMaterials;}
TList * GetListOfMedia() const
{return fMedia;}
TObjArray * GetListOfVolumes() const
{return fVolumes;}
TObjArray * GetListOfGVolumes() const
{return fGVolumes;}
TObjArray * GetListOfShapes() const
{return fShapes;}
TObjArray * GetListOfGShapes() const
{return fGShapes;}
TObjArray * GetListOfUVolumes() const
{return fUniqueVolumes;}
TObjArray * GetListOfTracks() const
{return fTracks;}
TGeoNode * GetNode(Int_t level) const
{return (TGeoNode*)fNodes->UncheckedAt(level);}
Int_t GetNodeId() const
TGeoNode * GetNextNode() const
TGeoNode * GetMother(Int_t up = 1) const
TGeoHMatrix * GetMotherMatrix(Int_t up = 1) const
TGeoHMatrix * GetCurrentMatrix() const
TGeoHMatrix * GetGLMatrix() const
{return fGLMatrix;}
TGeoNode * GetCurrentNode() const
const Double_t * GetCurrentPoint() const
const Double_t * GetCurrentDirection() const
TGeoVolume * GetCurrentVolume() const
const Double_t * GetCldirChecked() const
const Double_t * GetCldir() const
const Double_t * GetNormal() const
Int_t GetLevel() const
Int_t GetMaxLevel() const
{return fNLevel;}
Int_t GetStackLevel() const
TGeoVolume * GetMasterVolume() const
{return fMasterVolume;}
TGeoVolume * GetTopVolume() const
{return fTopVolume;}
TGeoNode * GetTopNode() const
{return fTopNode;}
TGeoPhysicalNode * GetPhysicalNode(Int_t i) const
void SetCurrentPoint(Double_t* point)
void SetCurrentPoint(Double_t x, Double_t y, Double_t z)
void SetLastPoint(Double_t x, Double_t y, Double_t z)
void SetCurrentDirection(Double_t* dir)
void SetCurrentDirection(Double_t nx, Double_t ny, Double_t nz)
void SetCldirChecked(Double_t* dir)
void LocalToMaster(const Double_t* local, Double_t* master) const
--- point/vector reference frame conversion
{GetCurrentNavigator()->LocalToMaster(local, master);}
void LocalToMasterVect(const Double_t* local, Double_t* master) const
void LocalToMasterBomb(const Double_t* local, Double_t* master) const
void MasterToLocal(const Double_t* master, Double_t* local) const
{GetCurrentNavigator()->MasterToLocal(master, local);}
void MasterToLocalVect(const Double_t* master, Double_t* local) const
void MasterToLocalBomb(const Double_t* master, Double_t* local) const
TGeoVolume * GetVolume(const char* name) const
   TGeoShape             *GetShape(const char *name) const;
Int_t GetNNodes()
{if (!fNNodes) CountNodes(); return fNNodes;}
TGeoNodeCache * GetCache() const
   void                   SetCache(const TGeoNodeCache *cache) {fCache = (TGeoNodeCache*)cache;}
void SetAnimateTracks(Bool_t flag = kTRUE)
Int_t PushPath(Int_t startlevel = 0)
--- stack manipulation
{return GetCurrentNavigator()->PushPath(startlevel);}
Bool_t PopPath()
Bool_t PopPath(Int_t index)
{return GetCurrentNavigator()->PopPath(index);}
Int_t PushPoint(Int_t startlevel = 0)
{return GetCurrentNavigator()->PushPoint(startlevel);}
Bool_t PopPoint()
Bool_t PopPoint(Int_t index)
{return GetCurrentNavigator()->PopPoint(index);}
void PopDummy(Int_t ipop = 9999)
{return GetCurrentNavigator()->PopDummy(ipop);}
TGeoParallelWorld * GetParallelWorld() const
{return fParallelWorld;}
Bool_t IsParallelWorldNav() const
{return fUsePWNav;}
