class TEveSecondarySelectable


 Semi-abstract interface for classes supporting secondary-selection.

 Element class that inherits from this, should also implement the
 following virtuals from TEveElement:
    virtual void UnSelected();
    virtual void UnHighlighted();
 and clear corresponding selection-set from there.

 To support tooltips for sub-elements, implement:
    virtual TString TEveElement::GetHighlightTooltip();
 and return tooltip for the entry in the fHighlightedSet.
 There should always be a single entry there.
 See TEveDigitSet for an example.

Function Members (Methods)

public:

virtual	~TEveSecondarySelectable()
static TClass*	Class()
Bool_t	GetAlwaysSecSelect() const
virtual TClass*	IsA() const
void	ProcessGLSelection(TGLSelectRecord& rec)
const TEveSecondarySelectable::SelectionSet_t&	RefHighlightedSet() const
const TEveSecondarySelectable::SelectionSet_t&	RefSelectedSet() const
void	SetAlwaysSecSelect(Bool_t f)
virtual void	ShowMembers(TMemberInspector& insp) const
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
	TEveSecondarySelectable()

protected:

void	ProcessGLSelectionInternal(TGLSelectRecord& rec, TEveSecondarySelectable::SelectionSet_t& sset)

private:

TEveSecondarySelectable&	operator=(const TEveSecondarySelectable&)
	TEveSecondarySelectable(const TEveSecondarySelectable&)

Data Members

protected:

Bool_t	fAlwaysSecSelect	Always do secondary-selection in GL.
TEveSecondarySelectable::SelectionSet_t	fHighlightedSet	Highlighted indices.
TEveSecondarySelectable::SelectionSet_t	fSelectedSet	Selected indices.

Class Charts

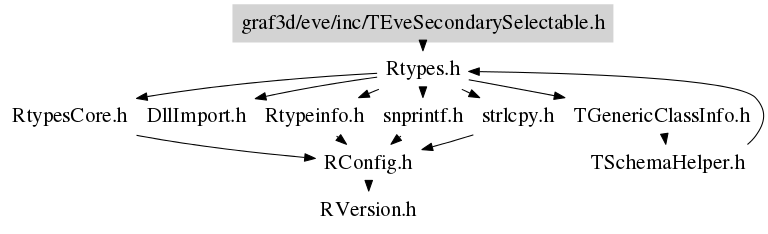

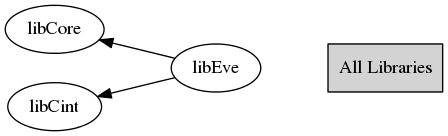

Inheritance Inherited Members Includes Libraries

Function documentation

TEveSecondarySelectable()

 Constructor.

void ProcessGLSelection(TGLSelectRecord& rec)

 Process secondary GL selection and populate selected set accordingly.

void ProcessGLSelectionInternal(TGLSelectRecord& rec, TEveSecondarySelectable::SelectionSet_t& sset)

 Process secondary GL selection and populate given set accordingly.

TEveSecondarySelectable(const TEveSecondarySelectable& )

TEveSecondarySelectable& operator=(const TEveSecondarySelectable& )

virtual ~TEveSecondarySelectable()

{}

Bool_t GetAlwaysSecSelect() const

{ return fAlwaysSecSelect; }

void SetAlwaysSecSelect(Bool_t f)

{ fAlwaysSecSelect = f; }

const SelectionSet_t& RefSelectedSet() const

{ return fSelectedSet; }

const SelectionSet_t& RefHighlightedSet() const

{ return fHighlightedSet; }
