ROOT » GEOM » GEOM » TGeoNavigatorArray

class TGeoNavigatorArray: public TObjArray

 TGeoNavigator


   Class providing navigation API for TGeo geometries. Several instances are
 allowed for a single geometry.
 A default navigator is provided for any geometry but one may add several
 others for parallel navigation:

	TGeoNavigator *navig = new TGeoNavigator(gGeoManager);
	Int_t inav = gGeoManager->AddNavigator(navig);
	gGeoManager->SetCurrentNavigator(inav);

	.... and then switch back to the default navigator:

	gGeoManager->SetCurrentNavigator(0);

Function Members (Methods)

public:
virtual~TGeoNavigatorArray()
voidTObject::AbstractMethod(const char* method) const
virtual voidTObjArray::Add(TObject* obj)
virtual voidTObjArray::AddAfter(const TObject* after, TObject* obj)
virtual voidTCollection::AddAll(const TCollection* col)
virtual voidTObjArray::AddAt(TObject* obj, Int_t idx)
virtual voidTObjArray::AddAtAndExpand(TObject* obj, Int_t idx)
virtual Int_tTObjArray::AddAtFree(TObject* obj)
virtual voidTObjArray::AddBefore(const TObject* before, TObject* obj)
virtual voidTObjArray::AddFirst(TObject* obj)
virtual voidTObjArray::AddLast(TObject* obj)
TGeoNavigator*AddNavigator()
voidTCollection::AddVector(TObject* obj1)
virtual TObject*TObjArray::After(const TObject* obj) const
virtual voidTObject::AppendPad(Option_t* option = "")
Bool_tTCollection::AssertClass(TClass* cl) const
virtual TObject*TObjArray::At(Int_t idx) const
virtual TObject*TObjArray::Before(const TObject* obj) const
TIterTCollection::begin() const
virtual Int_tTObjArray::BinarySearch(TObject* obj, Int_t upto = kMaxInt)
virtual voidTCollection::Browse(TBrowser* b)
Int_tTCollection::Capacity() const
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObjArray::Clear(Option_t* option = "")
virtual TObject*TCollection::Clone(const char* newname = "") const
virtual Int_tTCollection::Compare(const TObject* obj) const
virtual voidTObjArray::Compress()
Bool_tTCollection::Contains(const char* name) const
Bool_tTCollection::Contains(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObjArray::Delete(Option_t* option = "")
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTCollection::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTCollection::Dump() const
static voidTCollection::EmptyGarbageCollection()
TIterTCollection::end() const
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObjArray::Expand(Int_t newSize)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObjArray::FindObject(const char* name) const
virtual TObject*TObjArray::FindObject(const TObject* obj) const
virtual TObject*TObjArray::First() const
static voidTCollection::GarbageCollect(TObject* obj)
static TCollection*TCollection::GetCurrentCollection()
TGeoNavigator*GetCurrentNavigator() const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual Int_tTObjArray::GetEntries() const
Int_tTObjArray::GetEntriesFast() const
virtual const char*TObject::GetIconName() const
virtual Int_tTObjArray::GetLast() const
virtual const char*TCollection::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
TObject**TObjArray::GetObjectRef() const
virtual TObject**TObjArray::GetObjectRef(const TObject* obj) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual Int_tTCollection::GetSize() const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
virtual Int_tTCollection::GrowBy(Int_t delta) const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTCollection::Hash() const
virtual Int_tTObjArray::IndexOf(const TObject* obj) const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
Bool_tTCollection::IsArgNull(const char* where, const TObject* obj) const
virtual Bool_tTObjArray::IsEmpty() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTCollection::IsFolder() const
Bool_tTObject::IsOnHeap() const
Bool_tTCollection::IsOwner() const
virtual Bool_tTCollection::IsSortable() const
virtual Bool_tTSeqCollection::IsSorted() const
Bool_tTObject::IsZombie() const
virtual TObject*TObjArray::Last() const
Int_tTSeqCollection::LastIndex() const
Int_tTObjArray::LowerBound() const
virtual voidTCollection::ls(Option_t* option = "") const
virtual TIterator*TObjArray::MakeIterator(Bool_t dir = kIterForward) const
virtual TIterator*TCollection::MakeReverseIterator() const
voidTObject::MayNotUse(const char* method) const
Long64_tTSeqCollection::Merge(TCollection* list)
virtual Bool_tTObject::Notify()
static Int_tTSeqCollection::ObjCompare(TObject* a, TObject* b)
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
voidTObject::operator delete(void* ptr)
voidTObject::operator delete(void* ptr, void* vp)
voidTObject::operator delete[](void* ptr)
voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TObject*TCollection::operator()(const char* name) const
virtual TObject*&TObjArray::operator[](Int_t i)
virtual TObject*TObjArray::operator[](Int_t i) const
virtual voidTCollection::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTCollection::Print(Option_t* option = "") const
virtual voidTCollection::Print(Option_t* option, Int_t recurse) const
virtual voidTCollection::Print(Option_t* option, const char* wildcard, Int_t recurse = 1) const
virtual voidTCollection::Print(Option_t* option, TPRegexp& regexp, Int_t recurse = 1) const
static voidTSeqCollection::QSort(TObject** a, Int_t first, Int_t last)
static voidTSeqCollection::QSort(TObject** a, TObject** b, Int_t first, Int_t last)
static voidTSeqCollection::QSort(TObject** a, Int_t nBs, TObject*** b, Int_t first, Int_t last)
virtual voidTObjArray::Randomize(Int_t ntimes = 1)
virtual Int_tTObject::Read(const char* name)
virtual voidTObjArray::RecursiveRemove(TObject* obj)
virtual TObject*TObjArray::Remove(TObject* obj)
virtual voidTSeqCollection::RemoveAfter(TObject* after)
voidTCollection::RemoveAll()
virtual voidTCollection::RemoveAll(TCollection* col)
virtual TObject*TObjArray::RemoveAt(Int_t idx)
virtual voidTSeqCollection::RemoveBefore(TObject* before)
virtual voidTSeqCollection::RemoveFirst()
virtual voidTSeqCollection::RemoveLast()
virtual voidTObjArray::RemoveRange(Int_t idx1, Int_t idx2)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
voidTCollection::SetCurrentCollection()
TGeoNavigator*SetCurrentNavigator(Int_t inav)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
voidTObjArray::SetLast(Int_t last)
voidTCollection::SetName(const char* name)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTCollection::SetOwner(Bool_t enable = kTRUE)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp) const
virtual voidTObjArray::Sort(Int_t upto = kMaxInt)
static voidTCollection::StartGarbageCollection()
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
TGeoNavigatorArray()
TGeoNavigatorArray(TGeoManager* mgr)
TObject*TObjArray::UncheckedAt(Int_t i) const
voidTSeqCollection::UnSort()
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTCollection::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTCollection::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
Bool_tTObjArray::BoundsOk(const char* where, Int_t at) const
virtual voidTSeqCollection::Changed()
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
Int_tTObjArray::GetAbsLast() const
virtual const char*TCollection::GetCollectionEntryName(TObject* entry) const
voidTObjArray::Init(Int_t s, Int_t lowerBound)
voidTObject::MakeZombie()
Bool_tTObjArray::OutOfBoundsError(const char* where, Int_t i) const
virtual voidTCollection::PrintCollectionEntry(TObject* entry, Option_t* option, Int_t recurse) const
virtual voidTCollection::PrintCollectionHeader(Option_t* option) const

Data Members

public:
static TObject::<anonymous>TObject::kBitMask
static TObject::EStatusBitsTObject::kCanDelete
static TObject::EStatusBitsTObject::kCannotPick
static TObject::EStatusBitsTObject::kHasUUID
static TCollection::<anonymous>TCollection::kInitCapacity
static TCollection::<anonymous>TCollection::kInitHashTableCapacity
static TObject::EStatusBitsTObject::kInvalidObject
static TObject::<anonymous>TObject::kIsOnHeap
static TObject::EStatusBitsTObject::kIsReferenced
static TObject::EStatusBitsTObject::kMustCleanup
static TObject::EStatusBitsTObject::kNoContextMenu
static TObject::<anonymous>TObject::kNotDeleted
static TObject::EStatusBitsTObject::kObjInCanvas
static TObject::<anonymous>TObject::kOverwrite
static TObject::<anonymous>TObject::kSingleKey
static TObject::<anonymous>TObject::kWriteDelete
static TObject::<anonymous>TObject::kZombie
protected:
TObject**TObjArray::fCont!Array contents
Int_tTObjArray::fLastLast element in array containing an object
Int_tTObjArray::fLowerBoundLower bound of the array
TStringTCollection::fNamename of the collection
Int_tTCollection::fSizenumber of elements in collection
Bool_tTSeqCollection::fSortedtrue if collection has been sorted
static TCollection::<anonymous>TCollection::kIsOwner
private:
TGeoNavigator*fCurrentNavigatorCurrent navigator
TGeoManager*fGeoManagerManager to which it applies

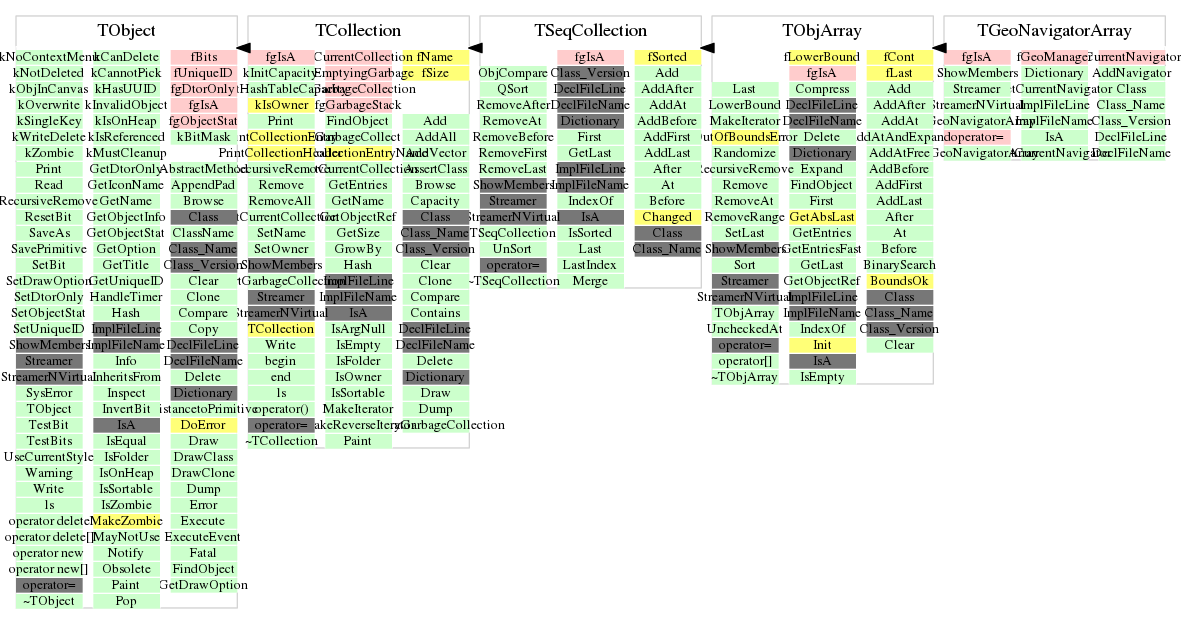

Class Charts

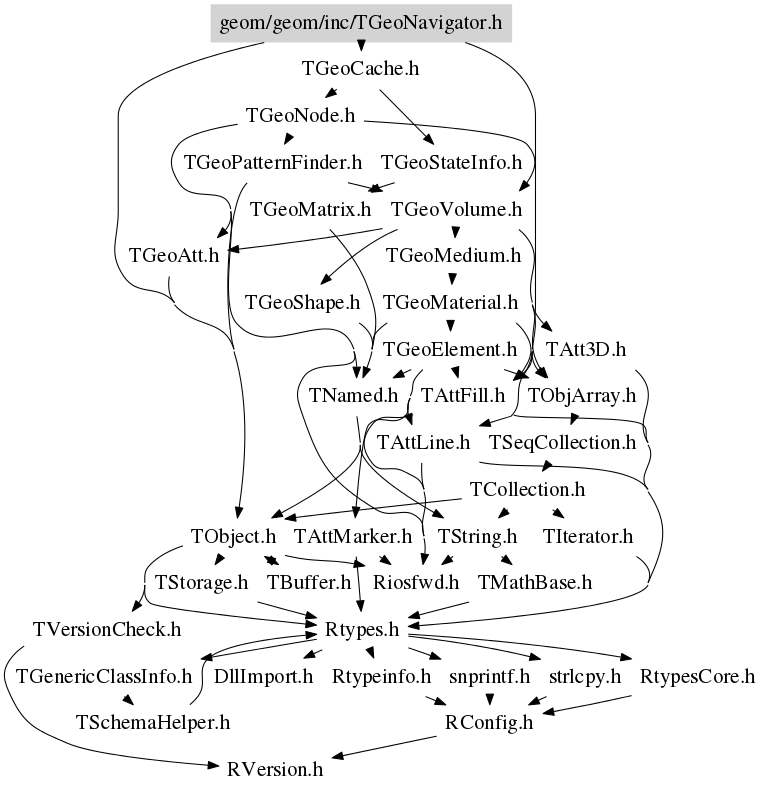

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGeoNavigator * AddNavigator()
 Add a new navigator to the array.
TGeoNavigator& operator=(const TGeoNavigatorArray& )
TGeoNavigatorArray(const TGeoNavigatorArray& )
TGeoNavigatorArray()
{}
TGeoNavigatorArray(TGeoManager* mgr)
{SetOwner();}
virtual ~TGeoNavigatorArray()
{}
TGeoNavigator * GetCurrentNavigator() const
{return fCurrentNavigator;}
TGeoNavigator * SetCurrentNavigator(Int_t inav)
{return (fCurrentNavigator=(TGeoNavigator*)At(inav));}
