ROOT » MONTECARLO » VMC » TVirtualMCApplication

class TVirtualMCApplication: public TNamed


 Interface to a user Monte Carlo application.

Function Members (Methods)

This is an abstract class, constructors will not be documented.
Look at the header to check for available constructors.

public:

virtual	~TVirtualMCApplication()
void	TObject::AbstractMethod(const char* method) const
virtual void	AddIons()
virtual void	AddParticles()
virtual void	TObject::AppendPad(Option_t* option = "")
virtual void	BeginEvent()
virtual void	BeginPrimary()
virtual void	BeginWorkerRun() const
virtual void	TObject::Browse(TBrowser* b)
static TClass*	Class()
virtual const char*	TObject::ClassName() const
virtual void	TNamed::Clear(Option_t* option = "")
virtual TObject*	TNamed::Clone(const char* newname = "") const
virtual TVirtualMCApplication*	CloneForWorker() const
virtual Int_t	TNamed::Compare(const TObject* obj) const
virtual void	ConstructGeometry()
virtual void	ConstructOpGeometry()
virtual void	TNamed::Copy(TObject& named) const
virtual void	TObject::Delete(Option_t* option = "")MENU
virtual Int_t	TObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual void	TObject::Draw(Option_t* option = "")
virtual void	TObject::DrawClass() constMENU
virtual TObject*	TObject::DrawClone(Option_t* option = "") constMENU
virtual void	TObject::Dump() constMENU
virtual void	TObject::Error(const char* method, const char* msgfmt) const
virtual void	TObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual void	TObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual void	TObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual void	TObject::Fatal(const char* method, const char* msgfmt) const
virtual void	Field(const Double_t* x, Double_t* b) const
virtual void	TNamed::FillBuffer(char*& buffer)
virtual TObject*	TObject::FindObject(const char* name) const
virtual TObject*	TObject::FindObject(const TObject* obj) const
virtual void	FinishEvent()
virtual void	FinishPrimary()
virtual void	FinishWorkerRun() const
virtual void	GeaneStepping()
virtual void	GeneratePrimaries()
virtual Option_t*	TObject::GetDrawOption() const
static Long_t	TObject::GetDtorOnly()
virtual const char*	TObject::GetIconName() const
virtual const char*	TNamed::GetName() const
virtual char*	TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_t	TObject::GetObjectStat()
virtual Option_t*	TObject::GetOption() const
virtual const char*	TNamed::GetTitle() const
virtual UInt_t	TObject::GetUniqueID() const
virtual Bool_t	TObject::HandleTimer(TTimer* timer)
virtual ULong_t	TNamed::Hash() const
virtual void	TObject::Info(const char* method, const char* msgfmt) const
virtual Bool_t	TObject::InheritsFrom(const char* classname) const
virtual Bool_t	TObject::InheritsFrom(const TClass* cl) const
virtual void	InitForWorker() const
virtual void	InitGeometry()
virtual void	TObject::Inspect() constMENU
static TVirtualMCApplication*	Instance()
void	TObject::InvertBit(UInt_t f)
virtual TClass*	IsA() const
virtual Bool_t	TObject::IsEqual(const TObject* obj) const
virtual Bool_t	TObject::IsFolder() const
Bool_t	TObject::IsOnHeap() const
virtual Bool_t	TNamed::IsSortable() const
Bool_t	TObject::IsZombie() const
virtual void	TNamed::ls(Option_t* option = "") const
void	TObject::MayNotUse(const char* method) const
virtual void	Merge(TVirtualMCApplication*)
virtual Bool_t	MisalignGeometry()
virtual Bool_t	TObject::Notify()
void	TObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
void	TObject::operator delete(void* ptr)
void	TObject::operator delete(void* ptr, void* vp)
void	TObject::operator delete[](void* ptr)
void	TObject::operator delete[](void* ptr, void* vp)
void*	TObject::operator new(size_t sz)
void*	TObject::operator new(size_t sz, void* vp)
void*	TObject::operator new[](size_t sz)
void*	TObject::operator new[](size_t sz, void* vp)
TVirtualMCApplication&	operator=(const TVirtualMCApplication&)
virtual void	TObject::Paint(Option_t* option = "")
virtual void	TObject::Pop()
virtual void	PostTrack()
virtual void	PreTrack()
virtual void	TNamed::Print(Option_t* option = "") const
virtual Int_t	TObject::Read(const char* name)
virtual void	TObject::RecursiveRemove(TObject* obj)
void	TObject::ResetBit(UInt_t f)
virtual void	TObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual void	TObject::SavePrimitive(ostream& out, Option_t* option = "")
void	TObject::SetBit(UInt_t f)
void	TObject::SetBit(UInt_t f, Bool_t set)
virtual void	TObject::SetDrawOption(Option_t* option = "")MENU
static void	TObject::SetDtorOnly(void* obj)
virtual void	TNamed::SetName(const char* name)MENU
virtual void	TNamed::SetNameTitle(const char* name, const char* title)
static void	TObject::SetObjectStat(Bool_t stat)
virtual void	TNamed::SetTitle(const char* title = "")MENU
virtual void	TObject::SetUniqueID(UInt_t uid)
virtual void	ShowMembers(TMemberInspector& insp) const
virtual Int_t	TNamed::Sizeof() const
virtual void	Stepping()
virtual void	Streamer(TBuffer&)
void	StreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual void	TObject::SysError(const char* method, const char* msgfmt) const
Bool_t	TObject::TestBit(UInt_t f) const
Int_t	TObject::TestBits(UInt_t f) const
virtual Double_t	TrackingRmax() const
virtual Double_t	TrackingZmax() const
	TVirtualMCApplication()
	TVirtualMCApplication(const TVirtualMCApplication&)
	TVirtualMCApplication(const char* name, const char* title)
virtual void	TObject::UseCurrentStyle()
virtual void	TObject::Warning(const char* method, const char* msgfmt) const
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_t	TObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const

protected:

virtual void	TObject::DoError(int level, const char* location, const char* fmt, va_list va) const
void	TObject::MakeZombie()

Data Members

public:

static TObject::<anonymous>	TObject::kBitMask
static TObject::EStatusBits	TObject::kCanDelete
static TObject::EStatusBits	TObject::kCannotPick
static TObject::EStatusBits	TObject::kHasUUID
static TObject::EStatusBits	TObject::kInvalidObject
static TObject::<anonymous>	TObject::kIsOnHeap
static TObject::EStatusBits	TObject::kIsReferenced
static TObject::EStatusBits	TObject::kMustCleanup
static TObject::EStatusBits	TObject::kNoContextMenu
static TObject::<anonymous>	TObject::kNotDeleted
static TObject::EStatusBits	TObject::kObjInCanvas
static TObject::<anonymous>	TObject::kOverwrite
static TObject::<anonymous>	TObject::kSingleKey
static TObject::<anonymous>	TObject::kWriteDelete
static TObject::<anonymous>	TObject::kZombie

protected:

TString	TNamed::fName	object identifier
TString	TNamed::fTitle	object title

private:

static TVirtualMCApplication*	fgInstance	singleton instance

Class Charts

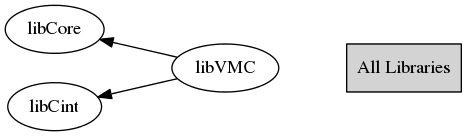

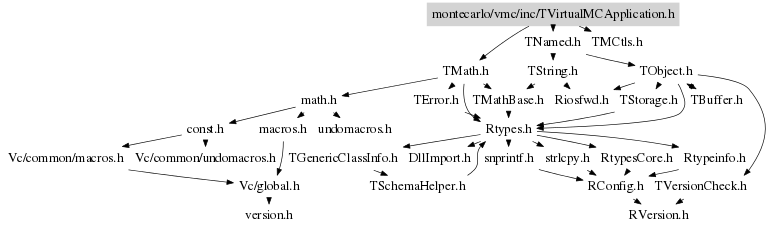

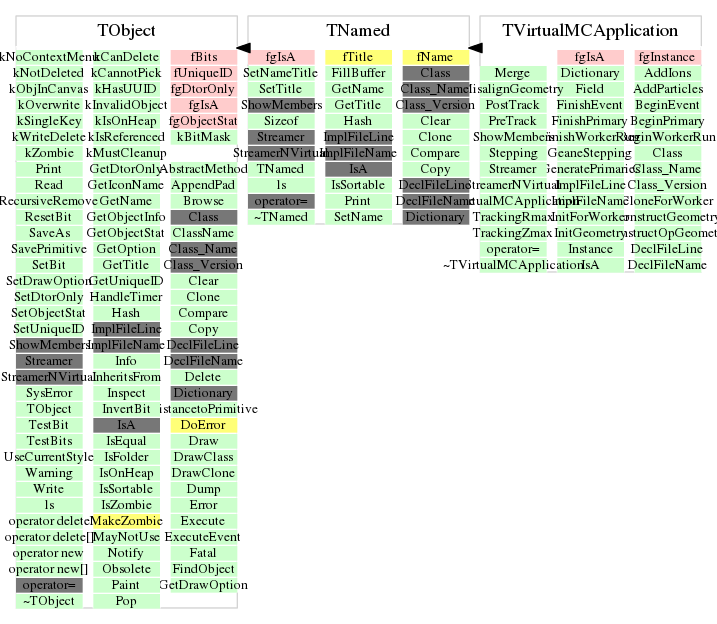

Inheritance Inherited Members Includes Libraries

Function documentation

TVirtualMCApplication(const char* name, const char* title)

 Standard constructor

TVirtualMCApplication()

 Default constructor

~TVirtualMCApplication()

 Destructor

TVirtualMCApplication* Instance()

 Static access method

void Field(const Double_t* x, Double_t* b) const

 No magnetic field

TVirtualMCApplication(const char* name, const char* title)

 Standard constructor

void ConstructGeometry()

 methods

 Construct user geometry

Bool_t MisalignGeometry()

 Misalign user geometry (optional)

{return kFALSE;}

void ConstructOpGeometry()

 Define parameters for optical processes (optional)

{}

void InitGeometry()

 Initialize geometry
 (Usually used to define sensitive volumes IDs)

void AddParticles()

 Add user defined particles (optional)

{}

void AddIons()

 Add user defined ions (optional)

{}

void GeneratePrimaries()

 Generate primary particles

void BeginEvent()

 Define actions at the beginning of the event

void BeginPrimary()

 Define actions at the beginning of the primary track

void PreTrack()

 Define actions at the beginning of each track

void Stepping()

 Define action at each step

void PostTrack()

 Define actions at the end of each track

void FinishPrimary()

 Define actions at the end of the primary track

void FinishEvent()

 Define actions at the end of the event

Double_t TrackingRmax() const

 Define maximum radius for tracking (optional)

{ return DBL_MAX; }

Double_t TrackingZmax() const

 Define maximum z for tracking (optional)

{ return DBL_MAX; }

void GeaneStepping()

 Define action at each step for Geane

{;}

TVirtualMCApplication* CloneForWorker() const

 New functions for multi-threading applications

{ return 0;}

void InitForWorker() const

{}

void BeginWorkerRun() const

{}

void FinishWorkerRun() const

{}

void Merge(TVirtualMCApplication* )

{}
