class TGNumberEntry: public TGCompositeFrame, public TGWidget, public TGNumberFormat


TGNumberEntry, TGNumberEntryField and TGNumberFormat

TGNumberEntry is a number entry input widget with up/down buttons.
TGNumberEntryField is a number entry input widget.
TGNumberFormat contains enum types to specify the numeric format.

The number entry widget is based on TGTextEntry but allows only
numerical input. The widget support numerous formats including
integers, hex numbers, real numbers, fixed fraction reals and
time/date formats. The widget also allows to restrict input values
to non-negative or positive numbers and to specify explicit limits.

The following styles are supported:
kNESInteger:        integer number
kNESRealOne:        real number with one digit (no exponent)
kNESRealTwo:        real number with two digits (no exponent)
kNESRealThree:      real number with three digits (no exponent)
kNESRealFour:       real number with four digits (no exponent)
kNESReal:           arbitrary real number
kNESDegree:         angle in degree:minutes:seconds format
kNESMinSec:         time in minutes:seconds format
kNESHourMin:        time in hour:minutes format
kNESHourMinSec:     time in hour:minutes:seconds format
kNESDayMYear:       date in day/month/year format
kNESMDayYear:       date in month/day/year format
kNESHex:            hex number

The following attributes can be specified:
kNEAAnyNumber:      any number is allowed
kNEANonNegative:    only non-negative numbers are allowed
kNEAPositive:       only positive numbers are allowed

Explicit limits can be specified individually:
kNELNoLimits:       no limits
kNELLimitMin:       lower limit only
kNELLimitMax        upper limit only
kNELLimitMinMax     both lower and upper limits

TGNumberEntryField is a plain vanilla entry field, whereas
TGNumberEntry adds two small buttons to increase and decrease the
numerical value in the field. The number entry widgets also support
using the up and down cursor keys to change the numerical values.
The step size can be selected with control and shift keys:
--                  small step (1 unit/factor of 3)
shift               medium step (10 units/factor of 10)
control             large step (100 units/factor of 30)
shift-control       huge step (1000 units/factor of 100)

The steps are either linear or logarithmic. The default behaviour
is set when the entry field is created, but it can be changed by
pressing the alt key at the same time.

Changing the number in the widget will generate the event:
kC_TEXTENTRY, kTE_TEXTCHANGED, widget id, 0.
Hitting the enter key will generate:
kC_TEXTENTRY, kTE_ENTER, widget id, 0.
Hitting the tab key will generate:
kC_TEXTENTRY, kTE_TAB, widget id, 0.


/* */

Function Members (Methods)

public:
virtual~TGNumberEntry()
voidTObject::AbstractMethod(const char* method) const
virtual voidTGFrame::Activate(Bool_t)
virtual voidTGCompositeFrame::AddFrame(TGFrame* f, TGLayoutHints* l = 0)
voidTGFrame::AddInput(UInt_t emask)
virtual voidTObject::AppendPad(Option_t* option = "")
static Bool_tTQObject::AreAllSignalsBlocked()
Bool_tTQObject::AreSignalsBlocked() const
virtual voidAssociate(const TGWindow* w)
static Bool_tTQObject::BlockAllSignals(Bool_t b)
Bool_tTQObject::BlockSignals(Bool_t b)
virtual voidTObject::Browse(TBrowser* b)
virtual voidTGFrame::ChangeBackground(Pixel_t back)
virtual voidTQObject::ChangedBy(const char* method)SIGNAL
virtual voidTGCompositeFrame::ChangeOptions(UInt_t options)
virtual voidTGCompositeFrame::ChangeSubframesBackground(Pixel_t back)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTGCompositeFrame::Cleanup()
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
voidTQObject::CollectClassSignalLists(TList& list, TClass* cls)
virtual Int_tTObject::Compare(const TObject* obj) const
Bool_tTQObject::Connect(const char* signal, const char* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::Connect(TQObject* sender, const char* signal, const char* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::Connect(const char* sender_class, const char* signal, const char* receiver_class, void* receiver, const char* slot)
virtual voidTQObject::Connected(const char*)
Bool_tTGFrame::Contains(Int_t x, Int_t y) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTGFrame::Delete(Option_t* = "")
virtual voidTGFrame::DeleteWindow()
virtual voidTQObject::Destroyed()SIGNAL
virtual voidTGWindow::DestroySubwindows()
virtual voidTGWindow::DestroyWindow()
Bool_tTQObject::Disconnect(const char* signal = 0, void* receiver = 0, const char* slot = 0)
static Bool_tTQObject::Disconnect(TQObject* sender, const char* signal = 0, void* receiver = 0, const char* slot = 0)
static Bool_tTQObject::Disconnect(const char* class_name, const char* signal, void* receiver = 0, const char* slot = 0)
virtual voidTQObject::Disconnected(const char*)
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTGFrame::DrawBorder()
virtual voidTGFrame::DrawClass() const
virtual TObject*TGFrame::DrawClone(Option_t* = "") const
virtual voidTGFrame::DrawCopy(Handle_t, Int_t, Int_t)
virtual voidTGFrame::Dump() const
voidTQObject::Emit(const char* signal)
voidTQObject::Emit(const char* signal, Long_t* paramArr)
voidTQObject::Emit(const char* signal, const char* params)
voidTQObject::Emit(const char* signal, Double_t param)
voidTQObject::Emit(const char* signal, Long_t param)
voidTQObject::Emit(const char* signal, Long64_t param)
voidTQObject::Emit(const char* signal, Bool_t param)
voidTQObject::Emit(const char* signal, Char_t param)
voidTQObject::Emit(const char* signal, UChar_t param)
voidTQObject::Emit(const char* signal, Short_t param)
voidTQObject::Emit(const char* signal, UShort_t param)
voidTQObject::Emit(const char* signal, Int_t param)
voidTQObject::Emit(const char* signal, UInt_t param)
voidTQObject::Emit(const char* signal, ULong_t param)
voidTQObject::Emit(const char* signal, ULong64_t param)
voidTQObject::Emit(const char* signal, Float_t param)
voidTQObject::EmitVA(const char* signal, Int_t nargs, va_list va)
voidTQObject::EmitVA<>(const char* signal_name, Int_t)
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TGFrameElement*TGCompositeFrame::FindFrameElement(TGFrame* f) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Pixel_tTGFrame::GetBackground() const
static const TGGC&TGFrame::GetBckgndGC()
static const TGGC&TGFrame::GetBlackGC()
static Pixel_tTGFrame::GetBlackPixel()
Int_tTGFrame::GetBorderWidth() const
TGButton*GetButtonDown() const
TGButton*GetButtonUp() const
TGClient*TGObject::GetClient() const
const char*TGWidget::GetCommand() const
static Int_tTGWindow::GetCounter()
virtual voidGetDate(Int_t& year, Int_t& month, Int_t& day) const
static Pixel_tTGFrame::GetDefaultFrameBackground()
virtual UInt_tGetDefaultHeight() const
static Pixel_tTGFrame::GetDefaultSelectedBackground()
virtual TGDimensionTGCompositeFrame::GetDefaultSize() const
virtual UInt_tTGCompositeFrame::GetDefaultWidth() const
virtual TDNDData*TGFrame::GetDNDData(Atom_t)
virtual Int_tTGFrame::GetDragType() const
virtual Option_t*TObject::GetDrawOption() const
virtual Int_tTGFrame::GetDropType() const
static Long_tTObject::GetDtorOnly()
virtual UInt_tTGWindow::GetEditDisabled() const
UInt_tTGFrame::GetEventMask() const
virtual Pixel_tTGFrame::GetForeground() const
TGFrameElement*TGFrame::GetFrameElement() const
virtual TGFrame*TGCompositeFrame::GetFrameFromPoint(Int_t x, Int_t y)
UInt_tTGFrame::GetHeight() const
virtual ULong_tGetHexNumber() const
static const TGGC&TGFrame::GetHilightGC()
virtual const char*TObject::GetIconName() const
Handle_tTGObject::GetId() const
virtual Long_tGetIntNumber() const
virtual TGLayoutManager*GetLayoutManager() const
virtual TList*TGCompositeFrame::GetList() const
TList*TQObject::GetListOfClassSignals() const
TList*TQObject::GetListOfConnections() const
TList*TQObject::GetListOfSignals() const
virtual const TGWindow*TGWindow::GetMainFrame() const
UInt_tTGFrame::GetMaxHeight() const
UInt_tTGFrame::GetMaxWidth() const
UInt_tTGFrame::GetMinHeight() const
UInt_tTGFrame::GetMinWidth() const
virtual const char*TGWindow::GetName() const
virtual TGNumberFormat::EAttributeGetNumAttr() const
virtual Double_tGetNumber() const
TGNumberEntryField*GetNumberEntry() const
virtual TGNumberFormat::ELimitGetNumLimits() const
virtual Double_tGetNumMax() const
virtual Double_tGetNumMin() const
virtual TGNumberFormat::EStyleGetNumStyle() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
virtual UInt_tTGFrame::GetOptions() const
const TGWindow*TGWindow::GetParent() const
static const TGGC&TGFrame::GetShadowGC()
TGDimensionTGFrame::GetSize() const
Int_tTGCompositeFrame::GetState(TGFrame* f) const
virtual voidGetTime(Int_t& hour, Int_t& min, Int_t& sec) const
virtual const char*TObject::GetTitle() const
virtual UInt_tTObject::GetUniqueID() const
static const TGGC&TGFrame::GetWhiteGC()
static Pixel_tTGFrame::GetWhitePixel()
UInt_tTGFrame::GetWidth() const
Int_tTGFrame::GetX() const
Int_tTGFrame::GetY() const
virtual Bool_tTGCompositeFrame::HandleButton(Event_t*)
virtual Bool_tTGFrame::HandleClientMessage(Event_t* event)
virtual Bool_tTGFrame::HandleColormapChange(Event_t*)
virtual Bool_tTGFrame::HandleConfigureNotify(Event_t* event)
virtual Bool_tTGCompositeFrame::HandleCrossing(Event_t*)
virtual Bool_tTGFrame::HandleDNDDrop(TDNDData*)
virtual Atom_tTGFrame::HandleDNDEnter(Atom_t*)
virtual Bool_tTGFrame::HandleDNDFinished()
virtual Bool_tTGFrame::HandleDNDLeave()
virtual Atom_tTGFrame::HandleDNDPosition(Int_t, Int_t, Atom_t, Int_t, Int_t)
virtual Bool_tTGCompositeFrame::HandleDoubleClick(Event_t*)
virtual Bool_tTGCompositeFrame::HandleDragDrop(TGFrame* frame, Int_t x, Int_t y, TGLayoutHints* lo)
virtual Bool_tTGCompositeFrame::HandleDragEnter(TGFrame*)
virtual Bool_tTGCompositeFrame::HandleDragLeave(TGFrame*)
virtual Bool_tTGCompositeFrame::HandleDragMotion(TGFrame*)
virtual Bool_tTGFrame::HandleEvent(Event_t* event)
virtual Bool_tTGWindow::HandleExpose(Event_t* event)
virtual Bool_tTGCompositeFrame::HandleFocusChange(Event_t*)
virtual Bool_tTGWindow::HandleIdleEvent(TGIdleHandler*)
virtual Bool_tTGCompositeFrame::HandleKey(Event_t*)
virtual Bool_tTGCompositeFrame::HandleMotion(Event_t*)
virtual Bool_tTGCompositeFrame::HandleSelection(Event_t*)
virtual Bool_tTGFrame::HandleSelectionClear(Event_t*)
virtual Bool_tTGFrame::HandleSelectionRequest(Event_t*)
virtual Bool_tTGWindow::HandleTimer(TTimer*)
virtual Bool_tTQObject::HasConnection(const char* signal_name) const
Bool_tTGWidget::HasFocus() const
virtual ULong_tTGObject::Hash() const
virtual voidTGCompositeFrame::HideFrame(TGFrame* f)
virtual voidTQObject::HighPriority(const char* signal_name, const char* slot_name = 0)
virtual voidTGWindow::IconifyWindow()
virtual voidIncreaseNumber(TGNumberFormat::EStepSize step = kNSSSmall, Int_t sign = 1, Bool_t logstep = kFALSE)
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTGFrame::Inspect() const
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTGFrame::IsActive() const
Bool_tTGCompositeFrame::IsArranged(TGFrame* f) const
Bool_tTGCompositeFrame::IsArranged(TGFrameElement* ptr) const
virtual Bool_tTGCompositeFrame::IsComposite() const
Bool_tTGFrame::IsDNDSource() const
Bool_tTGFrame::IsDNDTarget() const
virtual Bool_tIsEditable() const
Bool_tTGWidget::IsEnabled() const
virtual Bool_tTGObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
virtual Bool_tTGCompositeFrame::IsLayoutBroken() const
virtual Bool_tIsLogStep() const
virtual Bool_tTGWindow::IsMapped()
virtual Bool_tTGCompositeFrame::IsMapSubwindows() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTGCompositeFrame::IsVisible(TGFrame* f) const
Bool_tTGCompositeFrame::IsVisible(TGFrameElement* ptr) const
Bool_tTObject::IsZombie() const
virtual voidTGCompositeFrame::Layout()
virtual voidTGWindow::LowerWindow()
virtual voidTQObject::LowPriority(const char* signal_name, const char* slot_name = 0)
virtual voidTObject::ls(Option_t* option = "") const
virtual voidTGFrame::MapRaised()
virtual voidTGCompositeFrame::MapSubwindows()
virtual voidTGFrame::MapWindow()
voidTObject::MayNotUse(const char* method) const
virtual voidTQObject::Message(const char* msg)SIGNAL
virtual voidTGFrame::Move(Int_t x, Int_t y)
virtual voidTGFrame::MoveResize(Int_t x, Int_t y, UInt_t w = 0, UInt_t h = 0)
virtual Int_tTGCompositeFrame::MustCleanup() const
virtual Bool_tTObject::Notify()
virtual Int_tTQObject::NumberOfConnections() const
virtual Int_tTQObject::NumberOfSignals() const
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
voidTObject::operator delete(void* ptr)
voidTObject::operator delete(void* ptr, void* vp)
voidTObject::operator delete[](void* ptr)
voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTGCompositeFrame::Print(Option_t* option = "") const
virtual voidTGFrame::ProcessedConfigure(Event_t* event)SIGNAL
virtual voidTGFrame::ProcessedEvent(Event_t* event)SIGNAL
virtual Bool_tProcessMessage(Long_t msg, Long_t parm1, Long_t parm2)
virtual voidTGWindow::RaiseWindow()
virtual Int_tTObject::Read(const char* name)
virtual voidTGFrame::ReallyDelete()
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual voidTGCompositeFrame::RemoveAll()
virtual voidTGCompositeFrame::RemoveFrame(TGFrame* f)
voidTGFrame::RemoveInput(UInt_t emask)
virtual voidTGFrame::ReparentWindow(const TGWindow* p, Int_t x = 0, Int_t y = 0)
virtual voidTGWindow::RequestFocus()
voidTObject::ResetBit(UInt_t f)
virtual voidTGFrame::Resize(TGDimension size)
virtual voidTGFrame::Resize(UInt_t w = 0, UInt_t h = 0)
virtual voidTGObject::SaveAs(const char* filename = "", Option_t* option = "") const
virtual voidSavePrimitive(ostream& out, Option_t* = "")
virtual voidTGCompositeFrame::SavePrimitiveSubframes(ostream& out, Option_t* option = "")
voidTGFrame::SaveUserColor(ostream& out, Option_t*)
virtual voidTGFrame::SendMessage(const TGWindow* w, Long_t msg, Long_t parm1, Long_t parm2)
virtual voidTGFrame::SetBackgroundColor(Pixel_t back)
virtual voidTGWindow::SetBackgroundPixmap(Pixmap_t pixmap)
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidSetButtonToNum(Bool_t state)
virtual voidTGCompositeFrame::SetCleanup(Int_t mode = kLocalCleanup)
virtual voidTGWidget::SetCommand(const char* command)
virtual voidSetDate(Int_t year, Int_t month, Int_t day)
voidTGFrame::SetDNDSource(Bool_t onoff)
voidTGFrame::SetDNDTarget(Bool_t onoff)
virtual voidTGFrame::SetDragType(Int_t type)
virtual voidTGFrame::SetDrawOption(Option_t* = "")
virtual voidTGFrame::SetDropType(Int_t type)
static voidTObject::SetDtorOnly(void* obj)
virtual voidTGCompositeFrame::SetEditable(Bool_t on = kTRUE)
virtual voidTGCompositeFrame::SetEditDisabled(UInt_t on = 1)
virtual voidTGFrame::SetForegroundColor(Pixel_t)
virtual voidSetFormat(TGNumberFormat::EStyle style, TGNumberFormat::EAttribute attr = TGNumberFormat::kNEAAnyNumber)
voidTGFrame::SetFrameElement(TGFrameElement* fe)
virtual voidTGFrame::SetHeight(UInt_t h)
virtual voidSetHexNumber(ULong_t val)
virtual voidSetIntNumber(Long_t val)
virtual voidTGCompositeFrame::SetLayoutBroken(Bool_t on = kTRUE)
virtual voidTGCompositeFrame::SetLayoutManager(TGLayoutManager* l)
virtual voidSetLimits(TGNumberFormat::ELimit limits = TGNumberFormat::kNELNoLimits, Double_t min = 0, Double_t max = 1)
voidSetLimitValues(Double_t min = 0, Double_t max = 1)MENU
virtual voidSetLogStep(Bool_t on = kTRUE)TOGGLE GETTER
virtual voidTGCompositeFrame::SetMapSubwindows(Bool_t on)
virtual voidTGFrame::SetMaxHeight(UInt_t h)
virtual voidTGFrame::SetMaxWidth(UInt_t w)
virtual voidTGFrame::SetMinHeight(UInt_t h)
virtual voidTGFrame::SetMinWidth(UInt_t w)
virtual voidTGWindow::SetName(const char* name)
voidSetNumAttr(TGNumberFormat::EAttribute attr = kNEAAnyNumber)
virtual voidSetNumber(Double_t val)
voidSetNumLimits(TGNumberFormat::ELimit limits = kNELNoLimits)
voidSetNumStyle(TGNumberFormat::EStyle style)
static voidTObject::SetObjectStat(Bool_t stat)
virtual voidTGFrame::SetSize(const TGDimension& s)
virtual voidSetState(Bool_t enable = kTRUE)
virtual voidSetText(const char* text)
virtual voidSetTime(Int_t hour, Int_t min, Int_t sec)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidTGFrame::SetWidth(UInt_t w)
virtual voidTGWindow::SetWindowName(const char* name = 0)
virtual voidTGFrame::SetX(Int_t x)
virtual voidTGFrame::SetY(Int_t y)
virtual voidTGCompositeFrame::ShowFrame(TGFrame* f)
virtual voidShowMembers(TMemberInspector& insp) const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
TGNumberEntry(const TGWindow* parent = 0, Double_t val = 0, Int_t digitwidth = 5, Int_t id = -1, TGNumberFormat::EStyle style = kNESReal, TGNumberFormat::EAttribute attr = kNEAAnyNumber, TGNumberFormat::ELimit limits = kNELNoLimits, Double_t min = 0, Double_t max = 1)
virtual Bool_tTGCompositeFrame::TranslateCoordinates(TGFrame* child, Int_t x, Int_t y, Int_t& fx, Int_t& fy)
virtual voidTGFrame::UnmapWindow()
virtual voidTObject::UseCurrentStyle()
virtual voidValueChanged(Long_t val)SIGNAL
virtual voidValueSet(Long_t val)SIGNAL
Bool_tTGWidget::WantFocus() const
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
Int_tTGWidget::WidgetId() const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
protected:
static Int_tTQObject::CheckConnectArgs(TQObject* sender, TClass* sender_class, const char* signal, TClass* receiver_class, const char* slot)
Int_tTGWidget::ClearFlags(Int_t flags)
static TStringTQObject::CompressName(const char* method_name)
static Bool_tTQObject::ConnectToClass(TQObject* sender, const char* signal, TClass* receiver_class, void* receiver, const char* slot)
static Bool_tTQObject::ConnectToClass(const char* sender_class, const char* signal, TClass* receiver_class, void* receiver, const char* slot)
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const
virtual voidTGFrame::DoRedraw()
virtual voidTGFrame::Draw3dRectangle(UInt_t type, Int_t x, Int_t y, UInt_t w, UInt_t h)
static Time_tTGFrame::GetLastClick()
TStringTGFrame::GetOptionString() const
const TGResourcePool*TGFrame::GetResourcePool() const
virtual void*TGFrame::GetSender()
virtual const char*TQObject::GetSenderClassName() const
voidTObject::MakeZombie()
Int_tTGWidget::SetFlags(Int_t flags)
virtual voidTGFrame::StartGuiBuilding(Bool_t on = kTRUE)

Data Members

public:
static TObject::(anonymous)TObject::kBitMask
static TObject::EStatusBitsTObject::kCanDelete
static TObject::EStatusBitsTObject::kCannotPick
static TGWindow::EEditModeTGWindow::kEditDisable
static TGWindow::EEditModeTGWindow::kEditDisableBtnEnable
static TGWindow::EEditModeTGWindow::kEditDisableEvents
static TGWindow::EEditModeTGWindow::kEditDisableGrab
static TGWindow::EEditModeTGWindow::kEditDisableHeight
static TGWindow::EEditModeTGWindow::kEditDisableKeyEnable
static TGWindow::EEditModeTGWindow::kEditDisableLayout
static TGWindow::EEditModeTGWindow::kEditDisableResize
static TGWindow::EEditModeTGWindow::kEditDisableWidth
static TGWindow::EEditModeTGWindow::kEditEnable
static TObject::EStatusBitsTObject::kHasUUID
static TObject::EStatusBitsTObject::kInvalidObject
static TObject::(anonymous)TObject::kIsOnHeap
static TObject::EStatusBitsTObject::kIsReferenced
static TObject::EStatusBitsTObject::kMustCleanup
static TGNumberFormat::EAttributeTGNumberFormat::kNEAAnyNumber
static TGNumberFormat::EAttributeTGNumberFormat::kNEANonNegative
static TGNumberFormat::EAttributeTGNumberFormat::kNEAPositive
static TGNumberFormat::ELimitTGNumberFormat::kNELLimitMax
static TGNumberFormat::ELimitTGNumberFormat::kNELLimitMin
static TGNumberFormat::ELimitTGNumberFormat::kNELLimitMinMax
static TGNumberFormat::ELimitTGNumberFormat::kNELNoLimits
static TGNumberFormat::EStyleTGNumberFormat::kNESDayMYear
static TGNumberFormat::EStyleTGNumberFormat::kNESDegree
static TGNumberFormat::EStyleTGNumberFormat::kNESHex
static TGNumberFormat::EStyleTGNumberFormat::kNESHourMin
static TGNumberFormat::EStyleTGNumberFormat::kNESHourMinSec
static TGNumberFormat::EStyleTGNumberFormat::kNESInteger
static TGNumberFormat::EStyleTGNumberFormat::kNESMDayYear
static TGNumberFormat::EStyleTGNumberFormat::kNESMinSec
static TGNumberFormat::EStyleTGNumberFormat::kNESReal
static TGNumberFormat::EStyleTGNumberFormat::kNESRealFour
static TGNumberFormat::EStyleTGNumberFormat::kNESRealOne
static TGNumberFormat::EStyleTGNumberFormat::kNESRealThree
static TGNumberFormat::EStyleTGNumberFormat::kNESRealTwo
static TGNumberFormat::EStepSizeTGNumberFormat::kNSSHuge
static TGNumberFormat::EStepSizeTGNumberFormat::kNSSLarge
static TGNumberFormat::EStepSizeTGNumberFormat::kNSSMedium
static TGNumberFormat::EStepSizeTGNumberFormat::kNSSSmall
static TObject::EStatusBitsTObject::kNoContextMenu
static TObject::(anonymous)TObject::kNotDeleted
static TObject::EStatusBitsTObject::kObjInCanvas
static TObject::(anonymous)TObject::kOverwrite
static TObject::(anonymous)TObject::kSingleKey
static TObject::(anonymous)TObject::kWriteDelete
static TObject::(anonymous)TObject::kZombie
protected:
Pixel_tTGFrame::fBackgroundframe background color
Int_tTGFrame::fBorderWidthframe border width
TGButton*fButtonDownButton for decreasing value
Bool_tfButtonToNumSend button messages to parent rather than number entry field
TGButton*fButtonUpButton for increasing value
TGClient*TGObject::fClientConnection to display server
TStringTGWidget::fCommandcommand to be executed
Int_tTGFrame::fDNDStateEDNDFlags
UInt_tTGWindow::fEditDisabledflags used for "guibuilding"
UInt_tTGFrame::fEventMaskcurrenty active event mask
TGFrameElement*TGFrame::fFEpointer to frame element
UInt_tTGFrame::fHeightframe height
Handle_tTGObject::fIdX11/Win32 Window identifier
Bool_tTGCompositeFrame::fLayoutBrokenno layout manager is used
TGLayoutManager*TGCompositeFrame::fLayoutManagerlayout manager
TList*TGCompositeFrame::fListcontainer of frame elements
TList*TQObject::fListOfConnections! list of connections to this object
TList*TQObject::fListOfSignals! list of signals from this object
Bool_tTGCompositeFrame::fMapSubwindowskTRUE - map subwindows
UInt_tTGFrame::fMaxHeightmaximal frame height
UInt_tTGFrame::fMaxWidthmaximal frame width
UInt_tTGFrame::fMinHeightminimal frame height
UInt_tTGFrame::fMinWidthminimal frame width
const TGWindow*TGWidget::fMsgWindowwindow which handles widget events
Int_tTGCompositeFrame::fMustCleanupcleanup mode (see EFrameCleanup)
TStringTGWindow::fNamename of the window used in SavePrimitive()
Bool_tTGWindow::fNeedRedrawkTRUE if window needs to be redrawn
TGNumberEntryField*fNumericEntryNumber text entry field
UInt_tTGFrame::fOptionsframe options
const TGWindow*TGWindow::fParentParent window
Bool_tTQObject::fSignalsBlocked! flag used for suppression of signals
Int_tTGWidget::fWidgetFlagswidget status flags (OR of EWidgetStatus)
Int_tTGWidget::fWidgetIdthe widget id (used for event processing)
UInt_tTGFrame::fWidthframe width
Int_tTGFrame::fXframe x position
Int_tTGFrame::fYframe y position
static Bool_tTQObject::fgAllSignalsBlockedflag used for suppression of all signals
static const TGGC*TGFrame::fgBckgndGC
static const TGGC*TGFrame::fgBlackGC
static Pixel_tTGFrame::fgBlackPixel
static Int_tTGWindow::fgCountercounter of created windows in SavePrimitive
static Window_tTGFrame::fgDbw
static Int_tTGFrame::fgDbx
static Int_tTGFrame::fgDby
static Pixel_tTGFrame::fgDefaultFrameBackground
static TGLayoutHints*TGCompositeFrame::fgDefaultHintsdefault hints used by AddFrame()
static Pixel_tTGFrame::fgDefaultSelectedBackground
static const TGGC*TGFrame::fgHilightGC
static Bool_tTGFrame::fgInit
static UInt_tTGFrame::fgLastButton
static Time_tTGFrame::fgLastClick
static const TGGC*TGFrame::fgShadowGC
static UInt_tTGFrame::fgUserColor
static const TGGC*TGFrame::fgWhiteGC
static Pixel_tTGFrame::fgWhitePixel
static TGFrame::(anonymous)TGFrame::kDeleteWindowCalled
private:
TGNumberFormat::EAttributefNumAttr*OPTION={GetMethod="GetNumAttr";SetMethod="SetNumAttr";Items=(0="&AnyNumber",1="&Non negative",2="&Positive")}*
TGNumberFormat::ELimitfNumLimits*OPTION={GetMethod="GetNumLimits";SetMethod="SetNumLimits";Items=(0="&No Limits",1="Limit M&in",2="Limit M&ax",2="Min &and Max")}*
TGNumberFormat::EStylefNumStyle*OPTION={GetMethod="GetNumStyle";SetMethod="SetNumStyle";Items=(0="Int",5="Real",6="Degree",9="Hour:Min:Sec",10="Day/Month/Year",12="Hex")}*
const TGPicture*fPicDownDown arrow
const TGPicture*fPicUpUp arrow

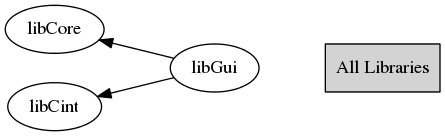

Class Charts

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TGNumberEntry(const TGWindow* parent = 0, Double_t val = 0, Int_t digitwidth = 5, Int_t id = -1, TGNumberFormat::EStyle style = kNESReal, TGNumberFormat::EAttribute attr = kNEAAnyNumber, TGNumberFormat::ELimit limits = kNELNoLimits, Double_t min = 0, Double_t max = 1)
 Constructs a numeric entry widget.
~TGNumberEntry()
 Destructs a numeric entry widget.
void Associate(const TGWindow* w)
 Make w the window that will receive the generated messages.
void SetLogStep(Bool_t on = kTRUE)
 Set log steps.
void SetState(Bool_t enable = kTRUE)
 Set the active state.
void SetButtonToNum(Bool_t state)
 Send button messages to the number field (true) or parent widget (false).
 When the message is sent to the parent widget, it is responsible to change
 the numerical value accordingly. This can be useful to implement cursors
 which move from data point to data point. For the message being sent
 see ProcessMessage().
Bool_t ProcessMessage(Long_t msg, Long_t parm1, Long_t parm2)
 Process the up/down button messages. If fButtonToNum is false the
 following message is sent: kC_COMMAND, kCM_BUTTON, widget id, param
 param % 100 is the step size
 param % 10000 / 100 != 0 indicates log step
 param / 10000 != 0 indicates button down
TGLayoutManager * GetLayoutManager() const
 Return layout manager.
void ValueChanged(Long_t val)
 Emit ValueChanged(Long_t) signal. This signal is emitted when
 fButtonToNum is false. The val has the following meaning:
 val % 100 is the step size
 val % 10000 / 100 != 0 indicates log step
 val / 10000 != 0 indicates button down
void ValueSet(Long_t val)
 Emit ValueSet(Long_t) signal. This signal is emitted when the
 number entry value is changed. The val has the following meaning:
 val % 100 is the step size
 val % 10000 / 100 != 0 indicates log step
 val / 10000 != 0 indicates button down
void SavePrimitive(ostream& out, Option_t* = "")
 Save a number entry widget as a C++ statement(s) on output stream out.
void SetNumber(Double_t val)
void SetIntNumber(Long_t val)
void SetTime(Int_t hour, Int_t min, Int_t sec)
void SetDate(Int_t year, Int_t month, Int_t day)
void SetHexNumber(ULong_t val)
void SetText(const char* text, Bool_t emit = kTRUE)
Double_t GetNumber() const
Long_t GetIntNumber() const
void GetTime(Int_t& hour, Int_t& min, Int_t& sec) const
void GetDate(Int_t& year, Int_t& month, Int_t& day) const
ULong_t GetHexNumber() const
void IncreaseNumber(TGNumberFormat::EStepSize step = kNSSSmall, Int_t sign = 1, Bool_t logstep = kFALSE)
void SetLimits(TGNumberFormat::ELimit limits = TGNumberFormat::kNELNoLimits, Double_t min = 0, Double_t max = 1)
EStyle GetNumStyle() const
 Get the numerical style
EAttribute GetNumAttr() const
 Get the numerical attribute
ELimit GetNumLimits() const
 Get the numerialc limit attribute
Double_t GetNumMin() const
 Get the lower limit
Double_t GetNumMax() const
 Get the upper limit
Bool_t IsLogStep() const
 Is log step enabled?
Bool_t IsEditable() const
{ return kFALSE; }
TGNumberEntry(const TGNumberEntry& )
TGNumberEntry& operator=(const TGNumberEntry& )
void SetFormat(TGNumberFormat::EStyle style, TGNumberFormat::EAttribute attr = TGNumberFormat::kNEAAnyNumber)
 Set the numerical format
void SetNumStyle(TGNumberFormat::EStyle style)
void SetNumAttr(TGNumberFormat::EAttribute attr = kNEAAnyNumber)
void SetNumLimits(TGNumberFormat::ELimit limits = kNELNoLimits)
void SetLimitValues(Double_t min = 0, Double_t max = 1)
TGNumberEntryField * GetNumberEntry() const
 Get the number entry field
TGButton * GetButtonUp() const
 Get the up button
TGButton * GetButtonDown() const
 Get the down button
UInt_t GetDefaultHeight() const
