ROOT » GUI » RECORDER » TRecExtraEvent

class TRecExtraEvent: public TRecEvent


TRecorder class provides interface for recording and replaying
events in ROOT.
Recorded events are:
- Commands typed by user in commandline ('new TCanvas')
- GUI events (mouse movement, button clicks, ...)

All the recorded events from one session are stored in one TFile
and can be replayed again anytime.


1] To start recording

TRecorder r(const char *filename, "NEW")
TRecorder r(const char *filename, "RECREATE")


TRecorder *recorder = new TRecorder;
recorder->Start(const char *filename, ...)

-filename      Name of ROOT file in which to save
recorded events.

2] To stop recording


State capturing is part of recording. It means that if you want to
record events for some object (window), creation of this object
must be also recorded.


t = new TRecorder();          // Create a new recorder
t->Start("logfile.root");     // ! Start recording first

c = new TCanvas();            // ! Then, create an object
c->Dump();                    // Work with that object

t->Stop();                    // Stop recording

It is strongly recommended to start recording with empty ROOT
environment, at least with no previously created ROOT GUI.
This ensures that only events for well known windows are stored.
Events for windows, which were not created during recording,
cannot be replayed.


1] To start replaying

TRecorder r(const char *filename)
TRecorder r(const char *filename, "READ")


TRecorder *recorder = new TRecorder;
recorder->Replay(const char *filename,
Bool_t showMouseCursor = kTRUE);

-filename         A name of file with recorded events
previously created with TRecorder::Start

-showMouseCursor  If kTRUE, mouse cursor is replayed as well.
In that case it is not recommended to use mouse
during replaying.

In general, it is not recommended to use mouse to change positions
and states of ROOT windows during replaying.

The state of ROOT environment before replaying of some events
must be exactly the same as before recording them.
Therefore it is strongly recommended to start both recording
and replaying with empty ROOT environment.

2] To pause replaying


Replaying is stopped until recorder->Resume() is called.

3] To resume paused replaying


Resumes previously stopped replaying.

4] To stop replaying before its end


Function Members (Methods)

voidTObject::AbstractMethod(const char* method) const
virtual voidTObject::AppendPad(Option_t* option = "")
virtual voidTObject::Browse(TBrowser* b)
static TClass*Class()
virtual const char*TObject::ClassName() const
virtual voidTObject::Clear(Option_t* = "")
virtual TObject*TObject::Clone(const char* newname = "") const
virtual Int_tTObject::Compare(const TObject* obj) const
virtual voidTObject::Copy(TObject& object) const
virtual voidTObject::Delete(Option_t* option = "")MENU
virtual Int_tTObject::DistancetoPrimitive(Int_t px, Int_t py)
virtual voidTObject::Draw(Option_t* option = "")
virtual voidTObject::DrawClass() constMENU
virtual TObject*TObject::DrawClone(Option_t* option = "") constMENU
virtual voidTObject::Dump() constMENU
virtual voidTObject::Error(const char* method, const char* msgfmt) const
virtual voidTObject::Execute(const char* method, const char* params, Int_t* error = 0)
virtual voidTObject::Execute(TMethod* method, TObjArray* params, Int_t* error = 0)
virtual voidTObject::ExecuteEvent(Int_t event, Int_t px, Int_t py)
virtual voidTObject::Fatal(const char* method, const char* msgfmt) const
virtual TObject*TObject::FindObject(const char* name) const
virtual TObject*TObject::FindObject(const TObject* obj) const
virtual Option_t*TObject::GetDrawOption() const
static Long_tTObject::GetDtorOnly()
virtual const char*TObject::GetIconName() const
virtual const char*TObject::GetName() const
virtual char*TObject::GetObjectInfo(Int_t px, Int_t py) const
static Bool_tTObject::GetObjectStat()
virtual Option_t*TObject::GetOption() const
TStringGetText() const
virtual TTimeTRecEvent::GetTime() const
virtual const char*TObject::GetTitle() const
virtual TRecEvent::ERecEventTypeGetType() const
virtual UInt_tTObject::GetUniqueID() const
virtual Bool_tTObject::HandleTimer(TTimer* timer)
virtual ULong_tTObject::Hash() const
virtual voidTObject::Info(const char* method, const char* msgfmt) const
virtual Bool_tTObject::InheritsFrom(const char* classname) const
virtual Bool_tTObject::InheritsFrom(const TClass* cl) const
virtual voidTObject::Inspect() constMENU
voidTObject::InvertBit(UInt_t f)
virtual TClass*IsA() const
virtual Bool_tTObject::IsEqual(const TObject* obj) const
virtual Bool_tTObject::IsFolder() const
Bool_tTObject::IsOnHeap() const
virtual Bool_tTObject::IsSortable() const
Bool_tTObject::IsZombie() const
virtual voidTObject::ls(Option_t* option = "") const
voidTObject::MayNotUse(const char* method) const
virtual Bool_tTObject::Notify()
voidTObject::Obsolete(const char* method, const char* asOfVers, const char* removedFromVers) const
voidTObject::operator delete(void* ptr)
voidTObject::operator delete(void* ptr, void* vp)
voidTObject::operator delete[](void* ptr)
voidTObject::operator delete[](void* ptr, void* vp)
void*TObject::operator new(size_t sz)
void*TObject::operator new(size_t sz, void* vp)
void*TObject::operator new[](size_t sz)
void*TObject::operator new[](size_t sz, void* vp)
TRecExtraEvent&operator=(const TRecExtraEvent&)
virtual voidTObject::Paint(Option_t* option = "")
virtual voidTObject::Pop()
virtual voidTObject::Print(Option_t* option = "") const
virtual Int_tTObject::Read(const char* name)
virtual voidTObject::RecursiveRemove(TObject* obj)
virtual voidReplayEvent(Bool_t)
voidTObject::ResetBit(UInt_t f)
virtual voidTObject::SaveAs(const char* filename = "", Option_t* option = "") constMENU
virtual voidTObject::SavePrimitive(ostream& out, Option_t* option = "")
voidTObject::SetBit(UInt_t f)
voidTObject::SetBit(UInt_t f, Bool_t set)
virtual voidTObject::SetDrawOption(Option_t* option = "")MENU
static voidTObject::SetDtorOnly(void* obj)
static voidTObject::SetObjectStat(Bool_t stat)
voidSetText(TString text)
virtual voidTRecEvent::SetTime(TTime t)
virtual voidTObject::SetUniqueID(UInt_t uid)
virtual voidShowMembers(TMemberInspector& insp) const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
virtual voidTObject::SysError(const char* method, const char* msgfmt) const
Bool_tTObject::TestBit(UInt_t f) const
Int_tTObject::TestBits(UInt_t f) const
TRecExtraEvent(const TRecExtraEvent&)
virtual voidTObject::UseCurrentStyle()
virtual voidTObject::Warning(const char* method, const char* msgfmt) const
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0)
virtual Int_tTObject::Write(const char* name = 0, Int_t option = 0, Int_t bufsize = 0) const
virtual voidTObject::DoError(int level, const char* location, const char* fmt, va_list va) const

Data Members

static TObject::(anonymous)TObject::kBitMask
static TObject::EStatusBitsTObject::kCanDelete
static TObject::EStatusBitsTObject::kCannotPick
static TRecEvent::ERecEventTypeTRecEvent::kCmdEvent
static TRecEvent::ERecEventTypeTRecEvent::kExtraEvent
static TRecEvent::ERecEventTypeTRecEvent::kGuiEvent
static TObject::EStatusBitsTObject::kHasUUID
static TObject::EStatusBitsTObject::kInvalidObject
static TObject::(anonymous)TObject::kIsOnHeap
static TObject::EStatusBitsTObject::kIsReferenced
static TObject::EStatusBitsTObject::kMustCleanup
static TObject::EStatusBitsTObject::kNoContextMenu
static TObject::(anonymous)TObject::kNotDeleted
static TObject::EStatusBitsTObject::kObjInCanvas
static TObject::(anonymous)TObject::kOverwrite
static TObject::(anonymous)TObject::kSingleKey
static TObject::(anonymous)TObject::kWriteDelete
static TObject::(anonymous)TObject::kZombie
TStringfTextText of stored command

Class Charts

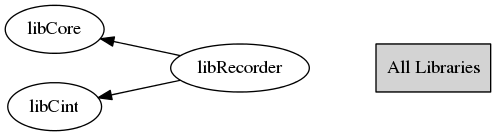

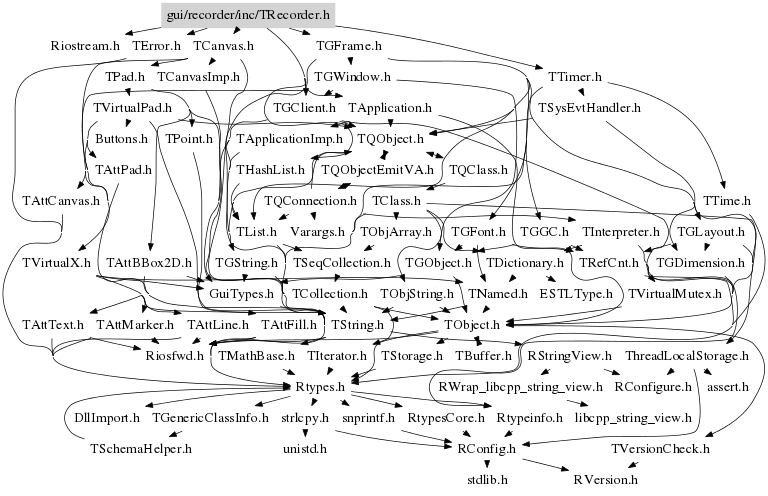

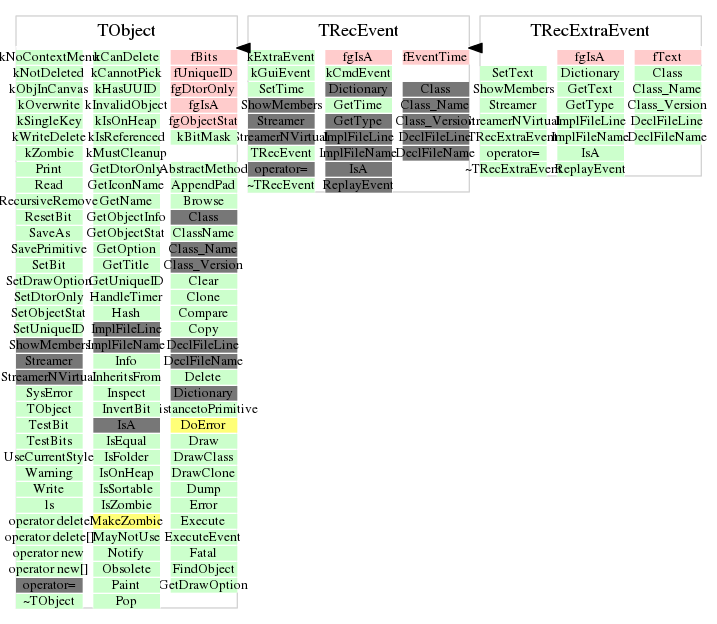

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

void ReplayEvent(Bool_t )
 Replays (executes) the stored event again
ERecEventType GetType() const
 Returns what kind of event it stores
void SetText(TString text)
 Saves text of a command
const char * GetText() const
 Returns stored text of the command
 Creates new empty  TRecExtraEvent
TRecorder & operator=(const TRecorder&)
