ROOT » MATH » UNURAN » TUnuranDiscrDist

class TUnuranDiscrDist: public TUnuranBaseDist

Function Members (Methods)

public:
virtual~TUnuranDiscrDist()
doubleCdf(int x) const
static TClass*Class()
virtual TUnuranDiscrDist*Clone() const
boolGetDomain(int& xmin, int& xmax) const
boolHasCdf() const
boolHasMode() const
boolHasProbSum() const
virtual TClass*IsA() const
intMode() const
TUnuranDiscrDist&operator=(const TUnuranDiscrDist& rhs)
doublePmf(int x) const
doubleProbSum() const
const vector<double>&ProbVec() const
voidSetCdf(const ROOT::Math::IGenFunction& cdf)
voidSetCdf(TF1* cdf)
voidSetDomain(int xmin, int xmax)
voidSetMode(int mode)
voidSetProbSum(double sum)
virtual voidShowMembers(TMemberInspector& insp) const
virtual voidStreamer(TBuffer&)
voidStreamerNVirtual(TBuffer& ClassDef_StreamerNVirtual_b)
TUnuranDiscrDist(TF1* func)
TUnuranDiscrDist(const TUnuranDiscrDist&)
TUnuranDiscrDist(const ROOT::Math::IGenFunction& func, bool copyFunc = false)

Data Members

private:
const ROOT::Math::IGenFunction*fCdfpointer to the cumulative distribution function
boolfHasDomainflag to control if distribution has a defined domain (otherwise is [0,INT_MAX])
boolfHasModeflag to control if distribution has a pre-computed mode
boolfHasSumflag to control if distribution has a pre-computed sum of the probabilities
intfModemode of the distribution
boolfOwnFuncflag to control if distribution owns the funcitno pointers
vector<double>fPVecVector of the probabilities
vector<double>fPVecSumVector of the sum of the probabilities
const ROOT::Math::IGenFunction*fPmfpointer to a function calculating the probability
doublefSumtotal sum of the probabilities in the given domain
intfXmaxupper value of the domain
intfXminlower value of the domain

Class Charts

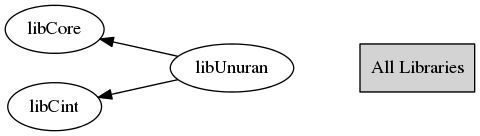

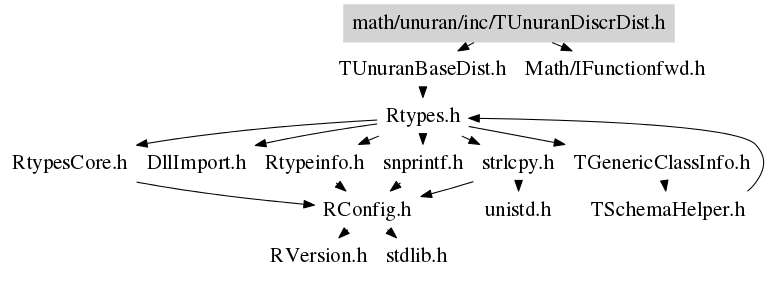

Inheritance Inherited Members Includes Libraries
Class Charts

Function documentation

TUnuranDiscrDist(const ROOT::Math::IGenFunction& func, bool copyFunc = false)
Constructor from a generic function object
TUnuranDiscrDist(TF1* func)
Constructor from a TF1 objects
TUnuranDiscrDist(const TUnuranDiscrDist& )
 Implementation of copy ctor using aassignment operator
~TUnuranDiscrDist()
 destructor implementation
void SetCdf(const ROOT::Math::IGenFunction& cdf)
  set cdf distribution using a generic function interface
void SetCdf(TF1* cdf)
 set cumulative distribution function from a TF1
double Pmf(int x) const
 evaluate the distribution
double Cdf(int x) const
 evaluate the cumulative distribution
 otherwise evaluate from the sum of the probabilities
TUnuranDiscrDist * Clone() const
      Clone (required by base class)

{ return new TUnuranDiscrDist(*this); }
void SetDomain(int xmin, int xmax)
      Set the distribution domain, by default the domain is [0,INT_MAX]
      If xmin >= xmax a domain is removed

void SetMode(int mode)
      set the mode of the distribution (location of maximum probability)

{ fMode = mode; fHasMode=true;}
void SetProbSum(double sum)
      set the value of the sum of the probabilities in the given domain

{ fSum = sum; fHasSum=true; }
bool GetDomain(int& xmin, int& xmax) const
      check if distribution has domain and return in case its domain

int Mode() const
      get the mode   (x location of function maximum)

{ return fMode; }
double ProbSum() const
      return area of the pdf

{ return fSum; }
bool HasMode() const
      flag to control if distribution provides the mode

{ return fHasMode; }
bool HasProbSum() const
      flag to control if distribution provides the total area of the probability function

{ return fHasSum; }
bool HasCdf() const
      flag to control if distribution provides also a Cdf

{ return fCdf != 0; }
const std::vector<double> & ProbVec() const
      retrieve a reference to the vector of the probabilities : Prob(i)
      If the distribution is defined from a function (i.e. for distribution with undefined domain)
      the vector is empty.

{ return fPVec; }
