TSlider Class Reference

A specialized TPad including a TSliderBox object.

The TSliderBox can be moved in the pad.

Slider drawing options include the possibility to change the slider starting and ending positions or only one of them.

The current slider position can be retrieved via the functions TSlider::GetMinimum and TSlider::GetMaximum These two functions return numbers in the range [0,1].

If a method has been set (via TSlider::SetMethod), the expression is executed via the interpreter when the button 1 is released.

if no method has been set, and an object is referenced (TSlider::SetObject has been called), while the slider is being moved/resized, the object ExecuteEvent function is called.

Example 1 using TSlider::SetMethod

macro xyslider.C

void xyslider()
{
   // Example of macro featuring two sliders
   TFile *f = new TFile("hsimple.root");
   TH2F *hpxpy = (TH2F*)f->Get("hpxpy");
   TCanvas *c1 = new TCanvas("c1");
   TPad *pad = new TPad("pad","Color plot pad",0.1,0.1,0.98,0.98);
   pad->Draw();
   pad->cd();
   hpxpy->Draw("COLZ");
   c1->cd();

   // Create two sliders in main canvas. When button1 will be released
   // the macro action.C will be called.
   TSlider *xslider = new TSlider("xslider","x",0.1,0.02,0.98,0.08);
   xslider->SetMethod(".x action.C");
   TSlider *yslider = new TSlider("yslider","y",0.02,0.1,0.06,0.98);
   yslider->SetMethod(".x action.C");
}

macro action.C

void action()
{
   Int_t nx = hpxpy->GetXaxis()->GetNbins();
   Int_t ny = hpxpy->GetYaxis()->GetNbins();
   Int_t binxmin = nx*xslider->GetMinimum();
   Int_t binxmax = nx*xslider->GetMaximum();
   hpxpy->GetXaxis()->SetRange(binxmin,binxmax);
   Int_t binymin = ny*yslider->GetMinimum();
   Int_t binymax = ny*yslider->GetMaximum();
   hpxpy->GetYaxis()->SetRange(binymin,binymax);
   pad->cd();
   hpxpy->Draw("COLZ");
   c1->Update();
}

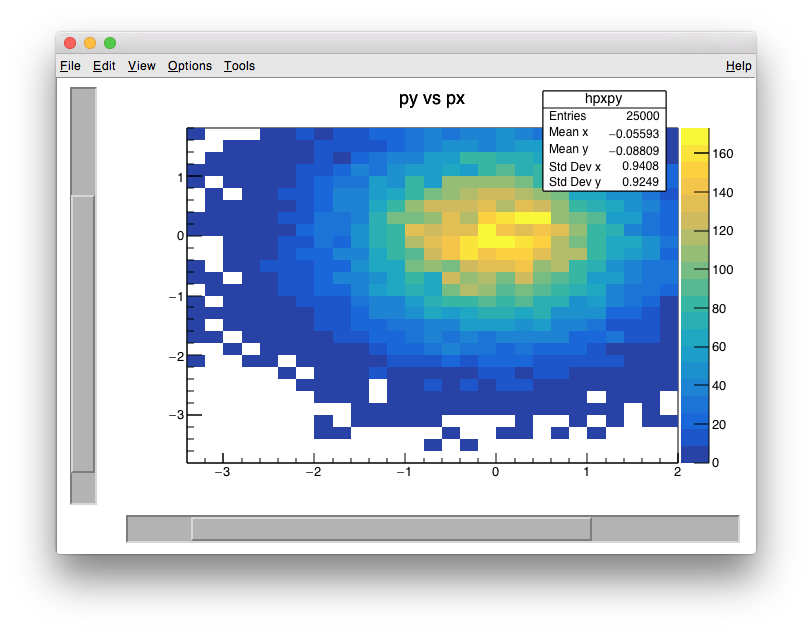

The canvas and the sliders created in the above macro are shown in the picture below.

Example 2 using TSlider::SetObject macro xyslider.C

Same example as above. Instead of TSlider::SetMethod:

Myclass *obj = new Myclass(); // Myclass derived from TObject
xslider->SetObject(obj);
yslider->SetObject(obj);

When the slider will be changed, MyClass::ExecuteEvent will be called with px=0 and py = 0

Definition at line 17 of file TSlider.h.

Public Types
enum	{   kFraming = (1ULL << (6)) , kHori = (1ULL << (9)) , kClipFrame = (1ULL << (10)) , kPrintingPS = (1ULL << (11)) ,   kCannotMove = (1ULL << (12)) , kClearAfterCR = (1ULL << (14)) }
enum	{ kSingleKey = (1ULL << (0)) , kOverwrite = (1ULL << (1)) , kWriteDelete = (1ULL << (2)) }
enum	{   kIsOnHeap = 0x01000000 , kNotDeleted = 0x02000000 , kZombie = 0x04000000 , kInconsistent = 0x08000000 ,   kBitMask = 0x00ffffff }
enum	EDeprecatedStatusBits { kObjInCanvas = (1ULL << (3)) }
enum	EStatusBits {   kCanDelete = (1ULL << (0)) , kMustCleanup = (1ULL << (3)) , kIsReferenced = (1ULL << (4)) , kHasUUID = (1ULL << (5)) ,   kCannotPick = (1ULL << (6)) , kNoContextMenu = (1ULL << (8)) , kInvalidObject = (1ULL << (13)) }

Public Member Functions
	TSlider ()
	slider default constructor.
	TSlider (const char *name, const char *title, Double_t x1, Double_t y1, Double_t x2, Double_t y2, Color_t color=16, Short_t bordersize=2, Short_t bordermode=-1)
	Slider normal constructor.
	~TSlider () override
	slider default destructor.
void	AbsCoordinates (Bool_t set) override
Double_t	AbsPixeltoX (Double_t px) override
void	AbsPixeltoXY (Double_t xpixel, Double_t ypixel, Double_t &x, Double_t &y) override
Double_t	AbsPixeltoY (Double_t py) override
void	AbstractMethod (const char *method) const
	Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.
void	Add (TObject *obj, Option_t *opt="", Bool_t modified=kTRUE) override
	Add an object to list of primitives with specified draw option When.
void	AddExec (const char *name, const char *command) override
	Add a new TExec object to the list of Execs.
void	AddFirst (TObject *obj, Option_t *opt="", Bool_t modified=kTRUE) override
	Add an object as first in list of primitives with specified draw option When.
virtual void	AppendPad (Option_t *option="")
	Append graphics object to current pad.
Bool_t	AreSignalsBlocked () const
virtual void	AutoExec ()
	Execute the list of Execs when a pad event occurs.
Bool_t	BlockSignals (Bool_t b)
void	Browse (TBrowser *b) override
	Browse pad.
TLegend *	BuildLegend (Double_t x1=0.3, Double_t y1=0.21, Double_t x2=0.3, Double_t y2=0.21, const char *title="", Option_t *option="") override
	Build a legend from the graphical objects in the pad.
TVirtualPad *	cd (Int_t subpadnumber=0) override
	Set Current pad.
virtual void	ChangedBy (const char *method)
ULong_t	CheckedHash ()
	Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.
virtual const char *	ClassName () const
	Returns name of class to which the object belongs.
void	Clear (Option_t *option="") override
	Delete all pad primitives.
Int_t	Clip (Double_t *x, Double_t *y, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt) override
	Clipping routine: Cohen Sutherland algorithm.
virtual Int_t	Clip (Float_t *x, Float_t *y, Float_t xclipl, Float_t yclipb, Float_t xclipr, Float_t yclipt)
	Clipping routine: Cohen Sutherland algorithm.
virtual Int_t	ClippingCode (Double_t x, Double_t y, Double_t xcl1, Double_t ycl1, Double_t xcl2, Double_t ycl2)
	Compute the endpoint codes for TPad::Clip.
virtual Int_t	ClipPolygon (Int_t n, Double_t *x, Double_t *y, Int_t nn, Double_t *xc, Double_t *yc, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt)
	Clip polygon using the Sutherland-Hodgman algorithm.
virtual TObject *	Clone (const char *newname="") const
	Make a clone of an object using the Streamer facility.
void	Close (Option_t *option="") override
	Delete all primitives in pad and pad itself.
virtual void	Closed ()
void	CloseToolTip (TObject *tip) override
void	CollectClassSignalLists (TList &list, TClass *cls)
	Collect class signal lists from class cls and all its base-classes.
virtual Int_t	Compare (const TObject *obj) const
	Compare abstract method.
Bool_t	Connect (const char *signal, const char *receiver_class, void *receiver, const char *slot)
	Non-static method is used to connect from the signal of this object to the receiver slot.
virtual void	Connected (const char *)
void	Copy (TAttFill &attfill) const
void	Copy (TAttLine &attline) const
virtual void	Copy (TAttPad &attpad) const
	copy function
virtual void	Copy (TObject &object) const
	Copy this to obj.
void	CopyPixmap () override
	Copy the pixmap of the pad to the canvas.
void	CopyPixmaps () override
	Copy the sub-pixmaps of the pad to the canvas.
TObject *	CreateToolTip (const TBox *b, const char *text, Long_t delayms) override
virtual void	Delete (Option_t *option="")
	Delete this object.
void	DeleteExec (const char *name) override
	Remove TExec name from the list of Execs.
void	DeleteToolTip (TObject *tip) override
virtual void	Destroyed ()
Bool_t	Disconnect (const char *signal=nullptr, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects signal of this object from slot of receiver.
virtual void	Disconnected (const char *)
Int_t	DistancetoLine (Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2)
void	Divide (Int_t nx=1, Int_t ny=1, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0) override
	Automatic pad generation by division.
void	DivideRatios (Int_t nrows, Int_t ncolumns, const std::vector< double > &widthRatios={}, const std::vector< double > &heightRatios={}, const double canvasTopMargin=0., const double canvasLeftMargin=0.)
	Divide the canvas according to ratios.
virtual void	DivideSquare (Int_t n, Float_t xmargin=0.01, Float_t ymargin=0.01, Int_t color=0)
	"n" is the total number of sub-pads.
void	Draw (Option_t *option="") override
	Draw Pad in Current pad (re-parent pad if necessary).
virtual void	DrawClass () const
	Draw class inheritance tree of the class to which this object belongs.
void	DrawClassObject (const TObject *obj, Option_t *option="") override
	Draw class inheritance tree of the class to which obj belongs.
virtual TObject *	DrawClone (Option_t *option="") const
	Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).
void	DrawCollideGrid ()
virtual void	DrawCrosshair ()
	Function called to draw a crosshair in the canvas.
TH1F *	DrawFrame (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax, const char *title="") override
virtual void	Dump () const
	Dump contents of object on stdout.
void	Emit (const char *signal)
	Activate signal without args.
template<typename T>
void	Emit (const char *signal, const T &arg)
	Activate signal with single parameter.
template<typename... T>
void	EmitVA (const char *signal_name, Int_t, const T &... params)
	Emit a signal with a varying number of arguments.
virtual void	Error (const char *method, const char *msgfmt,...) const
	Issue error message.
virtual void	EventPave ()
virtual void	Execute (const char *method, const char *params, Int_t *error=nullptr)
	Execute method on this object with the given parameter string, e.g.
virtual void	Execute (TMethod *method, TObjArray *params, Int_t *error=nullptr)
	Execute method on this object with parameters stored in the TObjArray.
void	ExecuteEventAxis (Int_t event, Int_t px, Int_t py, TAxis *axis) override
virtual void	Fatal (const char *method, const char *msgfmt,...) const
	Issue fatal error message.
TObject *	FindObject (const char *name) const override
	Must be redefined in derived classes.
TObject *	FindObject (const TObject *obj) const override
	Must be redefined in derived classes.
Double_t	GetAbsHNDC () const override
Double_t	GetAbsWNDC () const override
Double_t	GetAbsXlowNDC () const override
Double_t	GetAbsYlowNDC () const override
Float_t	GetAfile () const
Double_t	GetAspectRatio () const override
Float_t	GetAstat () const
Rectangle_t	GetBBox () override
TPoint	GetBBoxCenter () override
Short_t	GetBorderMode () const override
Short_t	GetBorderSize () const override
Float_t	GetBottomMargin () const
TCanvas *	GetCanvas () const override
Int_t	GetCanvasID () const override
TCanvasImp *	GetCanvasImp () const override
Int_t	GetCrosshair () const
virtual Option_t *	GetDrawOption () const
	Get option used by the graphics system to draw this object.
Int_t	GetEvent () const override
Int_t	GetEventX () const override
Int_t	GetEventY () const override
virtual Color_t	GetFillColor () const
	Return the fill area color.
virtual Style_t	GetFillStyle () const
	Return the fill area style.
TFrame *	GetFrame () override
Int_t	GetFrameBorderMode () const
Width_t	GetFrameBorderSize () const
Color_t	GetFrameFillColor () const
Style_t	GetFrameFillStyle () const
Color_t	GetFrameLineColor () const
Style_t	GetFrameLineStyle () const
Width_t	GetFrameLineWidth () const
Int_t	GetGLDevice () override
Bool_t	GetGridx () const override
Bool_t	GetGridy () const override
Color_t	GetHighLightColor () const override
Double_t	GetHNDC () const override
	Get height of pad along Y in Normalized Coordinates (NDC).
virtual const char *	GetIconName () const
	Returns mime type name of object.
Float_t	GetLeftMargin () const
virtual Color_t	GetLineColor () const
	Return the line color.
virtual Style_t	GetLineStyle () const
	Return the line style.
virtual Width_t	GetLineWidth () const
	Return the line width.
TList *	GetListOfClassSignals () const
	Returns pointer to list of signals of this class.
TList *	GetListOfConnections () const
TList *	GetListOfExecs () const override
TList *	GetListOfPrimitives () const override
TList *	GetListOfSignals () const
Int_t	GetLogx () const override
Int_t	GetLogy () const override
Int_t	GetLogz () const override
Double_t	GetMaximum () const
virtual const char *	GetMethod () const
Double_t	GetMinimum () const
TVirtualPad *	GetMother () const override
const char *	GetName () const override
	Returns name of object.
Int_t	GetNumber () const override
TObject *	GetObject () const
virtual char *	GetObjectInfo (Int_t px, Int_t py) const
	Returns string containing info about the object at position (px,py).
virtual Option_t *	GetOption () const
TVirtualPad *	GetPad (Int_t subpadnumber) const override
UInt_t	GetPadHeight () const override
Int_t	GetPadPaint () const override
void	GetPadPar (Double_t &xlow, Double_t &ylow, Double_t &xup, Double_t &yup) override
TObject *	GetPadPointer () const override
TVirtualPad *	GetPadSave () const override
UInt_t	GetPadWidth () const override
TVirtualPadPainter *	GetPainter () override
Double_t	GetPhi () const override
Int_t	GetPixmapID () const override
TObject *	GetPrimitive (const char *name) const override
void	GetRange (Double_t &x1, Double_t &y1, Double_t &x2, Double_t &y2) override
void	GetRangeAxis (Double_t &xmin, Double_t &ymin, Double_t &xmax, Double_t &ymax) override
Float_t	GetRightMargin () const
TObject *	GetSelected () const override
TVirtualPad *	GetSelectedPad () const override
Double_t	GetTheta () const override
Int_t	GetTickx () const override
Int_t	GetTicky () const override
const char *	GetTitle () const override
	Returns title of object.
Float_t	GetTopMargin () const
virtual UInt_t	GetUniqueID () const
	Return the unique object id.
Double_t	GetUxmax () const override
	Returns the maximum x-coordinate value visible on the pad. If log axis the returned value is in decades.
Double_t	GetUxmin () const override
	Returns the minimum x-coordinate value visible on the pad. If log axis the returned value is in decades.
Double_t	GetUymax () const override
	Returns the maximum y-coordinate value visible on the pad. If log axis the returned value is in decades.
Double_t	GetUymin () const override
	Returns the minimum y-coordinate value visible on the pad. If log axis the returned value is in decades.
TView *	GetView () const override
TObject *	GetView3D () const override
TVirtualViewer3D *	GetViewer3D (Option_t *type="") override
TVirtualPad *	GetVirtCanvas () const override
UInt_t	GetWh () const override
Double_t	GetWNDC () const override
	Get width of pad along X in Normalized Coordinates (NDC).
UInt_t	GetWw () const override
Double_t	GetX1 () const override
Double_t	GetX2 () const override
Float_t	GetXfile () const
Double_t	GetXlowNDC () const override
Float_t	GetXstat () const
Double_t	GetY1 () const override
Double_t	GetY2 () const override
Float_t	GetYfile () const
Double_t	GetYlowNDC () const override
Float_t	GetYstat () const
virtual Bool_t	HandleTimer (TTimer *timer)
	Execute action in response of a timer timing out.
virtual Bool_t	HasConnection (const char *signal_name) const
	Return true if there is any object connected to this signal.
Bool_t	HasCrosshair () const override
Bool_t	HasFixedAspectRatio () const override
ULong_t	Hash () const override
	Return hash value for this object.
Bool_t	HasInconsistentHash () const
	Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.
Bool_t	HasViewer3D () const override
void	HighLight (Color_t col=kRed, Bool_t set=kTRUE) override
virtual void	HighPriority (const char *signal_name, const char *slot_name=nullptr)
Int_t	HtoAbsPixel (Double_t y1, Double_t y2) const override
Int_t	IncrementPaletteColor (Int_t i, TString opt) override
virtual void	Info (const char *method, const char *msgfmt,...) const
	Issue info message.
virtual Bool_t	InheritsFrom (const char *classname) const
	Returns kTRUE if object inherits from class "classname".
virtual Bool_t	InheritsFrom (const TClass *cl) const
	Returns kTRUE if object inherits from TClass cl.
virtual void	Inspect () const
	Dump contents of this object in a graphics canvas.
void	InvertBit (UInt_t f)
TClass *	IsA () const override
Bool_t	IsBatch () const override
Bool_t	IsBeingResized () const
Bool_t	IsDestructed () const
	IsDestructed.
Bool_t	IsEditable () const override
virtual Bool_t	IsEqual (const TObject *obj) const
	Default equal comparison (objects are equal if they have the same address in memory).
Bool_t	IsFolder () const override
	Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).
Bool_t	IsModified () const override
Bool_t	IsOnHeap () const
Bool_t	IsRetained () const override
virtual Bool_t	IsSortable () const
virtual Bool_t	IsTransparent () const
Bool_t	IsVertical () const override
Bool_t	IsWeb () const override
Bool_t	IsZombie () const
virtual void	LowPriority (const char *signal_name, const char *slot_name=nullptr)
void	ls (Option_t *option="") const override
	The ls function lists the contents of a class on stdout.
void	MayNotUse (const char *method) const
	Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).
virtual void	Message (const char *msg)
void	Modified (Bool_t flag=true) override
void	ModifiedUpdate () override
virtual void	Modify ()
virtual void	Modify ()
virtual void	ModifyOn (TVirtualPad &pad)
virtual void	ModifyOn (TVirtualPad &pad)
Int_t	NextPaletteColor () override
virtual Bool_t	Notify ()
	This method must be overridden to handle object notification (the base implementation is no-op).
virtual Int_t	NumberOfConnections () const
	Return number of connections for this object.
virtual Int_t	NumberOfSignals () const
	Return number of signals for this object.
void	Obsolete (const char *method, const char *asOfVers, const char *removedFromVers) const
	Use this method to declare a method obsolete.
Bool_t	OpaqueMoving () const override
Bool_t	OpaqueResizing () const override
void	operator delete (void *, size_t)
	Operator delete for sized deallocation.
void	operator delete (void *ptr)
	Operator delete.
void	operator delete (void *ptr, void *vp)
	Only called by placement new when throwing an exception.
void	operator delete[] (void *, size_t)
	Operator delete [] for sized deallocation.
void	operator delete[] (void *ptr)
	Operator delete [].
void	operator delete[] (void *ptr, void *vp)
	Only called by placement new[] when throwing an exception.
void *	operator new (size_t sz)
void *	operator new (size_t sz, void *vp)
void *	operator new[] (size_t sz)
void *	operator new[] (size_t sz, void *vp)
virtual Bool_t	PadInHighlightMode () const
	Should always return false, unless you can highlight selected object in pad.
virtual Bool_t	PadInSelectionMode () const
	Should always return false unless you have non-standard picking.
Double_t	PadtoX (Double_t x) const override
Double_t	PadtoY (Double_t y) const override
void	Paint (Option_t *option="") override
	This method must be overridden if a class wants to paint itself.
void	PaintBox (Double_t x1, Double_t y1, Double_t x2, Double_t y2, Option_t *option="") override
void	PaintFillArea (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
void	PaintFillArea (Int_t n, Float_t *x, Float_t *y, Option_t *option="") override
void	PaintFillAreaHatches (Int_t n, Double_t *x, Double_t *y, Int_t FillStyle)
void	PaintFillAreaNDC (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
void	PaintHatches (Double_t dy, Double_t angle, Int_t nn, Double_t *xx, Double_t *yy)
void	PaintLine (Double_t x1, Double_t y1, Double_t x2, Double_t y2) override
void	PaintLine3D (Double_t *p1, Double_t *p2) override
void	PaintLine3D (Float_t *p1, Float_t *p2) override
void	PaintLineNDC (Double_t u1, Double_t v1, Double_t u2, Double_t v2) override
void	PaintMarker3D (Double_t x, Double_t y, Double_t z) override
void	PaintModified () override
void	PaintPadFrame (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax) override
void	PaintPolyLine (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
void	PaintPolyLine (Int_t n, Float_t *x, Float_t *y, Option_t *option="") override
void	PaintPolyLine3D (Int_t n, Double_t *p) override
void	PaintPolyLineNDC (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
void	PaintPolyMarker (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
void	PaintPolyMarker (Int_t n, Float_t *x, Float_t *y, Option_t *option="") override
void	PaintSegments (Int_t n, Double_t *x, Double_t *y, Option_t *option="") override
	Paint N individual segments Provided arrays should have 2*n elements IMPORTANT!
void	PaintSegmentsNDC (Int_t n, Double_t *u, Double_t *v) override
	Paint N individual segments in NDC coordinates Provided arrays should have 2*n elements.
void	PaintText (Double_t x, Double_t y, const char *text) override
void	PaintText (Double_t x, Double_t y, const wchar_t *text) override
void	PaintTextNDC (Double_t u, Double_t v, const char *text) override
void	PaintTextNDC (Double_t u, Double_t v, const wchar_t *text) override
void	PaintTextUrl (Double_t x, Double_t y, const char *text, const char *url) override
virtual TPad *	Pick (Int_t px, Int_t py, TObjLink *&pickobj)
Double_t	PixeltoX (Double_t px) override
void	PixeltoXY (Double_t xpixel, Double_t ypixel, Double_t &x, Double_t &y) override
Double_t	PixeltoY (Double_t py) override
Bool_t	PlaceBox (TObject *o, Double_t w, Double_t h, Double_t &xl, Double_t &yb, Option_t *option="lb") override
void	Pop () override
	Pop on object drawn in a pad to the top of the display list.
virtual void	PopTopLevelSelectable ()
	Does nothing, unless you implement your own picking.
void	Print (const char *filename, Option_t *option) override
void	Print (const char *filename="") const override
	This method must be overridden when a class wants to print itself.
virtual void	PushSelectableObject (TObject *obj)
	Does nothing, unless you implement your own picking.
virtual void	PushTopLevelSelectable (TObject *top)
	Does nothing, unless you implement your own picking.
void	Range (Double_t x1, Double_t y1, Double_t x2, Double_t y2) override
void	RangeAxis (Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax) override
virtual void	RangeAxisChanged ()
virtual void	RangeChanged ()
virtual Int_t	Read (const char *name)
	Read contents of object with specified name from the current directory.
virtual void	RecordLatex (const TObject *obj)
virtual void	RecordPave (const TObject *obj)
void	RecursiveRemove (TObject *obj) override
	Recursively remove this object from a list.
void	RedrawAxis (Option_t *option="") override
void	ReleaseViewer3D (Option_t *type="") override
TObject *	Remove (TObject *obj, Bool_t modified=kTRUE) override
virtual void	ResetAttFill (Option_t *option="")
virtual void	ResetAttLine (Option_t *option="")
virtual void	ResetAttPad (Option_t *option="")
	Reset pad attributes.
void	ResetBit (UInt_t f)
void	ResetToolTip (TObject *tip) override
void	ResetView3D (TObject *view=nullptr) override
virtual void	Resized ()
void	ResizePad (Option_t *option="") override
void	SaveAs (const char *filename="", Option_t *option="") const override
	Save this object in the file specified by filename.
virtual void	SaveFillAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1001)
virtual void	SaveLineAttributes (std::ostream &out, const char *name, Int_t coldef=1, Int_t stydef=1, Int_t widdef=1)
void	SavePrimitive (std::ostream &out, Option_t *option="") override
	Save primitive as a C++ statement(s) on output stream out.
virtual void	SetAfile (Float_t afile)
virtual void	SetAstat (Float_t astat)
void	SetAttFillPS (Color_t color, Style_t style) override
void	SetAttLinePS (Color_t color, Style_t style, Width_t lwidth) override
void	SetAttMarkerPS (Color_t color, Style_t style, Size_t msize) override
void	SetAttTextPS (Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize) override
void	SetBBoxCenter (const TPoint &p) override
void	SetBBoxCenterX (const Int_t x) override
void	SetBBoxCenterY (const Int_t y) override
void	SetBBoxX1 (const Int_t x) override
void	SetBBoxX2 (const Int_t x) override
void	SetBBoxY1 (const Int_t y) override
void	SetBBoxY2 (const Int_t y) override
void	SetBit (UInt_t f)
void	SetBit (UInt_t f, Bool_t set)
	Set or unset the user status bits as specified in f.
void	SetBorderMode (Short_t bordermode) override
void	SetBorderSize (Short_t bordersize) override
virtual void	SetBottomMargin (Float_t bottommargin)
	Set Pad bottom margin in fraction of the pad height.
void	SetCanvas (TCanvas *c) override
void	SetCanvasSize (UInt_t ww, UInt_t wh) override
void	SetCopyGLDevice (Bool_t copy) override
void	SetCrosshair (Int_t crhair=1) override
void	SetCursor (ECursor cursor) override
void	SetDoubleBuffer (Int_t mode=1) override
void	SetDrawOption (Option_t *="") override
	Set drawing option for object.
void	SetEditable (Bool_t mode=kTRUE) override
virtual void	SetFillAttributes ()
virtual void	SetFillColor (Color_t fcolor)
	Set the fill area color.
void	SetFillColor (TColorNumber)
virtual void	SetFillColorAlpha (Color_t fcolor, Float_t falpha)
void	SetFillStyle (Style_t fstyle) override
	Set the fill area style.
void	SetFixedAspectRatio (Bool_t fixed=kTRUE) override
void	SetFrameBorderMode (Int_t mode=1)
void	SetFrameBorderSize (Width_t size=1)
void	SetFrameFillColor (Color_t color=1)
void	SetFrameFillStyle (Style_t styl=0)
void	SetFrameLineColor (Color_t color=1)
void	SetFrameLineStyle (Style_t styl=0)
void	SetFrameLineWidth (Width_t width=1)
virtual void	SetGLDevice (Int_t dev)
void	SetGrid (Int_t valuex=1, Int_t valuey=1) override
void	SetGridx (Int_t value=1) override
void	SetGridy (Int_t value=1) override
virtual void	SetLeftMargin (Float_t leftmargin)
	Set Pad left margin in fraction of the pad width.
virtual void	SetLineAttributes ()
virtual void	SetLineColor (Color_t lcolor)
	Set the line color.
void	SetLineColor (TColorNumber lcolor)
virtual void	SetLineColorAlpha (Color_t lcolor, Float_t lalpha)
virtual void	SetLineStyle (Style_t lstyle)
	Set the line style.
virtual void	SetLineWidth (Width_t lwidth)
	Set the line width.
void	SetLogx (Int_t value=1) override
void	SetLogy (Int_t value=1) override
void	SetLogz (Int_t value=1) override
virtual void	SetMargin (Float_t left, Float_t right, Float_t bottom, Float_t top)
	Set all margins.
virtual void	SetMaximum (Double_t max=1)
virtual void	SetMethod (const char *method)
virtual void	SetMinimum (Double_t min=0)
void	SetName (const char *name) override
virtual void	SetNumber (Int_t number)
void	SetObject (TObject *obj=nullptr)
void	SetPad (const char *name, const char *title, Double_t xlow, Double_t ylow, Double_t xup, Double_t yup, Color_t color=35, Short_t bordersize=5, Short_t bordermode=-1) override
void	SetPad (Double_t xlow, Double_t ylow, Double_t xup, Double_t yup) override
void	SetPhi (Double_t phi=30) override
virtual void	SetRange (Double_t xmin=0, Double_t xmax=1)
	Set Slider range in [0,1].
virtual void	SetRightMargin (Float_t rightmargin)
	Set Pad right margin in fraction of the pad width.
void	SetSelected (TObject *obj) override
void	SetTheta (Double_t theta=30) override
void	SetTicks (Int_t valuex=1, Int_t valuey=1) override
void	SetTickx (Int_t value=1) override
void	SetTicky (Int_t value=1) override
void	SetTitle (const char *title="") override
void	SetToolTipText (const char *text, Long_t delayms=1000) override
virtual void	SetTopMargin (Float_t topmargin)
	Set Pad top margin in fraction of the pad height.
virtual void	SetUniqueID (UInt_t uid)
	Set the unique object id.
void	SetVertical (Bool_t vert=kTRUE) override
void	SetView (TView *view=nullptr) override
void	SetViewer3D (TVirtualViewer3D *viewer3d) override
virtual void	SetXfile (Float_t xfile)
virtual void	SetXstat (Float_t xstat)
virtual void	SetYfile (Float_t yfile)
virtual void	SetYstat (Float_t ystat)
void	ShowGuidelines (TObject *object, const Int_t event, const char mode='i', const bool cling=true) override
virtual void	StartEditing ()
void	Streamer (TBuffer &) override
	Stream an object of class TObject.
void	StreamerNVirtual (TBuffer &ClassDef_StreamerNVirtual_b)
virtual void	SysError (const char *method, const char *msgfmt,...) const
	Issue system error message.
Bool_t	TestBit (UInt_t f) const
Int_t	TestBits (UInt_t f) const
virtual void	UnZoomed ()
void	Update () override
void	UpdateAsync () override
void	UseCurrentStyle () override
	Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.
Int_t	UtoAbsPixel (Double_t u) const override
Int_t	UtoPixel (Double_t u) const override
Int_t	VtoAbsPixel (Double_t v) const override
Int_t	VtoPixel (Double_t v) const override
TObject *	WaitPrimitive (const char *pname="", const char *emode="") override
virtual void	Warning (const char *method, const char *msgfmt,...) const
	Issue warning message.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0)
	Write this object to the current directory.
virtual Int_t	Write (const char *name=nullptr, Int_t option=0, Int_t bufsize=0) const
	Write this object to the current directory.
Int_t	WtoAbsPixel (Double_t x1, Double_t x2) const override
virtual void	x3d (Option_t *type="")
Int_t	XtoAbsPixel (Double_t x) const override
Double_t	XtoPad (Double_t x) const override
Int_t	XtoPixel (Double_t x) const override
void	XYtoAbsPixel (Double_t x, Double_t y, Double_t &xpixel, Double_t &ypixel) const override
void	XYtoAbsPixel (Double_t x, Double_t y, Int_t &xpixel, Int_t &ypixel) const override
void	XYtoPixel (Double_t x, Double_t y, Double_t &xpixel, Double_t &ypixel) const override
void	XYtoPixel (Double_t x, Double_t y, Int_t &xpixel, Int_t &ypixel) const override
Int_t	YtoAbsPixel (Double_t y) const override
Double_t	YtoPad (Double_t y) const override
Int_t	YtoPixel (Double_t y) const override

Static Public Member Functions
static Bool_t	AreAllSignalsBlocked ()
	Returns true if all signals are blocked.
static Bool_t	BlockAllSignals (Bool_t b)
	Block or unblock all signals. Returns the previous block status.
static TClass *	Class ()
static const char *	Class_Name ()
static constexpr Version_t	Class_Version ()
static Bool_t	Connect (const char *sender_class, const char *signal, const char *receiver_class, void *receiver, const char *slot)
	This method allows to make a connection from any object of the same class to a single slot.
static Bool_t	Connect (TQObject *sender, const char *signal, const char *receiver_class, void *receiver, const char *slot)
	Create connection between sender and receiver.
static const char *	DeclFileName ()
static Bool_t	Disconnect (const char *class_name, const char *signal, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects "class signal".
static Bool_t	Disconnect (TQObject *sender, const char *signal=nullptr, void *receiver=nullptr, const char *slot=nullptr)
	Disconnects signal in object sender from slot_method in object receiver.
static void	DrawColorTable ()
static Longptr_t	GetDtorOnly ()
	Return destructor only flag.
static Int_t	GetMaxPickDistance ()
static Bool_t	GetObjectStat ()
	Get status of object stat flag.
static TVirtualPad *&	Pad ()
	Return the current pad for the current thread.
static void	SetDtorOnly (void *obj)
	Set destructor only flag.
static void	SetMaxPickDistance (Int_t maxPick=5)
static void	SetObjectStat (Bool_t stat)
	Turn on/off tracking of objects in the TObjectTable.

Protected Types
enum	{ kOnlyPrepStep = (1ULL << (3)) }

Protected Member Functions
void	DestroyExternalViewer3D ()
Int_t	DistancetoPrimitive (Int_t px, Int_t py) override
	Compute distance from point px,py to a box.
virtual void	DoError (int level, const char *location, const char *fmt, va_list va) const
	Interface to ErrorHandler (protected).
void	ExecuteEvent (Int_t event, Int_t px, Int_t py) override
	Execute action corresponding to an event at (px,py).
void *	GetSender () override
virtual const char *	GetSenderClassName () const
Double_t	GetXCoord (const Int_t x, Bool_t is_ndc=kFALSE)
Double_t	GetYCoord (const Int_t y, Bool_t is_ndc=kFALSE)
virtual void	HideToolTip (Int_t event)
void	MakeZombie ()
void	PaintBorder (Color_t color, Bool_t tops)
void	PaintBorderPS (Double_t xl, Double_t yl, Double_t xt, Double_t yt, Int_t bmode, Int_t bsize, Int_t dark, Int_t light) override
void	PaintDate ()
void	SetBatch (Bool_t batch=kTRUE) override

Static Protected Member Functions
static Int_t	CheckConnectArgs (TQObject *sender, TClass *sender_class, const char *signal, TClass *receiver_class, const char *slot)
	Checking of consistency of sender/receiver methods/arguments.
static TString	CompressName (const char *method_name)
	Removes "const" words and blanks from full (with prototype) method name and resolve any typedefs in the method signature.
static Bool_t	ConnectToClass (const char *sender_class, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
	This method allows to make connection from any object of the same class to the receiver object.
static Bool_t	ConnectToClass (TQObject *sender, const char *signal, TClass *receiver_class, void *receiver, const char *slot)
	Create connection between sender and receiver.
static void	SavePrimitiveConstructor (std::ostream &out, TClass *cl, const char *variable_name, const char *constructor_agrs="", Bool_t empty_line=kTRUE)
	Save object constructor in the output stream "out".
static void	SavePrimitiveDraw (std::ostream &out, const char *variable_name, Option_t *option=nullptr)
	Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.
static TString	SavePrimitiveVector (std::ostream &out, const char *prefix, Int_t len, Double_t *arr, Int_t flag=0)
	Save array in the output stream "out" as vector.

Protected Attributes
Bool_t	fAbsCoord
	Use absolute coordinates.
Double_t	fAbsHNDC
	Absolute Height of pad along Y in NDC.
Double_t	fAbsPixeltoXk
	Conversion coefficient for absolute pixel to X World.
Double_t	fAbsPixeltoYk
	Conversion coefficient for absolute pixel to Y World.
Double_t	fAbsWNDC
	Absolute Width of pad along X in NDC.
Double_t	fAbsXlowNDC
	Absolute X top left corner of pad in NDC [0,1].
Double_t	fAbsYlowNDC
	Absolute Y top left corner of pad in NDC [0,1].
Float_t	fAfile
	Alignment for the file name.
Double_t	fAspectRatio
	ratio of w/h in case of fixed ratio
Float_t	fAstat
	Alignment for the statistics.
Short_t	fBorderMode
	Bordermode (-1=down, 0 = no border, 1=up).
Short_t	fBorderSize
	pad bordersize in pixels
Float_t	fBottomMargin
	BottomMargin.
TCanvas *	fCanvas {nullptr}
	! Pointer to mother canvas
Int_t	fCGnx
	! Size of the collide grid along x
Int_t	fCGny
	! Size of the collide grid along y
std::vector< Bool_t >	fCollideGrid
	! Grid used to find empty space when adding a box (Legend) in a pad
Bool_t	fCopyGLDevice
	!
Int_t	fCrosshair
	Crosshair type (0 if no crosshair requested).
Int_t	fCrosshairPos
	Position of crosshair.
Bool_t	fEditable
	True if canvas is editable.
Bool_t	fEmbeddedGL
	!
TList *	fExecs {nullptr}
	List of commands to be executed when a pad event occurs.
Color_t	fFillColor
	Fill area color.
Style_t	fFillStyle
	Fill area style.
Bool_t	fFixedAspectRatio
	True if fixed aspect ratio.
TFrame *	fFrame {nullptr}
	! Pointer to 2-D frame (if one exists)
Int_t	fFrameBorderMode
	Pad frame border mode.
Width_t	fFrameBorderSize
	Pad frame border size.
Color_t	fFrameFillColor
	Pad frame fill color.
Style_t	fFrameFillStyle
	Pad frame fill style.
Color_t	fFrameLineColor
	Pad frame line color.
Style_t	fFrameLineStyle
	Pad frame line style.
Width_t	fFrameLineWidth
	Pad frame line width.
Int_t	fGLDevice
	! OpenGL off-screen pixmap identifier
Bool_t	fGridx
	Set to true if grid along X.
Bool_t	fGridy
	Set to true if grid along Y.
Double_t	fHNDC
	Height of pad along Y in Normalized Coordinates (NDC).
Float_t	fLeftMargin
	LeftMargin.
Color_t	fLineColor
	Line color.
Style_t	fLineStyle
	Line style.
Width_t	fLineWidth
	Line width.
TList *	fListOfConnections
	! list of connections to this object
TList *	fListOfSignals
	! list of signals from this object
Int_t	fLogx
	(=0 if X linear scale, =1 if log scale)
Int_t	fLogy
	(=0 if Y linear scale, =1 if log scale)
Int_t	fLogz
	(=0 if Z linear scale, =1 if log scale)
Double_t	fMaximum {1}
	Slider maximum value in [0,1].
TString	fMethod
	command to be executed when slider is changed
Double_t	fMinimum {0}
	Slider minimum value in [0,1].
Bool_t	fModified
	Set to true when pad is modified.
TPad *	fMother {nullptr}
	! pointer to mother of the list
TString	fName
	Pad name.
Int_t	fNextPaletteColor
	Next automatic color.
Int_t	fNumber
	pad number identifier
Int_t	fNumPaletteColor
	Number of objects with an automatic color.
TObject *	fObject {nullptr}
	!Pointer to associated object
Int_t	fPadPaint
	Set to 1 while painting the pad.
TObject *	fPadPointer {nullptr}
	! free pointer
TObject *	fPadView3D {nullptr}
	! 3D View of this TPad
Double_t	fPhi
	phi angle to view as lego/surface
Double_t	fPixeltoX
	xworld = fPixeltoXk + fPixeltoX*xpixel
Double_t	fPixeltoXk
	Conversion coefficient for pixel to X World.
Double_t	fPixeltoY
	yworld = fPixeltoYk + fPixeltoY*ypixel
Double_t	fPixeltoYk
	Conversion coefficient for pixel to Y World.
Int_t	fPixmapID
	! Off-screen pixmap identifier
TList *	fPrimitives {nullptr}
	->List of primitives (subpads)
Bool_t	fResizing
	!true when resizing the pad
Float_t	fRightMargin
	RightMargin.
Bool_t	fSignalsBlocked
	! flag used for suppression of signals
Double_t	fTheta
	theta angle to view as lego/surface
Int_t	fTickx
	Set to 1 if tick marks along X.
Int_t	fTicky
	Set to 1 if tick marks along Y.
TString	fTitle
	Pad title.
Float_t	fTopMargin
	TopMargin.
Double_t	fUtoAbsPixelk
	Conversion coefficient for U NDC to absolute pixel.
Double_t	fUtoPixel
	xpixel = fUtoPixelk + fUtoPixel*undc
Double_t	fUtoPixelk
	Conversion coefficient for U NDC to pixel.
Double_t	fUxmax
	Maximum value on the X axis.
Double_t	fUxmin
	Minimum value on the X axis.
Double_t	fUymax
	Maximum value on the Y axis.
Double_t	fUymin
	Minimum value on the Y axis.
TView *	fView {nullptr}
	! Pointer to 3-D view (if one exists)
TVirtualViewer3D *	fViewer3D {nullptr}
	! Current 3D viewer
Double_t	fVtoAbsPixelk
	Conversion coefficient for V NDC to absolute pixel.
Double_t	fVtoPixel
	ypixel = fVtoPixelk + fVtoPixel*vndc
Double_t	fVtoPixelk
	Conversion coefficient for V NDC to pixel.
Double_t	fWNDC
	Width of pad along X in Normalized Coordinates (NDC).
Double_t	fX1
	X of lower X coordinate.
Double_t	fX2
	X of upper X coordinate.
Float_t	fXfile
	X position where to draw the file name.
Double_t	fXlowNDC
	X bottom left corner of pad in NDC [0,1].
Float_t	fXstat
	X position where to draw the statistics.
Double_t	fXtoAbsPixelk
	Conversion coefficient for X World to absolute pixel.
Double_t	fXtoPixel
	xpixel = fXtoPixelk + fXtoPixel*xworld
Double_t	fXtoPixelk
	Conversion coefficient for X World to pixel.
Double_t	fXUpNDC
Double_t	fY1
	Y of lower Y coordinate.
Double_t	fY2
	Y of upper Y coordinate.
Float_t	fYfile
	Y position where to draw the file name.
Double_t	fYlowNDC
	Y bottom left corner of pad in NDC [0,1].
Float_t	fYstat
	Y position where to draw the statistics.
Double_t	fYtoAbsPixelk
	Conversion coefficient for Y World to absolute pixel.
Double_t	fYtoPixel
	ypixel = fYtoPixelk + fYtoPixel*yworld
Double_t	fYtoPixelk
	Conversion coefficient for Y World to pixel.
Double_t	fYUpNDC

Static Protected Attributes
static Bool_t	fgAllSignalsBlocked = kFALSE
static Int_t	fgMaxPickDistance = 5
	Maximum Pick Distance.

Private Member Functions
	TSlider (const TSlider &)=delete
Bool_t	Collide (Int_t i, Int_t j, Int_t w, Int_t h)
void	CopyBackgroundPixmaps (TPad *stop, Int_t x, Int_t y)
void	DrawDist (Rectangle_t aBBox, Rectangle_t bBBox, char mode)
void	FillCollideGrid (TObject *o)
void	FillCollideGridTBox (TObject *o)
void	FillCollideGridTFrame (TObject *o)
void	FillCollideGridTGraph (TObject *o)
void	FillCollideGridTH1 (TObject *o)
void	LineNotFree (Int_t x1, Int_t x2, Int_t y1, Int_t y2)
TSlider &	operator= (const TSlider &)=delete

Static Private Member Functions
static void	AddToTObjectTable (TObject *)
	Private helper function which will dispatch to TObjectTable::AddObj.

Private Attributes
UInt_t	fBits
	bit field status word
TObject *	fTip {nullptr}
	! tool tip associated with box
UInt_t	fUniqueID
	object unique identifier

Static Private Attributes
static Longptr_t	fgDtorOnly = 0
	object for which to call dtor only (i.e. no delete)
static Bool_t	fgObjectStat = kTRUE
	if true keep track of objects in TObjectTable

Inheritance diagram for TSlider:

Member Enumeration Documentation

anonymous enum

anonymous enum

protectedinherited

Enumerator

kOnlyPrepStep

Used to request that the class specific implementation of TObject::Write just prepare the objects to be ready to be written but do not actually write them into the TBuffer. This is just for example by TBufferMerger to request that the TTree inside the file calls TTree::FlushBaskets (outside of the merging lock) and TBufferMerger will later ask for the write (inside the merging lock). To take advantage of this feature the class needs to overload TObject::Write and use this enum value accordingly. (See TTree::Write and TObject::Write) Do not use, this feature will be migrate to the Merge function (See TClass and TTree::Merge)

Definition at line 106 of file TObject.h.

anonymous enum

anonymous enum

inherited

Enumerator
kFraming	Frame is requested.
kHori	Pad is horizontal.
kClipFrame	Clip on frame.
kPrintingPS	PS Printing.
kCannotMove	Fixed position.
kClearAfterCR	Clear after CR.

Definition at line 152 of file TPad.h.

anonymous enum

anonymous enum

inherited

Enumerator
kSingleKey	write collection with single key
kOverwrite	overwrite existing object with same name
kWriteDelete	write object, then delete previous key with same name

Definition at line 99 of file TObject.h.

anonymous enum

anonymous enum

inherited

Enumerator
kIsOnHeap	object is on heap
kNotDeleted	object has not been deleted
kZombie	object ctor failed
kInconsistent	class overload Hash but does call RecursiveRemove in destructor
kBitMask

Definition at line 89 of file TObject.h.

EDeprecatedStatusBits

enum TObject::EDeprecatedStatusBits

inherited

Enumerator
kObjInCanvas	for backward compatibility only, use kMustCleanup

Definition at line 84 of file TObject.h.

EStatusBits

enum TObject::EStatusBits

inherited

Enumerator
kCanDelete	if object in a list can be deleted
kMustCleanup	if object destructor must call RecursiveRemove()
kIsReferenced	if object is referenced by a TRef or TRefArray
kHasUUID	if object has a TUUID (its fUniqueID=UUIDNumber)
kCannotPick	if object in a pad cannot be picked
kNoContextMenu	if object does not want context menu
kInvalidObject	if object ctor succeeded but object should not be used

Definition at line 70 of file TObject.h.

Constructor & Destructor Documentation

TSlider() [1/3]

TSlider::TSlider ( const TSlider & )

privatedelete

TSlider() [2/3]

TSlider::TSlider

(

)

slider default constructor.

Definition at line 106 of file TSlider.cxx.

TSlider() [3/3]

TSlider::TSlider	(	const char *	name,
		const char *	title,
		Double_t	x1,
		Double_t	y1,
		Double_t	x2,
		Double_t	y2,
		Color_t	color = 16,
		Short_t	bordersize = 2,
		Short_t	bordermode = -1 )

Slider normal constructor.

x1,y1,x2,y2 are in pad user coordinates

Definition at line 115 of file TSlider.cxx.

~TSlider()

TSlider::~TSlider ( )

override

slider default destructor.

Definition at line 145 of file TSlider.cxx.

Member Function Documentation

AbsCoordinates()

void TPad::AbsCoordinates ( Bool_t set )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 166 of file TPad.h.

AbsPixeltoX()

Double_t TPad::AbsPixeltoX ( Double_t px )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 167 of file TPad.h.

AbsPixeltoXY()

void TPad::AbsPixeltoXY ( Double_t xpixel, Double_t ypixel, Double_t & x, Double_t & y )

overridevirtualinherited

Implements TVirtualPad.

AbsPixeltoY()

Double_t TPad::AbsPixeltoY ( Double_t py )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 168 of file TPad.h.

AbstractMethod()

void TObject::AbstractMethod ( const char * method ) const

inherited

Call this function within a function that you don't want to define as purely virtual, in order not to force all users deriving from that class to implement that maybe (on their side) unused function; but at the same time, emit a run-time warning if they try to call it, telling that it is not implemented in the derived class: action must thus be taken on the user side to override it.

In other word, this method acts as a "runtime purely virtual" warning instead of a "compiler purely virtual" error.

Warning

This interface is a legacy function that is no longer recommended to be used by new development code.

Note

The name "AbstractMethod" does not imply that it's an abstract method in the strict C++ sense.

Definition at line 1149 of file TObject.cxx.

Add()

void TPad::Add ( TObject * obj, Option_t * opt = "", Bool_t modified = kTRUE )

overridevirtualinherited

Add an object to list of primitives with specified draw option When.

modified set to kTRUE (default) pad will be marked as modified

Let avoid usage of gPad when drawing object(s) in canvas or in subpads.

auto c1 = new TCanvas("c1","Canvas with subpoads", 600, 600);
c1->Divide(2,2);

for (Int_t n = 1; n <= 4; ++n) {
   auto h1 = new TH1I(TString::Format("hist_%d",n), "Random hist", 100, -5, 5);
   h1->FillRandom("gaus", 2000 + n*1000);
   c1->GetPad(n)->Add(h1);
}

Implements TVirtualPad.

Definition at line 419 of file TPad.cxx.

AddExec()

void TPad::AddExec ( const char * name, const char * command )

overridevirtualinherited

Add a new TExec object to the list of Execs.

When an event occurs in the pad (mouse click, etc) the list of C++ commands in the list of Execs are executed via TPad::AutoExec.

When a pad event occurs (mouse move, click, etc) all the commands contained in the fExecs list are executed in the order found in the list.

This facility is activated by default. It can be deactivated by using the canvas "Option" menu.

The following examples of TExec commands are provided in the tutorials: macros exec1.C and exec2.C.

Example1 of use of exec1.C

Root > TFile f("hsimple.root")
Root > hpx.Draw()
Root > c1.AddExec("ex1",".x exec1.C")

At this point you can use the mouse to click on the contour of the histogram hpx. When the mouse is clicked, the bin number and its contents are printed.

Example2 of use of exec1.C

Root > TFile f("hsimple.root")
Root > hpxpy.Draw()
Root > c1.AddExec("ex2",".x exec2.C")

When moving the mouse in the canvas, a second canvas shows the projection along X of the bin corresponding to the Y position of the mouse. The resulting histogram is fitted with a gaussian. A "dynamic" line shows the current bin position in Y. This more elaborated example can be used as a starting point to develop more powerful interactive applications exploiting the C++ interpreter as a development engine.

Implements TVirtualPad.

Definition at line 499 of file TPad.cxx.

AddFirst()

void TPad::AddFirst ( TObject * obj, Option_t * opt = "", Bool_t modified = kTRUE )

overridevirtualinherited

Add an object as first in list of primitives with specified draw option When.

modified set to kTRUE (default) pad will be marked as modified

Let avoid usage of gPad when drawing object(s) in canvas or in subpads.

Implements TVirtualPad.

Definition at line 440 of file TPad.cxx.

AddToTObjectTable()

void TObject::AddToTObjectTable ( TObject * op )

staticprivateinherited

Private helper function which will dispatch to TObjectTable::AddObj.

Included here to avoid circular dependency between header files.

Definition at line 195 of file TObject.cxx.

AppendPad()

void TObject::AppendPad ( Option_t * option = "" )

virtualinherited

Append graphics object to current pad.

In case no current pad is set yet, create a default canvas with the name "c1".

Definition at line 204 of file TObject.cxx.

AreAllSignalsBlocked()

Bool_t TQObject::AreAllSignalsBlocked ( )

staticinherited

Returns true if all signals are blocked.

Definition at line 1045 of file TQObject.cxx.

AreSignalsBlocked()

Bool_t TQObject::AreSignalsBlocked ( ) const

inlineinherited

Definition at line 91 of file TQObject.h.

AutoExec()

void TPad::AutoExec ( )

virtualinherited

Execute the list of Execs when a pad event occurs.

Definition at line 509 of file TPad.cxx.

BlockAllSignals()

Bool_t TQObject::BlockAllSignals ( Bool_t b )

staticinherited

Block or unblock all signals. Returns the previous block status.

Definition at line 1053 of file TQObject.cxx.

BlockSignals()

Bool_t TQObject::BlockSignals ( Bool_t b )

inlineinherited

Definition at line 92 of file TQObject.h.

Browse()

void TPad::Browse ( TBrowser * b )

overridevirtualinherited

Browse pad.

Reimplemented from TObject.

Definition at line 524 of file TPad.cxx.

BuildLegend()

TLegend * TPad::BuildLegend ( Double_t x1 = 0.3, Double_t y1 = 0.21, Double_t x2 = 0.3, Double_t y2 = 0.21, const char * title = "", Option_t * option = "" )

overridevirtualinherited

Build a legend from the graphical objects in the pad.

A simple method to build automatically a TLegend from the primitives in a TPad.

Only those deriving from TAttLine, TAttMarker and TAttFill are added, excluding TPave and TFrame derived classes.

Returns

The built TLegend

Parameters

[in]	x1,y1,x2,y2	The TLegend coordinates
[in]	title	The legend title. By default it is " "
[in]	option	The TLegend option

The caller program owns the returned TLegend.

If the pad contains some TMultiGraph or THStack the individual graphs or histograms in them are added to the TLegend.

Automatic placement of the legend

If x1 is equal to x2 and y1 is equal to y2 the legend will be automatically placed to avoid overlapping with the existing primitives already displayed. x1 is considered as the width of the legend and y1 the height. By default the legend is automatically placed with width = x1= x2 = 0.3 and height = y1= y2 = 0.21.

Implements TVirtualPad.

Definition at line 556 of file TPad.cxx.

cd()

TVirtualPad * TPad::cd ( Int_t subpadnumber = 0 )

overridevirtualinherited

Set Current pad.

When a canvas/pad is divided via TPad::Divide, one can directly set the current path to one of the subdivisions. See TPad::Divide for the convention to number sub-pads.

Returns the new current pad, or 0 in case of failure.

For example:

c1.Divide(2,3); // create 6 pads (2 divisions along x, 3 along y).

To set the current pad to the bottom right pad, do

c1.cd(6);

Note1: c1.cd() is equivalent to c1.cd(0) and sets the current pad to c1 itself.

Note2: after a statement like c1.cd(6), the global variable gPad points to the current pad. One can use gPad to set attributes of the current pad.

Note3: One can get a pointer to one of the sub-pads of pad with: TPad subpad = (TPad)pad->GetPad(subpadnumber);

Implements TVirtualPad.

Definition at line 694 of file TPad.cxx.

ChangedBy()

virtual void TQObject::ChangedBy ( const char * method )

inlinevirtualinherited

Definition at line 199 of file TQObject.h.

CheckConnectArgs()

Int_t TQObject::CheckConnectArgs ( TQObject * sender, TClass * sender_class, const char * signal, TClass * receiver_class, const char * slot )

staticprotectedinherited

Checking of consistency of sender/receiver methods/arguments.

Returns -1 on error, otherwise number or arguments of signal function. Static method.

Definition at line 175 of file TQObject.cxx.

CheckedHash()

ULong_t TObject::CheckedHash ( )

inlineinherited

Check and record whether this class has a consistent Hash/RecursiveRemove setup (*) and then return the regular Hash value for this object.

The intent is for this routine to be called instead of directly calling the function Hash during "insert" operations. See TObject::HasInconsistenTObjectHash();

(*) The setup is consistent when all classes in the class hierarchy that overload TObject::Hash do call ROOT::CallRecursiveRemoveIfNeeded in their destructor. i.e. it is safe to call the Hash virtual function during the RecursiveRemove operation.

Definition at line 332 of file TObject.h.

Class()

TClass * TSlider::Class ( )

static

Returns

TClass describing this class

Class_Name()

const char * TSlider::Class_Name ( )

static

Returns

Name of this class

Class_Version()

constexpr Version_t TSlider::Class_Version ( )

inlinestaticconstexpr

Returns

Version of this class

Definition at line 44 of file TSlider.h.

ClassName()

const char * TObject::ClassName ( ) const

virtualinherited

Returns name of class to which the object belongs.

Definition at line 227 of file TObject.cxx.

Clear()

void TPad::Clear ( Option_t * option = "" )

overridevirtualinherited

Delete all pad primitives.

If the bit kClearAfterCR has been set for this pad, the Clear function will execute only after having pressed a CarriageReturn Set the bit with mypad->SetBit(TPad::kClearAfterCR)

Implements TVirtualPad.

Definition at line 723 of file TPad.cxx.

Clip() [1/2]

Int_t TPad::Clip ( Double_t * x, Double_t * y, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt )

overridevirtualinherited

Clipping routine: Cohen Sutherland algorithm.

• If Clip ==2 the segment is outside the boundary.
• If Clip ==1 the segment has one point outside the boundary.
• If Clip ==0 the segment is inside the boundary.

Parameters

[in,out]	x[],y[]	Segment coordinates (2 points)
[in]	xclipl,yclipb,xclipr,yclipt	Clipping boundary

Implements TVirtualPad.

Definition at line 833 of file TPad.cxx.

Clip() [2/2]

Int_t TPad::Clip ( Float_t * x, Float_t * y, Float_t xclipl, Float_t yclipb, Float_t xclipr, Float_t yclipt )

virtualinherited

Clipping routine: Cohen Sutherland algorithm.

• If Clip ==2 the segment is outside the boundary.
• If Clip ==1 the segment has one point outside the boundary.
• If Clip ==0 the segment is inside the boundary.

Parameters

[in,out]	x[],y[]	Segment coordinates (2 points)
[in]	xclipl,yclipb,xclipr,yclipt	Clipping boundary

Definition at line 771 of file TPad.cxx.

ClippingCode()

Int_t TPad::ClippingCode ( Double_t x, Double_t y, Double_t xcl1, Double_t ycl1, Double_t xcl2, Double_t ycl2 )

virtualinherited

Compute the endpoint codes for TPad::Clip.

Definition at line 904 of file TPad.cxx.

ClipPolygon()

Int_t TPad::ClipPolygon ( Int_t n, Double_t * x, Double_t * y, Int_t nn, Double_t * xc, Double_t * yc, Double_t xclipl, Double_t yclipb, Double_t xclipr, Double_t yclipt )

virtualinherited

Clip polygon using the Sutherland-Hodgman algorithm.

Parameters

[in]	n	Number of points in the polygon to be clipped
[in]	x,y	Polygon x[n], y[n] do be clipped vertices
[in]	xclipl,yclipb,xclipr,yclipt	Clipping boundary
[out]	nn	Number of points in xc and yc
[out]	xc,yc	Clipped polygon vertices. The Int_t returned by this function is the number of points in the clipped polygon. These vectors must be allocated by the calling function. A size of 2*n for each is enough.

Sutherland and Hodgman's polygon-clipping algorithm uses a divide-and-conquer strategy: It solves a series of simple and identical problems that, when combined, solve the overall problem. The simple problem is to clip a polygon against a single infinite clip edge. Four clip edges, each defining one boundary of the clip rectangle, successively clip a polygon against a clip rectangle.

Steps of Sutherland-Hodgman's polygon-clipping algorithm:

• Polygons can be clipped against each edge of the window one at a time. Windows/edge intersections, if any, are easy to find since the X or Y coordinates are already known.
• Vertices which are kept after clipping against one window edge are saved for clipping against the remaining edges.
• Note that the number of vertices usually changes and will often increases.

The clip boundary determines a visible and invisible region. The edges from vertex i to vertex i+1 can be one of four types:

• Case 1 : Wholly inside visible region - save endpoint
• Case 2 : Exit visible region - save the intersection
• Case 3 : Wholly outside visible region - save nothing
• Case 4 : Enter visible region - save intersection and endpoint

Definition at line 953 of file TPad.cxx.

Clone()

TObject * TObject::Clone ( const char * newname = "" ) const

virtualinherited

Make a clone of an object using the Streamer facility.

If the object derives from TNamed, this function is called by TNamed::Clone. TNamed::Clone uses the optional argument to set a new name to the newly created object.

If the object class has a DirectoryAutoAdd function, it will be called at the end of the function with the parameter gDirectory. This usually means that the object will be appended to the current ROOT directory.

Reimplemented in RooAbsArg, RooAbsBinning, RooAbsCollection, RooAbsStudy, RooCatType, RooCmdArg, RooDataHist, RooDataSet, RooFitResult, RooLinkedList, RooStats::HypoTestResult, RooStats::ModelConfig, RooStudyPackage, RooTemplateProxy< T >, RooTemplateProxy< const RooHistFunc >, RooTemplateProxy< RooAbsCategory >, RooTemplateProxy< RooAbsPdf >, RooTemplateProxy< RooAbsReal >, RooTemplateProxy< RooAbsRealLValue >, RooTemplateProxy< RooMultiCategory >, RooTemplateProxy< RooRealVar >, RooWorkspace, TASImage, TChainIndex, TClass, TCollection, TF1, TFunction, TFunctionTemplate, TH1, TImage, TMethod, TMethodCall, TMinuit, TMVA::MinuitWrapper, TNamed, TStreamerInfo, and TTreeIndex.

Definition at line 243 of file TObject.cxx.

Close()

void TPad::Close ( Option_t * option = "" )

overridevirtualinherited

Delete all primitives in pad and pad itself.

Pad cannot be used anymore after this call. Emits signal "Closed()".

Implements TVirtualPad.

Definition at line 1084 of file TPad.cxx.

Closed()

virtual void TPad::Closed ( )

inlinevirtualinherited

Reimplemented in TCanvas.

Definition at line 183 of file TPad.h.

CloseToolTip()

void TPad::CloseToolTip ( TObject * tip )

overridevirtualinherited

Implements TVirtualPad.

CollectClassSignalLists()

void TQObject::CollectClassSignalLists ( TList & list, TClass * cls )

inherited

Collect class signal lists from class cls and all its base-classes.

The recursive traversal is not performed for classes not deriving from TQClass.

Definition at line 447 of file TQObject.cxx.

Collide()

Bool_t TPad::Collide ( Int_t i, Int_t j, Int_t w, Int_t h )

privateinherited

Compare()

Int_t TObject::Compare ( const TObject * obj ) const

virtualinherited

Compare abstract method.

Must be overridden if a class wants to be able to compare itself with other objects. Must return -1 if this is smaller than obj, 0 if objects are equal and 1 if this is larger than obj.

Reimplemented in RooAbsArg, RooDouble, TCollection, TEnvRec, TFileInfo, TGeoBranchArray, TGeoOverlap, TGFSFrameElement, TGLBFrameElement, TNamed, TObjString, TParameter< AParamType >, TParameter< Long64_t >, TStructNode, TStructNodeProperty, and TUrl.

Definition at line 258 of file TObject.cxx.

CompressName()

TString TQObject::CompressName ( const char * method_name )

staticprotectedinherited

Removes "const" words and blanks from full (with prototype) method name and resolve any typedefs in the method signature.

If a null or empty string is passed in, an empty string is returned.

Example:

CompressName(" Draw(const char *, const char *,
               Option_t * , Int_t , Int_t)");

returns the string "Draw(char*,char*,char*,int,int)".

Definition at line 94 of file TQObject.cxx.

Connect() [1/3]

Bool_t TQObject::Connect ( const char * class_name, const char * signal, const char * cl, void * receiver, const char * slot )

staticinherited

This method allows to make a connection from any object of the same class to a single slot.

Signal and slot string must have a form: "Draw(char*, Option_t* ,Int_t)" All blanks and "const" words will be removed,

cl != 0 - class name, it can be class with or without dictionary, e.g interpreted class. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect("TGButton", "Clicked()",
                  "TH2F", myHist, "Draw(Option_t*)");

cl == 0 - corresponds to function (interpereted or global) the name of the function is defined by the slot string, parameter receiver should be 0. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect("TGButton", "Clicked()",
                  0, 0, "hsimple()");

Warning:

If receiver class not derived from TQObject and going to be deleted, disconnect all connections to this receiver. In case of class derived from TQObject it is done automatically.

Definition at line 791 of file TQObject.cxx.

Connect() [2/3]

Bool_t TQObject::Connect ( const char * signal, const char * receiver_class, void * receiver, const char * slot )

inherited

Non-static method is used to connect from the signal of this object to the receiver slot.

Warning! No check on consistency of sender/receiver classes/methods.

This method makes possible to have connection/signals from interpreted class. See also RQ_OBJECT.h.

Definition at line 865 of file TQObject.cxx.

Connect() [3/3]

Bool_t TQObject::Connect ( TQObject * sender, const char * signal, const char * cl, void * receiver, const char * slot )

staticinherited

Create connection between sender and receiver.

Signal and slot string must have a form: "Draw(char*, Option_t* ,Int_t)" All blanks and "const" words will be removed,

cl != 0 - class name, it can be class with or without dictionary, e.g interpreted class. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect(myButton,"Clicked()",
                  "TH2F", myHist,"Draw(Option_t*)");

cl == 0 - corresponds to function (interpereted or global) the name of the function is defined by the slot string, parameter receiver should be 0. Example:

TGButton *myButton;
TH2F     *myHist;

TQObject::Connect(myButton,"Clicked()",
                  0, 0,"hsimple()");

Warning: If receiver is class not derived from TQObject and going to be deleted, disconnect all connections to this receiver. In case of class derived from TQObject it is done automatically.

Definition at line 699 of file TQObject.cxx.

Connected()

virtual void TQObject::Connected ( const char * )

inlinevirtualinherited

Definition at line 194 of file TQObject.h.

ConnectToClass() [1/2]

Bool_t TQObject::ConnectToClass ( const char * class_name, const char * signal, TClass * cl, void * receiver, const char * slot )

staticprotectedinherited

This method allows to make connection from any object of the same class to the receiver object.

Receiver class needs to have a dictionary.

Definition at line 615 of file TQObject.cxx.

ConnectToClass() [2/2]

Bool_t TQObject::ConnectToClass ( TQObject * sender, const char * signal, TClass * cl, void * receiver, const char * slot )

staticprotectedinherited

Create connection between sender and receiver.

Receiver class needs to have a dictionary.

Definition at line 559 of file TQObject.cxx.

Copy() [1/4]

void TAttFill::Copy ( TAttFill & attfill ) const

inherited

Copy() [2/4]

void TAttLine::Copy ( TAttLine & attline ) const

inherited

Copy() [3/4]

void TAttPad::Copy ( TAttPad & attpad ) const

virtualinherited

copy function

Definition at line 43 of file TAttPad.cxx.

Copy() [4/4]

void TObject::Copy ( TObject & object ) const

virtualinherited

Copy this to obj.

Reimplemented in ROOT::v5::TFormula, TArc, TArrow, TAxis3D, TAxis, TBox, TColor, TCrown, TDirectory, TDirectoryFile, TEllipse, TF12, TF1, TF1AbsComposition, TF1Convolution, TF1NormSum, TF2, TF3, TFile, TFolder, TFormula, TFrame, TGTextEdit, TGTextView, TH1, TH1C, TH1D, TH1F, TH1I, TH1L, TH1S, TH2, TH2C, TH2D, TH2F, TH2I, TH2L, TH2Poly, TH2S, TH3, TH3C, TH3D, TH3F, TH3I, TH3L, TH3S, THelix, TLatex, TLegend, TLegendEntry, TLine, TMarker, TMathText, TNamed, TPaletteAxis, TPave, TPaveClass, TPaveLabel, TPieSlice, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TProfile2D, TProfile3D, TProfile, TStyle, TSystemDirectory, TSystemFile, TText, TWbox, and TXTRU.

Definition at line 159 of file TObject.cxx.

CopyBackgroundPixmaps()

void TPad::CopyBackgroundPixmaps ( TPad * stop, Int_t x, Int_t y )

privateinherited

CopyPixmap()

void TPad::CopyPixmap ( )

overridevirtualinherited

Copy the pixmap of the pad to the canvas.

Implements TVirtualPad.

Definition at line 1143 of file TPad.cxx.

CopyPixmaps()

void TPad::CopyPixmaps ( )

overridevirtualinherited

Copy the sub-pixmaps of the pad to the canvas.

Implements TVirtualPad.

Definition at line 1156 of file TPad.cxx.

CreateToolTip()

TObject * TPad::CreateToolTip ( const TBox * b, const char * text, Long_t delayms )

overridevirtualinherited

Implements TVirtualPad.

DeclFileName()

const char * TSlider::DeclFileName ( )

inlinestatic

Returns

Name of the file containing the class declaration

Definition at line 44 of file TSlider.h.

Delete()

void TObject::Delete ( Option_t * option = "" )

virtualinherited

Delete this object.

Typically called as a command via the interpreter. Normally use "delete" operator when object has been allocated on the heap.

Reimplemented in RooLinkedList, TAxis, TBtree, TCanvas, TClonesArray, TCollection, TDirectory, TDirectoryFile, TExMap, TFile, TGFrame, TGItemContext, TGTextEdit, THashList, THashTable, TKey, TKeySQL, TKeyXML, TList, TListOfDataMembers, TListOfEnums, TListOfEnumsWithLock, TListOfFunctions, TListOfFunctionTemplates, TMap, TMVA::Results, TObjArray, TObjectTable, TOrdCollection, TProtoClass, TQCommand, TRefArray, TSystemDirectory, TSystemFile, TThread, TTree, TTreeViewer, TViewPubDataMembers, and TViewPubFunctions.

Definition at line 268 of file TObject.cxx.

DeleteExec()

void TPad::DeleteExec ( const char * name )

overridevirtualinherited

Remove TExec name from the list of Execs.

Implements TVirtualPad.

Definition at line 1175 of file TPad.cxx.

DeleteToolTip()

void TPad::DeleteToolTip ( TObject * tip )

overridevirtualinherited

Implements TVirtualPad.

Destroyed()

virtual void TQObject::Destroyed ( )

inlinevirtualinherited

Reimplemented in TQConnection.

Definition at line 197 of file TQObject.h.

DestroyExternalViewer3D()

void TPad::DestroyExternalViewer3D ( )

protectedinherited

Disconnect() [1/3]

Bool_t TQObject::Disconnect ( const char * class_name, const char * signal, void * receiver = nullptr, const char * slot = nullptr )

staticinherited

Disconnects "class signal".

The class is defined by class_name. See also Connect(class_name,signal,receiver,slot).

Definition at line 1004 of file TQObject.cxx.

Disconnect() [2/3]

Bool_t TQObject::Disconnect ( const char * signal = nullptr, void * receiver = nullptr, const char * slot = nullptr )

inherited

Disconnects signal of this object from slot of receiver.

Equivalent to Disconnect(this, signal, receiver, slot)

Definition at line 1023 of file TQObject.cxx.

Disconnect() [3/3]

Bool_t TQObject::Disconnect ( TQObject * sender, const char * signal = nullptr, void * receiver = nullptr, const char * slot = nullptr )

staticinherited

Disconnects signal in object sender from slot_method in object receiver.

For objects derived from TQObject signal-slot connection is removed when either of the objects involved are destroyed.

Disconnect() is typically used in three ways, as the following examples shows:

• Disconnect everything connected to an object's signals:

  Disconnect(myObject);

• Disconnect everything connected to a signal:

  Disconnect(myObject, "mySignal()");

• Disconnect a specific receiver:

  Disconnect(myObject, 0, myReceiver, 0);

0 may be used as a wildcard in three of the four arguments, meaning "any signal", "any receiving object" or "any slot in the receiving object", respectively.

The sender has no default and may never be 0 (you cannot disconnect signals from more than one object).

If signal is 0, it disconnects receiver and slot_method from any signal. If not, only the specified signal is disconnected.

If receiver is 0, it disconnects anything connected to signal. If not, slots in objects other than receiver are not disconnected

If slot_method is 0, it disconnects anything that is connected to receiver. If not, only slots named slot_method will be disconnected, and all other slots are left alone. The slot_method must be 0 if receiver is left out, so you cannot disconnect a specifically-named slot on all objects.

Definition at line 956 of file TQObject.cxx.

Disconnected()

virtual void TQObject::Disconnected ( const char * )

inlinevirtualinherited

Definition at line 195 of file TQObject.h.

DistancetoLine()

Int_t TAttLine::DistancetoLine ( Int_t px, Int_t py, Double_t xp1, Double_t yp1, Double_t xp2, Double_t yp2 )

inherited

DistancetoPrimitive()

Int_t TPad::DistancetoPrimitive ( Int_t px, Int_t py )

overrideprotectedvirtualinherited

Compute distance from point px,py to a box.

Compute the closest distance of approach from point px,py to the edges of this pad. The distance is computed in pixels units.

Reimplemented from TObject.

Definition at line 1191 of file TPad.cxx.

Divide()

void TPad::Divide ( Int_t nx = 1, Int_t ny = 1, Float_t xmargin = 0.01, Float_t ymargin = 0.01, Int_t color = 0 )

overridevirtualinherited

Automatic pad generation by division.

• The current canvas is divided in nx by ny equal divisions (pads).
• xmargin defines the horizontal spacing around each pad as a percentage of the canvas width. Therefore, the distance between two adjacent pads along the x-axis is equal to twice the xmargin value.
• ymargin defines the vertical spacing around each pad as a percentage of the canvas height. Therefore, the distance between two adjacent pads along the y-axis is equal to twice the ymargin value.
• color is the color of the new pads. If 0, color is the canvas color.

Pads are automatically named canvasname_n where n is the division number starting from top left pad.

Example if canvasname=c1 , nx=2, ny=3:

Once a pad is divided into sub-pads, one can set the current pad to a subpad with a given division number as illustrated above with TPad::cd(subpad_number).

For example, to set the current pad to c1_4, one can do:

c1->cd(4)

Note1: c1.cd() is equivalent to c1.cd(0) and sets the current pad to c1 itself.

Note2: after a statement like c1.cd(6), the global variable gPad points to the current pad. One can use gPad to set attributes of the current pad.

Note3: in case xmargin < 0 or ymargin < 0, there is no space between pads. The current pad margins are recomputed to optimize the layout in order to have similar frames' areas. See the following example:

void divpad(Int_t nx=3, Int_t ny=2) {
   gStyle->SetOptStat(0);
   auto C = new TCanvas();
   C->SetMargin(0.3, 0.3, 0.3, 0.3);
   C->Divide(nx,ny,-1);
   Int_t number = 0;
   auto h = new TH1F("","",100,-3.3,3.3);
   h->GetXaxis()->SetLabelFont(43);
   h->GetXaxis()->SetLabelSize(12);
   h->GetYaxis()->SetLabelFont(43);
   h->GetYaxis()->SetLabelSize(12);
   h->GetYaxis()->SetNdivisions(505);
   h->SetMaximum(30*nx*ny);
   h->SetFillColor(42);
   for (Int_t i=0;i<nx*ny;i++) {
      number++;
      C->cd(number);
      h->FillRandom("gaus",1000);
      h->DrawCopy();
   }
}

Implements TVirtualPad.

Definition at line 1295 of file TPad.cxx.

DivideRatios()

void TPad::DivideRatios ( Int_t nx, Int_t ny, const std::vector< double > & widthRatios = {}, const std::vector< double > & heightRatios = {}, const double canvasTopMargin = 0., const double canvasLeftMargin = 0. )

inherited

Divide the canvas according to ratios.

The current canvas is divided in nx by ny according to the width and height ratios. If the ratios are not specified they are assumed to be equal.

Pads are automatically named canvasname_n where n is the division number starting from top left pad.

Top and left margins can be defined.

Definition at line 1394 of file TPad.cxx.

DivideSquare()

void TPad::DivideSquare ( Int_t n, Float_t xmargin = 0.01, Float_t ymargin = 0.01, Int_t color = 0 )

virtualinherited

"n" is the total number of sub-pads.

The number of sub-pads along the X and Y axis are computed according to the square root of n.

Definition at line 1489 of file TPad.cxx.

DoError()

void TObject::DoError ( int level, const char * location, const char * fmt, va_list va ) const

protectedvirtualinherited

Interface to ErrorHandler (protected).

Reimplemented in TThread, and TTreeViewer.

Definition at line 1059 of file TObject.cxx.

Draw()

void TPad::Draw ( Option_t * option = "" )

overridevirtualinherited

Draw Pad in Current pad (re-parent pad if necessary).

Implements TVirtualPad.

Definition at line 1512 of file TPad.cxx.

DrawClass()

void TObject::DrawClass ( ) const

virtualinherited

Draw class inheritance tree of the class to which this object belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A. Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function. The following picture is the class inheritance tree of class TPaveLabel:

Reimplemented in TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 308 of file TObject.cxx.

DrawClassObject()

void TPad::DrawClassObject ( const TObject * classobj, Option_t * option = "" )

overridevirtualinherited

Draw class inheritance tree of the class to which obj belongs.

If a class B inherits from a class A, description of B is drawn on the right side of description of A.

Member functions overridden by B are shown in class A with a blue line crossing-out the corresponding member function.

Implements TVirtualPad.

Definition at line 1551 of file TPad.cxx.

DrawClone()

TObject * TObject::DrawClone ( Option_t * option = "" ) const

virtualinherited

Draw a clone of this object in the current selected pad with: gROOT->SetSelectedPad(c1).

If pad was not selected - gPad will be used.

Note

For histograms, use the more specialised TH1::DrawCopy().

Reimplemented in TAxis, TCanvas, TGFrame, TSystemDirectory, and TSystemFile.

Definition at line 319 of file TObject.cxx.

DrawCollideGrid()

void TPad::DrawCollideGrid ( )

inherited

DrawColorTable()

void TPad::DrawColorTable ( )

staticinherited

DrawCrosshair()

void TPad::DrawCrosshair ( )

virtualinherited

Function called to draw a crosshair in the canvas.

Example:

Root > TFile f("hsimple.root");
Root > hpxpy.Draw();
Root > c1.SetCrosshair();

When moving the mouse in the canvas, a crosshair is drawn

• if the canvas fCrosshair = 1 , the crosshair spans the full canvas
• if the canvas fCrosshair > 1 , the crosshair spans only the pad

Definition at line 1753 of file TPad.cxx.

DrawDist()

void TPad::DrawDist ( Rectangle_t aBBox, Rectangle_t bBBox, char mode )

privateinherited

DrawFrame()

TH1F * TPad::DrawFrame ( Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax, const char * title = "" )

overridevirtualinherited

Implements TVirtualPad.

Dump()

void TObject::Dump ( ) const

virtualinherited

Dump contents of object on stdout.

Using the information in the object dictionary (class TClass) each data member is interpreted. If a data member is a pointer, the pointer value is printed

The following output is the Dump of a TArrow object:

fAngle                   0           Arrow opening angle (degrees)
fArrowSize               0.2         Arrow Size
fOption.*fData
fX1                      0.1         X of 1st point
fY1                      0.15        Y of 1st point
fX2                      0.67        X of 2nd point
fY2                      0.83        Y of 2nd point
fUniqueID                0           object unique identifier
fBits                    50331648    bit field status word
fLineColor               1           line color
fLineStyle               1           line style
fLineWidth               1           line width
fFillColor               19          fill area color
fFillStyle               1001        fill area style

Reimplemented in TClass, TCollection, TGFrame, TGPack, and TSystemFile.

Definition at line 367 of file TObject.cxx.

Emit() [1/2]

void TQObject::Emit ( const char * signal )

inlineinherited

Activate signal without args.

Example: theButton->Emit("Clicked()");

Definition at line 174 of file TQObject.h.

Emit() [2/2]

template<typename T>

void TQObject::Emit ( const char * signal, const T & arg )

inlineinherited

Activate signal with single parameter.

Example:

theButton->Emit("Progress(Long64_t)",processed)

If we call Emit with an array of the parameters, they should be converted to Longptr_t type. Example:

TQObject *processor; // data processor
TH1F     *hist;      // filled with processor results

processor->Connect("Evaluated(Float_t,Float_t)",
                   "TH1F",hist,"Fill12(Axis_t,Axis_t)");

Longptr_t args[2];
args[0] = (Longptr_t)processor->GetValue(1);
args[1] = (Longptr_t)processor->GetValue(2);

processor->Emit("Evaluated(Float_t,Float_t)",args);

Definition at line 164 of file TQObject.h.

EmitVA()

template<typename... T>

void TQObject::EmitVA ( const char * signal_name, Int_t , const T &... params )

inlineinherited

Emit a signal with a varying number of arguments.

Definition at line 100 of file TQObject.h.

Error()

void TObject::Error ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue error message.

Use "location" to specify the method where the error occurred. Accepts standard printf formatting arguments.

Reimplemented in TFitResult.

Definition at line 1098 of file TObject.cxx.

EventPave()

virtual void TPad::EventPave ( )

inlinevirtualinherited

Definition at line 426 of file TPad.h.

Execute() [1/2]

void TObject::Execute ( const char * method, const char * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with the given parameter string, e.g.

"3.14,1,\"text\"".

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 378 of file TObject.cxx.

Execute() [2/2]

void TObject::Execute ( TMethod * method, TObjArray * params, Int_t * error = nullptr )

virtualinherited

Execute method on this object with parameters stored in the TObjArray.

The TObjArray should contain an argv vector like:

argv[0] ... argv[n] = the list of TObjString parameters

Reimplemented in ROOT::R::TRInterface, TCling, TContextMenu, TInterpreter, and TMethodCall.

Definition at line 398 of file TObject.cxx.

ExecuteEvent()

void TPad::ExecuteEvent ( Int_t event, Int_t px, Int_t py )

overrideprotectedvirtualinherited

Execute action corresponding to an event at (px,py).

This method must be overridden if an object can react to graphics events.

Reimplemented from TObject.

ExecuteEventAxis()

void TPad::ExecuteEventAxis ( Int_t event, Int_t px, Int_t py, TAxis * axis )

overridevirtualinherited

Implements TVirtualPad.

Fatal()

void TObject::Fatal ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue fatal error message.

Use "location" to specify the method where the fatal error occurred. Accepts standard printf formatting arguments.

Definition at line 1126 of file TObject.cxx.

FillCollideGrid()

void TPad::FillCollideGrid ( TObject * o )

privateinherited

FillCollideGridTBox()

void TPad::FillCollideGridTBox ( TObject * o )

privateinherited

FillCollideGridTFrame()

void TPad::FillCollideGridTFrame ( TObject * o )

privateinherited

FillCollideGridTGraph()

void TPad::FillCollideGridTGraph ( TObject * o )

privateinherited

FillCollideGridTH1()

void TPad::FillCollideGridTH1 ( TObject * o )

privateinherited

FindObject() [1/2]

TObject * TPad::FindObject ( const char * name ) const

overridevirtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object by name inside this object.

Reimplemented from TObject.

FindObject() [2/2]

TObject * TPad::FindObject ( const TObject * obj ) const

overridevirtualinherited

Must be redefined in derived classes.

This function is typically used with TCollections, but can also be used to find an object inside this object.

Reimplemented from TObject.

GetAbsHNDC()

Double_t TPad::GetAbsHNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 225 of file TPad.h.

GetAbsWNDC()

Double_t TPad::GetAbsWNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 224 of file TPad.h.

GetAbsXlowNDC()

Double_t TPad::GetAbsXlowNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 222 of file TPad.h.

GetAbsYlowNDC()

Double_t TPad::GetAbsYlowNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 223 of file TPad.h.

GetAfile()

Float_t TAttPad::GetAfile ( ) const

inlineinherited

Definition at line 47 of file TAttPad.h.

GetAspectRatio()

Double_t TPad::GetAspectRatio ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 226 of file TPad.h.

GetAstat()

Float_t TAttPad::GetAstat ( ) const

inlineinherited

Definition at line 50 of file TAttPad.h.

GetBBox()

Rectangle_t TPad::GetBBox ( )

overridevirtualinherited

Implements TAttBBox2D.

GetBBoxCenter()

TPoint TPad::GetBBoxCenter ( )

overridevirtualinherited

Reimplemented from TAttBBox2D.

GetBorderMode()

Short_t TPad::GetBorderMode ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 199 of file TPad.h.

GetBorderSize()

Short_t TPad::GetBorderSize ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 200 of file TPad.h.

GetBottomMargin()

Float_t TAttPad::GetBottomMargin ( ) const

inlineinherited

Definition at line 43 of file TAttPad.h.

GetCanvas()

TCanvas * TPad::GetCanvas ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 264 of file TPad.h.

GetCanvasID()

Int_t TPad::GetCanvasID ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetCanvasImp()

TCanvasImp * TPad::GetCanvasImp ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetCrosshair()

Int_t TPad::GetCrosshair ( ) const

inherited

GetDrawOption()

Option_t * TObject::GetDrawOption ( ) const

virtualinherited

Get option used by the graphics system to draw this object.

Note that before calling object.GetDrawOption(), you must have called object.Draw(..) before in the current pad.

Reimplemented in TBrowser, TFitEditor, TGedFrame, TGFileBrowser, TRootBrowser, and TRootBrowserLite.

Definition at line 445 of file TObject.cxx.

GetDtorOnly()

Longptr_t TObject::GetDtorOnly ( )

staticinherited

Return destructor only flag.

Definition at line 1196 of file TObject.cxx.

GetEvent()

Int_t TPad::GetEvent ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetEventX()

Int_t TPad::GetEventX ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetEventY()

Int_t TPad::GetEventY ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetFillColor()

virtual Color_t TAttFill::GetFillColor ( ) const

inlinevirtualinherited

Return the fill area color.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 32 of file TAttFill.h.

GetFillStyle()

virtual Style_t TAttFill::GetFillStyle ( ) const

inlinevirtualinherited

Return the fill area style.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 33 of file TAttFill.h.

GetFrame()

TFrame * TPad::GetFrame ( )

overridevirtualinherited

Implements TVirtualPad.

GetFrameBorderMode()

Int_t TAttPad::GetFrameBorderMode ( ) const

inlineinherited

Definition at line 59 of file TAttPad.h.

GetFrameBorderSize()

Width_t TAttPad::GetFrameBorderSize ( ) const

inlineinherited

Definition at line 58 of file TAttPad.h.

GetFrameFillColor()

Color_t TAttPad::GetFrameFillColor ( ) const

inlineinherited

Definition at line 53 of file TAttPad.h.

GetFrameFillStyle()

Style_t TAttPad::GetFrameFillStyle ( ) const

inlineinherited

Definition at line 55 of file TAttPad.h.

GetFrameLineColor()

Color_t TAttPad::GetFrameLineColor ( ) const

inlineinherited

Definition at line 54 of file TAttPad.h.

GetFrameLineStyle()

Style_t TAttPad::GetFrameLineStyle ( ) const

inlineinherited

Definition at line 56 of file TAttPad.h.

GetFrameLineWidth()

Width_t TAttPad::GetFrameLineWidth ( ) const

inlineinherited

Definition at line 57 of file TAttPad.h.

GetGLDevice()

Int_t TPad::GetGLDevice ( )

overridevirtualinherited

Implements TVirtualPad.

GetGridx()

Bool_t TPad::GetGridx ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 237 of file TPad.h.

GetGridy()

Bool_t TPad::GetGridy ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 238 of file TPad.h.

GetHighLightColor()

Color_t TPad::GetHighLightColor ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetHNDC()

Double_t TPad::GetHNDC ( ) const

inlineoverridevirtualinherited

Get height of pad along Y in Normalized Coordinates (NDC).

Implements TVirtualPad.

Definition at line 217 of file TPad.h.

GetIconName()

const char * TObject::GetIconName ( ) const

virtualinherited

Returns mime type name of object.

Used by the TBrowser (via TGMimeTypes class). Override for class of which you would like to have different icons for objects of the same class.

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TASImage, TBranch, TBranchElement, TGeoVolume, TGMainFrame, TKey, TMethodBrowsable, TSystemFile, and TVirtualBranchBrowsable.

Definition at line 472 of file TObject.cxx.

GetLeftMargin()

Float_t TAttPad::GetLeftMargin ( ) const

inlineinherited

Definition at line 44 of file TAttPad.h.

GetLineColor()

virtual Color_t TAttLine::GetLineColor ( ) const

inlinevirtualinherited

Return the line color.

Reimplemented in TGraphMultiErrors, and TGWin32VirtualXProxy.

Definition at line 36 of file TAttLine.h.

GetLineStyle()

virtual Style_t TAttLine::GetLineStyle ( ) const

inlinevirtualinherited

Return the line style.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 37 of file TAttLine.h.

GetLineWidth()

virtual Width_t TAttLine::GetLineWidth ( ) const

inlinevirtualinherited

Return the line width.

Reimplemented in TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, and TGX11.

Definition at line 38 of file TAttLine.h.

GetListOfClassSignals()

TList * TQObject::GetListOfClassSignals ( ) const

inherited

Returns pointer to list of signals of this class.

Definition at line 431 of file TQObject.cxx.

GetListOfConnections()

TList * TQObject::GetListOfConnections ( ) const

inlineinherited

Definition at line 89 of file TQObject.h.

GetListOfExecs()

TList * TPad::GetListOfExecs ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 248 of file TPad.h.

GetListOfPrimitives()

TList * TPad::GetListOfPrimitives ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 247 of file TPad.h.

GetListOfSignals()

TList * TQObject::GetListOfSignals ( ) const

inlineinherited

Definition at line 88 of file TQObject.h.

GetLogx()

Int_t TPad::GetLogx ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 258 of file TPad.h.

GetLogy()

Int_t TPad::GetLogy ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 259 of file TPad.h.

GetLogz()

Int_t TPad::GetLogz ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 260 of file TPad.h.

GetMaximum()

Double_t TSlider::GetMaximum ( ) const

inline

Definition at line 35 of file TSlider.h.

GetMaxPickDistance()

Int_t TPad::GetMaxPickDistance ( )

staticinherited

GetMethod()

virtual const char * TSlider::GetMethod ( ) const

inlinevirtual

Definition at line 36 of file TSlider.h.

GetMinimum()

Double_t TSlider::GetMinimum ( ) const

inline

Definition at line 34 of file TSlider.h.

GetMother()

TVirtualPad * TPad::GetMother ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 261 of file TPad.h.

GetName()

const char * TPad::GetName ( ) const

inlineoverridevirtualinherited

Returns name of object.

This default method returns the class name. Classes that give objects a name should override this method.

Implements TVirtualPad.

Definition at line 262 of file TPad.h.

GetNumber()

Int_t TPad::GetNumber ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 239 of file TPad.h.

GetObject()

TObject * TSlider::GetObject ( ) const

inline

Definition at line 33 of file TSlider.h.

GetObjectInfo()

char * TObject::GetObjectInfo ( Int_t px, Int_t py ) const

virtualinherited

Returns string containing info about the object at position (px,py).

This method is typically overridden by classes of which the objects can report peculiarities for different positions. Returned string will be re-used (lock in MT environment).

Reimplemented in TASImage, TAxis3D, TColorWheel, TF1, TF2, TFileDrawMap, TGeoNode, TGeoTrack, TGeoVolume, TGL5DDataSet, TGLHistPainter, TGLParametricEquation, TGLTH3Composition, TGraph, TH1, THistPainter, TNode, TPaletteAxis, TParallelCoordVar, and TVirtualHistPainter.

Definition at line 491 of file TObject.cxx.

GetObjectStat()

Bool_t TObject::GetObjectStat ( )

staticinherited

Get status of object stat flag.

Definition at line 1181 of file TObject.cxx.

GetOption()

virtual Option_t * TObject::GetOption ( ) const

inlinevirtualinherited

Reimplemented in TArrow, TAxis3D, TFile, TGaxis, TGeoVolume, TH1, THelix, TLegendEntry, TMapFile, TNode, TPave, TPoints3DABC, TPolyLine3D, TPolyLine, TPolyMarker3D, TPolyMarker, TPSocket, TSelector, TSocket, and TUDPSocket.

Definition at line 147 of file TObject.h.

GetPad()

TVirtualPad * TPad::GetPad ( Int_t subpadnumber ) const

overridevirtualinherited

Implements TVirtualPad.

GetPadHeight()

UInt_t TPad::GetPadHeight ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetPadPaint()

Int_t TPad::GetPadPaint ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 267 of file TPad.h.

GetPadPar()

void TPad::GetPadPar ( Double_t & xlow, Double_t & ylow, Double_t & xup, Double_t & yup )

overridevirtualinherited

Implements TVirtualPad.

GetPadPointer()

TObject * TPad::GetPadPointer ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 252 of file TPad.h.

GetPadSave()

TVirtualPad * TPad::GetPadSave ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetPadWidth()

UInt_t TPad::GetPadWidth ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetPainter()

TVirtualPadPainter * TPad::GetPainter ( )

overridevirtualinherited

Implements TVirtualPad.

GetPhi()

Double_t TPad::GetPhi ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 227 of file TPad.h.

GetPixmapID()

Int_t TPad::GetPixmapID ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 268 of file TPad.h.

GetPrimitive()

TObject * TPad::GetPrimitive ( const char * name ) const

overridevirtualinherited

Implements TVirtualPad.

GetRange()

void TPad::GetRange ( Double_t & x1, Double_t & y1, Double_t & x2, Double_t & y2 )

overridevirtualinherited

Implements TVirtualPad.

GetRangeAxis()

void TPad::GetRangeAxis ( Double_t & xmin, Double_t & ymin, Double_t & xmax, Double_t & ymax )

overridevirtualinherited

Implements TVirtualPad.

GetRightMargin()

Float_t TAttPad::GetRightMargin ( ) const

inlineinherited

Definition at line 45 of file TAttPad.h.

GetSelected()

TObject * TPad::GetSelected ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetSelectedPad()

TVirtualPad * TPad::GetSelectedPad ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetSender()

void * TVirtualPad::GetSender ( )

inlineoverrideprotectedvirtualinherited

Reimplemented from TQObject.

Definition at line 56 of file TVirtualPad.h.

GetSenderClassName()

virtual const char * TQObject::GetSenderClassName ( ) const

inlineprotectedvirtualinherited

Reimplemented in TQObjSender.

Definition at line 58 of file TQObject.h.

GetTheta()

Double_t TPad::GetTheta ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 228 of file TPad.h.

GetTickx()

Int_t TPad::GetTickx ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 240 of file TPad.h.

GetTicky()

Int_t TPad::GetTicky ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 241 of file TPad.h.

GetTitle()

const char * TPad::GetTitle ( ) const

inlineoverridevirtualinherited

Returns title of object.

This default method returns the class title (i.e. description). Classes that give objects a title should override this method.

Implements TVirtualPad.

Definition at line 263 of file TPad.h.

GetTopMargin()

Float_t TAttPad::GetTopMargin ( ) const

inlineinherited

Definition at line 46 of file TAttPad.h.

GetUniqueID()

UInt_t TObject::GetUniqueID ( ) const

virtualinherited

Return the unique object id.

Definition at line 480 of file TObject.cxx.

GetUxmax()

Double_t TPad::GetUxmax ( ) const

inlineoverridevirtualinherited

Returns the maximum x-coordinate value visible on the pad. If log axis the returned value is in decades.

Implements TVirtualPad.

Definition at line 234 of file TPad.h.

GetUxmin()

Double_t TPad::GetUxmin ( ) const

inlineoverridevirtualinherited

Returns the minimum x-coordinate value visible on the pad. If log axis the returned value is in decades.

Implements TVirtualPad.

Definition at line 230 of file TPad.h.

GetUymax()

Double_t TPad::GetUymax ( ) const

inlineoverridevirtualinherited

Returns the maximum y-coordinate value visible on the pad. If log axis the returned value is in decades.

Implements TVirtualPad.

Definition at line 236 of file TPad.h.

GetUymin()

Double_t TPad::GetUymin ( ) const

inlineoverridevirtualinherited

Returns the minimum y-coordinate value visible on the pad. If log axis the returned value is in decades.

Implements TVirtualPad.

Definition at line 232 of file TPad.h.

GetView()

TView * TPad::GetView ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 256 of file TPad.h.

GetView3D()

TObject * TPad::GetView3D ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 257 of file TPad.h.

GetViewer3D()

TVirtualViewer3D * TPad::GetViewer3D ( Option_t * type = "" )

overridevirtualinherited

Implements TVirtualPad.

GetVirtCanvas()

TVirtualPad * TPad::GetVirtCanvas ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetWh()

UInt_t TPad::GetWh ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetWNDC()

Double_t TPad::GetWNDC ( ) const

inlineoverridevirtualinherited

Get width of pad along X in Normalized Coordinates (NDC).

Implements TVirtualPad.

Definition at line 215 of file TPad.h.

GetWw()

UInt_t TPad::GetWw ( ) const

overridevirtualinherited

Implements TVirtualPad.

GetX1()

Double_t TPad::GetX1 ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 242 of file TPad.h.

GetX2()

Double_t TPad::GetX2 ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 243 of file TPad.h.

GetXCoord()

Double_t TAttBBox2D::GetXCoord ( const Int_t x, Bool_t is_ndc = kFALSE )

protectedinherited

Definition at line 60 of file TAttBBox2D.cxx.

GetXfile()

Float_t TAttPad::GetXfile ( ) const

inlineinherited

Definition at line 48 of file TAttPad.h.

GetXlowNDC()

Double_t TPad::GetXlowNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 212 of file TPad.h.

GetXstat()

Float_t TAttPad::GetXstat ( ) const

inlineinherited

Definition at line 51 of file TAttPad.h.

GetY1()

Double_t TPad::GetY1 ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 244 of file TPad.h.

GetY2()

Double_t TPad::GetY2 ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 245 of file TPad.h.

GetYCoord()

Double_t TAttBBox2D::GetYCoord ( const Int_t y, Bool_t is_ndc = kFALSE )

protectedinherited

Definition at line 76 of file TAttBBox2D.cxx.

GetYfile()

Float_t TAttPad::GetYfile ( ) const

inlineinherited

Definition at line 49 of file TAttPad.h.

GetYlowNDC()

Double_t TPad::GetYlowNDC ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 213 of file TPad.h.

GetYstat()

Float_t TAttPad::GetYstat ( ) const

inlineinherited

Definition at line 52 of file TAttPad.h.

HandleTimer()

Bool_t TObject::HandleTimer ( TTimer * timer )

virtualinherited

Execute action in response of a timer timing out.

This method must be overridden if an object has to react to timers.

Reimplemented in TGCommandPlugin, TGDNDManager, TGFileContainer, TGHtml, TGLEventHandler, TGPopupMenu, TGraphTime, TGScrollBar, TGShutter, TGTextEdit, TGTextEditor, TGTextEntry, TGTextView, TGToolTip, TGuiBldDragManager, TGWindow, and TTreeViewer.

Definition at line 516 of file TObject.cxx.

HasConnection()

Bool_t TQObject::HasConnection ( const char * signal_name ) const

virtualinherited

Return true if there is any object connected to this signal.

Only checks for object signals.

Definition at line 523 of file TQObject.cxx.

HasCrosshair()

Bool_t TPad::HasCrosshair ( ) const

overridevirtualinherited

Implements TVirtualPad.

HasFixedAspectRatio()

Bool_t TPad::HasFixedAspectRatio ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 272 of file TPad.h.

Hash()

ULong_t TPad::Hash ( ) const

inlineoverridevirtualinherited

Return hash value for this object.

Note: If this routine is overloaded in a derived class, this derived class should also add

ROOT::CallRecursiveRemoveIfNeeded(*this)

Otherwise, when RecursiveRemove is called (by ~TObject or example) for this type of object, the transversal of THashList and THashTable containers will will have to be done without call Hash (and hence be linear rather than logarithmic complexity). You will also see warnings like

Error in <ROOT::Internal::TCheckHashRecursiveRemoveConsistency::CheckRecursiveRemove>: The class SomeName overrides
TObject::Hash but does not call TROOT::RecursiveRemove in its destructor.

Reimplemented from TObject.

Definition at line 269 of file TPad.h.

HasInconsistentHash()

Bool_t TObject::HasInconsistentHash ( ) const

inlineinherited

Return true is the type of this object is known to have an inconsistent setup for Hash and RecursiveRemove (i.e.

missing call to RecursiveRemove in destructor).

Note: Since the consistency is only tested for during inserts, this routine will return true for object that have never been inserted whether or not they have a consistent setup. This has no negative side-effect as searching for the object with the right or wrong Hash will always yield a not-found answer (Since anyway no hash can be guaranteed unique, there is always a check)

Definition at line 366 of file TObject.h.

HasViewer3D()

Bool_t TPad::HasViewer3D ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 411 of file TPad.h.

HideToolTip()

virtual void TPad::HideToolTip ( Int_t event )

protectedvirtualinherited

HighLight()

void TPad::HighLight ( Color_t col = kRed, Bool_t set = kTRUE )

overridevirtualinherited

Implements TVirtualPad.

HighPriority()

void TQObject::HighPriority ( const char * signal_name, const char * slot_name = nullptr )

virtualinherited

1. If slot_name = 0 => makes signal defined by the signal_name to be the first in the fListOfSignals, this decreases the time for lookup.
2. If slot_name != 0 => makes slot defined by the slot_name to be executed first when signal_name is emitted. Signal name is not compressed.

Definition at line 473 of file TQObject.cxx.

HtoAbsPixel()

Int_t TPad::HtoAbsPixel ( Double_t y1, Double_t y2 ) const

overridevirtualinherited

Implements TVirtualPad.

IncrementPaletteColor()

Int_t TPad::IncrementPaletteColor ( Int_t i, TString opt )

overridevirtualinherited

Implements TVirtualPad.

Info()

void TObject::Info ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue info message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1072 of file TObject.cxx.

InheritsFrom() [1/2]

Bool_t TObject::InheritsFrom ( const char * classname ) const

virtualinherited

Returns kTRUE if object inherits from class "classname".

Reimplemented in TClass.

Definition at line 549 of file TObject.cxx.

InheritsFrom() [2/2]

Bool_t TObject::InheritsFrom ( const TClass * cl ) const

virtualinherited

Returns kTRUE if object inherits from TClass cl.

Reimplemented in TClass.

Definition at line 557 of file TObject.cxx.

Inspect()

void TObject::Inspect ( ) const

virtualinherited

Dump contents of this object in a graphics canvas.

Same action as Dump but in a graphical form. In addition pointers to other objects can be followed.

The following picture is the Inspect of a histogram object:

Reimplemented in ROOT::Experimental::XRooFit::xRooNode, TGFrame, TInspectorObject, and TSystemFile.

Definition at line 570 of file TObject.cxx.

InvertBit()

void TObject::InvertBit ( UInt_t f )

inlineinherited

Definition at line 206 of file TObject.h.

IsA()

TClass * TSlider::IsA ( ) const

inlineoverridevirtual

Returns

TClass describing current object

Reimplemented from TPad.

Definition at line 44 of file TSlider.h.

IsBatch()

Bool_t TPad::IsBatch ( ) const

overridevirtualinherited

Implements TVirtualPad.

IsBeingResized()

Bool_t TVirtualPad::IsBeingResized ( ) const

inlineinherited

Definition at line 164 of file TVirtualPad.h.

IsDestructed()

Bool_t TObject::IsDestructed ( ) const

inlineinherited

IsDestructed.

Note

This function must be non-virtual as it can be used on destructed (but not yet modified) memory. This is used for example in TClonesArray to record the element that have been destructed but not deleted and thus are ready for re-use (by operator new with placement).

Returns

true if this object's destructor has been run.

Definition at line 186 of file TObject.h.

IsEditable()

Bool_t TPad::IsEditable ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 274 of file TPad.h.

IsEqual()

Bool_t TObject::IsEqual ( const TObject * obj ) const

virtualinherited

Default equal comparison (objects are equal if they have the same address in memory).

More complicated classes might want to override this function.

Reimplemented in TGObject, TObjString, TPair, and TQCommand.

Definition at line 589 of file TObject.cxx.

IsFolder()

Bool_t TPad::IsFolder ( ) const

inlineoverridevirtualinherited

Returns kTRUE in case object contains browsable objects (like containers or lists of other objects).

Reimplemented from TObject.

Definition at line 275 of file TPad.h.

IsModified()

Bool_t TPad::IsModified ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 276 of file TPad.h.

IsOnHeap()

Bool_t TObject::IsOnHeap ( ) const

inlineinherited

Definition at line 160 of file TObject.h.

IsRetained()

Bool_t TPad::IsRetained ( ) const

overridevirtualinherited

Implements TVirtualPad.

IsSortable()

virtual Bool_t TObject::IsSortable ( ) const

inlinevirtualinherited

Reimplemented in RooAbsArg, RooDouble, TCollection, TFileInfo, TGeoBranchArray, TGeoOverlap, TGFSFrameElement, TGLBFrameElement, TNamed, TObjString, TParameter< AParamType >, TParameter< Long64_t >, TPave, TStructNode, TStructNodeProperty, TUri, and TUrl.

Definition at line 158 of file TObject.h.

IsTransparent()

Bool_t TAttFill::IsTransparent ( ) const

inlinevirtualinherited

Reimplemented in TGWin32VirtualXProxy.

Definition at line 49 of file TAttFill.h.

IsVertical()

Bool_t TPad::IsVertical ( ) const

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 278 of file TPad.h.

IsWeb()

Bool_t TPad::IsWeb ( ) const

overridevirtualinherited

Reimplemented from TVirtualPad.

IsZombie()

Bool_t TObject::IsZombie ( ) const

inlineinherited

Definition at line 161 of file TObject.h.

LineNotFree()

void TPad::LineNotFree ( Int_t x1, Int_t x2, Int_t y1, Int_t y2 )

privateinherited

LowPriority()

void TQObject::LowPriority ( const char * signal_name, const char * slot_name = nullptr )

virtualinherited

1. If slot_name = 0 => makes signal defined by the signal_name to be the last in the fListOfSignals, this increase the time for lookup.
2. If slot_name != 0 => makes slot defined by the slot_name to be executed last when signal_name is emitted. Signal name is not compressed.

Definition at line 500 of file TQObject.cxx.

ls()

void TPad::ls ( Option_t * option = "" ) const

overridevirtualinherited

The ls function lists the contents of a class on stdout.

Ls output is typically much less verbose then Dump().

Implements TVirtualPad.

MakeZombie()

void TObject::MakeZombie ( )

inlineprotectedinherited

Definition at line 55 of file TObject.h.

MayNotUse()

void TObject::MayNotUse ( const char * method ) const

inherited

Use this method to signal that a method (defined in a base class) may not be called in a derived class (in principle against good design since a child class should not provide less functionality than its parent, however, sometimes it is necessary).

Definition at line 1160 of file TObject.cxx.

Message()

virtual void TQObject::Message ( const char * msg )

inlinevirtualinherited

Reimplemented in TTreeViewer.

Definition at line 201 of file TQObject.h.

Modified()

void TPad::Modified ( Bool_t flag = true )

overridevirtualinherited

Implements TVirtualPad.

ModifiedUpdate()

void TPad::ModifiedUpdate ( )

overridevirtualinherited

Implements TVirtualPad.

Modify() [1/2]

virtual void TAttFill::Modify ( )

virtualinherited

Modify() [2/2]

virtual void TAttLine::Modify ( )

virtualinherited

ModifyOn() [1/2]

virtual void TAttFill::ModifyOn ( TVirtualPad & pad )

virtualinherited

ModifyOn() [2/2]

virtual void TAttLine::ModifyOn ( TVirtualPad & pad )

virtualinherited

NextPaletteColor()

Int_t TPad::NextPaletteColor ( )

overridevirtualinherited

Implements TVirtualPad.

Notify()

Bool_t TObject::Notify ( )

virtualinherited

This method must be overridden to handle object notification (the base implementation is no-op).

Different objects in ROOT use the Notify method for different purposes, in coordination with other objects that call this method at the appropriate time.

For example, TLeaf uses it to load class information; TBranchRef to load contents of referenced branches TBranchRef; most notably, based on Notify, TChain implements a callback mechanism to inform interested parties when it switches to a new sub-tree.

Reimplemented in h1analysis, h1analysisTreeReader, TARInterruptHandler, TASInputHandler, TASInterruptHandler, TASLogHandler, TASSigPipeHandler, TBlinkTimer, TBranchElement, TBranchRef, TBreakLineCom, TBrowserTimer, TCollection, TDelCharCom, TDelTextCom, TFileHandler, TGContainerKeyboardTimer, TGContainerScrollTimer, TGInputHandler, TGLRedrawTimer, TGTextEditHist, TGuiBldDragManagerRepeatTimer, TIdleTimer, TInsCharCom, TInsTextCom, TInterruptHandler, TLeafObject, TMessageHandler, TNotifyLink< Type >, TNotifyLink< RNoCleanupNotifierHelper >, TNotifyLink< ROOT::Detail::TBranchProxy >, TNotifyLink< TTreeReader >, TPopupDelayTimer, TProcessEventTimer, TRefTable, TRepeatTimer, TSBRepeatTimer, TSelector, TSelectorDraw, TSelectorEntries, TSignalHandler, TSingleShotCleaner, TSocketHandler, TStdExceptionHandler, TSysEvtHandler, TTermInputHandler, TThreadTimer, TTimeOutTimer, TTimer, TTipDelayTimer, TTree, TTreeFormula, TTreeFormulaManager, TTreeReader, TViewTimer, and TViewUpdateTimer.

Definition at line 618 of file TObject.cxx.

NumberOfConnections()

Int_t TQObject::NumberOfConnections ( ) const

virtualinherited

Return number of connections for this object.

Definition at line 547 of file TQObject.cxx.

NumberOfSignals()

Int_t TQObject::NumberOfSignals ( ) const

virtualinherited

Return number of signals for this object.

Only checks for object signals.

Definition at line 537 of file TQObject.cxx.

Obsolete()

void TObject::Obsolete ( const char * method, const char * asOfVers, const char * removedFromVers ) const

inherited

Use this method to declare a method obsolete.

Specify as of which version the method is obsolete and as from which version it will be removed.

Definition at line 1169 of file TObject.cxx.

OpaqueMoving()

Bool_t TPad::OpaqueMoving ( ) const

overridevirtualinherited

Implements TVirtualPad.

OpaqueResizing()

Bool_t TPad::OpaqueResizing ( ) const

overridevirtualinherited

Implements TVirtualPad.

operator delete() [1/3]

void TObject::operator delete ( void * ptr, size_t size )

inherited

Operator delete for sized deallocation.

Definition at line 1234 of file TObject.cxx.

operator delete() [2/3]

void TObject::operator delete ( void * ptr )

inherited

Operator delete.

Definition at line 1212 of file TObject.cxx.

operator delete() [3/3]

void TObject::operator delete ( void * ptr, void * vp )

inherited

Only called by placement new when throwing an exception.

Definition at line 1266 of file TObject.cxx.

operator delete[]() [1/3]

void TObject::operator delete[] ( void * ptr, size_t size )

inherited

Operator delete [] for sized deallocation.

Definition at line 1245 of file TObject.cxx.

operator delete[]() [2/3]

void TObject::operator delete[] ( void * ptr )

inherited

Operator delete [].

Definition at line 1223 of file TObject.cxx.

operator delete[]() [3/3]

void TObject::operator delete[] ( void * ptr, void * vp )

inherited

Only called by placement new[] when throwing an exception.

Definition at line 1274 of file TObject.cxx.

operator new() [1/2]

void * TObject::operator new ( size_t sz )

inlineinherited

Definition at line 189 of file TObject.h.

operator new() [2/2]

void * TObject::operator new ( size_t sz, void * vp )

inlineinherited

Definition at line 191 of file TObject.h.

operator new[]() [1/2]

void * TObject::operator new[] ( size_t sz )

inlineinherited

Definition at line 190 of file TObject.h.

operator new[]() [2/2]

void * TObject::operator new[] ( size_t sz, void * vp )

inlineinherited

Definition at line 192 of file TObject.h.

operator=()

TSlider & TSlider::operator= ( const TSlider & )

privatedelete

Pad()

TVirtualPad *& TVirtualPad::Pad ( )

staticinherited

Return the current pad for the current thread.

Definition at line 83 of file TVirtualPad.cxx.

PadInHighlightMode()

Bool_t TVirtualPad::PadInHighlightMode ( ) const

virtualinherited

Should always return false, unless you can highlight selected object in pad.

Definition at line 156 of file TVirtualPad.cxx.

PadInSelectionMode()

Bool_t TVirtualPad::PadInSelectionMode ( ) const

virtualinherited

Should always return false unless you have non-standard picking.

Definition at line 148 of file TVirtualPad.cxx.

PadtoX()

Double_t TPad::PadtoX ( Double_t x ) const

overridevirtualinherited

Implements TVirtualPad.

PadtoY()

Double_t TPad::PadtoY ( Double_t y ) const

overridevirtualinherited

Implements TVirtualPad.

Paint()

void TPad::Paint ( Option_t * option = "" )

overridevirtualinherited

This method must be overridden if a class wants to paint itself.

The difference between Paint() and Draw() is that when a object draws itself it is added to the display list of the pad in which it is drawn (and automatically redrawn whenever the pad is redrawn). While paint just draws the object without adding it to the pad display list.

Implements TVirtualPad.

PaintBorder()

void TPad::PaintBorder ( Color_t color, Bool_t tops )

protectedinherited

PaintBorderPS()

void TPad::PaintBorderPS ( Double_t xl, Double_t yl, Double_t xt, Double_t yt, Int_t bmode, Int_t bsize, Int_t dark, Int_t light )

overrideprotectedvirtualinherited

Implements TVirtualPad.

PaintBox()

void TPad::PaintBox ( Double_t x1, Double_t y1, Double_t x2, Double_t y2, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintDate()

void TPad::PaintDate ( )

protectedinherited

PaintFillArea() [1/2]

void TPad::PaintFillArea ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintFillArea() [2/2]

void TPad::PaintFillArea ( Int_t n, Float_t * x, Float_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintFillAreaHatches()

void TPad::PaintFillAreaHatches ( Int_t n, Double_t * x, Double_t * y, Int_t FillStyle )

inherited

PaintFillAreaNDC()

void TPad::PaintFillAreaNDC ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintHatches()

void TPad::PaintHatches ( Double_t dy, Double_t angle, Int_t nn, Double_t * xx, Double_t * yy )

inherited

PaintLine()

void TPad::PaintLine ( Double_t x1, Double_t y1, Double_t x2, Double_t y2 )

overridevirtualinherited

Implements TVirtualPad.

PaintLine3D() [1/2]

void TPad::PaintLine3D ( Double_t * p1, Double_t * p2 )

overridevirtualinherited

Implements TVirtualPad.

PaintLine3D() [2/2]

void TPad::PaintLine3D ( Float_t * p1, Float_t * p2 )

overridevirtualinherited

Implements TVirtualPad.

PaintLineNDC()

void TPad::PaintLineNDC ( Double_t u1, Double_t v1, Double_t u2, Double_t v2 )

overridevirtualinherited

Implements TVirtualPad.

PaintMarker3D()

void TPad::PaintMarker3D ( Double_t x, Double_t y, Double_t z )

overridevirtualinherited

Implements TVirtualPad.

PaintModified()

void TPad::PaintModified ( )

overridevirtualinherited

Implements TVirtualPad.

PaintPadFrame()

void TPad::PaintPadFrame ( Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyLine() [1/2]

void TPad::PaintPolyLine ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyLine() [2/2]

void TPad::PaintPolyLine ( Int_t n, Float_t * x, Float_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyLine3D()

void TPad::PaintPolyLine3D ( Int_t n, Double_t * p )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyLineNDC()

void TPad::PaintPolyLineNDC ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyMarker() [1/2]

void TPad::PaintPolyMarker ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintPolyMarker() [2/2]

void TPad::PaintPolyMarker ( Int_t n, Float_t * x, Float_t * y, Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

PaintSegments()

void TPad::PaintSegments ( Int_t n, Double_t * x, Double_t * y, Option_t * option = "" )

overridevirtualinherited

Paint N individual segments Provided arrays should have 2*n elements IMPORTANT!

Provided arrays can be modified after function call!

Reimplemented from TVirtualPad.

PaintSegmentsNDC()

void TPad::PaintSegmentsNDC ( Int_t n, Double_t * u, Double_t * v )

overridevirtualinherited

Paint N individual segments in NDC coordinates Provided arrays should have 2*n elements.

Reimplemented from TVirtualPad.

PaintText() [1/2]

void TPad::PaintText ( Double_t x, Double_t y, const char * text )

overridevirtualinherited

Implements TVirtualPad.

PaintText() [2/2]

void TPad::PaintText ( Double_t x, Double_t y, const wchar_t * text )

overridevirtualinherited

Implements TVirtualPad.

PaintTextNDC() [1/2]

void TPad::PaintTextNDC ( Double_t u, Double_t v, const char * text )

overridevirtualinherited

Implements TVirtualPad.

PaintTextNDC() [2/2]

void TPad::PaintTextNDC ( Double_t u, Double_t v, const wchar_t * text )

overridevirtualinherited

Implements TVirtualPad.

PaintTextUrl()

void TPad::PaintTextUrl ( Double_t x, Double_t y, const char * text, const char * url )

overridevirtualinherited

Implements TVirtualPad.

Pick()

virtual TPad * TPad::Pick ( Int_t px, Int_t py, TObjLink *& pickobj )

virtualinherited

Reimplemented in TCanvas.

PixeltoX()

Double_t TPad::PixeltoX ( Double_t px )

overridevirtualinherited

Implements TVirtualPad.

PixeltoXY()

void TPad::PixeltoXY ( Double_t xpixel, Double_t ypixel, Double_t & x, Double_t & y )

overridevirtualinherited

Implements TVirtualPad.

PixeltoY()

Double_t TPad::PixeltoY ( Double_t py )

overridevirtualinherited

Implements TVirtualPad.

PlaceBox()

Bool_t TPad::PlaceBox ( TObject * o, Double_t w, Double_t h, Double_t & xl, Double_t & yb, Option_t * option = "lb" )

overridevirtualinherited

Implements TVirtualPad.

Pop()

void TPad::Pop ( )

overridevirtualinherited

Pop on object drawn in a pad to the top of the display list.

I.e. it will be drawn last and on top of all other primitives.

Implements TVirtualPad.

PopTopLevelSelectable()

void TVirtualPad::PopTopLevelSelectable ( )

virtualinherited

Does nothing, unless you implement your own picking.

Remove top level selectable and all its' children.

Definition at line 206 of file TVirtualPad.cxx.

Print() [1/2]

void TPad::Print ( const char * filename, Option_t * option )

overridevirtualinherited

Implements TVirtualPad.

Print() [2/2]

void TPad::Print ( const char * option = "" ) const

overridevirtualinherited

This method must be overridden when a class wants to print itself.

Implements TVirtualPad.

PushSelectableObject()

void TVirtualPad::PushSelectableObject ( TObject * obj )

virtualinherited

Does nothing, unless you implement your own picking.

"Complete" object, or part of complex object, which can be picked.

Definition at line 198 of file TVirtualPad.cxx.

PushTopLevelSelectable()

void TVirtualPad::PushTopLevelSelectable ( TObject * top )

virtualinherited

Does nothing, unless you implement your own picking.

When complex object containing sub-objects (which can be picked) is painted in a pad, this "top-level" object is pushed into the selectables stack.

Definition at line 189 of file TVirtualPad.cxx.

Range()

void TPad::Range ( Double_t x1, Double_t y1, Double_t x2, Double_t y2 )

overridevirtualinherited

Implements TVirtualPad.

RangeAxis()

void TPad::RangeAxis ( Double_t xmin, Double_t ymin, Double_t xmax, Double_t ymax )

overridevirtualinherited

Implements TVirtualPad.

RangeAxisChanged()

virtual void TVirtualPad::RangeAxisChanged ( )

inlinevirtualinherited

Definition at line 211 of file TVirtualPad.h.

RangeChanged()

virtual void TPad::RangeChanged ( )

inlinevirtualinherited

Definition at line 322 of file TPad.h.

Read()

Int_t TObject::Read ( const char * name )

virtualinherited

Read contents of object with specified name from the current directory.

First the key with the given name is searched in the current directory, next the key buffer is deserialized into the object. The object must have been created before via the default constructor. See TObject::Write().

Reimplemented in TBuffer, TKey, TKeySQL, and TKeyXML.

Definition at line 673 of file TObject.cxx.

RecordLatex()

virtual void TPad::RecordLatex ( const TObject * obj )

virtualinherited

RecordPave()

virtual void TPad::RecordPave ( const TObject * obj )

virtualinherited

RecursiveRemove()

void TPad::RecursiveRemove ( TObject * obj )

overridevirtualinherited

Recursively remove this object from a list.

Typically implemented by classes that can contain multiple references to a same object.

Implements TVirtualPad.

RedrawAxis()

void TPad::RedrawAxis ( Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

ReleaseViewer3D()

void TPad::ReleaseViewer3D ( Option_t * type = "" )

overridevirtualinherited

Implements TVirtualPad.

Remove()

TObject * TPad::Remove ( TObject * obj, Bool_t modified = kTRUE )

overridevirtualinherited

Implements TVirtualPad.

ResetAttFill()

virtual void TAttFill::ResetAttFill ( Option_t * option = "" )

virtualinherited

Reimplemented in TGWin32VirtualXProxy.

ResetAttLine()

virtual void TAttLine::ResetAttLine ( Option_t * option = "" )

virtualinherited

Reimplemented in TGWin32VirtualXProxy.

ResetAttPad()

void TAttPad::ResetAttPad ( Option_t * option = "" )

virtualinherited

Reset pad attributes.

Definition at line 74 of file TAttPad.cxx.

ResetBit()

void TObject::ResetBit ( UInt_t f )

inlineinherited

Definition at line 203 of file TObject.h.

ResetToolTip()

void TPad::ResetToolTip ( TObject * tip )

overridevirtualinherited

Implements TVirtualPad.

ResetView3D()

void TPad::ResetView3D ( TObject * view = nullptr )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 327 of file TPad.h.

Resized()

virtual void TPad::Resized ( )

inlinevirtualinherited

Definition at line 329 of file TPad.h.

ResizePad()

void TPad::ResizePad ( Option_t * option = "" )

overridevirtualinherited

Implements TVirtualPad.

SaveAs()

void TPad::SaveAs ( const char * filename = "", Option_t * option = "" ) const

overridevirtualinherited

Save this object in the file specified by filename.

• if "filename" contains ".root" the object is saved in filename as root binary file.
• if "filename" contains ".xml" the object is saved in filename as a xml ascii file.
• if "filename" contains ".cc" the object is saved in filename as C code independent from ROOT. The code is generated via SavePrimitive(). Specific code should be implemented in each object to handle this option. Like in TF1::SavePrimitive().

• otherwise the object is written to filename as a CINT/C++ script. The C++ code to rebuild this object is generated via SavePrimitive(). The "option" parameter is passed to SavePrimitive. By default it is an empty string. It can be used to specify the Draw option in the code generated by SavePrimitive.

  The function is available via the object context menu.

Implements TVirtualPad.

SaveFillAttributes()

virtual void TAttFill::SaveFillAttributes ( std::ostream & out, const char * name, Int_t coldef = 1, Int_t stydef = 1001 )

virtualinherited

SaveLineAttributes()

virtual void TAttLine::SaveLineAttributes ( std::ostream & out, const char * name, Int_t coldef = 1, Int_t stydef = 1, Int_t widdef = 1 )

virtualinherited

SavePrimitive()

void TSlider::SavePrimitive ( std::ostream & out, Option_t * option = "" )

overridevirtual

Save primitive as a C++ statement(s) on output stream out.

Reimplemented from TPad.

Definition at line 152 of file TSlider.cxx.

SavePrimitiveConstructor()

void TObject::SavePrimitiveConstructor ( std::ostream & out, TClass * cl, const char * variable_name, const char * constructor_agrs = "", Bool_t empty_line = kTRUE )

staticprotectedinherited

Save object constructor in the output stream "out".

Can be used as first statement when implementing SavePrimitive() method for the object

Definition at line 777 of file TObject.cxx.

SavePrimitiveDraw()

void TObject::SavePrimitiveDraw ( std::ostream & out, const char * variable_name, Option_t * option = nullptr )

staticprotectedinherited

Save invocation of primitive Draw() method Skipped if option contains "nodraw" string.

Definition at line 845 of file TObject.cxx.

SavePrimitiveVector()

TString TObject::SavePrimitiveVector ( std::ostream & out, const char * prefix, Int_t len, Double_t * arr, Int_t flag = 0 )

staticprotectedinherited

Save array in the output stream "out" as vector.

Create unique variable name based on prefix value Returns name of vector which can be used in constructor or in other places of C++ code If flag === kTRUE, just add empty line If flag === 111, check if array is empty and return nullptr or <vectorname>.data()

Definition at line 796 of file TObject.cxx.

SetAfile()

virtual void TAttPad::SetAfile ( Float_t afile )

inlinevirtualinherited

Definition at line 67 of file TAttPad.h.

SetAstat()

virtual void TAttPad::SetAstat ( Float_t astat )

inlinevirtualinherited

Definition at line 70 of file TAttPad.h.

SetAttFillPS()

void TPad::SetAttFillPS ( Color_t color, Style_t style )

overridevirtualinherited

Implements TVirtualPad.

SetAttLinePS()

void TPad::SetAttLinePS ( Color_t color, Style_t style, Width_t lwidth )

overridevirtualinherited

Implements TVirtualPad.

SetAttMarkerPS()

void TPad::SetAttMarkerPS ( Color_t color, Style_t style, Size_t msize )

overridevirtualinherited

Implements TVirtualPad.

SetAttTextPS()

void TPad::SetAttTextPS ( Int_t align, Float_t angle, Color_t color, Style_t font, Float_t tsize )

overridevirtualinherited

Implements TVirtualPad.

SetBatch()

void TPad::SetBatch ( Bool_t batch = kTRUE )

overrideprotectedvirtualinherited

Implements TVirtualPad.

SetBBoxCenter()

void TPad::SetBBoxCenter ( const TPoint & p )

overridevirtualinherited

Reimplemented from TAttBBox2D.

SetBBoxCenterX()

void TPad::SetBBoxCenterX ( const Int_t x )

overridevirtualinherited

Implements TAttBBox2D.

SetBBoxCenterY()

void TPad::SetBBoxCenterY ( const Int_t y )

overridevirtualinherited

Implements TAttBBox2D.

SetBBoxX1()

void TPad::SetBBoxX1 ( const Int_t x )

overridevirtualinherited

Implements TAttBBox2D.

SetBBoxX2()

void TPad::SetBBoxX2 ( const Int_t x )

overridevirtualinherited

Implements TAttBBox2D.

SetBBoxY1()

void TPad::SetBBoxY1 ( const Int_t y )

overridevirtualinherited

Implements TAttBBox2D.

SetBBoxY2()

void TPad::SetBBoxY2 ( const Int_t y )

overridevirtualinherited

Implements TAttBBox2D.

SetBit() [1/2]

void TObject::SetBit ( UInt_t f )

inlineinherited

Definition at line 202 of file TObject.h.

SetBit() [2/2]

void TObject::SetBit ( UInt_t f, Bool_t set )

inherited

Set or unset the user status bits as specified in f.

Definition at line 888 of file TObject.cxx.

SetBorderMode()

void TPad::SetBorderMode ( Short_t bordermode )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 331 of file TPad.h.

SetBorderSize()

void TPad::SetBorderSize ( Short_t bordersize )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 332 of file TPad.h.

SetBottomMargin()

void TAttPad::SetBottomMargin ( Float_t bottommargin )

virtualinherited

Set Pad bottom margin in fraction of the pad height.

Definition at line 98 of file TAttPad.cxx.

SetCanvas()

void TPad::SetCanvas ( TCanvas * c )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 333 of file TPad.h.

SetCanvasSize()

void TPad::SetCanvasSize ( UInt_t ww, UInt_t wh )

overridevirtualinherited

Implements TVirtualPad.

SetCopyGLDevice()

void TPad::SetCopyGLDevice ( Bool_t copy )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 373 of file TPad.h.

SetCrosshair()

void TPad::SetCrosshair ( Int_t crhair = 1 )

overridevirtualinherited

Implements TVirtualPad.

SetCursor()

void TPad::SetCursor ( ECursor cursor )

overridevirtualinherited

Implements TVirtualPad.

SetDoubleBuffer()

void TPad::SetDoubleBuffer ( Int_t mode = 1 )

overridevirtualinherited

Implements TVirtualPad.

SetDrawOption()

void TPad::SetDrawOption ( Option_t * option = "" )

inlineoverridevirtualinherited

Set drawing option for object.

This option only affects the drawing style and is stored in the option field of the TObjOptLink supporting a TPad's primitive list (TList). Note that it does not make sense to call object.SetDrawOption(option) before having called object.Draw().

Reimplemented from TObject.

Definition at line 338 of file TPad.h.

SetDtorOnly()

void TObject::SetDtorOnly ( void * obj )

staticinherited

Set destructor only flag.

Definition at line 1204 of file TObject.cxx.

SetEditable()

void TPad::SetEditable ( Bool_t mode = kTRUE )

overridevirtualinherited

Implements TVirtualPad.

SetFillAttributes()

virtual void TAttFill::SetFillAttributes ( )

virtualinherited

Reimplemented in TGWin32VirtualXProxy.

SetFillColor() [1/2]

virtual void TAttFill::SetFillColor ( Color_t fcolor )

inlinevirtualinherited

Set the fill area color.

Reimplemented in TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TPDF, TPostScript, TSpider, TSVG, TTeXDump, and TVirtualX.

Definition at line 40 of file TAttFill.h.

SetFillColor() [2/2]

void TAttFill::SetFillColor ( TColorNumber )

inherited

SetFillColorAlpha()

virtual void TAttFill::SetFillColorAlpha ( Color_t fcolor, Float_t falpha )

virtualinherited

Reimplemented in TGraphMultiErrors.

SetFillStyle()

void TPad::SetFillStyle ( Style_t fstyle )

overridevirtualinherited

Set the fill area style.

Reimplemented from TAttFill.

SetFixedAspectRatio()

void TPad::SetFixedAspectRatio ( Bool_t fixed = kTRUE )

overridevirtualinherited

Implements TVirtualPad.

SetFrameBorderMode()

void TAttPad::SetFrameBorderMode ( Int_t mode = 1 )

inlineinherited

Definition at line 79 of file TAttPad.h.

SetFrameBorderSize()

void TAttPad::SetFrameBorderSize ( Width_t size = 1 )

inlineinherited

Definition at line 78 of file TAttPad.h.

SetFrameFillColor()

void TAttPad::SetFrameFillColor ( Color_t color = 1 )

inlineinherited

Definition at line 73 of file TAttPad.h.

SetFrameFillStyle()

void TAttPad::SetFrameFillStyle ( Style_t styl = 0 )

inlineinherited

Definition at line 75 of file TAttPad.h.

SetFrameLineColor()

void TAttPad::SetFrameLineColor ( Color_t color = 1 )

inlineinherited

Definition at line 74 of file TAttPad.h.

SetFrameLineStyle()

void TAttPad::SetFrameLineStyle ( Style_t styl = 0 )

inlineinherited

Definition at line 76 of file TAttPad.h.

SetFrameLineWidth()

void TAttPad::SetFrameLineWidth ( Width_t width = 1 )

inlineinherited

Definition at line 77 of file TAttPad.h.

SetGLDevice()

virtual void TPad::SetGLDevice ( Int_t dev )

inlinevirtualinherited

Definition at line 372 of file TPad.h.

SetGrid()

void TPad::SetGrid ( Int_t valuex = 1, Int_t valuey = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 341 of file TPad.h.

SetGridx()

void TPad::SetGridx ( Int_t value = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 342 of file TPad.h.

SetGridy()

void TPad::SetGridy ( Int_t value = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 343 of file TPad.h.

SetLeftMargin()

void TAttPad::SetLeftMargin ( Float_t leftmargin )

virtualinherited

Set Pad left margin in fraction of the pad width.

Definition at line 108 of file TAttPad.cxx.

SetLineAttributes()

virtual void TAttLine::SetLineAttributes ( )

virtualinherited

Reimplemented in TGWin32VirtualXProxy.

SetLineColor() [1/2]

virtual void TAttLine::SetLineColor ( Color_t lcolor )

inlinevirtualinherited

Set the line color.

Reimplemented in ROOT::Experimental::REveLine, ROOT::Experimental::REveStraightLineSet, ROOT::Experimental::REveTrackList, TEveLine, TEveStraightLineSet, TEveTrackList, TGeoVolume, TGeoVolumeMulti, TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TParallelCoordRange, TPDF, TPostScript, TSpider, TSVG, TTeXDump, and TVirtualX.

Definition at line 44 of file TAttLine.h.

SetLineColor() [2/2]

void TAttLine::SetLineColor ( TColorNumber lcolor )

inherited

SetLineColorAlpha()

virtual void TAttLine::SetLineColorAlpha ( Color_t lcolor, Float_t lalpha )

virtualinherited

Reimplemented in TGraphMultiErrors.

SetLineStyle()

virtual void TAttLine::SetLineStyle ( Style_t lstyle )

inlinevirtualinherited

Set the line style.

Reimplemented in ROOT::Experimental::REveLine, ROOT::Experimental::REveTrackList, TEveLine, TEveTrackList, TGeoVolume, TGeoVolumeMulti, TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TPDF, TPostScript, TSpider, TSVG, TTeXDump, and TVirtualX.

Definition at line 46 of file TAttLine.h.

SetLineWidth()

virtual void TAttLine::SetLineWidth ( Width_t lwidth )

inlinevirtualinherited

Set the line width.

Reimplemented in ROOT::Experimental::REveLine, ROOT::Experimental::REveTrackList, TEveLine, TEveTrackList, TGeoVolume, TGeoVolumeMulti, TGQuartz, TGraphMultiErrors, TGWin32, TGWin32VirtualXProxy, TGX11, TPaletteAxis, TParallelCoordRange, TPDF, TPostScript, TSpider, TSVG, TTeXDump, and TVirtualX.

Definition at line 47 of file TAttLine.h.

SetLogx()

void TPad::SetLogx ( Int_t value = 1 )

overridevirtualinherited

Implements TVirtualPad.

SetLogy()

void TPad::SetLogy ( Int_t value = 1 )

overridevirtualinherited

Implements TVirtualPad.

SetLogz()

void TPad::SetLogz ( Int_t value = 1 )

overridevirtualinherited

Implements TVirtualPad.

SetMargin()

void TAttPad::SetMargin ( Float_t left, Float_t right, Float_t bottom, Float_t top )

virtualinherited

Set all margins.

Definition at line 138 of file TAttPad.cxx.

SetMaximum()

virtual void TSlider::SetMaximum ( Double_t max = 1 )

inlinevirtual

Definition at line 41 of file TSlider.h.

SetMaxPickDistance()

void TPad::SetMaxPickDistance ( Int_t maxPick = 5 )

staticinherited

SetMethod()

virtual void TSlider::SetMethod ( const char * method )

inlinevirtual

Definition at line 38 of file TSlider.h.

SetMinimum()

virtual void TSlider::SetMinimum ( Double_t min = 0 )

inlinevirtual

Definition at line 40 of file TSlider.h.

SetName()

void TPad::SetName ( const char * name )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 359 of file TPad.h.

SetNumber()

virtual void TPad::SetNumber ( Int_t number )

inlinevirtualinherited

Definition at line 348 of file TPad.h.

SetObject()

void TSlider::SetObject ( TObject * obj = nullptr )

inline

Definition at line 39 of file TSlider.h.

SetObjectStat()

void TObject::SetObjectStat ( Bool_t stat )

staticinherited

Turn on/off tracking of objects in the TObjectTable.

Definition at line 1188 of file TObject.cxx.

SetPad() [1/2]

void TPad::SetPad ( const char * name, const char * title, Double_t xlow, Double_t ylow, Double_t xup, Double_t yup, Color_t color = 35, Short_t bordersize = 5, Short_t bordermode = -1 )

overridevirtualinherited

Implements TVirtualPad.

SetPad() [2/2]

void TPad::SetPad ( Double_t xlow, Double_t ylow, Double_t xup, Double_t yup )

overridevirtualinherited

Implements TVirtualPad.

SetPhi()

void TPad::SetPhi ( Double_t phi = 30 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 366 of file TPad.h.

SetRange()

void TSlider::SetRange ( Double_t xmin = 0, Double_t xmax = 1 )

virtual

Set Slider range in [0,1].

Definition at line 179 of file TSlider.cxx.

SetRightMargin()

void TAttPad::SetRightMargin ( Float_t rightmargin )

virtualinherited

Set Pad right margin in fraction of the pad width.

Definition at line 118 of file TAttPad.cxx.

SetSelected()

void TPad::SetSelected ( TObject * obj )

overridevirtualinherited

Implements TVirtualPad.

SetTheta()

void TPad::SetTheta ( Double_t theta = 30 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 365 of file TPad.h.

SetTicks()

void TPad::SetTicks ( Int_t valuex = 1, Int_t valuey = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 361 of file TPad.h.

SetTickx()

void TPad::SetTickx ( Int_t value = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 362 of file TPad.h.

SetTicky()

void TPad::SetTicky ( Int_t value = 1 )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 363 of file TPad.h.

SetTitle()

void TPad::SetTitle ( const char * title = "" )

inlineoverridevirtualinherited

Implements TVirtualPad.

Definition at line 364 of file TPad.h.

SetToolTipText()

void TPad::SetToolTipText ( const char * text, Long_t delayms = 1000 )

overridevirtualinherited

Implements TVirtualPad.

SetTopMargin()

void TAttPad::SetTopMargin ( Float_t topmargin )

virtualinherited

Set Pad top margin in fraction of the pad height.

Definition at line 128 of file TAttPad.cxx.

SetUniqueID()

void TObject::SetUniqueID ( UInt_t uid )

virtualinherited

Set the unique object id.

Definition at line 899 of file TObject.cxx.

SetVertical()

void TPad::SetVertical ( Bool_t vert = kTRUE )

overridevirtualinherited

Implements TVirtualPad.

SetView()

void TPad::SetView ( TView * view = nullptr )

overridevirtualinherited

Implements TVirtualPad.

SetViewer3D()

void TPad::SetViewer3D ( TVirtualViewer3D * viewer3d )

inlineoverridevirtualinherited

Reimplemented from TVirtualPad.

Definition at line 370 of file TPad.h.

SetXfile()

virtual void TAttPad::SetXfile ( Float_t xfile )

inlinevirtualinherited

Definition at line 68 of file TAttPad.h.

SetXstat()

virtual void TAttPad::SetXstat ( Float_t xstat )

inlinevirtualinherited

Definition at line 71 of file TAttPad.h.

SetYfile()

virtual void TAttPad::SetYfile ( Float_t yfile )

inlinevirtualinherited

Definition at line 69 of file TAttPad.h.

SetYstat()

virtual void TAttPad::SetYstat ( Float_t ystat )

inlinevirtualinherited

Definition at line 72 of file TAttPad.h.

ShowGuidelines()

void TPad::ShowGuidelines ( TObject * object, const Int_t event, const char mode = 'i', const bool cling = true )

overridevirtualinherited

Implements TVirtualPad.

StartEditing()

virtual void TPad::StartEditing ( )

inlinevirtualinherited

Definition at line 427 of file TPad.h.

Streamer()

void TSlider::Streamer ( TBuffer & R__b )

overridevirtual

Stream an object of class TObject.

Reimplemented from TPad.

StreamerNVirtual()

void TSlider::StreamerNVirtual ( TBuffer & ClassDef_StreamerNVirtual_b )

inline

Definition at line 44 of file TSlider.h.

SysError()

void TObject::SysError ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue system error message.

Use "location" to specify the method where the system error occurred. Accepts standard printf formatting arguments.

Definition at line 1112 of file TObject.cxx.

TestBit()

Bool_t TObject::TestBit ( UInt_t f ) const

inlineinherited

Definition at line 204 of file TObject.h.

TestBits()

Int_t TObject::TestBits ( UInt_t f ) const

inlineinherited

Definition at line 205 of file TObject.h.

UnZoomed()

virtual void TVirtualPad::UnZoomed ( )

inlinevirtualinherited

Definition at line 99 of file TVirtualPad.h.

Update()

void TPad::Update ( )

overridevirtualinherited

Implements TVirtualPad.

UpdateAsync()

void TPad::UpdateAsync ( )

overridevirtualinherited

Implements TVirtualPad.

UseCurrentStyle()

void TPad::UseCurrentStyle ( )

overridevirtualinherited

Set current style settings in this object This function is called when either TCanvas::UseCurrentStyle or TROOT::ForceStyle have been invoked.

Reimplemented from TObject.

UtoAbsPixel()

Int_t TPad::UtoAbsPixel ( Double_t u ) const

overridevirtualinherited

Implements TVirtualPad.

UtoPixel()

Int_t TPad::UtoPixel ( Double_t u ) const

overridevirtualinherited

Implements TVirtualPad.

VtoAbsPixel()

Int_t TPad::VtoAbsPixel ( Double_t v ) const

overridevirtualinherited

Implements TVirtualPad.

VtoPixel()

Int_t TPad::VtoPixel ( Double_t v ) const

overridevirtualinherited

Implements TVirtualPad.

WaitPrimitive()

TObject * TPad::WaitPrimitive ( const char * pname = "", const char * emode = "" )

overridevirtualinherited

Implements TVirtualPad.

Warning()

void TObject::Warning ( const char * location, const char * fmt, ... ) const

virtualinherited

Issue warning message.

Use "location" to specify the method where the warning occurred. Accepts standard printf formatting arguments.

Definition at line 1084 of file TObject.cxx.

Write() [1/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 )

virtualinherited

Write this object to the current directory.

For more see the const version of this method.

Reimplemented in ROOT::TBufferMergerFile, TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 989 of file TObject.cxx.

Write() [2/2]

Int_t TObject::Write ( const char * name = nullptr, Int_t option = 0, Int_t bufsize = 0 ) const

virtualinherited

Write this object to the current directory.

The data structure corresponding to this object is serialized. The corresponding buffer is written to the current directory with an associated key with name "name".

Writing an object to a file involves the following steps:

• Creation of a support TKey object in the current directory. The TKey object creates a TBuffer object.
• The TBuffer object is filled via the class::Streamer function.
• If the file is compressed (default) a second buffer is created to hold the compressed buffer.
• Reservation of the corresponding space in the file by looking in the TFree list of free blocks of the file.
• The buffer is written to the file.

Bufsize can be given to force a given buffer size to write this object. By default, the buffersize will be taken from the average buffer size of all objects written to the current file so far.

If a name is specified, it will be the name of the key. If name is not given, the name of the key will be the name as returned by GetName().

The option can be a combination of: kSingleKey, kOverwrite or kWriteDelete Using the kOverwrite option a previous key with the same name is overwritten. The previous key is deleted before writing the new object. Using the kWriteDelete option a previous key with the same name is deleted only after the new object has been written. This option is safer than kOverwrite but it is slower. NOTE: Neither kOverwrite nor kWriteDelete reduces the size of a TFile– the space is simply freed up to be overwritten; in the case of a TTree, it is more complicated. If one opens a TTree, appends some entries, then writes it out, the behaviour is effectively the same. If, however, one creates a new TTree and writes it out in this way, only the metadata is replaced, effectively making the old data invisible without deleting it. TTree::Delete() can be used to mark all disk space occupied by a TTree as free before overwriting its metadata this way. The kSingleKey option is only used by TCollection::Write() to write a container with a single key instead of each object in the container with its own key.

An object is read from the file into memory via TKey::Read() or via TObject::Read().

The function returns the total number of bytes written to the file. It returns 0 if the object cannot be written.

Reimplemented in TBuffer, TCollection, TDirectory, TDirectoryFile, TFile, TMap, TParallelMergingFile, TSQLFile, TTree, and TXMLFile.

Definition at line 964 of file TObject.cxx.

WtoAbsPixel()

Int_t TPad::WtoAbsPixel ( Double_t x1, Double_t x2 ) const

overridevirtualinherited

Implements TVirtualPad.

x3d()

virtual void TPad::x3d ( Option_t * type = "" )

virtualinherited

Reimplemented in TButton, TDialogCanvas, and TInspectCanvas.

XtoAbsPixel()

Int_t TPad::XtoAbsPixel ( Double_t x ) const

overridevirtualinherited

Implements TVirtualPad.

XtoPad()

Double_t TPad::XtoPad ( Double_t x ) const

overridevirtualinherited

Implements TVirtualPad.

XtoPixel()

Int_t TPad::XtoPixel ( Double_t x ) const

overridevirtualinherited

Implements TVirtualPad.

XYtoAbsPixel() [1/2]

void TPad::XYtoAbsPixel ( Double_t x, Double_t y, Double_t & xpixel, Double_t & ypixel ) const

overridevirtualinherited

Implements TVirtualPad.

XYtoAbsPixel() [2/2]

void TPad::XYtoAbsPixel ( Double_t x, Double_t y, Int_t & xpixel, Int_t & ypixel ) const

overridevirtualinherited

Implements TVirtualPad.

XYtoPixel() [1/2]

void TPad::XYtoPixel ( Double_t x, Double_t y, Double_t & xpixel, Double_t & ypixel ) const

overridevirtualinherited

Implements TVirtualPad.

XYtoPixel() [2/2]

void TPad::XYtoPixel ( Double_t x, Double_t y, Int_t & xpixel, Int_t & ypixel ) const

overridevirtualinherited

Implements TVirtualPad.

YtoAbsPixel()

Int_t TPad::YtoAbsPixel ( Double_t y ) const

overridevirtualinherited

Implements TVirtualPad.

YtoPad()

Double_t TPad::YtoPad ( Double_t y ) const

overridevirtualinherited

Implements TVirtualPad.

YtoPixel()

Int_t TPad::YtoPixel ( Double_t y ) const

overridevirtualinherited

Implements TVirtualPad.

Member Data Documentation

fAbsCoord

Bool_t TPad::fAbsCoord

protectedinherited

Use absolute coordinates.

Definition at line 102 of file TPad.h.

fAbsHNDC

Double_t TPad::fAbsHNDC

protectedinherited

Absolute Height of pad along Y in NDC.

Definition at line 72 of file TPad.h.

fAbsPixeltoXk

Double_t TPad::fAbsPixeltoXk

protectedinherited

Conversion coefficient for absolute pixel to X World.

Definition at line 55 of file TPad.h.

fAbsPixeltoYk

Double_t TPad::fAbsPixeltoYk

protectedinherited

Conversion coefficient for absolute pixel to Y World.

Definition at line 58 of file TPad.h.

fAbsWNDC

Double_t TPad::fAbsWNDC

protectedinherited

Absolute Width of pad along X in NDC.

Definition at line 71 of file TPad.h.

fAbsXlowNDC

Double_t TPad::fAbsXlowNDC

protectedinherited

Absolute X top left corner of pad in NDC [0,1].

Definition at line 69 of file TPad.h.

fAbsYlowNDC

Double_t TPad::fAbsYlowNDC

protectedinherited

Absolute Y top left corner of pad in NDC [0,1].

Definition at line 70 of file TPad.h.

fAfile

Float_t TAttPad::fAfile

protectedinherited

Alignment for the file name.

Definition at line 27 of file TAttPad.h.

fAspectRatio

Double_t TPad::fAspectRatio

protectedinherited

ratio of w/h in case of fixed ratio

Definition at line 82 of file TPad.h.

fAstat

Float_t TAttPad::fAstat

protectedinherited

Alignment for the statistics.

Definition at line 30 of file TAttPad.h.

fBits

UInt_t TObject::fBits

privateinherited

bit field status word

Definition at line 47 of file TObject.h.

fBorderMode

Short_t TPad::fBorderMode

protectedinherited

Bordermode (-1=down, 0 = no border, 1=up).

Definition at line 98 of file TPad.h.

fBorderSize

Short_t TPad::fBorderSize

protectedinherited

pad bordersize in pixels

Definition at line 97 of file TPad.h.

fBottomMargin

Float_t TAttPad::fBottomMargin

protectedinherited

BottomMargin.

Definition at line 23 of file TAttPad.h.

fCanvas

TCanvas* TPad::fCanvas {nullptr}

protectedinherited

! Pointer to mother canvas

Definition at line 106 of file TPad.h.

fCGnx

Int_t TPad::fCGnx

protectedinherited

! Size of the collide grid along x

Definition at line 119 of file TPad.h.

fCGny

Int_t TPad::fCGny

protectedinherited

! Size of the collide grid along y

Definition at line 120 of file TPad.h.

fCollideGrid

std::vector<Bool_t> TPad::fCollideGrid

protectedinherited

! Grid used to find empty space when adding a box (Legend) in a pad

Definition at line 118 of file TPad.h.

fCopyGLDevice

Bool_t TPad::fCopyGLDevice

protectedinherited

!

Definition at line 86 of file TPad.h.

fCrosshair

Int_t TPad::fCrosshair

protectedinherited

Crosshair type (0 if no crosshair requested).

Definition at line 95 of file TPad.h.

fCrosshairPos

Int_t TPad::fCrosshairPos

protectedinherited

Position of crosshair.

Definition at line 96 of file TPad.h.

fEditable

Bool_t TPad::fEditable

protectedinherited

True if canvas is editable.

Definition at line 103 of file TPad.h.

fEmbeddedGL

Bool_t TPad::fEmbeddedGL

protectedinherited

!

Definition at line 87 of file TPad.h.

fExecs

TList* TPad::fExecs {nullptr}

protectedinherited

List of commands to be executed when a pad event occurs.

Definition at line 108 of file TPad.h.

fFillColor

Color_t TAttFill::fFillColor

protectedinherited

Fill area color.

Definition at line 24 of file TAttFill.h.

fFillStyle

Style_t TAttFill::fFillStyle

protectedinherited

Fill area style.

Definition at line 25 of file TAttFill.h.

fFixedAspectRatio

Bool_t TPad::fFixedAspectRatio

protectedinherited

True if fixed aspect ratio.

Definition at line 104 of file TPad.h.

fFrame

TFrame* TPad::fFrame {nullptr}

protectedinherited

! Pointer to 2-D frame (if one exists)

Definition at line 111 of file TPad.h.

fFrameBorderMode

Int_t TAttPad::fFrameBorderMode

protectedinherited

Pad frame border mode.

Definition at line 37 of file TAttPad.h.

fFrameBorderSize

Width_t TAttPad::fFrameBorderSize

protectedinherited

Pad frame border size.

Definition at line 36 of file TAttPad.h.

fFrameFillColor

Color_t TAttPad::fFrameFillColor

protectedinherited

Pad frame fill color.

Definition at line 31 of file TAttPad.h.

fFrameFillStyle

Style_t TAttPad::fFrameFillStyle

protectedinherited

Pad frame fill style.

Definition at line 33 of file TAttPad.h.

fFrameLineColor

Color_t TAttPad::fFrameLineColor

protectedinherited

Pad frame line color.

Definition at line 32 of file TAttPad.h.

fFrameLineStyle

Style_t TAttPad::fFrameLineStyle

protectedinherited

Pad frame line style.

Definition at line 34 of file TAttPad.h.

fFrameLineWidth

Width_t TAttPad::fFrameLineWidth

protectedinherited

Pad frame line width.

Definition at line 35 of file TAttPad.h.

fgAllSignalsBlocked

Bool_t TQObject::fgAllSignalsBlocked = kFALSE

staticprotectedinherited

Definition at line 55 of file TQObject.h.

fgDtorOnly

Longptr_t TObject::fgDtorOnly = 0

staticprivateinherited

object for which to call dtor only (i.e. no delete)

Definition at line 49 of file TObject.h.

fGLDevice

Int_t TPad::fGLDevice

protectedinherited

! OpenGL off-screen pixmap identifier

Definition at line 85 of file TPad.h.

fgMaxPickDistance

Int_t TPad::fgMaxPickDistance = 5

staticprotectedinherited

Maximum Pick Distance.

Definition at line 115 of file TPad.h.

fgObjectStat

Bool_t TObject::fgObjectStat = kTRUE

staticprivateinherited

if true keep track of objects in TObjectTable

Definition at line 50 of file TObject.h.

fGridx

Bool_t TPad::fGridx

protectedinherited

Set to true if grid along X.

Definition at line 100 of file TPad.h.

fGridy

Bool_t TPad::fGridy

protectedinherited

Set to true if grid along Y.

Definition at line 101 of file TPad.h.

fHNDC

Double_t TPad::fHNDC

protectedinherited

Height of pad along Y in Normalized Coordinates (NDC).

Definition at line 67 of file TPad.h.

fLeftMargin

Float_t TAttPad::fLeftMargin

protectedinherited

LeftMargin.

Definition at line 21 of file TAttPad.h.

fLineColor

Color_t TAttLine::fLineColor

protectedinherited

Line color.

Definition at line 24 of file TAttLine.h.

fLineStyle

Style_t TAttLine::fLineStyle

protectedinherited

Line style.

Definition at line 25 of file TAttLine.h.

fLineWidth

Width_t TAttLine::fLineWidth

protectedinherited

Line width.

Definition at line 26 of file TAttLine.h.

fListOfConnections

TList* TQObject::fListOfConnections

protectedinherited

! list of connections to this object

Definition at line 52 of file TQObject.h.

fListOfSignals

TList* TQObject::fListOfSignals

protectedinherited

! list of signals from this object

Definition at line 51 of file TQObject.h.

fLogx

Int_t TPad::fLogx

protectedinherited

(=0 if X linear scale, =1 if log scale)

Definition at line 91 of file TPad.h.

fLogy

Int_t TPad::fLogy

protectedinherited

(=0 if Y linear scale, =1 if log scale)

Definition at line 92 of file TPad.h.

fLogz

Int_t TPad::fLogz

protectedinherited

(=0 if Z linear scale, =1 if log scale)

Definition at line 93 of file TPad.h.

fMaximum

Double_t TSlider::fMaximum {1}

protected

Slider maximum value in [0,1].

Definition at line 21 of file TSlider.h.

fMethod

TString TSlider::fMethod

protected

command to be executed when slider is changed

Definition at line 23 of file TSlider.h.

fMinimum

Double_t TSlider::fMinimum {0}

protected

Slider minimum value in [0,1].

Definition at line 20 of file TSlider.h.

fModified

Bool_t TPad::fModified

protectedinherited

Set to true when pad is modified.

Definition at line 99 of file TPad.h.

fMother

TPad* TPad::fMother {nullptr}

protectedinherited

! pointer to mother of the list

Definition at line 105 of file TPad.h.

fName

TString TPad::fName

protectedinherited

Pad name.

Definition at line 109 of file TPad.h.

fNextPaletteColor

Int_t TPad::fNextPaletteColor

protectedinherited

Next automatic color.

Definition at line 117 of file TPad.h.

fNumber

Int_t TPad::fNumber

protectedinherited

pad number identifier

Definition at line 88 of file TPad.h.

fNumPaletteColor

Int_t TPad::fNumPaletteColor

protectedinherited

Number of objects with an automatic color.

Definition at line 116 of file TPad.h.

fObject

TObject* TSlider::fObject {nullptr}

protected

!Pointer to associated object

Definition at line 22 of file TSlider.h.

fPadPaint

Int_t TPad::fPadPaint

protectedinherited

Set to 1 while painting the pad.

Definition at line 94 of file TPad.h.

fPadPointer

TObject* TPad::fPadPointer {nullptr}

protectedinherited

! free pointer

Definition at line 113 of file TPad.h.

fPadView3D

TObject* TPad::fPadView3D {nullptr}

protectedinherited

! 3D View of this TPad

Definition at line 114 of file TPad.h.

fPhi

Double_t TPad::fPhi

protectedinherited

phi angle to view as lego/surface

Definition at line 80 of file TPad.h.

fPixeltoX

Double_t TPad::fPixeltoX

protectedinherited

xworld = fPixeltoXk + fPixeltoX*xpixel

Definition at line 57 of file TPad.h.

fPixeltoXk

Double_t TPad::fPixeltoXk

protectedinherited

Conversion coefficient for pixel to X World.

Definition at line 56 of file TPad.h.

fPixeltoY

Double_t TPad::fPixeltoY

protectedinherited

yworld = fPixeltoYk + fPixeltoY*ypixel

Definition at line 60 of file TPad.h.

fPixeltoYk

Double_t TPad::fPixeltoYk

protectedinherited

Conversion coefficient for pixel to Y World.

Definition at line 59 of file TPad.h.

fPixmapID

Int_t TPad::fPixmapID

protectedinherited

! Off-screen pixmap identifier

Definition at line 84 of file TPad.h.

fPrimitives

TList* TPad::fPrimitives {nullptr}

protectedinherited

->List of primitives (subpads)

Definition at line 107 of file TPad.h.

fResizing

Bool_t TVirtualPad::fResizing

protectedinherited

!true when resizing the pad

Definition at line 54 of file TVirtualPad.h.

fRightMargin

Float_t TAttPad::fRightMargin

protectedinherited

RightMargin.

Definition at line 22 of file TAttPad.h.

fSignalsBlocked

Bool_t TQObject::fSignalsBlocked

protectedinherited

! flag used for suppression of signals

Definition at line 53 of file TQObject.h.

fTheta

Double_t TPad::fTheta

protectedinherited

theta angle to view as lego/surface

Definition at line 79 of file TPad.h.

fTickx

Int_t TPad::fTickx

protectedinherited

Set to 1 if tick marks along X.

Definition at line 89 of file TPad.h.

fTicky

Int_t TPad::fTicky

protectedinherited

Set to 1 if tick marks along Y.

Definition at line 90 of file TPad.h.

fTip

TObject* TPad::fTip {nullptr}

privateinherited

! tool tip associated with box

Definition at line 33 of file TPad.h.

fTitle

TString TPad::fTitle

protectedinherited

Pad title.

Definition at line 110 of file TPad.h.

fTopMargin

Float_t TAttPad::fTopMargin

protectedinherited

TopMargin.

Definition at line 24 of file TAttPad.h.

fUniqueID

UInt_t TObject::fUniqueID

privateinherited

object unique identifier

Definition at line 46 of file TObject.h.

fUtoAbsPixelk

Double_t TPad::fUtoAbsPixelk

protectedinherited

Conversion coefficient for U NDC to absolute pixel.

Definition at line 48 of file TPad.h.

fUtoPixel

Double_t TPad::fUtoPixel

protectedinherited

xpixel = fUtoPixelk + fUtoPixel*undc

Definition at line 50 of file TPad.h.

fUtoPixelk

Double_t TPad::fUtoPixelk

protectedinherited

Conversion coefficient for U NDC to pixel.

Definition at line 49 of file TPad.h.

fUxmax

Double_t TPad::fUxmax

protectedinherited

Maximum value on the X axis.

Definition at line 76 of file TPad.h.

fUxmin

Double_t TPad::fUxmin

protectedinherited

Minimum value on the X axis.

Definition at line 74 of file TPad.h.

fUymax

Double_t TPad::fUymax

protectedinherited

Maximum value on the Y axis.

Definition at line 77 of file TPad.h.

fUymin

Double_t TPad::fUymin

protectedinherited

Minimum value on the Y axis.

Definition at line 75 of file TPad.h.

fView

TView* TPad::fView {nullptr}

protectedinherited

! Pointer to 3-D view (if one exists)

Definition at line 112 of file TPad.h.

fViewer3D

TVirtualViewer3D* TPad::fViewer3D {nullptr}

protectedinherited

! Current 3D viewer

Definition at line 123 of file TPad.h.

fVtoAbsPixelk

Double_t TPad::fVtoAbsPixelk

protectedinherited

Conversion coefficient for V NDC to absolute pixel.

Definition at line 51 of file TPad.h.

fVtoPixel

Double_t TPad::fVtoPixel

protectedinherited

ypixel = fVtoPixelk + fVtoPixel*vndc

Definition at line 53 of file TPad.h.

fVtoPixelk

Double_t TPad::fVtoPixelk

protectedinherited

Conversion coefficient for V NDC to pixel.

Definition at line 52 of file TPad.h.

fWNDC

Double_t TPad::fWNDC

protectedinherited

Width of pad along X in Normalized Coordinates (NDC).

Definition at line 66 of file TPad.h.

fX1

Double_t TPad::fX1

protectedinherited

X of lower X coordinate.

Definition at line 36 of file TPad.h.

fX2

Double_t TPad::fX2

protectedinherited

X of upper X coordinate.

Definition at line 38 of file TPad.h.

fXfile

Float_t TAttPad::fXfile

protectedinherited

X position where to draw the file name.

Definition at line 25 of file TAttPad.h.

fXlowNDC

Double_t TPad::fXlowNDC

protectedinherited

X bottom left corner of pad in NDC [0,1].

Definition at line 62 of file TPad.h.

fXstat

Float_t TAttPad::fXstat

protectedinherited

X position where to draw the statistics.

Definition at line 28 of file TAttPad.h.

fXtoAbsPixelk

Double_t TPad::fXtoAbsPixelk

protectedinherited

Conversion coefficient for X World to absolute pixel.

Definition at line 41 of file TPad.h.

fXtoPixel

Double_t TPad::fXtoPixel

protectedinherited

xpixel = fXtoPixelk + fXtoPixel*xworld

Definition at line 43 of file TPad.h.

fXtoPixelk

Double_t TPad::fXtoPixelk

protectedinherited

Conversion coefficient for X World to pixel.

Definition at line 42 of file TPad.h.

fXUpNDC

Double_t TPad::fXUpNDC

protectedinherited

Definition at line 64 of file TPad.h.

fY1

Double_t TPad::fY1

protectedinherited

Y of lower Y coordinate.

Definition at line 37 of file TPad.h.

fY2

Double_t TPad::fY2

protectedinherited

Y of upper Y coordinate.

Definition at line 39 of file TPad.h.

fYfile

Float_t TAttPad::fYfile

protectedinherited

Y position where to draw the file name.

Definition at line 26 of file TAttPad.h.

fYlowNDC

Double_t TPad::fYlowNDC

protectedinherited

Y bottom left corner of pad in NDC [0,1].

Definition at line 63 of file TPad.h.

fYstat

Float_t TAttPad::fYstat

protectedinherited

Y position where to draw the statistics.

Definition at line 29 of file TAttPad.h.

fYtoAbsPixelk

Double_t TPad::fYtoAbsPixelk

protectedinherited

Conversion coefficient for Y World to absolute pixel.

Definition at line 44 of file TPad.h.

fYtoPixel

Double_t TPad::fYtoPixel

protectedinherited

ypixel = fYtoPixelk + fYtoPixel*yworld

Definition at line 46 of file TPad.h.

fYtoPixelk

Double_t TPad::fYtoPixelk

protectedinherited

Conversion coefficient for Y World to pixel.

Definition at line 45 of file TPad.h.

fYUpNDC

Double_t TPad::fYUpNDC

protectedinherited

Definition at line 65 of file TPad.h.
